batgrbproduct Analysis for Trigger=597570

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Apr 29 19:11:36 EDT 2014
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger597570/GCN5_download_cron
======================================================================

  Trigger: 00597570      Segment: 000

  BAT Trigger Time: 420470020.416   [s; MET]
      Trigger Stop: 420470020.432   [s; MET]
               UTC: 2014-04-29T13:13:28.468540    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 272.159291950148   Dec: -20.4036481092704  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    14.7
     Image Trigger?:     NO
     Rate S/N Ratio:     71.7425954367418  [ if not an image trigger ]
     Image S/N Ratio:    14.7

  Flight Position:   [ source = BAT ]
    RA: 272.159291950148   Dec: -20.4036481092704  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 272.159755930618   Dec: -20.4108722255144  [deg; J2000]
        { 18h 08m 38.3s , -20d 24' 39.1" }
         +/- 1.2646849725318 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.434650706746377 [arcmin] (formal 1-sigma fit error)
    SNR: 21.7484994000738

  Angular difference between Flight and Ground position is 0.434232 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.175999939441681 +/- 0.0533666929262319
        Measured from: -0.00799989700317383
                   to: 0.168000042438507     [s; relative to TRIGTIME]
     T50: 0.0479999184608459 +/- 0.0126491362748289
        Measured from: 0.00400012731552124
                   to: 0.0520000457763672     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.396000027656555
                   to: 0.603999972343445     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0199999809265137
                   to: 0.223999977111816     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.072108   0.074726   0.021044   0.004262
           0.004697   0.004563   0.002855   0.001961 [error]
 Peak      0.080281   0.083381   0.025915   0.003854
           0.007512   0.006851   0.005078   0.004231 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.31e-08 2.53e-08 1.97e-08 2.52e-08 7.75e-08 9.33e-08   erg/cm2
              Error 2.36e-09 1.95e-09 2.54e-09 6.14e-09 6.40e-09 9.69e-09   erg/cm2
Peak flux Power-law 7.84e-01 5.31e-01 2.35e-01 1.44e-01 1.62e+00 1.69e+00   ph/cm2/s
              Error 1.11e-01 5.48e-02 4.05e-02 4.59e-02 1.68e-01 1.74e-01   ph/cm2/s

Fluence   Cutoff-PL 2.11e-08 2.98e-08 1.74e-08 3.41e-09 7.12e-08 7.17e-08   erg/cm2
              Error 2.65e-09 3.04e-09 3.67e-09 3.95e-09 6.84e-09 7.78e-09   erg/cm2
Peak flux Cutoff-PL 7.10e-01 6.23e-01 2.03e-01 2.03e-02 1.55e+00 1.56e+00   ph/cm2/s
              Error 1.26e-01 8.25e-02 5.78e-02 3.56e-02 1.72e-01 1.74e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.360    0.134    -      -           3.29e-02 3.19e-03   73.940 57
CPL   0.923    0.858      29.2    8.2      2.42e-01 4.71e-01   61.320 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.176    0.187    -      -           9.91e-03 1.31e-03   59.210 57
CPL   0.643    1.200      33.3    8.8      8.65e-02 3.14e-01   51.970 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.192000 sec.
T50 in the 50-300 keV band: 0.128000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.244   -0.020    0.224
T90     0.176   -0.008    0.168
T50     0.048    0.004    0.052
Peak    1.000   -0.396    0.604

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  272.1598 -20.4109 0.0089   14.4   -9.3       0.1704    21.7  TRIG_00597570
------------------------------------------

Foreground time interval of the image:
 -0.020   0.224 (delta_t =   0.244 [sec])
Background time interval of the image:
-48.115  -0.020 (delta_t =  48.095 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

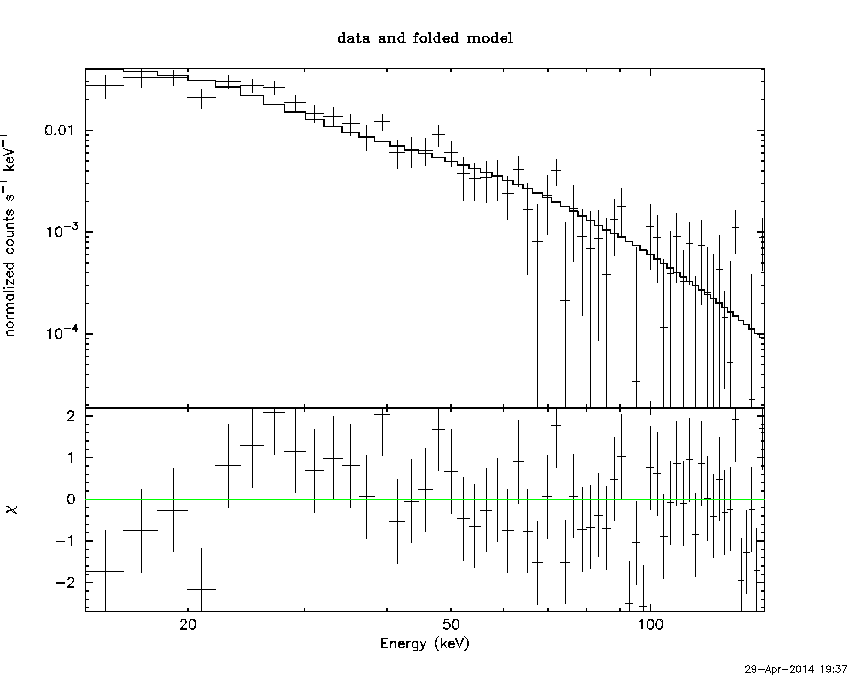

Power-law model

Time interval is from   -0.020 sec. to    0.224 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36009     ( -0.131364   0.137451 )
Norm@50keV  : 3.28501E-02    ( -0.00320912   0.00316494 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.94 using 59 PHA bins.
# Reduced chi-squared =          1.297 for     57 degrees of freedom
# Null hypothesis probability =   6.511500e-02

Photon flux (15-150 keV)    in 0.244 sec: 5.93914 ( -0.462722  0.463162 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.7509e-08 ( -6.38165e-09  6.41537e-09 ) ergs/cm2

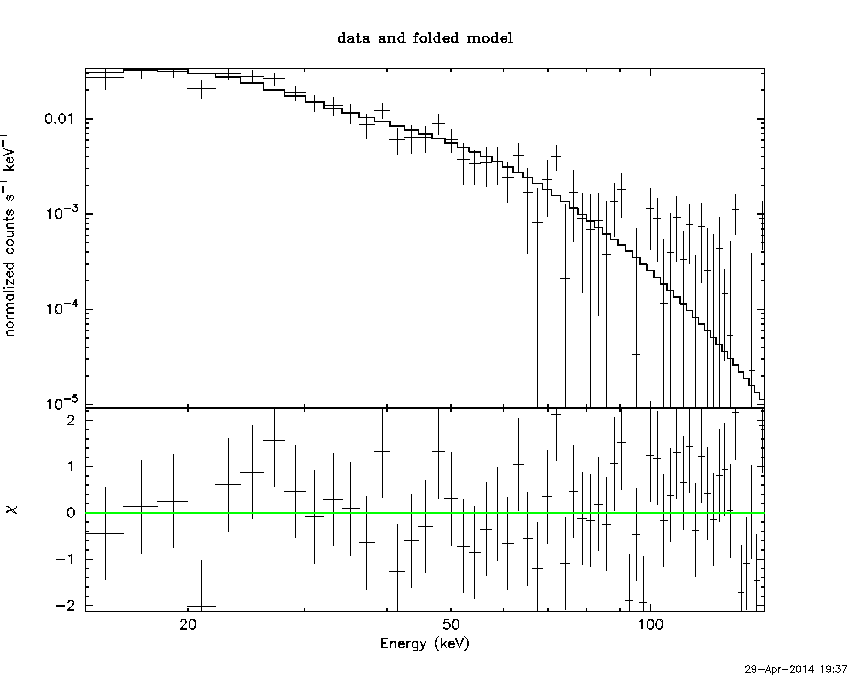

Cutoff power-law model

Time interval is from   -0.020 sec. to    0.224 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.922874     ( -0.954103   0.76146 )
Epeak [keV] : 29.1836      ( -11.3918 5.0993 )
Norm@50keV  : 0.241590    ( -0.24209   0.700653 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.32 using 59 PHA bins.
# Reduced chi-squared =          1.095 for     56 degrees of freedom
# Null hypothesis probability =   2.912472e-01

Photon flux (15-150 keV)    in 0.244 sec: 5.75778 ( -0.47345  0.47358 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.11843e-08 ( -6.68877e-09  6.98865e-09 ) ergs/cm2

Band function

Time interval is from   -0.020 sec. to    0.224 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.733982   ( -1.24098   -0.0240555 )
beta        : -2.95576    ( -1.18179   0.40867 )
Epeak [keV] : 28.6908      ( -4.28434 4.16381 )
Norm@50keV   : 3.52169    ( -3.43131   2079.83 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.74 using 59 PHA bins.
# Reduced chi-squared =          1.050 for     55 degrees of freedom
# Null hypothesis probability =   3.744377e-01

Photon flux (15-150 keV)    in 0.244 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

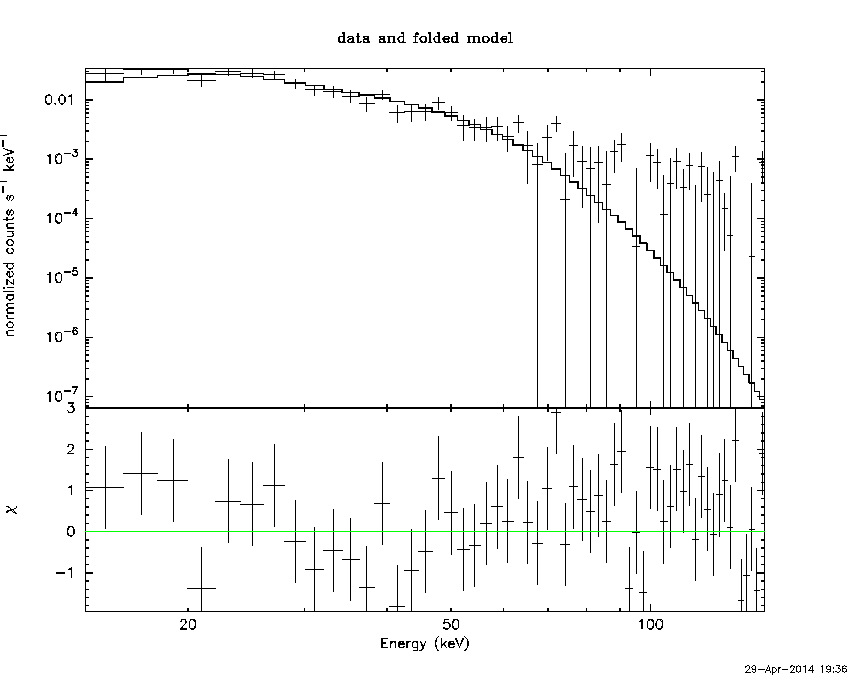

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.48949  (-0.608909  0.653785)
R^2/D10^2   : 5.29911  (-1.4216   1.93361)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.24 using 59 PHA bins.
# Reduced chi-squared =          1.337 for     57 degrees of freedom
# Null hypothesis probability =   4.529001e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.755e-08   2.180e-09
25- 50  3.396e-08   2.855e-09
50-150  1.080e-08   2.262e-09
15-150  6.231e-08   5.295e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 40.2402       (-6.13564      7.68224)
Norm        : 38.8270       (-5.33631     6.18364)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.92 using 59 PHA bins.
# Reduced chi-squared =          1.086 for     57 degrees of freedom
# Null hypothesis probability =   3.049717e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.180e-08   2.080e-09
25- 50  2.875e-08   2.391e-09
50-150  2.239e-08   4.717e-09
15-150  7.294e-08   6.112e-09

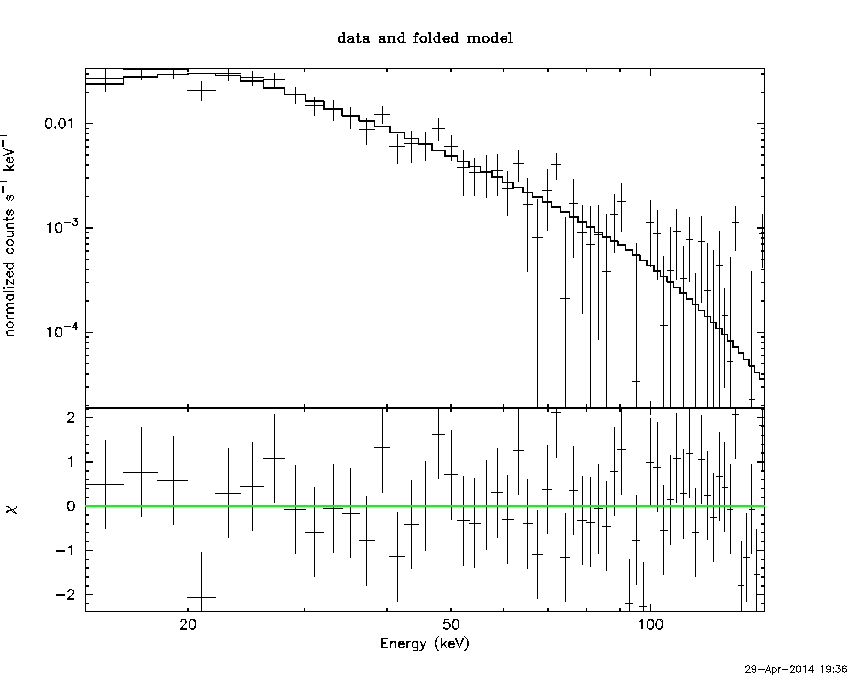

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.91249        (-1.4185      1.07613)
R1^2/D10^2  : 10.3138        (-4.06184      10.4333)
kT2 [keV]   : 21.4749        (-8.42293      25.0769)
R2^2/D10^2  : 4.96106E-02    (-0.0461754   0.470842)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.46 using 59 PHA bins.
# Reduced chi-squared =          1.063 for     55 degrees of freedom
# Null hypothesis probability =   3.495460e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.011e-08   3.935e-09
25- 50  3.092e-08   6.256e-09
50-150  2.277e-08   1.040e-08
15-150  7.380e-08   1.869e-08

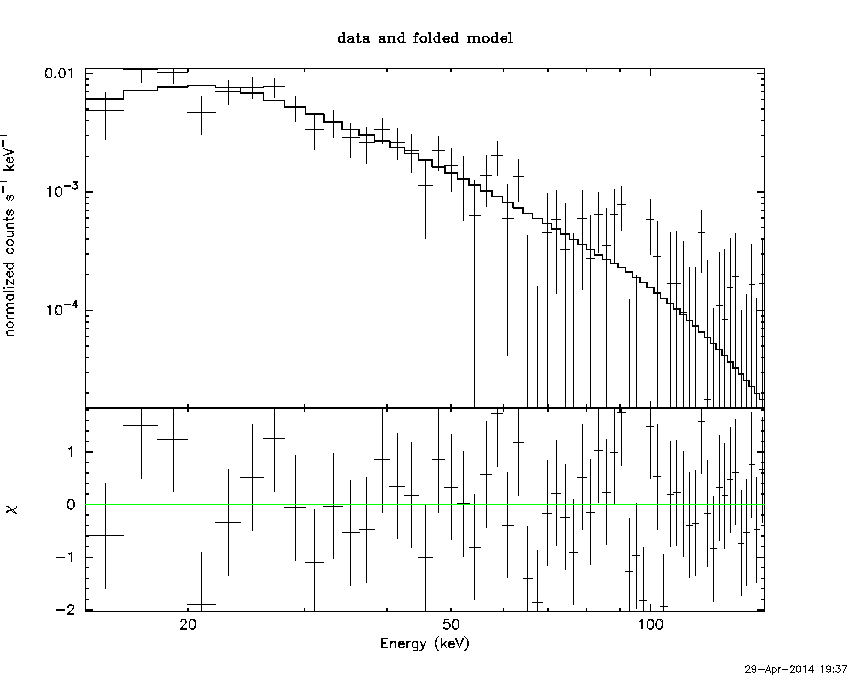

Peak spectrum fit

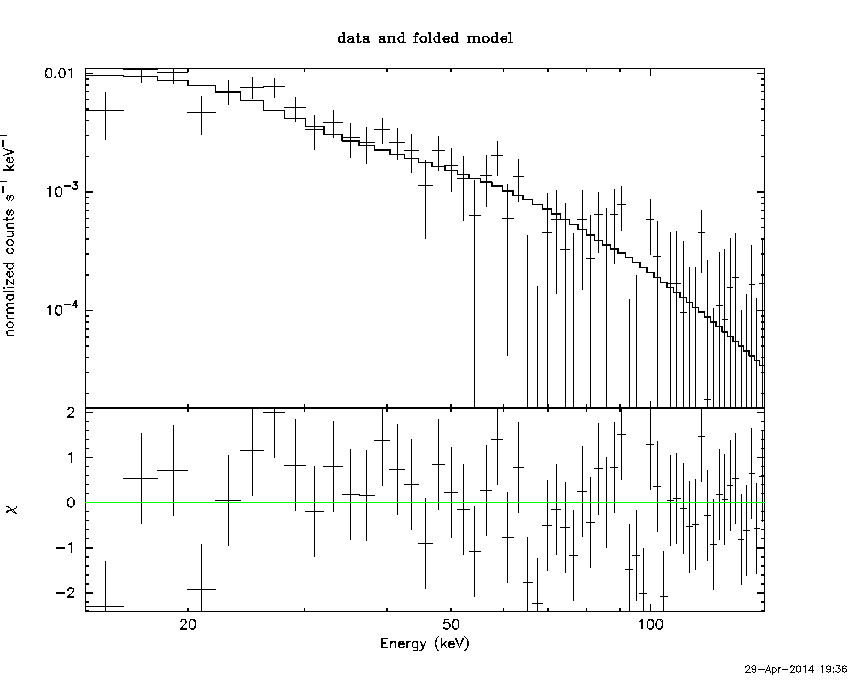

Power-law model

Time interval is from   -0.396 sec. to    0.604 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17602     ( -0.18226   0.19109 )
Norm@50keV  : 9.90878E-03    ( -0.00131935   0.00129889 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.21 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     57 degrees of freedom
# Null hypothesis probability =   3.948015e-01

Photon flux (15-150 keV)    in 1 sec: 1.62004 ( -0.167671  0.167768 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.28606e-08 ( -1.08963e-08  1.10785e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.396 sec. to    0.604 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.642814     ( -1.36833   1.03128 )
Epeak [keV] : 33.2822      ( -11.0313 6.59167 )
Norm@50keV  : 8.65075E-02    ( -0.0865467   0.541406 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.97 using 59 PHA bins.
# Reduced chi-squared =         0.9280 for     56 degrees of freedom
# Null hypothesis probability =   6.282389e-01

Photon flux (15-150 keV)    in 1 sec: 1.55410 ( -0.17191  0.17259 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.12329e-08 ( -1.10782e-08  1.24601e-08 ) ergs/cm2

Band function

Time interval is from   -0.396 sec. to    0.604 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.547419   ( -1.40418   -0.0423218 )
beta        : -2.86155    ( 2.89851   0.577267 )
Epeak [keV] : 30.7903      ( -7.95187 6.46138 )
Norm@50keV   : 0.595232    ( -0.583822   574.605 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.15 using 59 PHA bins.
# Reduced chi-squared =         0.9118 for     55 degrees of freedom
# Null hypothesis probability =   6.601387e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.74403  (-0.872391  0.9795)
R^2/D10^2   : 1.29088  (-0.453757   0.688607)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.46 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     57 degrees of freedom
# Null hypothesis probability =   4.213855e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.892e-08   3.340e-09
25- 50  3.841e-08   4.865e-09
50-150  1.340e-08   3.936e-09
15-150  7.073e-08   9.540e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 46.9869       (-10.47      15.6357)
Norm        : 9.62331       (-1.61765     2.04475)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.98 using 59 PHA bins.
# Reduced chi-squared =         0.9295 for     57 degrees of freedom
# Null hypothesis probability =   6.266333e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.318e-08   3.210e-09
25- 50  3.254e-08   3.775e-09
50-150  2.976e-08   8.440e-09
15-150  8.547e-08   1.118e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.30058        (-2.51025      1.44398)
R1^2/D10^2  : 2.28282        (-1.05974      4.9423)
kT2 [keV]   : 25.2714        (-20.6071      -25.3996)
R2^2/D10^2  : 8.26027E-03    (-0.00806414   0.189549)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.14 using 59 PHA bins.
# Reduced chi-squared =         0.9117 for     55 degrees of freedom
# Null hypothesis probability =   6.603190e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.129e-08   6.685e-09
25- 50  3.543e-08   1.169e-08
50-150  3.039e-08   1.619e-08
15-150  8.711e-08   3.016e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36009     ( -0.131364   0.137451 )
Norm@50keV  : 3.28501E-02    ( -0.00320912   0.00316494 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.94 using 59 PHA bins.
# Reduced chi-squared =          1.297 for     57 degrees of freedom
# Null hypothesis probability =   6.511500e-02

Photon flux (15-150 keV)    in 0.244 sec: 5.93914 ( -0.462722  0.463162 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.7509e-08 ( -6.38165e-09  6.41537e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.922874     ( -0.954103   0.76146 )
Epeak [keV] : 29.1836      ( -11.3918 5.0993 )
Norm@50keV  : 0.241590    ( -0.24209   0.700653 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.32 using 59 PHA bins.
# Reduced chi-squared =          1.095 for     56 degrees of freedom
# Null hypothesis probability =   2.912472e-01

Photon flux (15-150 keV)    in 0.244 sec: 5.75778 ( -0.47345  0.47358 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.11843e-08 ( -6.68877e-09  6.98865e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.733982   ( -1.24098   -0.0240555 )
beta        : -2.95576    ( -1.1818   0.409217 )
Epeak [keV] : 28.6908      ( -4.28434 4.16381 )
Norm@50keV   : 3.52169    ( -3.43131   2080.17 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.74 using 59 PHA bins.
# Reduced chi-squared =          1.050 for     55 degrees of freedom
# Null hypothesis probability =   3.744377e-01

Photon flux (15-150 keV)    in 0.244 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.52743e-08
S(50-100 keV) = 1.96921e-08

T90 vs. Hardness ratio plot

T90                                   = 0.175999939441681 sec.
Hardness ratio (energy fluence ratio) = 0.779135

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.03631
Count Ratio (50-100 keV) / (15-25 keV) = 0.29184

Mask shadow pattern

IMX = 2.530927381026362E-01, IMY = 4.138903551104882E-02

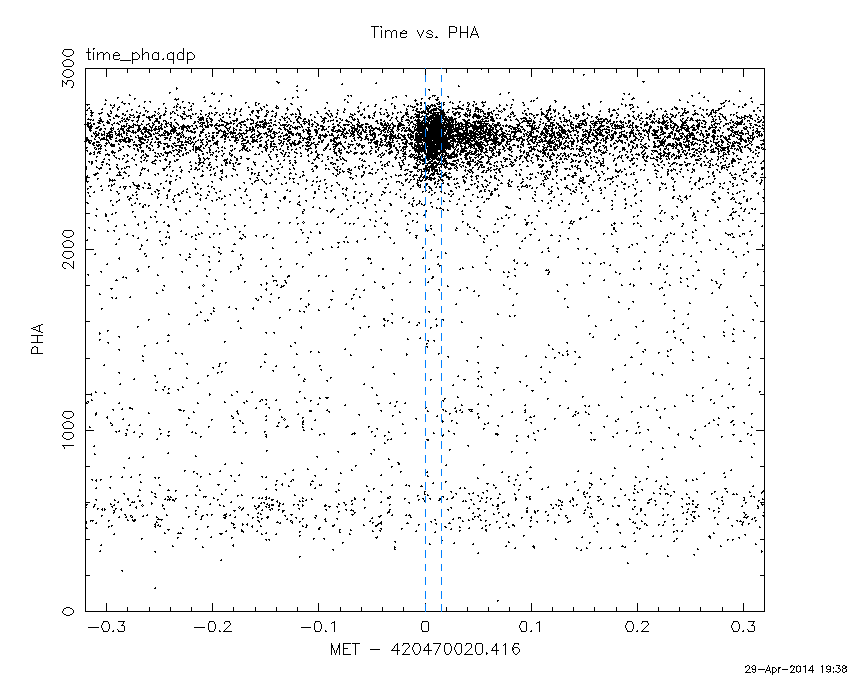

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-48.115410 -0.020000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9863 -15.6480    0.4  23.9   74.3   3.2776  27.8    0.6	Sco X-1
254.3618  35.3211   11.9  43.9  172.6   0.1489   1.0    4.9	Her X-1
256.0063 -37.8026    3.2  32.8   25.2   0.4219   3.6    2.7	4U 1700-377
256.3035 -36.3548    6.6  31.4   25.8   0.2019   1.8    7.6	GX 349+2
262.8934 -24.7398    4.7  18.6   21.7   0.2294   2.4    6.3	GX 1+4
264.8270 -44.4385    3.6  37.8   11.4   0.3833   3.2    3.7	4U 1735-44
268.4315  -1.2920   14.7   5.5 -163.0   0.0632   0.8   10.4	SW J1753.5-0127
270.3557 -25.0859    4.1  18.6    0.3   0.2433   2.8    3.9	GX 5-1
270.1832 -25.7884    5.1  19.2    1.1   0.1974   2.3    7.0	GRS 1758-258
274.1326 -13.8638    0.0   9.6  -33.3   0.2339   3.0   12.7	GX 17+2
276.1100 -30.4866    0.0  25.1   -9.3  -0.1208  -1.4   12.0	H1820-303
285.1642 -24.7774    4.9  24.7  -32.8   0.2086   2.3   11.1	HT1900.1-2455
288.8350  10.8569    4.6  27.5 -121.4   0.2682   2.5    5.7	GRS 1915+105
299.5978  35.1814    3.3  51.6 -138.2   1.6535   3.5    1.3	Cyg X-1
262.9726 -33.8083   20.7  27.4   16.6   0.0536   0.6    1.8	GX 354-0
242.0831  14.1641    2.2  32.8  137.8   0.7387   5.4 ------	UNKNOWN
259.3752  18.6380    2.8  26.6  170.6   0.3769   4.1 ------	UNKNOWN
296.9578  41.5450    4.0  55.2 -145.3   1.5049   2.9 ------	UNKNOWN
308.0964  -1.3205    3.8  40.7  -87.6   1.2010   3.0 ------	UNKNOWN
304.0229  20.0997    2.8  44.8 -119.4   1.6198   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.020000 0.224000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0028 -15.5011   13.4  23.8   74.7   0.0088   0.9    8.5	Sco X-1
254.5592  35.5165    0.0  44.0  172.9  -0.0003  -0.0   11.6	Her X-1
256.1342 -37.7313   16.5  32.7   25.1  -0.0080  -0.7    9.7	4U 1700-377
256.6201 -36.5344   10.5  31.4   25.2  -0.0120  -1.1   11.1	GX 349+2
263.0936 -24.8873   22.1  18.7   21.0   0.0041   0.5    9.7	GX 1+4
264.9021 -44.4037   18.5  37.8   11.3  -0.0074  -0.6    7.4	4U 1735-44
268.2418  -1.6222    0.0   5.1 -164.5  -0.0095  -1.2   12.7	SW J1753.5-0127
270.1220 -25.0604    5.3  18.5    1.0   0.0168   2.2    8.9	GX 5-1
270.4317 -25.5729    0.0  19.0    0.3  -0.0061  -0.8   12.4	GRS 1758-258
274.0017 -14.0913   26.5   9.7  -31.8   0.0035   0.4    3.3	GX 17+2
276.0622 -30.2529    6.9  24.8   -9.4  -0.0138  -1.7    9.9	H1820-303
285.2153 -25.0270    0.0  24.9  -32.5   0.0123   1.4   11.7	HT1900.1-2455
288.8166  10.9775   28.7  27.6 -121.6   0.0038   0.4    2.2	GRS 1915+105
299.4483  35.1631    6.2  51.5 -138.3   0.0728   1.9    7.3	Cyg X-1
263.0858 -33.7371   13.7  27.3   16.4  -0.0079  -0.8    7.6	GX 354-0
232.8388 -10.4834    2.4  34.5   89.5   0.0898   4.8 ------	UNKNOWN
271.0883 -49.4971    2.4  42.9    4.9   0.0666   4.9 ------	UNKNOWN
272.1598 -20.4109    0.5  14.4   -9.3   0.1704  21.8 ------	UNKNOWN
287.4328  47.1449    2.0  56.7 -155.8   0.1922   5.7 ------	UNKNOWN
295.5437  25.2351    2.6  42.0 -132.4   0.0717   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
45.384600 751.584600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9804 -15.6290    0.2  26.2   99.3  48.8703  48.6    0.7	Sco X-1
255.9746 -37.8316    0.9  22.4   38.6   9.4571  12.4    0.9	4U 1700-377
256.4467 -36.4200    3.0  21.1   40.6   2.7101   3.9    0.6	GX 349+2
262.9640 -24.7055    3.0   9.5   64.7   2.3856   3.8    3.4	GX 1+4
264.7010 -44.4202   28.3  24.8   16.0   0.2827   0.4    2.5	4U 1735-44
268.3913  -1.4980    5.4  19.3  171.8   1.3983   2.2    3.1	SW J1753.5-0127
270.3374 -25.0423    1.7   4.9   22.8   3.9812   7.0    3.6	GX 5-1
270.3751 -25.6350    2.7   5.5   20.3   2.7574   4.8    7.6	GRS 1758-258
274.0852 -14.0560    2.8   6.6 -160.2   2.7738   4.2    4.8	GX 17+2
275.7655 -30.4969   19.2  10.6  -13.9   0.3846   0.6   11.4	H1820-303
284.9623 -24.8405    6.1  12.6  -63.8   1.1646   1.9    6.3	HT1900.1-2455
288.7968  10.9192    1.8  35.4 -147.6   6.3594   6.5    1.6	GRS 1915+105
262.8133 -33.8554    4.4  15.8   33.0   1.7184   2.7    8.8	GX 354-0
247.1510  21.8620    3.2  48.8  151.9   8.8194   3.6 ------	UNKNOWN
263.5978  16.1089    2.7  37.5  169.7   4.4402   4.3 ------	UNKNOWN
265.6710 -27.7217    1.2   9.4   41.0   6.4287   9.8 ------	UNKNOWN
266.1562 -28.7458    2.1  10.0   35.3   3.6987   5.6 ------	UNKNOWN
265.2528  28.0847    2.6  49.0  175.2   7.1452   4.5 ------	UNKNOWN
279.1158 -49.2275    3.2  29.3   -6.0   2.7996   3.6 ------	UNKNOWN
293.5916 -16.4530    3.5  20.7  -94.2   2.2178   3.3 ------	UNKNOWN

Plot creation:
Tue Apr 29 19:39:26 EDT 2014
