batgrbproduct Analysis for Trigger=597860

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed May  7 10:02:47 EDT 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger597860/batgroup_hand_proc
======================================================================

  Trigger: 00597860      Segment: 000

  BAT Trigger Time: 420732848   [s; MET]
      Trigger Stop: 420732912   [s; MET]
               UTC: 2014-05-02T14:13:56.040020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 199.68129915543   Dec: -35.6309687712649  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.06
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.06

  Flight Position:   [ source = BAT ]
    RA: 199.68129915543   Dec: -35.6309687712649  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 199.779176532752   Dec: -35.6904353504179  [deg; J2000]
        { 13h 19m 07.0s , -35d 41' 25.6" }
         +/- 4.98097969565556 [arcmin] (estimated 90% radius based on SNR)
         +/- 3.17332118292271 [arcmin] (formal 1-sigma fit error)
    SNR: 3.06869991190152

  Angular difference between Flight and Ground position is 5.957943 arcmin

  Partial Coding Fraction: 0.9921875    [ including projection effects ]

  Duration
     T90: 55.2960000038147 +/- 21.2427222502462
        Measured from: 4.00800001621246
                   to: 59.3040000200272     [s; relative to TRIGTIME]
     T50: 24.8960000276566 +/- 20.7507108738477
        Measured from: 24.8719999790192
                   to: 49.7680000066757     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 48.4679999947548
                   to: 49.4679999947548     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 1.19199997186661
                   to: 67.2400000095367     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.231422   0.151545   0.076994   0.015884
           0.047527   0.042670   0.035749   0.030531 [error]
 Peak      0.005033   0.014144   0.005666   0.006453
           0.005748   0.005186   0.004473   0.003637 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.95e-08 6.98e-08 5.90e-08 8.43e-08 2.18e-07 2.73e-07   erg/cm2
              Error 2.09e-08 2.01e-08 3.27e-08 1.06e-07 7.43e-08 1.35e-07   erg/cm2
Peak flux Power-law 9.34e-02 8.22e-02 4.96e-02 4.52e-02 2.45e-01 2.70e-01   ph/cm2/s
              Error 7.23e-02 6.18e-02 3.53e-02 7.42e-02 1.23e-01 1.36e-01   ph/cm2/s

Fluence   Cutoff-PL 5.82e-08 7.23e-08 5.83e-08 5.03e-08 2.13e-07 2.39e-07   erg/cm2
              Error 2.35e-08 2.55e-08 3.09e-08 1.05e-07 7.70e-08 1.41e-07   erg/cm2
Peak flux Cutoff-PL 6.59e-02 1.01e-01 4.66e-02 4.08e-03 2.17e-01 2.19e-01   ph/cm2/s
              Error 8.41e-02 6.28e-02 4.59e-02 6.95e-02 1.35e-01 1.52e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.243    0.600    -      -           3.49e-04 1.42e-04   50.460 57
CPL   1.927    0.000       9.6    0.0      5.33e-04 0.00e+00   50.410 56

The chi2 of BB fit is Chi-Squared Chi-Squared which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.728    1.044    -      -           1.82e-03 1.41e-03   42.040 57
CPL   0.018    1.085      50.3   -7.8      1.60e-02 3.77e+03   41.780 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   66.048    1.192   67.240
T90    55.296    4.008   59.304
T50    24.896   24.872   49.768
Peak    1.000   48.468   49.468

Click here for the BAT GCN circular template

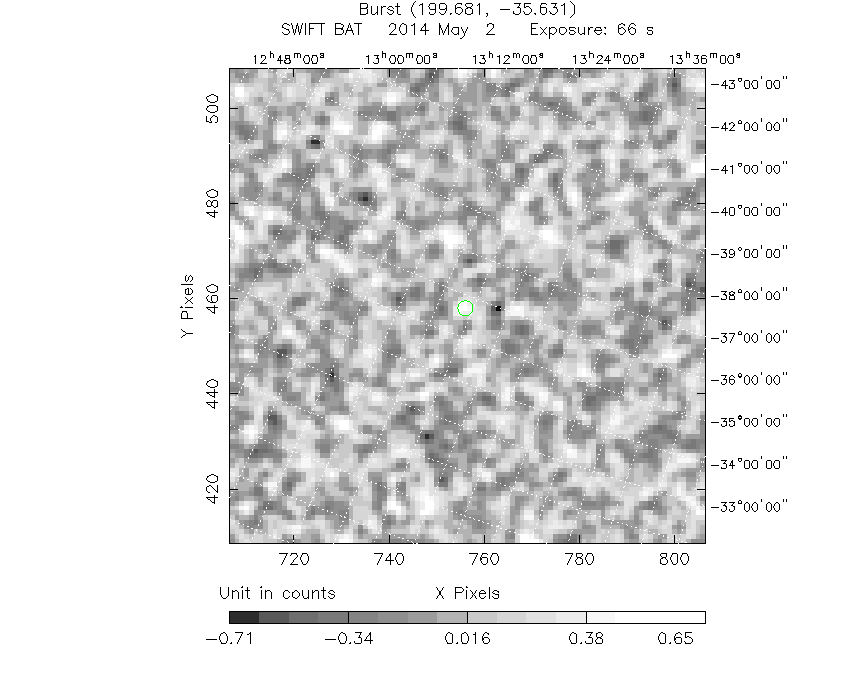

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  199.7792   -35.6904   0.0628    14.7168     8.5585         0.5829020      3.069 TRIG_00597860

Foreground time interval of the image:
  1.192  67.240 (delta_t =  66.048 [sec])
Background time interval of the image:
-13.299   1.192 (delta_t =  14.491 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

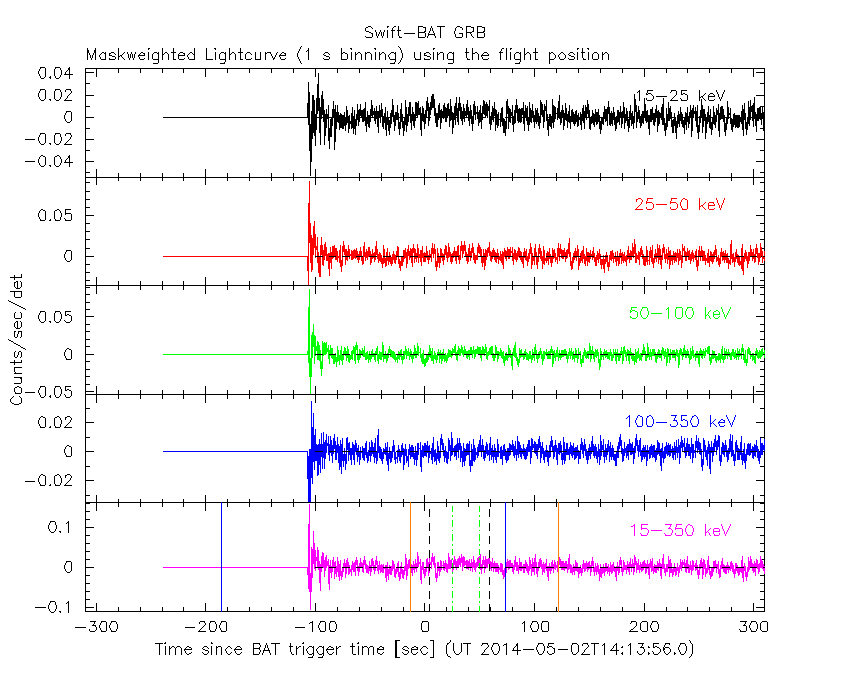

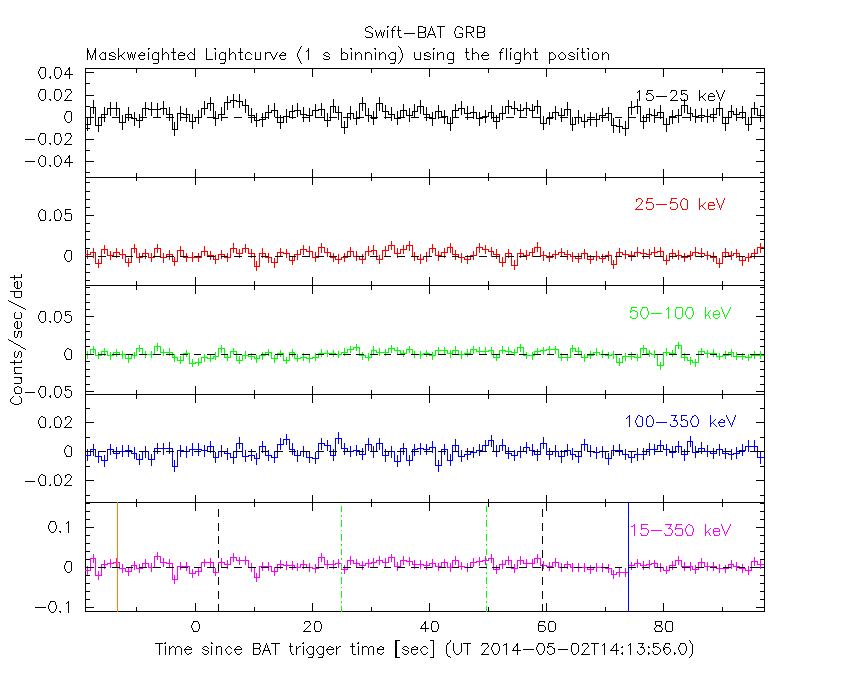

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

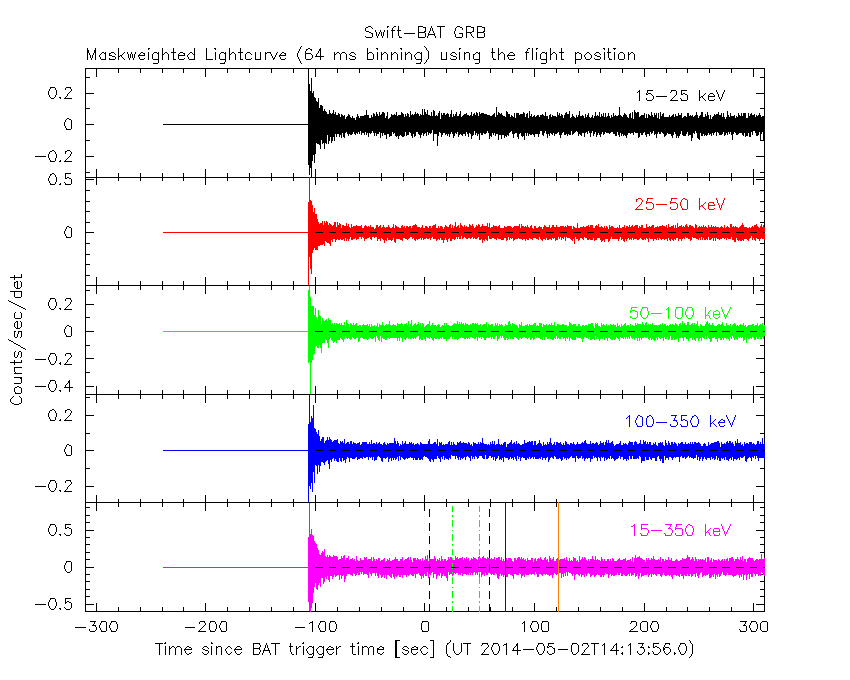

64 ms binning

Full time interval

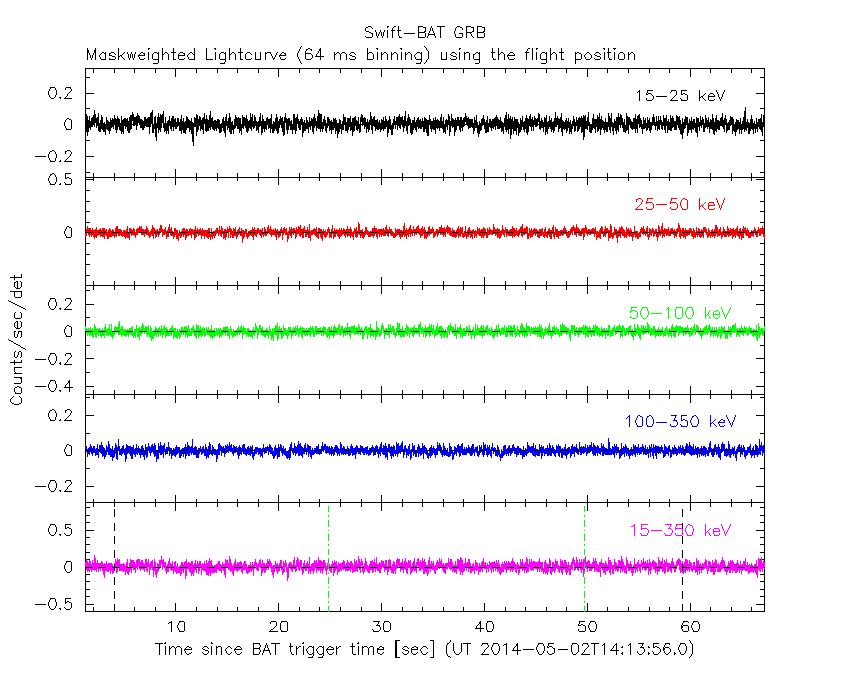

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

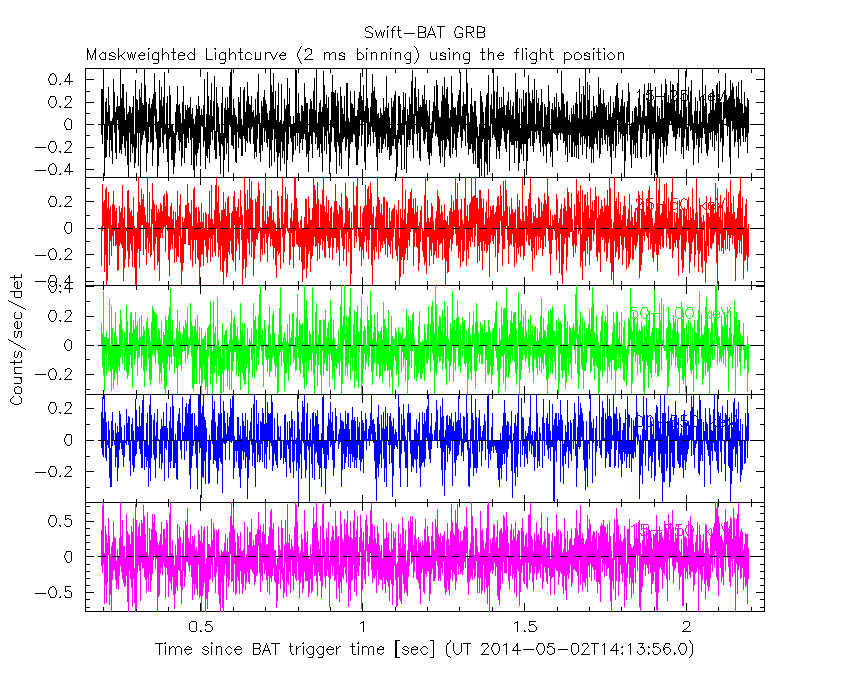

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

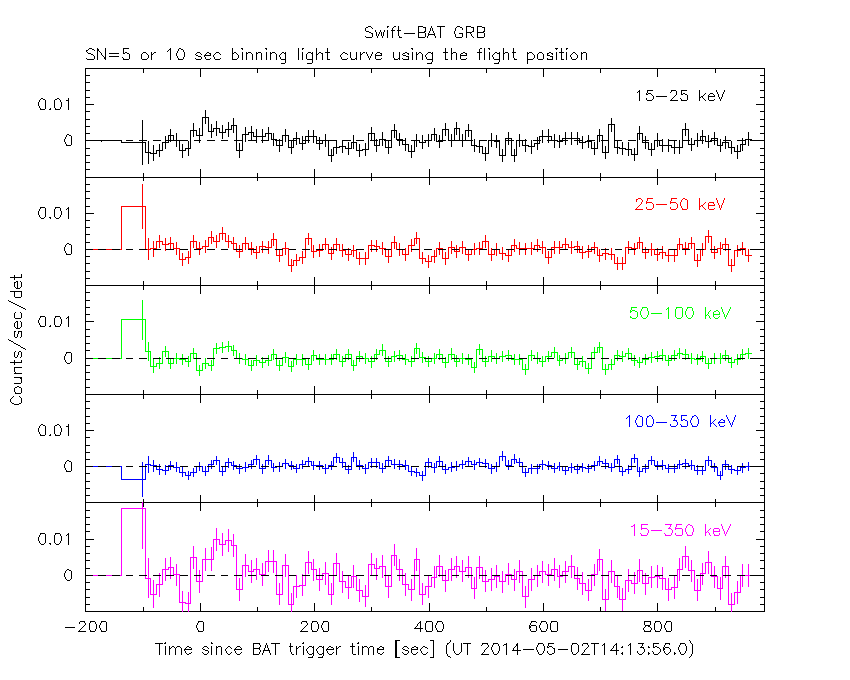

SN=5 or 10 sec. binning (whichever binning is satisfied first)

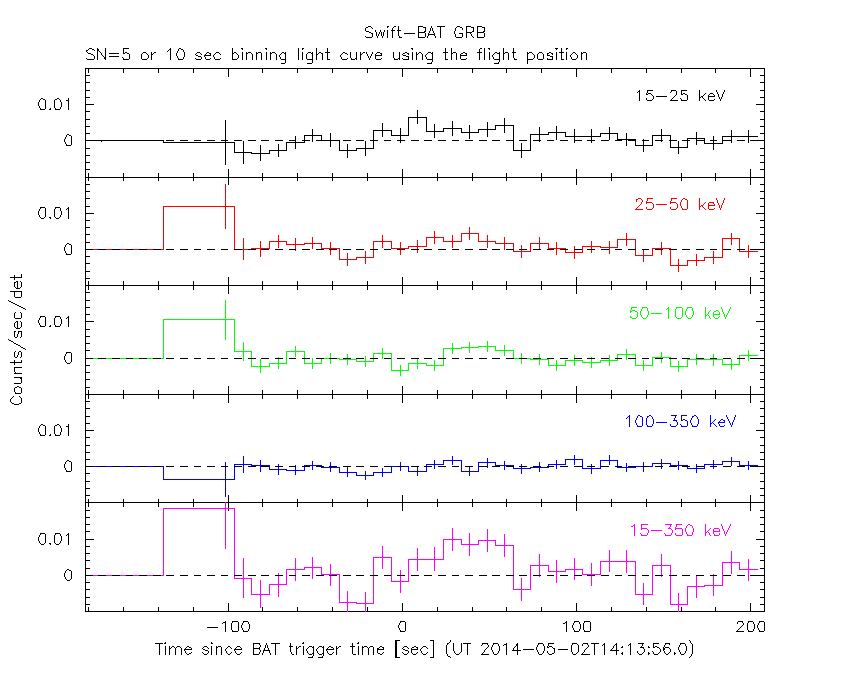

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    1.192 sec. to   67.240 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.24314     ( -0.527239   0.671837 )
Norm@50keV  : 3.49360E-04    ( -0.000146828   0.000136768 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.46 using 59 PHA bins.
# Reduced chi-squared =         0.8853 for     57 degrees of freedom
# Null hypothesis probability =   7.171906e-01

Photon flux (15-150 keV)    in 66.05 sec: 5.91814E-02 ( -0.0156466  0.0156466 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18365e-07 ( -7.18023e-08  7.68551e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    1.192 sec. to   67.240 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.92748     (     )
Epeak [keV] : 9.58817      (   )
Norm@50keV  : 5.32934E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9002 for     56 degrees of freedom
# Null hypothesis probability =   6.855417e-01

Photon flux (15-150 keV)    in 66.05 sec: 5.86174E-02 ( -0.0161085  0.01598 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.13278e-07 ( -7.32184e-08  8.07157e-08 ) ergs/cm2

Band function

Time interval is from    1.192 sec. to   67.240 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.99749   ( -0.00254041   0.550134 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 0.417431      ( -0.417432 -0.417432 )
Norm@50keV   : 4.87265E-04    ( -0.000128721   0.000128724 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9166 for     55 degrees of freedom
# Null hypothesis probability =   6.503574e-01

Photon flux (15-150 keV)    in 66.05 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.84701  (-2.88904  3.53964)
R^2/D10^2   : 2.84583E-02  (-0.0284142   0.0803295)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.84 using 59 PHA bins.
# Reduced chi-squared =         0.9446 for     57 degrees of freedom
# Null hypothesis probability =   5.943180e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.692e-08   2.111e-08
25- 50  8.979e-08   5.380e-08
50-150  4.481e-08   3.203e-08
15-150  1.715e-07   9.832e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 48.7963       (-25.0842      80.0719)
Norm        : 0.337962       (-0.129696     0.252286)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.62 using 59 PHA bins.
# Reduced chi-squared =         0.8881 for     57 degrees of freedom
# Null hypothesis probability =   7.115538e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.427e-08   2.210e-08
25- 50  7.727e-08   4.480e-08
50-150  7.330e-08   5.354e-08
15-150  2.048e-07   1.024e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.96983        (-1.94257      2.73138)
R1^2/D10^2  : 55.4080        (-67.713      -68.0406)
kT2 [keV]   : 11.9904        (-3.63139      6.12875)
R2^2/D10^2  : 1.19246E-02    (-0.011197   0.0305297)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.94 using 59 PHA bins.
# Reduced chi-squared =         0.8717 for     55 degrees of freedom
# Null hypothesis probability =   7.388742e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.334e-08   2.569e-08
25- 50  7.604e-08   4.515e-08
50-150  6.506e-08   4.548e-08
15-150  1.944e-07   1.053e-07

Peak spectrum fit

Power-law model

Time interval is from   48.468 sec. to   49.468 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72826     ( -0.950479   1.13785 )
Norm@50keV  : 1.82309E-03    ( -0.00182309   0.000991139 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.04 using 59 PHA bins.
# Reduced chi-squared =         0.7376 for     57 degrees of freedom
# Null hypothesis probability =   9.308753e-01

Photon flux (15-150 keV)    in 1 sec: 0.244566 ( -0.122817  0.123481 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.68449e-08 ( -9.36718e-09  1.01252e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   48.468 sec. to   49.468 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78545E-02     ( 0.0611433   2.23109 )
Epeak [keV] : 50.3391      ( -33.9852 -49.6804 )
Norm@50keV  : 1.59604E-02    ( -0.0210121   7542.82 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.78 using 59 PHA bins.
# Reduced chi-squared =         0.7461 for     56 degrees of freedom
# Null hypothesis probability =   9.211786e-01

Photon flux (15-150 keV)    in 1 sec: 0.217253 ( -0.126007  0.143728 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3623e-08 ( -8.17162e-09  1.27555e-08 ) ergs/cm2

Band function

Time interval is from   48.468 sec. to   49.468 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.67111   ( 0.867515   0.867515 )
beta        : -2.88769    ( 3.09034   3.19983 )
Epeak [keV] : 44.3437      ( -30.5844 93.1822 )
Norm@50keV   : 0.148028    ( -0.142921   11.5849 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.64 using 59 PHA bins.
# Reduced chi-squared =         0.7572 for     55 degrees of freedom
# Null hypothesis probability =   9.080906e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.8830  (-4.74317  9.06926)
R^2/D10^2   : 6.39643E-02  (-0.0639644   0.345858)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.76 using 59 PHA bins.
# Reduced chi-squared =         0.7327 for     57 degrees of freedom
# Null hypothesis probability =   9.351023e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.909e-09   1.302e-09
25- 50  5.938e-09   3.905e-09
50-150  5.008e-09   4.066e-09
15-150  1.285e-08   8.780e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 118.226       (-115.049      -115.049)
Norm        : 1.03842       (-0.552019     1.34613)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.95 using 59 PHA bins.
# Reduced chi-squared =         0.7359 for     57 degrees of freedom
# Null hypothesis probability =   9.323615e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.706e-09   1.779e-09
25- 50  4.829e-09   3.102e-09
50-150  8.555e-09   6.500e-09
15-150  1.609e-08   1.100e-08

Double BB

------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.76 using 59 PHA bins.
#Fit statistic : Chi-Squared =          38.74 using 59 PHA bins.
#Fit statistic : Chi-Squared =          38.52 using 59 PHA bins.
#Fit statistic : Chi-Squared =          38.48 using 59 PHA bins.
# Reduced chi-squared =         0.7593 for     55 degrees of freedom
# Reduced chi-squared =         0.7043 for     55 degrees of freedom
# Reduced chi-squared =         0.7003 for     55 degrees of freedom
# Reduced chi-squared =         0.6996 for     55 degrees of freedom
# Null hypothesis probability =   9.058623e-01
# Null hypothesis probability =   9.526990e-01
# Null hypothesis probability =   9.552752e-01
# Null hypothesis probability =   9.556861e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.24314     ( -0.527239   0.671837 )
Norm@50keV  : 3.49360E-04    ( -0.000146828   0.000136768 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.46 using 59 PHA bins.
# Reduced chi-squared =         0.8853 for     57 degrees of freedom
# Null hypothesis probability =   7.171906e-01

Photon flux (15-150 keV)    in 66.05 sec: 5.91814E-02 ( -0.0156466  0.0156466 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18365e-07 ( -7.18023e-08  7.68551e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.92748     (     )
Epeak [keV] : 9.58817      (   )
Norm@50keV  : 5.32934E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9002 for     56 degrees of freedom
# Null hypothesis probability =   6.855417e-01

Photon flux (15-150 keV)    in 66.05 sec: 5.86174E-02 ( -0.0161085  0.01598 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.13278e-07 ( -7.32184e-08  8.07157e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.99749   ( -0.00250769   0.47495 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 0.417431      ( -0.417432 -0.417432 )
Norm@50keV   : 4.87265E-04    ( -0.000128721   0.000128724 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.41 using 59 PHA bins.
# Reduced chi-squared =         0.9166 for     55 degrees of freedom
# Null hypothesis probability =   6.503574e-01

Photon flux (15-150 keV)    in 66.05 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.97726e-08
S(50-100 keV) = 5.89511e-08

T90 vs. Hardness ratio plot

T90                                   = 55.2960000038147 sec.
Hardness ratio (energy fluence ratio) = 0.844903

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.654843
Count Ratio (50-100 keV) / (15-25 keV) = 0.3327

Mask shadow pattern

IMX = 2.597334081602966E-01, IMY = -3.908875892045927E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-13.299400 1.192000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3132 -60.6200  230.6  33.5  -61.1  -0.0029  -0.1    0.2	Cen X-3
186.3808 -62.7159    7.5  27.3  -70.8  -0.0779  -1.5    8.3	GX 301-2
245.0409 -15.6392    0.8  35.8  129.5   1.4278  15.3    3.5	Sco X-1
256.1168 -37.8466    3.7  30.0  173.8   0.1430   3.1    6.2	4U 1700-377
256.5405 -36.4449    5.3  30.9  171.5   0.1031   2.2    5.2	GX 349+2
263.1344 -24.8464    3.7  41.6  159.2   0.2498   3.1    9.1	GX 1+4
264.6137 -44.6284    0.0  34.2 -170.5  -0.1099  -2.1   12.0	4U 1735-44
270.1159 -25.0869    4.0  46.6  164.8   0.2993   2.9    9.2	GX 5-1
270.3437 -25.7659    3.8  46.4  165.7   0.2992   3.0    2.6	GRS 1758-258
275.8757 -30.2754    7.3  48.0  174.5  -0.1505  -1.6    6.1	H1820-303
263.0195 -33.7608    4.4  36.8  171.1   0.1501   2.6    4.7	GX 354-0
158.8031 -22.7138    3.2  51.7   -8.5   0.3525   3.7 ------	UNKNOWN
290.9715 -52.8901    2.7  48.9 -151.7   0.3914   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
1.192000 67.240000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3544 -60.4157   10.6  33.4  -60.8   0.3012   1.1   12.5	Cen X-3
186.4307 -62.7836    9.1  27.3  -71.1   0.3193   1.3    6.3	GX 301-2
245.0016 -15.6412    4.8  35.8  129.5  -1.0540  -2.4    1.3	Sco X-1
256.0666 -37.8320    7.9  30.1  173.8  -0.3314  -1.5    3.9	4U 1700-377
256.4226 -36.4369    9.7  30.9  171.4  -0.2792  -1.2    1.0	GX 349+2
263.0361 -24.6225    5.1  41.7  158.8   0.8654   2.3    7.5	GX 1+4
264.5770 -44.5594    4.2  34.3 -170.7   0.6501   2.7    9.7	4U 1735-44
270.3272 -25.1794    5.7  46.8  165.0   0.9786   2.0    6.5	GX 5-1
270.2468 -25.7979    3.6  46.3  165.7  -1.4484  -3.2    4.5	GRS 1758-258
275.9977 -30.4284    4.0  48.1  174.7  -1.2630  -2.8    5.3	H1820-303
262.9879 -33.7742    4.7  36.8  171.1  -0.6654  -2.4    3.6	GX 354-0
170.6041  -5.0857    2.4  55.2   17.4   5.4388   4.7 ------	UNKNOWN
273.9656 -48.0920    1.9  39.8 -162.5   1.6719   6.2 ------	UNKNOWN
152.0638 -27.5409    2.7  53.8  -17.9   2.2553   4.2 ------	UNKNOWN
294.2117 -72.2465    2.1  46.6 -125.6   4.6254   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
122.100600 963.048300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2950 -60.5879    2.5  31.2 -108.7   3.1761   4.5    2.2	Cen X-3
186.6590 -62.7727    3.3  28.3 -123.9   2.1170   3.5    0.2	GX 301-2
255.9799 -37.8152    1.6  44.5  153.9  11.3330   7.3    1.8	4U 1700-377
256.3457 -36.2717   16.8  45.2  151.9   1.1686   0.7   10.1	GX 349+2
264.5313 -44.3848    5.1  49.1  164.8  -3.4073  -2.2    9.9	4U 1735-44
262.9411 -33.9336   19.7  51.1  151.3   1.7325   0.6    6.4	GX 354-0
181.2726  -2.8022    3.8  37.0   11.9   2.1765   3.0 ------	UNKNOWN
201.2964 -25.0853    3.1  10.6   51.5   1.6580   3.7 ------	UNKNOWN
151.8534  -2.0212    3.6  55.5  -20.4   5.8328   3.2 ------	UNKNOWN
161.7330 -39.8829    3.9  30.1  -66.1   2.0703   3.0 ------	UNKNOWN
295.7349 -72.7711    3.6  57.9 -156.8  11.6347   3.2 ------	UNKNOWN
188.2886 -86.4993    4.0  51.0 -135.6   8.3946   3.0 ------	UNKNOWN

Plot creation:
Wed May  7 10:10:01 EDT 2014
