batgrbproduct analysis for trigger=598819

batgrbproduct Analysis for Trigger=598819

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Oct  4 22:58:09 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger598819
======================================================================

  Trigger: 00598819      Segment: 000

  BAT Trigger Time: 421615921.216   [s; MET]
      Trigger Stop: 421615922.24   [s; MET]
               UTC: 2014-05-12T19:31:49.213860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 289.370983958512   Dec: -15.1000413136453  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.32
     Image Trigger?:     NO
     Rate S/N Ratio:     38.262252939418  [ if not an image trigger ]
     Image S/N Ratio:    9.32

  Flight Position:   [ source = BAT ]
    RA: 289.370983958512   Dec: -15.1000413136453  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 289.367745296306   Dec: -15.087767583728  [deg; J2000]
        { 19h 17m 28.3s , -15d 05' 16.0" }
         +/- 1.08204657231282 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.403694690422524 [arcmin] (formal 1-sigma fit error)
    SNR: 27.1766292143837

  Angular difference between Flight and Ground position is 0.759947 arcmin

  Partial Coding Fraction: 0.3515625    [ including projection effects ]

  Duration
     T90: 154.111999928951 +/- 4.65279486164575
        Measured from: -6.16000002622604
                   to: 147.951999902725     [s; relative to TRIGTIME]
     T50: 87.0079999566078 +/- 39.4964509467811
        Measured from: 39.8039999604225
                   to: 126.81199991703     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 121.955999970436
                   to: 122.955999970436     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -22.8400000333786
                   to: 178.148000001907     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     5.085401   7.200180   6.160241   1.960332
           0.115467   0.114804   0.099383   0.081717 [error]
 Peak      0.171697   0.284736   0.249809   0.090281
           0.008516   0.009750   0.009623   0.007320 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.46e-06 2.96e-06 4.69e-06 1.65e-05 1.30e-05 2.56e-05   erg/cm2
              Error 6.75e-08 7.82e-08 1.06e-07 9.19e-07 2.69e-07 9.46e-07   erg/cm2
Peak flux Power-law 1.65e+00 1.93e+00 1.63e+00 2.34e+00 6.05e+00 7.55e+00   ph/cm2/s
              Error 1.24e-01 8.71e-02 7.71e-02 2.36e-01 2.42e-01 3.16e-01   ph/cm2/s

Fluence   Cutoff-PL 1.46e-06 2.97e-06 4.69e-06 1.63e-05 1.30e-05 2.54e-05   erg/cm2
              Error 7.11e-08 6.14e-08 1.07e-07 9.97e-07 2.63e-07 9.43e-07   erg/cm2
Peak flux Cutoff-PL 1.57e+00 1.97e+00 1.67e+00 1.79e+00 5.98e+00 6.99e+00   ph/cm2/s
              Error 1.56e-01 9.64e-02 8.94e-02 4.98e-01 2.56e-01 6.22e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.335    0.040    -      -           6.62e-03 1.36e-04   47.430 57
CPL   1.332    0.000    9999.3    0.0      6.65e-03 2.85e-04   47.570 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.244    0.070    -      -           5.12e-02 2.01e-03   57.070 57
CPL   1.007    0.275     224.8  -64.5      6.63e-02 2.02e-02   54.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 149.696000 sec.
T50 in the 50-300 keV band: 63.360000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  200.988  -22.840  178.148
T90   154.112   -6.160  147.952
T50    87.008   39.804  126.812
Peak    1.000  121.956  122.956

Click here for the BAT GCN circular template

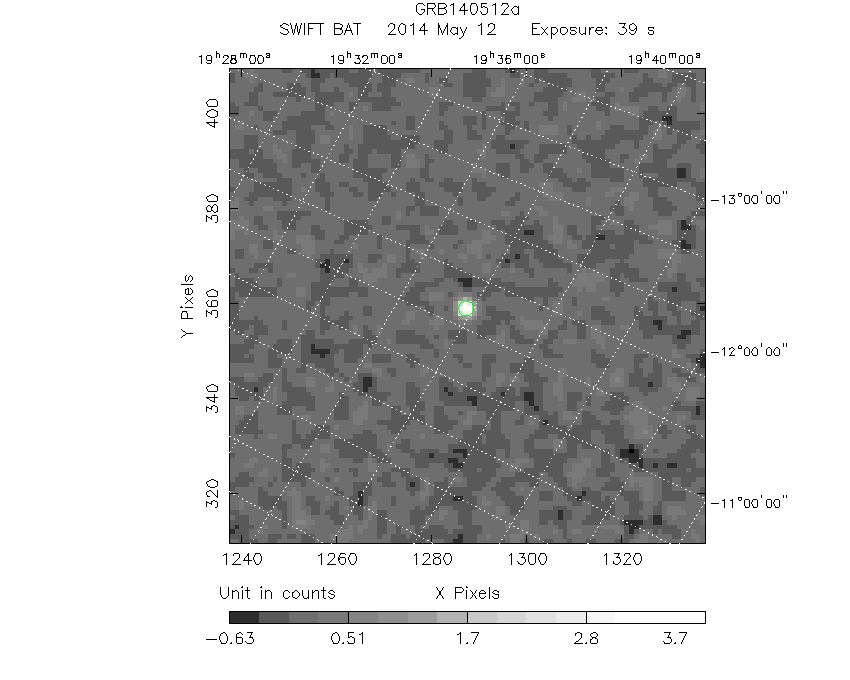

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  289.3677   -15.0878   0.0071    41.7138   163.9018         4.0752894     27.177 TRIG_00598819

Foreground time interval of the image:
-22.840  15.885 (delta_t =  38.725 [sec])
Background time interval of the image:
-239.216 -22.840 (delta_t = 216.376 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

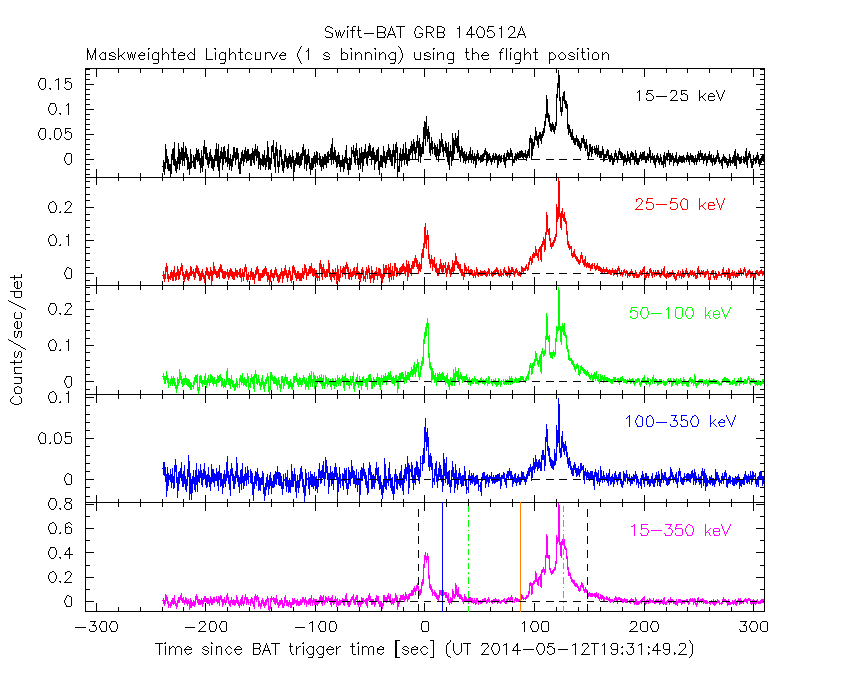

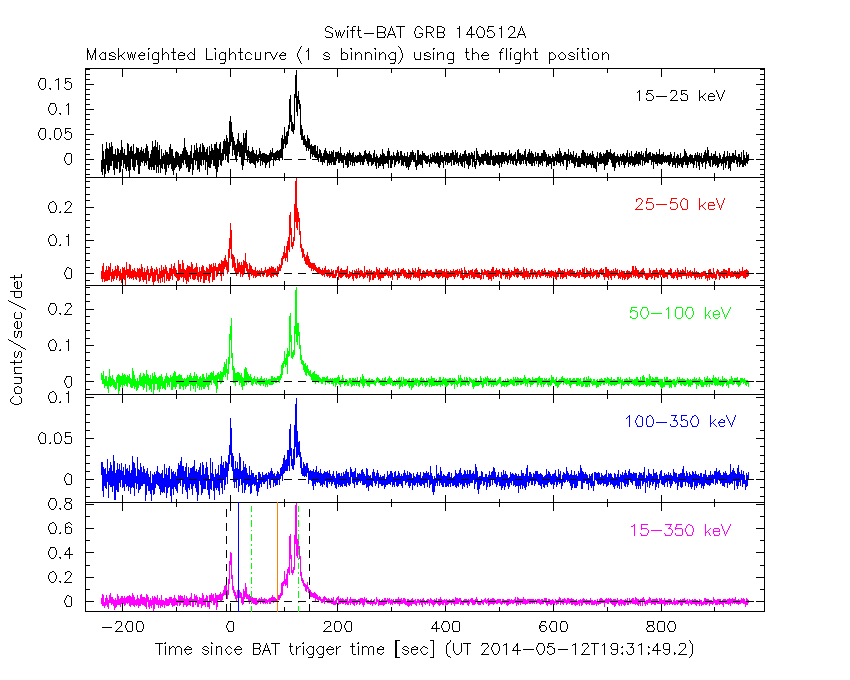

1 s binning

From T0-310 s to T0+310 s

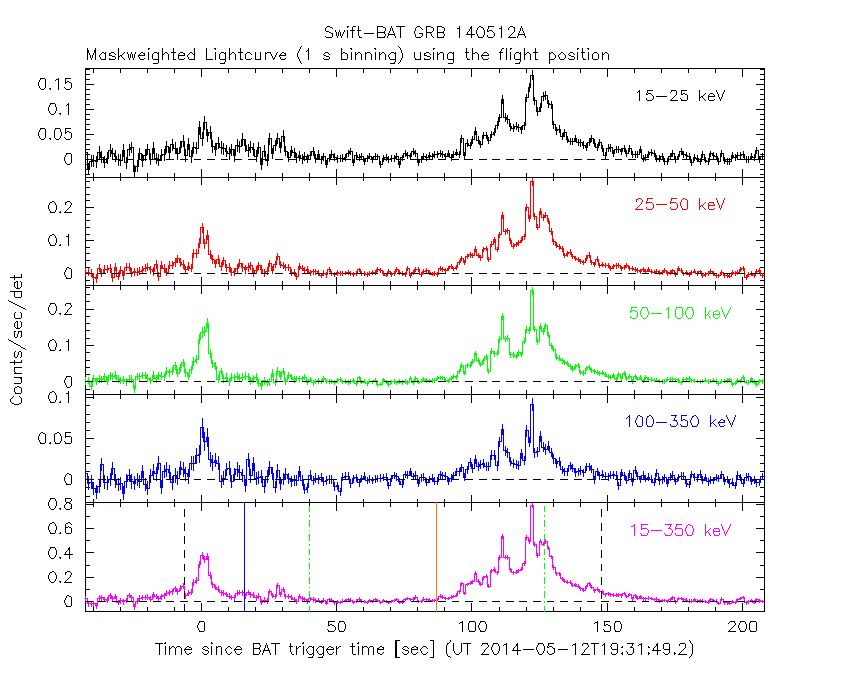

From T100_start - 20 s to T100_end + 30 s

Full time interval

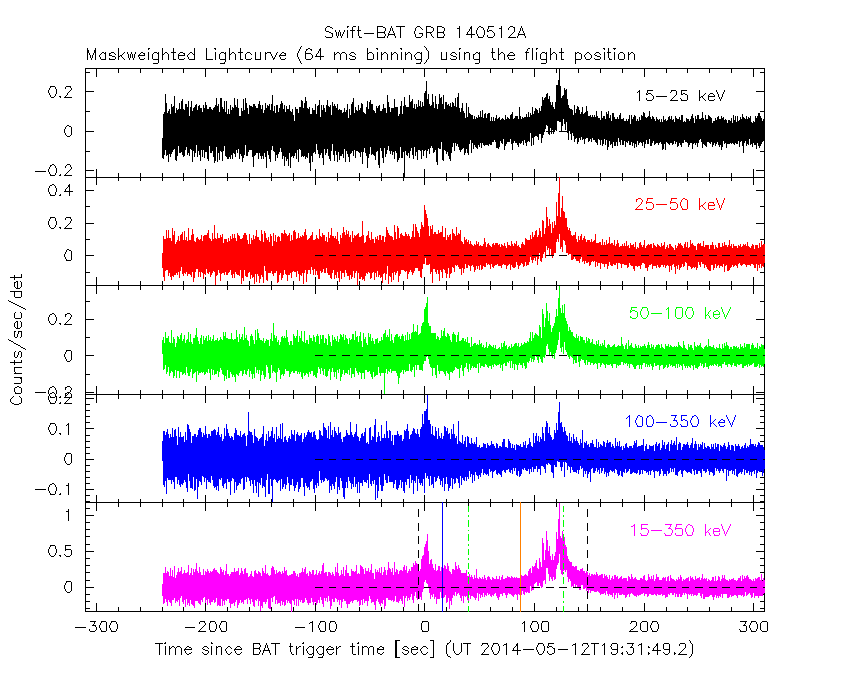

64 ms binning

Full time interval

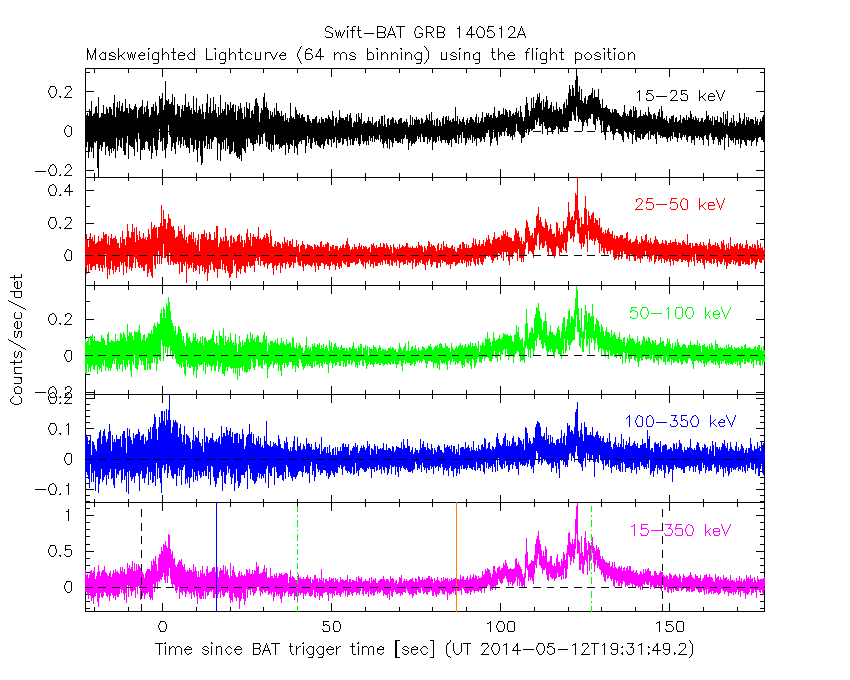

From T100_start to T100_end

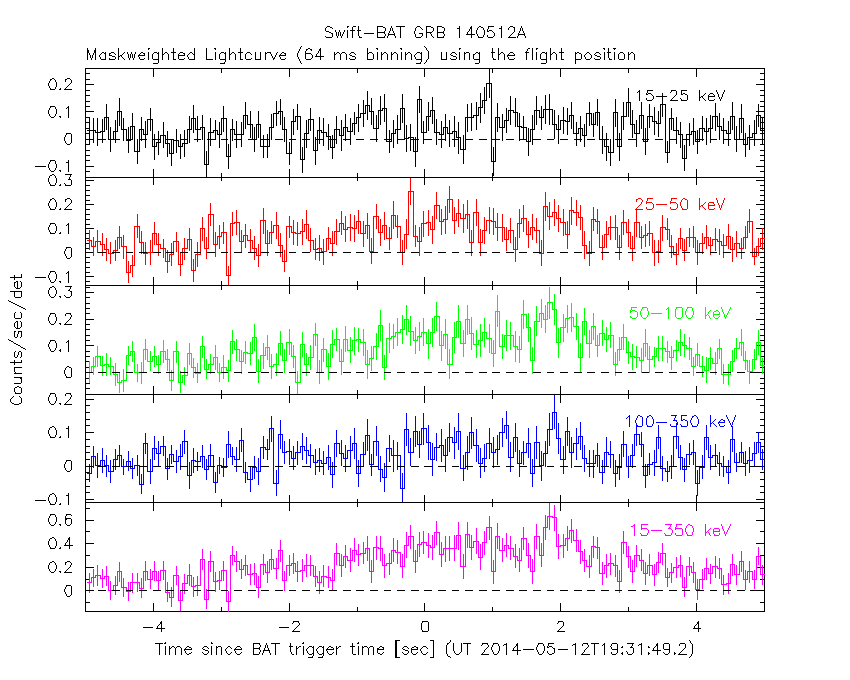

From T0-5 sec to T0+5 sec

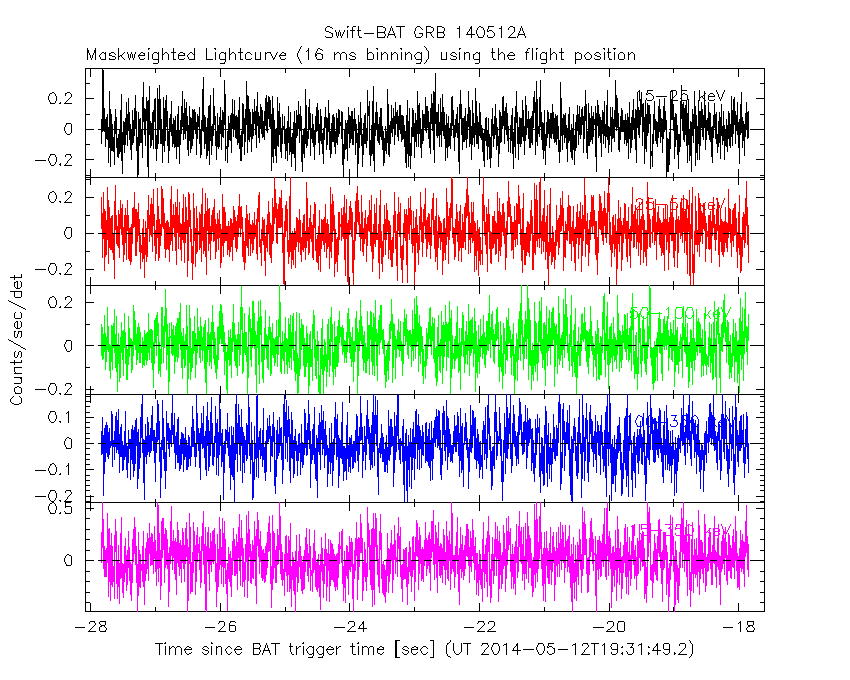

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

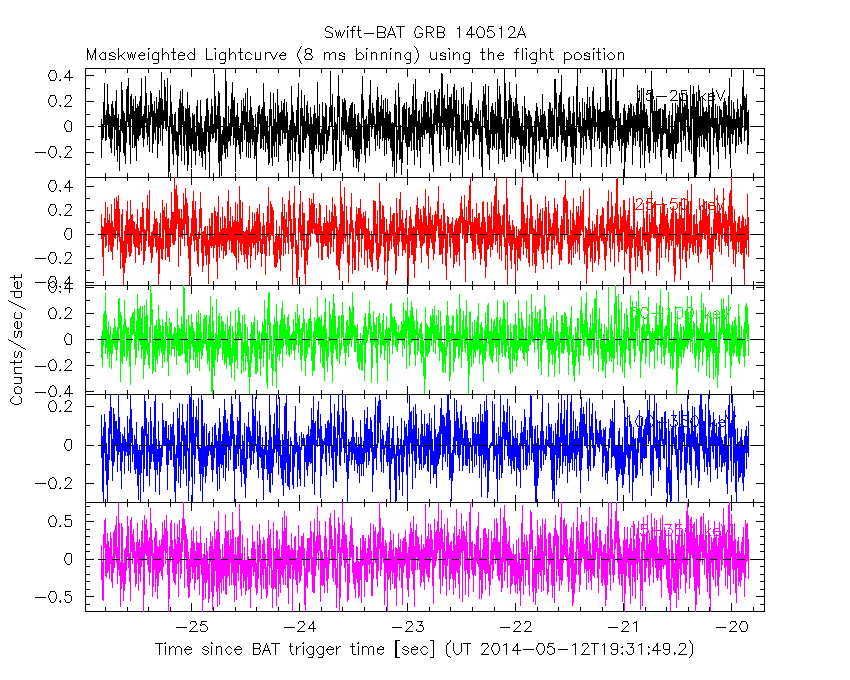

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

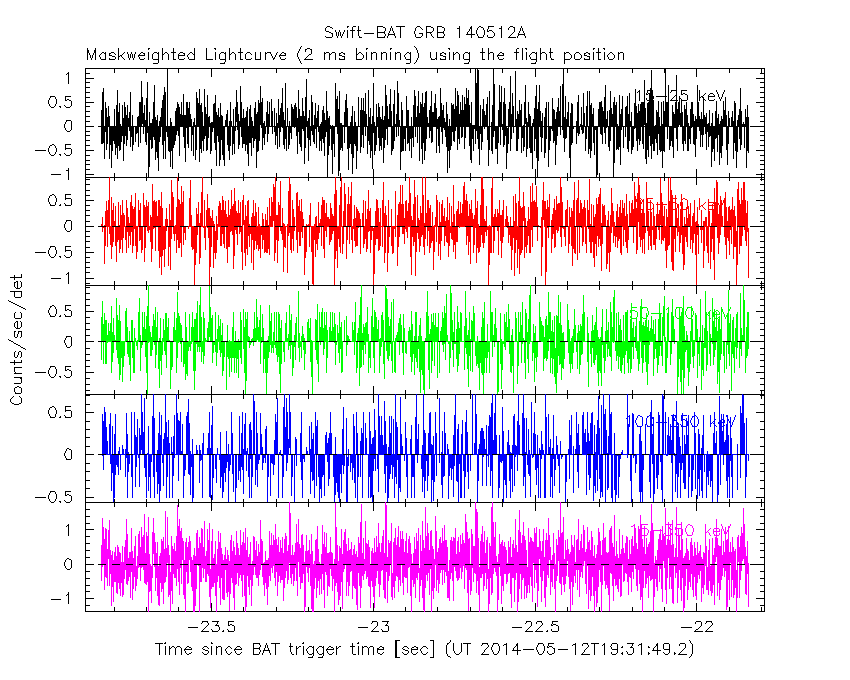

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

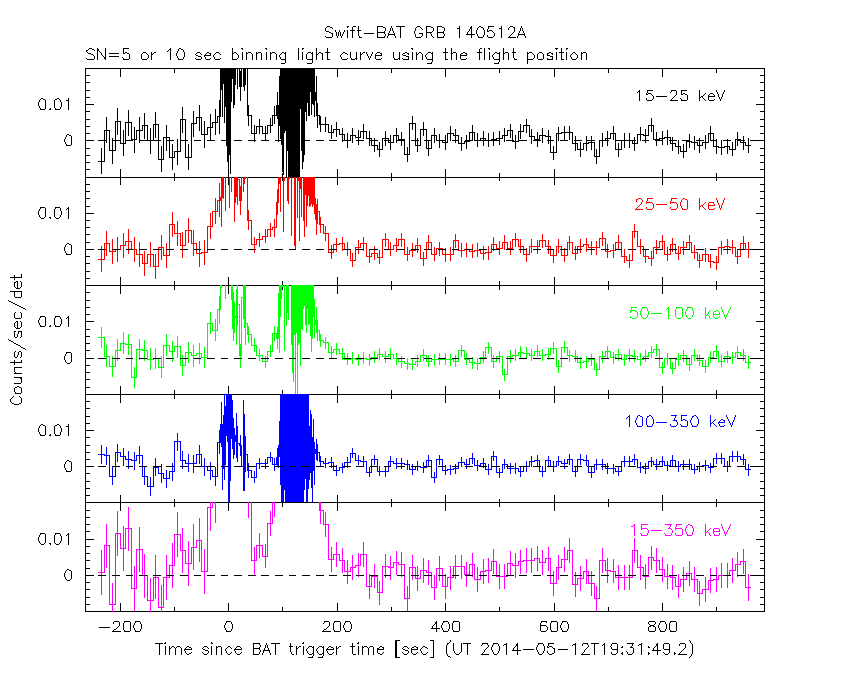

SN=5 or 10 sec. binning (whichever binning is satisfied first)

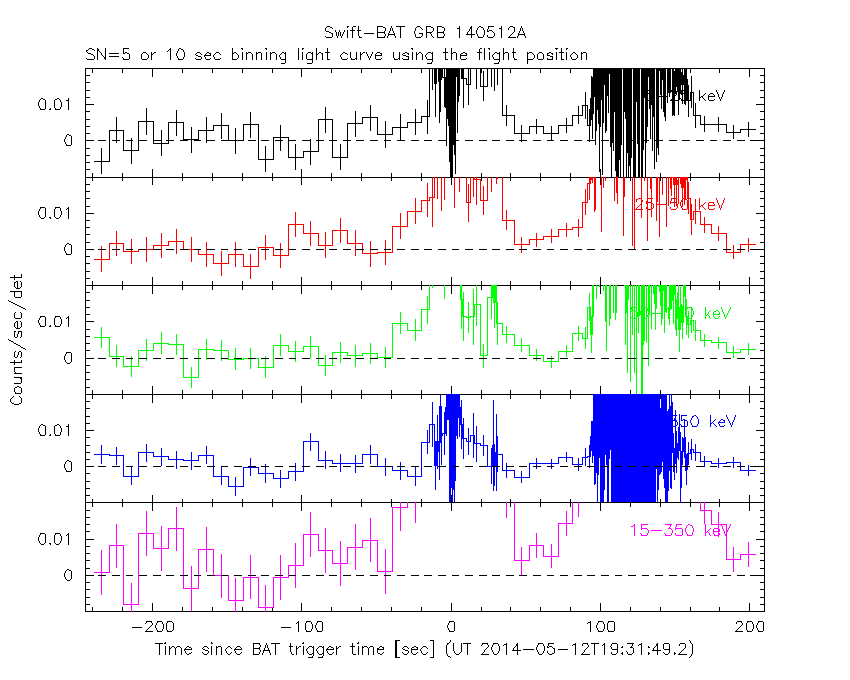

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

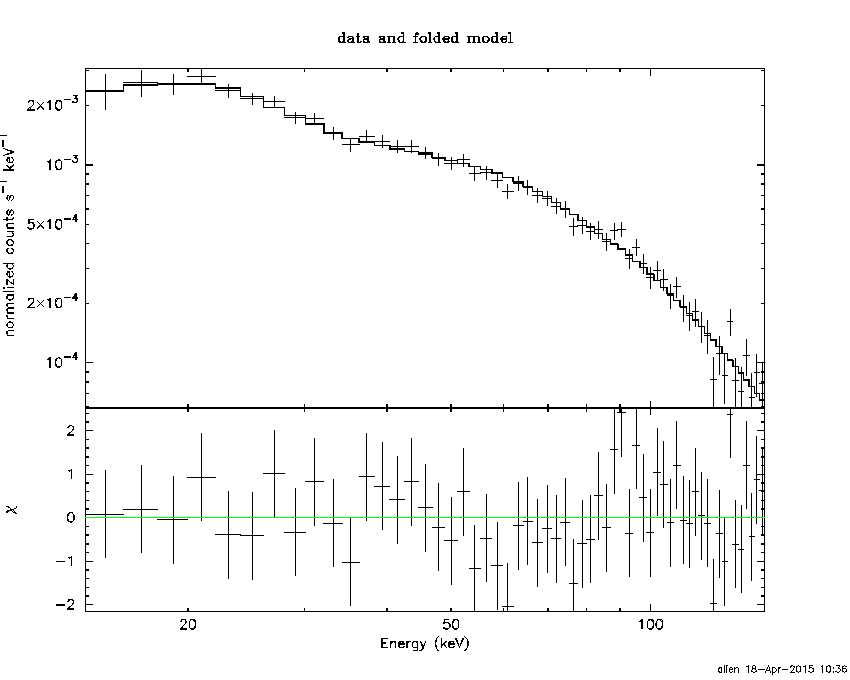

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -22.840 sec. to  178.148 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33528     ( -0.0401106   0.0399804 )
Norm@50keV  : 6.62100E-03    ( -0.000136079   0.000135857 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.43 using 59 PHA bins.
# Reduced chi-squared =         0.8322 for     57 degrees of freedom
# Null hypothesis probability =   8.127998e-01

Photon flux (15-150 keV)    in 201 sec: 0.795263 ( -0.0187064  0.0187801 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.30414e-05 ( -2.68763e-07  2.69043e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -22.840 sec. to  178.148 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33220     (     )
Epeak [keV] : 9999.30      ( -9999.33 -9999.33 )
Norm@50keV  : 6.64740E-03    ( -0.000134768   0.000434808 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.57 using 59 PHA bins.
# Reduced chi-squared =         0.8495 for     56 degrees of freedom
# Null hypothesis probability =   7.812283e-01

Photon flux (15-150 keV)    in 201 sec: 0.794736 ( -0.018516  0.0188 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.30379e-05 ( -2.64717e-07  2.61702e-07 ) ergs/cm2

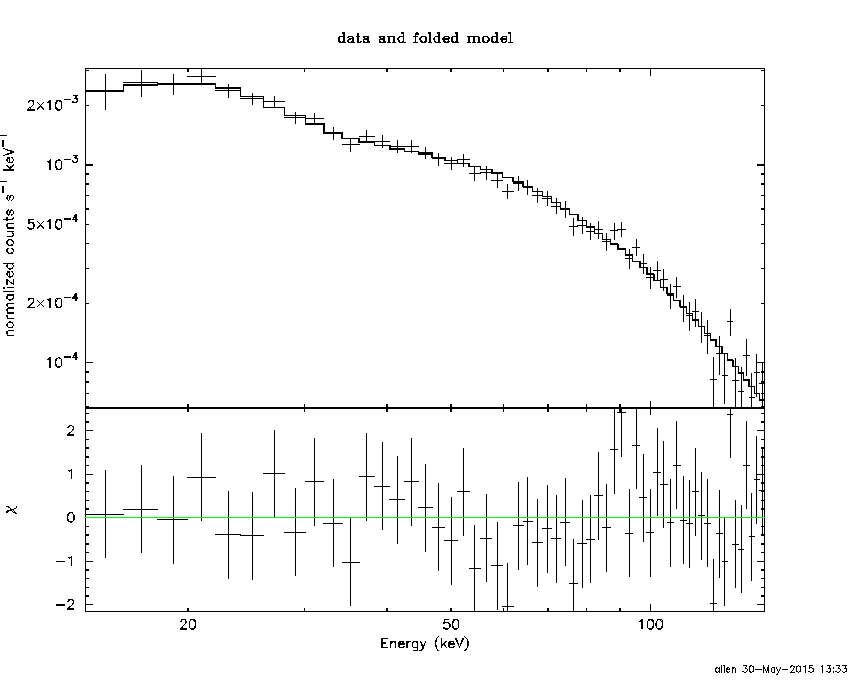

Band function

Time interval is from  -22.840 sec. to  178.148 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.05211   ( 1.05211   1.05211 )
beta        : -1.33527    ( -0.0399846   0.04011 )
Epeak [keV] : 41.3173      ( -41.3173 -41.3173 )
Norm@50keV   : 1.30599E-02    ( -0.00603425   538184 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.43 using 59 PHA bins.
# Reduced chi-squared =         0.8624 for     55 degrees of freedom
# Null hypothesis probability =   7.558695e-01

Photon flux (15-150 keV)    in 201 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.1267  (  )
R^2/D10^2   : 3.27299E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         613.05 using 59 PHA bins.
# Reduced chi-squared =         10.755 for     57 degrees of freedom
# Null hypothesis probability =   3.451875e-94

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.124e-07   2.502e-08
25- 50  2.563e-06   7.839e-08
50-150  7.704e-06   2.281e-07
15-150  1.078e-05   2.181e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 3.39960       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         187.23 using 59 PHA bins.
# Reduced chi-squared =         3.2847 for     57 degrees of freedom
# Null hypothesis probability =   8.824541e-16

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.702e-06   4.110e-08
25- 50  3.273e-06   8.040e-08
50-150  7.179e-06   1.608e-07
15-150  1.215e-05   2.774e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.18452        (-0.594826      0.626549)
R1^2/D10^2  : 0.454228        (-0.100763      0.137673)
kT2 [keV]   : 35.3022        (-2.75712      3.45977)
R2^2/D10^2  : 4.36749E-03    (-0.00111031   0.00132279)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.49 using 59 PHA bins.
# Reduced chi-squared =         0.9362 for     55 degrees of freedom
# Null hypothesis probability =   6.094970e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.278e-06   9.638e-08
25- 50  3.056e-06   1.166e-07
50-150  8.774e-06   4.342e-07
15-150  1.311e-05   5.367e-07

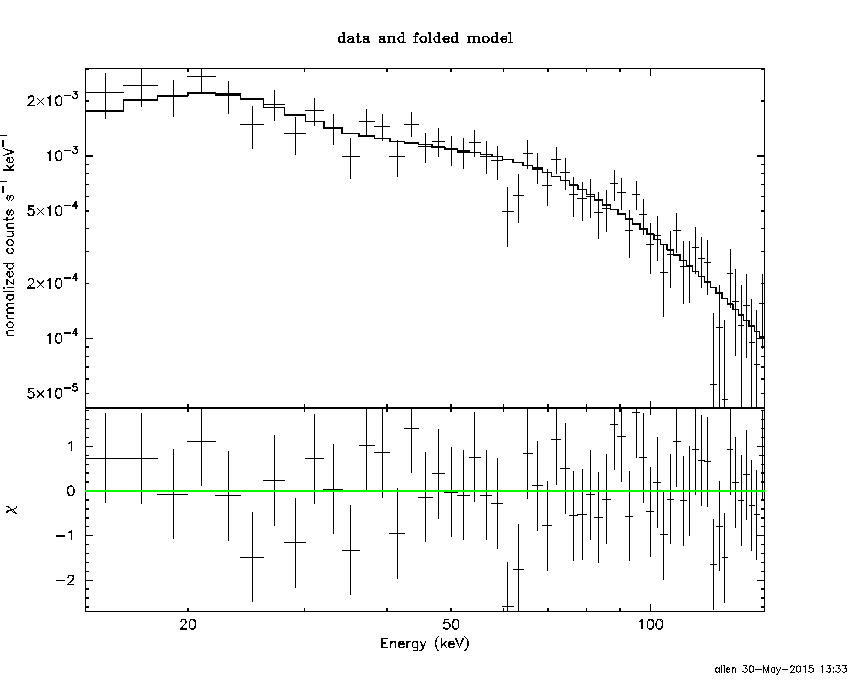

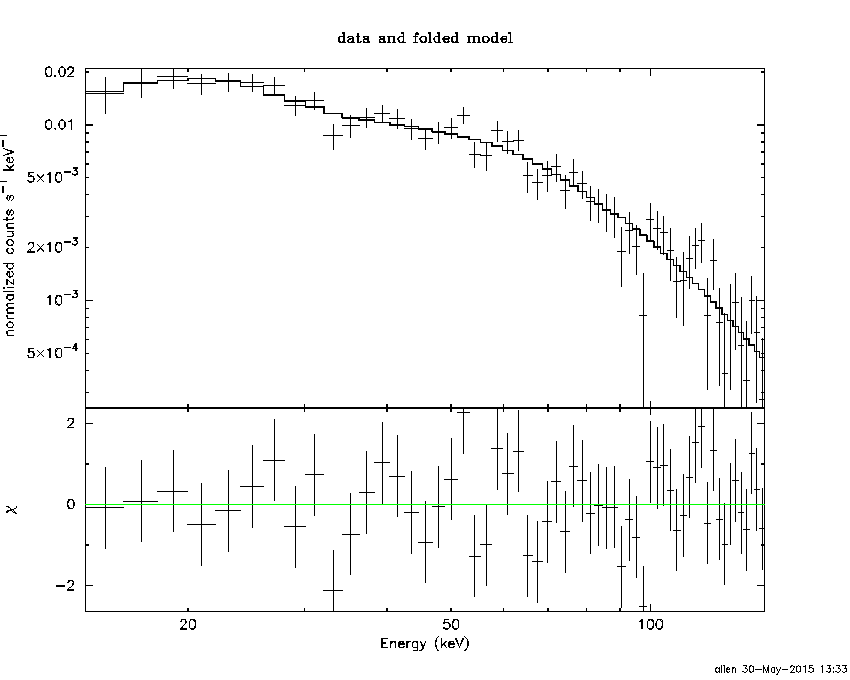

Peak spectrum fit

Power-law model

Time interval is from  121.956 sec. to  122.956 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.24366     ( -0.0703834   0.070413 )
Norm@50keV  : 5.12170E-02    ( -0.00200799   0.0020073 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.07 using 59 PHA bins.
# Reduced chi-squared =          1.001 for     57 degrees of freedom
# Null hypothesis probability =   4.723094e-01

Photon flux (15-150 keV)    in 1 sec: 6.05141 ( -0.242089  0.242267 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.13435e-07 ( -2.28394e-08  2.293e-08 ) ergs/cm2

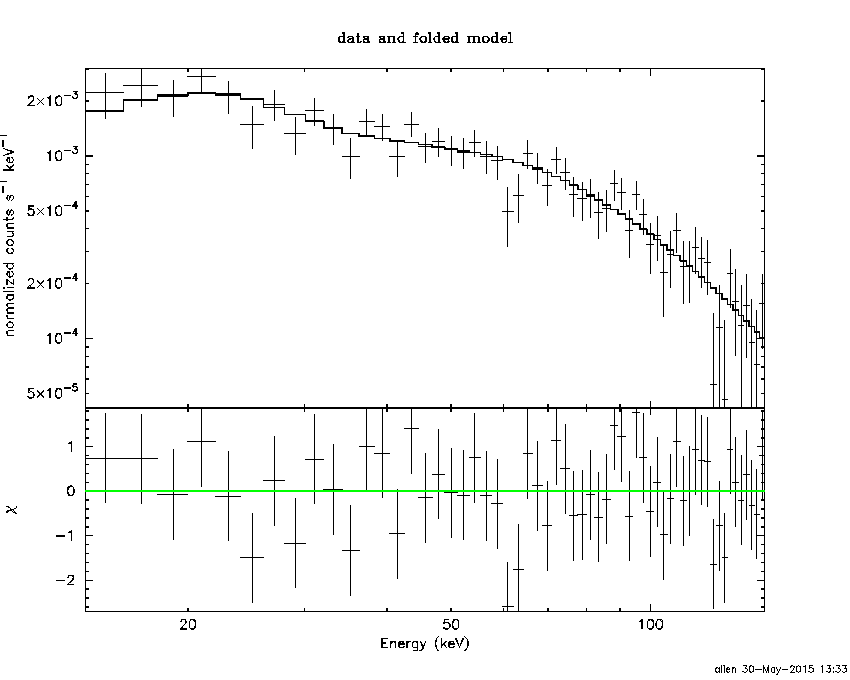

Cutoff power-law model

Time interval is from  121.956 sec. to  122.956 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00740     ( -0.294231   0.256629 )
Epeak [keV] : 224.843      ( -95.7815 -224.844 )
Norm@50keV  : 6.63390E-02    ( -0.0158646   0.0244595 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.95 using 59 PHA bins.
# Reduced chi-squared =         0.9812 for     56 degrees of freedom
# Null hypothesis probability =   5.146848e-01

Photon flux (15-150 keV)    in 1 sec: 5.97938 ( -0.25581  0.25557 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.0508e-07 ( -2.5253e-08  2.5076e-08 ) ergs/cm2

Band function

Time interval is from  121.956 sec. to  122.956 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.776882   ( -0.344177   5.37077 )
beta        : -1.39679    ( 1.3969   0.17033 )
Epeak [keV] : 120.763      ( -84.1955 1644.06 )
Norm@50keV   : 8.96459E-02    ( -0.0352665   0.154498 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.73 using 59 PHA bins.
# Reduced chi-squared =         0.9768 for     55 degrees of freedom
# Null hypothesis probability =   5.234290e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.7594  (  )
R^2/D10^2   : 0.404370  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         168.54 using 59 PHA bins.
# Reduced chi-squared =         2.9569 for     57 degrees of freedom
# Null hypothesis probability =   5.848140e-13

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.564e-08   1.890e-09
25- 50  1.174e-07   6.400e-09
50-150  2.678e-07   2.000e-08
15-150  4.109e-07   1.935e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 24.8922       (-0.987707     0.987573)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         107.13 using 59 PHA bins.
# Reduced chi-squared =         1.8794 for     57 degrees of freedom
# Null hypothesis probability =   6.616242e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.200e-08   2.525e-09
25- 50  1.193e-07   5.100e-09
50-150  2.616e-07   1.070e-08
15-150  4.428e-07   1.985e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.86966        (-1.65075      1.7844)
R1^2/D10^2  : 2.44343        (-0.942427      2.01959)
kT2 [keV]   : 34.0425        (-6.72719      13.7663)
R2^2/D10^2  : 3.78772E-02    (-0.0239446   0.0419395)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.78 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     55 degrees of freedom
# Null hypothesis probability =   2.756275e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.347e-08   6.355e-09
25- 50  1.181e-07   1.214e-08
50-150  3.442e-07   7.720e-08
15-150  5.058e-07   7.395e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17546     ( -0.0966549   0.0951753 )
Norm@50keV  : 7.48801E-03    ( -0.000393676   0.000392017 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.03 using 59 PHA bins.
# Reduced chi-squared =         0.8251 for     57 degrees of freedom
# Null hypothesis probability =   8.240623e-01

Photon flux (15-150 keV)    in 38.72 sec: 0.876025 ( -0.0498639  0.0500975 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9623e-06 ( -1.55079e-07  1.55395e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17407     ( -0.100262   0.0931345 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 7.52255E-03    ( -0.000391642   0.00198645 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.07 using 59 PHA bins.
# Reduced chi-squared =         0.8405 for     56 degrees of freedom
# Null hypothesis probability =   7.966625e-01

Photon flux (15-150 keV)    in 38.72 sec: 0.877022 ( -0.051299  0.037331 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.96162e-06 ( -1.53804e-07  1.54539e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.925206   ( 0.925206   0.925206 )
beta        : -1.17546    ( -0.0951081   0.0966662 )
Epeak [keV] : 50.6913      ( -50.6913 -50.6913 )
Norm@50keV   : 1.38024E-02    ( -0.0067034   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.03 using 59 PHA bins.
# Reduced chi-squared =         0.8551 for     55 degrees of freedom
# Null hypothesis probability =   7.689841e-01

Photon flux (15-150 keV)    in 38.72 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.96e-06
S(50-100 keV) = 4.69e-06

T90 vs. Hardness ratio plot

T90                                   = 154.111999928951 sec.
Hardness ratio (energy fluence ratio) = 1.58446

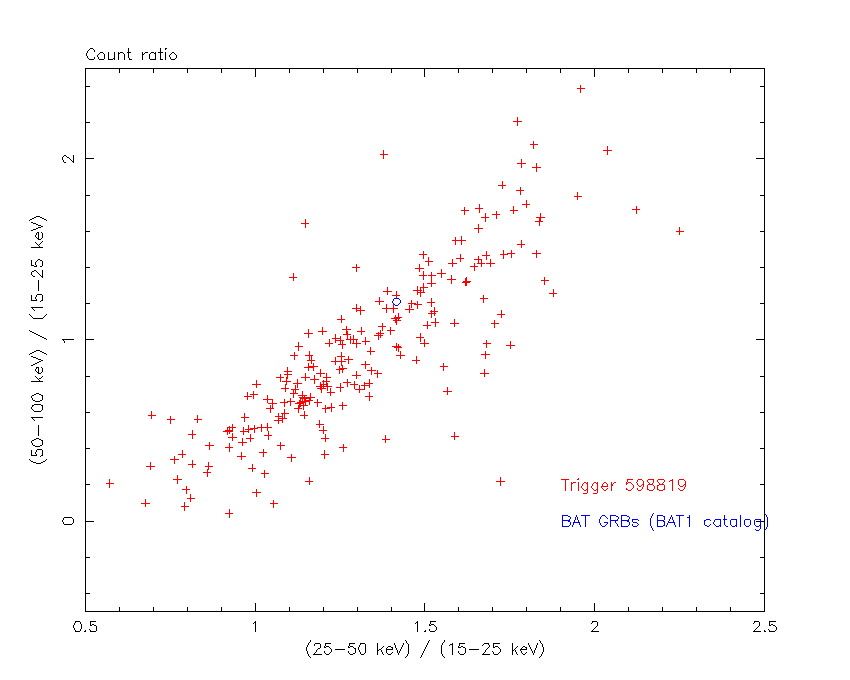

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.41585
Count Ratio (50-100 keV) / (15-25 keV) = 1.21136

Mask shadow pattern

IMX = -8.564446874304327E-01, IMY = -2.471704571567579E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

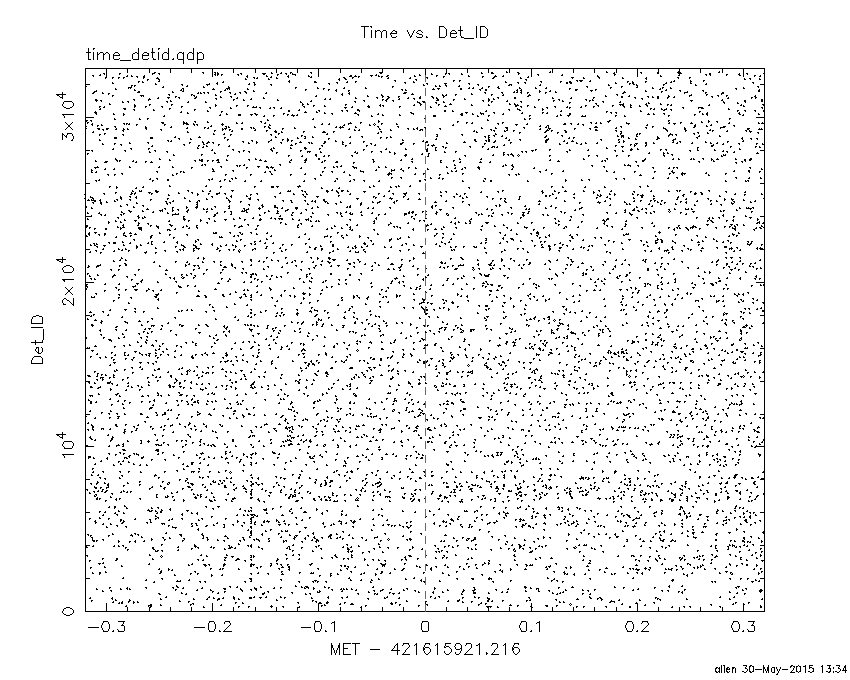

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

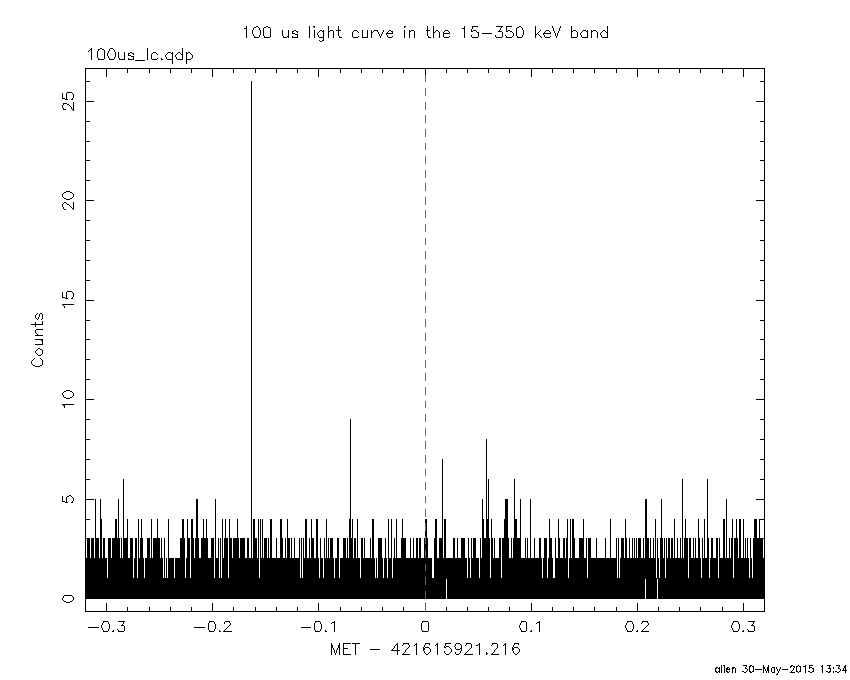

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

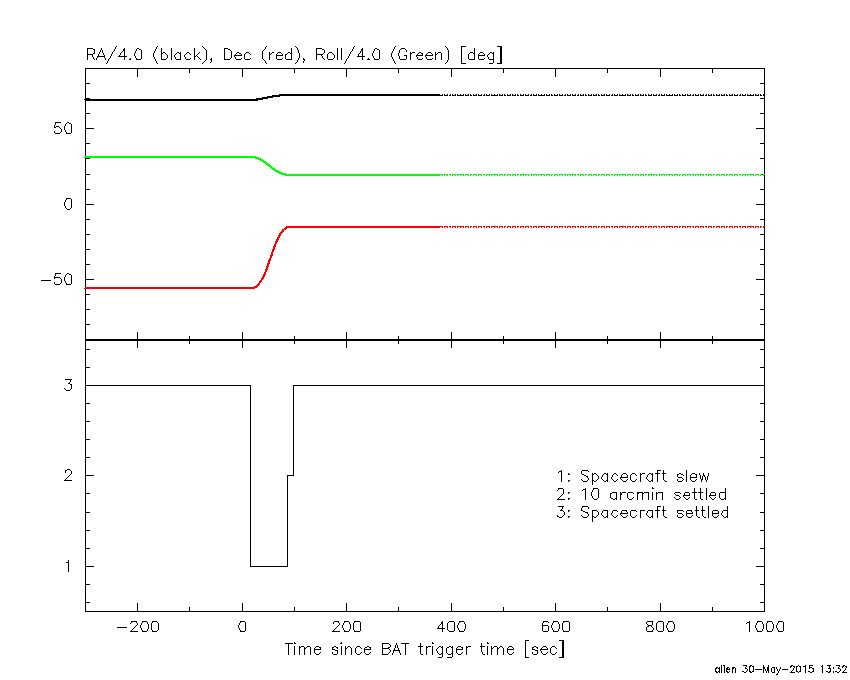

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.216000 -22.840000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3244 -60.6096   11.8  50.1    3.2   0.4465   1.0    0.8	Cen X-3
186.7299 -62.7983    2.5  42.7    7.7   1.4707   4.6    2.6	GX 301-2
256.0208 -37.8326    1.8  22.6   98.8   1.7734   6.5    1.8	4U 1700-377
256.4436 -36.4107    4.5  23.7  101.3   0.7502   2.5    0.8	GX 349+2
262.8256 -24.7152    5.6  32.6  121.5  -0.7749  -2.1   10.2	GX 1+4
264.6517 -44.5791  111.3  13.5  105.6   0.0190   0.1    8.7	4U 1735-44
270.3416 -25.1413    3.6  30.9  134.1   0.9915   3.2    4.9	GX 5-1
270.3496 -25.6025    6.0  30.4  134.0   0.6063   2.0    8.8	GRS 1758-258
273.9621 -14.1687    3.8  41.5  141.3   1.6290   3.0    8.3	GX 17+2
275.9595 -30.5580    0.0  25.1  143.8   0.2650   1.2   11.6	H1820-303
285.1332 -25.0264   20.5  31.2  160.2   0.1565   0.6    8.3	HT1900.1-2455
262.7581 -33.8133    4.2  23.9  115.7  -0.7328  -2.8   11.6	GX 354-0
265.6340 -27.7539    1.5  29.0  124.8   2.2836   7.8 ------	UNKNOWN
311.0286 -11.7755    3.1  51.3 -169.7   2.1383   3.7 ------	UNKNOWN
 60.0640 -72.9153    2.3  49.0  -48.1   5.6383   5.1 ------	UNKNOWN
 29.3350 -70.9451    3.2  44.8  -59.9   4.1628   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-22.840000 15.884600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4619 -60.6758    8.3  50.0    3.2   0.2385   1.4    5.3	Cen X-3
186.6552 -62.7708   61.3  42.8    7.7   0.0235   0.2    0.0	GX 301-2
255.9938 -37.8527  201.6  22.6   98.7  -0.0059  -0.1    0.6	4U 1700-377
256.4351 -36.4239   38.9  23.6  101.3   0.0307   0.3    0.1	GX 349+2
262.8435 -24.7948    5.2  32.5  121.5  -0.3225  -2.2    9.5	GX 1+4
264.9811 -44.4096    3.6  13.5  106.9  -0.2658  -3.2   10.5	4U 1735-44
270.1545 -25.1675    3.8  30.9  133.7   0.3719   3.0    8.8	GX 5-1
270.2801 -25.5591    0.0  30.5  133.9  -0.2480  -2.0   11.1	GRS 1758-258
274.1547 -14.0722    8.6  41.6  141.6   0.2781   1.3    8.9	GX 17+2
275.8653 -30.2044    5.1  25.5  143.7   0.2194   2.3   10.2	H1820-303
284.9841 -24.8000   37.6  31.4  159.9  -0.0319  -0.3    7.8	HT1900.1-2455
262.7779 -33.8635    8.1  23.8  115.7   0.1398   1.4   10.7	GX 354-0
233.0933 -30.2884    1.9  39.7   76.6   1.9005   6.0 ------	UNKNOWN
289.3678 -15.0878    0.4  41.7  163.9   4.0754  27.2 ------	UNKNOWN
314.9997 -50.8321    2.8  23.1 -120.5   0.3678   4.1 ------	UNKNOWN
319.1089 -13.4402    2.5  53.3 -159.8   1.0543   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
87.084590 962.831000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
256.0008 -37.8519    2.2  37.2   58.4   7.6824   5.3    0.8	4U 1700-377
256.4330 -36.3229    5.3  36.2   60.4   3.2812   2.2    6.0	GX 349+2
263.0202 -24.8564    6.7  26.6   76.8   1.4153   1.7    6.7	GX 1+4
264.7205 -44.5187    5.9  36.1   42.8  -2.1901  -2.0    4.2	4U 1735-44
268.2106  -1.3403    0.0  25.0  133.9   0.7411   1.0   11.6	SW J1753.5-0127
270.3131 -25.0561    2.1  20.4   70.4   4.2024   5.6    2.1	GX 5-1
270.3642 -25.7431    3.4  20.7   68.6   2.4716   3.4    3.3	GRS 1758-258
274.0122 -13.9778    2.4  14.9  104.9   2.8332   4.8    3.5	GX 17+2
276.0382 -30.4226    4.2  19.6   48.8   1.6549   2.8    6.7	H1820-303
284.9790 -24.7784    4.9  10.5   34.9   1.6146   2.4    9.1	HT1900.1-2455
288.7988  10.9434    1.1  26.1 -168.8   7.0163  10.9    0.1	GRS 1915+105
299.5945  35.1887    0.9  51.2 -156.8  25.8510  13.2    0.8	Cyg X-1
262.8579 -33.9122   10.6  30.4   59.5   1.1301   1.1    8.0	GX 354-0
265.6515 -27.7351    1.0  25.4   68.7   9.4221  11.7 ------	UNKNOWN
277.3451 -23.8020    1.8  14.3   63.1   3.9439   6.5 ------	UNKNOWN
282.1905 -32.3210    2.2  18.4   32.0   3.1714   5.2 ------	UNKNOWN
279.9270   1.2949    2.9  18.9  162.0   2.3874   4.0 ------	UNKNOWN
289.3712 -15.0994    0.4   0.0  170.6  15.7951  25.8 ------	UNKNOWN
302.7586 -19.3199    2.4  13.4  -57.4   2.7460   4.7 ------	UNKNOWN
326.0010 -24.2911    3.9  35.6  -56.8   3.1924   3.0 ------	UNKNOWN
301.6130  41.6594    3.9  57.9 -156.8  14.5217   2.9 ------	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Sat May 30 13:34:12 EDT 2015
