batgrbproduct analysis for trigger=599287

batgrbproduct Analysis for Trigger=599287

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Oct  4 22:45:12 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger599287
======================================================================

  Trigger: 00599287      Segment: 000

  BAT Trigger Time: 422097478.656   [s; MET]
      Trigger Stop: 422097479.68   [s; MET]
               UTC: 2014-05-18T09:17:46.630720    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 227.269331468707   Dec: 42.4156655750532  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.66
     Image Trigger?:     NO
     Rate S/N Ratio:     13.7477270848675  [ if not an image trigger ]
     Image S/N Ratio:    8.66

  Flight Position:   [ source = BAT ]
    RA: 227.269331468707   Dec: 42.4156655750532  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 227.221166823231   Dec: 42.3998493646802  [deg; J2000]
        { 15h 08m 53.1s , +42d 23' 59.5" }
         +/- 1.72249157659234 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.824997164495074 [arcmin] (formal 1-sigma fit error)
    SNR: 13.987853804574

  Angular difference between Flight and Ground position is 2.335289 arcmin

  Partial Coding Fraction: 0.890625    [ including projection effects ]

  Duration
     T90: 60.5239999294281 +/- 2.48237949745235
        Measured from: -2.64800000190735
                   to: 57.8759999275208     [s; relative to TRIGTIME]
     T50: 48.4039999246597 +/- 3.51867079527506
        Measured from: 3.7960000038147
                   to: 52.1999999284744     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 41.944000005722
                   to: 42.944000005722     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -3.98000001907349
                   to: 60.039999961853     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.763584   0.884923   0.457812   0.007289
           0.044780   0.046801   0.041729   0.038926 [error]
 Peak      0.036478   0.054534   0.028957   0.005231
           0.005941   0.006190   0.005503   0.004835 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.35e-07 3.40e-07 3.67e-07 7.36e-07 1.17e-06 1.68e-06   erg/cm2
              Error 2.25e-08 2.18e-08 3.93e-08 1.58e-07 9.01e-08 1.98e-07   erg/cm2
Peak flux Power-law 3.39e-01 3.23e-01 2.15e-01 2.22e-01 9.67e-01 1.10e+00   ph/cm2/s
              Error 7.06e-02 4.60e-02 4.23e-02 8.37e-02 1.36e-01 1.62e-01   ph/cm2/s

Fluence   Cutoff-PL 2.13e-07 3.75e-07 3.54e-07 1.88e-07 1.06e-06 1.13e-06   erg/cm2
              Error 2.62e-08 2.95e-08 4.60e-08 1.48e-07 1.02e-07 1.81e-07   erg/cm2
Peak flux Cutoff-PL 2.77e-01 3.95e-01 2.14e-01 3.34e-02 9.14e-01 9.19e-01   ph/cm2/s
              Error 8.31e-02 6.65e-02 5.51e-02 -------- 1.38e-01 1.44e-01   ph/cm2/s

Fluence        Band 2.11e-07 3.72e-07 3.54e-07 2.04e-07 1.07e-06 1.13e-06   erg/cm2
              Error 2.53e-08 2.89e-08 4.51e-08 -------- 1.01e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.892    0.121    -      -           1.99e-03 1.54e-04   61.540 57
CPL   0.977    0.572      47.9    9.9      6.48e-03 5.45e-03   52.190 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.591    0.230    -      -           7.55e-03 1.17e-03   56.200 57
CPL  -0.253    1.401      52.7   16.2      8.20e-02 3.31e-01   48.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 61.440000 sec.
T50 in the 50-300 keV band: 52.032000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   64.020   -3.980   60.040
T90    60.524   -2.648   57.876
T50    48.404    3.796   52.200
Peak    1.000   41.944   42.944

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  227.2212    42.3998   0.0137    20.2239   -44.0843         0.6854120     13.988 TRIG_00599287

Foreground time interval of the image:
 -3.980  15.845 (delta_t =  19.825 [sec])
Background time interval of the image:
-347.555 -328.358 (delta_t =  19.197 [sec])
-239.656  -3.980 (delta_t = 235.676 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

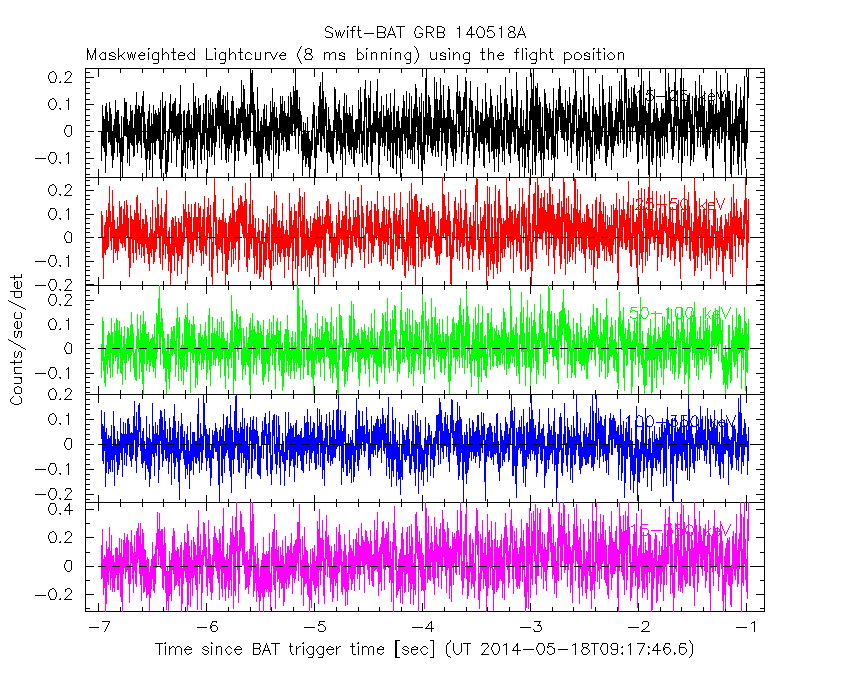

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

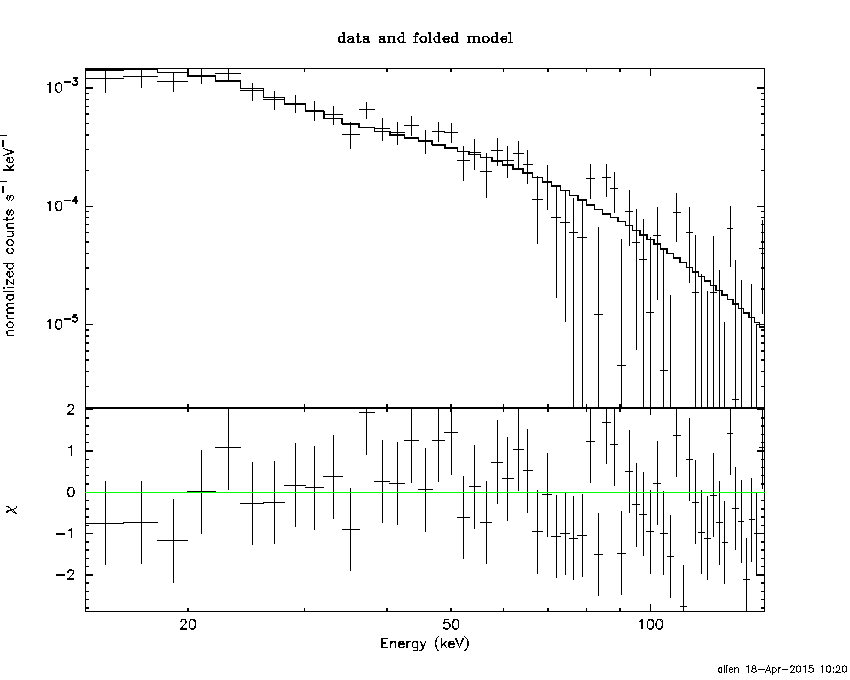

Power-law model

Time interval is from   -3.980 sec. to   60.040 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.89241     ( -0.11978   0.123189 )
Norm@50keV  : 1.98641E-03    ( -0.000154752   0.000152903 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.54 using 59 PHA bins.
# Reduced chi-squared =          1.080 for     57 degrees of freedom
# Null hypothesis probability =   3.168509e-01

Photon flux (15-150 keV)    in 64.02 sec: 0.284157 ( -0.0183559  0.0183638 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.1691e-06 ( -8.94276e-08  9.07266e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -3.980 sec. to   60.040 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.976958     ( -0.610629   0.533886 )
Epeak [keV] : 47.9220      ( -7.11486 12.6666 )
Norm@50keV  : 6.47742E-03    ( -0.00318066   0.00772819 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.19 using 59 PHA bins.
# Reduced chi-squared =         0.9320 for     56 degrees of freedom
# Null hypothesis probability =   6.196861e-01

Photon flux (15-150 keV)    in 64.02 sec: 0.271743 ( -0.019491  0.019529 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.06423e-06 ( -9.94999e-08  1.04602e-07 ) ergs/cm2

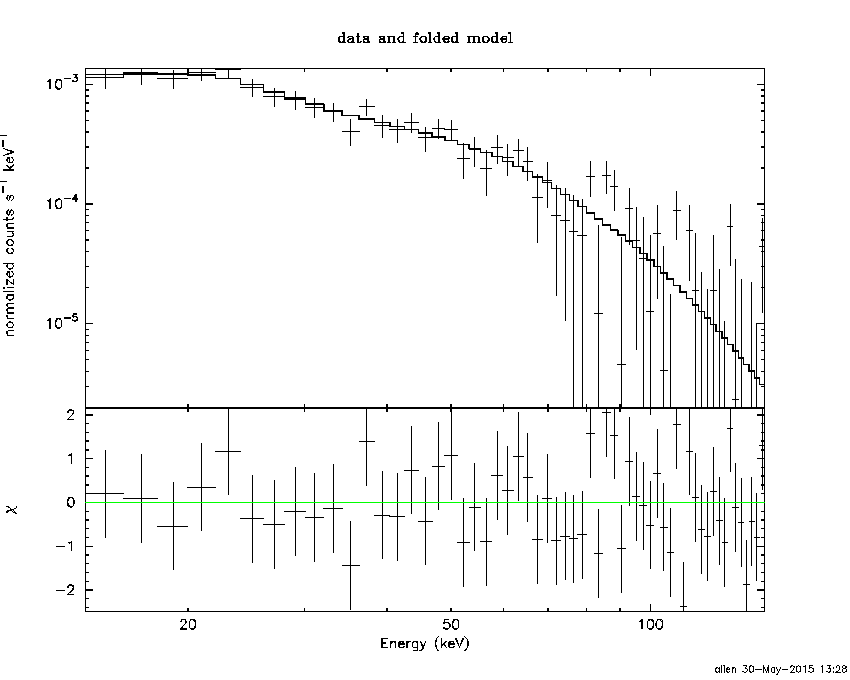

Band function

Time interval is from   -3.980 sec. to   60.040 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.976863   ( -0.432914   0.747717 )
beta        : -10.0000    ( 10   5.32907e-15 )
Epeak [keV] : 47.9120      ( -7.11352 8.99698 )
Norm@50keV   : 6.47789E-03    ( -0.00318407   0.00773459 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.19 using 59 PHA bins.
# Reduced chi-squared =         0.9490 for     55 degrees of freedom
# Null hypothesis probability =   5.824891e-01

Photon flux (15-150 keV)    in 64.02 sec: 0.273016 ( 6.72698  -0.020919 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.06811e-06 ( -1.06766e-06  -1.04769e-07 ) ergs/cm2

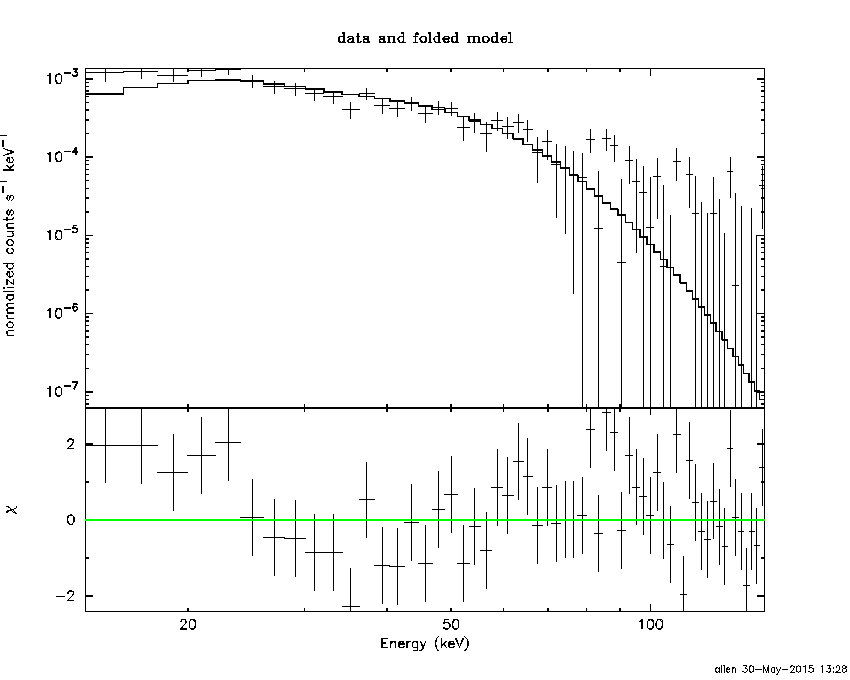

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.9455  (-0.801216  0.871019)
R^2/D10^2   : 9.41798E-02  (-0.0236303   0.0313241)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.20 using 59 PHA bins.
# Reduced chi-squared =          1.460 for     57 degrees of freedom
# Null hypothesis probability =   1.337571e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.508e-07   1.636e-08
25- 50  4.236e-07   3.156e-08
50-150  2.856e-07   4.878e-08
15-150  8.600e-07   6.626e-08

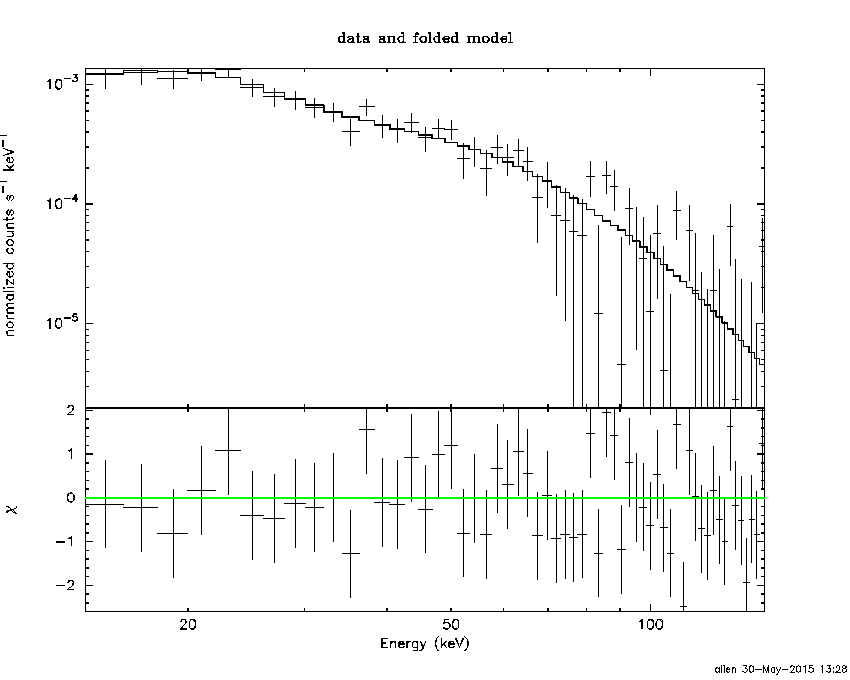

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 78.6121       (-15.3856      22.0686)
Norm        : 1.33940       (-0.129563     0.147629)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.20 using 59 PHA bins.
# Reduced chi-squared =         0.9333 for     57 degrees of freedom
# Null hypothesis probability =   6.185692e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.222e-07   2.074e-08
25- 50  3.643e-07   2.378e-08
50-150  5.082e-07   9.065e-08
15-150  1.095e-06   1.098e-07

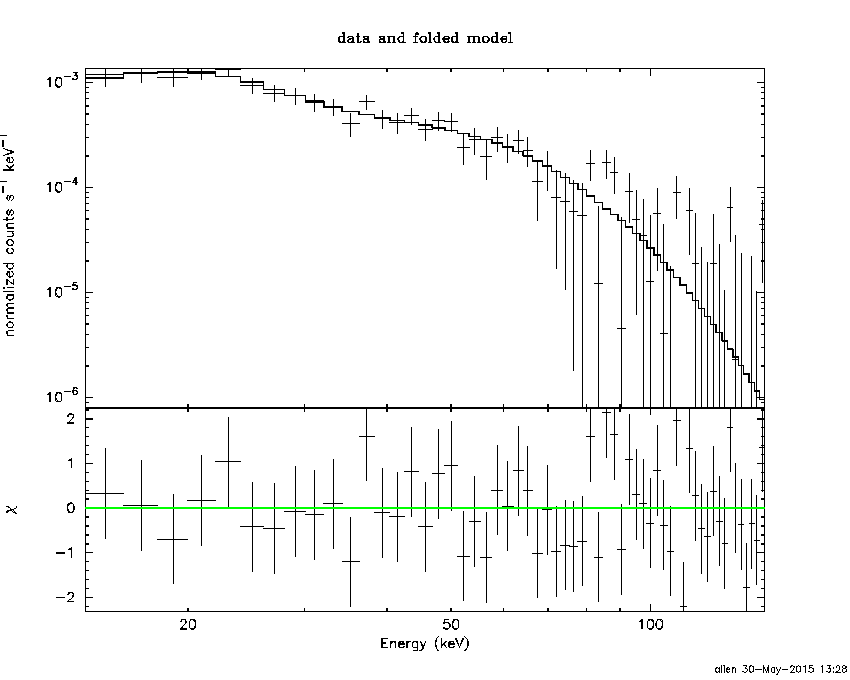

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.98807        (-1.37626      1.77849)
R1^2/D10^2  : 0.983234        (-0.633894      2.75526)
kT2 [keV]   : 15.4948        (-2.37484      4.23837)
R2^2/D10^2  : 2.03322E-02    (-0.0133923   0.0212794)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.25 using 59 PHA bins.
# Reduced chi-squared =         0.9500 for     55 degrees of freedom
# Null hypothesis probability =   5.804147e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.167e-07   8.873e-08
25- 50  3.646e-07   8.819e-08
50-150  4.450e-07   1.512e-07
15-150  1.026e-06   2.590e-07

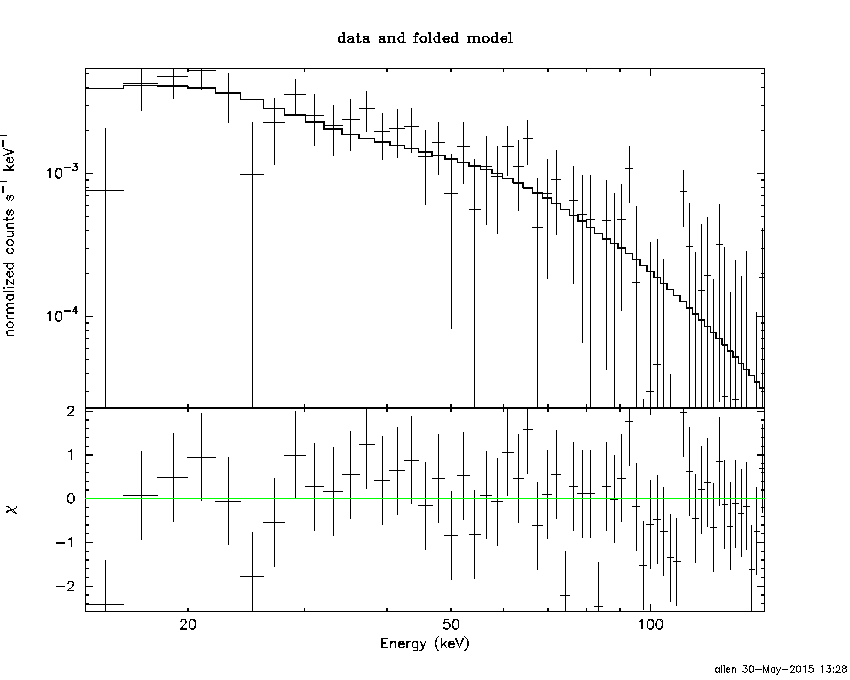

Peak spectrum fit

Power-law model

Time interval is from   41.944 sec. to   42.944 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59072     ( -0.226079   0.233043 )
Norm@50keV  : 7.54577E-03    ( -0.00117998   0.00116423 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.20 using 59 PHA bins.
# Reduced chi-squared =         0.9860 for     57 degrees of freedom
# Null hypothesis probability =   5.048981e-01

Photon flux (15-150 keV)    in 1 sec: 0.966898 ( -0.136389  0.136403 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.06504e-08 ( -1.17732e-08  1.20952e-08 ) ergs/cm2

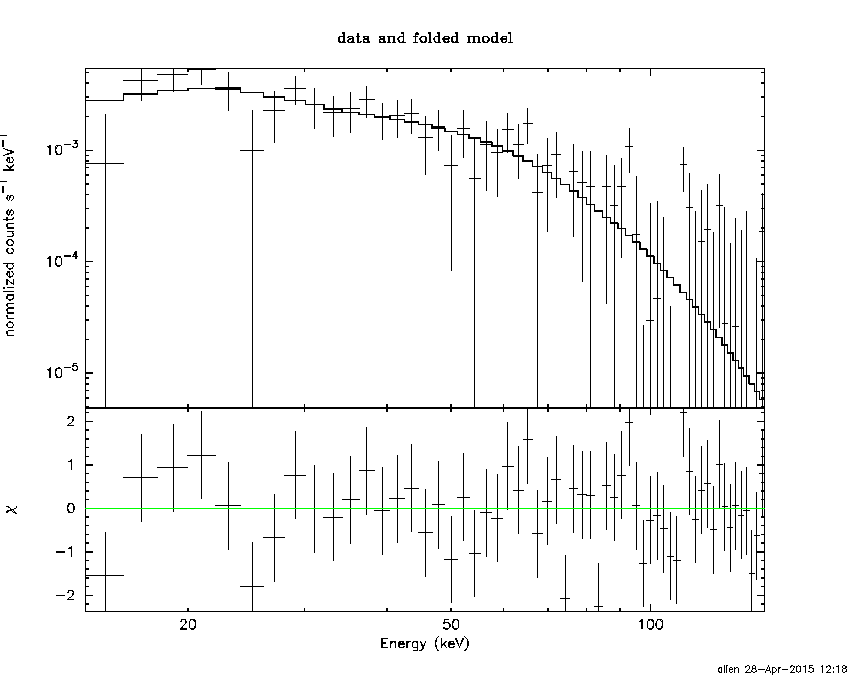

Cutoff power-law model

Time interval is from   41.944 sec. to   42.944 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.252740     ( -1.61397   1.1874 )
Epeak [keV] : 52.6869      ( -9.53154 22.8074 )
Norm@50keV  : 8.20011E-02    ( -0.0819988   0.57938 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.12 using 59 PHA bins.
# Reduced chi-squared =         0.8593 for     56 degrees of freedom
# Null hypothesis probability =   7.639405e-01

Photon flux (15-150 keV)    in 1 sec: 0.914259 ( -0.137972  0.138931 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.98439e-08 ( -1.13373e-08  1.29442e-08 ) ergs/cm2

Band function

Time interval is from   41.944 sec. to   42.944 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.208763   ( -1.13772   1.23446 )
beta        : -9.37167    ( 9.37167   19.3716 )
Epeak [keV] : 53.1874      ( -9.40167 21.0486 )
Norm@50keV   : 7.69571E-02    ( -0.0769763   90.7934 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.12 using 59 PHA bins.
# Reduced chi-squared =         0.8750 for     55 degrees of freedom
# Null hypothesis probability =   7.326620e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.9811e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.4113  (-1.70183  2.02497)
R^2/D10^2   : 0.225223  (-0.0952117   0.157978)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.98 using 59 PHA bins.
# Reduced chi-squared =         0.8768 for     57 degrees of freedom
# Null hypothesis probability =   7.335407e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.353e-09   1.831e-09
25- 50  2.406e-08   4.585e-09
50-150  2.278e-08   7.785e-09
15-150  5.419e-08   1.030e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 142.635       (-61.8353      -140.769)
Norm        : 4.06652       (-0.610554     0.760762)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.94 using 59 PHA bins.
# Reduced chi-squared =         0.9288 for     57 degrees of freedom
# Null hypothesis probability =   6.280270e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.049e-08   5.870e-09
25- 50  1.929e-08   1.044e-08
50-150  3.728e-08   2.304e-08
15-150  6.706e-08   3.925e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.38620        (-7.38844      -7.38844)
R1^2/D10^2  : 0.607971        (-0.60759      -0.60759)
kT2 [keV]   : 16.5582        (-16.5629      -16.5629)
R2^2/D10^2  : 5.73635E-02    (-0.0572811   0.238329)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.98 using 59 PHA bins.
# Reduced chi-squared =         0.8723 for     55 degrees of freedom
# Null hypothesis probability =   7.376986e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.840e-09   5.395e-09
25- 50  2.248e-08   1.205e-08
50-150  2.881e-08   1.674e-08
15-150  6.014e-08   3.255e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.92459     ( -0.211207   0.223659 )
Norm@50keV  : 2.02697E-03    ( -0.000297033   0.000289458 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.68 using 59 PHA bins.
# Reduced chi-squared =         0.9417 for     57 degrees of freedom
# Null hypothesis probability =   6.004899e-01

Photon flux (15-150 keV)    in 19.82 sec: 0.293975 ( -0.0329709  0.0329716 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.69478e-07 ( -5.16509e-08  5.31378e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54498     ( -0.975572   0.63564 )
Epeak [keV] : 49.5418      (   )
Norm@50keV  : 3.37397E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.06 using 59 PHA bins.
# Reduced chi-squared =         0.9475 for     56 degrees of freedom
# Null hypothesis probability =   5.868206e-01

Photon flux (15-150 keV)    in 19.82 sec: 0.289455 ( -0.033241  0.034275 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.53212e-07 ( -5.96087e-08  6.27699e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.54529   ( 1.1811   1.1811 )
beta        : -3.41632    ( 2.86753   12.8648 )
Epeak [keV] : 49.5383      ( -49.5369 -49.5369 )
Norm@50keV   : 3.37201E-03    ( -0.00154178   0.00495014 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.06 using 59 PHA bins.
# Reduced chi-squared =         0.9647 for     55 degrees of freedom
# Null hypothesis probability =   5.490569e-01

Photon flux (15-150 keV)    in 19.82 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.40e-07
S(50-100 keV) = 3.67e-07

T90 vs. Hardness ratio plot

T90                                   = 60.5239999294281 sec.
Hardness ratio (energy fluence ratio) = 1.07941

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.15891
Count Ratio (50-100 keV) / (15-25 keV) = 0.599557

Mask shadow pattern

IMX = 2.646293617018872E-01, IMY = 2.563029369990332E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-347.555400 -328.357900
-239.656000 -3.980000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3948  35.2239 1020.3  35.7   -8.2  -0.0030  -0.0    7.7	Her X-1
231.1928 -10.9385    2.5  39.5   81.6   4.4701   4.6 ------	UNKNOWN
254.4651   3.2678    2.7  44.2   40.9   2.7306   4.2 ------	UNKNOWN
158.4590   2.6858    4.2  58.3 -175.3   3.5521   2.7 ------	UNKNOWN
169.3986  13.2584    2.8  44.0 -169.1   1.3999   4.2 ------	UNKNOWN
154.3536   9.4331    2.6  59.1 -166.2   6.0358   4.5 ------	UNKNOWN
236.9796  67.7238    3.6  44.8  -60.3   2.7937   3.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-3.980000 15.844600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2741  35.3349   14.2  35.6   -8.4  -0.0494  -0.8    9.0	Her X-1
227.2211  42.3999    0.8  20.2  -44.1   0.6854  14.0 ------	UNKNOWN
273.4739  39.6407    2.0  50.9  -14.0   0.6817   5.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
57.244600 962.395800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3852  35.2431    7.9  22.2   18.3  -0.7762  -1.5    6.9	Her X-1
299.5846  35.1971    0.7  55.1   -9.8  28.3686  17.6    0.4	Cyg X-1
308.1136  41.1622   31.3  57.8  -20.1   0.9926   0.4   12.6	Cyg X-3
277.9196  19.1774    3.0  48.4   21.0   5.9025   3.9 ------	UNKNOWN
230.7646  32.5387    2.8  10.2   81.7   2.0016   4.1 ------	UNKNOWN
241.7830  34.8364    3.0  13.6   37.5   1.7633   3.9 ------	UNKNOWN
215.1020  53.3666    2.0  13.6 -113.8   2.9333   5.7 ------	UNKNOWN
305.9701  69.7094    3.9  46.9  -53.8   8.0414   3.0 ------	UNKNOWN

Plot creation:
Sat May 30 13:29:12 EDT 2015
