batgrbproduct analysis for trigger=603488

batgrbproduct Analysis for Trigger=603488

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jul  6 02:41:29 EDT 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger603488/GCN5_download_cron
======================================================================

  Trigger: 00603488      Segment: 000

  BAT Trigger Time: 426245580.892   [s; MET]
      Trigger Stop: 426245580.956   [s; MET]
               UTC: 2014-07-05T09:32:48.666480    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.724837159397   Dec: 21.8993259804969  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    14.89
     Image Trigger?:     NO
     Rate S/N Ratio:     36.3730669589464  [ if not an image trigger ]
     Image S/N Ratio:    14.89

  Flight Position:   [ source = BAT ]
    RA: 293.724837159397   Dec: 21.8993259804969  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.824133924896   Dec: 21.762132262489  [deg; J2000]
        { 19h 35m 17.8s , +21d 45' 43.7" }
         +/- 3.62998704631286 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.0166274232111 [arcmin] (formal 1-sigma fit error)
    SNR: 4.82229735737868

  Angular difference between Flight and Ground position is 9.916985 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 121.991999924183 +/- 120.155263600202
        Measured from: 96.024000108242
                   to: 218.016000032425     [s; relative to TRIGTIME]
     T50: 31.0519999265671 +/- 75.473384964853
        Measured from: 135.084000110626
                   to: 166.136000037193     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.25
                   to: 0.75     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0240000486373901
                   to: 285.84399998188     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.041470   0.122278   0.075658   0.032311
           0.102712   0.102855   0.089318   0.080949 [error]
 Peak      0.041176   0.043853   0.021772  -0.009091
           0.006966   0.006887   0.005765   0.004878 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.71e-08 4.23e-08 8.32e-08 4.07e-07 2.25e-07 5.49e-07   erg/cm2
              Error 2.77e-08 4.35e-08 8.22e-08 2.87e-06 2.14e-07 2.89e-06   erg/cm2
Peak flux Power-law 4.49e-01 2.87e-01 1.19e-01 6.71e-02 8.89e-01 9.22e-01   ph/cm2/s
              Error 1.00e-01 5.40e-02 4.22e-02 4.36e-02 1.56e-01 1.66e-01   ph/cm2/s

Fluence   Cutoff-PL 1.29e-08 4.45e-08 9.12e-08 1.29e-07 2.11e-07 2.78e-07   erg/cm2
              Error 2.75e-08 5.38e-08 1.03e-07 6.26e-07 2.22e-07 --------   erg/cm2
Peak flux Cutoff-PL 4.26e-01 3.29e-01 9.65e-02 9.47e-03 8.60e-01 8.61e-01   ph/cm2/s
              Error 1.08e-01 8.11e-02 7.74e-02 4.80e-02 1.60e-01 1.65e-01   ph/cm2/s

Fluence        Band 1.35e-08 4.37e-08 9.01e-08 1.68e-07 2.16e-07 3.19e-07   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 4.25e-01 3.31e-01 9.51e-02 8.64e-03 8.59e-01 8.58e-01   ph/cm2/s
              Error 1.08e-01 -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.023    2.075    -      -           7.33e-05 6.96e-05   62.980 57
CPL   0.335    0.000     139.8    0.0      1.46e-04 0.00e+00   62.920 56

The chi2 of BB fit is  which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.271    0.360    -      -           5.17e-03 1.40e-03   87.530 57
CPL   0.951    2.855      27.9    0.0      3.64e-02 0.00e+00   85.810 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  285.868   -0.024  285.844
T90   121.992   96.024  218.016
T50    31.052  135.084  166.136
Peak    1.000   -0.250    0.750

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  293.8241 +21.7621 0.0398   11.8  -67.9       0.1713     4.8  TRIG_00603488
------------------------------------------

Foreground time interval of the image:
 -0.024   8.609 (delta_t =   8.633 [sec])
Background time interval of the image:
-239.892  -0.024 (delta_t = 239.868 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

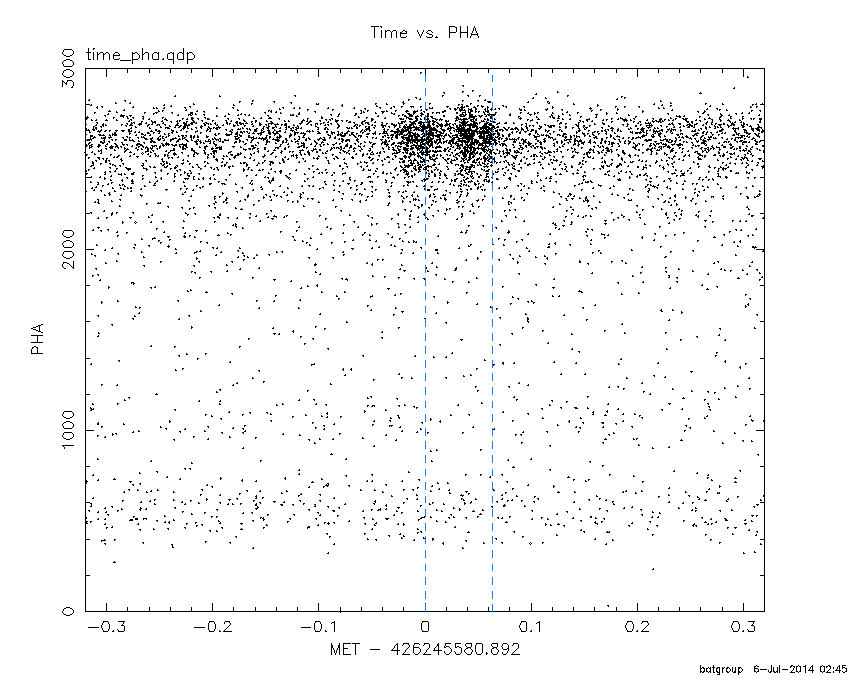

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

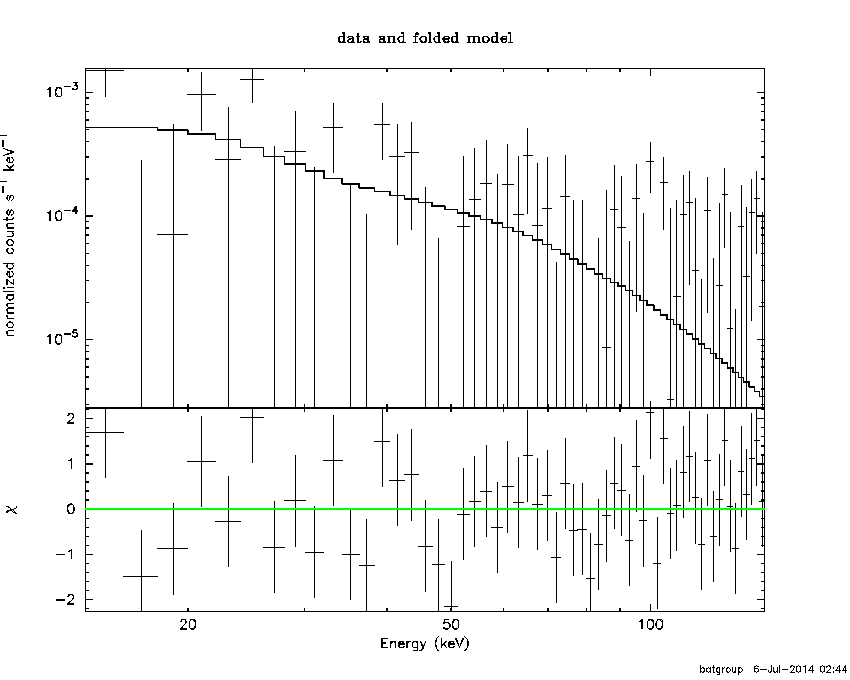

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.024 sec. to  285.844 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02328     ( -1.02326   3.12738 )
Norm@50keV  : 7.32598E-05    ( -7.32595e-05   6.59611e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.98 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.731073e-01

Photon flux (15-150 keV)    in 285.9 sec: 8.44769E-03 ( -0.00844769  0.00790393 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.24741e-07 ( -2.04736e-07  2.22569e-07 ) ergs/cm2

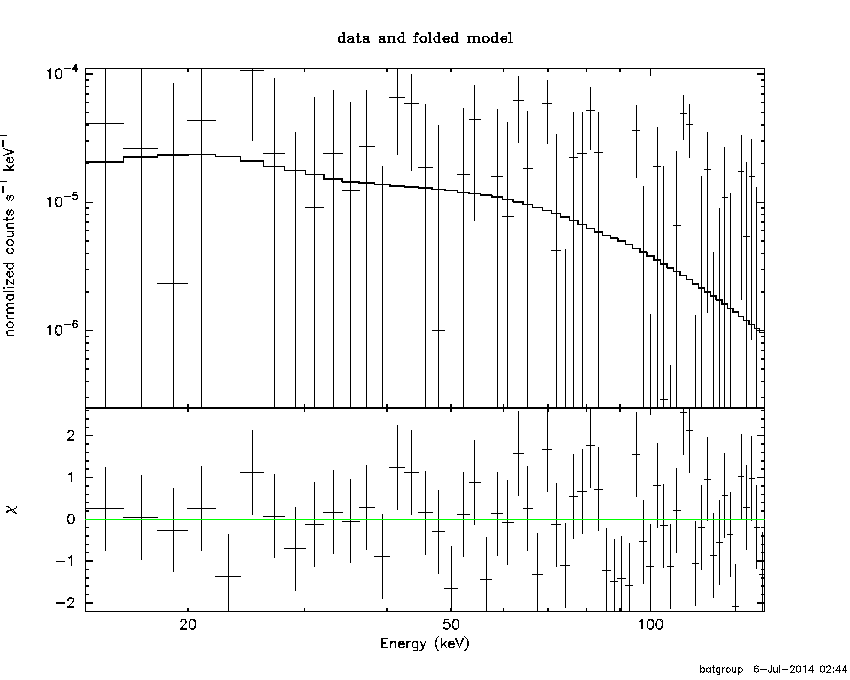

Cutoff power-law model

Time interval is from   -0.024 sec. to  285.844 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.334585     ( -0.305265   -0.305265 )
Epeak [keV] : 139.849      ( -120.313 -120.313 )
Norm@50keV  : 1.46117E-04    ( -0.000202227   -0.000202227 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.92 using 59 PHA bins.
# Reduced chi-squared =          1.124 for     56 degrees of freedom
# Null hypothesis probability =   2.446078e-01

Photon flux (15-150 keV)    in 285.9 sec: 7.99118E-03 ( -0.00799118  0.00823442 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.11252e-07 ( -2.11252e-07  2.33268e-07 ) ergs/cm2

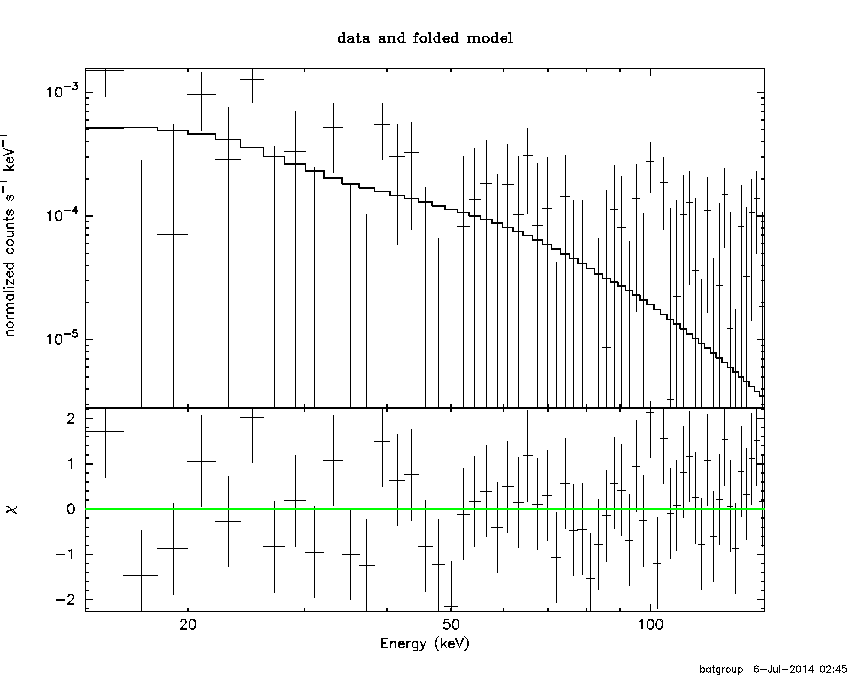

Band function

Time interval is from   -0.024 sec. to  285.844 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.27171   ( -1.02093   0.744573 )
beta        : -2.21322    ( 9.37162   9.37162 )
Epeak [keV] : 79.0711      ( -249.72 -255.69 )
Norm@50keV   : 7.39380E-04    ( -0.000589859   0.121302 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.92 using 59 PHA bins.
# Reduced chi-squared =          1.144 for     55 degrees of freedom
# Null hypothesis probability =   2.162464e-01

Photon flux (15-150 keV)    in 285.9 sec: 8.12362E-03 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.16222e-07 ( 0  0 ) ergs/cm2

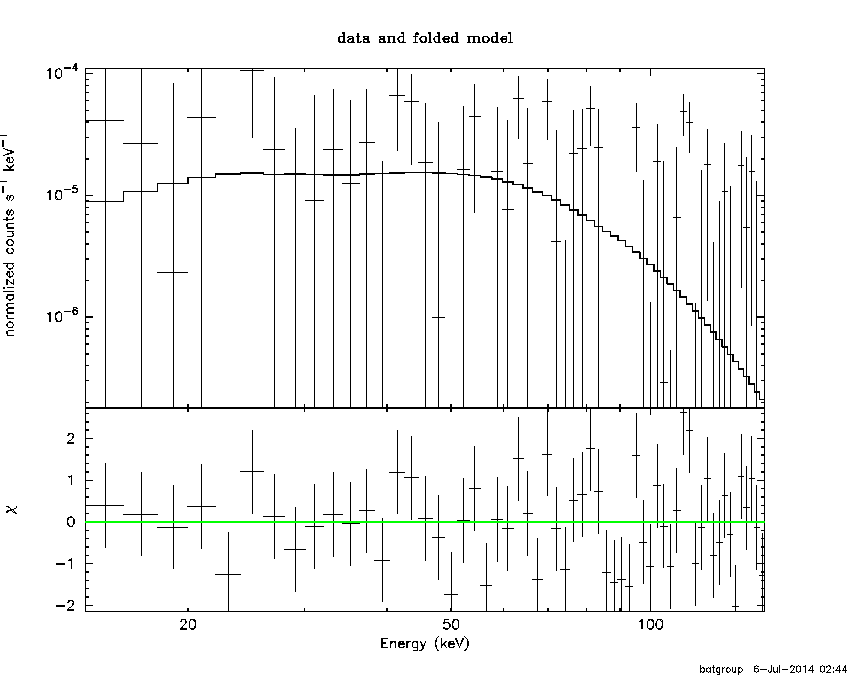

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.8588  (-20.9119  -20.9119)
R^2/D10^2   : 3.58245E-04  (-0.000355364   0.0350459)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.97 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.734827e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.443e-09   6.590e-09
25- 50  4.322e-08   2.999e-08
50-150  1.401e-07   1.115e-07
15-150  1.917e-07   1.733e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.362       (-199.363      -199.363)
Norm        : 3.48208E-02       (-0.0324547     0.0324545)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.27 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     57 degrees of freedom
# Null hypothesis probability =   2.647758e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.479e-08   2.101e-08
25- 50  4.769e-08   4.107e-08
50-150  1.046e-07   8.590e-08
15-150  1.771e-07   1.426e-07

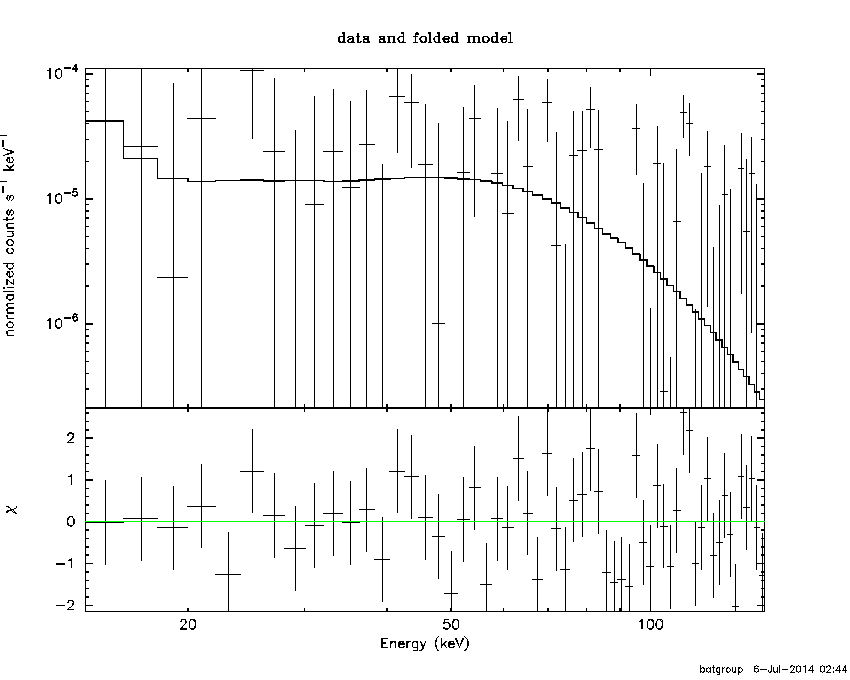

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.08965        (-1.12571      -1.12571)
R1^2/D10^2  : 1443.82        (-809.596      1.44443e+08)
kT2 [keV]   : 21.0433        (-16.2784      -21.8856)
R2^2/D10^2  : 3.43227E-04    (-0.000302272   0.0219105)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.79 using 59 PHA bins.
# Reduced chi-squared =          1.142 for     55 degrees of freedom
# Null hypothesis probability =   2.197768e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.155e-08   6.370e-09
25- 50  4.222e-08   3.031e-08
50-150  1.394e-07   1.153e-07
15-150  1.931e-07   1.492e-07

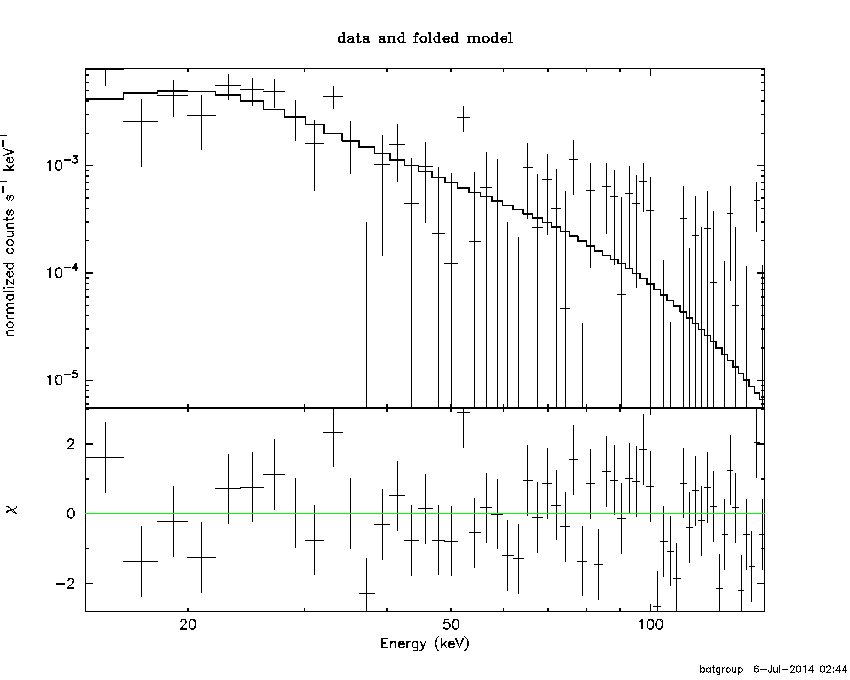

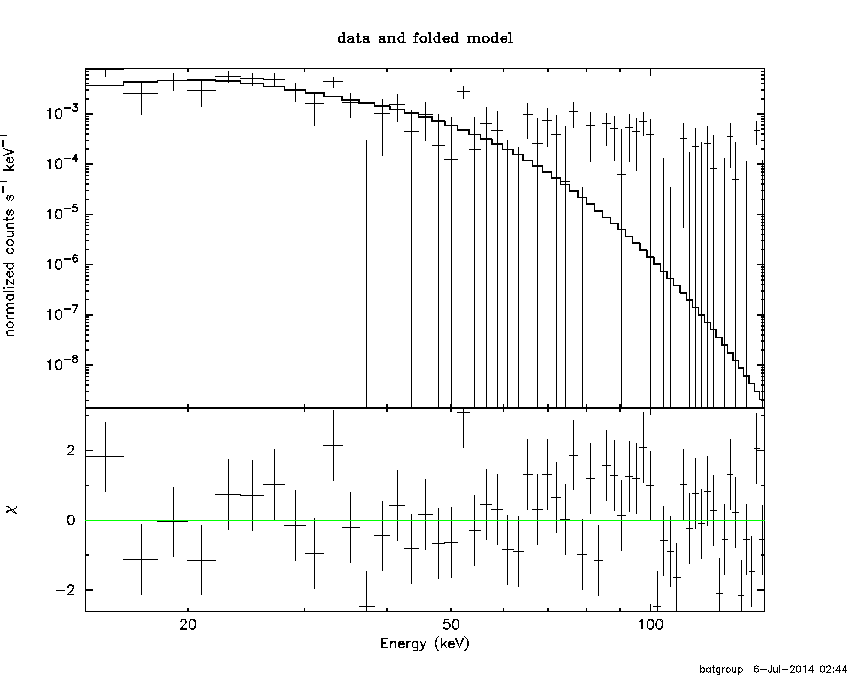

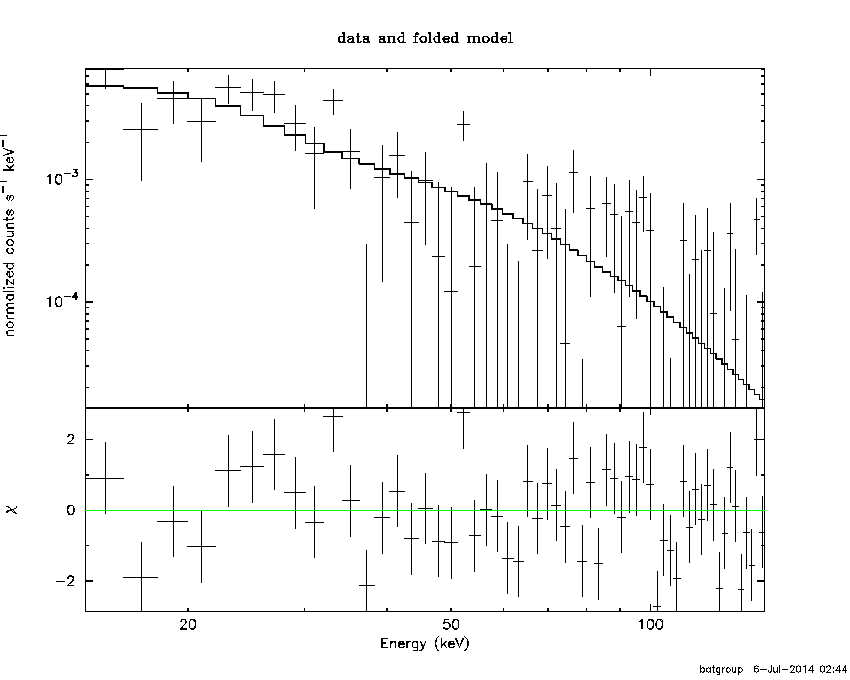

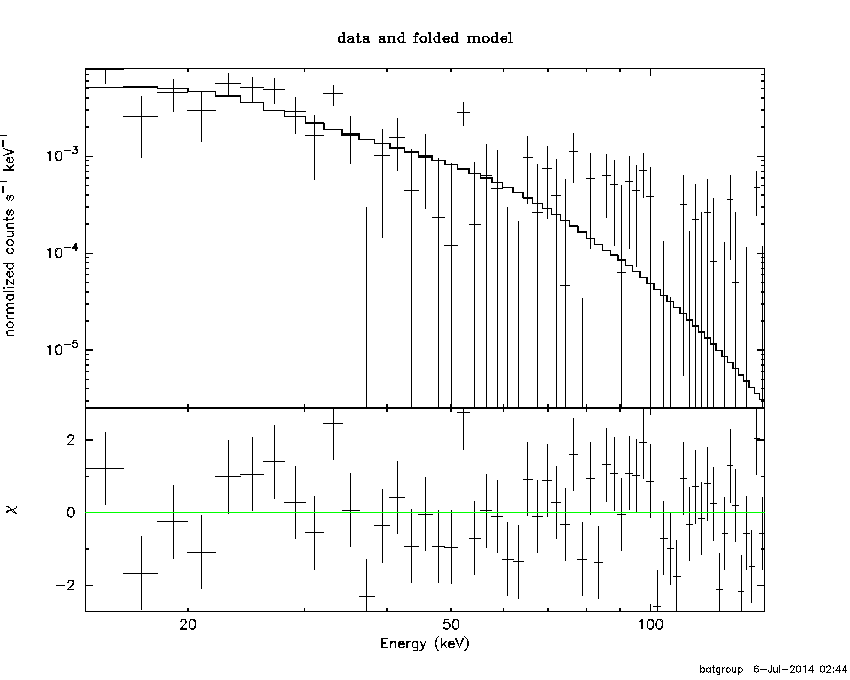

Peak spectrum fit

Power-law model

Time interval is from   -0.250 sec. to    0.750 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.27117     ( -0.335847   0.384311 )
Norm@50keV  : 5.16830E-03    ( -0.00141049   0.00138222 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.53 using 59 PHA bins.
# Reduced chi-squared =          1.536 for     57 degrees of freedom
# Null hypothesis probability =   5.768494e-03

Photon flux (15-150 keV)    in 1 sec: 0.888944 ( -0.156423  0.156478 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.91368e-08 ( -1.08781e-08  1.14973e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.250 sec. to    0.750 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.951066     ( -4.6886   1.02042 )
Epeak [keV] : 27.8507      (   )
Norm@50keV  : 3.63524E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.81 using 59 PHA bins.
# Reduced chi-squared =          1.532 for     56 degrees of freedom
# Null hypothesis probability =   6.354133e-03

Photon flux (15-150 keV)    in 1 sec: 0.860200 ( -0.160412  0.16021 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.29307e-08 ( -1.16853e-08  1.37671e-08 ) ergs/cm2

Band function

Time interval is from   -0.250 sec. to    0.750 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.80518   ( -9.41863   -2.80519 )
beta        : -3.04119    ( -3.1472   0.783839 )
Epeak [keV] : 27.0412      ( -6.37112 7.39592 )
Norm@50keV   : 19.0359    ( -19.0477   320.687 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          84.04 using 59 PHA bins.
# Reduced chi-squared =          1.528 for     55 degrees of freedom
# Null hypothesis probability =   7.077373e-03

Photon flux (15-150 keV)    in 1 sec: 0.858520 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.42267e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.46790  (-1.22771  1.52165)
R^2/D10^2   : 1.32334  (-0.701286   1.42382)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.21 using 59 PHA bins.
# Reduced chi-squared =          1.530 for     57 degrees of freedom
# Null hypothesis probability =   6.144204e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.262e-08   3.748e-09
25- 50  1.953e-08   6.010e-09
50-150  4.067e-09   2.336e-09
15-150  3.621e-08   1.143e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 39.7937       (-14.3832      27.9672)
Norm        : 5.82865       (-1.65866     2.57226)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.88 using 59 PHA bins.
# Reduced chi-squared =          1.507 for     57 degrees of freedom
# Null hypothesis probability =   8.001595e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.336e-08   3.338e-09
25- 50  1.754e-08   4.375e-09
50-150  1.349e-08   7.292e-09
15-150  4.439e-08   1.186e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.30035        (-1.91112      1.73549)
R1^2/D10^2  : 2.23622        (-1.32642      4.7213)
kT2 [keV]   : 21.7135        (-14.4069      -21.6851)
R2^2/D10^2  : 8.59822E-03    (-0.00862847   0.527074)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.91 using 59 PHA bins.
# Reduced chi-squared =          1.526 for     55 degrees of freedom
# Null hypothesis probability =   7.263526e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.336e-08   7.565e-09
25- 50  1.792e-08   1.033e-08
50-150  1.550e-08   9.885e-09
15-150  4.678e-08   2.471e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88083     ( -1.26409   1.58068 )
Norm@50keV  : 7.20019E-04    ( -0.000719359   0.000436055 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.60 using 59 PHA bins.
# Reduced chi-squared =         0.9755 for     57 degrees of freedom
# Null hypothesis probability =   5.275523e-01

Photon flux (15-150 keV)    in 8.633 sec: 0.102499 ( -0.048251  0.0482506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.7085e-08 ( -3.44396e-08  4.00466e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88706     (     )
Epeak [keV] : 9999.34      (   )
Norm@50keV  : 7.18481E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.61 using 59 PHA bins.
# Reduced chi-squared =         0.9930 for     56 degrees of freedom
# Null hypothesis probability =   4.897330e-01

Photon flux (15-150 keV)    in 8.633 sec: 0.102050 ( -0.0481132  0.048174 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.53697e-08 ( -3.85373e-08  4.14856e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.41700   ( 1.42283   1.42283 )
beta        : -1.84759    ( 1.8623   1.24271 )
Epeak [keV] : 19.6286      ( -14.3876 -14.3876 )
Norm@50keV   : 1.90981E-03    ( -0.00204762   0.155064 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.61 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     55 degrees of freedom
# Null hypothesis probability =   4.516824e-01

Photon flux (15-150 keV)    in 8.633 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.94608e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.23e-08
S(50-100 keV) = 8.32e-08

T90 vs. Hardness ratio plot

T90                                   = 121.991999924183 sec.
Hardness ratio (energy fluence ratio) = 1.9669

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.94859
Count Ratio (50-100 keV) / (15-25 keV) = 1.8244

Mask shadow pattern

IMX = 7.896353783915046E-02, IMY = 1.941840845580541E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.892000 -0.024000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9799 -15.6521    1.6  50.9  148.0   8.7586   7.4    0.7	Sco X-1
254.3787  35.2390   27.7  39.6 -137.7  -0.1684  -0.4    7.3	Her X-1
268.3795  -1.4987    3.0  23.8  148.5   0.9098   3.8    2.9	SW J1753.5-0127
270.1404 -24.9124    0.0  40.2  115.5  -1.5541  -1.8   12.7	GX 5-1
270.1646 -25.6746    8.8  40.9  114.9  -1.2291  -1.3    8.5	GRS 1758-258
273.9101 -14.1747    6.9  29.1  119.6   0.5591   1.7   10.0	GX 17+2
285.1684 -25.0462   13.1  36.2   94.4  -0.5205  -0.9   10.4	HT1900.1-2455
288.7936  10.9552    0.5   0.0 -130.5   4.6390  21.7    0.6	GRS 1915+105
299.6096  35.2286    1.7  26.2  -70.9   2.0157   6.8    1.9	Cyg X-1
308.0057  41.0376    3.8  34.5  -65.2   1.2038   3.0    7.0	Cyg X-3
326.0071  38.2375    8.0  43.0  -47.0   0.7643   1.4    9.2	Cyg X-2
282.5032   0.5335    2.5  12.1  120.2   0.9733   4.5 ------	UNKNOWN
241.8395  17.4871    3.1  45.9 -167.4   1.5201   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.024000 8.608600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0094 -15.7659    5.5  50.9  147.9  -0.4229  -2.1    7.7	Sco X-1
254.3186  35.1591    4.6  39.6 -137.8   0.1391   2.5   12.9	Her X-1
268.3489  -1.3111    5.8  23.7  149.0   0.0800   2.0    8.6	SW J1753.5-0127
270.1523 -25.1269    8.6  40.4  115.3  -0.1698  -1.3    7.7	GX 5-1
270.4067 -25.7412    6.4  40.8  114.6   0.2358   1.8    5.6	GRS 1758-258
273.9874 -14.0963    4.9  29.0  119.5   0.1261   2.3    3.8	GX 17+2
285.1697 -24.9411   15.6  36.1   94.4  -0.0685  -0.7    7.4	HT1900.1-2455
288.8279  10.9571  216.2   0.0  -31.2   0.0017   0.1    1.9	GRS 1915+105
299.4783  35.2460    4.6  26.2  -71.1  -0.1123  -2.5    6.1	Cyg X-1
308.0587  41.1125    3.3  34.6  -65.3   0.2181   3.5    9.9	Cyg X-3
326.3543  38.3984    0.0  43.3  -47.1   0.0765   0.9    9.7	Cyg X-2
275.9985  27.2581    1.9  20.3 -125.9   0.2245   6.0 ------	UNKNOWN
309.7165  27.0831    2.0  25.4  -43.5   0.2155   5.7 ------	UNKNOWN
318.1287  26.4329    2.5  31.7  -34.6   0.1951   4.6 ------	UNKNOWN
307.4656  42.8023    2.0  35.8  -67.5   0.3885   5.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
44.508610 962.132300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6256  35.4907    8.3  36.6 -161.3  -1.5412  -1.4   12.1	Her X-1
268.3875  -1.5097    5.6  34.0  128.0   3.3758   2.0    3.6	SW J1753.5-0127
288.7942  10.9607    0.6  11.9  102.4  17.3984  18.7    0.9	GRS 1915+105
299.5698  35.1916    1.0  14.3  -82.1  10.2838  12.0    1.2	Cyg X-1
308.0842  40.9232    3.0  22.6  -72.6   4.4258   3.9    2.1	Cyg X-3
326.1993  38.3959    4.2  32.3  -50.0   3.1795   2.7    4.6	Cyg X-2
329.6788 -15.0670    3.5  51.0   31.4  15.5984   3.3 ------	UNKNOWN
269.4865  11.7066    2.8  25.3  148.4   4.3200   4.1 ------	UNKNOWN
343.2209  -2.1803    4.0  54.0    8.2   8.5231   2.9 ------	UNKNOWN
234.3657  16.8478    2.6  55.9  174.2  23.3613   4.4 ------	UNKNOWN
342.7493  22.6950    3.2  45.1  -22.6   5.5316   3.7 ------	UNKNOWN
226.9981  38.4101    3.2  58.8 -159.2  23.9353   3.6 ------	UNKNOWN
321.9059  55.4663    4.4  39.6  -77.0   8.5327   2.6 ------	UNKNOWN

Plot creation:
Sun Jul  6 02:45:32 EDT 2014
