batgrbproduct analysis for trigger=607399

batgrbproduct Analysis for Trigger=607399

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Aug 23 20:58:36 EDT 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger607399/heasarc_download
======================================================================

  Trigger: 00607399      Segment: 000

  BAT Trigger Time: 428294496.212   [s; MET]
      Trigger Stop: 428294496.276   [s; MET]
               UTC: 2014-07-29T02:41:23.886820    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 272.172118721435   Dec: -20.4373566980691  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    19.08
     Image Trigger?:     NO
     Rate S/N Ratio:     85.48684109265  [ if not an image trigger ]
     Image S/N Ratio:    19.08

  Flight Position:   [ source = BAT ]
    RA: 272.172118721435   Dec: -20.4373566980691  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 272.168318479392   Dec: -20.4322533978009  [deg; J2000]
        { 18h 08m 40.4s , -20d 25' 56.1" }
         +/- 0.99633112819951 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.401450838965123 [arcmin] (formal 1-sigma fit error)
    SNR: 30.5772771600379

  Angular difference between Flight and Ground position is 0.373377 arcmin

  Partial Coding Fraction: 0.953125    [ including projection effects ]

  Duration
     T90: 0.159999966621399 +/- 0.039999997615816
        Measured from: -0.0480000376701355
                   to: 0.111999928951263     [s; relative to TRIGTIME]
     T50: 0.0519999265670776 +/- 0.0126491362748289
        Measured from: 0.00800001621246338
                   to: 0.059999942779541     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.462000012397766
                   to: 0.537999987602234     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0799999833106995
                   to: 0.15200001001358     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.099615   0.085937   0.027624   0.001993
           0.004769   0.004333   0.002856   0.001670 [error]
 Peak      0.103066   0.091725   0.028113   0.002647
           0.006897   0.006344   0.004726   0.003632 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.34e-08 3.23e-08 2.18e-08 2.30e-08 9.68e-08 1.10e-07   erg/cm2
              Error 2.78e-09 2.04e-09 2.36e-09 4.65e-09 6.29e-09 8.40e-09   erg/cm2
Peak flux Power-law 1.07e+00 6.34e-01 2.39e-01 1.20e-01 2.00e+00 2.06e+00   ph/cm2/s
              Error 1.20e-01 5.39e-02 3.69e-02 3.38e-02 1.68e-01 1.71e-01   ph/cm2/s

Fluence   Cutoff-PL 2.93e-08 3.74e-08 2.14e-08 4.96e-09 9.20e-08 9.30e-08   erg/cm2
              Error 3.27e-09 2.88e-09 3.08e-09 3.39e-09 6.65e-09 7.42e-09   erg/cm2
Peak flux Cutoff-PL 9.38e-01 7.39e-01 2.17e-01 2.04e-02 1.91e+00 1.91e+00   ph/cm2/s
              Error 1.40e-01 7.55e-02 4.61e-02 2.45e-02 1.73e-01 1.75e-01   ph/cm2/s

Fluence        Band 2.89e-08 3.73e-08 2.12e-08 6.70e-09 9.20e-08 9.44e-08   erg/cm2
              Error 3.23e-09 -------- -------- 4.69e-09 6.53e-09 8.64e-09   erg/cm2
Peak flux      Band 9.47e-01 7.34e-01 2.19e-01 -------- 1.92e+00 1.92e+00   ph/cm2/s
              Error 1.36e-01 7.35e-02 4.57e-02 -------- 1.71e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.567    0.112    -      -           4.09e-02 3.32e-03   62.650 57
CPL   1.264    0.593      24.0   10.1      2.26e-01 0.00e+00   42.350 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.406    0.162    -      -           1.08e-02 1.27e-03   59.180 57
CPL   0.869    0.866      28.7    8.8      8.95e-02 1.65e-01   46.530 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.128000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.232   -0.080    0.152
T90     0.160   -0.048    0.112
T50     0.052    0.008    0.060
Peak    1.000   -0.462    0.538

Click here for the BAT GCN circular template

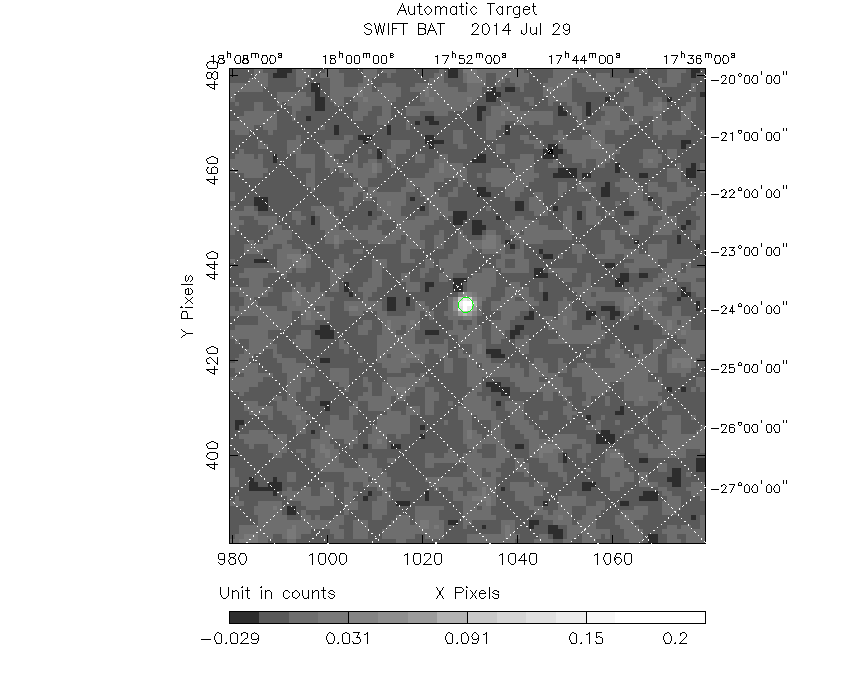

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  272.1683 -20.4323 0.0063   18.2  163.3       0.2251    30.6  TRIG_00607399
------------------------------------------

Foreground time interval of the image:
 -0.080   0.152 (delta_t =   0.232 [sec])
Background time interval of the image:
-239.212  -0.080 (delta_t = 239.132 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

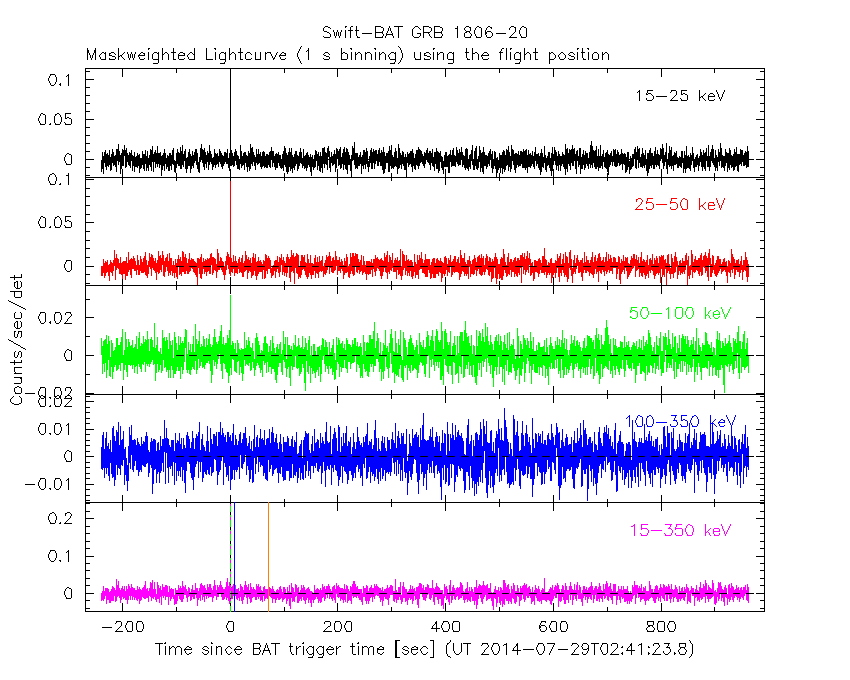

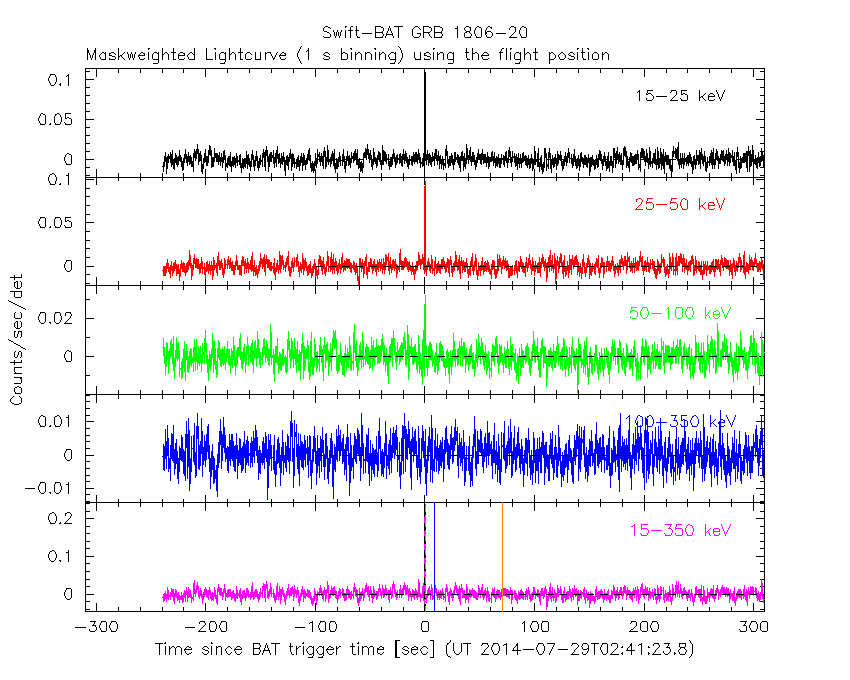

1 s binning

From T0-310 s to T0+310 s

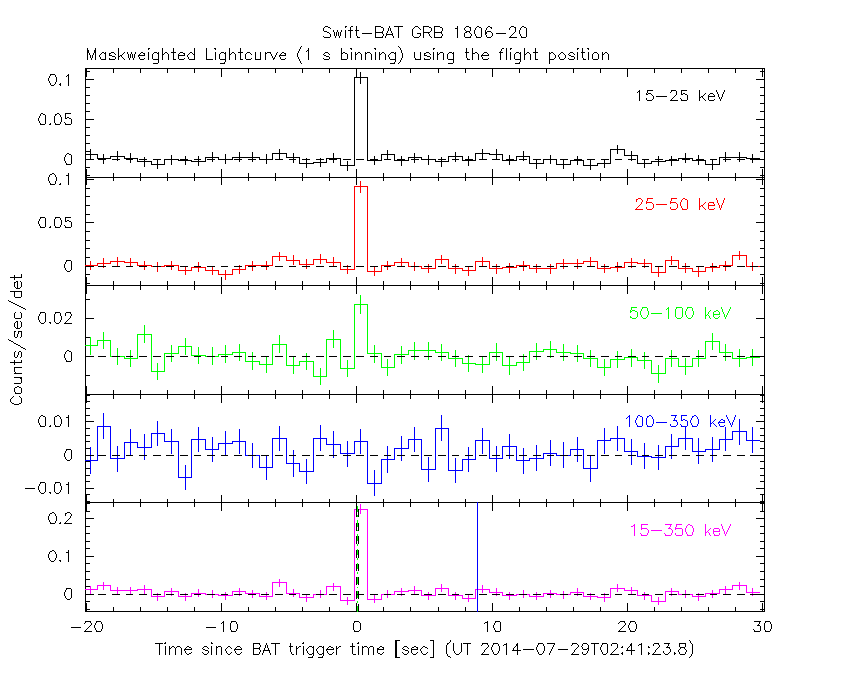

From T100_start - 20 s to T100_end + 30 s

Full time interval

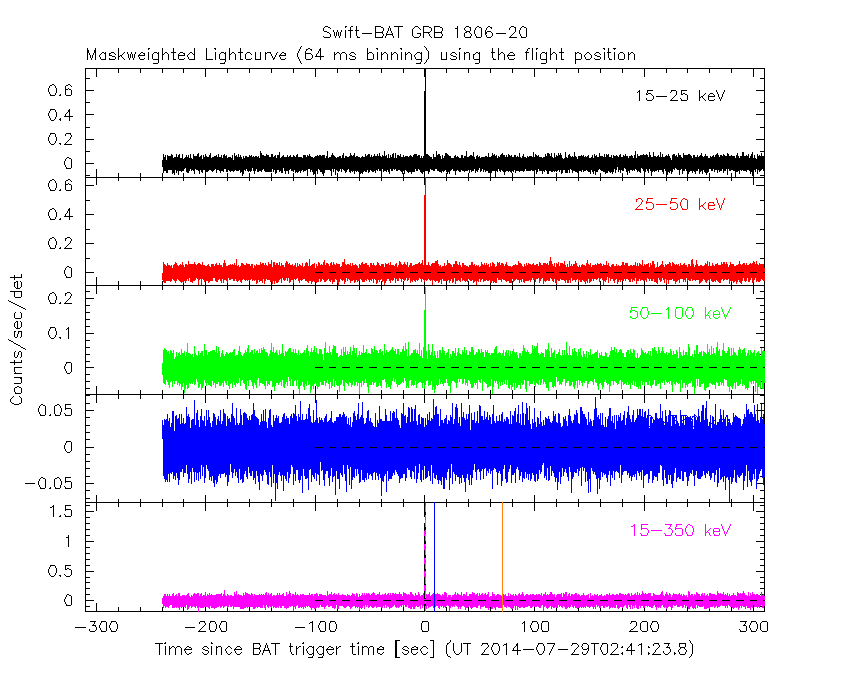

64 ms binning

Full time interval

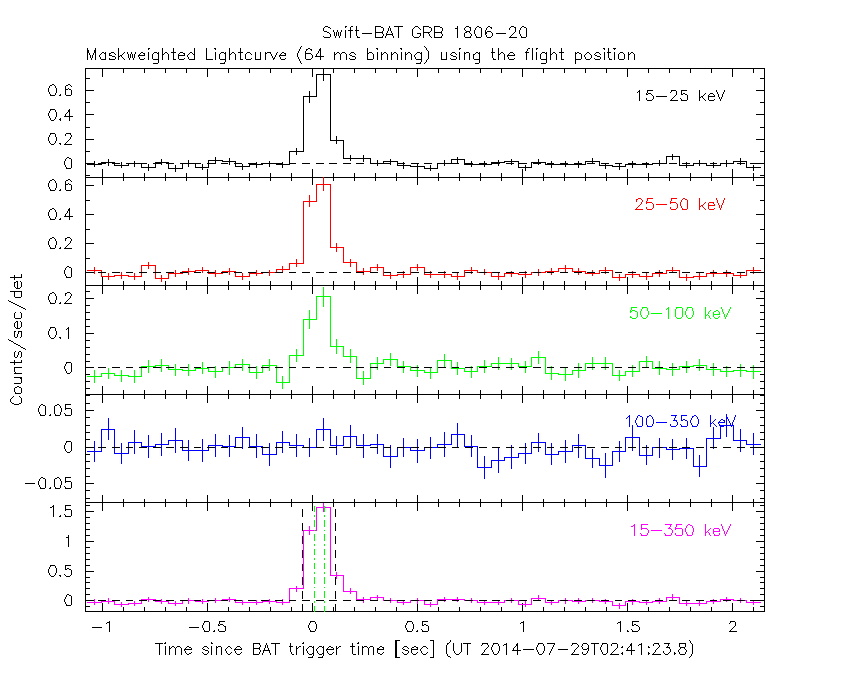

From T100_start to T100_end

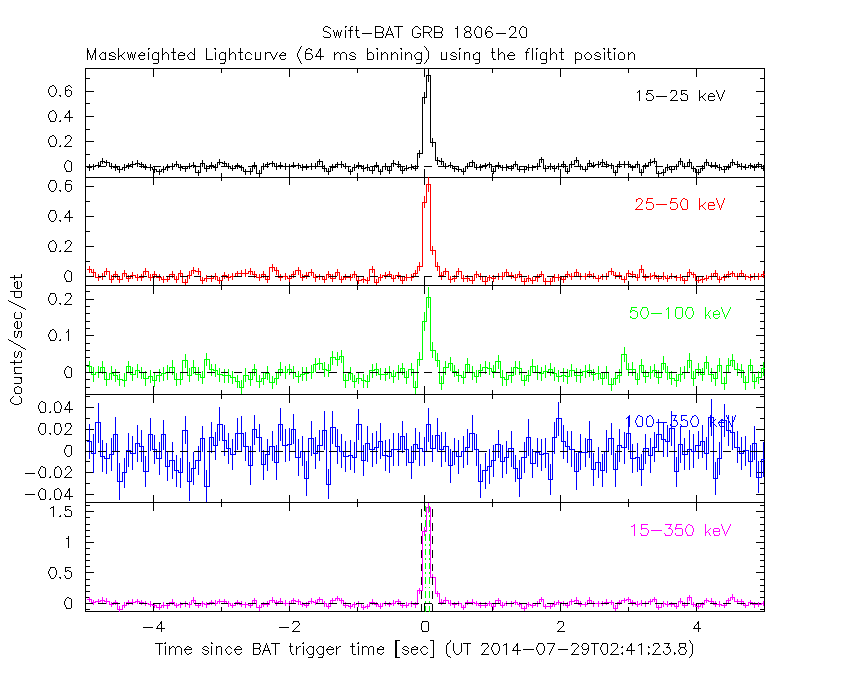

From T0-5 sec to T0+5 sec

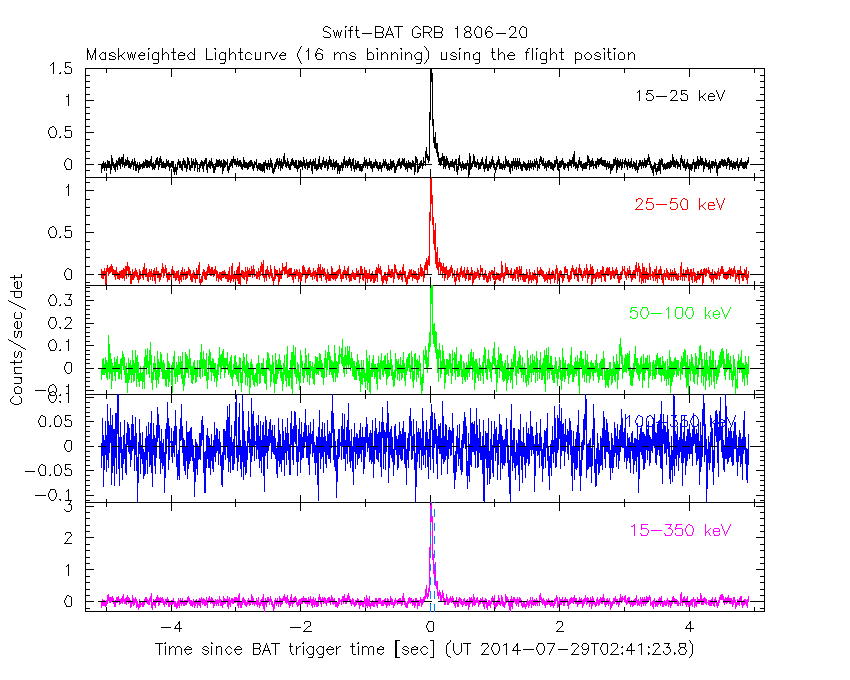

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

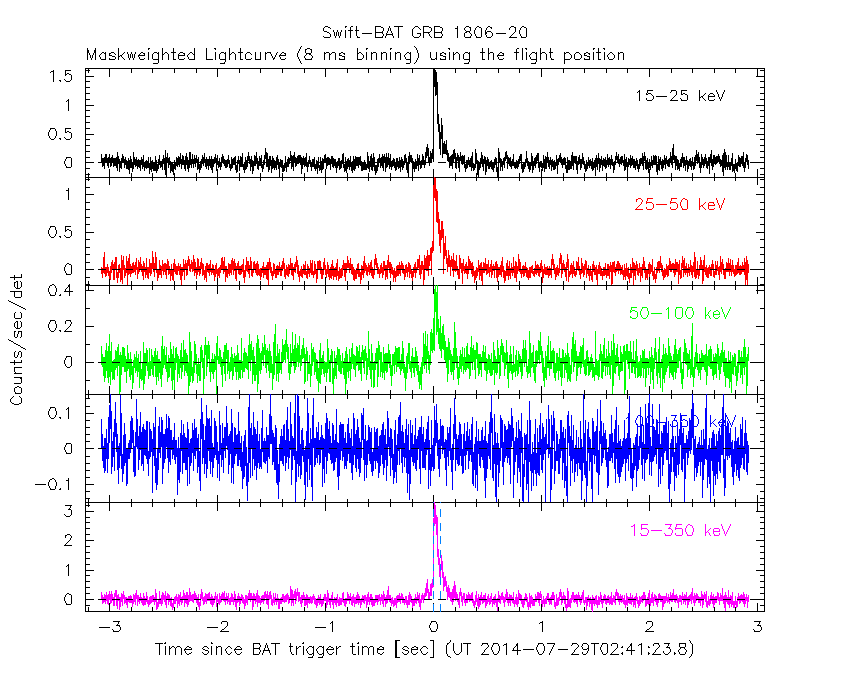

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

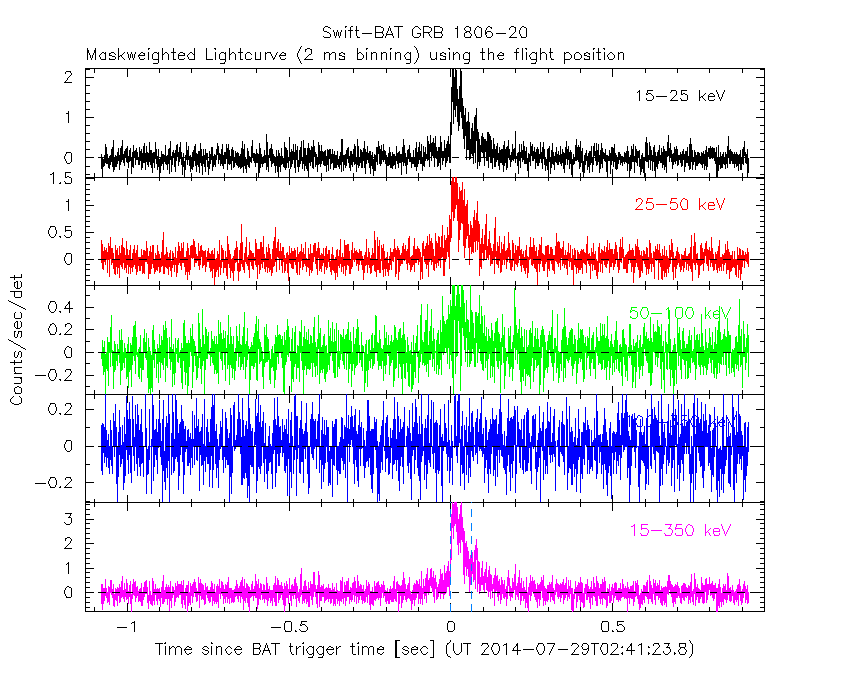

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

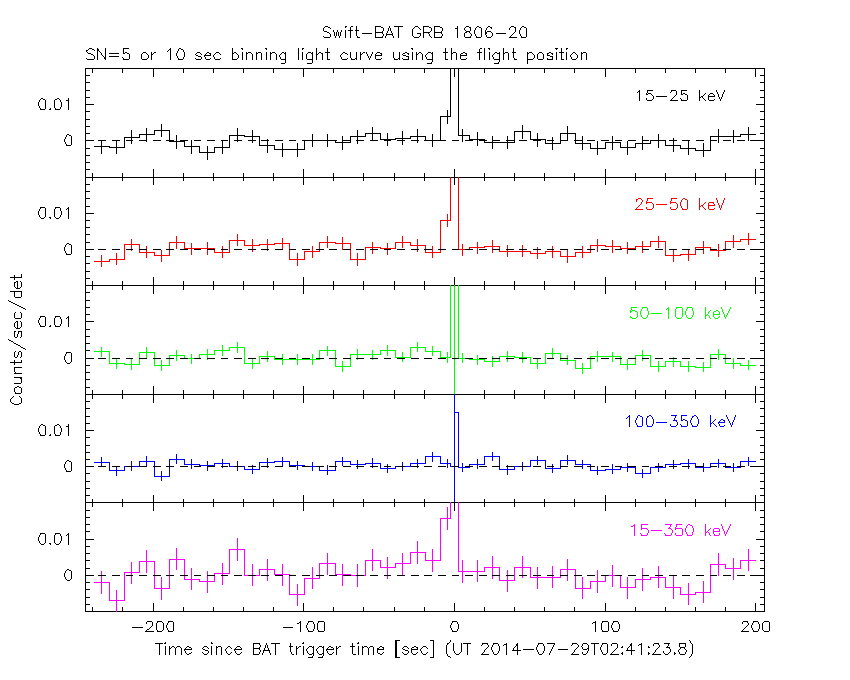

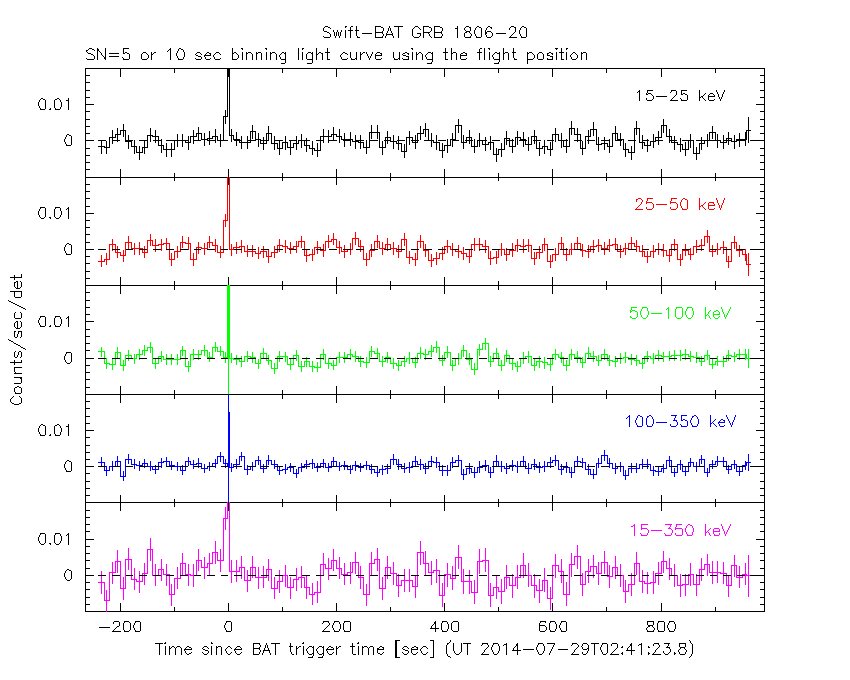

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

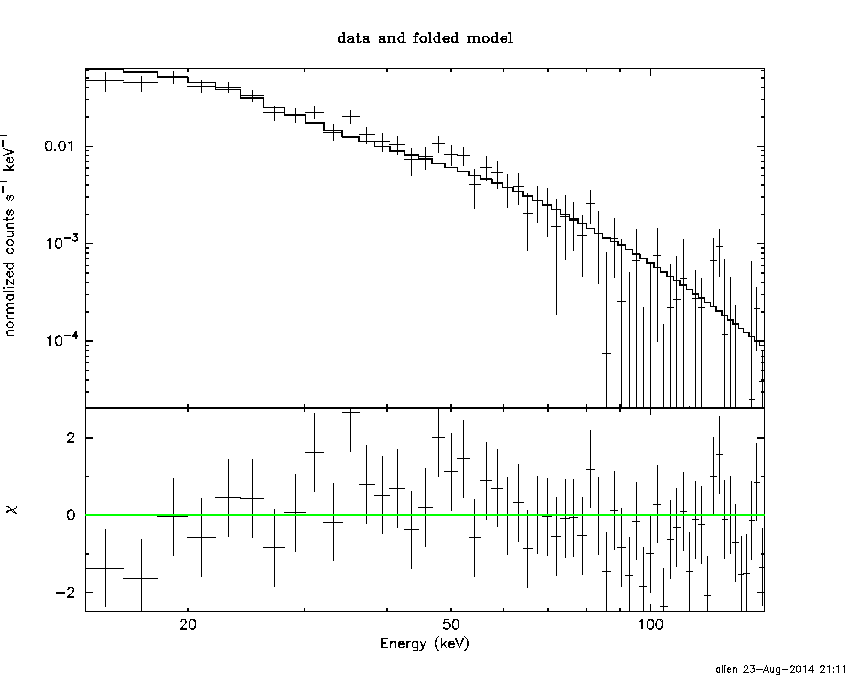

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.080 sec. to    0.152 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.56669     ( -0.109634   0.115129 )
Norm@50keV  : 4.09309E-02    ( -0.0033462   0.0032993 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.65 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     57 degrees of freedom
# Null hypothesis probability =   2.826755e-01

Photon flux (15-150 keV)    in 0.232 sec: 8.38083 ( -0.543003  0.543934 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.67626e-08 ( -6.28117e-09  6.29551e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.080 sec. to    0.152 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26431     ( -0.638352   0.54857 )
Epeak [keV] : 23.9870      ( -13.6007 6.55512 )
Norm@50keV  : 0.225736    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.35 using 59 PHA bins.
# Reduced chi-squared =         0.7563 for     56 degrees of freedom
# Null hypothesis probability =   9.111738e-01

Photon flux (15-150 keV)    in 0.232 sec: 8.00428 ( -0.56413  0.56525 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.20374e-08 ( -6.61896e-09  6.6823e-09 ) ergs/cm2

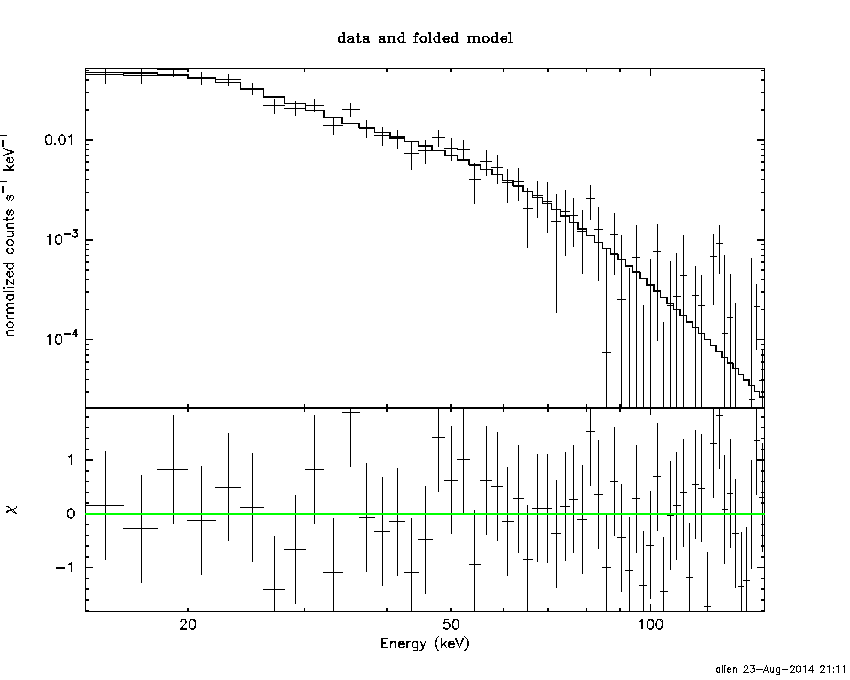

Band function

Time interval is from   -0.080 sec. to    0.152 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.22210   ( -0.347895   0.694609 )
beta        : -4.19986    ( 4.22558   1.10439 )
Epeak [keV] : 24.3973      ( -13.0557 6.23146 )
Norm@50keV   : 0.239844    ( -0.0733304   0.397531 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.09 using 59 PHA bins.
# Reduced chi-squared =         0.7653 for     55 degrees of freedom
# Null hypothesis probability =   8.993199e-01

Photon flux (15-150 keV)    in 0.232 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.19704e-08 ( -9.19687e-08  -6.56722e-09 ) ergs/cm2

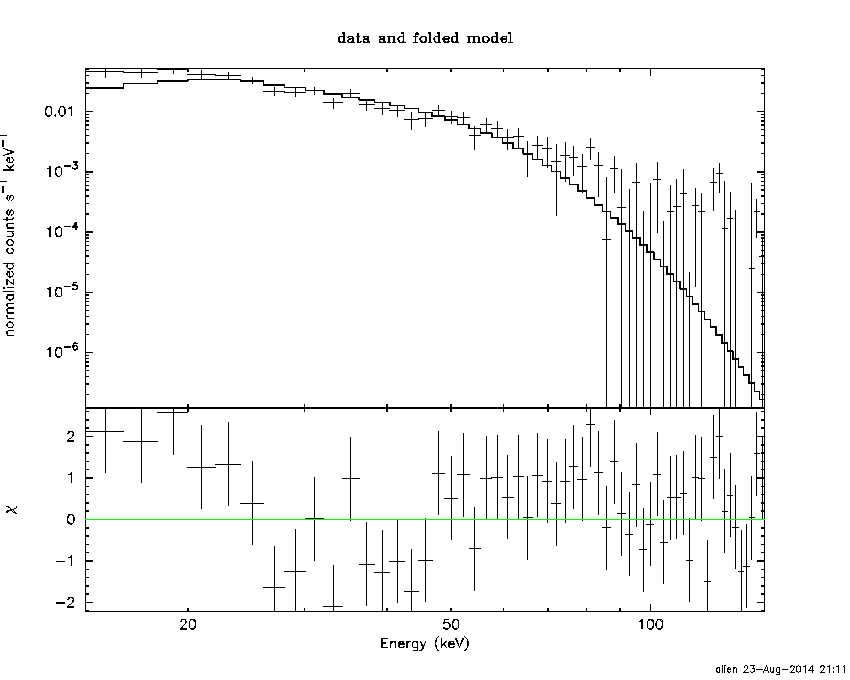

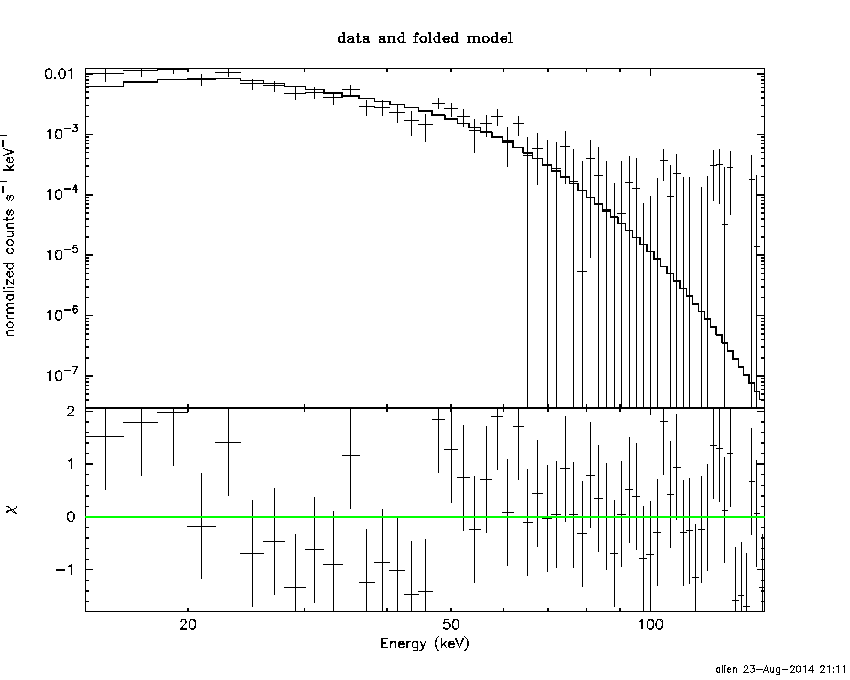

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.71848  (-0.571484  0.597877)
R^2/D10^2   : 6.25085  (-1.52161   2.04997)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.21 using 59 PHA bins.
# Reduced chi-squared =          1.372 for     57 degrees of freedom
# Null hypothesis probability =   3.263844e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.109e-08   2.108e-09
25- 50  4.263e-08   3.028e-09
50-150  1.474e-08   2.502e-09
15-150  7.846e-08   5.336e-09

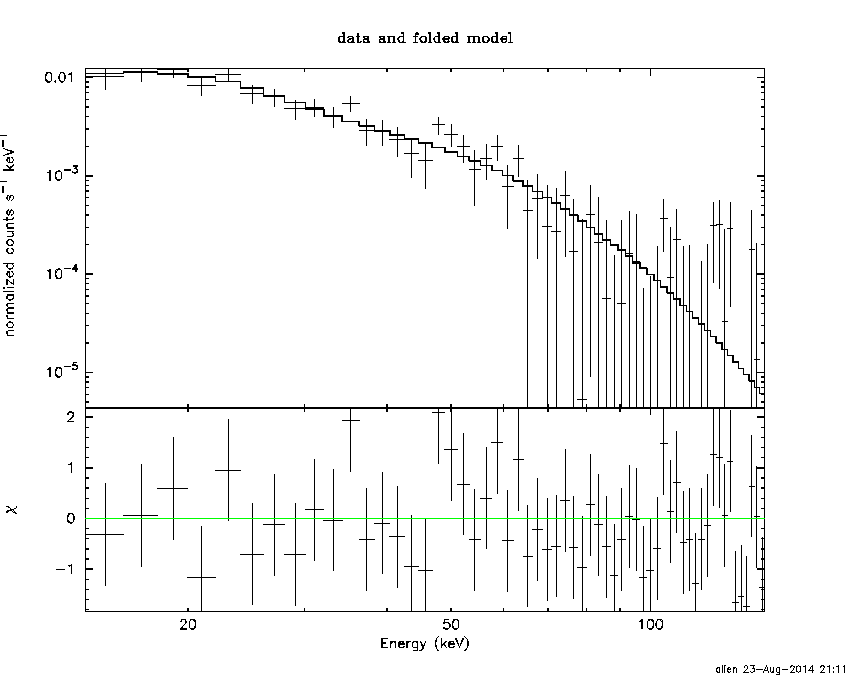

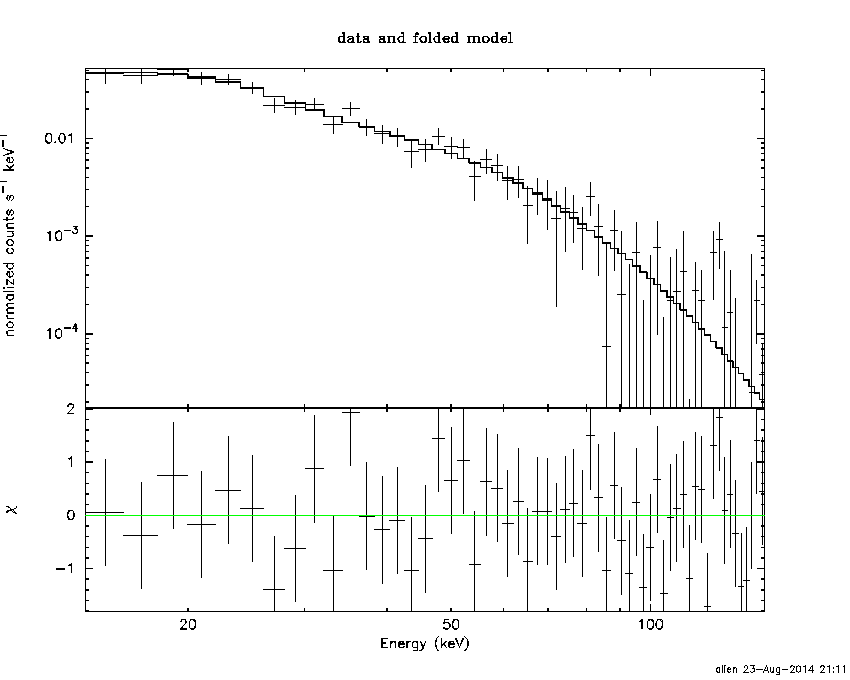

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 36.2573       (-4.3882      5.08002)
Norm        : 57.4208       (-6.75547     7.77865)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.44 using 59 PHA bins.
# Reduced chi-squared =         0.7445 for     57 degrees of freedom
# Null hypothesis probability =   9.246757e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.952e-08   2.564e-09
25- 50  3.715e-08   2.216e-09
50-150  2.572e-08   4.171e-09
15-150  9.239e-08   6.183e-09

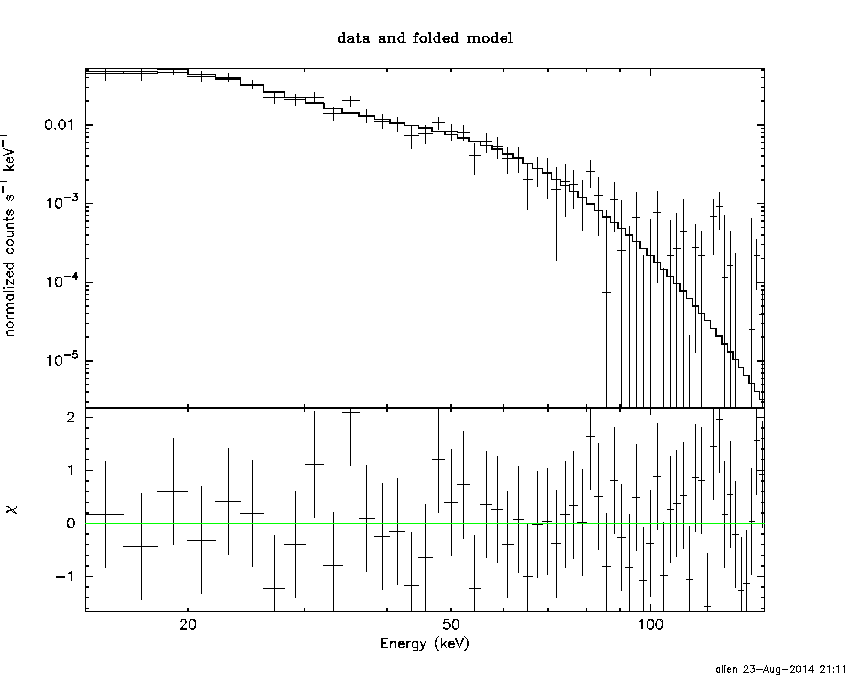

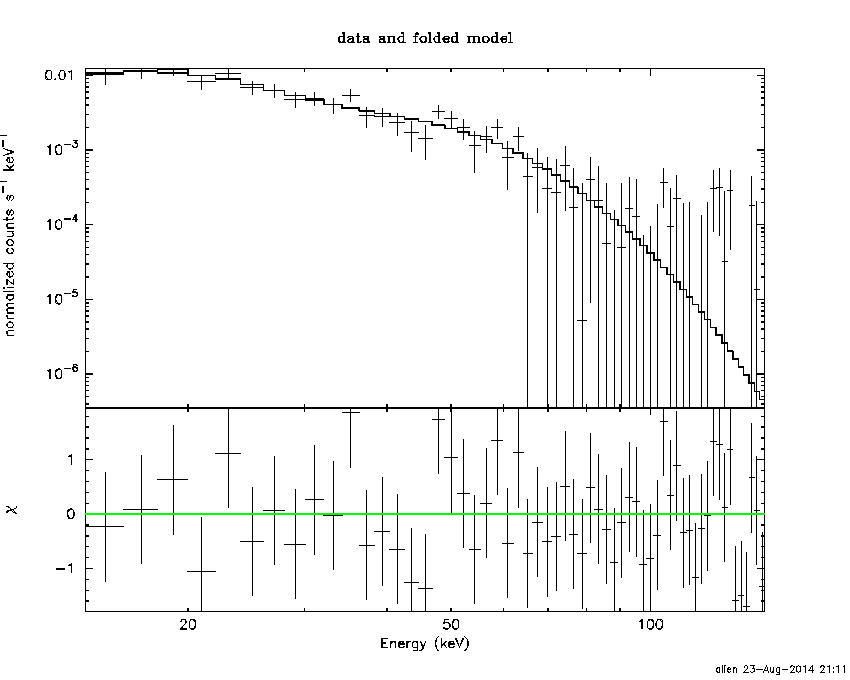

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.19834        (-0.986266      1.19728)
R1^2/D10^2  : 78.5938        (-49.7355      196.819)
kT2 [keV]   : 11.8823        (-1.50372      2.28185)
R2^2/D10^2  : 1.30265    (-0.78277   1.25403)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.20 using 59 PHA bins.
# Reduced chi-squared =         0.7673 for     55 degrees of freedom
# Null hypothesis probability =   8.971839e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.988e-08   1.109e-08
25- 50  3.668e-08   9.921e-09
50-150  2.379e-08   6.980e-09
15-150  9.035e-08   2.661e-08

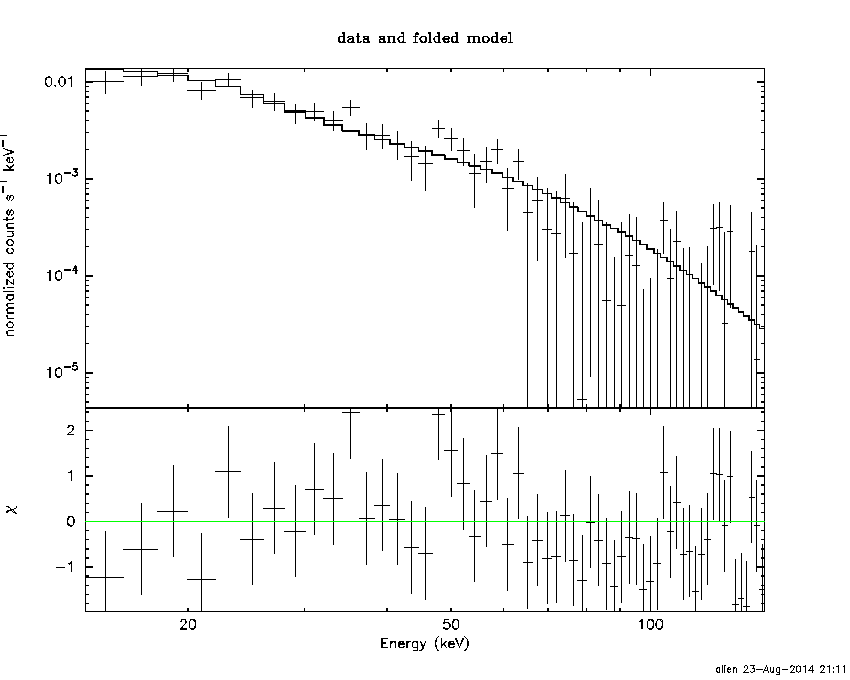

Peak spectrum fit

Power-law model

Time interval is from   -0.462 sec. to    0.538 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.40584     ( -0.157937   0.166996 )
Norm@50keV  : 1.07973E-02    ( -0.00127782   0.00126159 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.18 using 59 PHA bins.
# Reduced chi-squared =          1.038 for     57 degrees of freedom
# Null hypothesis probability =   3.958830e-01

Photon flux (15-150 keV)    in 1 sec: 2.00461 ( -0.168118  0.168226 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05464e-07 ( -9.9477e-09  1.00879e-08 ) ergs/cm2

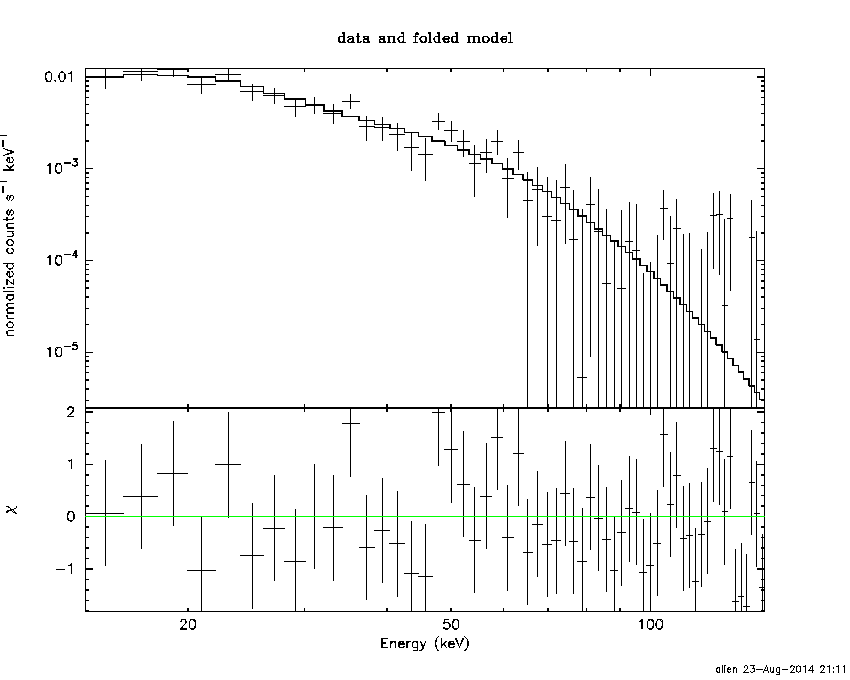

Cutoff power-law model

Time interval is from   -0.462 sec. to    0.538 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.868936     ( -0.939807   0.792819 )
Epeak [keV] : 28.7131      ( -11.8571 5.75053 )
Norm@50keV  : 8.94931E-02    ( -0.0894884   0.239538 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.53 using 59 PHA bins.
# Reduced chi-squared =         0.8309 for     56 degrees of freedom
# Null hypothesis probability =   8.123789e-01

Photon flux (15-150 keV)    in 1 sec: 1.91161 ( -0.17295  0.17332 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.5719e-08 ( -9.6809e-09  1.0278e-08 ) ergs/cm2

Band function

Time interval is from   -0.462 sec. to    0.538 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.869477   ( -0.624944   1.16098 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 28.7047      ( -11.8445 5.751 )
Norm@50keV   : 8.94216E-02    ( -0.0894216   0.239936 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.53 using 59 PHA bins.
# Reduced chi-squared =         0.8461 for     55 degrees of freedom
# Null hypothesis probability =   7.847801e-01

Photon flux (15-150 keV)    in 1 sec: 1.91975 ( 5.08025  -0.17951 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.70742  (-0.743609  0.790135)
R^2/D10^2   : 1.56203  (-0.46836   0.686043)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.17 using 59 PHA bins.
# Reduced chi-squared =          1.073 for     57 degrees of freedom
# Null hypothesis probability =   3.285392e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.264e-08   3.140e-09
25- 50  4.567e-08   4.755e-09
50-150  1.573e-08   3.915e-09
15-150  8.405e-08   8.275e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 38.1328       (-6.47612      8.28316)
Norm        : 13.4383       (-2.01804     2.41978)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.47 using 59 PHA bins.
# Reduced chi-squared =         0.8327 for     57 degrees of freedom
# Null hypothesis probability =   8.118661e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.035e-08   3.435e-09
25- 50  3.909e-08   3.345e-09
50-150  2.868e-08   7.380e-09
15-150  9.812e-08   9.825e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.73961        (-1.27538      1.60205)
R1^2/D10^2  : 26.8807        (-20.6039      83.8966)
kT2 [keV]   : 11.0350        (-1.55234      2.44571)
R2^2/D10^2  : 0.483835    (-0.309784   0.510748)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.50 using 59 PHA bins.
# Reduced chi-squared =         0.8090 for     55 degrees of freedom
# Null hypothesis probability =   8.434185e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.979e-08   1.327e-08
25- 50  4.016e-08   1.590e-08
50-150  2.416e-08   1.075e-08
15-150  9.411e-08   4.042e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.56669     ( -0.109634   0.115129 )
Norm@50keV  : 4.09309E-02    ( -0.0033462   0.0032993 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.65 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     57 degrees of freedom
# Null hypothesis probability =   2.826755e-01

Photon flux (15-150 keV)    in 0.232 sec: 8.38083 ( -0.543003  0.543934 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.67626e-08 ( -6.28117e-09  6.29551e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26431     ( -0.638352   0.54857 )
Epeak [keV] : 23.9870      ( -13.6007 6.55512 )
Norm@50keV  : 0.225736    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.35 using 59 PHA bins.
# Reduced chi-squared =         0.7563 for     56 degrees of freedom
# Null hypothesis probability =   9.111738e-01

Photon flux (15-150 keV)    in 0.232 sec: 8.00428 ( -0.56413  0.56525 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.20374e-08 ( -6.61896e-09  6.6823e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.22210   ( -0.347895   0.694609 )
beta        : -4.19986    ( 4.22558   1.10439 )
Epeak [keV] : 24.3973      ( -13.0557 6.23146 )
Norm@50keV   : 0.239844    ( -0.0733304   0.397531 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.09 using 59 PHA bins.
# Reduced chi-squared =         0.7653 for     55 degrees of freedom
# Null hypothesis probability =   8.993199e-01

Photon flux (15-150 keV)    in 0.232 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.19704e-08 ( -9.19687e-08  -6.56722e-09 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.23e-08
S(50-100 keV) = 2.18e-08

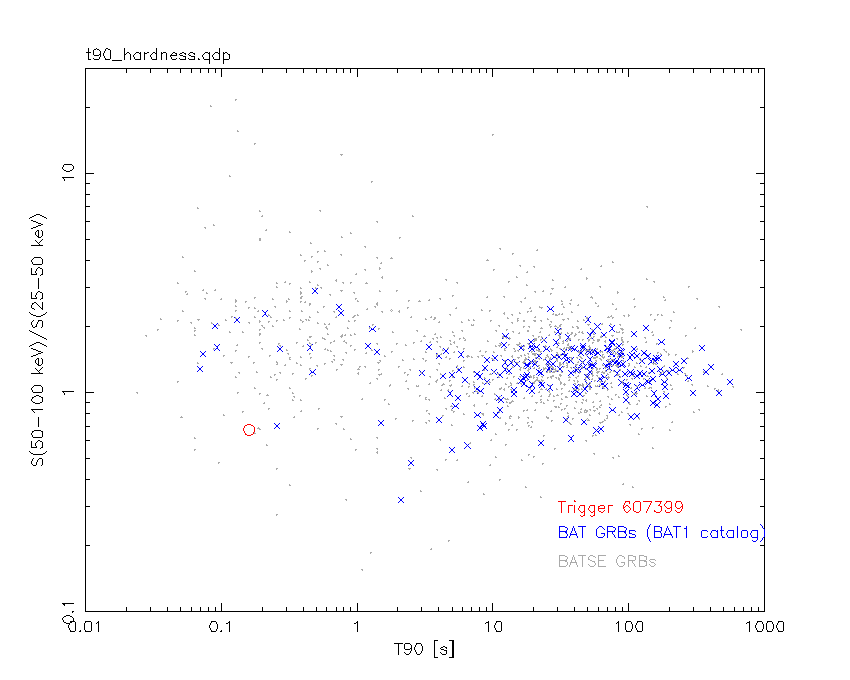

T90 vs. Hardness ratio plot

T90                                   = 0.159999966621399 sec.
Hardness ratio (energy fluence ratio) = 0.674923

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.862691
Count Ratio (50-100 keV) / (15-25 keV) = 0.277308

Mask shadow pattern

IMX = -3.140791876786495E-01, IMY = -9.436099049785705E-02

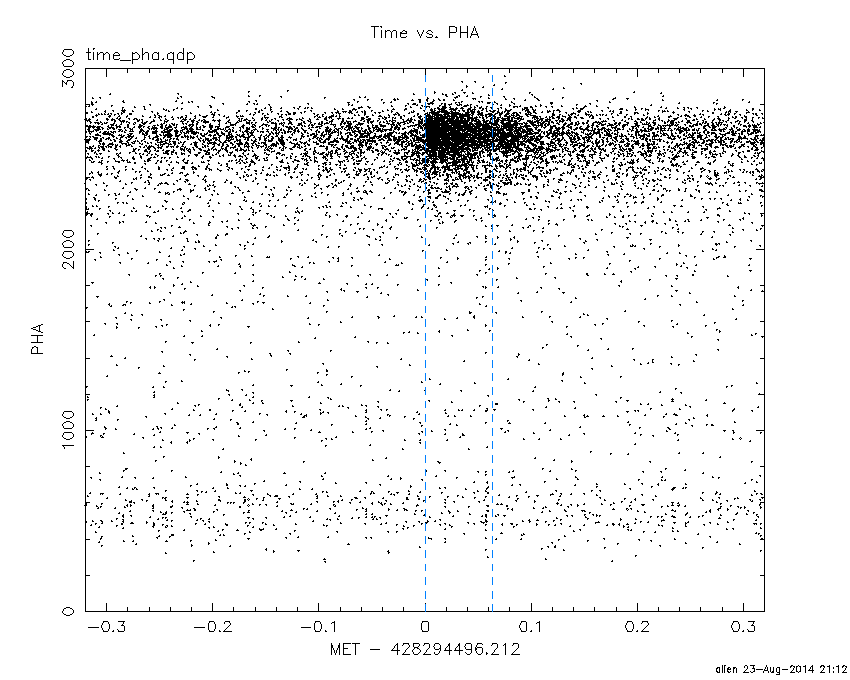

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

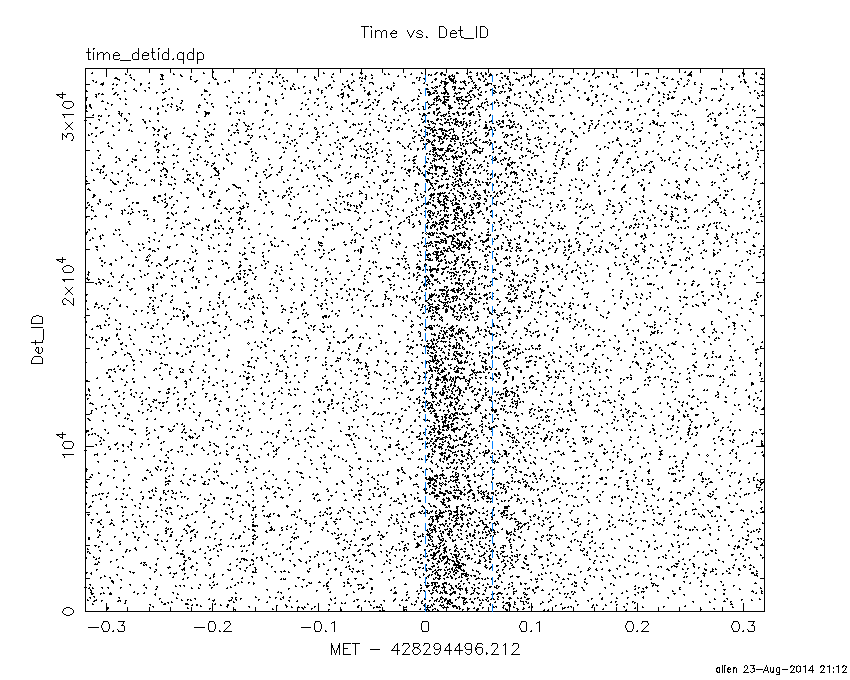

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

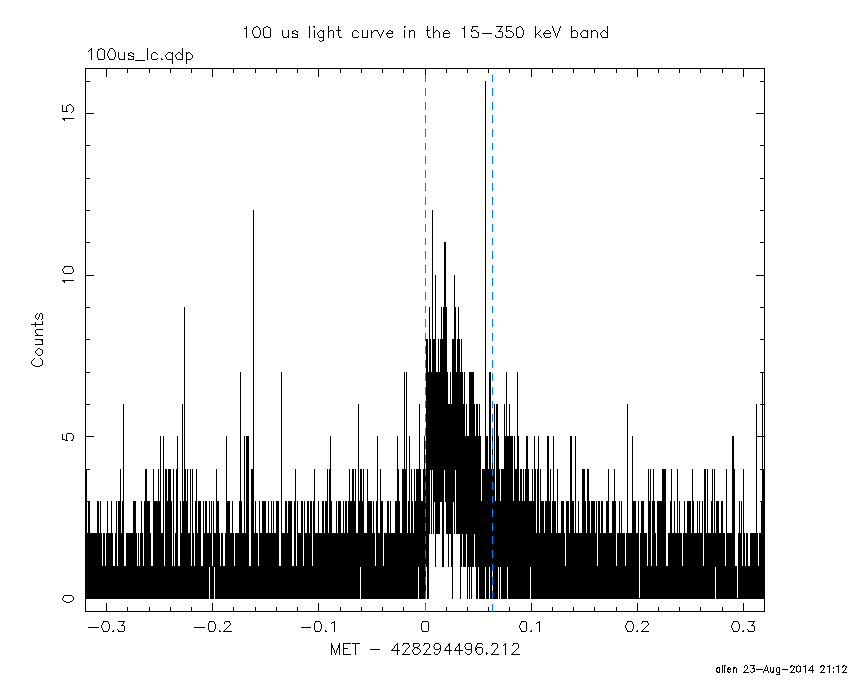

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

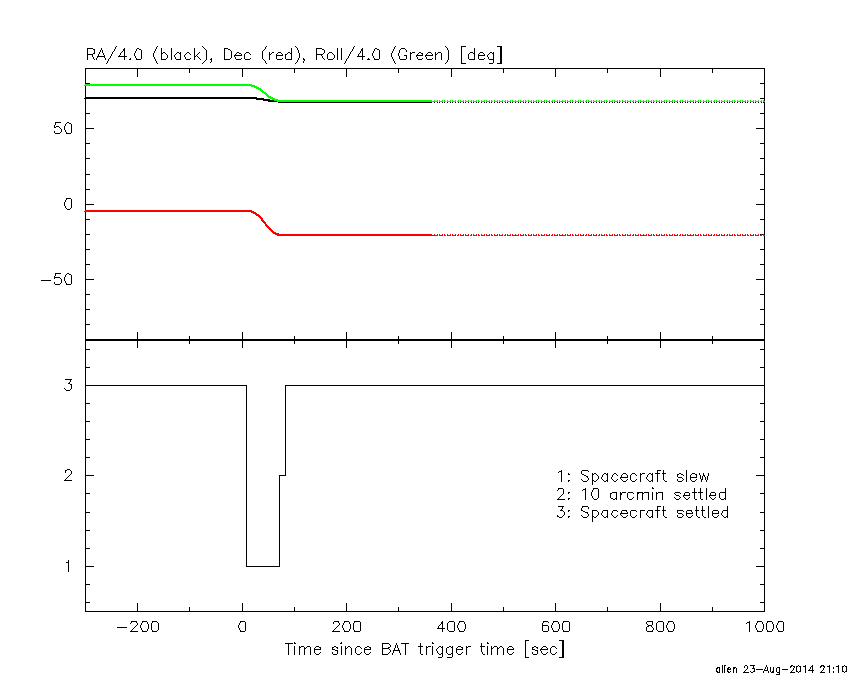

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.212000 -0.080000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9869 -15.6442    0.4  37.3 -155.1   7.1684  25.8    0.5	Sco X-1
255.9312 -37.8638    2.7  40.5  166.2   1.4966   4.3    2.9	4U 1700-377
256.4355 -36.3985    3.1  39.1  167.2   1.1905   3.7    1.5	GX 349+2
263.0060 -24.7177   22.0  26.7  174.2   0.1145   0.5    1.7	GX 1+4
264.6268 -44.5693   16.8  42.6  152.4   0.3192   0.7    8.7	4U 1735-44
268.2019  -1.4912    6.6  13.4 -122.2   0.3205   1.8   10.2	SW J1753.5-0127
270.2111 -25.0577    2.5  23.1  161.2   0.9012   4.6    4.2	GX 5-1
270.4021 -25.7792    6.1  23.6  159.9   0.3869   1.9    5.8	GRS 1758-258
274.0572 -14.0617    3.7  11.9  171.3   0.5954   3.1    3.4	GX 17+2
275.8981 -30.3355    4.7  26.2  145.4   0.5931   2.5    2.3	H1820-303
285.0302 -24.7212    0.0  20.5  125.1   0.3456   1.6   12.0	HT1900.1-2455
288.7826  10.9250    1.1  17.2  -19.5   1.8688  10.3    1.5	GRS 1915+105
299.6848  35.2683    9.3  43.4  -23.1   0.4246   1.2    6.1	Cyg X-1
308.1784  40.9036    2.7  51.7  -19.3   2.1468   4.3    4.3	Cyg X-3
262.7471 -33.8215   10.5  33.9  163.1  -0.3127  -1.1   12.1	GX 354-0
319.8251 -20.0096    2.9  40.5   70.6   3.1290   4.0 ------	UNKNOWN
330.8078   3.0229    3.9  50.1   37.0   3.2831   3.0 ------	UNKNOWN
315.9158  11.1385    2.5  37.9   20.1   1.3934   4.6 ------	UNKNOWN
252.8697 -12.0971    3.0  29.1 -151.9   0.8191   3.9 ------	UNKNOWN
279.2802  18.6721    2.5  23.3  -49.9   0.9545   4.6 ------	UNKNOWN
239.5969   9.4706    2.9  43.8 -116.4   3.7191   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.080000 0.152000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8484 -15.7125    6.8  37.5 -155.2   0.0173   1.7    8.7	Sco X-1
255.7920 -37.8890    6.8  40.6  166.3  -0.0203  -1.7    9.6	4U 1700-377
256.3200 -36.4094   11.9  39.2  167.3   0.0115   1.0    5.6	GX 349+2
263.1287 -24.6421   29.0  26.6  174.1  -0.0034  -0.4    9.0	GX 1+4
264.8861 -44.3508    4.9  42.3  152.3  -0.0386  -2.3    8.6	4U 1735-44
268.4351  -1.5637   13.7  13.2 -122.3  -0.0060  -0.8    7.8	SW J1753.5-0127
270.2729 -24.9111   24.1  22.9  161.3   0.0038   0.5   10.1	GX 5-1
270.1174 -25.7022   28.6  23.7  160.6  -0.0033  -0.4   10.3	GRS 1758-258
273.8822 -13.9478    4.9  11.9  172.3  -0.0168  -2.4    8.9	GX 17+2
275.6787 -30.3637    0.0  26.3  145.8   0.0009   0.1   12.8	H1820-303
285.2699 -24.9196    0.0  20.7  124.6  -0.0128  -1.4   12.7	HT1900.1-2455
288.9336  11.0240    8.8  17.4  -19.2   0.0096   1.3    9.3	GRS 1915+105
299.5353  35.1727   10.5  43.3  -23.2  -0.0134  -1.1    3.2	Cyg X-1
308.0550  40.8871   14.1  51.7  -19.4  -0.0161  -0.8    4.7	Cyg X-3
263.0266 -33.9679    8.1  33.9  162.6   0.0136   1.4    8.2	GX 354-0
272.1683 -20.4322    0.4  18.2  163.3   0.2251  30.6 ------	UNKNOWN
312.5322  47.3981    2.4  58.8  -20.9   0.2146   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
70.888600 962.838000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9926 -15.6421    0.3  26.2  -87.4  29.1637  34.7    0.8	Sco X-1
254.3371  35.3273    7.9  58.2  -20.4  -5.4258  -1.5    6.0	Her X-1
255.9747 -37.8575    0.6  22.4 -148.1  12.2623  18.9    1.0	4U 1700-377
256.6039 -36.4700    4.4  21.0 -146.5   1.7679   2.6    8.6	GX 349+2
263.1292 -24.6097    5.1   9.3 -121.8   1.2920   2.3   10.5	GX 1+4
264.5443 -44.4874    7.5  24.9 -170.4   0.9523   1.5    8.8	4U 1735-44
268.3632  -1.5398    3.8  19.2  -15.0   1.7924   3.0    5.2	SW J1753.5-0127
270.3030 -25.0370    2.1   4.9 -163.5   3.4039   5.4    2.7	GX 5-1
270.3138 -25.7686    2.3   5.6 -166.2   3.1885   5.0    1.6	GRS 1758-258
274.0494 -14.1886   24.1   6.5   13.1  -0.2755  -0.5    9.5	GX 17+2
275.8951 -30.3267    4.1  10.5  158.6   1.6194   2.8    2.9	H1820-303
284.8987 -25.0285   12.2  12.6  110.5   0.6468   1.0    9.9	HT1900.1-2455
288.8009  10.9546    1.6  35.4   25.7   6.4061   7.2    0.6	GRS 1915+105
262.9441 -33.8369    6.7  15.7 -154.0   1.1151   1.7    2.2	GX 354-0
293.0343  12.3564    2.9  38.7   30.5   4.8012   3.9 ------	UNKNOWN
278.6257  35.9382    3.2  56.7    2.9  11.1388   3.6 ------	UNKNOWN
270.2329 -55.5344    2.2  35.2  178.5   4.3078   5.3 ------	UNKNOWN
272.2584  24.7241    2.6  45.1   -3.2   5.2813   4.5 ------	UNKNOWN
271.4067  14.6411    4.2  35.1   -4.6   2.3321   2.8 ------	UNKNOWN
243.0679 -59.3513    2.1  44.1 -162.5   6.5091   5.4 ------	UNKNOWN
255.2358  32.2841    2.3  55.1  -20.8  11.3218   5.0 ------	UNKNOWN
	UNKNOWN

Plot creation:
Sat Aug 23 21:12:21 EDT 2014
