batgrbproduct analysis for trigger=610501

batgrbproduct Analysis for Trigger=610501

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Oct  4 20:58:13 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger610501
======================================================================

  Trigger: 00610501      Segment: 000

  BAT Trigger Time: 430562440.512   [s; MET]
      Trigger Stop: 430562441.536   [s; MET]
               UTC: 2014-08-24T08:40:28.076080    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 206.643863339572   Dec: 33.297259588135  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8
     Image Trigger?:     NO
     Rate S/N Ratio:     14.456832294801  [ if not an image trigger ]
     Image S/N Ratio:    8

  Flight Position:   [ source = BAT ]
    RA: 206.643863339572   Dec: 33.297259588135  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 206.625485358852   Dec: 33.2855974636198  [deg; J2000]
        { 13h 46m 30.1s , +33d 17' 08.2" }
         +/- 1.70184385513212 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.611122338868167 [arcmin] (formal 1-sigma fit error)
    SNR: 14.2309233253832

  Angular difference between Flight and Ground position is 1.157230 arcmin

  Partial Coding Fraction: 0.734375    [ including projection effects ]

  Duration
     T90: 3.08399993181229 +/- 0.49061594717433
        Measured from: 0.371999979019165
                   to: 3.45599991083145     [s; relative to TRIGTIME]
     T50: 1.58399993181229 +/- 0.332054229285821
        Measured from: 0.923999965190887
                   to: 2.50799989700317     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.339999973773956
                   to: 1.33999997377396     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.263999998569489
                   to: 3.63999998569489     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.127270   0.128587   0.061495   0.016438
           0.012088   0.012560   0.010766   0.010032 [error]
 Peak      0.044785   0.055356   0.027334   0.005897
           0.006776   0.007012   0.006180   0.005456 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.01e-08 5.49e-08 5.53e-08 1.01e-07 1.83e-07 2.51e-07   erg/cm2
              Error 6.10e-09 5.93e-09 1.07e-08 3.86e-08 2.43e-08 5.03e-08   erg/cm2
Peak flux Power-law 4.85e-01 3.93e-01 2.15e-01 1.73e-01 1.17e+00 1.27e+00   ph/cm2/s
              Error 1.02e-01 5.76e-02 5.06e-02 7.75e-02 1.72e-01 1.90e-01   ph/cm2/s

Fluence   Cutoff-PL 4.02e-08 5.49e-08 5.52e-08 9.98e-08 1.83e-07 2.50e-07   erg/cm2
              Error 6.07e-09 6.35e-09 1.14e-08 7.18e-08 2.78e-08 6.55e-08   erg/cm2
Peak flux Cutoff-PL 4.43e-01 4.44e-01 2.07e-01 4.41e-02 1.13e+00 1.14e+00   ph/cm2/s
              Error 1.17e-01 8.62e-02 6.35e-02 1.04e-01 1.79e-01 2.06e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.988    0.209    -      -           5.88e-03 8.17e-04   54.220 57
CPL   1.990    0.649    9999.2  -13.9      5.87e-03 1.01e-02   54.220 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.869    0.266    -      -           8.27e-03 1.48e-03   57.550 57
CPL   0.791    1.518      45.6   -2.0      3.55e-02 2.02e-01   55.570 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    3.376    0.264    3.640
T90     3.084    0.372    3.456
T50     1.584    0.924    2.508
Peak    1.000    0.340    1.340

Click here for the BAT GCN circular template

Special notes of this burst

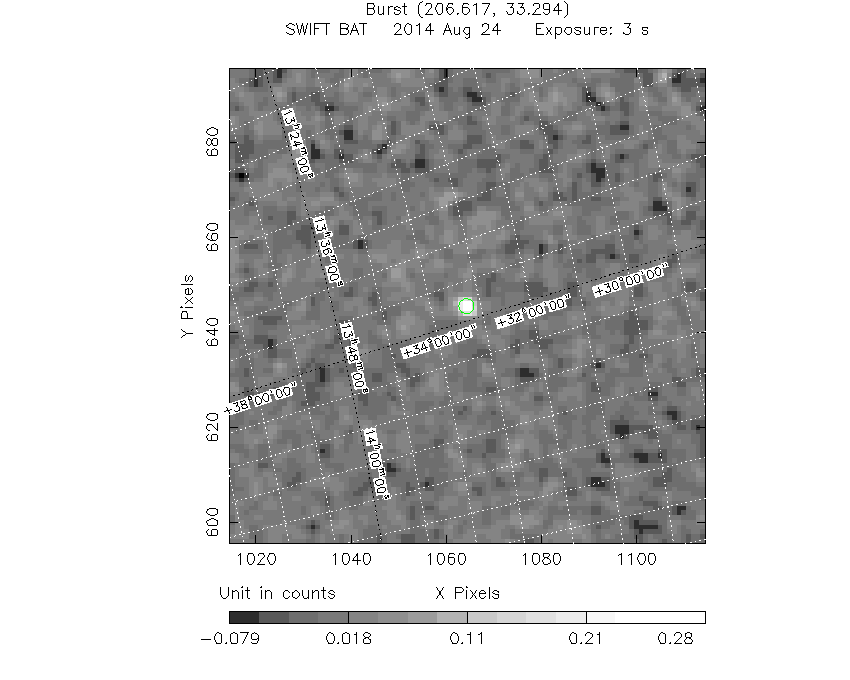

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  206.6255    33.2856   0.0136    27.7291  -137.5581         0.3223930     14.231 TRIG_00610501

Foreground time interval of the image:
  0.264   3.640 (delta_t =   3.376 [sec])
Background time interval of the image:
-571.111 -556.375 (delta_t =  14.736 [sec])
-239.512   0.264 (delta_t = 239.776 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

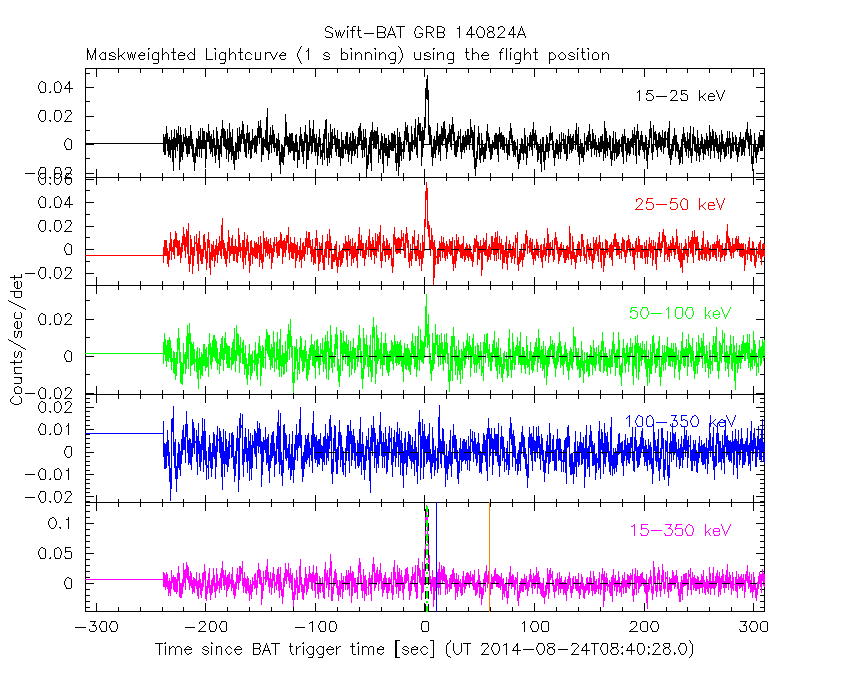

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

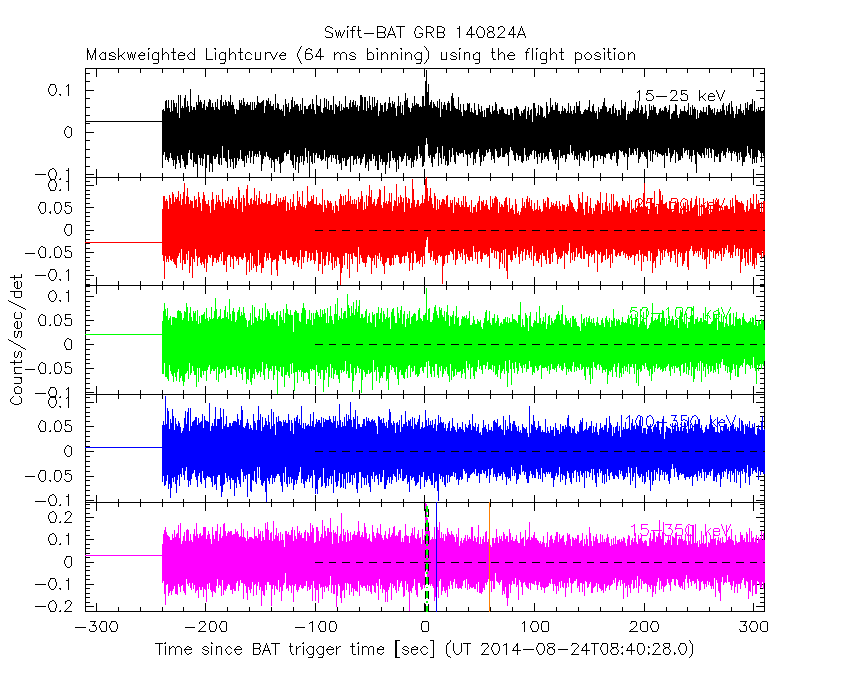

64 ms binning

Full time interval

From T100_start to T100_end

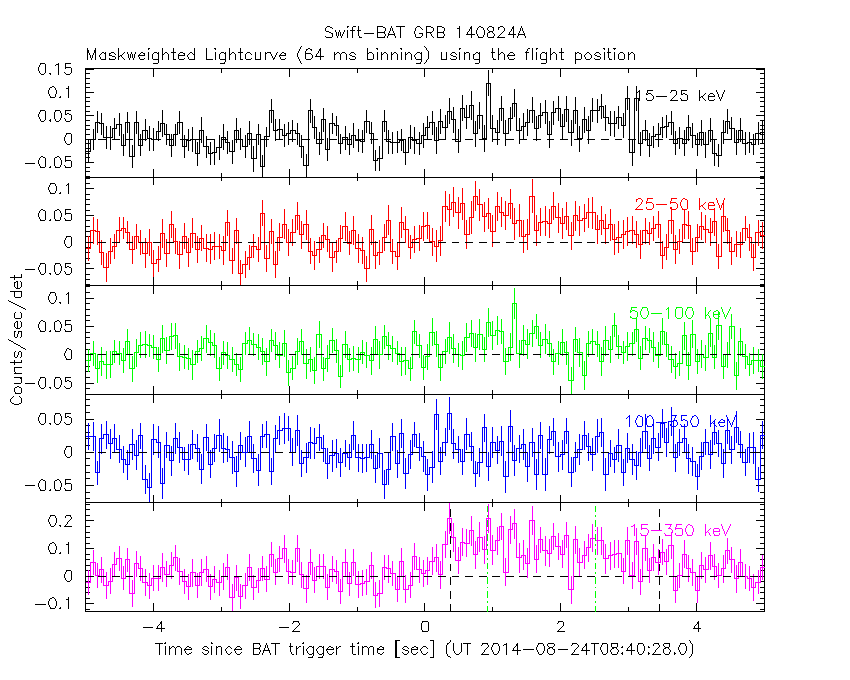

From T0-5 sec to T0+5 sec

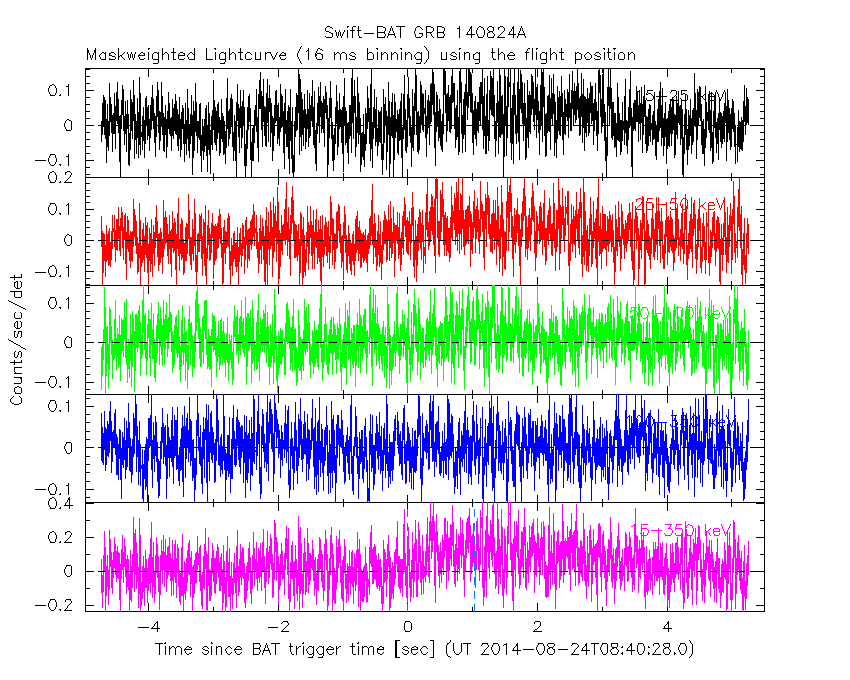

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

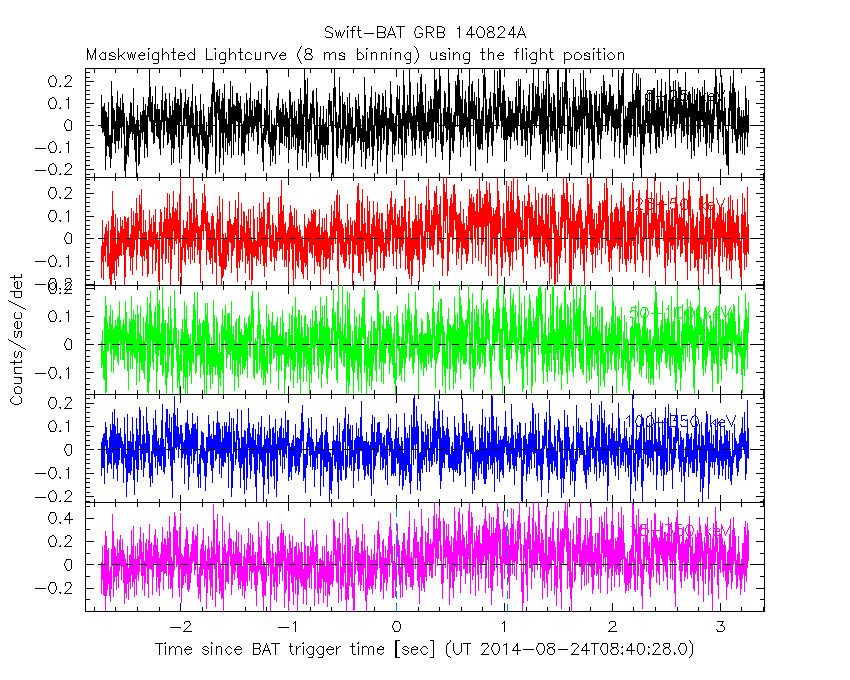

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

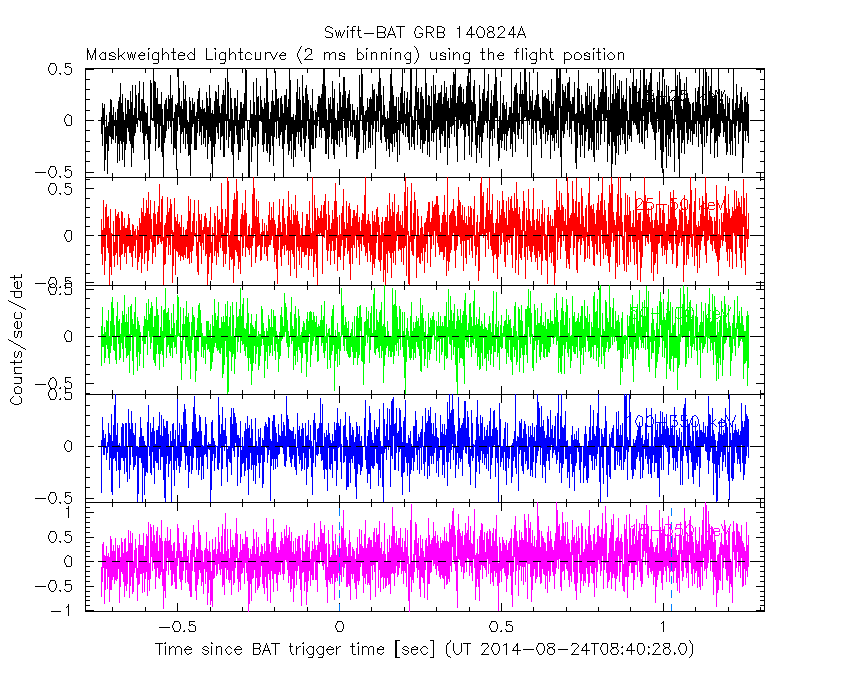

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

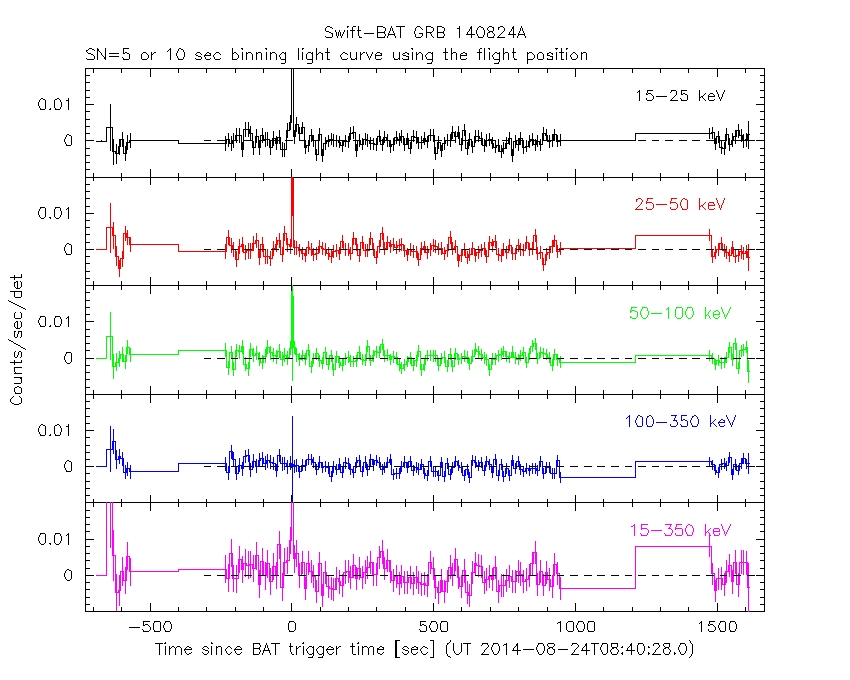

SN=5 or 10 sec. binning (whichever binning is satisfied first)

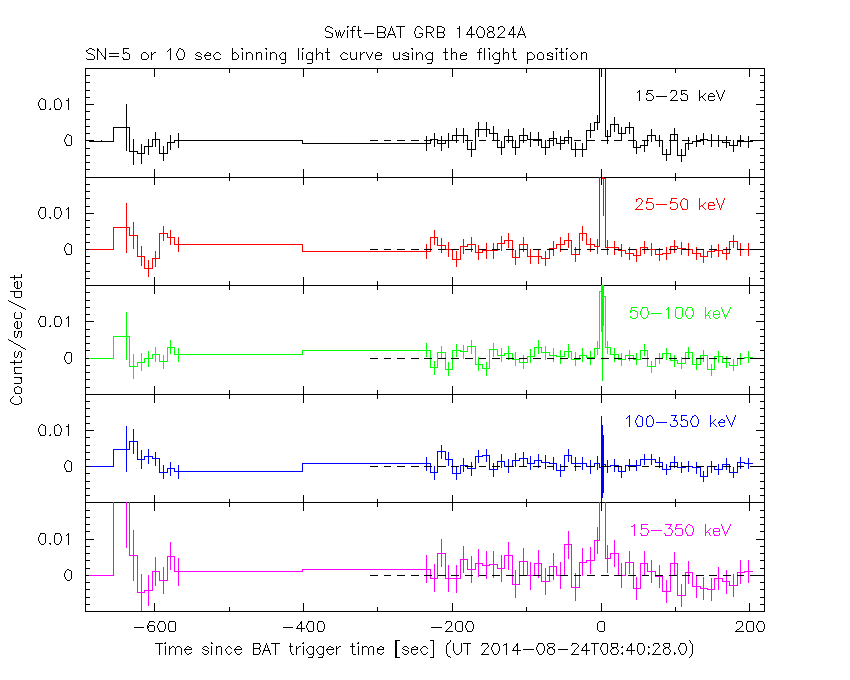

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.264 sec. to    3.640 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.98807     ( -0.20368   0.213875 )
Norm@50keV  : 5.87742E-03    ( -0.000827155   0.000806478 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9513 for     57 degrees of freedom
# Null hypothesis probability =   5.799863e-01

Photon flux (15-150 keV)    in 3.376 sec: 0.876813 ( -0.0938092  0.093818 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82872e-07 ( -2.39703e-08  2.45659e-08 ) ergs/cm2

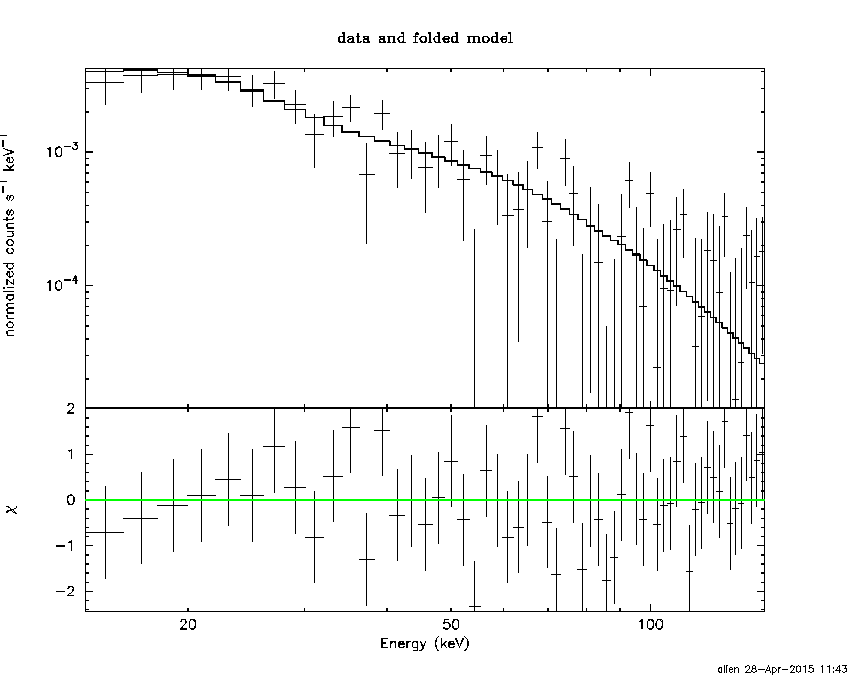

Cutoff power-law model

Time interval is from    0.264 sec. to    3.640 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99011     ( -0.651467   0.646308 )
Epeak [keV] : 9999.23      ( -9971.62 -9999.36 )
Norm@50keV  : 5.86979E-03    ( -0.00309409   0.0171017 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9682 for     56 degrees of freedom
# Null hypothesis probability =   5.424611e-01

Photon flux (15-150 keV)    in 3.376 sec: 0.876531 ( -0.093794  0.093768 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82761e-07 ( -3.12496e-08  2.43389e-08 ) ergs/cm2

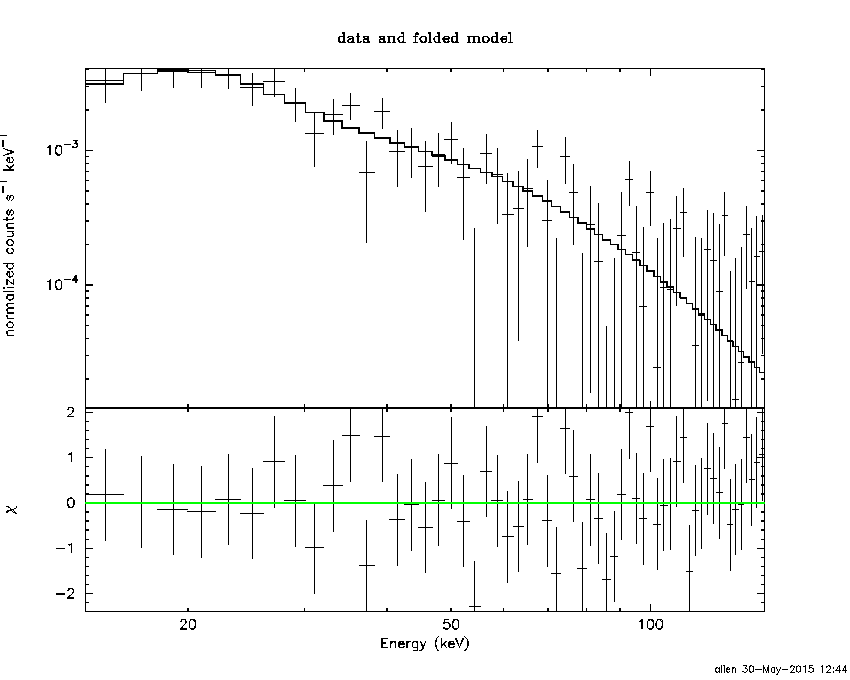

Band function

Time interval is from    0.264 sec. to    3.640 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.84607   ( -3.56548   -3.56548 )
beta        : -2.12441    ( -0.383589   0.281659 )
Epeak [keV] : 23.0398      ( -22.4492 14.2069 )
Norm@50keV   : 34.9527    ( -34.9358   805.571 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.90 using 59 PHA bins.
# Reduced chi-squared =         0.9618 for     55 degrees of freedom
# Null hypothesis probability =   5.553620e-01

Photon flux (15-150 keV)    in 3.376 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.93306  (-1.07767  1.24762)
R^2/D10^2   : 0.622334  (-0.249231   0.407512)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.54 using 59 PHA bins.
# Reduced chi-squared =          1.255 for     57 degrees of freedom
# Null hypothesis probability =   9.311039e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.252e-08   5.991e-09
25- 50  6.831e-08   9.571e-09
50-150  2.547e-08   8.832e-09
15-150  1.263e-07   1.786e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 63.9411       (-19.1626      33.9553)
Norm        : 4.45082       (-0.775673     0.948549)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.63 using 59 PHA bins.
# Reduced chi-squared =         0.9760 for     57 degrees of freedom
# Null hypothesis probability =   5.266232e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.813e-08   5.229e-09
25- 50  5.914e-08   7.258e-09
50-150  7.086e-08   2.080e-08
15-150  1.681e-07   2.586e-08

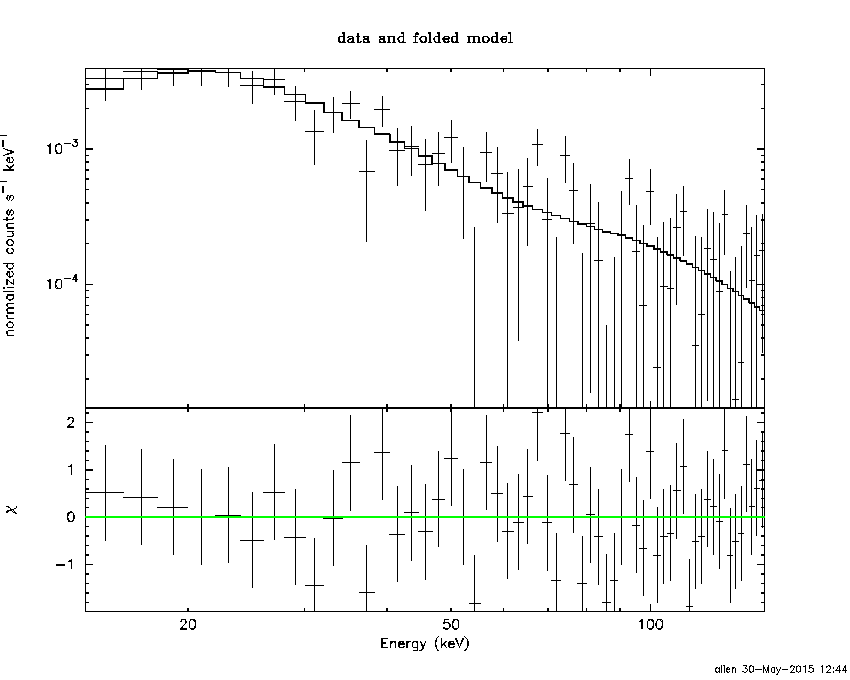

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.34348        (-1.44502      1.30613)
R1^2/D10^2  : 1.20187        (-0.504137      1.38008)
kT2 [keV]   : 63.2496        (-42.2606      -64.9434)
R2^2/D10^2  : 6.17781E-04    (-0.000521747   0.010773)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.94 using 59 PHA bins.
# Reduced chi-squared =         0.9263 for     55 degrees of freedom
# Null hypothesis probability =   6.302695e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.760e-08   9.951e-09
25- 50  6.098e-08   1.638e-08
50-150  9.634e-08   5.149e-08
15-150  1.949e-07   6.428e-08

Peak spectrum fit

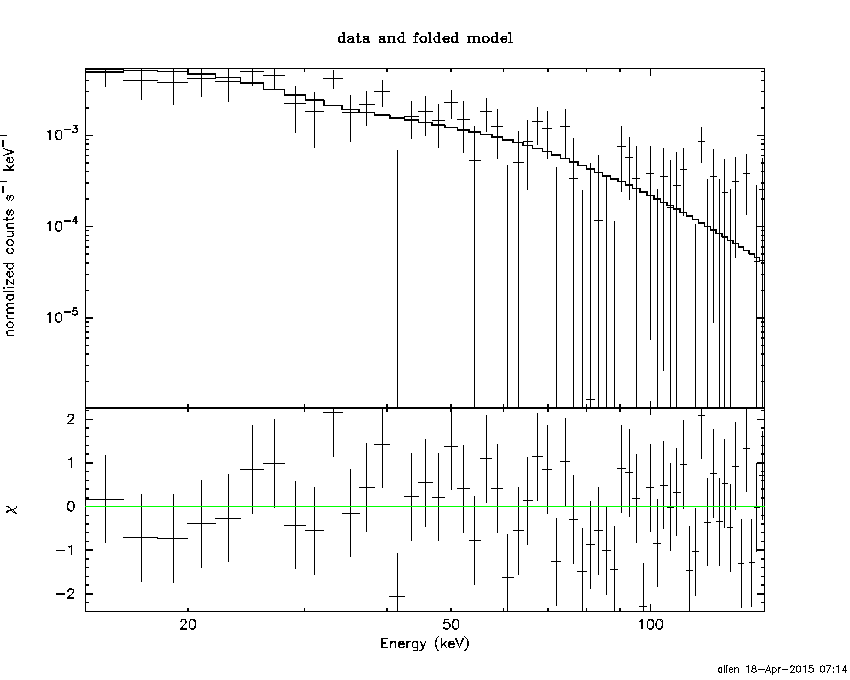

Power-law model

Time interval is from    0.340 sec. to    1.340 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.86872     ( -0.257005   0.27423 )
Norm@50keV  : 8.26970E-03    ( -0.00150231   0.00146106 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.55 using 59 PHA bins.
# Reduced chi-squared =          1.010 for     57 degrees of freedom
# Null hypothesis probability =   4.547196e-01

Photon flux (15-150 keV)    in 1 sec: 1.17134 ( -0.171575  0.171594 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.60254e-08 ( -1.34366e-08  1.38502e-08 ) ergs/cm2

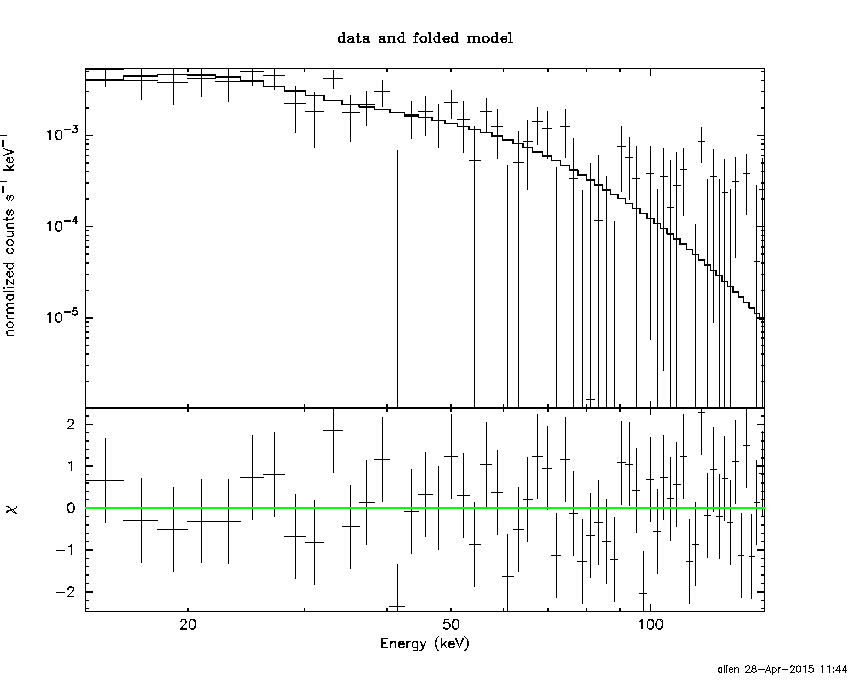

Cutoff power-law model

Time interval is from    0.340 sec. to    1.340 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.790869     ( -1.77095   1.26576 )
Epeak [keV] : 45.6452      ( -41.5961 -45.6398 )
Norm@50keV  : 3.54639E-02    ( -0.0355056   0.368194 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.57 using 59 PHA bins.
# Reduced chi-squared =         0.9923 for     56 degrees of freedom
# Null hypothesis probability =   4.910456e-01

Photon flux (15-150 keV)    in 1 sec: 1.12877 ( -0.178202  0.17899 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.77882e-08 ( -1.4316e-08  1.67732e-08 ) ergs/cm2

Band function

Time interval is from    0.340 sec. to    1.340 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.08880   ( 0.697531   0.697531 )
beta        : -2.48547    ( 2.69084   0.92786 )
Epeak [keV] : 47.8663      ( -43.0618 31.6413 )
Norm@50keV   : 2.36086E-02    ( -0.0523611   346.322 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.51 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     55 degrees of freedom
# Null hypothesis probability =   4.554682e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.97349e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.3906  (-1.54214  1.83577)
R^2/D10^2   : 0.491103  (-0.226772   0.409822)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.94 using 59 PHA bins.
# Reduced chi-squared =          1.052 for     57 degrees of freedom
# Null hypothesis probability =   3.696088e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.093e-08   2.776e-09
25- 50  2.866e-08   6.410e-09
50-150  1.669e-08   6.117e-09
15-150  5.627e-08   1.235e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 78.1608       (-29.2587      67.0934)
Norm        : 5.58809       (-1.10556     1.41703)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.92 using 59 PHA bins.
# Reduced chi-squared =         0.9811 for     57 degrees of freedom
# Null hypothesis probability =   5.155778e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.448e-08   3.300e-09
25- 50  2.370e-08   4.315e-09
50-150  3.293e-08   1.820e-08
15-150  7.110e-08   1.973e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 40.2898        (      )
R1^2/D10^2  : 1.78071E-03        (-0.00161574      0.479281)
kT2 [keV]   : 8.70552        (-4.70028      2.21342)
R2^2/D10^2  : 0.835053    (-0.745226   -0.815881)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.07 using 59 PHA bins.
#Fit statistic : Chi-Squared =          55.99 using 59 PHA bins.
# Reduced chi-squared =          1.019 for     55 degrees of freedom
# Reduced chi-squared =          1.018 for     55 degrees of freedom
# Null hypothesis probability =   4.346692e-01
# Null hypothesis probability =   4.373385e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.353e-08   7.495e-09
25- 50  2.528e-08   1.325e-08
50-150  2.699e-08   1.543e-08
15-150  6.580e-08   3.334e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.98807     ( -0.20368   0.213875 )
Norm@50keV  : 5.87742E-03    ( -0.000827155   0.000806478 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9513 for     57 degrees of freedom
# Null hypothesis probability =   5.799863e-01

Photon flux (15-150 keV)    in 3.376 sec: 0.876813 ( -0.0938092  0.093818 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82872e-07 ( -2.39703e-08  2.45659e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99011     ( -0.651467   0.646308 )
Epeak [keV] : 9999.23      ( -9971.62 -9999.36 )
Norm@50keV  : 5.86979E-03    ( -0.00309409   0.0171017 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.22 using 59 PHA bins.
# Reduced chi-squared =         0.9682 for     56 degrees of freedom
# Null hypothesis probability =   5.424611e-01

Photon flux (15-150 keV)    in 3.376 sec: 0.876531 ( -0.093794  0.093768 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82761e-07 ( -3.12493e-08  2.43754e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.84607   ( -3.56548   -3.56548 )
beta        : -2.12441    ( -0.383589   0.281659 )
Epeak [keV] : 23.0398      ( -22.4492 14.2069 )
Norm@50keV   : 34.9527    ( -34.9358   805.865 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.90 using 59 PHA bins.
# Reduced chi-squared =         0.9618 for     55 degrees of freedom
# Null hypothesis probability =   5.553620e-01

Photon flux (15-150 keV)    in 3.376 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.49e-08
S(50-100 keV) = 5.53e-08

T90 vs. Hardness ratio plot

T90                                   = 3.08399993181229 sec.
Hardness ratio (energy fluence ratio) = 1.00729

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.01035
Count Ratio (50-100 keV) / (15-25 keV) = 0.483185

Mask shadow pattern

IMX = -3.879169240787561E-01, IMY = 3.547370087916024E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

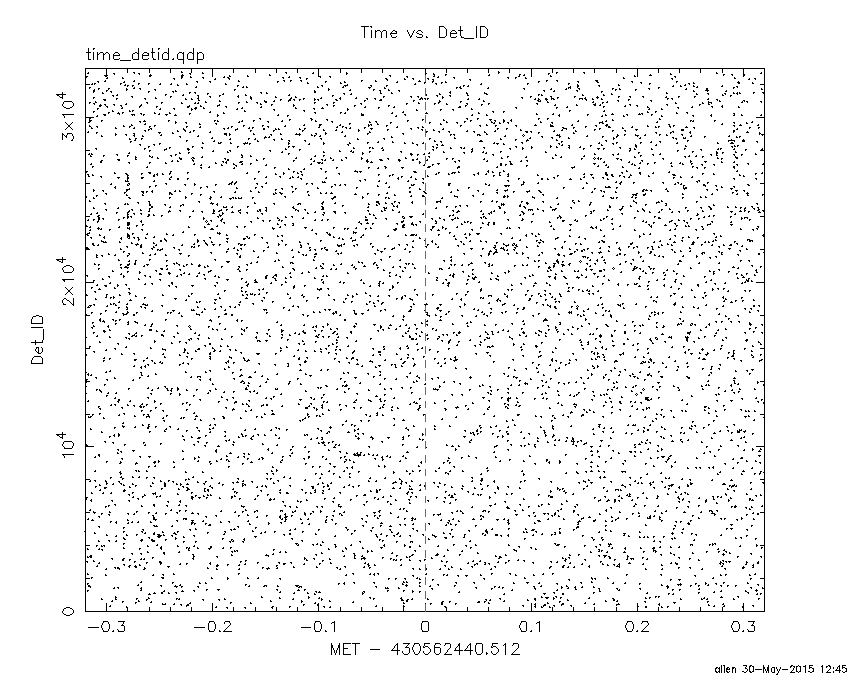

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

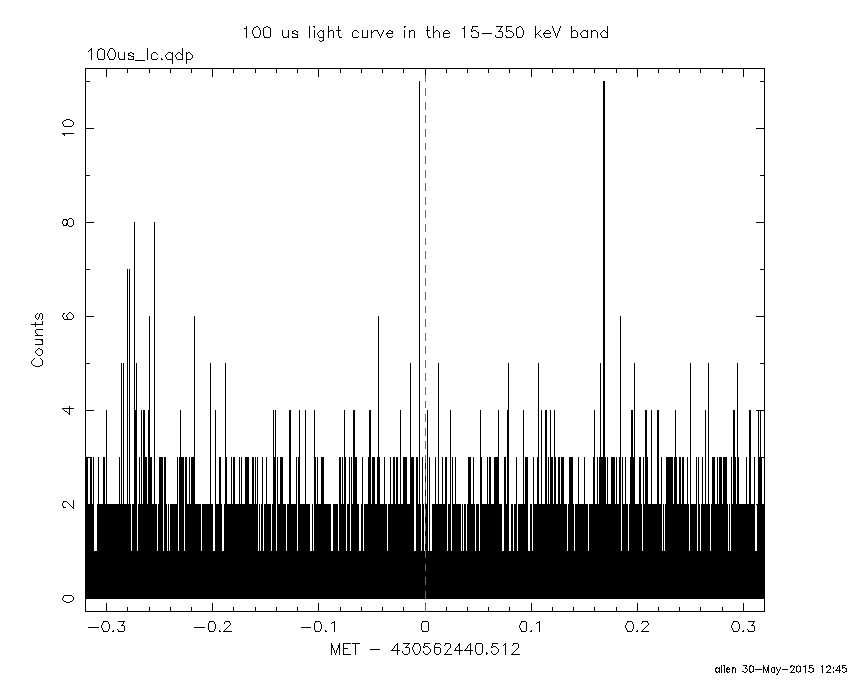

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

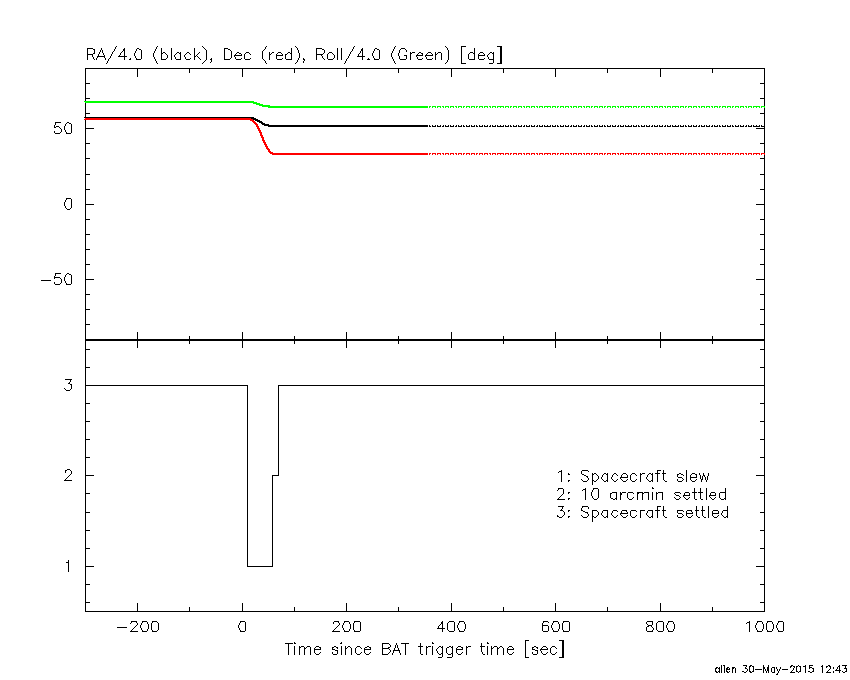

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-571.111390 -556.374900
-239.512000 0.264000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4164  35.3336    2.1  27.1  129.1   1.4501   5.5    2.1	Her X-1
244.2953   5.3212    2.5  52.4  159.9   4.3873   4.5 ------	UNKNOWN
237.6555  20.5504    3.3  36.3  165.5   0.9953   3.5 ------	UNKNOWN
250.0716  65.8697    3.1  13.8   37.1   0.7472   3.7 ------	UNKNOWN
 41.2806  66.8622    3.5  56.7    2.8   3.4656   3.3 ------	UNKNOWN
235.3429  50.3450    2.9   7.1  144.5   0.7608   4.0 ------	UNKNOWN
192.1409  34.6536    3.0  33.1 -116.0   1.2342   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.264000 3.640000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4328  35.2431    6.8  27.2  129.2  -0.0460  -1.7    6.1	Her X-1
264.1628  19.2900    2.6  45.3  129.4   0.3536   4.5 ------	UNKNOWN
242.7857   5.0346    2.7  52.4  161.8   0.3495   4.3 ------	UNKNOWN
206.6255  33.2856    0.8  27.7 -137.6   0.3224  14.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
58.988600 962.549900
1469.488000 1611.692200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5547  35.3496    4.5  39.2   84.8   7.0078   2.6    4.8	Her X-1
204.5508 -25.6312    2.9  59.0 -166.1  14.0825   4.1 ------	UNKNOWN
133.0755  53.3472    3.8  54.4  -33.1  10.1189   3.0 ------	UNKNOWN

Plot creation:
Sat May 30 12:45:11 EDT 2015
