batgrbproduct analysis for trigger=618134

batgrbproduct Analysis for Trigger=618134

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Nov 10 10:06:08 EST 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger618134/GCN5_download_cron
======================================================================

  Trigger: 00618134      Segment: 000

  BAT Trigger Time: 437283848   [s; MET]
      Trigger Stop: 437283912   [s; MET]
               UTC: 2014-11-10T03:43:55.232260    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 135.603777938225   Dec: -40.3467837768642  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.87
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    9.87

  Flight Position:   [ source = BAT ]
    RA: 135.603777938225   Dec: -40.3467837768642  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 135.595558841166   Dec: -40.4483807217399  [deg; J2000]
        { 09h 02m 22.9s , -40d 26' 54.2" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 1.10502046620465 [arcmin] (formal 1-sigma fit error)
    SNR: -8.70931041810645

  Angular difference between Flight and Ground position is 6.107375 arcmin

  Partial Coding Fraction: 0.984375    [ including projection effects ]

  Duration
     T90: 53.1840000152588 +/- 7.93064334482733
        Measured from: 44.7040001153946
                   to: 97.8880001306534     [s; relative to TRIGTIME]
     T50: 25.3440000414848 +/- 10.0651064131196
        Measured from: 57.0560001134872
                   to: 82.4000001549721     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 61.4520000219345
                   to: 62.4520000219345     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 41.3759999871254
                   to: 99.2960000038147     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.123746   0.145661  -0.065341   0.006621
           0.044595   0.044860   0.037639   0.032299 [error]
 Peak      0.014298   0.008926   0.010057   0.004048
           0.005832   0.005893   0.005108   0.004299 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.58e-08 2.82e-08 1.12e-08 5.97e-09 8.83e-08 9.14e-08   erg/cm2
              Error 1.92e-08 2.10e-08 1.73e-08 2.15e-08 5.37e-08 6.42e-08   erg/cm2
Peak flux Power-law 1.16e-01 8.03e-02 3.64e-02 2.30e-02 2.44e-01 2.56e-01   ph/cm2/s
              Error 8.14e-02 6.33e-02 3.88e-02 5.22e-02 1.36e-01 1.47e-01   ph/cm2/s

Fluence   Cutoff-PL 4.77e-08 3.60e-08 4.77e-09 4.59e-11 8.79e-08 8.81e-08   erg/cm2
              Error 2.15e-08 2.97e-08 -------- 5.00e-09 4.52e-08 5.24e-08   erg/cm2
Peak flux Cutoff-PL 1.12e-01 8.61e-02 3.63e-02 1.12e-02 2.42e-01 2.45e-01   ph/cm2/s
              Error 1.00e-01 6.39e-02 4.09e-02 5.14e-02 1.36e-01 1.47e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.332    1.432    -      -           1.07e-04 1.26e-04   51.090 57
CPL   0.870    0.000      13.6    0.0      5.95e-03 0.00e+00   50.240 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.141    1.448    -      -           1.52e-03 1.24e-03   48.820 57
CPL   1.569    0.000      32.2    0.0      3.21e-03 0.00e+00   48.780 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   57.920   41.376   99.296
T90    53.184   44.704   97.888
T50    25.344   57.056   82.400
Peak    1.000   61.452   62.452

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  135.5956 -40.4484 0.0221   19.2  176.3      -0.6233    -8.7  TRIG_00618134
------------------------------------------

Foreground time interval of the image:
 41.376  73.501 (delta_t =  32.125 [sec])
Background time interval of the image:
-18.499  41.376 (delta_t =  59.875 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

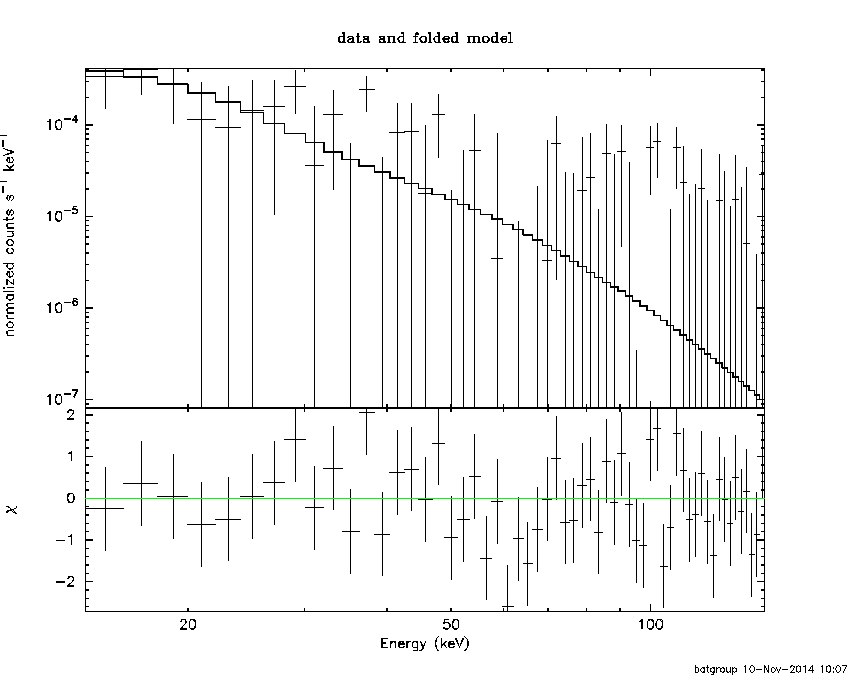

Power-law model

Time interval is from   41.376 sec. to   99.296 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.33179     ( -0.994242   1.86992 )
Norm@50keV  : 1.07082E-04    ( -0.000106793   0.000145506 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.09 using 59 PHA bins.
# Reduced chi-squared =         0.8963 for     57 degrees of freedom
# Null hypothesis probability =   6.953611e-01

Photon flux (15-150 keV)    in 57.92 sec: 3.78435E-02 ( -0.0168574  0.017264 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.82585e-08 ( -4.73358e-08  6.01268e-08 ) ergs/cm2

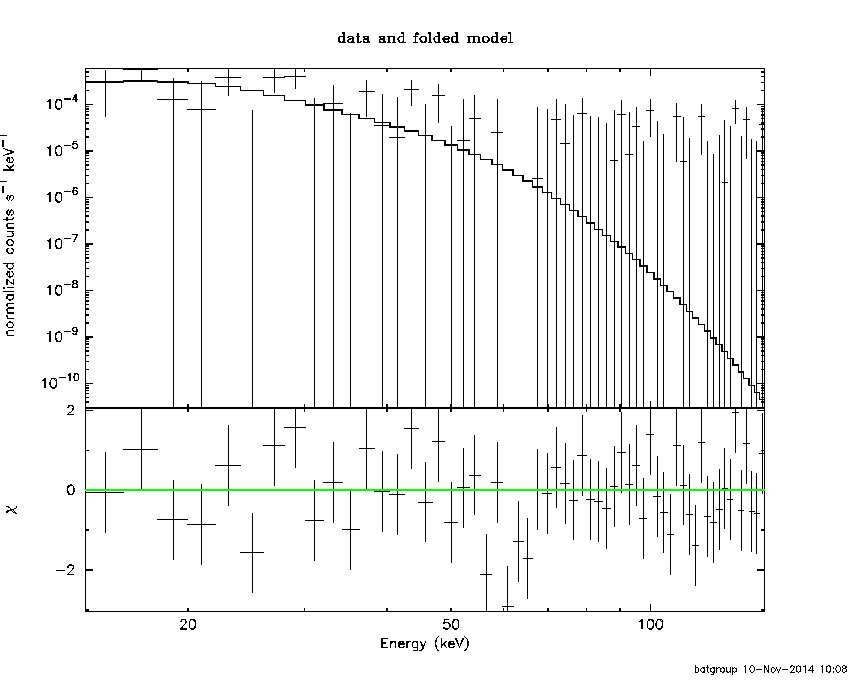

Cutoff power-law model

Time interval is from   41.376 sec. to   99.296 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.870416     (     )
Epeak [keV] : 13.6061      (   )
Norm@50keV  : 5.94684E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.24 using 59 PHA bins.
# Reduced chi-squared =         0.8971 for     56 degrees of freedom
# Null hypothesis probability =   6.916828e-01

Photon flux (15-150 keV)    in 57.92 sec: 3.97196E-02 ( -0.0165302  0.0165334 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.78531e-08 ( -4.19125e-08  4.84906e-08 ) ergs/cm2

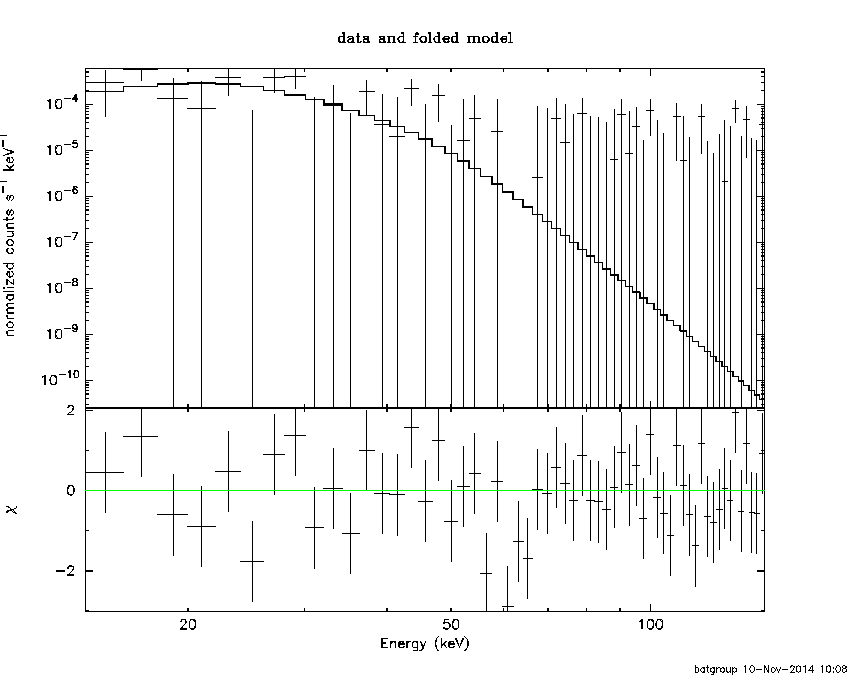

Band function

Time interval is from   41.376 sec. to   99.296 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.976004   ( -6.95603   0.943279 )
beta        : -9.37167    ( 9.37167   19.371 )
Epeak [keV] : 12.9442      ( -10.5505 16.4302 )
Norm@50keV   : 4.97783E-03    ( -0.00611701   609711 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.25 using 59 PHA bins.
# Reduced chi-squared =         0.9137 for     55 degrees of freedom
# Null hypothesis probability =   6.563149e-01

Photon flux (15-150 keV)    in 57.92 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

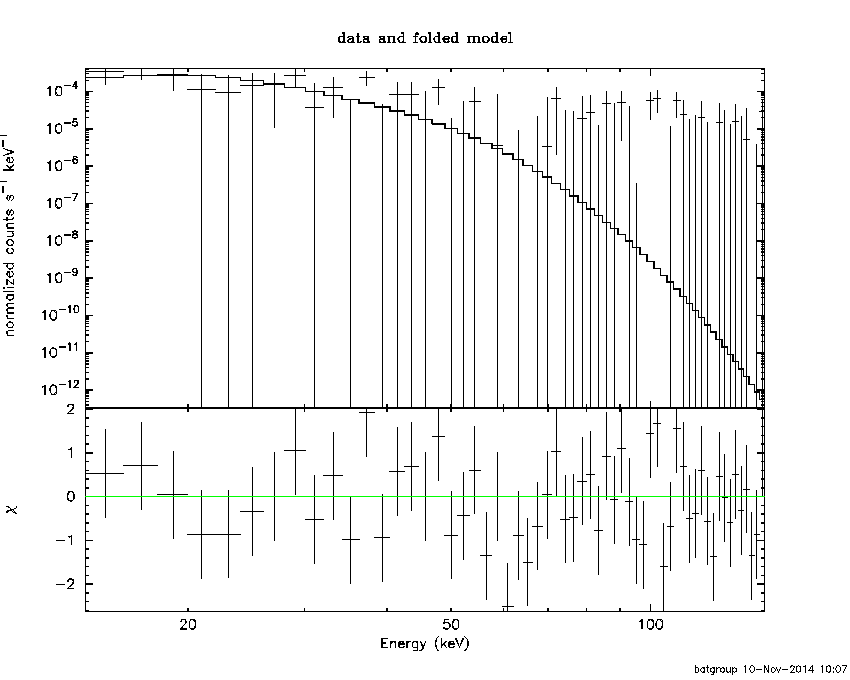

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.63471  (-2.44313  2.48385)
R^2/D10^2   : 0.206817  (-0.206817   2.79436)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.43 using 59 PHA bins.
# Reduced chi-squared =         0.8847 for     57 degrees of freedom
# Null hypothesis probability =   7.183864e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.591e-08   2.720e-08
25- 50  3.981e-08   2.710e-08
50-150  2.798e-09   2.832e-09
15-150  8.852e-08   5.809e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 15.3161       (-8.9944      19.6453)
Norm        : 0.692050       (-0.43991     2.51916)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.32 using 59 PHA bins.
# Reduced chi-squared =         0.8827 for     57 degrees of freedom
# Null hypothesis probability =   7.221556e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.771e-08   2.948e-08
25- 50  3.319e-08   2.228e-08
50-150  6.098e-09   7.060e-09
15-150  8.700e-08   5.917e-08

Double BB

R1^2/D10^2  : 94.7827        (      )
kT2 [keV]   : 6.52625        (-2.75975      -6.44598)
R2^2/D10^2  : 9.21429E-02    (   )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.53 using 59 PHA bins.
#Fit statistic : Chi-Squared =          49.50 using 59 PHA bins.
#Fit statistic : Chi-Squared =          49.47 using 59 PHA bins.
# Reduced chi-squared =         0.9006 for     55 degrees of freedom
# Reduced chi-squared =         0.8999 for     55 degrees of freedom
# Reduced chi-squared =         0.8995 for     55 degrees of freedom
# Null hypothesis probability =   6.827609e-01
# Null hypothesis probability =   6.841413e-01
# Null hypothesis probability =   6.850198e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.538e-08   2.319e-08
25- 50  3.960e-08   2.474e-08
50-150  5.297e-09   3.718e-09
15-150  9.029e-08   5.780e-08

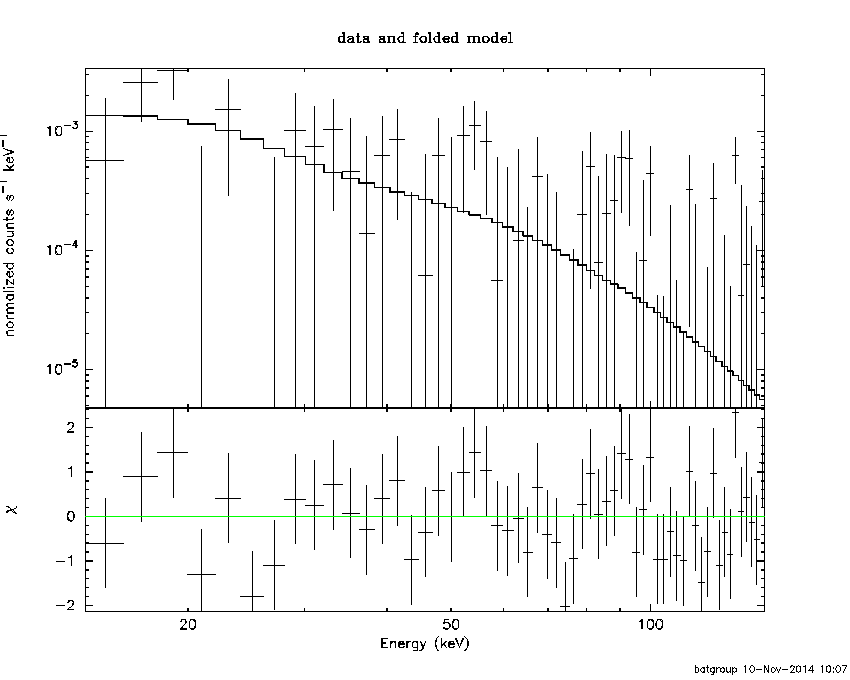

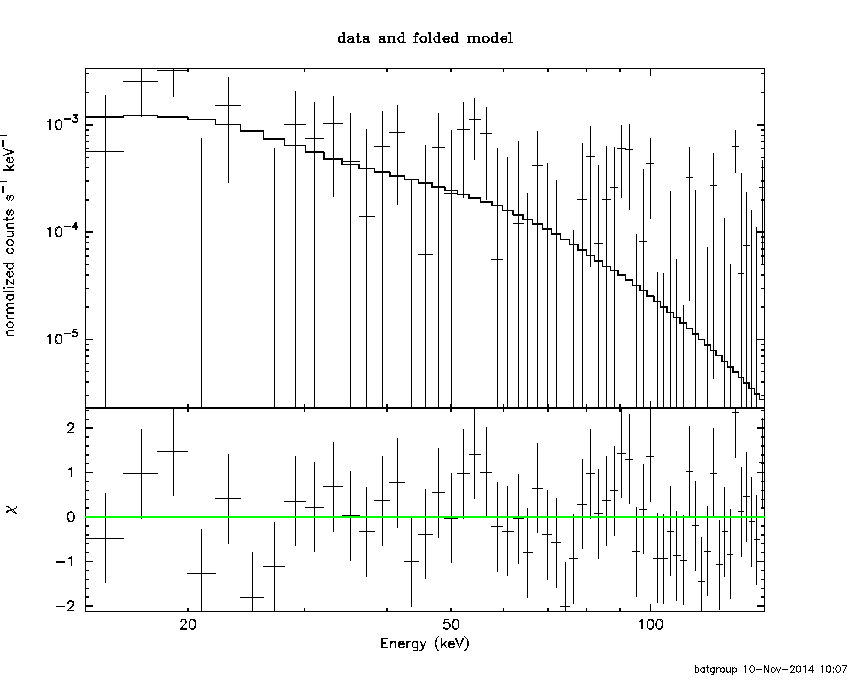

Peak spectrum fit

Power-law model

Time interval is from   61.452 sec. to   62.452 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.14090     ( -1.04914   1.84705 )
Norm@50keV  : 1.51988E-03    ( -0.00127559   0.00119772 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.82 using 59 PHA bins.
# Reduced chi-squared =         0.8565 for     57 degrees of freedom
# Null hypothesis probability =   7.711496e-01

Photon flux (15-150 keV)    in 1 sec: 0.244059 ( -0.135933  0.136142 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41827e-08 ( -9.50236e-09  1.11223e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   61.452 sec. to   62.452 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.56859     (     )
Epeak [keV] : 32.1650      (   )
Norm@50keV  : 3.21085E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.78 using 59 PHA bins.
# Reduced chi-squared =         0.8710 for     56 degrees of freedom
# Null hypothesis probability =   7.423129e-01

Photon flux (15-150 keV)    in 1 sec: 0.241695 ( -0.134844  0.136993 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.36364e-08 ( -8.99106e-09  9.0283e-09 ) ergs/cm2

Band function

Time interval is from   61.452 sec. to   62.452 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -2.19863    ( -3.06902   1.08525 )
Epeak [keV] : 16.7397      ( -16.3074 31.3098 )
Norm@50keV   : 4317.19    ( -2367.39   1.09809e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.76 using 59 PHA bins.
# Reduced chi-squared =         0.8865 for     55 degrees of freedom
# Null hypothesis probability =   7.105596e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.4812  (-10.4864  9.85815)
R^2/D10^2   : 9.77978E-02  (-0.0975889   9.75267)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.49 using 59 PHA bins.
# Reduced chi-squared =         0.8683 for     57 degrees of freedom
# Null hypothesis probability =   7.495905e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.220e-09   1.554e-09
25- 50  5.889e-09   4.032e-09
50-150  3.516e-09   3.038e-09
15-150  1.162e-08   8.580e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 54.1853       (-54.1853      -54.1853)
Norm        : 1.34354       (-0.743209     0.75669)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.79 using 59 PHA bins.
# Reduced chi-squared =         0.8560 for     57 degrees of freedom
# Null hypothesis probability =   7.721169e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.342e-09   2.553e-09
25- 50  4.934e-09   4.431e-09
50-150  5.157e-09   9.360e-09
15-150  1.343e-08   1.580e-08

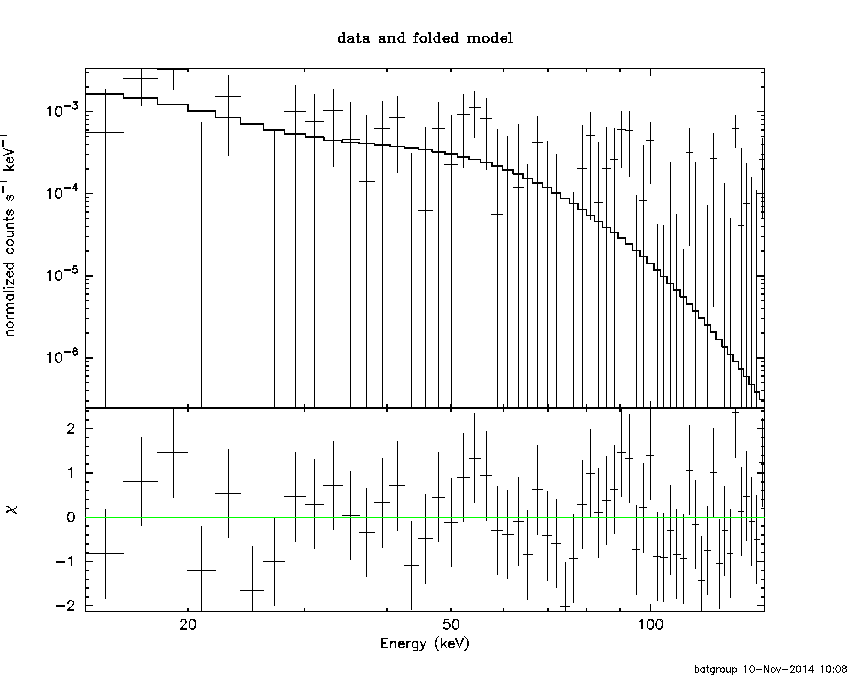

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.74908        (-2.64534      14.9406)
R1^2/D10^2  : 20.3941        (-22.1194      -22.1194)
kT2 [keV]   : 13.2111        (-7.06427      -13.2032)
R2^2/D10^2  : 3.44052E-02    (-0.0344206   0.604295)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.99 using 59 PHA bins.
# Reduced chi-squared =         0.8725 for     55 degrees of freedom
# Null hypothesis probability =   7.372822e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.443e-09   1.664e-09
25- 50  4.692e-09   3.146e-09
50-150  4.969e-09   4.113e-09
15-150  1.310e-08   8.210e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.29755     ( -1.16578   2.47783 )
Norm@50keV  : 1.17405E-04    ( -0.000116459   0.000190855 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.12 using 59 PHA bins.
# Reduced chi-squared =         0.9670 for     57 degrees of freedom
# Null hypothesis probability =   5.460374e-01

Photon flux (15-150 keV)    in 32.12 sec: 4.03017E-02 ( -0.0223059  0.0230497 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.23951e-08 ( -3.35776e-08  4.47615e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.03656E-02     (     )
Epeak [keV] : 18.4127      (   )
Norm@50keV  : 2.89050E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.06 using 59 PHA bins.
# Reduced chi-squared =         0.9654 for     56 degrees of freedom
# Null hypothesis probability =   5.484634e-01

Photon flux (15-150 keV)    in 32.12 sec: 4.37578E-02 ( -0.0218717  0.0219313 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.42324e-08 ( -3.01927e-08  3.30345e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.50704   ( -13.1704   -4.50704 )
beta        : -9.99087    ( 9.99087   18.6398 )
Epeak [keV] : 24.7754      ( -11.1425 9.83243 )
Norm@50keV   : 31.6300    ( -15.9305   5108.47 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.41 using 59 PHA bins.
# Reduced chi-squared =         0.9893 for     55 degrees of freedom
# Null hypothesis probability =   4.970229e-01

Photon flux (15-150 keV)    in 32.12 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.82e-08
S(50-100 keV) = 1.12e-08

T90 vs. Hardness ratio plot

T90                                   = 53.1840000152588 sec.
Hardness ratio (energy fluence ratio) = 0.397163

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.1771
Count Ratio (50-100 keV) / (15-25 keV) = -0.528025

Mask shadow pattern

IMX = -3.479544465074932E-01, IMY = -2.239458550550413E-02

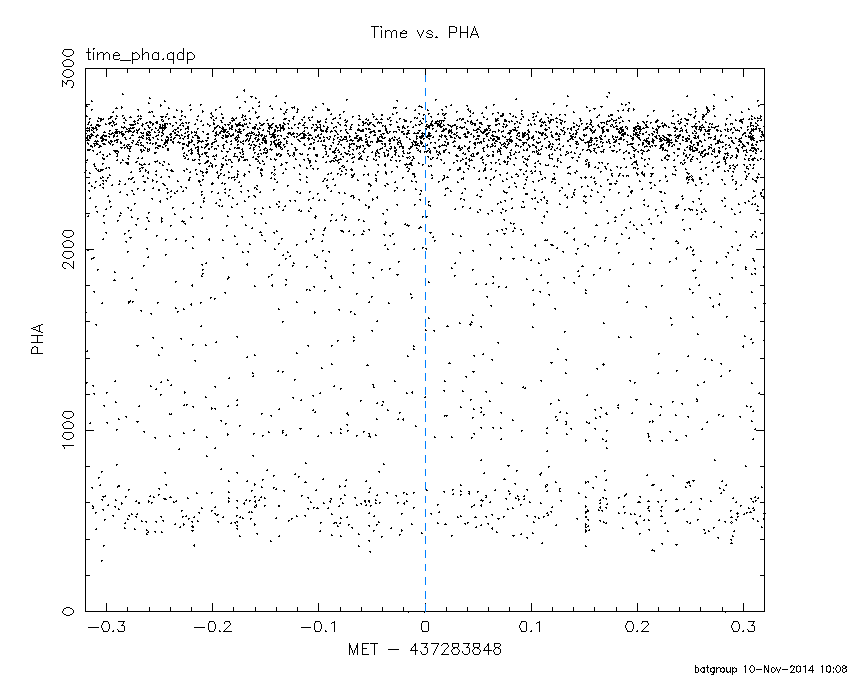

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

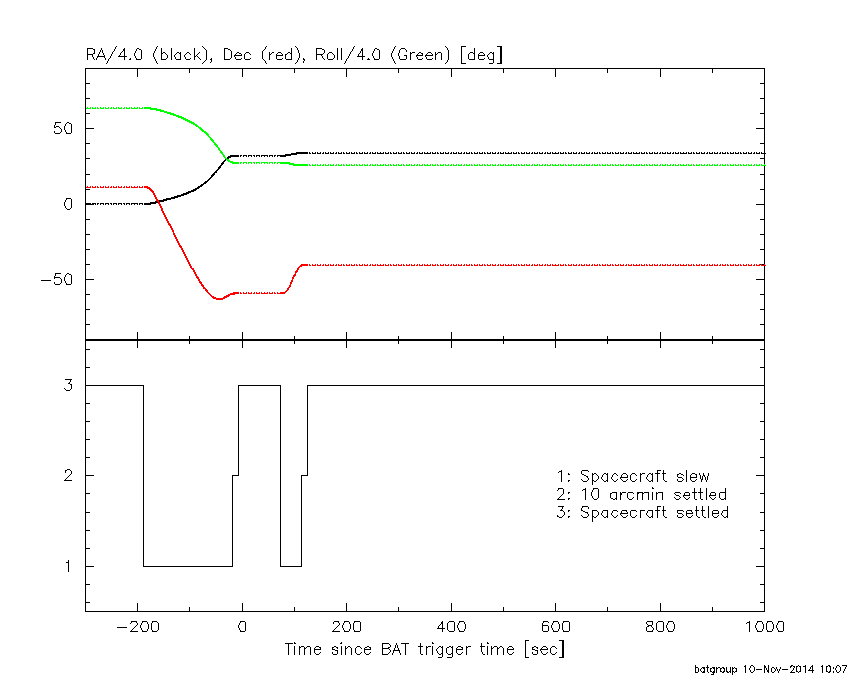

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-18.499400 41.376000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5903 -40.4453    0.7  19.2  176.3   1.4595  16.0    7.1	Vela X-1
170.0888 -60.5654    8.0  20.5  -88.1   0.1513   1.4    7.5	Cen X-3
186.6520 -62.6114    1.3  27.5  -77.7   1.0564   8.7    9.5	GX 301-2
 81.6048 -36.4671    2.6  37.7   85.8   1.3410   4.5 ------	UNKNOWN
152.4946 -58.1624    1.6  12.4 -104.2   0.6725   7.4 ------	UNKNOWN
236.3110 -66.7510    2.8  43.3  -53.2   1.0556   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
41.376000 73.500590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5956 -40.4484    1.3  19.2  176.3  -0.6233  -8.7    7.1	Vela X-1
170.5268 -60.4452    0.0  20.7  -88.3   0.1618   1.9   12.4	Cen X-3
187.0783 -62.8030    0.0  27.6  -77.2  -0.0595  -0.6   11.7	GX 301-2
119.4905 -11.8144    2.3  47.8  148.0   1.3289   5.0 ------	UNKNOWN
160.5916 -40.0299    2.1  27.7 -139.3   0.4512   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
114.500590 233.700000
235.000000 243.036800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6025 -40.4260    1.0   0.1   -7.8   1.4971  11.1    8.4	Vela X-1
170.5752 -60.5365   10.5  29.4  -47.7   0.1861   1.1    9.2	Cen X-3
186.5398 -62.6445    1.2  37.3  -48.8   2.1654   9.3    8.2	GX 301-2
 97.9619 -16.3856    3.1  40.4  102.6   2.1631   3.7 ------	UNKNOWN
108.3929 -66.8642    2.7  30.5    8.0   0.6639   4.2 ------	UNKNOWN
133.5443 -60.1121    2.9  19.8   -9.7   0.5273   4.0 ------	UNKNOWN
152.4655 -58.1345    1.7  20.8  -38.3   0.9072   6.6 ------	UNKNOWN
180.6185 -20.1560    2.2  43.2 -116.9   2.8550   5.2 ------	UNKNOWN
198.7685 -52.7671    2.4  43.6  -64.2   2.7654   4.9 ------	UNKNOWN

Plot creation:
Mon Nov 10 10:08:28 EST 2014
