                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Nov 12 20:57:22 EST 2014
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger618402/GCN5_download_cron
======================================================================

  Trigger: 00618402      Segment: 000

  BAT Trigger Time: 437476000   [s; MET]
      Trigger Stop: 437476064   [s; MET]
               UTC: 2014-11-12T09:06:27.222700    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 189.977449778676   Dec: 15.4789759855643  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.3
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    6.3

  Flight Position:   [ source = BAT ]
    RA: 189.977449778676   Dec: 15.4789759855643  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 190.012669520505   Dec: 15.4540232100627  [deg; J2000]
        { 12h 40m 03.0s , +15d 27' 14.5" }
         +/- 3.86826020432153 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.40457755101767 [arcmin] (formal 1-sigma fit error)
    SNR: 4.40362436411309

  Angular difference between Flight and Ground position is 2.527743 arcmin

  Partial Coding Fraction: 0.921875    [ including projection effects ]

  Duration
     T90: 64 +/-
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]
     T50: 64 +/-
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 64 second)
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.222574   0.164822   0.024596  -0.055531
           0.046952   0.049181   0.044200   0.043203 [error]
 Peak      0.222574   0.164822   0.024596  -0.055531
           0.046952   0.049181   0.044200   0.043203 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.58e-08 6.48e-08 5.41e-08 7.61e-08 2.02e-07 2.51e-07   erg/cm2
              Error 2.01e-08 2.29e-08 3.47e-08 1.05e-07 8.37e-08 1.46e-07   erg/cm2
Peak flux Power-law 2.86e-02 1.84e-02 7.69e-03 4.38e-03 5.69e-02 5.90e-02   ph/cm2/s
              Error 1.05e-02 6.31e-03 4.77e-03 5.66e-03 1.79e-02 1.91e-02   ph/cm2/s

Fluence   Cutoff-PL 5.57e-08 8.04e-08 2.34e-08 6.33e-10 1.60e-07 1.60e-07   erg/cm2
              Error 2.26e-08 3.30e-08 3.93e-08 6.86e-08 7.52e-08 1.17e-07   erg/cm2
Peak flux Cutoff-PL 2.79e-02 2.32e-02 3.72e-03 5.54e-05 5.48e-02 5.48e-02   ph/cm2/s
              Error 1.17e-02 9.04e-03 5.62e-03 3.80e-03 1.69e-02 1.69e-02   ph/cm2/s

Fluence        Band 5.55e-08 7.90e-08 2.89e-08 1.02e-08 1.70e-07 1.75e-07   erg/cm2
              Error 2.50e-08 -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- 5.51e-02   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.260    0.624    -      -           3.33e-04 1.60e-04   54.290 57
CPL  -0.113    4.652      28.3    0.0      1.36e-02 0.00e+00   52.430 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.260    0.624    -      -           3.33e-04 1.60e-04   54.290 57
CPL  -0.113    4.652      28.3    0.0      1.36e-02 0.00e+00   52.430 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   64.000    0.000   64.000
T90    64.000    0.000   64.000
T50    64.000    0.000   64.000
Peak   64.000    0.000   64.000

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  190.0127 +15.4540 0.0437   24.3 -153.2       0.4334     4.4  TRIG_00618402
------------------------------------------

Foreground time interval of the image:
  0.000  64.000 (delta_t =  64.000 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

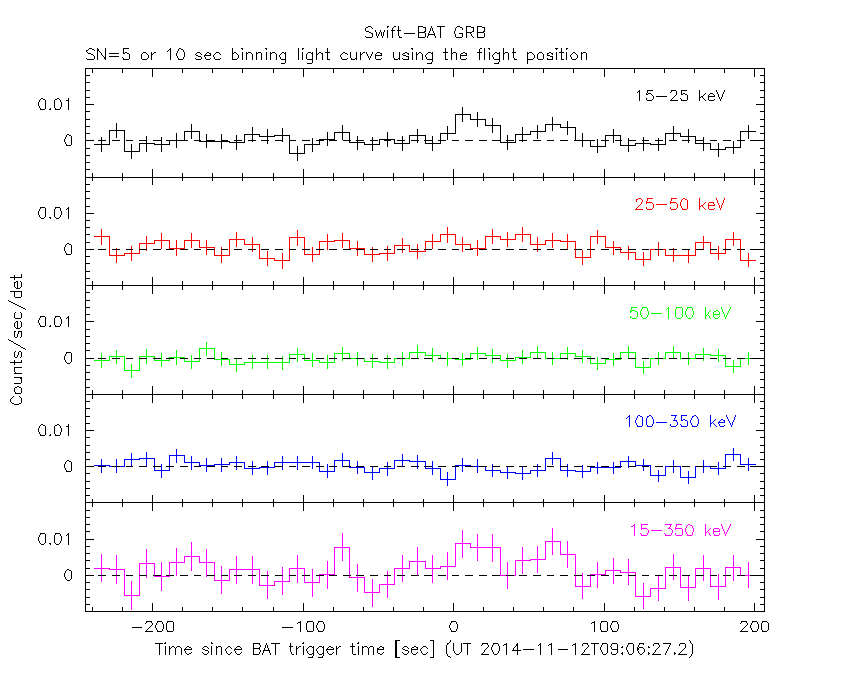

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to   64.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25955     ( -0.556537   0.691216 )
Norm@50keV  : 3.32686E-04    ( -0.000158874   0.000161607 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.29 using 59 PHA bins.
# Reduced chi-squared =         0.9524 for     57 degrees of freedom
# Null hypothesis probability =   5.774336e-01

Photon flux (15-150 keV)    in 64 sec: 5.68562E-02 ( -0.0178092  0.017891 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.01981e-07 ( -7.85056e-08  8.88704e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to   64.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.113207     ( -6.68151   2.62208 )
Epeak [keV] : 28.2642      (   )
Norm@50keV  : 1.35925E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.43 using 59 PHA bins.
# Reduced chi-squared =         0.9363 for     56 degrees of freedom
# Null hypothesis probability =   6.106637e-01

Photon flux (15-150 keV)    in 64 sec: 5.48030E-02 ( -0.0166813  0.017151 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6017e-07 ( -5.77152e-08  9.27667e-08 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   64.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.581257   ( -2.89292   -0.0382335 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 28.4879      ( -8.86442 199.803 )
Norm@50keV   : 2.87759E-02    ( -0.0293105   21.3389 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.40 using 59 PHA bins.
# Reduced chi-squared =         0.9528 for     55 degrees of freedom
# Null hypothesis probability =   5.744614e-01

Photon flux (15-150 keV)    in 64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.69884e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.36161  (-2.02821  2.69285)
R^2/D10^2   : 9.33164E-02  (-0.0933158   0.248164)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.57 using 59 PHA bins.
# Reduced chi-squared =         0.9223 for     57 degrees of freedom
# Null hypothesis probability =   6.418165e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.462e-08   3.370e-08
25- 50  8.232e-08   5.146e-08
50-150  1.631e-08   1.320e-08
15-150  1.532e-07   9.571e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 36.2334       (-18.4778      58.9902)
Norm        : 0.402276       (-0.176851     0.360554)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.08 using 59 PHA bins.
# Reduced chi-squared =         0.9312 for     57 degrees of freedom
# Null hypothesis probability =   6.230110e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.703e-08   3.098e-08
25- 50  7.176e-08   4.378e-08
50-150  4.965e-08   4.112e-08
15-150  1.784e-07   1.146e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.10857        (-5.16558      -5.16558)
R1^2/D10^2  : 0.195720        (-0.191014      -0.191014)
kT2 [keV]   : 9.67646        (-9.94609      -9.94609)
R2^2/D10^2  : 1.94986E-02    (-0.0157638   0.303469)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.32 using 59 PHA bins.
# Reduced chi-squared =         0.9513 for     55 degrees of freedom
# Null hypothesis probability =   5.776397e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.668e-08   6.496e-08
25- 50  7.859e-08   6.618e-08
50-150  2.747e-08   3.277e-08
15-150  1.627e-07   1.424e-07

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to   64.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25955     ( -0.556537   0.691216 )
Norm@50keV  : 3.32686E-04    ( -0.000158874   0.000161607 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.29 using 59 PHA bins.
# Reduced chi-squared =         0.9524 for     57 degrees of freedom
# Null hypothesis probability =   5.774336e-01

Photon flux (15-150 keV)    in 64 sec: 5.68562E-02 ( -0.0178092  0.017891 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.01981e-07 ( -7.85056e-08  8.88704e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to   64.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.113207     ( -6.68151   2.62208 )
Epeak [keV] : 28.2642      (   )
Norm@50keV  : 1.35925E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.43 using 59 PHA bins.
# Reduced chi-squared =         0.9363 for     56 degrees of freedom
# Null hypothesis probability =   6.106637e-01

Photon flux (15-150 keV)    in 64 sec: 5.48030E-02 ( -0.0166813  0.017151 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6017e-07 ( -5.77152e-08  9.27667e-08 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   64.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.581257   ( -2.89292   -0.0382335 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 28.4879      ( -8.86442 243.089 )
Norm@50keV   : 2.87759E-02    ( -0.0293105   21.3389 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.40 using 59 PHA bins.
# Reduced chi-squared =         0.9528 for     55 degrees of freedom
# Null hypothesis probability =   5.744614e-01

Photon flux (15-150 keV)    in 64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.69884e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.36161  (-2.02821  2.69285)
R^2/D10^2   : 9.33164E-02  (-0.0933158   0.248164)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.57 using 59 PHA bins.
# Reduced chi-squared =         0.9223 for     57 degrees of freedom
# Null hypothesis probability =   6.418165e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.462e-08   3.360e-08
25- 50  8.232e-08   5.136e-08
50-150  1.631e-08   1.350e-08
15-150  1.532e-07   9.693e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 36.2334       (-18.4778      58.9902)
Norm        : 0.402276       (-0.176851     0.360554)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.08 using 59 PHA bins.
# Reduced chi-squared =         0.9312 for     57 degrees of freedom
# Null hypothesis probability =   6.230110e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.703e-08   3.201e-08
25- 50  7.176e-08   4.416e-08
50-150  4.965e-08   4.083e-08
15-150  1.784e-07   1.147e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.10857        (-5.16558      -5.16558)
R1^2/D10^2  : 0.195720        (-0.191014      -0.191014)
kT2 [keV]   : 9.67646        (-9.94609      -9.94609)
R2^2/D10^2  : 1.94986E-02    (-0.0157638   0.303469)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.32 using 59 PHA bins.
# Reduced chi-squared =         0.9513 for     55 degrees of freedom
# Null hypothesis probability =   5.776397e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.668e-08   7.216e-08
25- 50  7.859e-08   8.813e-08
50-150  2.747e-08   3.376e-08
15-150  1.627e-07   1.924e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25955     ( -0.556537   0.691216 )
Norm@50keV  : 3.32686E-04    ( -0.000158874   0.000161607 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.29 using 59 PHA bins.
# Reduced chi-squared =         0.9524 for     57 degrees of freedom
# Null hypothesis probability =   5.774336e-01

Photon flux (15-150 keV)    in 64 sec: 5.68562E-02 ( -0.0178092  0.017891 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.01981e-07 ( -7.85056e-08  8.88704e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.113207     ( -6.68151   2.62208 )
Epeak [keV] : 28.2642      (   )
Norm@50keV  : 1.35925E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.43 using 59 PHA bins.
# Reduced chi-squared =         0.9363 for     56 degrees of freedom
# Null hypothesis probability =   6.106637e-01

Photon flux (15-150 keV)    in 64 sec: 5.48030E-02 ( -0.0166813  0.017151 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6017e-07 ( -5.77152e-08  9.27667e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.581257   ( -2.89292   -0.0382335 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 28.4879      ( -8.86442 240.009 )
Norm@50keV   : 2.87759E-02    ( -0.0293105   21.3389 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.40 using 59 PHA bins.
# Reduced chi-squared =         0.9528 for     55 degrees of freedom
# Null hypothesis probability =   5.744614e-01

Photon flux (15-150 keV)    in 64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.69884e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.48e-08
S(50-100 keV) = 5.41e-08

T90 vs. Hardness ratio plot

T90                                   = 64 sec.
Hardness ratio (energy fluence ratio) = 0.834877

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.740527
Count Ratio (50-100 keV) / (15-25 keV) = 0.110507

Mask shadow pattern

IMX = -4.025285114467173E-01, IMY = 2.030723226133307E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 64.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5890 -40.5752    5.8  52.0    9.5   0.6270   2.0    3.0	Vela X-1
155.9361 -35.1688    2.3  38.2   -4.5   0.6924   5.0 ------	UNKNOWN
202.4115 -30.8044    2.8  43.4  -65.2   1.7732   4.1 ------	UNKNOWN
217.9011  11.6496    2.6  48.2 -129.4   1.9929   4.3 ------	UNKNOWN
208.4443 -16.1816    3.0  40.8  -88.3   1.6988   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
121.100600 764.200600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
149.2184 -15.2254    3.3  50.6   14.3   4.7136   3.5 ------	UNKNOWN
149.6709 -20.9737    4.0  53.8    8.2   4.9982   2.9 ------	UNKNOWN
184.4843  20.0416    3.0   6.9   91.7   1.3910   3.8 ------	UNKNOWN
225.8994   6.6943    2.7  36.3 -120.3   2.9025   4.4 ------	UNKNOWN
194.2035 -34.9680    3.6  50.6  -44.8   7.1762   3.2 ------	UNKNOWN

Plot creation:
Wed Nov 12 21:01:43 EST 2014
