batgrbproduct Analysis for Trigger=627137

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Feb 11 07:43:34 EST 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger627137
======================================================================

  Trigger: 00627137      Segment: 000

  BAT Trigger Time: 443415479.488   [s; MET]
      Trigger Stop: 443415479.744   [s; MET]
               UTC: 2015-01-20T02:57:46.413400    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 10.3079848360545   Dec: 33.9812565264564  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.25
     Image Trigger?:     NO
     Rate S/N Ratio:     16.1554944214035  [ if not an image trigger ]
     Image S/N Ratio:    7.25

  Flight Position:   [ source = BAT ]
    RA: 10.3079848360545   Dec: 33.9812565264564  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 10.3286724302852   Dec: 33.9801583936293  [deg; J2000]
        { 00h 41m 18.9s , +33d 58' 48.6" }
         +/- 1.51256016579608 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.644721664444355 [arcmin] (formal 1-sigma fit error)
    SNR: 16.8417032281939

  Angular difference between Flight and Ground position is 1.031388 arcmin

  Partial Coding Fraction: 0.71875    [ including projection effects ]

  Duration
     T90: 1.19599992036819 +/- 0.153674948708428
        Measured from: -0.311999976634979
                   to: 0.883999943733215     [s; relative to TRIGTIME]
     T50: 0.559999942779541 +/- 0.11207141806269
        Measured from: 0.0320000052452087
                   to: 0.59199994802475     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0639999508857727
                   to: 0.936000049114227     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.403999984264374
                   to: 0.952000021934509     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.083572   0.091116   0.062003   0.004866
           0.007757   0.007979   0.007163   0.005841 [error]
 Peak      0.067195   0.073615   0.052034   0.001745
           0.006792   0.007060   0.006342   0.005051 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.68e-08 4.08e-08 4.65e-08 1.01e-07 1.44e-07 2.15e-07   erg/cm2
              Error 3.89e-09 3.85e-09 7.12e-09 3.17e-08 1.64e-08 3.86e-08   erg/cm2
Peak flux Power-law 7.02e-01 5.94e-01 3.43e-01 2.94e-01 1.77e+00 1.93e+00   ph/cm2/s
              Error 1.10e-01 6.04e-02 5.38e-02 9.07e-02 1.80e-01 1.99e-01   ph/cm2/s

Fluence   Cutoff-PL 2.66e-08 4.08e-08 4.66e-08 9.27e-08 1.44e-07 2.06e-07   erg/cm2
              Error 4.03e-09 3.14e-09 7.18e-09 5.54e-08 1.72e-08 5.40e-08   erg/cm2
Peak flux Cutoff-PL 7.03e-01 5.94e-01 3.42e-01 2.90e-01 1.77e+00 1.93e+00   ph/cm2/s
              Error 1.14e-01 6.02e-02 5.40e-02 1.36e-01 1.80e-01 2.29e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.810    0.179    -      -           1.16e-02 1.28e-03   47.090 57
CPL   1.774    0.621     279.0    0.0      1.21e-02 0.00e+00   47.120 56

The chi2 of BB fit is -------- which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.794    0.189    -      -           1.29e-02 1.52e-03   42.240 57
CPL   1.793    0.645    9998.7    0.0      1.29e-02 1.06e-02   42.240 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 2.560000 sec.
T50 in the 50-300 keV band: 0.768000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    1.356   -0.404    0.952
T90     1.196   -0.312    0.884
T50     0.560    0.032    0.592
Peak    1.000   -0.064    0.936

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   10.3287    33.9802   0.0114    29.6482  -143.7181         0.2466740     16.842 TRIG_00627137

Foreground time interval of the image:
 -0.404   0.952 (delta_t =   1.356 [sec])
Background time interval of the image:
-239.488  -0.404 (delta_t = 239.084 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.404 sec. to    0.952 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.81034     ( -0.175711   0.181887 )
Norm@50keV  : 1.15570E-02    ( -0.0012939   0.00126674 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.09 using 59 PHA bins.
# Reduced chi-squared =         0.8261 for     57 degrees of freedom
# Null hypothesis probability =   8.225449e-01

Photon flux (15-150 keV)    in 1.356 sec: 1.59896 ( -0.15212  0.152209 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.44221e-07 ( -1.62508e-08  1.65065e-08 ) ergs/cm2

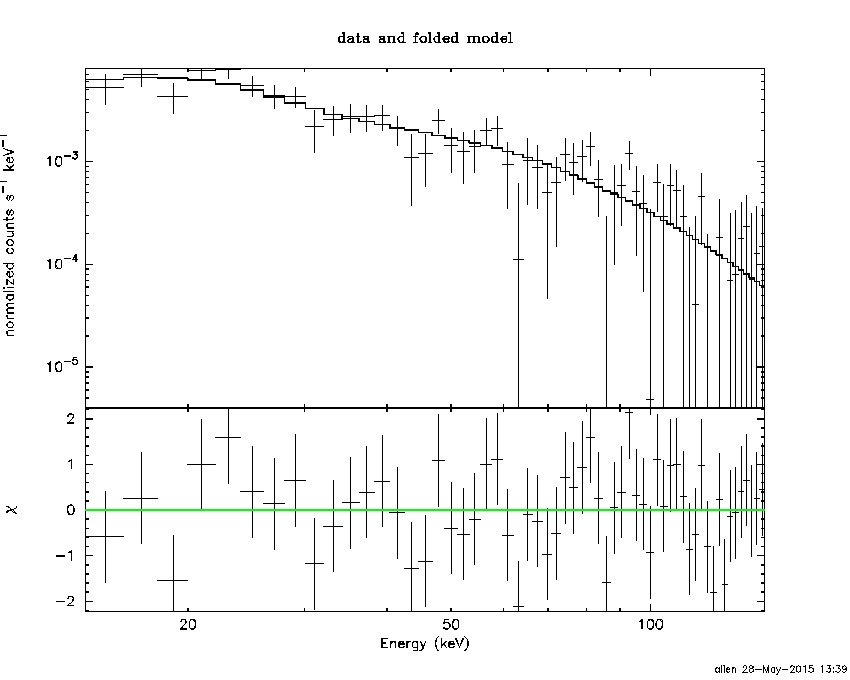

Cutoff power-law model

Time interval is from   -0.404 sec. to    0.952 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77390     ( -0.571184   0.671806 )
Epeak [keV] : 278.989      (   )
Norm@50keV  : 1.21029E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.12 using 59 PHA bins.
# Reduced chi-squared =         0.8414 for     56 degrees of freedom
# Null hypothesis probability =   7.951848e-01

Photon flux (15-150 keV)    in 1.356 sec: 1.59890 ( -0.15256  0.1517 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.4368e-07 ( -1.74285e-08  1.70327e-08 ) ergs/cm2

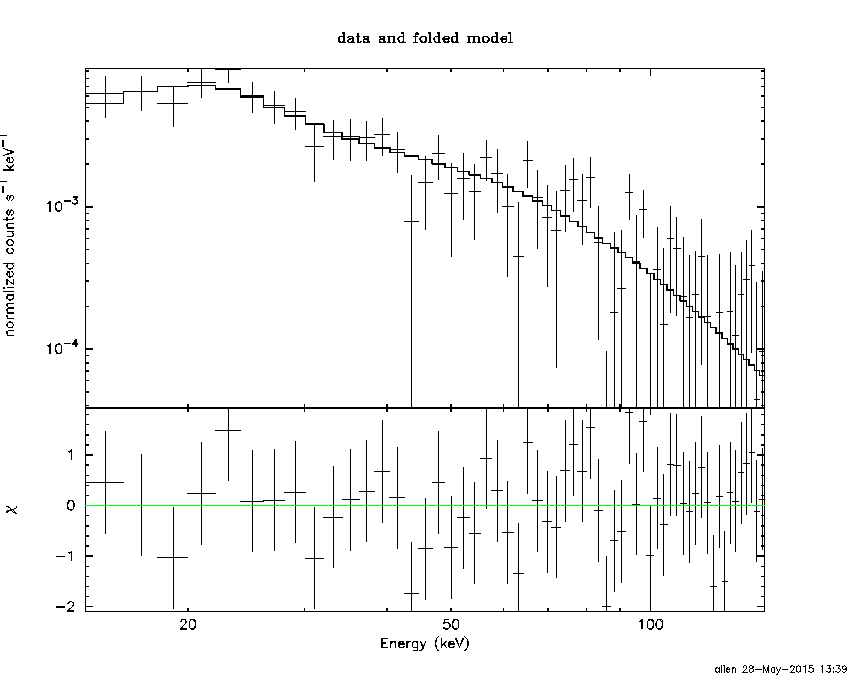

Band function

Time interval is from   -0.404 sec. to    0.952 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.56388   ( -4.56388   -4.56388 )
beta        : -1.89607    ( -0.22189   0.202685 )
Epeak [keV] : 22.3046      ( -22.3046 4.30587 )
Norm@50keV   : 1511.65    ( -142.524   1.06799e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.32 using 59 PHA bins.
# Reduced chi-squared =         0.8421 for     55 degrees of freedom
# Null hypothesis probability =   7.914173e-01

Photon flux (15-150 keV)    in 1.356 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.5950  (-1.39127  1.67879)
R^2/D10^2   : 0.585240  (-0.245487   0.409088)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.99 using 59 PHA bins.
# Reduced chi-squared =          1.474 for     57 degrees of freedom
# Null hypothesis probability =   1.152118e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.846e-08   3.119e-09
25- 50  4.968e-08   5.926e-09
50-150  3.058e-08   8.150e-09
15-150  9.872e-08   1.212e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 101.873       (-32.1688      62.3416)
Norm        : 6.98596       (-0.894196     1.11433)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.18 using 59 PHA bins.
# Reduced chi-squared =         0.8629 for     57 degrees of freedom
# Null hypothesis probability =   7.596982e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.476e-08   3.376e-09
25- 50  4.297e-08   5.038e-09
50-150  7.037e-08   2.831e-08
15-150  1.381e-07   3.171e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.15557        (-1.17346      1.33464)
R1^2/D10^2  : 3.49021        (-1.79621      4.36396)
kT2 [keV]   : 27.0363        (-7.0171      13.8458)
R2^2/D10^2  : 1.48094E-02    (-0.0108365   0.0285095)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.57 using 59 PHA bins.
# Reduced chi-squared =         0.8103 for     55 degrees of freedom
# Null hypothesis probability =   8.415955e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.714e-08   8.706e-09
25- 50  4.042e-08   1.155e-08
50-150  7.949e-08   4.197e-08
15-150  1.471e-07   5.213e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.064 sec. to    0.936 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.79356     ( -0.185342   0.19248 )
Norm@50keV  : 1.28511E-02    ( -0.00153735   0.00150326 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.24 using 59 PHA bins.
# Reduced chi-squared =         0.7411 for     57 degrees of freedom
# Null hypothesis probability =   9.278323e-01

Photon flux (15-150 keV)    in 1 sec: 1.76645 ( -0.179864  0.179945 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.18336e-07 ( -1.43161e-08  1.45435e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.064 sec. to    0.936 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.79265     ( -0.619673   0.67074 )
Epeak [keV] : 9998.73      (   )
Norm@50keV  : 1.28672E-02    ( -0.0051422   0.0160403 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.24 using 59 PHA bins.
# Reduced chi-squared =         0.7543 for     56 degrees of freedom
# Null hypothesis probability =   9.131865e-01

Photon flux (15-150 keV)    in 1 sec: 1.76631 ( -0.18008  0.1792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17918e-07 ( -1.5401e-08  1.4959e-08 ) ergs/cm2

Band function

Time interval is from   -0.064 sec. to    0.936 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.68260   ( -4.17804   -4.17804 )
beta        : -1.89999    ( -0.27931   0.238014 )
Epeak [keV] : 24.4702      ( -23.5089 19.7758 )
Norm@50keV   : 36.9068    ( -36.8944   1014.86 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.16 using 59 PHA bins.
# Reduced chi-squared =         0.7483 for     55 degrees of freedom
# Null hypothesis probability =   9.170454e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.4897  (-1.44625  1.78607)
R^2/D10^2   : 0.676141  (-0.296534   0.504232)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.80 using 59 PHA bins.
# Reduced chi-squared =          1.295 for     57 degrees of freedom
# Null hypothesis probability =   6.655441e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.537e-08   2.680e-09
25- 50  4.083e-08   5.605e-09
50-150  2.444e-08   6.490e-09
15-150  8.064e-08   1.133e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 100.554       (-32.0122      76.2947)
Norm        : 7.78305       (-1.08922     1.23455)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.99 using 59 PHA bins.
# Reduced chi-squared =         0.7718 for     57 degrees of freedom
# Null hypothesis probability =   8.964751e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.034e-08   2.935e-09
25- 50  3.522e-08   4.515e-09
50-150  5.725e-08   2.231e-08
15-150  1.128e-07   2.643e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.32120        (-1.24636      1.44195)
R1^2/D10^2  : 3.50753        (-1.83697      4.50108)
kT2 [keV]   : 27.9683        (-7.89326      18.1853)
R2^2/D10^2  : 1.45444E-02    (-0.0114334   0.0327354)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.76 using 59 PHA bins.
# Reduced chi-squared =         0.7230 for     55 degrees of freedom
# Null hypothesis probability =   9.392631e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.185e-08   9.033e-09
25- 50  3.340e-08   1.066e-08
50-150  6.541e-08   3.623e-08
15-150  1.207e-07   4.302e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.81034     ( -0.175711   0.181887 )
Norm@50keV  : 1.15570E-02    ( -0.0012939   0.00126674 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.09 using 59 PHA bins.
# Reduced chi-squared =         0.8261 for     57 degrees of freedom
# Null hypothesis probability =   8.225449e-01

Photon flux (15-150 keV)    in 1.356 sec: 1.59896 ( -0.15212  0.152209 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.44221e-07 ( -1.62508e-08  1.65065e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77390     ( -0.571184   0.671806 )
Epeak [keV] : 278.989      (   )
Norm@50keV  : 1.21029E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.12 using 59 PHA bins.
# Reduced chi-squared =         0.8414 for     56 degrees of freedom
# Null hypothesis probability =   7.951848e-01

Photon flux (15-150 keV)    in 1.356 sec: 1.59890 ( -0.15256  0.1517 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.4368e-07 ( -1.74285e-08  1.70327e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.56388   ( -4.56388   -4.56388 )
beta        : -1.89607    ( -0.22189   0.202685 )
Epeak [keV] : 22.3046      ( -22.3046 4.30587 )
Norm@50keV   : 1511.65    ( -142.524   1.06799e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.32 using 59 PHA bins.
# Reduced chi-squared =         0.8421 for     55 degrees of freedom
# Null hypothesis probability =   7.914173e-01

Photon flux (15-150 keV)    in 1.356 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.08e-08
S(50-100 keV) = 4.65e-08

T90 vs. Hardness ratio plot

T90                                   = 1.19599992036819 sec.
Hardness ratio (energy fluence ratio) = 1.13971

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.09027
Count Ratio (50-100 keV) / (15-25 keV) = 0.741911

Mask shadow pattern

IMX = -4.588351045099284E-01, IMY = 3.368247373716360E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

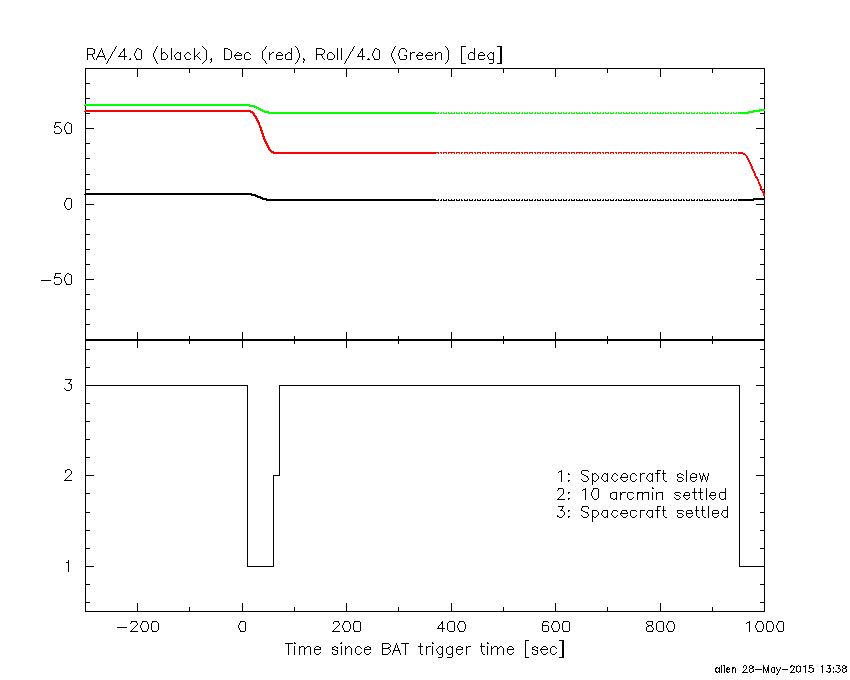

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.488000 -0.404000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
108.4751  55.1024    2.9  40.5   69.1   2.6193   4.0 ------	UNKNOWN
 75.7641  41.2146    2.8  35.6  110.4   1.6672   4.1 ------	UNKNOWN
163.8134  63.3381    2.9  50.8   31.5   4.2473   3.9 ------	UNKNOWN
286.0614  51.0506    3.4  50.9  -44.5   3.1512   3.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.404000 0.952000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 63.6726  28.5954    2.2  41.2  134.7   0.1597   5.1 ------	UNKNOWN
 10.3287  33.9802    0.7  29.6 -143.7   0.2467  16.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
60.012600 951.612590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
308.2540  40.7948    4.8  48.7  -33.9  -3.3332  -2.4   11.5	Cyg X-3
326.1607  38.4284    3.8  35.6  -40.8   2.2703   3.0    6.4	Cyg X-2
 33.3273  30.9798    3.2  19.6  121.5   1.8118   3.6 ------	UNKNOWN
 39.4941  -2.4553    2.6  45.6  166.0   5.1768   4.5 ------	UNKNOWN
 40.2452 -15.1838    2.8  56.8  173.9  12.0407   4.2 ------	UNKNOWN
 13.3758  47.5355    2.7  13.7   37.7   2.0835   4.3 ------	UNKNOWN
 32.1173 -20.4664    2.5  58.3 -175.2  12.4038   4.5 ------	UNKNOWN
294.4851  61.6310    3.2  54.0   -5.8   5.7764   3.6 ------	UNKNOWN
322.1646  22.0135    3.7  43.8  -63.9   8.8235   3.2 ------	UNKNOWN
353.8118 -11.3685    2.2  48.0 -129.0  12.7139   5.1 ------	UNKNOWN

Plot creation:
Thu May 28 13:40:08 EDT 2015
