batgrbproduct Analysis for Trigger=632158

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Mar 14 17:25:13 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger632158/heasarc_download
======================================================================

  Trigger: 00632158      Segment: 000

  BAT Trigger Time: 446300199.52   [s; MET]
      Trigger Stop: 446300199.584   [s; MET]
               UTC: 2015-02-22T12:16:26.299640    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.724289603285   Dec: 21.8878543033797  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.82
     Image Trigger?:     NO
     Rate S/N Ratio:     18.7882942280559  [ if not an image trigger ]
     Image S/N Ratio:    7.82

  Flight Position:   [ source = BAT ]
    RA: 293.724289603285   Dec: 21.8878543033797  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.712989501603   Dec: 21.8884940950163  [deg; J2000]
        { 19h 34m 51.1s , +21d 53' 18.6" }
         +/- 2.48681050577657 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.03466090340115 [arcmin] (formal 1-sigma fit error)
    SNR: 8.27779243391201

  Angular difference between Flight and Ground position is 0.630301 arcmin

  Partial Coding Fraction: 0.1542969    [ including projection effects ]

  Duration
     T90: 0.0759999752044678 +/- 0.0215407028819316
        Measured from: 0.00400000810623169
                   to: 0.0799999833106995     [s; relative to TRIGTIME]
     T50: 0.0399999618530273 +/- 0.0164924559253201
        Measured from: 0.0120000243186951
                   to: 0.0519999861717224     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.449999988079071
                   to: 0.550000011920929     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.00400000810623169
                   to: 0.0920000076293945     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.067399   0.036083   0.013355  -0.001136
           0.008939   0.007956   0.005711   0.003381 [error]
 Peak      0.065131   0.033800   0.020166  -0.003617
           0.016184   0.015965   0.012423   0.010877 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.85e-08 1.10e-08 4.12e-09 2.07e-09 3.47e-08 3.58e-08   erg/cm2
              Error 4.15e-09 3.26e-09 2.26e-09 2.28e-09 8.62e-09 9.33e-09   erg/cm2
Peak flux Power-law 7.32e-01 3.38e-01 9.44e-02 3.29e-02 1.18e+00 1.20e+00   ph/cm2/s
              Error 2.85e-01 1.57e-01 8.11e-02 5.20e-02 3.97e-01 4.05e-01   ph/cm2/s

Fluence   Cutoff-PL 1.91e-08 1.62e-08 2.15e-09 1.74e-11 3.75e-08 3.75e-08   erg/cm2
              Error 4.63e-09 5.53e-09 2.65e-09 2.12e-10 8.60e-09 8.60e-09   erg/cm2
Peak flux Cutoff-PL 7.37e-01 3.34e-01 8.99e-02 2.97e-02 1.18e+00 1.19e+00   ph/cm2/s
              Error 2.82e-01 1.30e-01 7.13e-02 5.18e-02 3.95e-01 4.04e-01   ph/cm2/s

Fluence        Band 1.89e-08 1.60e-08 2.71e-09 3.52e-11 3.78e-08 3.78e-08   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.399    0.457    -      -           2.67e-02 1.15e-02   55.920 57
CPL   0.205    3.814      18.3   11.4      4.00e+00 8.80e+04   47.460 56

The chi2 of BB fit is 48.04 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.841    1.015    -      -           4.82e-03 3.97e-03   59.810 57
CPL   1.977    0.326       1.3   20.6      1.43e-02 0.00e+00   60.290 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.088    0.004    0.092
T90     0.076    0.004    0.080
T50     0.040    0.012    0.052
Peak    1.000   -0.450    0.550

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  293.7130 +21.8885 0.0233   37.3  -87.4       0.1243     8.3  TRIG_00632158
------------------------------------------

Foreground time interval of the image:
  0.004   0.092 (delta_t =   0.088 [sec])
Background time interval of the image:
-239.520   0.004 (delta_t = 239.524 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.004 sec. to    0.092 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.39897     ( -0.403522   0.510366 )
Norm@50keV  : 2.67088E-02    ( -0.0111681   0.0117563 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.92 using 59 PHA bins.
# Reduced chi-squared =         0.9811 for     57 degrees of freedom
# Null hypothesis probability =   5.155000e-01

Photon flux (15-150 keV)    in 0.088 sec: 9.95330 ( -2.17997  2.1833 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.47047e-08 ( -8.5188e-09  8.71961e-09 ) ergs/cm2

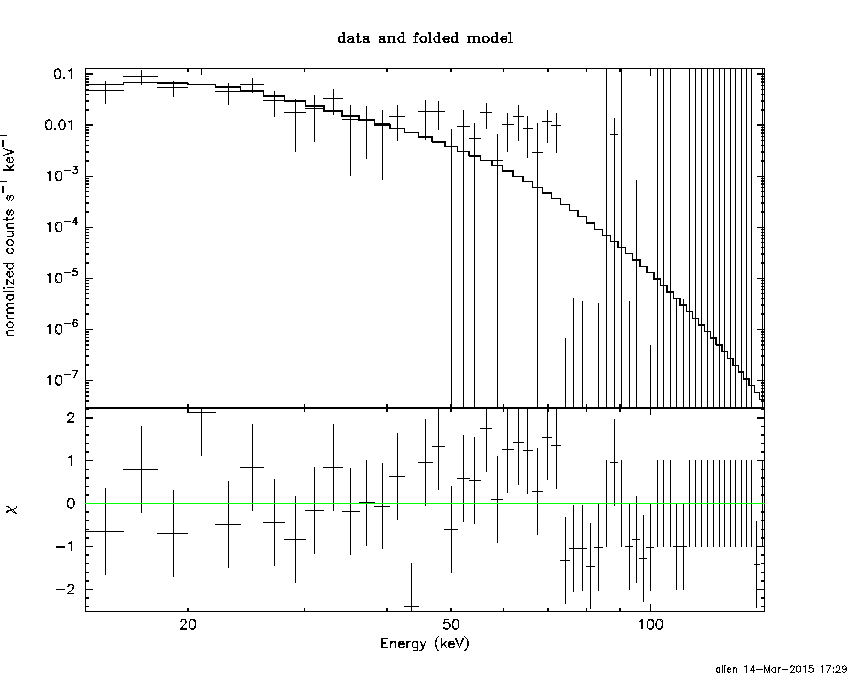

Cutoff power-law model

Time interval is from    0.004 sec. to    0.092 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.204660     ( -5.96862   1.66007 )
Epeak [keV] : 18.2706      ( -15.238 7.50012 )
Norm@50keV  : 3.99785    ( -4.50834   175974 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.46 using 59 PHA bins.
# Reduced chi-squared =         0.8476 for     56 degrees of freedom
# Null hypothesis probability =   7.845765e-01

Photon flux (15-150 keV)    in 0.088 sec: 10.8826 ( -2.21205  2.2196 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.75434e-08 ( -8.56979e-09  8.62532e-09 ) ergs/cm2

Band function

Time interval is from    0.004 sec. to    0.092 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.238398   ( -5.61455   -3.91301 )
beta        : -9.37167    ( 4.83786   1.26769 )
Epeak [keV] : 20.1571      ( -4.01628 5.59302 )
Norm@50keV   : 7.69715    ( -7.69362   5134.96 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.47 using 59 PHA bins.
# Reduced chi-squared =         0.8630 for     55 degrees of freedom
# Null hypothesis probability =   7.547737e-01

Photon flux (15-150 keV)    in 0.088 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.77952e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.53069  (-1.06637  1.27064)
R^2/D10^2   : 60.7850  (-36.9472   101.958)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.04 using 59 PHA bins.
# Reduced chi-squared =         0.8428 for     57 degrees of freedom
# Null hypothesis probability =   7.951080e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.915e-08   9.388e-09
25- 50  1.591e-08   7.318e-09
50-150  1.031e-09   7.751e-10
15-150  3.610e-08   1.490e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 16.7664       (-4.8345      5.85785)
Norm        : 168.184       (-60.3863     102.812)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.53 using 59 PHA bins.
# Reduced chi-squared =         0.8515 for     57 degrees of freedom
# Null hypothesis probability =   7.801690e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.945e-08   5.918e-09
25- 50  1.471e-08   5.353e-09
50-150  3.220e-09   2.253e-09
15-150  3.738e-08   1.269e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.19216        (-4.18957      -4.18957)
R1^2/D10^2  : 131.134        (-131.485      -131.485)
kT2 [keV]   : 7.78556        (-7.78072      -7.78072)
R2^2/D10^2  : 6.66007    (-6.69589   127.935)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.13 using 59 PHA bins.
# Reduced chi-squared =         0.8570 for     55 degrees of freedom
# Null hypothesis probability =   7.656436e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.940e-08   1.473e-08
25- 50  1.590e-08   1.208e-08
50-150  2.605e-09   2.362e-09
15-150  3.791e-08   2.447e-08

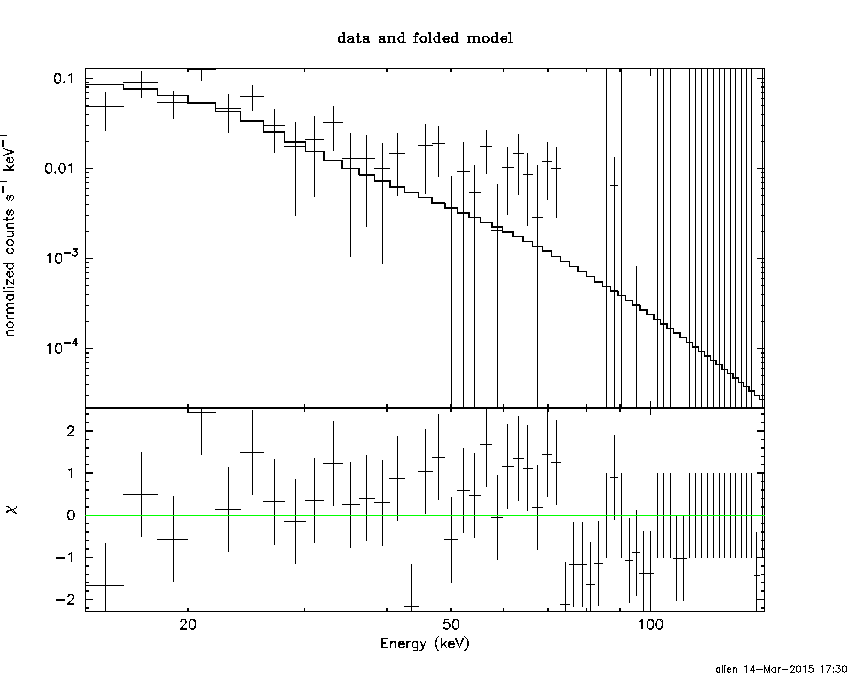

Peak spectrum fit

Power-law model

Time interval is from   -0.450 sec. to    0.550 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.84079     ( -0.669663   1.36073 )
Norm@50keV  : 4.82056E-03    ( -0.00482056   0.00312814 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.81 using 59 PHA bins.
# Reduced chi-squared =          1.049 for     57 degrees of freedom
# Null hypothesis probability =   3.738745e-01

Photon flux (15-150 keV)    in 1 sec: 1.18376 ( -0.397  0.396234 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.40731e-08 ( -2.36698e-08  2.36708e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.450 sec. to    0.550 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97673     ( -0.629351   0.0222806 )
Epeak [keV] : 1.31904      ( -1.06339 40.1984 )
Norm@50keV  : 1.42940E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.29 using 59 PHA bins.
# Reduced chi-squared =          1.077 for     56 degrees of freedom
# Null hypothesis probability =   3.234454e-01

Photon flux (15-150 keV)    in 1 sec: 1.18108 ( -0.394149  0.39649 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.35806e-08 ( -2.30946e-08  2.4202e-08 ) ergs/cm2

Band function

Time interval is from   -0.450 sec. to    0.550 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.94804   ( 7.94804   7.94804 )
beta        : -2.84077    ( -1.35818   0.669883 )
Epeak [keV] : 16.3203      ( -16.3203 -16.3203 )
Norm@50keV   : 0.655188    ( -0.65519   0.42515 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.81 using 59 PHA bins.
# Reduced chi-squared =          1.088 for     55 degrees of freedom
# Null hypothesis probability =   3.052184e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.48365  (-1.43074  10.2199)
R^2/D10^2   : 53.0976  (-54.8388   1552.49)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.06 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     57 degrees of freedom
# Null hypothesis probability =   2.166233e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.372e-08   1.378e-08
25- 50  5.665e-09   3.698e-09
50-150  2.810e-11   3.258e-11
15-150  2.941e-08   1.832e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.4640       (-22.3381      40.6576)
Norm        : 9.16377       (-4.61499     32.3975)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.98 using 59 PHA bins.
# Reduced chi-squared =          1.070 for     57 degrees of freedom
# Null hypothesis probability =   3.349360e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.909e-08   1.014e-08
25- 50  2.239e-08   1.412e-08
50-150  1.304e-08   1.110e-08
15-150  5.453e-08   3.477e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.28969        (-1.28246      1.66359)
R1^2/D10^2  : 532.371        (-509.361      1.23257e+06)
kT2 [keV]   : 12.8202        (-4.75943      7.0818)
R2^2/D10^2  : 0.152028    (-0.134825   0.649857)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.76 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     55 degrees of freedom
# Null hypothesis probability =   4.092453e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.035e-08   1.065e-08
25- 50  1.874e-08   1.178e-08
50-150  1.853e-08   1.473e-08
15-150  5.762e-08   3.245e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.39897     ( -0.403522   0.510366 )
Norm@50keV  : 2.67088E-02    ( -0.0111681   0.0117563 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.92 using 59 PHA bins.
# Reduced chi-squared =         0.9811 for     57 degrees of freedom
# Null hypothesis probability =   5.155000e-01

Photon flux (15-150 keV)    in 0.088 sec: 9.95330 ( -2.17997  2.1833 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.47047e-08 ( -8.5188e-09  8.71961e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.204660     ( -5.96862   1.7409 )
Epeak [keV] : 18.2706      ( -15.238 7.50012 )
Norm@50keV  : 3.99785    ( -4.50834   175974 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.46 using 59 PHA bins.
# Reduced chi-squared =         0.8476 for     56 degrees of freedom
# Null hypothesis probability =   7.845765e-01

Photon flux (15-150 keV)    in 0.088 sec: 10.8826 ( -2.21205  2.2196 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.75434e-08 ( -8.56979e-09  8.62532e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.238398   ( -5.61455   -3.91301 )
beta        : -9.37167    ( 4.83786   1.26769 )
Epeak [keV] : 20.1571      ( -4.01628 5.59302 )
Norm@50keV   : 7.69715    ( -7.69362   4822.43 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.47 using 59 PHA bins.
# Reduced chi-squared =         0.8630 for     55 degrees of freedom
# Null hypothesis probability =   7.547737e-01

Photon flux (15-150 keV)    in 0.088 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.77952e-08 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.10e-08
S(50-100 keV) = 4.12e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0759999752044678 sec.
Hardness ratio (energy fluence ratio) = 0.374545

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.535364
Count Ratio (50-100 keV) / (15-25 keV) = 0.198148

Mask shadow pattern

IMX = 3.416292627294123E-02, IMY = 7.615482245917869E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.520000 0.004000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9806 -15.6446    1.1  50.5    4.6   5.2888  11.0    0.3	Sco X-1
254.5311  35.3908    7.0   1.5 -149.6   0.3086   1.7    4.6	Her X-1
268.3311  -1.5714    8.4  38.4  -30.3  -0.3430  -1.4    7.5	SW J1753.5-0127
273.9217 -14.0796    8.7  52.1  -31.4   0.7706   1.3    5.5	GX 17+2
288.7434  10.8898    2.6  39.7  -68.5   2.2938   4.5    4.7	GRS 1915+105
299.5675  35.1835    3.3  37.6 -111.0   1.4833   3.5    1.6	Cyg X-1
308.0327  41.1176    5.2  43.0 -121.9  -1.2809  -2.2   10.5	Cyg X-3
221.3184   3.5007    2.5  42.8   45.4   2.5986   4.5 ------	UNKNOWN
309.4781  87.1509    3.2  54.2  177.0   2.6581   3.6 ------	UNKNOWN
261.2221   3.0669    2.1  32.0  -20.7   1.0806   5.5 ------	UNKNOWN
266.3736  19.6888    2.7  18.5  -47.5   0.7875   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.004000 0.092000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0165 -15.7049    4.1  50.6    4.6  -0.0233  -2.8    4.4	Sco X-1
254.2789  35.2081    8.6   1.2 -152.3  -0.0045  -1.3   11.9	Her X-1
268.1968  -1.5815    0.0  38.4  -30.1   0.0039   0.7   12.9	SW J1753.5-0127
273.9130 -14.0152    5.8  52.0  -31.4   0.0301   2.0    5.5	GX 17+2
288.7454  10.9542    8.6  39.7  -68.6  -0.0189  -1.3    3.2	GRS 1915+105
299.6060  35.1917  145.6  37.6 -111.0   0.0009   0.1    1.0	Cyg X-1
308.1916  41.0689    7.5  43.2 -121.8  -0.0255  -1.5    7.9	Cyg X-3
222.8550  -6.9882    2.0  50.4   35.1   0.0879   5.6 ------	UNKNOWN
241.5053  46.3956    3.1  15.2  141.0   0.0119   3.7 ------	UNKNOWN
298.7384  76.1553    2.2  46.8 -172.5   0.0350   5.3 ------	UNKNOWN
293.7130  21.8885    1.4  37.3  -87.4   0.1243   8.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
66.180590 722.560000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6202  35.2526    8.6  36.5   86.6  -2.4934  -1.4    9.6	Her X-1
262.9780 -24.8027    7.8  55.4    0.7   3.6667   1.5    3.8	GX 1+4
268.3873  -1.4058   63.7  34.0   16.4   0.1538   0.2    3.0	SW J1753.5-0127
270.2139 -25.0851    8.1  52.2   -6.4   2.1995   1.4    3.8	GX 5-1
270.2641 -25.6394    8.5  52.7   -6.8   2.1152   1.4    6.6	GRS 1758-258
274.0271 -13.9300   10.0  40.7   -3.5   1.1587   1.2    6.5	GX 17+2
275.9702 -30.2210   26.6  54.8  -14.8   0.8634   0.4    9.1	H1820-303
284.9817 -24.9220    5.4  47.6  -22.8   2.6811   2.1    3.0	HT1900.1-2455
288.8185  10.9303    1.5  11.9   -9.7   5.2329   7.8    1.5	GRS 1915+105
299.5658  35.2191    1.5  14.3  166.3   5.0732   7.8    1.6	Cyg X-1
307.9683  41.0406    6.1  22.6  175.4   1.2896   1.9    8.3	Cyg X-3
326.2603  38.3645    8.8  32.4 -161.5   0.9921   1.3    4.9	Cyg X-2
252.8796   7.7894    3.2  41.7   43.1   5.4162   3.5 ------	UNKNOWN
305.1454  50.3073    2.8  29.8  161.2   2.9569   4.2 ------	UNKNOWN
315.1135 -16.4557    4.3  43.7  -64.0   9.4645   2.7 ------	UNKNOWN
344.9479  18.3891    3.6  48.0 -129.0  10.3612   3.2 ------	UNKNOWN
347.3899  20.9209    2.7  49.7 -133.0  14.1081   4.3 ------	UNKNOWN

Plot creation:
Sat Mar 14 17:30:36 EDT 2015
