batgrbproduct analysis for trigger=632159

batgrbproduct Analysis for Trigger=632159

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Mar 14 17:33:39 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger632159/heasarc_download
======================================================================

  Trigger: 00632159      Segment: 000

  BAT Trigger Time: 446301084.572   [s; MET]
      Trigger Stop: 446301084.58   [s; MET]
               UTC: 2015-02-22T12:31:11.351580    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.723658080581   Dec: 21.8916627473002  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    16.47
     Image Trigger?:     NO
     Rate S/N Ratio:     169.192198401699  [ if not an image trigger ]
     Image S/N Ratio:    16.47

  Flight Position:   [ source = BAT ]
    RA: 293.723658080581   Dec: 21.8916627473002  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.72160287018   Dec: 21.8897724343842  [deg; J2000]
        { 19h 34m 53.2s , +21d 53' 23.2" }
         +/- 1.1924704601945 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.444488051689644 [arcmin] (formal 1-sigma fit error)
    SNR: 23.6541573064998

  Angular difference between Flight and Ground position is 0.161109 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 0.0159999132156372 +/- 0.00400000810623169
        Measured from: -0.00400000810623169
                   to: 0.0119999051094055     [s; relative to TRIGTIME]
     T50: 0.00399994850158691 +/- 0.004
        Measured from: 0
                   to: 0.00399994850158691     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.492000043392181
                   to: 0.507999956607819     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.00400000810623169
                   to: 0.015999972820282     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.057524   0.043426   0.009906  -0.000344
           0.003381   0.002985   0.001480   0.000612 [error]
 Peak      0.058651   0.039030   0.006180   0.000114
           0.006452   0.006164   0.004779   0.003791 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.78e-08 1.36e-08 6.90e-09 5.04e-09 4.06e-08 4.33e-08   erg/cm2
              Error 1.77e-09 1.21e-09 1.08e-09 1.39e-09 3.50e-09 3.99e-09   erg/cm2
Peak flux Power-law 5.15e-01 2.69e-01 8.72e-02 3.63e-02 8.91e-01 9.07e-01   ph/cm2/s
              Error 9.38e-02 5.01e-02 3.14e-02 2.30e-02 1.42e-01 1.46e-01   ph/cm2/s

Fluence   Cutoff-PL 1.60e-08 1.75e-08 6.23e-09 5.11e-10 4.01e-08 4.02e-08   erg/cm2
              Error 2.00e-09 1.85e-09 1.47e-09 6.01e-10 3.44e-09 3.47e-09   erg/cm2
Peak flux Cutoff-PL 5.04e-01 3.21e-01 4.88e-02 1.09e-03 8.75e-01 8.75e-01   ph/cm2/s
              Error 1.02e-01 6.79e-02 4.14e-02 8.65e-03 1.39e-01 1.39e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.975    0.146    -      -           1.71e-01 2.07e-02   73.660 57
CPL   0.948    0.834      20.2    8.6      2.93e+00 5.37e+00   48.160 56

The chi2 of BB fit is 65.04 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.626    0.334    -      -           4.19e-03 1.17e-03   49.840 57
CPL   0.547    2.180      21.9    0.0      1.09e-01 0.00e+00   44.860 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.020   -0.004    0.016
T90     0.016   -0.004    0.012
T50     0.004    0.000    0.004
Peak    1.000   -0.492    0.508

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  293.7216 +21.8898 0.0081    0.0  -99.3       0.1134    23.7  TRIG_00632159
------------------------------------------

Foreground time interval of the image:
 -0.004   0.016 (delta_t =   0.020 [sec])
Background time interval of the image:
-179.572  -0.004 (delta_t = 179.568 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

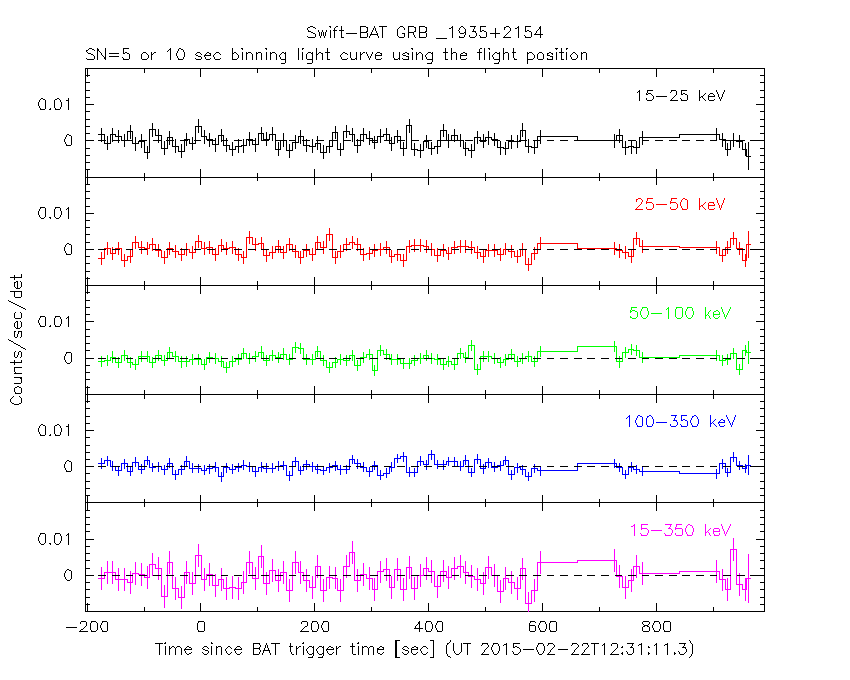

SN=5 or 10 sec. binning (whichever binning is satisfied first)

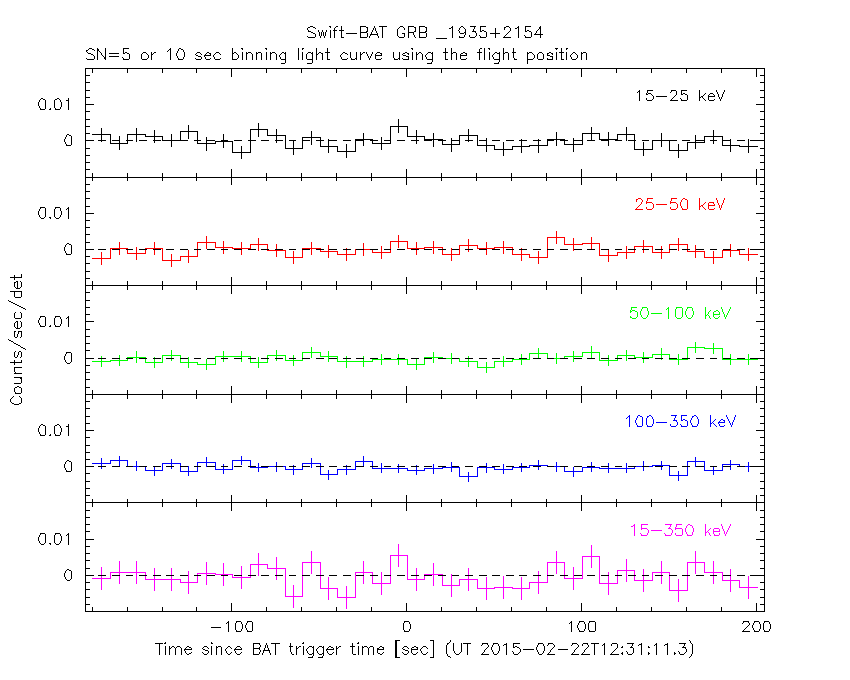

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.004 sec. to    0.016 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.97493     ( -0.141136   0.151755 )
Norm@50keV  : 0.170871    ( -0.0207916   0.0205173 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.66 using 59 PHA bins.
# Reduced chi-squared =          1.292 for     57 degrees of freedom
# Null hypothesis probability =   6.795457e-02

Photon flux (15-150 keV)    in 0.02 sec: 46.1443 ( -3.93208  3.93514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.05928e-08 ( -3.49456e-09  3.5009e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.004 sec. to    0.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.948449     ( -0.90479   0.763173 )
Epeak [keV] : 20.1617      ( -11.3256 5.88815 )
Norm@50keV  : 2.93413    ( -2.93509   7.79835 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.16 using 59 PHA bins.
# Reduced chi-squared =         0.8600 for     56 degrees of freedom
# Null hypothesis probability =   7.626864e-01

Photon flux (15-150 keV)    in 0.02 sec: 45.3855 ( -3.9773  3.9787 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.01428e-08 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.004 sec. to    0.016 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.947396   ( -0.66831   1.00623 )
beta        : -10.0000    ( 10   0 )
Epeak [keV] : 20.1627      ( -6.15348 5.87955 )
Norm@50keV   : 2.93925    ( -2.93925   7.82861 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.16 using 59 PHA bins.
# Reduced chi-squared =         0.8756 for     55 degrees of freedom
# Null hypothesis probability =   7.314582e-01

Photon flux (15-150 keV)    in 0.02 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.36340  (-0.582153  0.600114)
R^2/D10^2   : 71.2271  (-20.9656   31.1108)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.04 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     57 degrees of freedom
# Null hypothesis probability =   2.170485e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.304e-08   1.619e-09
25- 50  1.966e-08   1.977e-09
50-150  3.899e-09   9.100e-10
15-150  3.659e-08   3.660e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 24.9254       (-3.10398      3.4848)
Norm        : 451.008       (-69.9194     84.2695)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.93 using 59 PHA bins.
# Reduced chi-squared =         0.8583 for     57 degrees of freedom
# Null hypothesis probability =   7.679063e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.649e-08   1.863e-09
25- 50  1.687e-08   1.686e-09
50-150  7.141e-09   1.605e-09
15-150  4.050e-08   3.580e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.69678        (-1.18824      1.43413)
R1^2/D10^2  : 812.599        (-593.833      5060.56)
kT2 [keV]   : 9.48616        (-1.32173      2.21547)
R2^2/D10^2  : 17.4920    (-12.5524   22.1379)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.17 using 59 PHA bins.
# Reduced chi-squared =         0.8577 for     55 degrees of freedom
# Null hypothesis probability =   7.643886e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.624e-08   7.828e-09
25- 50  1.732e-08   7.539e-09
50-150  6.491e-09   3.609e-09
15-150  4.005e-08   1.575e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.62557     ( -0.311545   0.356288 )
Norm@50keV  : 4.19273E-03    ( -0.0011621   0.00118587 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.84 using 59 PHA bins.
# Reduced chi-squared =         0.8744 for     57 degrees of freedom
# Null hypothesis probability =   7.382296e-01

Photon flux (15-150 keV)    in 1 sec: 0.891307 ( -0.14195  0.142103 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.35058e-08 ( -8.59297e-09  9.05859e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.492 sec. to    0.508 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.546706     ( -2.8344   1.52466 )
Epeak [keV] : 21.8707      (   )
Norm@50keV  : 0.108724    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.86 using 59 PHA bins.
# Reduced chi-squared =         0.8010 for     56 degrees of freedom
# Null hypothesis probability =   8.572919e-01

Photon flux (15-150 keV)    in 1 sec: 0.875069 ( -0.138075  0.138981 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.77994e-08 ( -7.326e-09  8.5978e-09 ) ergs/cm2

Band function

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.36969   ( -1.32305   2.03137 )
beta        : -3.22503    ( 9.37167   19.3702 )
Epeak [keV] : 21.5776      ( -5.60301 6.58414 )
Norm@50keV   : 1100.24    ( -1099.23   211.259 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.49 using 59 PHA bins.
# Reduced chi-squared =         0.7908 for     55 degrees of freedom
# Null hypothesis probability =   8.686219e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.75735e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.38616  (-1.00038  1.16516)
R^2/D10^2   : 2.58568  (-1.31659   2.78814)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.77 using 59 PHA bins.
# Reduced chi-squared =         0.8206 for     57 degrees of freedom
# Null hypothesis probability =   8.310607e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.524e-08   4.230e-09
25- 50  1.736e-08   5.840e-09
50-150  2.039e-09   1.181e-09
15-150  3.464e-08   8.425e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 25.7037       (-7.29721      11.0425)
Norm        : 8.44170       (-2.44175     3.71819)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.47 using 59 PHA bins.
# Reduced chi-squared =         0.7977 for     57 degrees of freedom
# Null hypothesis probability =   8.641039e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.574e-08   3.355e-09
25- 50  1.642e-08   4.280e-09
50-150  7.268e-09   4.192e-09
15-150  3.942e-08   9.360e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.60397        (-4.6494      -4.6494)
R1^2/D10^2  : 6.96379        (-6.87371      467243)
kT2 [keV]   : 10.3292        (-10.4404      -10.4404)
R2^2/D10^2  : 0.179226    (-0.170033   2.64908)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.11 using 59 PHA bins.
# Reduced chi-squared =         0.8020 for     55 degrees of freedom
# Null hypothesis probability =   8.535114e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.597e-08   9.290e-09
25- 50  1.661e-08   8.690e-09
50-150  6.032e-09   3.634e-09
15-150  3.860e-08   1.996e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.97493     ( -0.141136   0.151755 )
Norm@50keV  : 0.170871    ( -0.0207916   0.0205173 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.66 using 59 PHA bins.
# Reduced chi-squared =          1.292 for     57 degrees of freedom
# Null hypothesis probability =   6.795457e-02

Photon flux (15-150 keV)    in 0.02 sec: 46.1443 ( -3.93208  3.93514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.05928e-08 ( -3.49456e-09  3.5009e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.948449     ( -0.90479   0.763173 )
Epeak [keV] : 20.1617      ( -11.3256 5.88815 )
Norm@50keV  : 2.93413    ( -2.93509   7.79835 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.16 using 59 PHA bins.
# Reduced chi-squared =         0.8600 for     56 degrees of freedom
# Null hypothesis probability =   7.626864e-01

Photon flux (15-150 keV)    in 0.02 sec: 45.3855 ( -3.9773  3.9787 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.01428e-08 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.947396   ( -0.66831   1.00623 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 20.1627      ( -6.15348 5.87955 )
Norm@50keV   : 2.93925    ( -2.93925   7.82861 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.16 using 59 PHA bins.
# Reduced chi-squared =         0.8756 for     55 degrees of freedom
# Null hypothesis probability =   7.314582e-01

Photon flux (15-150 keV)    in 0.02 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.36e-08
S(50-100 keV) = 6.90e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0159999132156372 sec.
Hardness ratio (energy fluence ratio) = 0.507353

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.75492
Count Ratio (50-100 keV) / (15-25 keV) = 0.172206

Mask shadow pattern

IMX = -6.877126287707372E-05, IMY = 4.191653779261470E-04

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-179.572000 -0.004000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6299  35.2856    8.9  36.5   86.7  -0.5932  -1.3    9.1	Her X-1
263.0882 -24.7914   10.1  55.4    0.6   0.7584   1.1    5.1	GX 1+4
268.2545  -1.5567   12.4  34.2   16.3  -0.1930  -0.9    9.2	SW J1753.5-0127
270.1901 -25.0373   15.9  52.2   -6.3   0.2872   0.7    5.7	GX 5-1
270.3116 -25.6960    4.1  52.7   -6.8   1.1601   2.8    2.9	GRS 1758-258
274.0413 -13.9894    5.2  40.7   -3.5   0.5159   2.2    3.5	GX 17+2
275.8671 -30.2873   34.0  54.9  -14.7  -0.1789  -0.3    5.6	H1820-303
285.1249 -24.8316   10.9  47.5  -23.0   0.3446   1.1    7.2	HT1900.1-2455
288.7786  10.9579    0.9  11.9   -9.5   2.0034  12.2    1.4	GRS 1915+105
299.5690  35.2039    1.2  14.3  166.3   1.4132   9.3    1.1	Cyg X-1
308.0930  40.9341    2.9  22.6  175.7   0.6081   4.0    1.4	Cyg X-3
326.1362  38.3390    4.4  32.3 -161.5   0.5002   2.6    2.0	Cyg X-2
312.6846  38.1971    3.0  23.1 -172.8   0.5996   3.9 ------	UNKNOWN
277.2860 -23.7984    2.6  48.4  -13.3   1.3561   4.4 ------	UNKNOWN
315.1910 -16.4527    2.9  43.8  -64.1   3.1159   4.0 ------	UNKNOWN
334.7259   6.9137    2.6  42.3 -109.1   3.0433   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.004000 0.016000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2863  35.4032   11.2  36.8   86.8   0.0154   1.0    9.1	Her X-1
262.9793 -24.6753   33.1  55.3    0.8   0.0074   0.3    4.5	GX 1+4
268.2766  -1.4235   11.8  34.1   16.5  -0.0063  -1.0    5.8	SW J1753.5-0127
270.3338 -25.0483    3.4  52.1   -6.5  -0.0436  -3.4    3.3	GX 5-1
270.3650 -25.8002    6.9  52.8   -6.9   0.0219   1.7    4.8	GRS 1758-258
274.0517 -13.8881    5.7  40.6   -3.5   0.0152   2.0    9.3	GX 17+2
275.9015 -30.5165    8.6  55.1  -14.8   0.0266   1.5    9.1	H1820-303
285.2162 -24.9066    5.9  47.5  -23.1   0.0200   1.9    9.8	HT1900.1-2455
288.7516  10.7976   21.4  12.1   -9.7  -0.0024  -0.5    9.3	GRS 1915+105
299.3363  35.1671    0.0  14.2  165.6  -0.0021  -0.4   12.6	Cyg X-1
308.1013  40.7601    9.8  22.4  176.0   0.0058   1.2   11.6	Cyg X-3
325.9694  38.3284    4.8  32.1 -161.6  -0.0137  -2.4    9.5	Cyg X-2
256.6983 -20.2473    2.4  55.5    9.7   0.1455   4.8 ------	UNKNOWN
293.7216  21.8898    0.5   0.0  -99.3   0.1134  23.7 ------	UNKNOWN
318.4222  41.7377    2.3  28.7 -173.0   0.0257   5.0 ------	UNKNOWN
357.6739  51.9284    2.1  57.0 -172.2   0.1176   5.5 ------	UNKNOWN
302.4620 -12.7001    2.4  35.7  -48.3   0.0366   4.7 ------	UNKNOWN
346.8010  21.8291    2.9  49.0 -134.0   0.0917   3.9 ------	UNKNOWN
314.9057 -16.7933    1.9  43.9  -63.5   0.1278   6.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-179.572000 602.485600
720.428000 782.536300
900.428000 962.467600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6059  35.2039  150.2  36.5   86.5  -0.1069  -0.1   11.0	Her X-1
263.1573 -24.6983    5.1  55.2    0.6   4.2312   2.3    8.6	GX 1+4
268.2992  -1.3191    7.1  34.0   16.6   1.0916   1.6    9.0	SW J1753.5-0127
270.0938 -25.1480    0.0  52.3   -6.3   1.2291   0.9   11.1	GX 5-1
270.3187 -25.7315    3.9  52.8   -6.9   3.9602   3.0    1.1	GRS 1758-258
274.0219 -14.0243    2.7  40.8   -3.5   3.2476   4.3    1.2	GX 17+2
275.8673 -30.2872   87.5  54.9  -14.7  -0.2212  -0.1    5.6	H1820-303
284.9921 -24.8410    7.7  47.5  -22.8   1.5312   1.5    5.3	HT1900.1-2455
288.7922  10.9541    0.8  11.9   -9.5   7.9180  15.2    0.6	GRS 1915+105
299.5903  35.2074    0.8  14.3  166.3   7.4985  14.6    0.3	Cyg X-1
308.0306  40.9823    2.0  22.6  175.6   3.0046   5.9    4.0	Cyg X-3
326.1867  38.3357    3.0  32.3 -161.5   2.2863   3.8    1.1	Cyg X-2
297.3654  30.2112    1.7   8.9  167.3   3.2470   6.7 ------	UNKNOWN
287.7982   0.5919    1.5  22.1  -17.7   3.4091   7.5 ------	UNKNOWN
322.9045  -7.5758    3.2  41.1  -80.9   8.9331   3.6 ------	UNKNOWN
344.8913  18.4014    3.2  48.0 -129.0   9.6239   3.6 ------	UNKNOWN

Plot creation:
Sat Mar 14 17:37:40 EDT 2015
