batgrbproduct analysis for trigger=632180

batgrbproduct Analysis for Trigger=632180

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Mar 14 16:07:41 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger632180
======================================================================

  Trigger: 00632180      Segment: 000

  BAT Trigger Time: 446317014.08   [s; MET]
      Trigger Stop: 446317015.104   [s; MET]
               UTC: 2015-02-22T16:56:40.858780    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 198.773581295466   Dec: -12.1368389920425  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.76
     Image Trigger?:     NO
     Rate S/N Ratio:     12.6095202129185  [ if not an image trigger ]
     Image S/N Ratio:    9.76

  Flight Position:   [ source = BAT ]
    RA: 198.773581295466   Dec: -12.1368389920425  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 198.783748907258   Dec: -12.1491910085394  [deg; J2000]
        { 13h 15m 08.1s , -12d 08' 57.1" }
         +/- 0.768320922170607 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.256795765636122 [arcmin] (formal 1-sigma fit error)
    SNR: 44.322971251086

  Angular difference between Flight and Ground position is 0.951295 arcmin

  Partial Coding Fraction: 0.4804688    [ including projection effects ]

  Duration
     T90: 15.8359999656677 +/- 6.8513079213452
        Measured from: 1.50400000810623
                   to: 17.339999973774     [s; relative to TRIGTIME]
     T50: 4.01599997282028 +/- 0.459860873151314
        Measured from: 4.94400000572205
                   to: 8.95999997854233     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 5.36800003051758
                   to: 6.36800003051758     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0640000104904175
                   to: 28.1119999885559     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.972915   1.307170   0.924794   0.201714
           0.043751   0.045516   0.040322   0.033002 [error]
 Peak      0.124012   0.219376   0.173061   0.037760
           0.010575   0.011936   0.010755   0.008255 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.30e-07 5.66e-07 7.41e-07 1.97e-06 2.17e-06 3.61e-06   erg/cm2
              Error 2.44e-08 2.49e-08 4.09e-08 2.37e-07 9.79e-08 2.66e-07   erg/cm2
Peak flux Power-law 1.45e+00 1.54e+00 1.16e+00 1.43e+00 4.69e+00 5.58e+00   ph/cm2/s
              Error 1.61e-01 1.06e-01 8.90e-02 2.23e-01 3.02e-01 3.57e-01   ph/cm2/s

Fluence   Cutoff-PL 3.10e-07 5.83e-07 7.57e-07 1.22e-06 2.12e-06 2.87e-06   erg/cm2
              Error 2.95e-08 2.90e-08 4.43e-08 5.05e-07 1.09e-07 5.12e-07   erg/cm2
Peak flux Cutoff-PL 1.29e+00 1.62e+00 1.23e+00 7.87e-01 4.58e+00 4.92e+00   ph/cm2/s
              Error 1.94e-01 1.25e-01 1.04e-01 3.45e-01 3.12e-01 4.64e-01   ph/cm2/s

Fluence        Band 3.03e-07 5.89e-07 7.36e-07 1.29e-06 2.13e-06 2.92e-06   erg/cm2
              Error -------- 3.39e-08 5.38e-08 -------- -------- --------   erg/cm2
Peak flux      Band 1.31e+00 1.61e+00 1.23e+00 8.72e-01 4.61e+00 5.02e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.611    0.076    -      -           8.30e-03 3.51e-04   59.790 57
CPL   1.278    0.298     110.4  165.8      1.21e-02 4.12e-03   55.830 56

The chi2 of BB fit is -------- which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.405    0.106    -      -           3.85e-02 2.43e-03   77.850 57
CPL   0.816    0.452     104.3   78.1      7.49e-02 3.99e-02   72.190 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 10.048000 sec.
T50 in the 50-300 keV band: 3.072000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   28.048    0.064   28.112
T90    15.836    1.504   17.340
T50     4.016    4.944    8.960
Peak    1.000    5.368    6.368

Click here for the BAT GCN circular template

Special notes of this burst

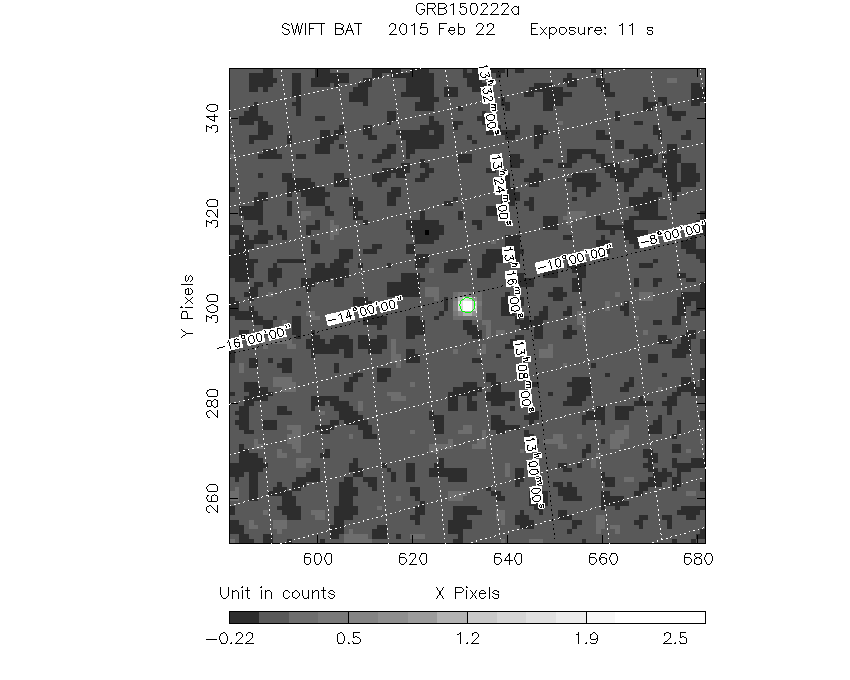

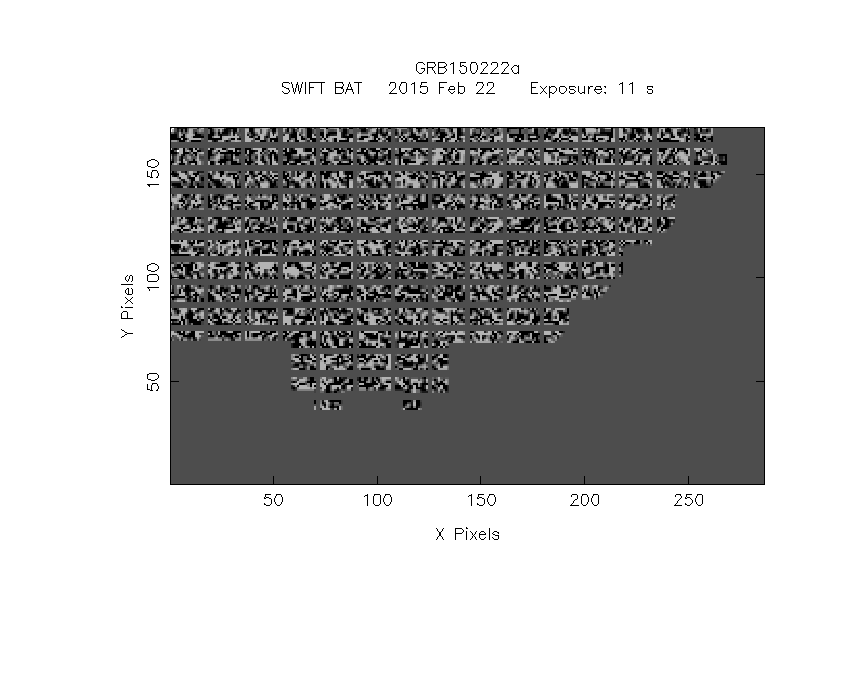

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  198.7837   -12.1492   0.0044    32.5868    35.3390         2.9112320     44.323 TRIG_00632180

Foreground time interval of the image:
  0.064  10.821 (delta_t =  10.757 [sec])
Background time interval of the image:
-239.080   0.064 (delta_t = 239.144 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

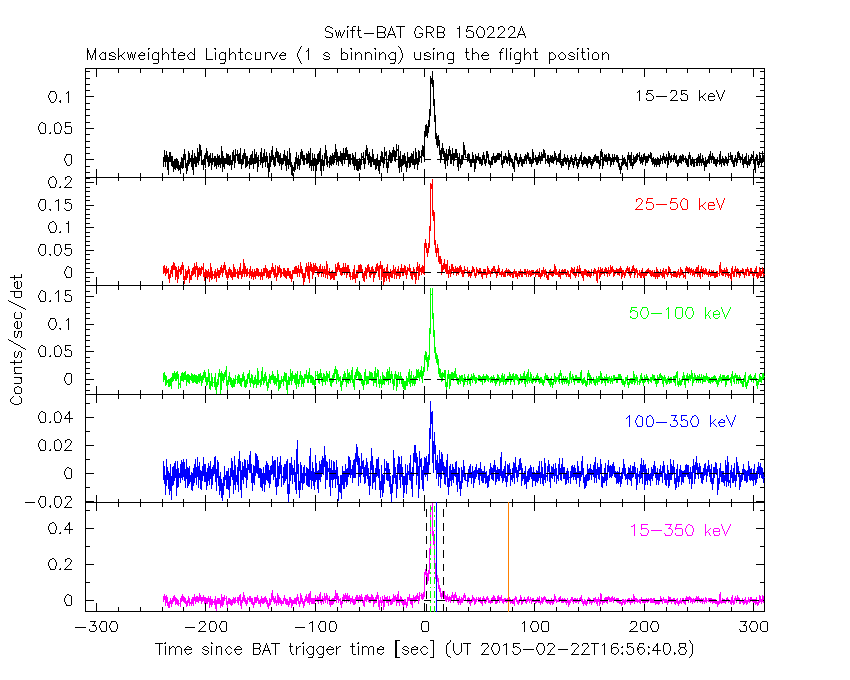

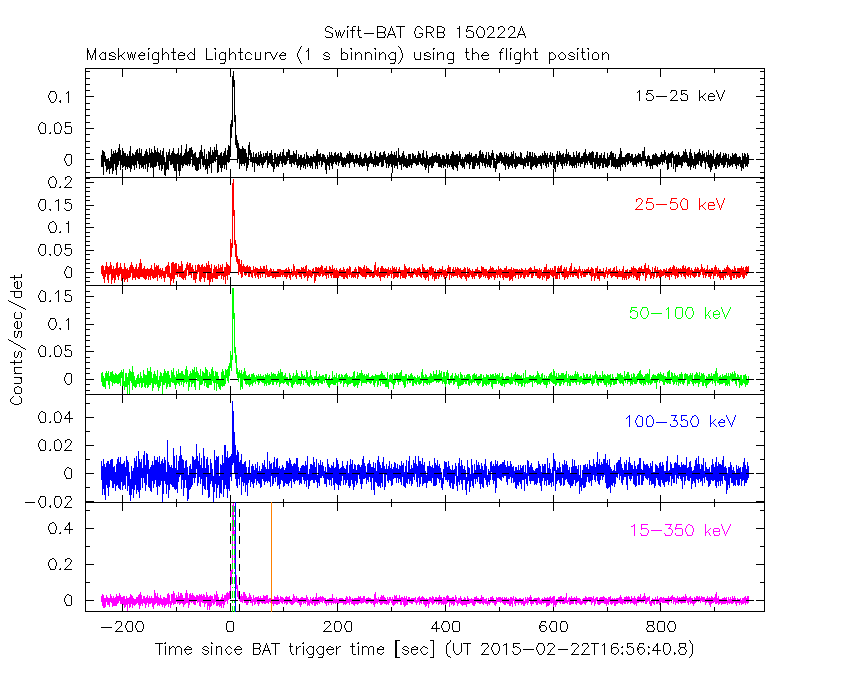

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

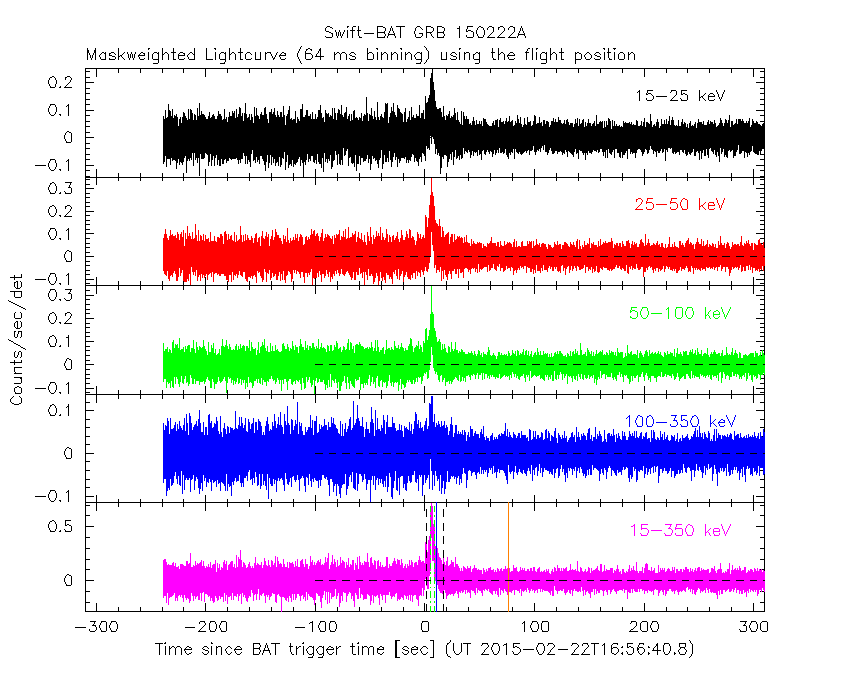

64 ms binning

Full time interval

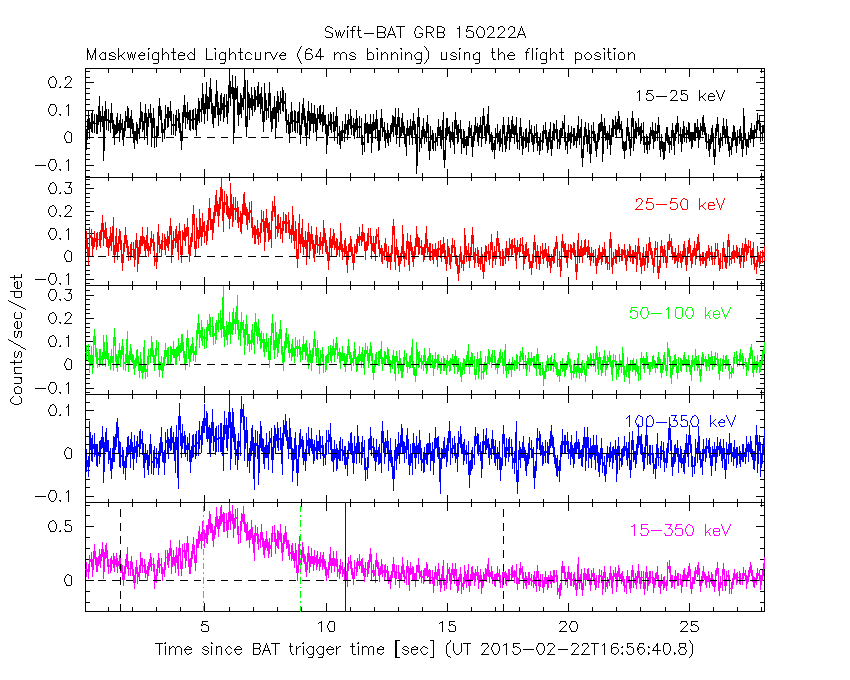

From T100_start to T100_end

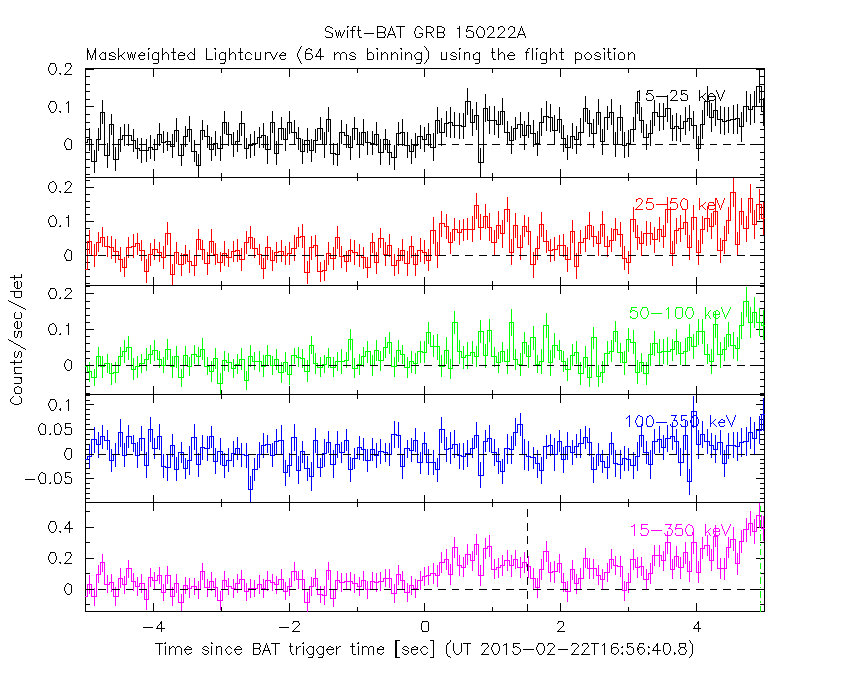

From T0-5 sec to T0+5 sec

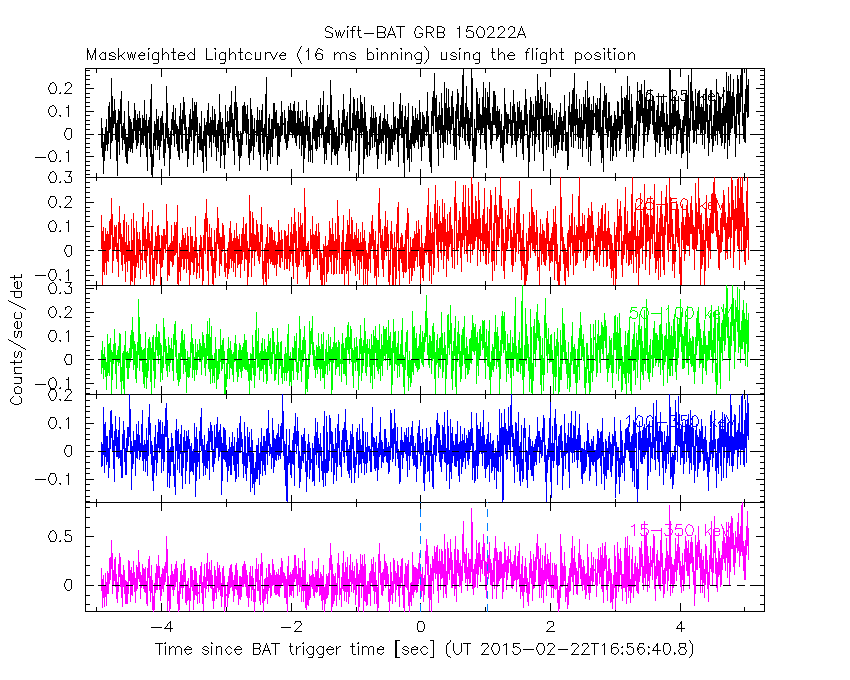

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

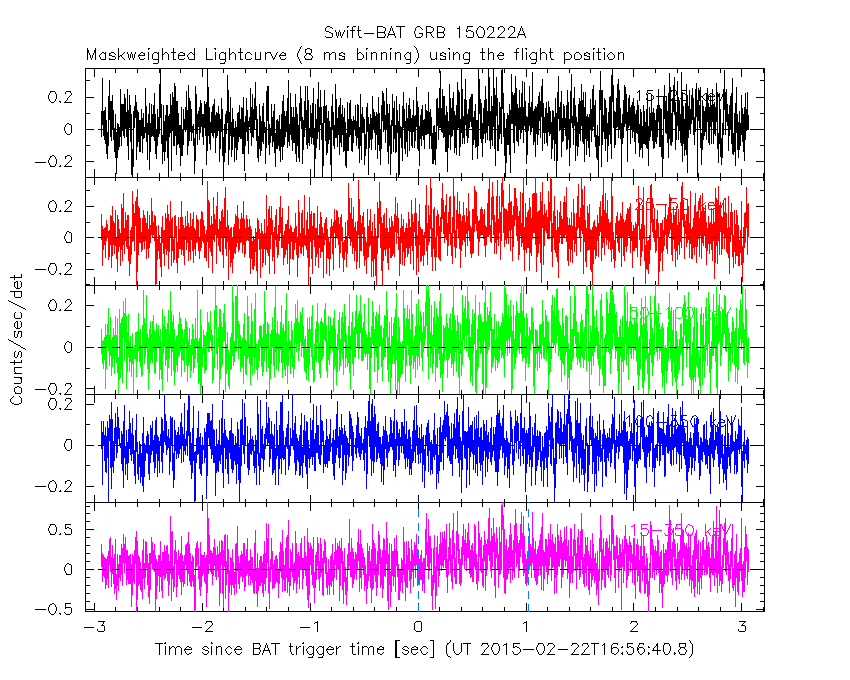

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

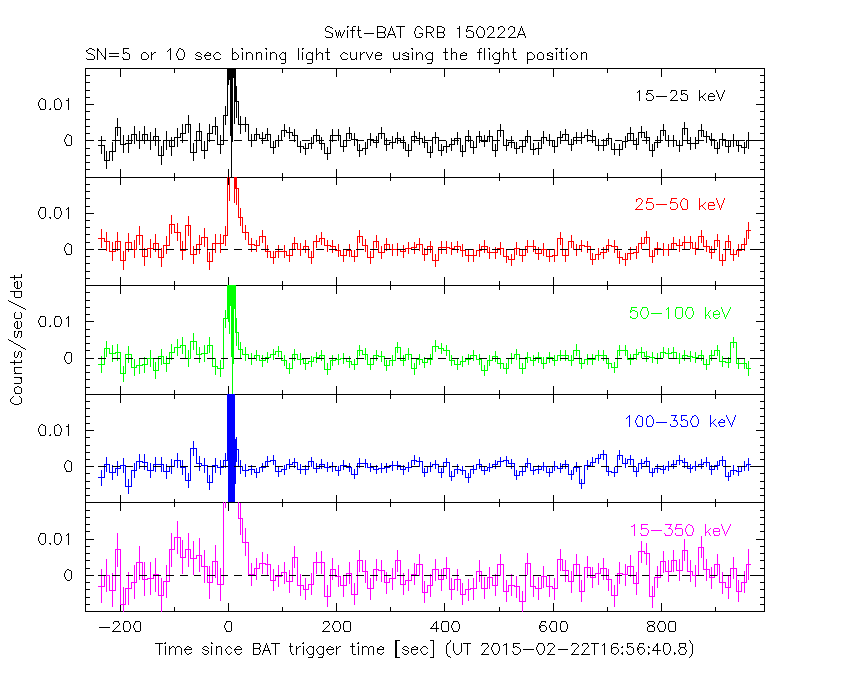

SN=5 or 10 sec. binning (whichever binning is satisfied first)

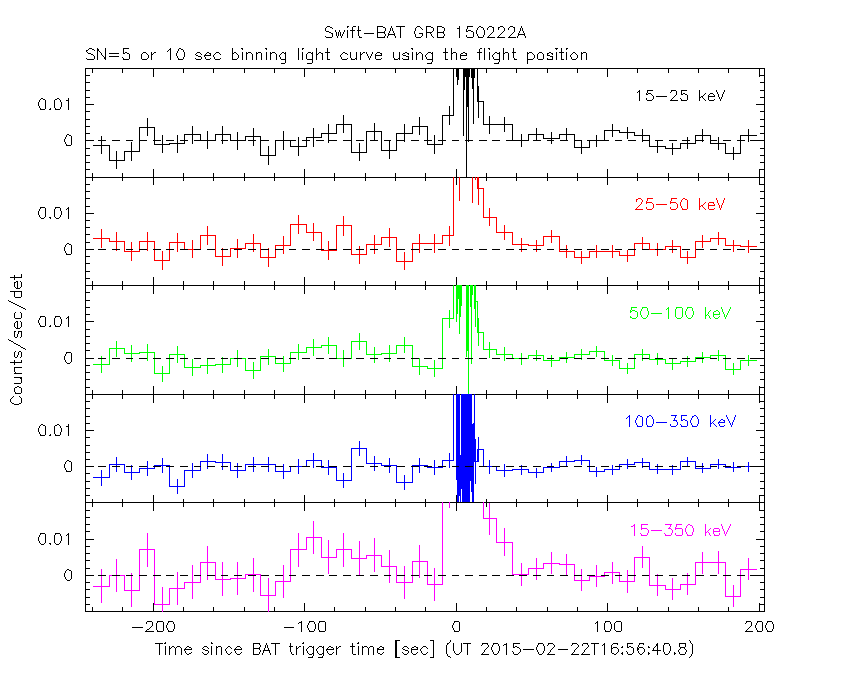

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

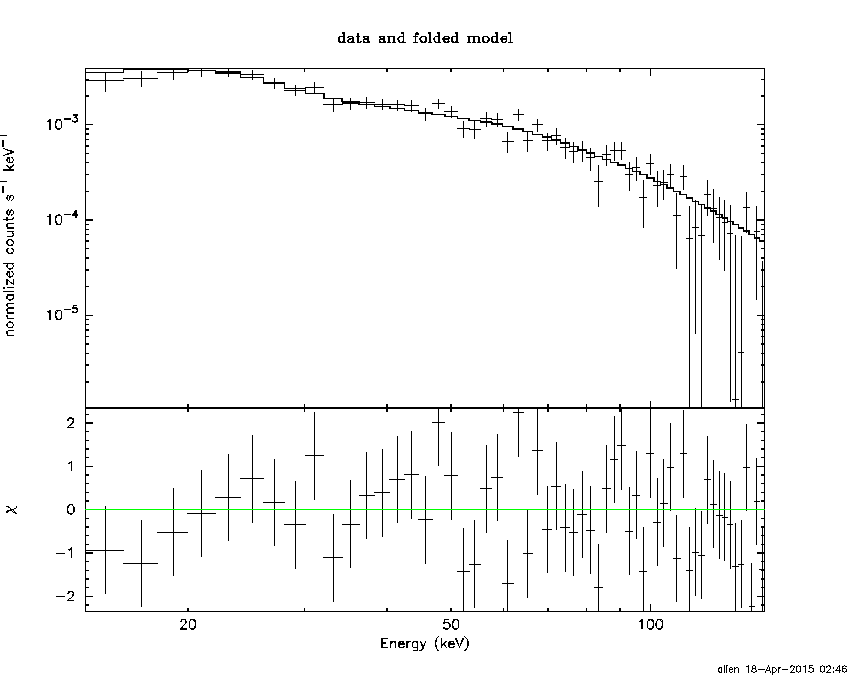

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.064 sec. to   28.112 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.61101     ( -0.075347   0.0757363 )
Norm@50keV  : 8.29543E-03    ( -0.000350947   0.000350263 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.79 using 59 PHA bins.
# Reduced chi-squared =          1.049 for     57 degrees of freedom
# Null hypothesis probability =   3.747330e-01

Photon flux (15-150 keV)    in 28.05 sec: 1.06967 ( -0.046572  0.04667 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.17327e-06 ( -9.77635e-08  9.81026e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.064 sec. to   28.112 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27787     ( -0.30866   0.287996 )
Epeak [keV] : 110.361      ( -30.6882 300.871 )
Norm@50keV  : 1.21142E-02    ( -0.00330188   0.00494191 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.83 using 59 PHA bins.
# Reduced chi-squared =         0.9970 for     56 degrees of freedom
# Null hypothesis probability =   4.811548e-01

Photon flux (15-150 keV)    in 28.05 sec: 1.04839 ( -0.049798  0.04986 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.12019e-06 ( -1.08865e-07  1.08565e-07 ) ergs/cm2

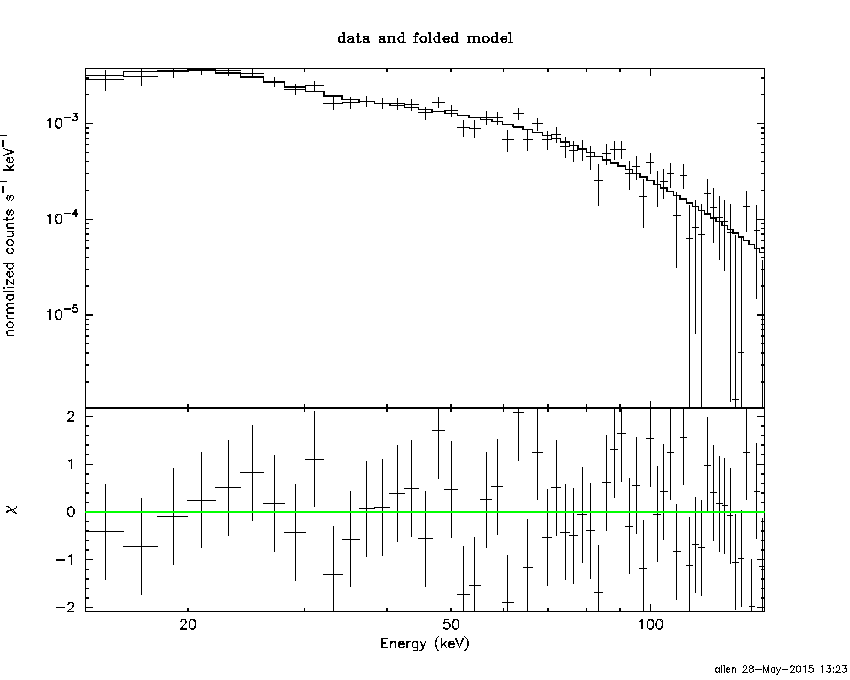

Band function

Time interval is from    0.064 sec. to   28.112 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.27785   ( -0.28698   0.273784 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 110.341      ( -26.5864 299.569 )
Norm@50keV   : 1.21129E-02    ( -0.00330196   0.00494232 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.83 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     55 degrees of freedom
# Null hypothesis probability =   4.433278e-01

Photon flux (15-150 keV)    in 28.05 sec: 1.04450 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.12765e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.6317  (  )
R^2/D10^2   : 0.126035  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         180.92 using 59 PHA bins.
# Reduced chi-squared =         3.1740 for     57 degrees of freedom
# Null hypothesis probability =   8.173994e-15

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.591e-07   1.244e-08
25- 50  6.175e-07   3.632e-08
50-150  8.895e-07   7.139e-08
15-150  1.666e-06   8.233e-08

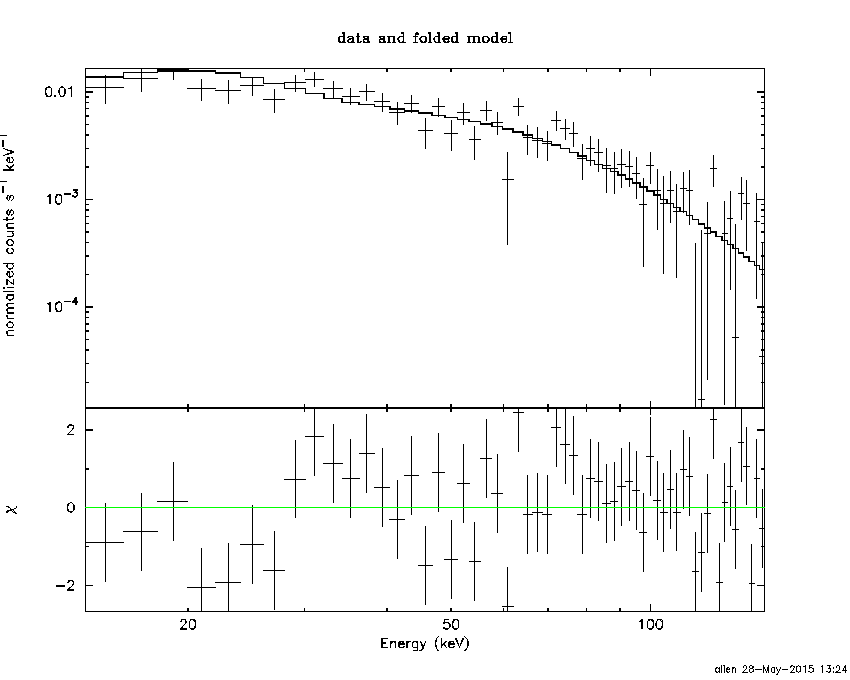

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 176.130       (-34.7268      -175.914)
Norm        : 4.34391       (-0.202336     0.218915)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.81 using 59 PHA bins.
# Reduced chi-squared =         0.9792 for     57 degrees of freedom
# Null hypothesis probability =   5.196298e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.080e-07   1.978e-08
25- 50  5.836e-07   5.750e-08
50-150  1.226e-06   3.813e-07
15-150  2.118e-06   4.135e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.85418        (-0.957918      1.05229)
R1^2/D10^2  : 1.21616        (-0.464846      0.868353)
kT2 [keV]   : 24.9326        (-3.11484      4.40231)
R2^2/D10^2  : 1.48493E-02    (-0.00670066   0.00985758)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.65 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     55 degrees of freedom
# Null hypothesis probability =   4.501519e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.968e-07   4.948e-08
25- 50  5.861e-07   6.255e-08
50-150  1.228e-06   1.750e-07
15-150  2.110e-06   2.562e-07

Peak spectrum fit

Power-law model

Time interval is from    5.368 sec. to    6.368 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40531     ( -0.105813   0.106148 )
Norm@50keV  : 3.85027E-02    ( -0.00243488   0.00243197 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.85 using 59 PHA bins.
# Reduced chi-squared =          1.366 for     57 degrees of freedom
# Null hypothesis probability =   3.467431e-02

Photon flux (15-150 keV)    in 1 sec: 4.69460 ( -0.302006  0.302348 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.71637e-07 ( -2.57857e-08  2.59044e-08 ) ergs/cm2

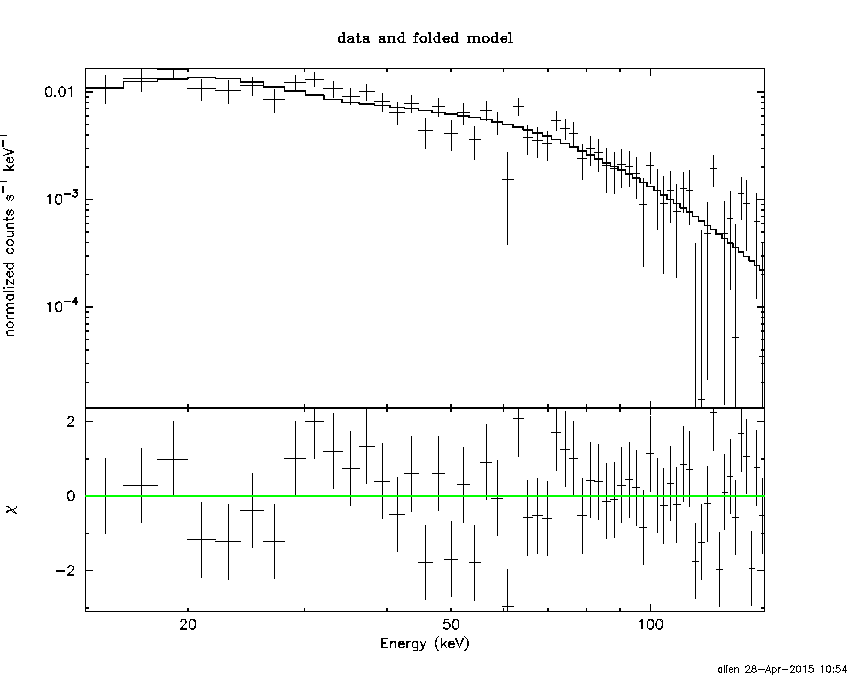

Cutoff power-law model

Time interval is from    5.368 sec. to    6.368 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.816476     ( -0.475044   0.429654 )
Epeak [keV] : 104.317      ( -25.9489 130.276 )
Norm@50keV  : 7.49228E-02    ( -0.0282564   0.0514565 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.19 using 59 PHA bins.
# Reduced chi-squared =          1.289 for     56 degrees of freedom
# Null hypothesis probability =   7.149436e-02

Photon flux (15-150 keV)    in 1 sec: 4.58376 ( -0.31235  0.31245 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.58687e-07 ( -2.7887e-08  2.7836e-08 ) ergs/cm2

Band function

Time interval is from    5.368 sec. to    6.368 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.816357   ( -0.373405   0.471861 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 104.292      ( -18.3353 130.183 )
Norm@50keV   : 7.49282E-02    ( -0.0282586   0.0514985 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.19 using 59 PHA bins.
# Reduced chi-squared =          1.313 for     55 degrees of freedom
# Null hypothesis probability =   5.985835e-02

Photon flux (15-150 keV)    in 1 sec: 4.60754 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.61116e-07 ( -3.61109e-07  -2.6934e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.1423  (  )
R^2/D10^2   : 0.427879  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         114.87 using 59 PHA bins.
# Reduced chi-squared =         2.0153 for     57 degrees of freedom
# Null hypothesis probability =   8.836589e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.301e-08   2.895e-09
25- 50  9.755e-08   8.735e-09
50-150  1.783e-07   2.140e-08
15-150  2.988e-07   2.280e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 19.3410       (-1.2239     1.22393)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.40 using 59 PHA bins.
# Reduced chi-squared =          1.393 for     57 degrees of freedom
# Null hypothesis probability =   2.659570e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.845e-08   3.235e-09
25- 50  9.319e-08   8.920e-09
50-150  2.044e-07   5.055e-08
15-150  3.460e-07   5.625e-08

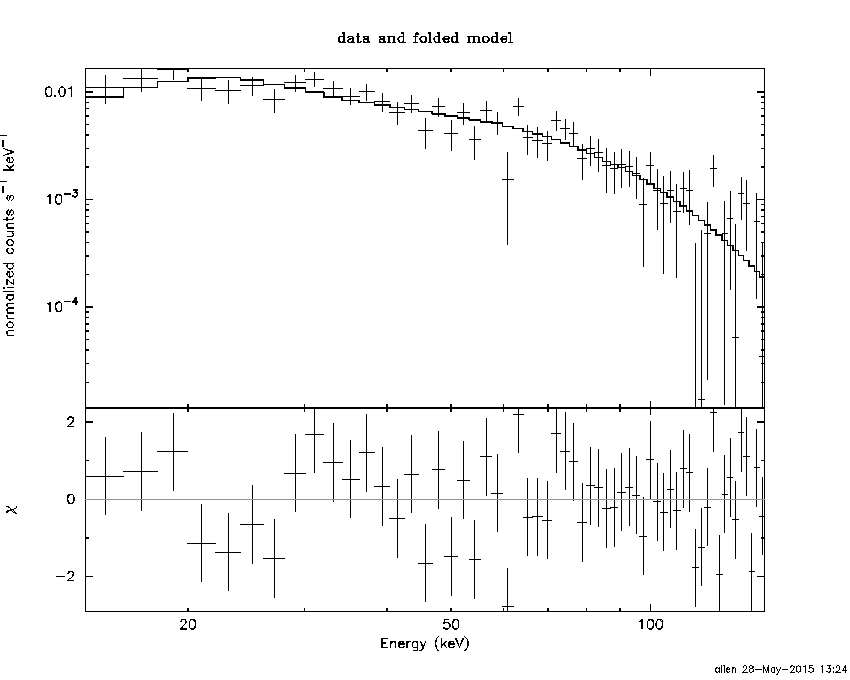

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.03103        (-1.58131      1.77747)
R1^2/D10^2  : 2.72429        (-1.20978      2.6801)
kT2 [keV]   : 27.2100        (-4.80964      8.58295)
R2^2/D10^2  : 5.41511E-02    (-0.033762   0.0586404)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.15 using 59 PHA bins.
# Reduced chi-squared =          1.275 for     55 degrees of freedom
# Null hypothesis probability =   8.193215e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.851e-08   8.815e-09
25- 50  9.544e-08   2.635e-08
50-150  2.270e-07   9.357e-08
15-150  3.610e-07   1.287e-07

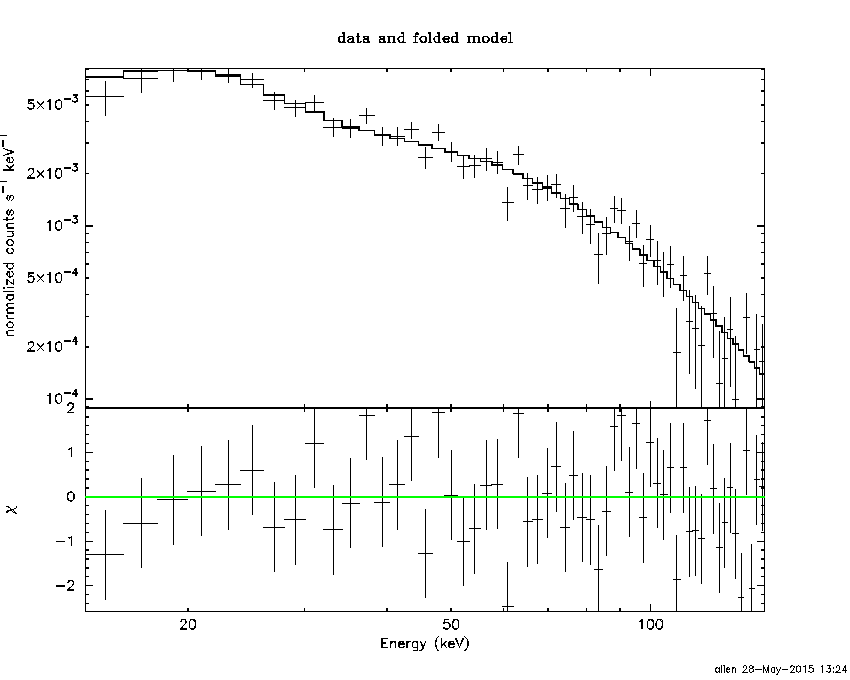

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55839     ( -0.0667929   0.0670194 )
Norm@50keV  : 1.81444E-02    ( -0.000659262   0.000658288 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.13 using 59 PHA bins.
# Reduced chi-squared =          1.143 for     57 degrees of freedom
# Null hypothesis probability =   2.148935e-01

Photon flux (15-150 keV)    in 10.76 sec: 2.30259 ( -0.0884547  0.0886651 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.83579e-06 ( -7.12198e-08  7.14083e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39879     ( -0.259393   0.19107 )
Epeak [keV] : 198.338      ( -91.3205 -198.338 )
Norm@50keV  : 2.16418E-02    ( -0.00393242   0.00694634 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.91 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     56 degrees of freedom
# Null hypothesis probability =   2.186143e-01

Photon flux (15-150 keV)    in 10.76 sec: 2.27873 ( -0.09515  0.09534 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.816e-06 ( -7.83651e-08  7.79885e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.71162   ( -4.71162   -4.71162 )
beta        : -1.58588    ( -0.0716681   0.0705533 )
Epeak [keV] : 22.5183      ( -6.48974 3.29421 )
Norm@50keV   : 2249.52    ( -80.6044   8.90401e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.68 using 59 PHA bins.
# Reduced chi-squared =          1.140 for     55 degrees of freedom
# Null hypothesis probability =   2.224954e-01

Photon flux (15-150 keV)    in 10.76 sec: 2.26673 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.66e-07
S(50-100 keV) = 7.41e-07

T90 vs. Hardness ratio plot

T90                                   = 15.8359999656677 sec.
Hardness ratio (energy fluence ratio) = 1.30919

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.34356
Count Ratio (50-100 keV) / (15-25 keV) = 0.950539

Mask shadow pattern

IMX = 5.214252454502871E-01, IMY = -3.697232123462328E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

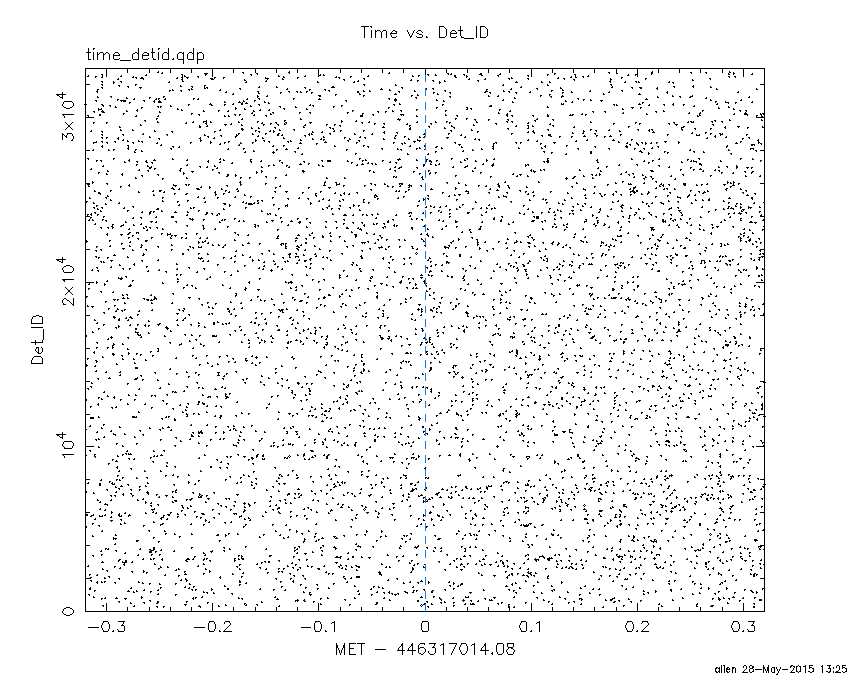

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

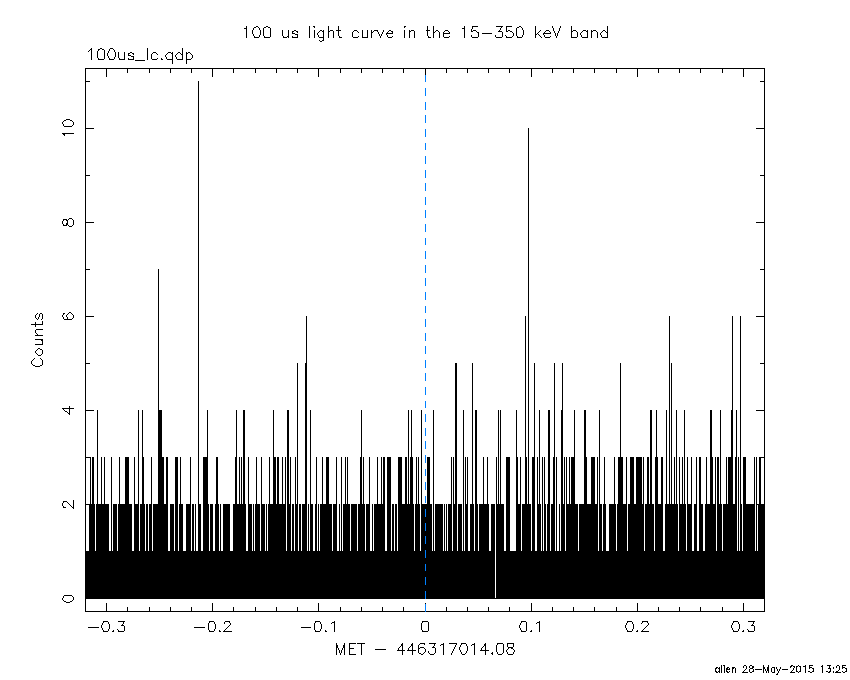

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.080000 0.064000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9686 -15.6429    0.8  46.1  -36.0   6.4460  15.3    0.6	Sco X-1
254.4702  35.3175    6.6  41.2 -114.2   1.0932   1.7    1.6	Her X-1
200.0387  -3.7017    2.4  24.5   41.1   1.0370   4.9 ------	UNKNOWN
201.6901  34.0670    3.5  19.2  161.7   0.5943   3.3 ------	UNKNOWN
257.4479  41.7565    3.1  45.3 -122.2   3.2173   3.7 ------	UNKNOWN
254.1122   1.9143    3.7  43.7  -63.9   3.0290   3.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.064000 10.820600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8547 -15.5372    0.0  45.9  -36.0   0.0860   0.9    9.5	Sco X-1
254.3469  35.4536    6.3  41.2 -114.4   0.2328   1.8    8.6	Her X-1
198.7837 -12.1492    0.3  32.6   35.3   2.9111  44.3 ------	UNKNOWN
183.1238  51.8618    2.3  41.4  162.7   0.3578   5.0 ------	UNKNOWN
207.9237 -22.5778    2.1  40.3   16.4   0.3928   5.5 ------	UNKNOWN
244.7526  24.8400    2.6  30.9  -99.4   0.2748   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
76.020600 963.010000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
169.9543 -60.6527    8.9  52.9   -8.2   1.7450   1.3   10.8	Cen X-3
186.7045 -62.7668    2.4  51.4  -18.4   5.0174   4.7    1.3	GX 301-2
206.9332   3.4066    3.0  17.5 -177.4   1.6794   3.9 ------	UNKNOWN
246.0216  13.0399    2.9  53.2 -142.1  12.6198   4.0 ------	UNKNOWN

Plot creation:
Thu May 28 13:25:14 EDT 2015
