batgrbproduct analysis for trigger=633180

batgrbproduct Analysis for Trigger=633180

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Mar 14 16:18:04 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger633180
======================================================================

  Trigger: 00633180      Segment: 000

  BAT Trigger Time: 446931497.28   [s; MET]
      Trigger Stop: 446931497.792   [s; MET]
               UTC: 2015-03-01T19:38:04.027580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 89.157317619222   Dec: -57.9771814195121  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.73
     Image Trigger?:     NO
     Rate S/N Ratio:     17.8885438199983  [ if not an image trigger ]
     Image S/N Ratio:    10.73

  Flight Position:   [ source = BAT ]
    RA: 89.157317619222   Dec: -57.9771814195121  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 89.1596804556417   Dec: -57.9672142320293  [deg; J2000]
        { 05h 56m 38.3s , -57d 58' 02.0" }
         +/- 0.759113042586336 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.176544936136965 [arcmin] (formal 1-sigma fit error)
    SNR: 45.0930032738172

  Angular difference between Flight and Ground position is 0.602739 arcmin

  Partial Coding Fraction: 0.625    [ including projection effects ]

  Duration
     T90: 17.1360000371933 +/- 4.63505939155724
        Measured from: 0.15200001001358
                   to: 17.2880000472069     [s; relative to TRIGTIME]
     T50: 5.2960000038147 +/- 0.632961314364614
        Measured from: 2.1360000371933
                   to: 7.432000041008     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 3.64400005340576
                   to: 4.64400005340576     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.919999957084656
                   to: 24.0560000538826     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.747507   1.086264   0.858374   0.278899
           0.037536   0.039567   0.034742   0.028466 [error]
 Peak      0.085199   0.126186   0.118908   0.024352
           0.008383   0.009522   0.008786   0.006611 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.54e-07 4.79e-07 6.98e-07 2.17e-06 1.98e-06 3.60e-06   erg/cm2
              Error 1.99e-08 2.21e-08 3.51e-08 2.45e-07 8.62e-08 2.66e-07   erg/cm2
Peak flux Power-law 9.14e-01 9.85e-01 7.55e-01 9.45e-01 3.01e+00 3.60e+00   ph/cm2/s
              Error 1.28e-01 8.54e-02 7.08e-02 1.82e-01 2.41e-01 2.86e-01   ph/cm2/s

Fluence   Cutoff-PL 2.51e-07 4.81e-07 7.02e-07 1.99e-06 1.97e-06 3.42e-06   erg/cm2
              Error 2.23e-08 1.85e-08 3.83e-08 4.34e-07 9.14e-08 5.37e-07   erg/cm2
Peak flux Cutoff-PL 8.57e-01 1.01e+00 7.82e-01 6.86e-01 2.98e+00 3.34e+00   ph/cm2/s
              Error 1.53e-01 9.68e-02 8.42e-02 3.35e-01 2.47e-01 4.27e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.456    0.074    -      -           8.29e-03 3.37e-04   76.650 57
CPL   1.396    0.192     544.6    0.0      8.85e-03 2.34e-03   76.520 56

The chi2 of BB fit is -------- which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.384    0.132    -      -           2.48e-02 1.94e-03   56.280 57
CPL   1.077    0.461     160.9  -44.7      3.49e-02 1.97e-02   55.170 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 11.136000 sec.
T50 in the 50-300 keV band: 4.096000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   24.976   -0.920   24.056
T90    17.136    0.152   17.288
T50     5.296    2.136    7.432
Peak    1.000    3.644    4.644

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   89.1597   -57.9672   0.0042    35.7833   -27.5476         2.5879829     45.093 TRIG_00633180

Foreground time interval of the image:
 -0.920  10.221 (delta_t =  11.141 [sec])
Background time interval of the image:
-530.779 -513.503 (delta_t =  17.277 [sec])
-239.280  -0.920 (delta_t = 238.360 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

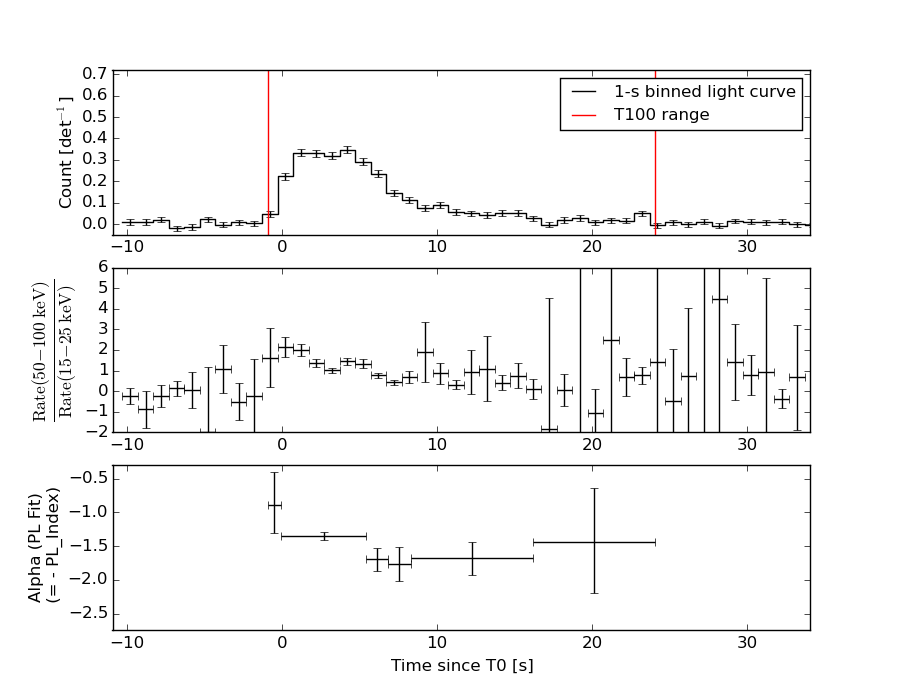

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

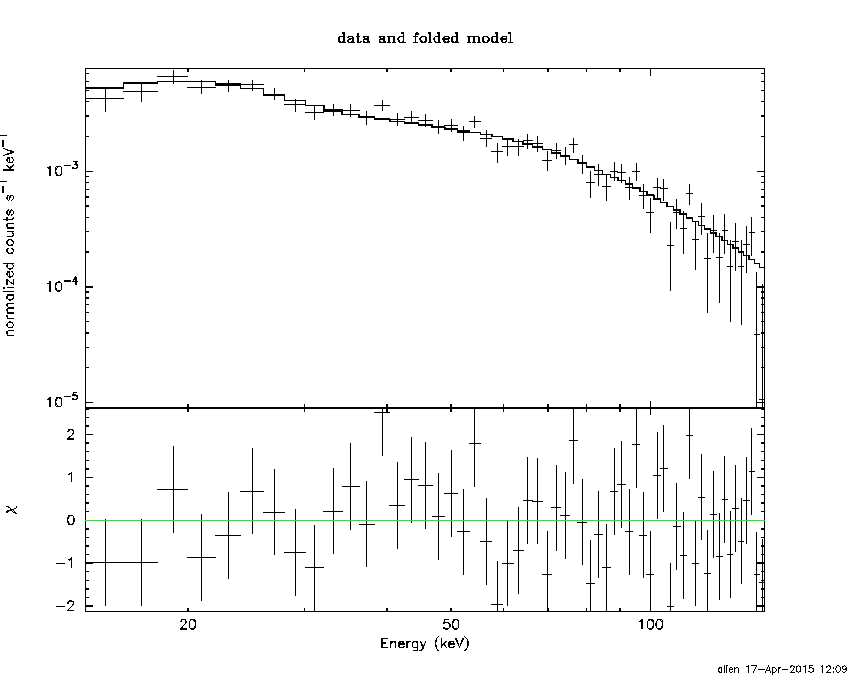

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.920 sec. to   24.056 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.45567     ( -0.0742473   0.0741257 )
Norm@50keV  : 8.28846E-03    ( -0.000337222   0.000337147 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.65 using 59 PHA bins.
# Reduced chi-squared =          1.345 for     57 degrees of freedom
# Null hypothesis probability =   4.231770e-02

Photon flux (15-150 keV)    in 24.98 sec: 1.02288 ( -0.0447324  0.0448426 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97922e-06 ( -8.60776e-08  8.62667e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.920 sec. to   24.056 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39637     ( -0.287745   0.0954545 )
Epeak [keV] : 544.629      ( -544.648 -544.648 )
Norm@50keV  : 8.84580E-03    ( -0.0015107   0.00317694 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.52 using 59 PHA bins.
# Reduced chi-squared =          1.366 for     56 degrees of freedom
# Null hypothesis probability =   3.563116e-02

Photon flux (15-150 keV)    in 24.98 sec: 1.01935 ( -0.047317  0.04726 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97268e-06 ( -9.17465e-08  9.1137e-08 ) ergs/cm2

Band function

Time interval is from   -0.920 sec. to   24.056 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97207   ( -4.97207   -4.97207 )
beta        : -1.48308    ( -0.0791582   0.0783477 )
Epeak [keV] : 22.7305      ( -22.7305 3.60165 )
Norm@50keV   : 1415.89    ( -57.4817   3.3859e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.87 using 59 PHA bins.
# Reduced chi-squared =          1.361 for     55 degrees of freedom
# Null hypothesis probability =   3.860619e-02

Photon flux (15-150 keV)    in 24.98 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.4309  (  )
R^2/D10^2   : 8.30945E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         225.00 using 59 PHA bins.
# Reduced chi-squared =         3.9474 for     57 degrees of freedom
# Null hypothesis probability =   8.129619e-22

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.151e-07   9.667e-09
25- 50  4.955e-07   2.823e-08
50-150  9.443e-07   7.282e-08
15-150  1.555e-06   7.656e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 4.23008       (-0.1723     0.17228)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.16 using 59 PHA bins.
# Reduced chi-squared =          1.494 for     57 degrees of freedom
# Null hypothesis probability =   9.210312e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.631e-07   1.149e-08
25- 50  5.062e-07   2.448e-08
50-150  1.110e-06   5.133e-08
15-150  1.879e-06   8.281e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.47990        (-1.07564      1.13003)
R1^2/D10^2  : 0.577662        (-0.188422      0.319975)
kT2 [keV]   : 35.4080        (-6.18843      10.6118)
R2^2/D10^2  : 4.79313E-03    (-0.00262212   0.0043448)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.23 using 59 PHA bins.
# Reduced chi-squared =          1.404 for     55 degrees of freedom
# Null hypothesis probability =   2.565649e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.164e-07   2.823e-08
25- 50  5.156e-07   5.396e-08
50-150  1.248e-06   2.760e-07
15-150  1.980e-06   2.714e-07

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.38442     ( -0.131781   0.132158 )
Norm@50keV  : 2.48029E-02    ( -0.00194227   0.00193837 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.28 using 59 PHA bins.
# Reduced chi-squared =         0.9873 for     57 degrees of freedom
# Null hypothesis probability =   5.022120e-01

Photon flux (15-150 keV)    in 1 sec: 3.01002 ( -0.241068  0.241365 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.40437e-07 ( -2.06189e-08  2.07075e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.07718     ( -0.549021   0.372441 )
Epeak [keV] : 160.891      ( -71.5196 -160.891 )
Norm@50keV  : 3.48813E-02    ( -0.0114417   0.0278691 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.17 using 59 PHA bins.
# Reduced chi-squared =         0.9851 for     56 degrees of freedom
# Null hypothesis probability =   5.063945e-01

Photon flux (15-150 keV)    in 1 sec: 2.97652 ( -0.24734  0.24713 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.3712e-07 ( -2.16e-08  2.1528e-08 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.07835   ( -0.304908   0.553175 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 160.892      ( -51.5797 -160.954 )
Norm@50keV   : 3.48659E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.17 using 59 PHA bins.
# Reduced chi-squared =          1.003 for     55 degrees of freedom
# Null hypothesis probability =   4.683299e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.3577  (-1.68175  1.89181)
R^2/D10^2   : 0.214878  (-0.064276   0.0900222)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          91.48 using 59 PHA bins.
# Reduced chi-squared =          1.605 for     57 degrees of freedom
# Null hypothesis probability =   2.543580e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.311e-08   2.090e-09
25- 50  5.896e-08   6.610e-09
50-150  1.276e-07   1.775e-08
15-150  1.997e-07   1.925e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 12.4906       (-0.974517     0.974452)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.37 using 59 PHA bins.
# Reduced chi-squared =          1.059 for     57 degrees of freedom
# Null hypothesis probability =   3.550687e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.110e-08   2.905e-09
25- 50  5.983e-08   6.205e-09
50-150  1.312e-07   4.223e-08
15-150  2.221e-07   4.460e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.99295        (-1.56765      2.16843)
R1^2/D10^2  : 4.63122        (-3.0222      10.6749)
kT2 [keV]   : 24.8980        (-3.93635      6.65831)
R2^2/D10^2  : 5.36978E-02    (-0.0308393   0.0468325)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.68 using 59 PHA bins.
# Reduced chi-squared =         0.9941 for     55 degrees of freedom
# Null hypothesis probability =   4.869579e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.786e-08   1.293e-08
25- 50  5.476e-08   1.692e-08
50-150  1.529e-07   4.191e-08
15-150  2.355e-07   4.845e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42477     ( -0.0646128   0.0645198 )
Norm@50keV  : 1.58805E-02    ( -0.000568645   0.000568639 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.97 using 59 PHA bins.
# Reduced chi-squared =          1.052 for     57 degrees of freedom
# Null hypothesis probability =   3.687072e-01

Photon flux (15-150 keV)    in 11.14 sec: 1.94510 ( -0.0753168  0.0755011 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70099e-06 ( -6.47316e-08  6.48379e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.20336     ( -0.261579   0.239917 )
Epeak [keV] : 197.160      ( -77.868 -197.16 )
Norm@50keV  : 2.01271E-02    ( -0.00435435   0.00629057 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.63 using 59 PHA bins.
# Reduced chi-squared =          1.029 for     56 degrees of freedom
# Null hypothesis probability =   4.145398e-01

Photon flux (15-150 keV)    in 11.14 sec: 1.92019 ( -0.07985  0.08003 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.68066e-06 ( -6.94356e-08  6.91348e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.803332   ( -0.499153   0.852354 )
beta        : -1.52845    ( 1.52808   0.116745 )
Epeak [keV] : 79.2731      ( -49.6895 654.494 )
Norm@50keV   : 3.51669E-02    ( -0.0181893   0.617164 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.41 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     55 degrees of freedom
# Null hypothesis probability =   4.221484e-01

Photon flux (15-150 keV)    in 11.14 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.79e-07
S(50-100 keV) = 6.98e-07

T90 vs. Hardness ratio plot

T90                                   = 17.1360000371933 sec.
Hardness ratio (energy fluence ratio) = 1.4572

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.45318
Count Ratio (50-100 keV) / (15-25 keV) = 1.14832

Mask shadow pattern

IMX = 6.390636812100443E-01, IMY = 3.333504845329644E-01

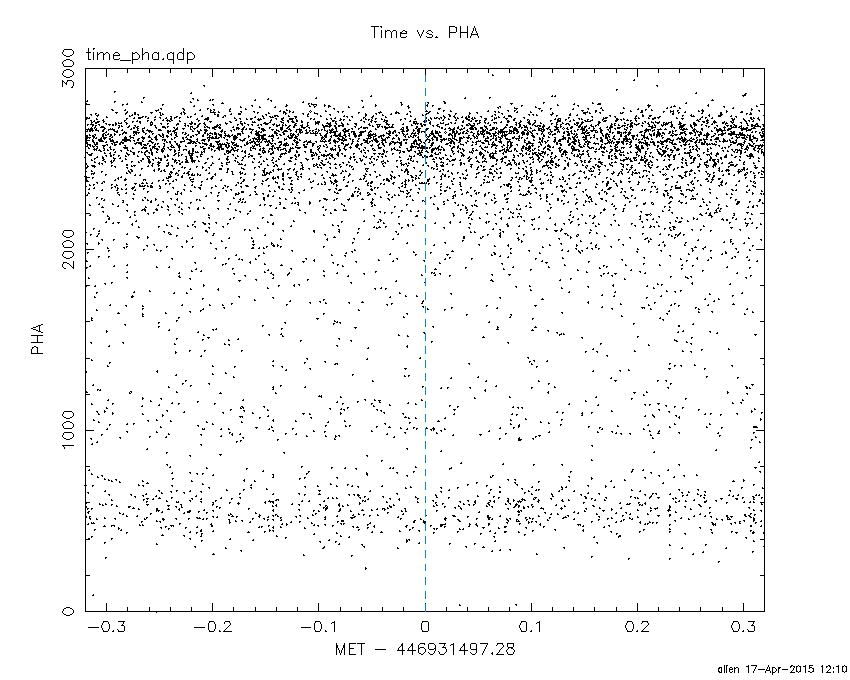

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-530.779400 -513.502600
-239.280000 -0.920000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5142 -40.5747    1.3  24.3   40.5   2.1292   8.8    1.4	Vela X-1
170.2385 -60.4780   20.4   5.0 -153.8   0.1164   0.6    9.0	Cen X-3
186.6201 -62.8633    4.4  13.0 -148.2   0.5705   2.7    5.7	GX 301-2
224.9295 -23.7382    2.7  56.5  173.6   5.5570   4.3 ------	UNKNOWN
217.6760 -38.5993    3.6  40.9  179.1   1.0871   3.2 ------	UNKNOWN
164.3486 -79.5865    2.5  20.8  -88.8   1.1518   4.6 ------	UNKNOWN
249.3446 -37.8229    3.5  57.6 -156.3   5.0751   3.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.920000 10.220590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.7759 -40.4549    0.0  24.3   41.0   0.0809   1.6   12.8	Vela X-1
169.9594 -60.5046    0.0   4.9 -153.0  -0.0175  -0.4   12.7	Cen X-3
186.8561 -62.7610    7.2  13.1 -148.7  -0.0716  -1.6    5.5	GX 301-2
 89.1597 -57.9672    0.3  35.8  -27.5   2.5879  45.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
66.220590 183.135300
184.720000 542.920600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5370 -40.5572    1.6  34.0   98.1   4.5424   7.2    0.4	Vela X-1
170.0276 -60.6324    3.2  38.7  147.7   2.2715   3.6    8.5	Cen X-3
186.5843 -62.7772    3.0  43.7  157.4   3.1155   3.9    2.0	GX 301-2
 83.0523 -66.3573    2.0   8.9 -145.5   1.7490   5.8 ------	UNKNOWN
241.2521 -74.6874    2.3  46.1 -171.5   2.8238   5.0 ------	UNKNOWN
 33.1940 -34.5831    4.1  43.5  -64.2   5.7130   2.9 ------	UNKNOWN
 33.1684 -34.2574    3.8  43.8  -63.9   6.6690   3.3 ------	UNKNOWN
335.4881 -64.0763    3.5  48.0 -129.0   5.8198   3.3 ------	UNKNOWN
 20.4536 -47.7862    3.3  40.8  -88.2   6.2290   3.5 ------	UNKNOWN

Plot creation:
Fri Apr 17 12:10:37 EDT 2015
