batgrbproduct analysis for trigger=642620

batgrbproduct Analysis for Trigger=642620

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jun 26 00:21:27 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger642620
======================================================================

  Trigger: 00642620      Segment: 000

  BAT Trigger Time: 455356523.264   [s; MET]
      Trigger Stop: 455356523.776   [s; MET]
               UTC: 2015-06-07T07:55:09.579340    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 140.023986719496   Dec: 68.4424007671775  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.81
     Image Trigger?:     NO
     Rate S/N Ratio:     19.6214168703486  [ if not an image trigger ]
     Image S/N Ratio:    10.81

  Flight Position:   [ source = BAT ]
    RA: 140.023986719496   Dec: 68.4424007671775  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 140.015635737346   Dec: 68.4363205197354  [deg; J2000]
        { 09h 20m 03.8s , +68d 26' 10.8" }
         +/- 1.20425883454019 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.481030501269048 [arcmin] (formal 1-sigma fit error)
    SNR: 23.3240692072097

  Angular difference between Flight and Ground position is 0.408650 arcmin

  Partial Coding Fraction: 0.3125    [ including projection effects ]

  Duration
     T90: 25.9879999756813 +/- 0.888740739111531
        Measured from: 0.199999988079071
                   to: 26.1879999637604     [s; relative to TRIGTIME]
     T50: 13.7519999742508 +/- 5.36835469047248
        Measured from: 1.85199999809265
                   to: 15.6039999723434     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 7.28799998760223
                   to: 8.28799998760223     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.23199999332428
                   to: 27.8999999761581     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.849630   1.437389   1.034507   0.233620
           0.065227   0.069513   0.061041   0.048400 [error]
 Peak      0.136335   0.230792   0.162200   0.049348
           0.015492   0.017542   0.016009   0.010549 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.54e-07 6.16e-07 8.18e-07 2.22e-06 2.39e-06 4.01e-06   erg/cm2
              Error 3.42e-08 3.69e-08 5.97e-08 3.41e-07 1.46e-07 3.88e-07   erg/cm2
Peak flux Power-law 1.55e+00 1.61e+00 1.19e+00 1.40e+00 4.89e+00 5.75e+00   ph/cm2/s
              Error 2.32e-01 1.57e-01 1.25e-01 2.86e-01 4.50e-01 5.18e-01   ph/cm2/s

Fluence   Cutoff-PL 3.18e-07 6.55e-07 8.54e-07 9.90e-07 2.30e-06 2.82e-06   erg/cm2
              Error 4.03e-08 4.54e-08 6.71e-08 4.96e-07 1.58e-07 5.09e-07   erg/cm2
Peak flux Cutoff-PL 1.34e+00 1.76e+00 1.30e+00 6.42e-01 4.81e+00 5.05e+00   ph/cm2/s
              Error 2.67e-01 1.93e-01 1.52e-01 3.46e-01 4.54e-01 5.53e-01   ph/cm2/s

Fluence        Band 2.96e-07 6.84e-07 8.04e-07 1.76e-06 2.31e-06 3.55e-06   erg/cm2
              Error 4.60e-08 5.32e-08 6.29e-08 -------- 1.51e-07 4.37e-07   erg/cm2
Peak flux      Band 1.34e+00 1.76e+00 1.30e+00 6.42e-01 4.81e+00 5.04e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.590    0.096    -      -           9.06e-03 5.22e-04   50.000 57
CPL   0.975    0.409      84.2   36.9      1.84e-02 9.01e-03   42.330 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.446    0.137    -      -           3.98e-02 3.57e-03   67.500 57
CPL   0.606    0.603      85.2   42.4      1.05e-01 8.16e-02   60.400 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 26.048000 sec.
T50 in the 50-300 keV band: 13.696000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   28.132   -0.232   27.900
T90    25.988    0.200   26.188
T50    13.752    1.852   15.604
Peak    1.000    7.288    8.288

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  140.0156    68.4363   0.0082    42.4481  -137.4803         3.5595986     23.324 TRIG_00642620

Foreground time interval of the image:
 -0.232  27.900 (delta_t =  28.132 [sec])
Background time interval of the image:
-274.363 -254.674 (delta_t =  19.689 [sec])
-239.264  -0.232 (delta_t = 239.032 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

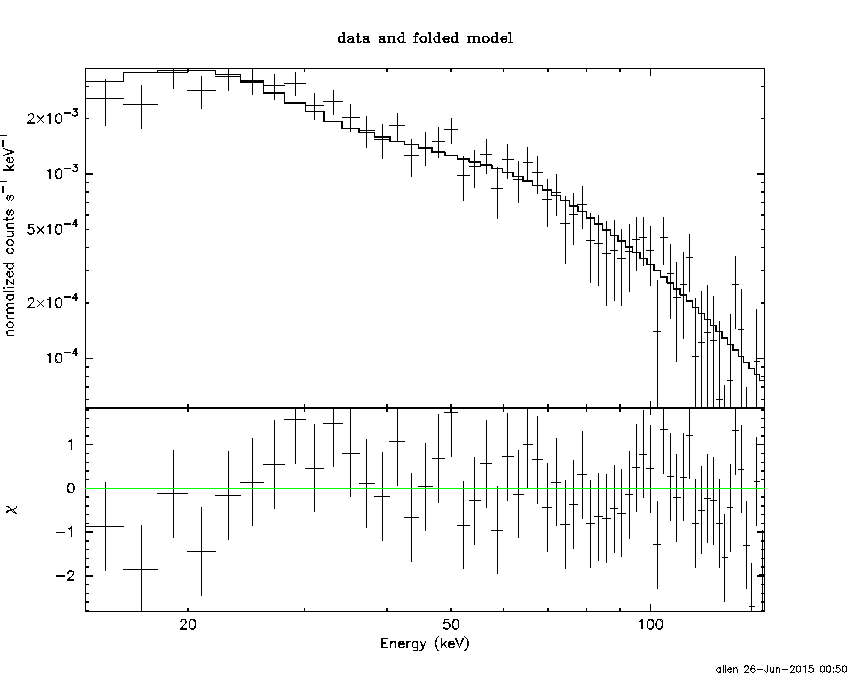

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.232 sec. to   27.900 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59023     ( -0.0955718   0.096134 )
Norm@50keV  : 9.05656E-03    ( -0.000522785   0.000521753 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.00 using 59 PHA bins.
# Reduced chi-squared =         0.8773 for     57 degrees of freedom
# Null hypothesis probability =   7.326653e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.16032 ( -0.0686845  0.0688119 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.38544e-06 ( -1.45729e-07  1.46217e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.232 sec. to   27.900 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.975245     ( -0.428414   0.38916 )
Epeak [keV] : 84.1672      ( -16.7024 57.0308 )
Norm@50keV  : 1.84289E-02    ( -0.00654129   0.0114692 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.33 using 59 PHA bins.
# Reduced chi-squared =         0.7559 for     56 degrees of freedom
# Null hypothesis probability =   9.115238e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.12971 ( -0.07114  0.07125 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.29803e-06 ( -1.57818e-07  1.57272e-07 ) ergs/cm2

Band function

Time interval is from   -0.232 sec. to   27.900 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.975000   ( -0.365001   0.425368 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 84.1440      ( -13.2276 57.0297 )
Norm@50keV   : 1.84321E-02    ( -0.00654306   0.0114758 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.33 using 59 PHA bins.
# Reduced chi-squared =         0.7697 for     55 degrees of freedom
# Null hypothesis probability =   8.944459e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.12983 ( 5.87017  -0.0711 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.31395e-06 ( -2.31376e-06  -1.5056e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.4583  (-0.992932  1.0755)
R^2/D10^2   : 0.148362  (-0.0341035   0.0437695)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          99.70 using 59 PHA bins.
# Reduced chi-squared =          1.749 for     57 degrees of freedom
# Null hypothesis probability =   4.040668e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.836e-07   2.118e-08
25- 50  7.048e-07   4.923e-08
50-150  9.858e-07   1.129e-07
15-150  1.874e-06   1.269e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 178.114       (-43.0483      -177.861)
Norm        : 4.76072       (-0.296721     0.323979)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.71 using 59 PHA bins.
# Reduced chi-squared =         0.7668 for     57 degrees of freedom
# Null hypothesis probability =   9.020754e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.381e-07   2.827e-08
25- 50  6.416e-07   1.082e-07
50-150  1.353e-06   4.436e-07
15-150  2.333e-06   5.928e-07

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.96155        (      )
R1^2/D10^2  : 0.812636        (-0.320617      0.620975)
kT2 [keV]   : 26.9352        (-4.85284      8.22396)
R2^2/D10^2  : 1.14925E-02    (-0.00710876   0.0133976)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.47 using 59 PHA bins.
#Fit statistic : Chi-Squared =          38.44 using 59 PHA bins.
# Reduced chi-squared =         0.7722 for     55 degrees of freedom
# Reduced chi-squared =         0.6989 for     55 degrees of freedom
# Null hypothesis probability =   8.915229e-01
# Null hypothesis probability =   9.561185e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.963e-07   1.454e-07
25- 50  6.369e-07   2.617e-07
50-150  1.212e-06   6.186e-07
15-150  2.145e-06   8.096e-07

Peak spectrum fit

Power-law model

Time interval is from    7.288 sec. to    8.288 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44633     ( -0.136986   0.137383 )
Norm@50keV  : 3.97561E-02    ( -0.00357117   0.0035674 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.50 using 59 PHA bins.
# Reduced chi-squared =          1.184 for     57 degrees of freedom
# Null hypothesis probability =   1.610714e-01

Photon flux (15-150 keV)    in 1 sec: 4.89492 ( -0.449533  0.450133 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.807e-07 ( -3.65686e-08  3.67007e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    7.288 sec. to    8.288 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.605638     ( -0.649325   0.557662 )
Epeak [keV] : 85.1894      ( -18.7547 65.9585 )
Norm@50keV  : 0.105175    ( -0.0490848   0.114137 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.40 using 59 PHA bins.
# Reduced chi-squared =          1.078 for     56 degrees of freedom
# Null hypothesis probability =   3.200449e-01

Photon flux (15-150 keV)    in 1 sec: 4.81334 ( -0.45353  0.45397 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.68276e-07 ( -3.8873e-08  3.8599e-08 ) ergs/cm2

Band function

Time interval is from    7.288 sec. to    8.288 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.17234   ( -0.533974   0.449942 )
beta        : -1.69895    ( 9.37163   19.3716 )
Epeak [keV] : 31.7587      ( -15.5685 62.3371 )
Norm@50keV   : 294.305    ( -294.245   180.338 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.02 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     55 degrees of freedom
# Null hypothesis probability =   3.997918e-01

Photon flux (15-150 keV)    in 1 sec: 4.81287 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.72451e-07 ( -3.72444e-07  -3.7213e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.3879  (-1.62231  1.84566)
R^2/D10^2   : 0.540595  (-0.178368   0.259498)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.45 using 59 PHA bins.
# Reduced chi-squared =          1.411 for     57 degrees of freedom
# Null hypothesis probability =   2.209145e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.668e-08   4.845e-09
25- 50  1.085e-07   1.379e-08
50-150  1.768e-07   3.160e-08
15-150  3.120e-07   3.645e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 20.3684       (-1.81794     1.81794)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.98 using 59 PHA bins.
# Reduced chi-squared =          1.140 for     57 degrees of freedom
# Null hypothesis probability =   2.186724e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.094e-08   5.780e-09
25- 50  9.799e-08   1.605e-08
50-150  2.149e-07   9.306e-08
15-150  3.639e-07   9.890e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.13816        (-2.15761      1.24079)
R1^2/D10^2  : 2.18417        (-1.05451      2.60515)
kT2 [keV]   : 30.5049        (-8.23519      22.9819)
R2^2/D10^2  : 3.33870E-02    (-0.0280689   0.0798782)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.70 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     55 degrees of freedom
# Null hypothesis probability =   4.113964e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.060e-08   1.566e-08
25- 50  1.078e-07   3.883e-08
50-150  2.262e-07   1.063e-07
15-150  3.745e-07   1.430e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59023     ( -0.0955718   0.096134 )
Norm@50keV  : 9.05656E-03    ( -0.000522785   0.000521753 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.00 using 59 PHA bins.
# Reduced chi-squared =         0.8773 for     57 degrees of freedom
# Null hypothesis probability =   7.326653e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.16032 ( -0.0686845  0.0688119 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.38544e-06 ( -1.45729e-07  1.46217e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.975245     ( -0.428414   0.38916 )
Epeak [keV] : 84.1672      ( -16.7024 57.0308 )
Norm@50keV  : 1.84289E-02    ( -0.00654129   0.0114692 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.33 using 59 PHA bins.
# Reduced chi-squared =         0.7559 for     56 degrees of freedom
# Null hypothesis probability =   9.115238e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.12971 ( -0.07114  0.07125 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.29803e-06 ( -1.57818e-07  1.57272e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.975000   ( -0.365001   0.425368 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 84.1440      ( -13.2276 57.0297 )
Norm@50keV   : 1.84321E-02    ( -0.00654306   0.0114758 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.33 using 59 PHA bins.
# Reduced chi-squared =         0.7697 for     55 degrees of freedom
# Null hypothesis probability =   8.944459e-01

Photon flux (15-150 keV)    in 28.13 sec: 1.12983 ( 5.87017  -0.0711 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.31395e-06 ( -2.31376e-06  -1.5056e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.16e-07
S(50-100 keV) = 8.18e-07

T90 vs. Hardness ratio plot

T90                                   = 25.9879999756813 sec.
Hardness ratio (energy fluence ratio) = 1.32792

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.69178
Count Ratio (50-100 keV) / (15-25 keV) = 1.2176

Mask shadow pattern

IMX = -6.741509474386460E-01, IMY = 6.181711465592979E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-274.363400 -254.674000
-239.264000 -0.232000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5678  35.1977    1.1  34.7   66.3   6.1962  10.5    1.1	Cyg X-1
308.0759  40.9659    2.8  28.2   54.8   1.4923   4.1    1.7	Cyg X-3
326.3020  38.3620    4.0  31.5   26.7  -0.8690  -2.9    6.6	Cyg X-2
354.9459  42.4073    3.2  34.1  -14.5   0.9026   3.6 ------	UNKNOWN
112.0931  64.7779    3.3  45.3 -121.3   3.6728   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.232000 27.900000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5181  35.0764    4.1  34.9   66.3   0.4096   2.8    8.3	Cyg X-1
308.0987  41.0640   54.1  28.1   54.8  -0.0197  -0.2    6.7	Cyg X-3
325.9753  38.3001   12.6  31.5   27.2  -0.0875  -0.9    9.3	Cyg X-2
217.5797  52.9454    2.1  43.7  165.9   0.7165   5.4 ------	UNKNOWN
330.2000  42.3321    1.7  28.1   19.3   0.4893   6.8 ------	UNKNOWN
343.3502  46.0514    2.3  27.4   -2.5   0.3590   4.9 ------	UNKNOWN
133.6330  77.2013    2.6  33.8 -134.0   0.4321   4.4 ------	UNKNOWN
140.0156  68.4363    0.5  42.4 -137.5   3.5593  23.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
117.436610 962.871300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
168.8504  71.0678    3.2  10.2   77.1   1.7400   3.6 ------	UNKNOWN
159.5897  37.2710    3.0  33.0  165.8   2.8450   3.9 ------	UNKNOWN
124.4548  23.2925    3.2  46.2 -144.9   4.3825   3.6 ------	UNKNOWN
 13.8520  45.9745    3.4  58.8  -25.9  11.1596   3.4 ------	UNKNOWN
 71.5320  45.1270    3.3  41.1  -73.2   7.1524   3.5 ------	UNKNOWN

Plot creation:
Fri Jun 26 00:51:30 EDT 2015
