batgrbproduct analysis for trigger=649916

batgrbproduct Analysis for Trigger=649916

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Aug  7 22:40:34 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger649916
======================================================================

  Trigger: 00649916      Segment: 000

  BAT Trigger Time: 459251888   [s; MET]
      Trigger Stop: 459251952   [s; MET]
               UTC: 2015-07-22T09:57:53.112440    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 218.271508942397   Dec: -35.1965701114099  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.92
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.92

  Flight Position:   [ source = BAT ]
    RA: 218.271508942397   Dec: -35.1965701114099  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 218.272   Dec: -35.1966  [deg; J2000]
        { 14h 33m 05.3s , -35d -11' -47.8" }
        +/- 2.34165183892 [arcmin] (estimated 90% radius based on SNR)
    SNR: 9.02165393084


  Angular difference between Flight and Ground position is 0.024144 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 67.3120000362396 +/- 11.7648860619575
        Measured from: -24.0720000267029
                   to: 43.2400000095367     [s; relative to TRIGTIME]
     T50: 40.0000000596046 +/- 18.3425398190956
        Measured from: -5.76800000667572
                   to: 34.2320000529289     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 15.1000000238419
                   to: 16.1000000238419     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -26.4559999704361
                   to: 45.6240000128746     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.396468   0.374142   0.265958   0.025434
           0.050833   0.048023   0.039924   0.032779 [error]
 Peak      0.012884   0.023820   0.008152   0.004477
           0.006027   0.005706   0.004832   0.003992 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.14e-07 1.70e-07 1.90e-07 4.00e-07 5.95e-07 8.74e-07   erg/cm2
              Error 2.38e-08 2.21e-08 4.10e-08 1.82e-07 9.23e-08 2.19e-07   erg/cm2
Peak flux Power-law 1.61e-01 1.42e-01 8.60e-02 7.87e-02 4.23e-01 4.68e-01   ph/cm2/s
              Error 8.22e-02 4.61e-02 4.00e-02 7.67e-02 1.36e-01 1.51e-01   ph/cm2/s

Fluence   Cutoff-PL 1.13e-07 1.70e-07 1.91e-07 4.03e-07 5.96e-07 8.78e-07   erg/cm2
              Error 1.82e-08 2.21e-08 4.09e-08 2.48e-07 9.07e-08 2.43e-07   erg/cm2
Peak flux Cutoff-PL 1.61e-01 1.42e-01 8.60e-02 7.80e-02 4.23e-01 4.67e-01   ph/cm2/s
              Error 8.59e-02 5.53e-02 4.13e-02 -------- 1.36e-01 1.65e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.843    0.264    -      -           8.97e-04 1.38e-04   51.020 57
CPL   2.696    0.737     227.1    0.0      3.60e-04 0.00e+00   49.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.724    0.622    -      -           3.16e-03 1.14e-03   37.340 57
CPL   2.028    2.292      11.7    0.0      2.07e-03 0.00e+00   37.110 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   72.080  -26.456   45.624
T90    67.312  -24.072   43.240
T50    40.000   -5.768   34.232
Peak    1.000   15.100   16.100

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-50.0 keV image (Event data)

#RAcent DECcent POSerr Theta  Phi  Peak_Cts  SNR Name
218.272 -35.197 0.000 23.359 -24.610 0.707 9.022 TRIG_00649916

Image time interval: 0.000 to 64.000 [sec]

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

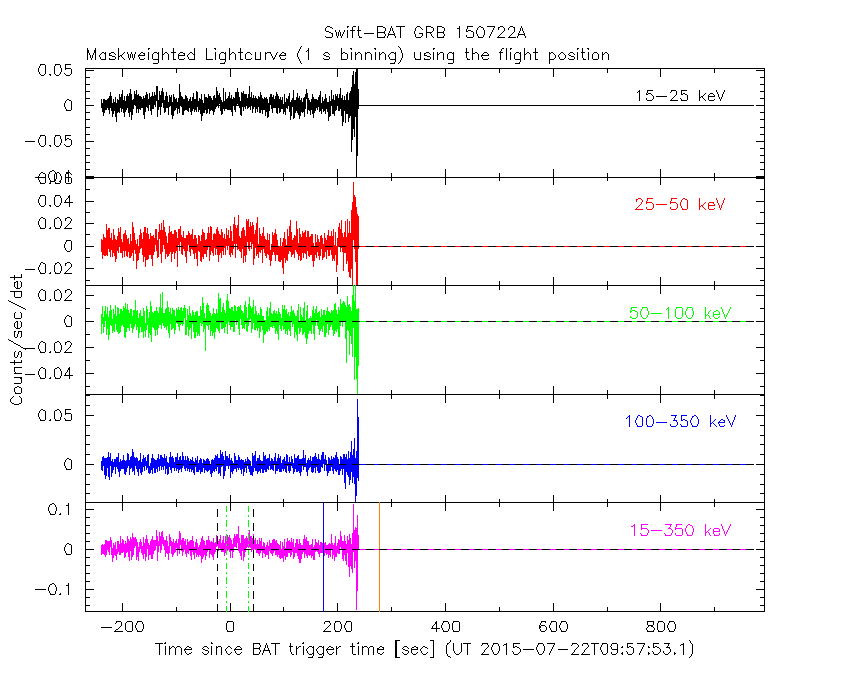

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

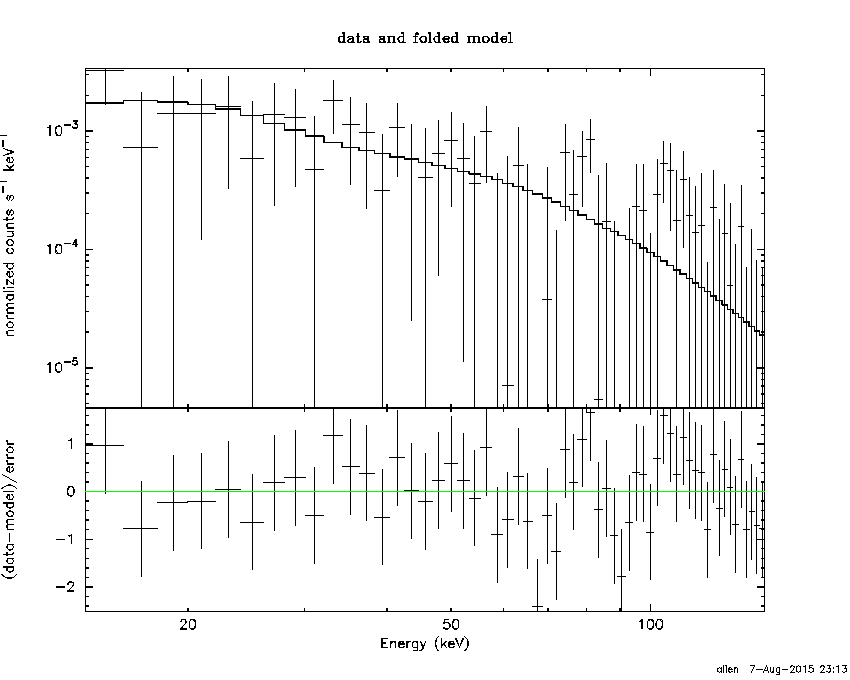

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -26.456 sec. to   45.624 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84257     ( -0.256592   0.270512 )
Norm@50keV  : 8.97293E-04    ( -0.000140304   0.000135094 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.02 using 59 PHA bins.
# Reduced chi-squared =         0.8952 for     57 degrees of freedom
# Null hypothesis probability =   6.975636e-01

Photon flux (15-150 keV)    in 72.08 sec: 0.125745 ( -0.0165434  0.016579 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.94757e-07 ( -9.14227e-08  9.31994e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -26.456 sec. to   45.624 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.69553     ( -1.18925   0.284188 )
Epeak [keV] : 227.089      (   )
Norm@50keV  : 3.59549E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.91 using 59 PHA bins.
# Reduced chi-squared =         0.8913 for     56 degrees of freedom
# Null hypothesis probability =   7.032501e-01

Photon flux (15-150 keV)    in 72.08 sec: 0.126035 ( -0.016789  0.016338 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.96294e-07 ( -9.28189e-08  8.85647e-08 ) ergs/cm2

Band function

Time interval is from  -26.456 sec. to   45.624 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.47427   ( 1.47517   1.47517 )
beta        : -1.84237    ( 1.84252   0.256177 )
Epeak [keV] : 17.1346      ( -16.8235 -16.8235 )
Norm@50keV   : 2.19284E-03    ( -0.00220014   221492 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.02 using 59 PHA bins.
# Reduced chi-squared =         0.9277 for     55 degrees of freedom
# Null hypothesis probability =   6.272322e-01

Photon flux (15-150 keV)    in 72.08 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

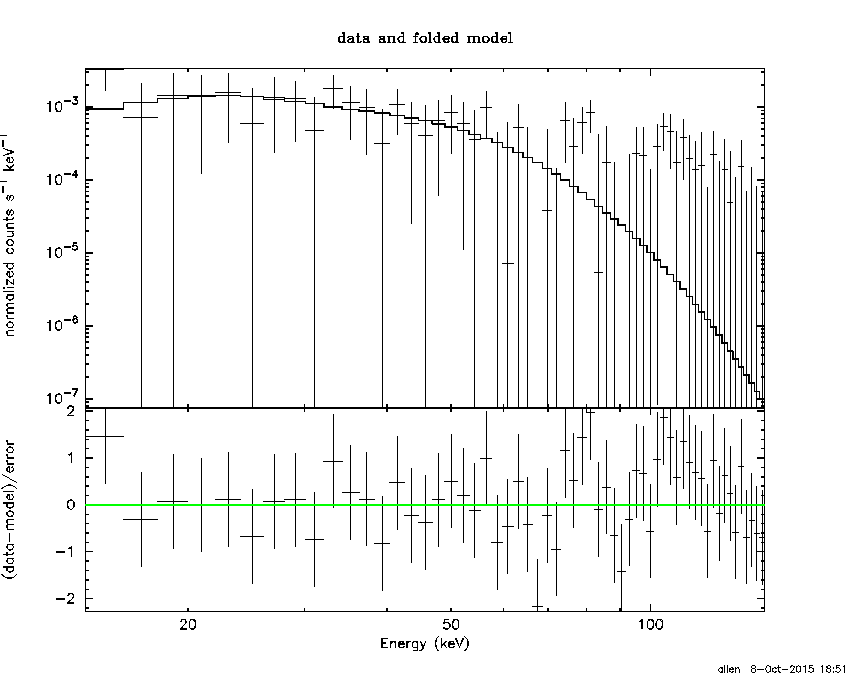

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.5723  (-2.22598  2.96314)
R^2/D10^2   : 3.21179E-02  (-0.0316883   0.0392229)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.91 using 59 PHA bins.
# Reduced chi-squared =          1.367 for     57 degrees of freedom
# Null hypothesis probability =   3.433340e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.532e-08   1.778e-08
25- 50  1.968e-07   4.505e-08
50-150  1.546e-07   5.150e-08
15-150  4.167e-07   8.815e-08

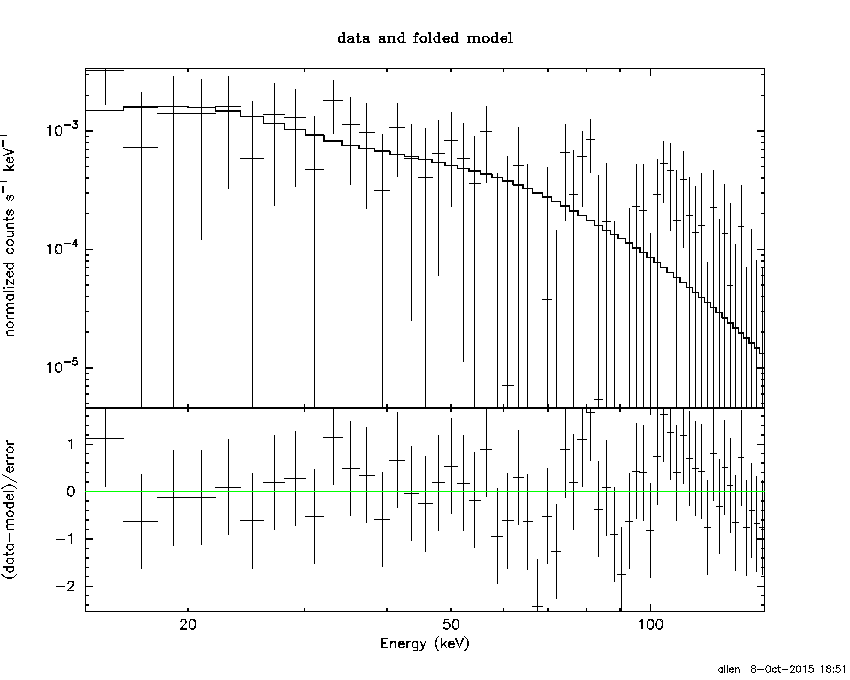

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 104.251       (-41.9896      -105.006)
Norm        : 0.541226       (-0.0884346     0.124595)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.97 using 59 PHA bins.
# Reduced chi-squared =         0.9468 for     57 degrees of freedom
# Null hypothesis probability =   5.895810e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.020e-07   2.000e-08
25- 50  1.777e-07   3.168e-08
50-150  2.948e-07   1.484e-07
15-150  5.745e-07   1.707e-07

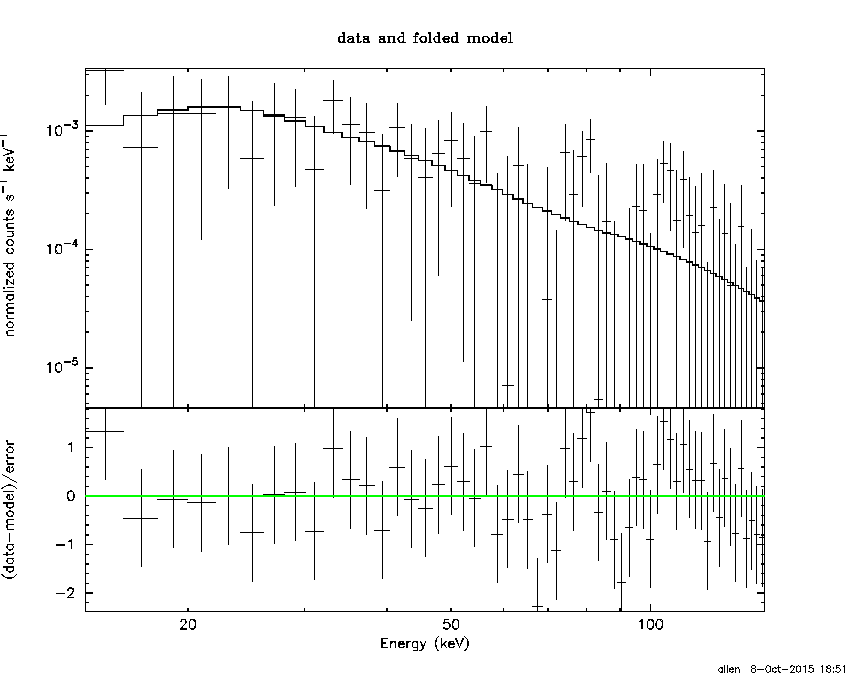

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.53748        (-1.37744      2.00304)
R1^2/D10^2  : 0.947505        (-0.738383      4.59072)
kT2 [keV]   : 22.8896        (-6.28371      12.8517)
R2^2/D10^2  : 2.30640E-03    (-0.00178594   0.00346604)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.69 using 59 PHA bins.
# Reduced chi-squared =         0.9216 for     55 degrees of freedom
# Null hypothesis probability =   6.398646e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.266e-07   6.750e-08
25- 50  1.421e-07   5.016e-08
50-150  3.365e-07   1.884e-07
15-150  6.052e-07   2.416e-07

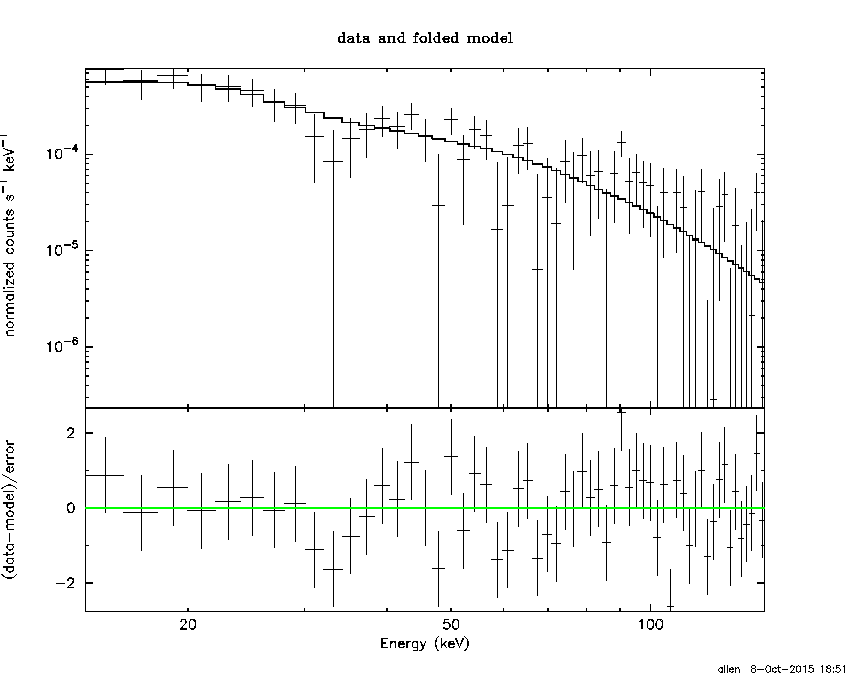

Peak spectrum fit

Power-law model

Time interval is from   15.100 sec. to   16.100 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72414     ( -0.595866   0.648794 )
Norm@50keV  : 3.15640E-03    ( -0.00117207   0.00109912 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.34 using 59 PHA bins.
# Reduced chi-squared =         0.6551 for     57 degrees of freedom
# Null hypothesis probability =   9.795641e-01

Photon flux (15-150 keV)    in 1 sec: 0.422803 ( -0.135802  0.136176 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.91725e-08 ( -1.06283e-08  1.11354e-08 ) ergs/cm2

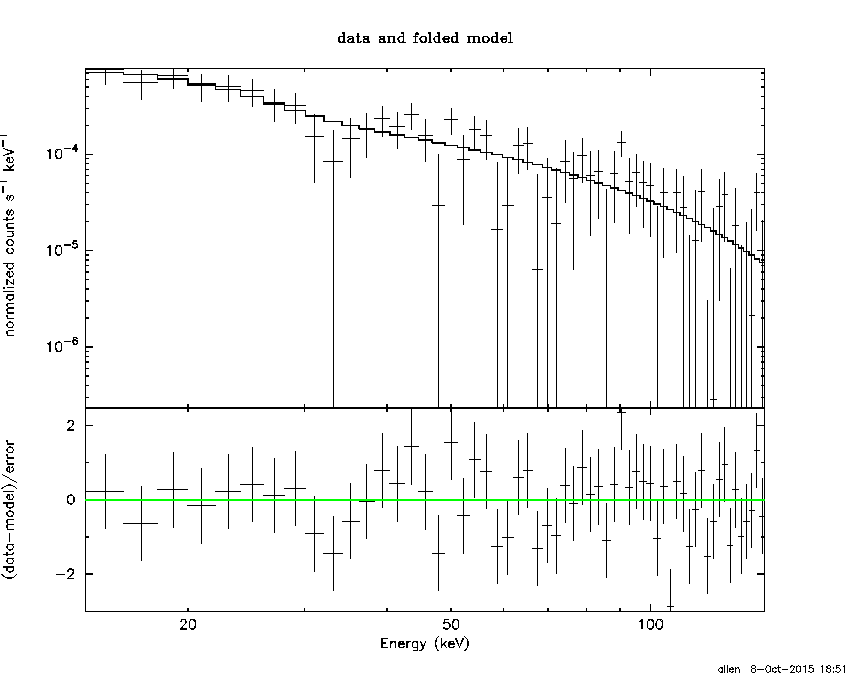

Cutoff power-law model

Time interval is from   15.100 sec. to   16.100 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.02844     ( -4.58015   0.00474871 )
Epeak [keV] : 11.6868      (   )
Norm@50keV  : 2.06636E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.11 using 59 PHA bins.
# Reduced chi-squared =         0.6626 for     56 degrees of freedom
# Null hypothesis probability =   9.757521e-01

Photon flux (15-150 keV)    in 1 sec: 0.422684 ( -0.135782  0.135987 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.91899e-08 ( -1.27627e-08  1.09854e-08 ) ergs/cm2

Band function

Time interval is from   15.100 sec. to   16.100 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.13106   ( 1.13723   1.13723 )
beta        : -1.90710    ( 1.89548   0.760078 )
Epeak [keV] : 56.6780      ( -54.9978 -54.9978 )
Norm@50keV   : 7.11511E-03    ( -0.00729529   708731 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.28 using 59 PHA bins.
# Reduced chi-squared =         0.6778 for     55 degrees of freedom
# Null hypothesis probability =   9.678113e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.7007  (-3.17264  5.8215)
R^2/D10^2   : 0.154442  (-0.154399   0.431087)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.38 using 59 PHA bins.
# Reduced chi-squared =         0.6910 for     57 degrees of freedom
# Null hypothesis probability =   9.636541e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.673e-09   2.286e-09
25- 50  1.002e-08   6.130e-09
50-150  6.341e-09   4.431e-09
15-150  2.003e-08   1.315e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 141.667       (-99.3322      -136.856)
Norm        : 1.72234       (-0.593183     1.22289)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.53 using 59 PHA bins.
# Reduced chi-squared =         0.6584 for     57 degrees of freedom
# Null hypothesis probability =   9.783785e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.444e-09   2.622e-09
25- 50  8.167e-09   4.963e-09
50-150  1.574e-08   1.040e-08
15-150  2.835e-08   1.751e-08

Double BB

R1^2/D10^2  : 0.283898        (-0.194213      0.505763)
kT2 [keV]   : 74.1805        (-72.996      -72.9962)
R2^2/D10^2  : 2.40508E-04    (-0.000237717   0.0982198)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.62 using 59 PHA bins.
#Fit statistic : Chi-Squared =          36.64 using 59 PHA bins.
#Fit statistic : Chi-Squared =          36.55 using 59 PHA bins.
# Reduced chi-squared =         0.6841 for     55 degrees of freedom
# Reduced chi-squared =         0.6663 for     55 degrees of freedom
# Reduced chi-squared =         0.6646 for     55 degrees of freedom
# Null hypothesis probability =   9.646322e-01
# Null hypothesis probability =   9.731348e-01
# Null hypothesis probability =   9.738448e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.981e-09   1.997e-09
25- 50  9.355e-09   5.805e-09
50-150  7.405e-09   5.300e-09
15-150  2.074e-08   1.279e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84257     ( -0.256592   0.270512 )
Norm@50keV  : 8.97293E-04    ( -0.000140304   0.000135094 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.02 using 59 PHA bins.
# Reduced chi-squared =         0.8952 for     57 degrees of freedom
# Null hypothesis probability =   6.975636e-01

Photon flux (15-150 keV)    in 72.08 sec: 0.125745 ( -0.0165434  0.016579 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.94757e-07 ( -9.14227e-08  9.31994e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.69553     ( -1.18925   0.284188 )
Epeak [keV] : 227.089      (   )
Norm@50keV  : 3.59549E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.91 using 59 PHA bins.
# Reduced chi-squared =         0.8913 for     56 degrees of freedom
# Null hypothesis probability =   7.032501e-01

Photon flux (15-150 keV)    in 72.08 sec: 0.126035 ( -0.016789  0.016338 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.96294e-07 ( -9.28189e-08  8.88516e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.47427   ( 1.47517   1.47517 )
beta        : -1.84237    ( 1.84252   0.256177 )
Epeak [keV] : 17.1346      ( -16.8235 -16.8235 )
Norm@50keV   : 2.19284E-03    ( -0.00220014   221492 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.02 using 59 PHA bins.
# Reduced chi-squared =         0.9277 for     55 degrees of freedom
# Null hypothesis probability =   6.272322e-01

Photon flux (15-150 keV)    in 72.08 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.70e-07
S(50-100 keV) = 1.90e-07

T90 vs. Hardness ratio plot

T90                                   = 67.3120000362396 sec.
Hardness ratio (energy fluence ratio) = 1.11765

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.943688
Count Ratio (50-100 keV) / (15-25 keV) = 0.670818

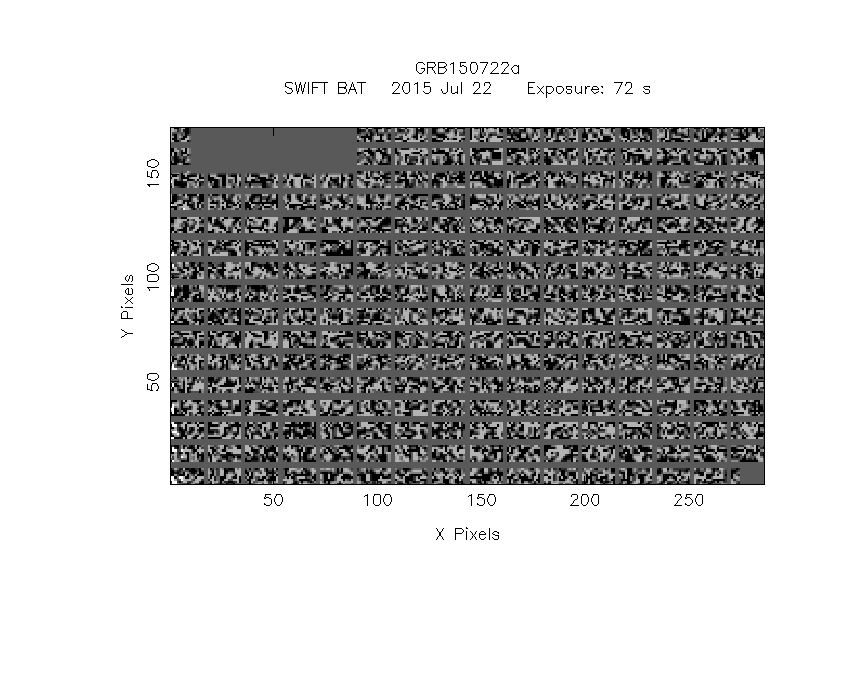

Mask shadow pattern

IMX = 0.39265244746, IMY = 0.179854004739

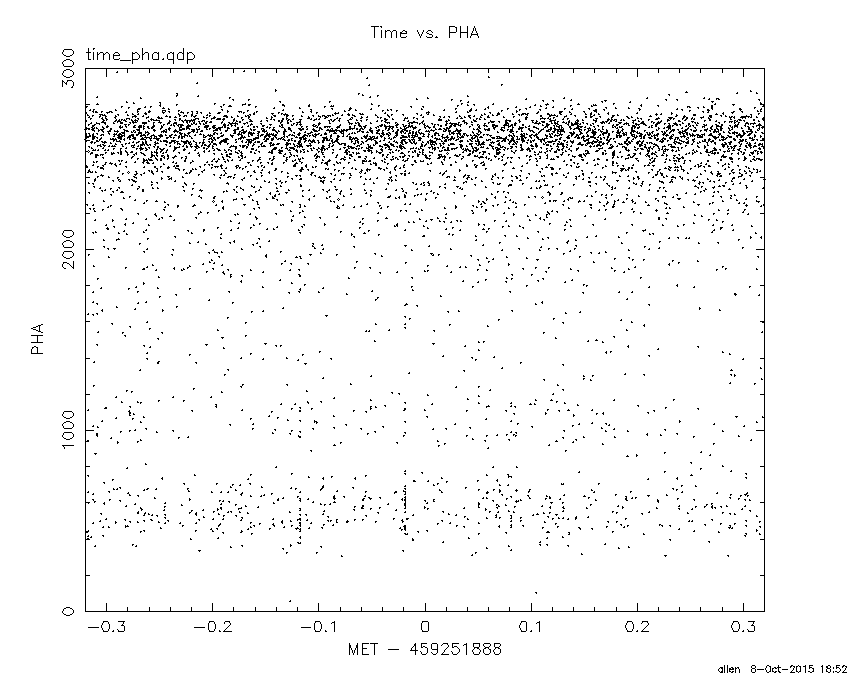

TIME vs. PHA plot around the trigger time

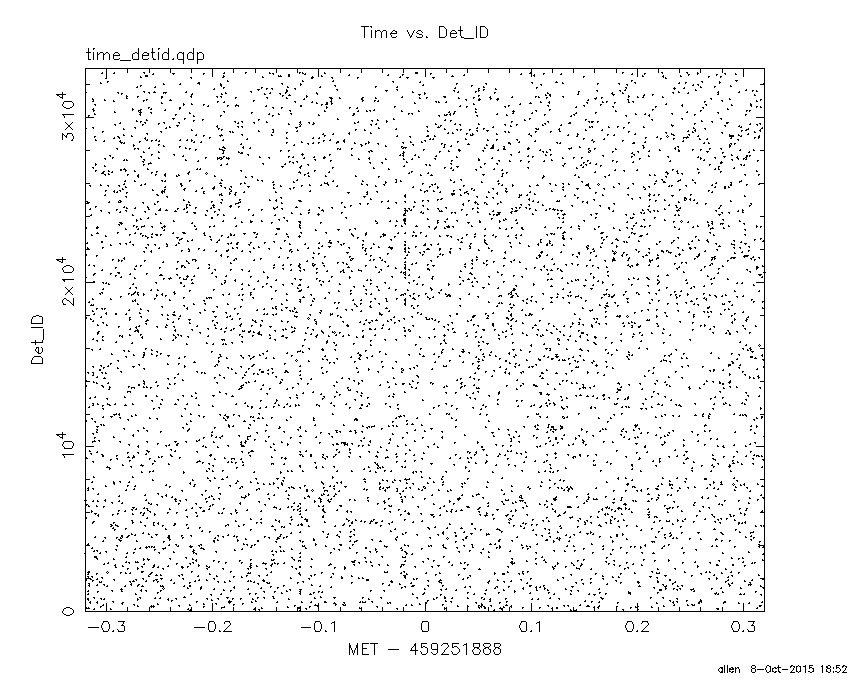

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

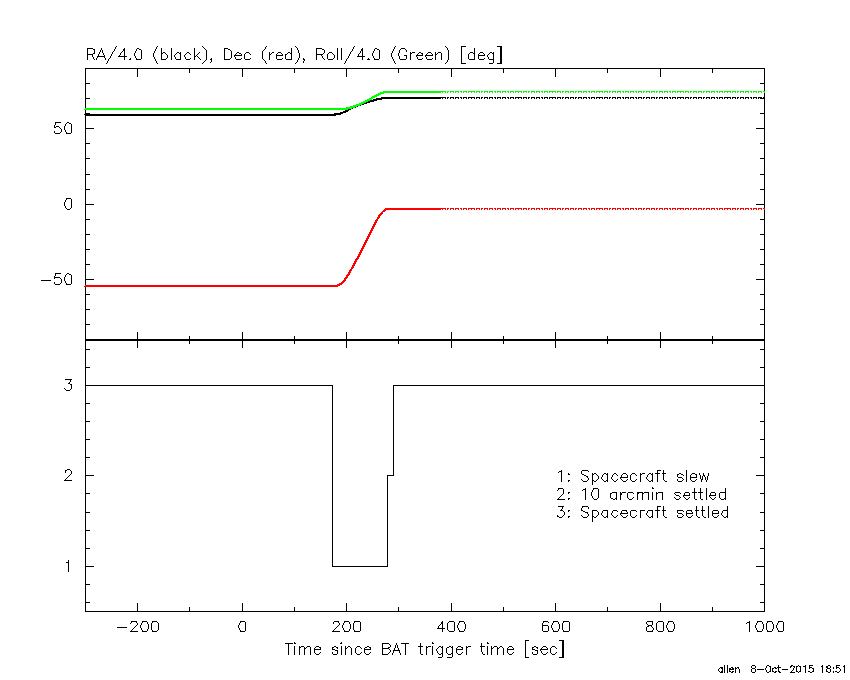

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -26.456000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.5127 -60.5442  295.1  35.1 -109.4   0.0160   0.0    7.5	Cen X-3
186.6342 -62.7591    1.4  27.1 -110.2   2.3307   8.1    0.9	GX 301-2
244.9806 -15.6294    0.4  39.1   29.8  11.3274  29.2    0.7	Sco X-1
256.0021 -37.8089    0.8  20.7   63.3   3.3728  13.8    2.2	4U 1700-377
256.4534 -36.5425    3.5  22.0   62.4   0.8080   3.3    7.2	GX 349+2
263.1179 -24.7117   26.9  35.1   61.3   0.1867   0.4    6.3	GX 1+4
264.7926 -44.4522    4.6  20.0   90.4   0.6043   2.5    2.1	4U 1735-44
270.2369 -25.1584    5.8  37.8   71.3   1.1933   2.0    5.4	GX 5-1
270.4448 -25.8008    5.6  37.3   72.1   1.1666   2.1    8.4	GRS 1758-258
276.1112 -30.3691    6.0  36.4   83.3  -1.1577  -1.9    9.6	H1820-303
263.0793 -33.6914    9.1  27.2   69.9   0.3936   1.3    9.7	GX 354-0
218.2620 -35.1846    1.6  23.4  -24.6   1.4096   7.1 ------	UNKNOWN
209.5019 -64.7291    1.1  17.5 -119.3   2.1766  10.4 ------	UNKNOWN
 48.7157 -67.9348    4.3  57.6 -165.4   2.9216   2.7 ------	UNKNOWN
185.4595 -52.9824    2.8  30.3  -90.8   1.2771   4.1 ------	UNKNOWN
191.1555 -18.1040    3.7  50.6  -44.6   3.5421   3.1 ------	UNKNOWN
138.0303 -64.0770    2.7  46.6 -125.1   3.8537   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-26.456000 45.624000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3974 -60.8153    4.1  35.0 -109.9   0.5295   2.8   11.8	Cen X-3
186.3575 -62.7260    5.8  27.3 -110.1  -0.2664  -2.0    8.6	GX 301-2
244.9265 -15.8052    0.0  38.9   29.7   0.5386   2.8   10.4	Sco X-1
255.7545 -37.8085    2.7  20.6   62.8  -0.4980  -4.2   11.2	4U 1700-377
256.4776 -36.5671    5.2  21.9   62.4  -0.2755  -2.2    8.9	GX 349+2
263.1990 -24.7946   12.6  35.0   61.5  -0.1923  -0.9   10.8	GX 1+4
264.7788 -44.4108    4.3  20.1   90.3  -0.3154  -2.7    2.8	4U 1735-44
270.3855 -24.9627   19.2  38.0   71.3   0.1892   0.6    8.9	GX 5-1
270.2836 -25.9078    4.8  37.2   72.0   0.6880   2.4    9.9	GRS 1758-258
276.0290 -30.2576   16.8  36.4   83.1   0.1993   0.7    8.5	H1820-303
263.0878 -33.7002    6.3  27.2   69.9  -0.2763  -1.8    9.5	GX 354-0
  5.4896 -73.9370    2.3  47.1 -178.8   1.0630   5.1 ------	UNKNOWN
218.2858 -35.2005    1.7  23.3  -24.6   0.6886   6.7 ------	UNKNOWN
104.5515 -72.4106    2.3  49.2 -144.5   1.3293   5.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
278.100600 963.018000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9837 -15.6590    0.3  38.2 -139.6  31.6925  41.1    1.2	Sco X-1
255.9744 -37.8542    1.9  42.0 -177.2   4.8595   6.2    0.8	4U 1700-377
256.4659 -36.4367    3.9  40.7 -176.3   2.3058   2.9    1.7	GX 349+2
263.0478 -24.9437    8.1  28.3 -170.4   0.7542   1.4   12.1	GX 1+4
264.7634 -44.5153    9.1  44.1  169.4   1.1843   1.3    4.0	4U 1735-44
268.4834  -1.3490    6.0  13.2 -111.0   0.9100   1.9    9.3	SW J1753.5-0127
270.2581 -25.0372    1.7  24.6  177.4   3.2321   6.7    2.9	GX 5-1
270.2646 -25.7144    2.7  25.2  176.7   2.0690   4.2    2.7	GRS 1758-258
274.1051 -14.0052    2.9  13.3 -174.4   1.9330   3.9    6.1	GX 17+2
275.9147 -30.3489    2.7  27.9  162.6   2.6145   4.3    1.2	H1820-303
285.1694 -24.9970    8.6  22.3  143.5   0.7227   1.4    8.6	HT1900.1-2455
288.8879  11.0685   17.9  15.8   -0.7   0.3069   0.6    9.1	GRS 1915+105
299.5888  35.2107    0.8  41.8   -5.6  13.1022  14.9    0.6	Cyg X-1
308.1021  40.9219    3.2  50.1   -1.8   4.0748   3.6    1.9	Cyg X-3
263.1101 -33.8115    6.7  35.3  179.2   1.0781   1.7    6.2	GX 354-0
316.6649  -5.4169    3.9  35.1   67.3   3.1202   3.0 ------	UNKNOWN
265.6857 -53.4438    3.1  52.1  164.0   7.8806   3.7 ------	UNKNOWN
300.8842  25.3496    3.1  34.0    4.4   2.2758   3.7 ------	UNKNOWN
238.8594 -35.5422    2.5  51.1 -162.7   5.5968   4.6 ------	UNKNOWN
296.2120  53.9903    2.8  58.3  -17.8  11.6763   4.2 ------	UNKNOWN
247.6905   9.5734    2.7  36.0  -97.1   4.9114   4.2 ------	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Thu Oct  8 18:52:23 EDT 2015
