batgrbproduct Analysis for Trigger=650977

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Aug 30 18:11:46 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger650977
======================================================================

  Trigger: 00650977      Segment: 000

  BAT Trigger Time: 460161723.584   [s; MET]
      Trigger Stop: 460161723.84   [s; MET]
               UTC: 2015-08-01T22:41:48.648820    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 82.9589982137698   Dec: -5.38743125075409  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.7
     Image Trigger?:     NO
     Rate S/N Ratio:     13  [ if not an image trigger ]
     Image S/N Ratio:    7.7

  Flight Position:   [ source = BAT ]
    RA: 82.9589982137698   Dec: -5.38743125075409  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 82.9607296632042   Dec: -5.37529810147569  [deg; J2000]
        { 05h 31m 50.6s , -05d 22' 31.1" }
         +/- 1.3429923556643 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.414382360656706 [arcmin] (formal 1-sigma fit error)
    SNR: 19.9597997130576

  Angular difference between Flight and Ground position is 0.735300 arcmin

  Partial Coding Fraction: 0.625    [ including projection effects ]

  Duration
     T90: 408.707999944687 +/- 29.6191441817222
        Measured from: 0.244000017642975
                   to: 408.95199996233     [s; relative to TRIGTIME]
     T50: 364.887999951839 +/- 6.82123977976951
        Measured from: 6.18800002336502
                   to: 371.075999975204     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 9.32400000095367
                   to: 10.3240000009537     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -30.1599999666214
                   to: 433.944000005722     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.800035   1.907614   1.258471   0.267568
           0.120211   0.123025   0.105050   0.088122 [error]
 Peak      0.093393   0.109836   0.072101   0.012204
           0.008300   0.008932   0.007570   0.005542 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.40e-07 8.29e-07 9.54e-07 2.11e-06 2.95e-06 4.43e-06   erg/cm2
              Error 6.29e-08 5.92e-08 1.06e-07 4.90e-07 2.42e-07 5.81e-07   erg/cm2
Peak flux Power-law 1.03e+00 8.56e-01 4.85e-01 4.08e-01 2.55e+00 2.78e+00   ph/cm2/s
              Error 1.39e-01 7.63e-02 6.27e-02 1.02e-01 2.28e-01 2.46e-01   ph/cm2/s

Fluence   Cutoff-PL 5.41e-07 8.30e-07 9.53e-07 2.08e-06 2.94e-06 4.40e-06   erg/cm2
              Error 6.39e-08 5.87e-08 1.05e-07 6.65e-07 2.43e-07 7.73e-07   erg/cm2
Peak flux Cutoff-PL 9.67e-01 9.06e-01 4.95e-01 2.23e-01 2.51e+00 2.59e+00   ph/cm2/s
              Error 1.59e-01 1.00e-01 6.83e-02 1.76e-01 2.34e-01 2.99e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.796    0.137    -      -           6.90e-04 5.49e-05   50.270 57
CPL   1.801    0.145    9999.4   -0.0      6.88e-04 3.79e-04   50.280 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.819    0.155    -      -           1.84e-02 1.83e-03   63.320 57
CPL   1.331    0.650      61.9  -22.3      3.41e-02 3.40e-02   61.490 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 398.848000 sec.
T50 in the 50-300 keV band: 362.944000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  464.104  -30.160  433.944
T90   408.708    0.244  408.952
T50   364.888    6.188  371.076
Peak    1.000    9.324   10.324

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   82.9607    -5.3753   0.0097    33.3861  -140.5415         1.8316622     19.960 TRIG_00650977

Foreground time interval of the image:
-30.160   9.717 (delta_t =  39.877 [sec])
Background time interval of the image:
-239.584 -30.160 (delta_t = 209.424 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

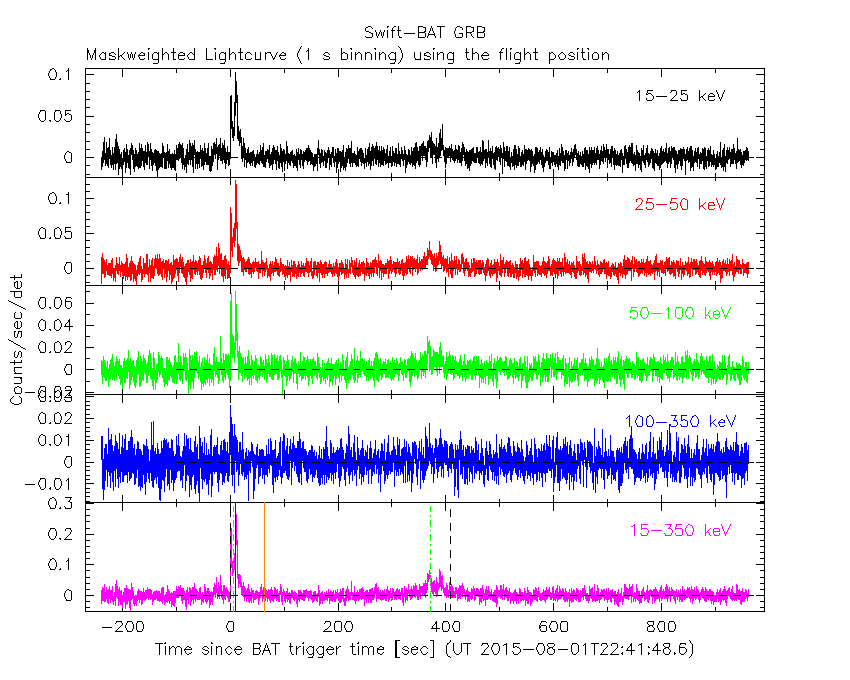

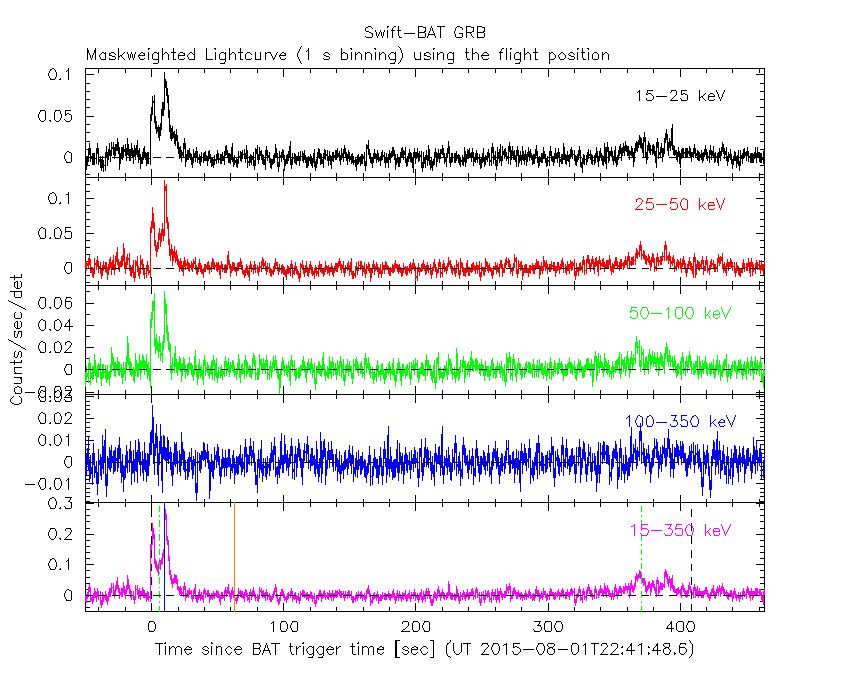

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -30.160 sec. to  433.944 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.79645     ( -0.135584   0.138793 )
Norm@50keV  : 6.89691E-04    ( -5.53153e-05   5.45356e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.27 using 59 PHA bins.
# Reduced chi-squared =         0.8820 for     57 degrees of freedom
# Null hypothesis probability =   7.235761e-01

Photon flux (15-150 keV)    in 464.1 sec: 9.49074E-02 ( -0.00688214  0.00689532 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.94709e-06 ( -2.40491e-07  2.42874e-07 ) ergs/cm2

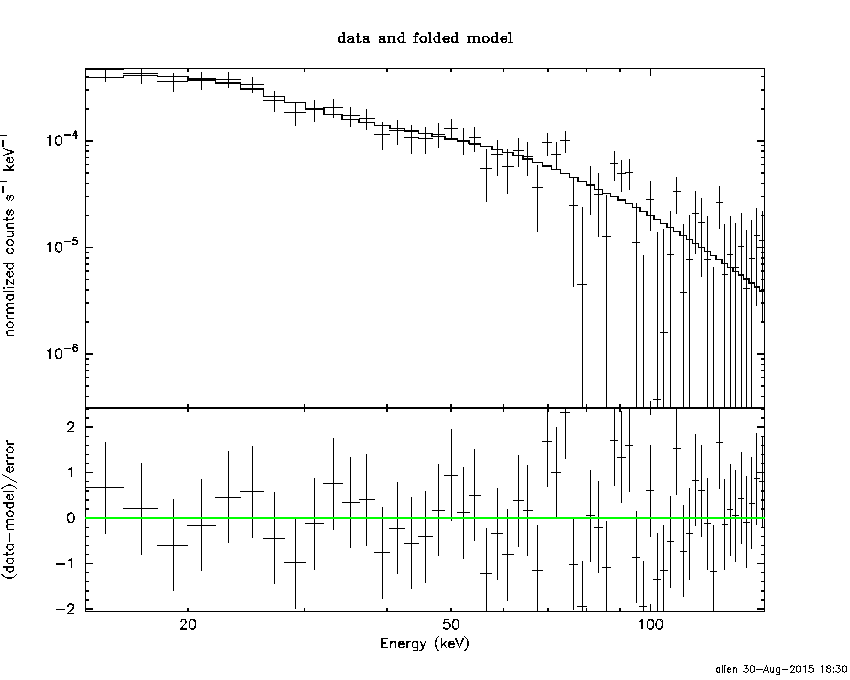

Cutoff power-law model

Time interval is from  -30.160 sec. to  433.944 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.80099     ( -0.153843   0.135978 )
Epeak [keV] : 9999.36      ( -9999.35 -9999.36 )
Norm@50keV  : 6.88401E-04    ( -0.000356316   0.000400762 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.28 using 59 PHA bins.
# Reduced chi-squared =         0.8979 for     56 degrees of freedom
# Null hypothesis probability =   6.901256e-01

Photon flux (15-150 keV)    in 464.1 sec: 9.49147E-02 ( -0.0069276  0.0068453 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.94404e-06 ( -2.43546e-07  2.41527e-07 ) ergs/cm2

Band function

Time interval is from  -30.160 sec. to  433.944 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.44669   ( 1.46242   1.46242 )
beta        : -1.79601    ( -0.138935   0.13549 )
Epeak [keV] : 22.4852      ( -19.4256 -19.4256 )
Norm@50keV   : 1.51847E-03    ( -0.000687997   0.0996147 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.27 using 59 PHA bins.
# Reduced chi-squared =         0.9141 for     55 degrees of freedom
# Null hypothesis probability =   6.554343e-01

Photon flux (15-150 keV)    in 464.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.0809  (-1.16535  1.307)
R^2/D10^2   : 2.12221E-02  (-0.00670301   0.00972755)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         113.87 using 59 PHA bins.
# Reduced chi-squared =         1.9977 for     57 degrees of freedom
# Null hypothesis probability =   1.153706e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.042e-07   3.982e-08
25- 50  9.649e-07   8.307e-08
50-150  8.506e-07   1.390e-07
15-150  2.120e-06   2.072e-07

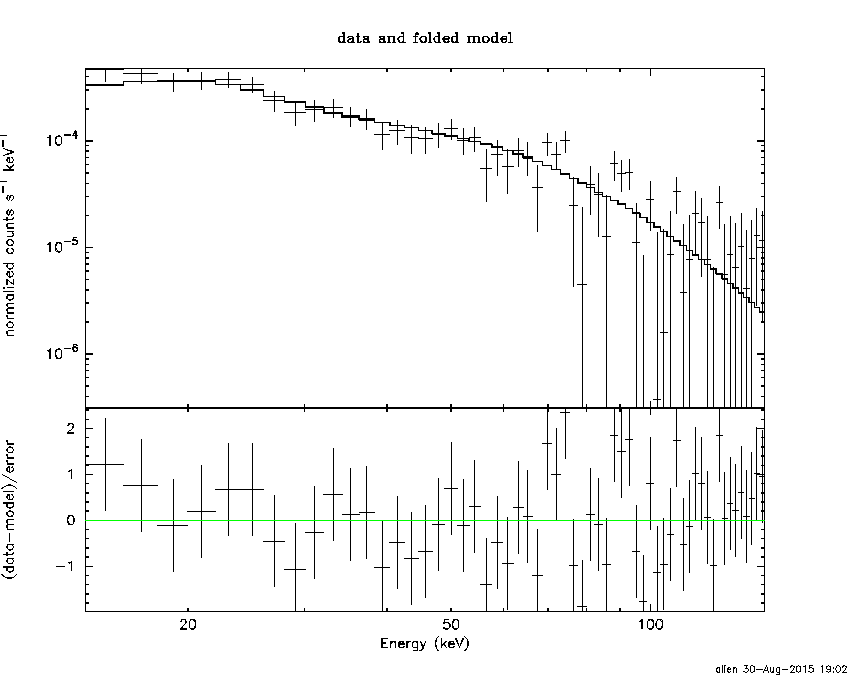

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 105.870       (-25.6924      52.1897)
Norm        : 0.411460       (-0.0424161     0.0439392)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.43 using 59 PHA bins.
# Reduced chi-squared =         0.9550 for     57 degrees of freedom
# Null hypothesis probability =   5.719912e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.990e-07   6.012e-08
25- 50  8.726e-07   7.565e-08
50-150  1.459e-06   4.527e-07
15-150  2.831e-06   5.511e-07

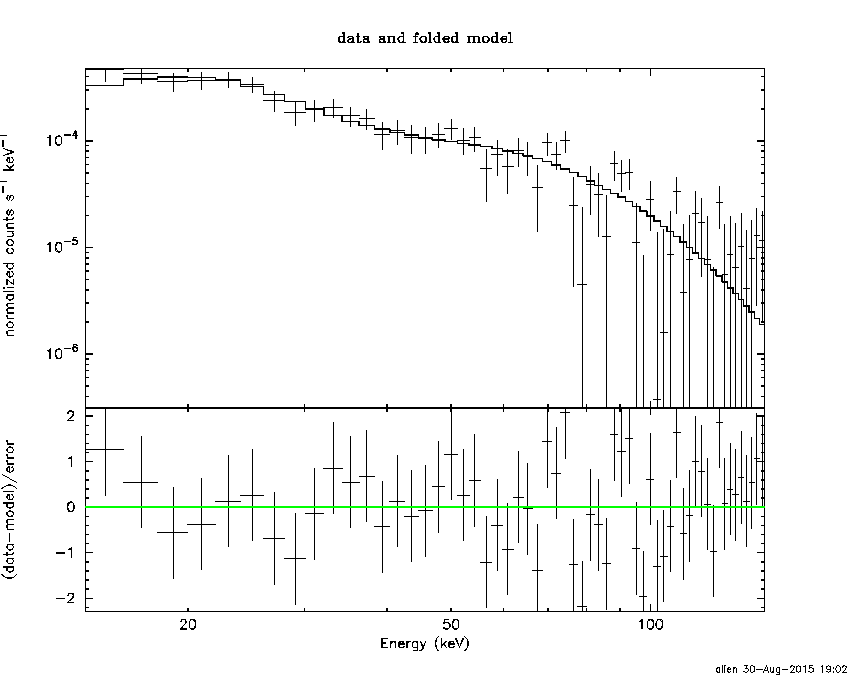

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.62039        (-1.21351      1.40938)
R1^2/D10^2  : 0.264535        (-0.147891      0.448589)
kT2 [keV]   : 22.7337        (-4.47869      7.97755)
R2^2/D10^2  : 1.67705E-03    (-0.00110225   0.00218087)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.06 using 59 PHA bins.
# Reduced chi-squared =         0.9830 for     55 degrees of freedom
# Null hypothesis probability =   5.104239e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.396e-07   1.568e-07
25- 50  7.970e-07   1.636e-07
50-150  1.554e-06   4.864e-07
15-150  2.890e-06   7.245e-07

Peak spectrum fit

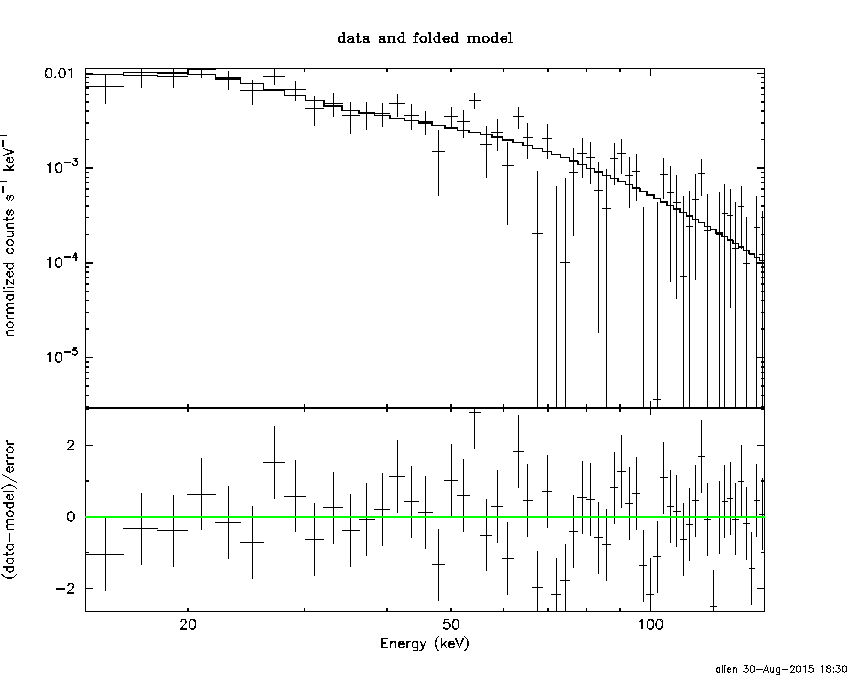

Power-law model

Time interval is from    9.324 sec. to   10.324 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.81896     ( -0.152411   0.157302 )
Norm@50keV  : 1.83577E-02    ( -0.00184075   0.00181407 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.32 using 59 PHA bins.
# Reduced chi-squared =          1.111 for     57 degrees of freedom
# Null hypothesis probability =   2.633432e-01

Photon flux (15-150 keV)    in 1 sec: 2.54847 ( -0.227816  0.22798 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.68902e-07 ( -1.7048e-08  1.72167e-08 ) ergs/cm2

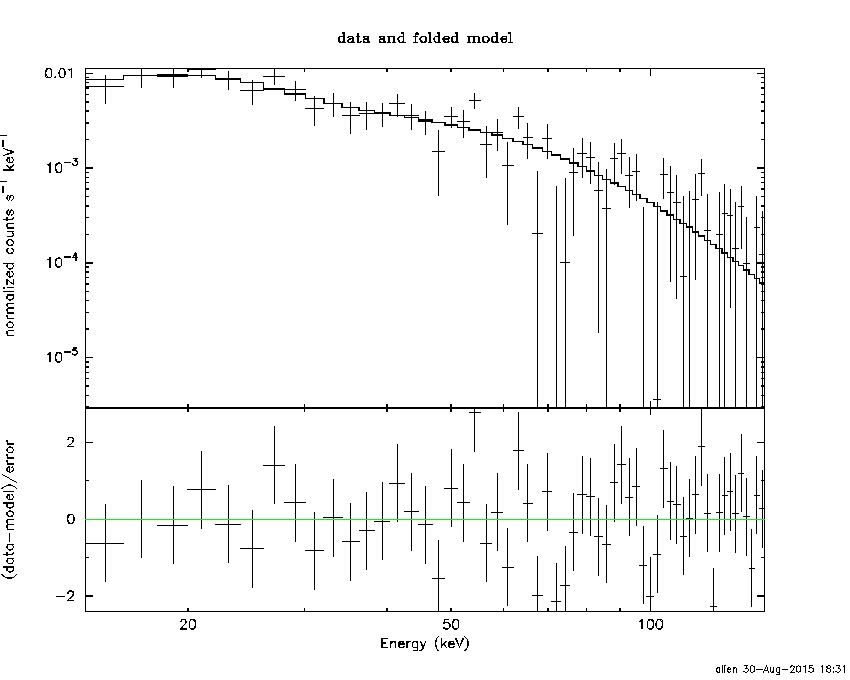

Cutoff power-law model

Time interval is from    9.324 sec. to   10.324 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33124     ( -0.72684   0.573818 )
Epeak [keV] : 61.8843      ( -17.2128 -61.8856 )
Norm@50keV  : 3.40813E-02    ( -0.0165981   0.0513671 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.49 using 59 PHA bins.
# Reduced chi-squared =          1.098 for     56 degrees of freedom
# Null hypothesis probability =   2.860653e-01

Photon flux (15-150 keV)    in 1 sec: 2.50634 ( -0.23493  0.23399 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.62332e-07 ( -1.9154e-08  1.9181e-08 ) ergs/cm2

Band function

Time interval is from    9.324 sec. to   10.324 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.04691   ( 1.04324   5.82398 )
beta        : -2.19083    ( 2.18796   0.43809 )
Epeak [keV] : 50.7572      ( -50.3275 -50.3275 )
Norm@50keV   : 5.12323E-02    ( -0.0523473   1588.94 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.81 using 59 PHA bins.
# Reduced chi-squared =          1.106 for     55 degrees of freedom
# Null hypothesis probability =   2.746048e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.62531e-07 ( -1.62524e-07  -1.8385e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.3956  (-1.14767  1.29935)
R^2/D10^2   : 0.745085  (-0.249057   0.366168)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.51 using 59 PHA bins.
# Reduced chi-squared =          1.518 for     57 degrees of freedom
# Null hypothesis probability =   7.066992e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.034e-08   2.955e-09
25- 50  6.015e-08   6.605e-09
50-150  4.530e-08   9.470e-09
15-150  1.258e-07   1.310e-08

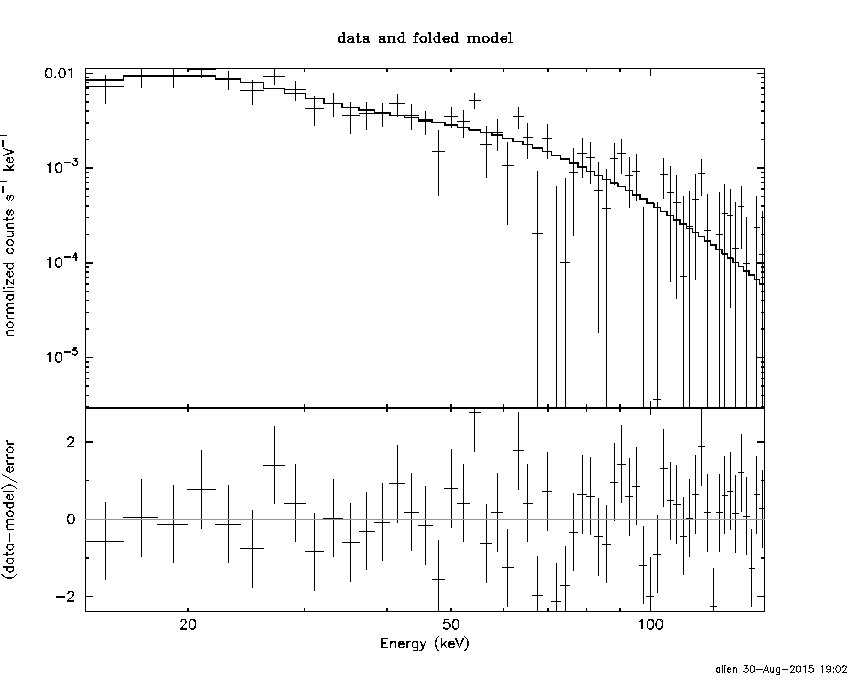

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 96.0306       (-25.679      43.8107)
Norm        : 11.4132       (-1.38271     1.62776)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.45 using 59 PHA bins.
# Reduced chi-squared =          1.078 for     57 degrees of freedom
# Null hypothesis probability =   3.198728e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.982e-08   4.225e-09
25- 50  5.114e-08   5.005e-09
50-150  8.096e-08   3.161e-08
15-150  1.619e-07   3.285e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.60132        (-2.3021      2.58414)
R1^2/D10^2  : 3.80740        (-2.36549      13.0563)
kT2 [keV]   : 21.7637        (-6.90724      26.147)
R2^2/D10^2  : 4.62258E-02    (-0.0409249   0.170391)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.17 using 59 PHA bins.
# Reduced chi-squared =          1.149 for     55 degrees of freedom
# Null hypothesis probability =   2.099985e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.905e-08   9.860e-09
25- 50  5.184e-08   1.962e-08
50-150  7.975e-08   4.304e-08
15-150  1.606e-07   5.777e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.93122     ( -0.147604   0.15226 )
Norm@50keV  : 2.75901E-03    ( -0.000251111   0.00024627 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.52 using 59 PHA bins.
# Reduced chi-squared =         0.9214 for     57 degrees of freedom
# Null hypothesis probability =   6.435753e-01

Photon flux (15-150 keV)    in 39.88 sec: 0.401294 ( -0.030993  0.0310664 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.01206e-06 ( -8.88411e-08  8.98357e-08 ) ergs/cm2

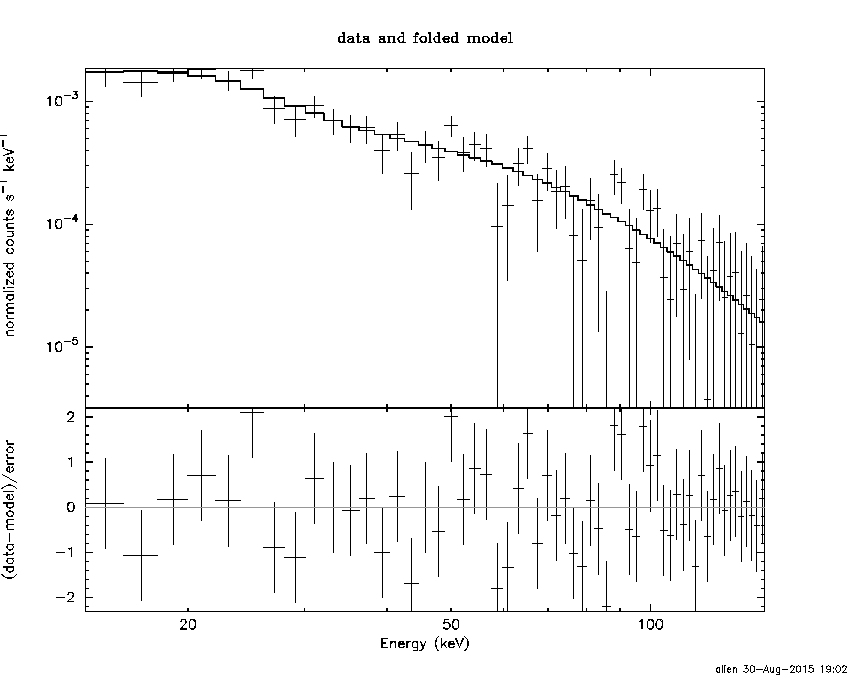

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.07417     ( -0.445555   0.0355918 )
Epeak [keV] : 34.1534      (   )
Norm@50keV  : 2.31131E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.07 using 59 PHA bins.
# Reduced chi-squared =         0.9298 for     56 degrees of freedom
# Null hypothesis probability =   6.245168e-01

Photon flux (15-150 keV)    in 39.88 sec: 0.401141 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.0081e-06 ( -4.34413e-08  9.19473e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.45950   ( 1.4594   6.367 )
beta        : -1.94260    ( 1.94283   0.157329 )
Epeak [keV] : 26.7851      ( -26.2999 -26.2999 )
Norm@50keV   : 6.38574E-03    ( -0.00303949   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.45 using 59 PHA bins.
# Reduced chi-squared =         0.9537 for     55 degrees of freedom
# Null hypothesis probability =   5.724678e-01

Photon flux (15-150 keV)    in 39.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.29e-07
S(50-100 keV) = 9.54e-07

T90 vs. Hardness ratio plot

T90                                   = 408.707999944687 sec.
Hardness ratio (energy fluence ratio) = 1.15078

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.05976
Count Ratio (50-100 keV) / (15-25 keV) = 0.699137

Mask shadow pattern

IMX = -5.088279037210258E-01, IMY = 4.188262261616247E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

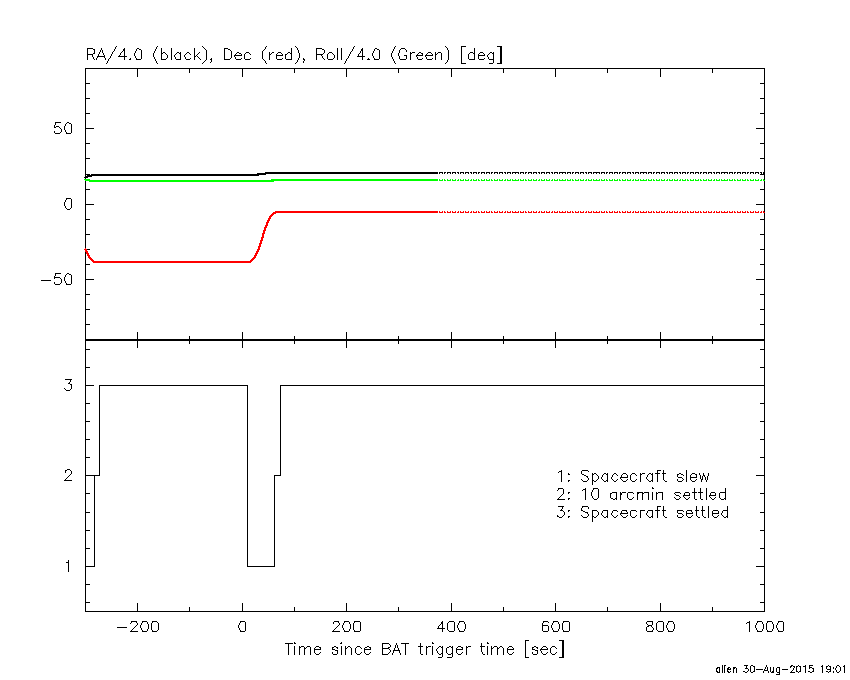

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.584000 -30.160000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5630 -40.5356    2.0  44.4  -39.1   1.8918   5.6    1.9	Vela X-1
103.7777  -3.5790    2.7  42.4 -109.6   3.2363   4.3 ------	UNKNOWN
104.1965  -3.8650    3.3  42.4 -108.8   2.6177   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-30.160000 9.716590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5185 -40.4758    6.7  44.4  -39.2  -0.2534  -1.7    4.8	Vela X-1
 30.2486 -14.1890    2.6  47.8  136.0   1.3534   4.4 ------	UNKNOWN
 37.8865  -2.7494    2.6  50.4  153.8   1.3832   4.5 ------	UNKNOWN
 38.8438   1.9109    2.9  53.5  158.5   1.6034   4.0 ------	UNKNOWN
 59.9911  -7.1825    2.3  34.8  178.0   0.4353   5.0 ------	UNKNOWN
 82.9607  -5.3753    0.6  33.4 -140.5   1.8318  20.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
62.716580 962.459200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6294  22.0118    0.2  27.4 -151.4  36.0501  57.1    0.3	Crab
135.5623 -40.5534    5.5  58.6  -17.8   7.2764   2.1    1.5	Vela X-1
 62.5719 -48.5928    3.8  46.5   45.7   7.4909   3.0 ------	UNKNOWN
 57.6185 -30.7269    3.4  34.7   67.4   4.7678   3.4 ------	UNKNOWN
 69.4350   7.9832    3.0  19.0  161.9   2.3438   3.9 ------	UNKNOWN
 82.9365  -5.4220    2.0   0.0   65.1   3.4084   5.8 ------	UNKNOWN

Plot creation:
Sun Aug 30 19:03:21 EDT 2015
