batgrbproduct analysis for trigger=654803

batgrbproduct Analysis for Trigger=654803

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Sep 29 19:37:24 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger654803
======================================================================

  Trigger: 00654803      Segment: 000

  BAT Trigger Time: 463361202.88   [s; MET]
      Trigger Stop: 463361203.904   [s; MET]
               UTC: 2015-09-07T23:26:27.776600    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 255.21911343847   Dec: -63.8189835807845  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.04
     Image Trigger?:     NO
     Rate S/N Ratio:     11.13552872566  [ if not an image trigger ]
     Image S/N Ratio:    7.04

  Flight Position:   [ source = BAT ]
    RA: 255.21911343847   Dec: -63.8189835807845  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 255.265059044636   Dec: -63.7972546017738  [deg; J2000]
        { 17h 01m 03.6s , -63d 47' 50.1" }
         +/- 1.79607775809772 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.798249588095392 [arcmin] (formal 1-sigma fit error)
    SNR: 13.1763996514911

  Angular difference between Flight and Ground position is 1.783326 arcmin

  Partial Coding Fraction: 0.5078125    [ including projection effects ]

  Duration
     T90: 62.0199999213219 +/- 11.1246394732101
        Measured from: -0.643999993801117
                   to: 61.3759999275208     [s; relative to TRIGTIME]
     T50: 31.6439999341965 +/- 9.6358383082612
        Measured from: 3.68400001525879
                   to: 35.3279999494553     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.592000007629395
                   to: 1.59200000762939     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.47600001096725
                   to: 64.5239999890327     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.347261   0.822605   0.537137   0.088839
           0.068111   0.071243   0.063719   0.060416 [error]
 Peak      0.012237   0.047377   0.045141   0.016828
           0.008692   0.009293   0.008819   0.007863 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.61e-07 3.02e-07 4.36e-07 1.34e-06 1.24e-06 2.24e-06   erg/cm2
              Error 2.91e-08 3.44e-08 6.23e-08 4.01e-07 1.53e-07 4.52e-07   erg/cm2
Peak flux Power-law 1.99e-01 2.87e-01 3.07e-01 6.12e-01 9.83e-01 1.40e+00   ph/cm2/s
              Error 9.50e-02 8.45e-02 6.76e-02 2.98e-01 2.23e-01 3.29e-01   ph/cm2/s

Fluence   Cutoff-PL 1.32e-07 3.44e-07 4.55e-07 2.76e-07 1.12e-06 1.21e-06   erg/cm2
              Error 3.51e-08 4.66e-08 7.39e-08 3.21e-07 1.71e-07 3.57e-07   erg/cm2
Peak flux Cutoff-PL 1.78e-01 2.92e-01 3.23e-01 4.15e-01 9.69e-01 1.21e+00   ph/cm2/s
              Error 1.13e-01 9.13e-02 8.60e-02 3.53e-01 2.28e-01 4.50e-01   ph/cm2/s

Fluence        Band 1.24e-07 3.55e-07 4.32e-07 6.42e-07 1.14e-06 1.56e-06   erg/cm2
              Error -------- -------- -------- -------- -------- 5.63e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.470    0.183    -      -           1.97e-03 2.20e-04   59.660 57
CPL   0.160    1.029      67.6   29.7      9.35e-03 1.81e-02   53.050 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.900    0.386    -      -           8.56e-03 1.94e-03   56.800 57
CPL   0.491    0.756     217.7    0.0      1.29e-02 3.81e-02   56.590 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 100.096000 sec.
T50 in the 50-300 keV band: 64.448000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   66.000   -1.476   64.524
T90    62.020   -0.644   61.376
T50    31.644    3.684   35.328
Peak    1.000    0.592    1.592

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  255.2651   -63.7973   0.0146    32.5188   -56.6097         2.0201033     13.176 TRIG_00654803

Foreground time interval of the image:
 -1.476  64.524 (delta_t =  66.000 [sec])
Background time interval of the image:
-172.379  -1.476 (delta_t = 170.903 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

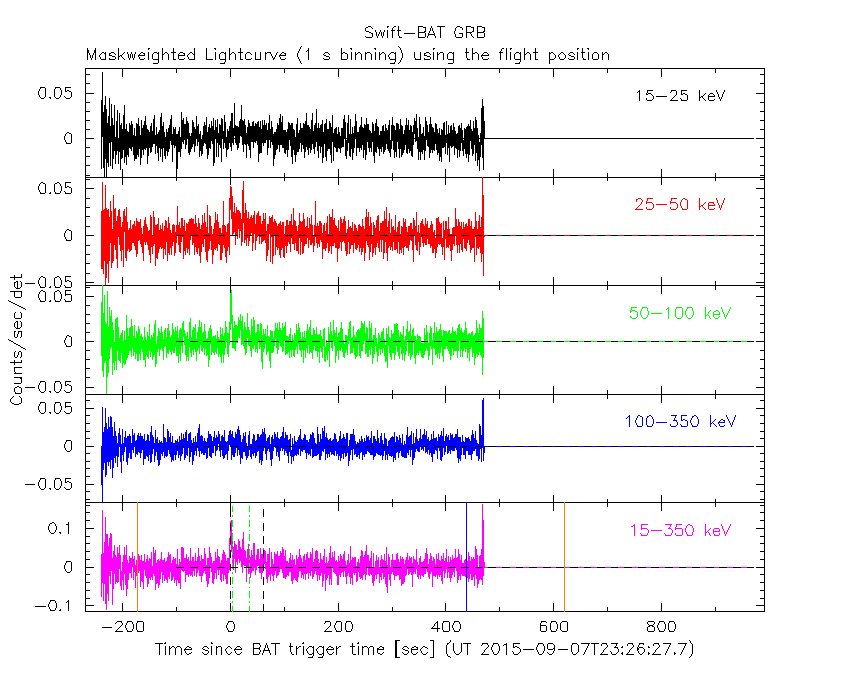

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -1.476 sec. to   64.524 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.46989     ( -0.181739   0.183292 )
Norm@50keV  : 1.97052E-03    ( -0.000220926   0.000219898 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.66 using 59 PHA bins.
# Reduced chi-squared =          1.047 for     57 degrees of freedom
# Null hypothesis probability =   3.793283e-01

Photon flux (15-150 keV)    in 66 sec: 0.244061 ( -0.0269976  0.0270367 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24009e-06 ( -1.51751e-07  1.53619e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -1.476 sec. to   64.524 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.159907     ( -1.15323   0.905396 )
Epeak [keV] : 67.5790      ( -13.2616 46.1207 )
Norm@50keV  : 9.34685E-03    ( -0.00934716   0.0268954 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.05 using 59 PHA bins.
# Reduced chi-squared =         0.9474 for     56 degrees of freedom
# Null hypothesis probability =   5.871520e-01

Photon flux (15-150 keV)    in 66 sec: 0.230807 ( -0.028526  0.028521 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.11529e-06 ( -1.67297e-07  1.74365e-07 ) ergs/cm2

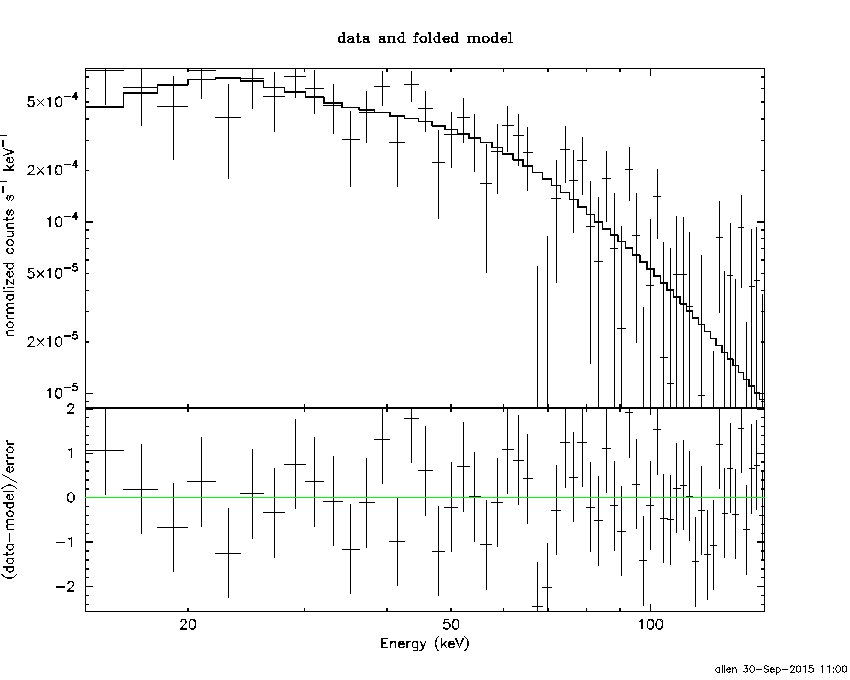

Band function

Time interval is from   -1.476 sec. to   64.524 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.276704   ( -1.27599   3.63326 )
beta        : -2.21274    ( 2.21595   0.593666 )
Epeak [keV] : 57.8218      ( -20.3328 45.2521 )
Norm@50keV   : 1.72690E-02    ( -0.0189199   4.21995 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.51 using 59 PHA bins.
# Reduced chi-squared =         0.9547 for     55 degrees of freedom
# Null hypothesis probability =   5.703444e-01

Photon flux (15-150 keV)    in 66 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.14022e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.4116  (-1.63537  1.91116)
R^2/D10^2   : 3.31446E-02  (-0.0118937   0.0177436)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.22 using 59 PHA bins.
# Reduced chi-squared =          1.021 for     57 degrees of freedom
# Null hypothesis probability =   4.301409e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.567e-08   1.944e-08
25- 50  3.661e-07   5.976e-08
50-150  5.079e-07   1.134e-07
15-150  9.696e-07   1.399e-07

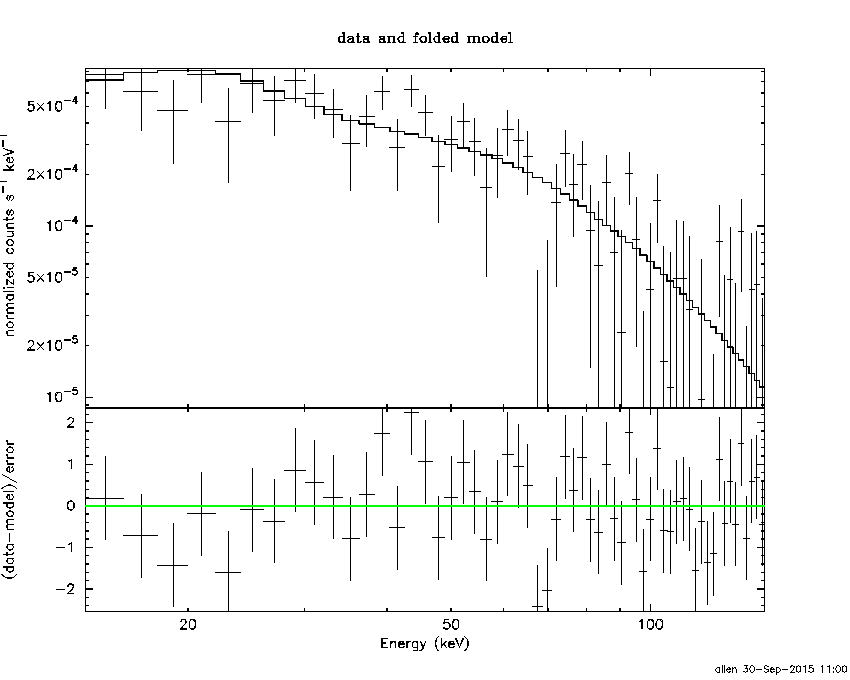

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-71.4876      -199.363)
Norm        : 1.00670       (-0.108947     0.108955)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.29 using 59 PHA bins.
# Reduced chi-squared =          1.005 for     57 degrees of freedom
# Null hypothesis probability =   4.644430e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.654e-07   9.134e-08
25- 50  3.183e-07   1.740e-07
50-150  6.980e-07   3.808e-07
15-150  1.182e-06   6.295e-07

Double BB

------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.97 using 59 PHA bins.
#Fit statistic : Chi-Squared =          54.18 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.78 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.76 using 59 PHA bins.
# Reduced chi-squared =         0.9994 for     55 degrees of freedom
# Reduced chi-squared =         0.9850 for     55 degrees of freedom
# Reduced chi-squared =         0.9597 for     55 degrees of freedom
# Reduced chi-squared =         0.9594 for     55 degrees of freedom
# Null hypothesis probability =   4.759536e-01
# Null hypothesis probability =   5.060539e-01
# Null hypothesis probability =   5.597286e-01
# Null hypothesis probability =   5.605032e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.165e-07   2.676e-08
25- 50  3.482e-07   6.475e-08
50-150  5.354e-07   1.244e-07
15-150  1.000e-06   1.640e-07

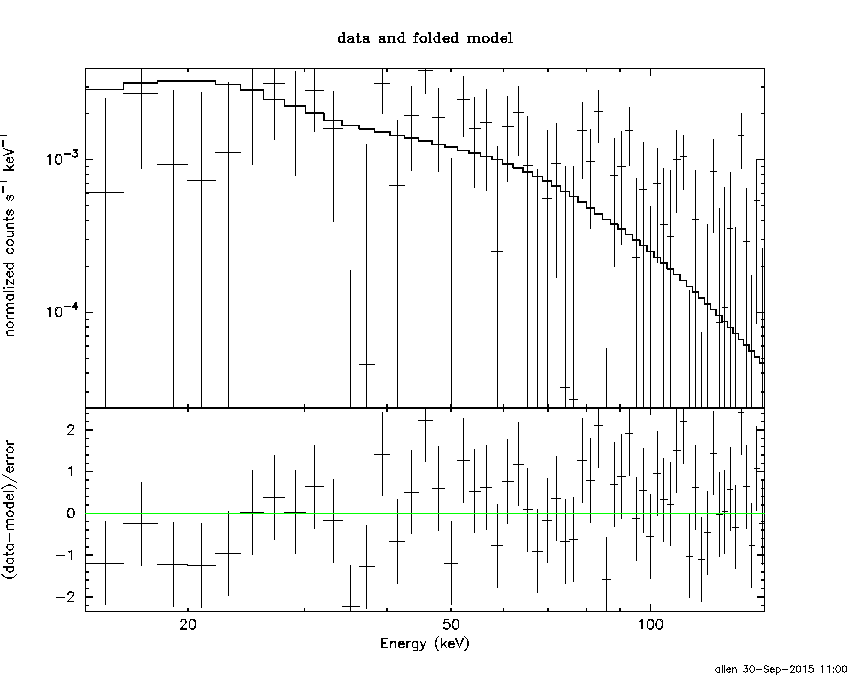

Peak spectrum fit

Power-law model

Time interval is from    0.592 sec. to    1.592 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.900447     ( -0.405687   0.366669 )
Norm@50keV  : 8.56152E-03    ( -0.00196599   0.00191471 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.80 using 59 PHA bins.
# Reduced chi-squared =         0.9966 for     57 degrees of freedom
# Null hypothesis probability =   4.823938e-01

Photon flux (15-150 keV)    in 1 sec: 0.982668 ( -0.221548  0.22356 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.60688e-08 ( -2.14239e-08  2.15631e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.592 sec. to    1.592 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.490996     ( -2.00217   -0.491062 )
Epeak [keV] : 217.689      ( -217.72 -217.72 )
Norm@50keV  : 1.28935E-02    ( -0.00605636   0.0702131 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.59 using 59 PHA bins.
# Reduced chi-squared =          1.010 for     56 degrees of freedom
# Null hypothesis probability =   4.529759e-01

Photon flux (15-150 keV)    in 1 sec: 0.968636 ( -0.227185  0.228954 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.46184e-08 ( -2.29377e-08  2.22966e-08 ) ergs/cm2

Band function

Time interval is from    0.592 sec. to    1.592 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99997   ( -4.99997   -4.99997 )
beta        : -1.04989    ( -0.497677   0.473643 )
Epeak [keV] : 35.9157      ( -35.9157 22.7599 )
Norm@50keV   : 69.7064    ( -14.7369   1.92788e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.20 using 59 PHA bins.
# Reduced chi-squared =          1.022 for     55 degrees of freedom
# Null hypothesis probability =   4.295385e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.6937  (-5.96456  9.79693)
R^2/D10^2   : 2.87682E-02  (-0.0187207   0.043532)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.10 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     57 degrees of freedom
# Null hypothesis probability =   3.988012e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.884e-09   1.424e-09
25- 50  1.591e-08   7.163e-09
50-150  6.660e-08   2.815e-08
15-150  8.540e-08   3.372e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-58.5835      -200)
Norm        : 4.05482       (-0.928544     0.928544)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.06 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     57 degrees of freedom
# Null hypothesis probability =   2.164856e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.010e-08   6.150e-09
25- 50  1.944e-08   1.162e-08
50-150  4.263e-08   2.498e-08
15-150  7.217e-08   4.178e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 61.6222        (-62.205      -62.2051)
R1^2/D10^2  : 1.44720E-03        (-0.000581953      0.0265466)
kT2 [keV]   : 12.8197        (-10.5977      -12.9947)
R2^2/D10^2  : 0.125350    (-0.11011   33.7311)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.31 using 59 PHA bins.
#Fit statistic : Chi-Squared =          56.08 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     55 degrees of freedom
# Reduced chi-squared =          1.020 for     55 degrees of freedom
# Null hypothesis probability =   4.254999e-01
# Null hypothesis probability =   4.340918e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.971e-09   3.138e-09
25- 50  1.795e-08   1.133e-08
50-150  6.784e-08   3.869e-08
15-150  9.076e-08   4.907e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.46989     ( -0.181739   0.183292 )
Norm@50keV  : 1.97052E-03    ( -0.000220926   0.000219898 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.66 using 59 PHA bins.
# Reduced chi-squared =          1.047 for     57 degrees of freedom
# Null hypothesis probability =   3.793283e-01

Photon flux (15-150 keV)    in 66 sec: 0.244061 ( -0.0269976  0.0270367 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24009e-06 ( -1.51751e-07  1.53619e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.159907     ( -1.15323   0.905396 )
Epeak [keV] : 67.5790      ( -13.2616 46.1207 )
Norm@50keV  : 9.34685E-03    ( -0.00934716   0.0268954 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.05 using 59 PHA bins.
# Reduced chi-squared =         0.9474 for     56 degrees of freedom
# Null hypothesis probability =   5.871520e-01

Photon flux (15-150 keV)    in 66 sec: 0.230807 ( -0.028526  0.028521 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.11529e-06 ( -1.67297e-07  1.74365e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.276704   ( -1.27599   3.63326 )
beta        : -2.21274    ( 2.21595   0.593666 )
Epeak [keV] : 57.8218      ( -20.3328 45.2521 )
Norm@50keV   : 1.72690E-02    ( -0.0189199   4.21995 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.51 using 59 PHA bins.
# Reduced chi-squared =         0.9547 for     55 degrees of freedom
# Null hypothesis probability =   5.703444e-01

Photon flux (15-150 keV)    in 66 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.14022e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.02e-07
S(50-100 keV) = 4.36e-07

T90 vs. Hardness ratio plot

T90                                   = 62.0199999213219 sec.
Hardness ratio (energy fluence ratio) = 1.44371

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.36884
Count Ratio (50-100 keV) / (15-25 keV) = 1.54678

Mask shadow pattern

IMX = 3.508595748589869E-01, IMY = 5.323017757531378E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-172.379400 -1.476000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
256.0457 -37.8244    1.7  50.2  -27.0   2.8065   6.7    3.0	4U 1700-377
256.4019 -36.4897    4.4  51.1  -25.6   1.1441   2.6    4.3	GX 349+2
263.0126 -24.7435   64.9  57.7  -11.8   0.1631   0.2    0.2	GX 1+4
264.5630 -44.4116   17.8  41.0  -25.8  -0.1746  -0.6    8.0	4U 1735-44
270.2943 -24.9824    9.7  54.1   -5.1  -0.6381  -1.2    5.8	GX 5-1
270.2563 -25.6619    8.0  53.5   -5.6   0.7157   1.4    5.5	GRS 1758-258
275.8926 -30.4063    6.9  46.9   -3.3   0.5867   1.7    2.9	H1820-303
285.0643 -25.0827    5.1  47.5    9.9   0.9171   2.2    9.9	HT1900.1-2455
263.1007 -33.7591   48.8  50.1  -17.8   0.0874   0.2    7.2	GX 354-0
315.7945 -18.0757    2.3  44.7   50.9   3.6733   5.0 ------	UNKNOWN
 42.6830 -33.6637    2.4  52.5  163.8   3.7937   4.8 ------	UNKNOWN
314.4113 -39.9764    2.7  23.7   39.2   0.8967   4.3 ------	UNKNOWN
 56.8636 -36.3991    2.8  56.9  177.3   4.9134   4.1 ------	UNKNOWN
271.2885 -21.1976    2.8  56.9   -1.9   3.5728   4.1 ------	UNKNOWN
 85.0215 -67.7228    2.8  42.3 -139.9   1.3215   4.2 ------	UNKNOWN
 93.3797 -54.7704    4.4  55.3 -145.2   3.1337   2.6 ------	UNKNOWN
118.1173 -70.5013    2.4  46.0 -123.5   3.8284   4.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.476000 64.524000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9614 -37.8961    5.3  50.1  -27.1  -0.6017  -2.2    3.3	4U 1700-377
256.3006 -36.4814    8.2  51.1  -25.7  -0.4178  -1.4    7.4	GX 349+2
262.9299 -24.8254    5.8  57.7  -11.9   1.1023   2.0    6.4	GX 1+4
264.6607 -44.3186    3.8  41.0  -25.6   0.5106   3.1    8.6	4U 1735-44
270.3209 -25.0233    3.6  54.1   -5.1   1.2355   3.2    3.9	GX 5-1
270.2516 -25.7466   30.8  53.5   -5.6   0.1293   0.4    2.8	GRS 1758-258
276.0090 -30.2846   24.1  47.0   -3.1   0.1000   0.5    6.6	H1820-303
285.0305 -24.7613    7.3  47.8   10.1  -0.4149  -1.6    9.6	HT1900.1-2455
262.8763 -33.9062    6.1  50.1  -18.1   0.4608   1.9    7.1	GX 354-0
304.6670 -37.9570    2.5  28.5   25.0   0.6302   4.6 ------	UNKNOWN
267.7415 -24.9755    2.5  55.3   -7.6   1.7626   4.6 ------	UNKNOWN
 58.6372 -68.2760    2.3  34.6 -149.8   0.6650   5.0 ------	UNKNOWN
277.8179 -75.8608    2.5  22.5  -78.7   0.5816   4.7 ------	UNKNOWN
255.2651 -63.7973    0.9  32.5  -56.6   2.0193  13.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
620.320600 962.255300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4967  35.3723   10.4  54.5 -150.5  -1.5011  -1.1    2.6	Her X-1
299.5926  35.1714    1.0  33.9  164.7   4.8975  11.5    1.8	Cyg X-1
308.1014  40.9328    1.9  25.6  158.5   2.1008   6.0    1.3	Cyg X-3
326.1862  38.2804    4.7  23.5  124.4   0.8349   2.5    2.6	Cyg X-2
356.3466  25.1285    4.5  39.3   76.0   2.9782   2.5 ------	UNKNOWN
301.6755  17.8963    2.7  49.0  151.4   4.6047   4.2 ------	UNKNOWN
 43.0256  31.0704    2.7  53.2   20.5   5.7564   4.2 ------	UNKNOWN
 27.6611  41.3712    3.1  37.6   25.9   1.7505   3.7 ------	UNKNOWN
284.0790  27.3255    3.3  47.3  176.5   2.3481   3.5 ------	UNKNOWN
 53.7404  53.1727    1.1  41.2   -7.2   4.6914  10.8 ------	UNKNOWN
250.4099  72.8963    3.3  31.3 -105.1   1.5009   3.5 ------	UNKNOWN
256.0595  28.6277    3.4  59.4 -156.4   8.8333   3.4 ------	UNKNOWN
249.4863  37.2688    6.0  55.3 -145.2   4.1193   1.9 ------	UNKNOWN
105.6046  62.8441    3.5  50.6  -44.7   5.3772   3.3 ------	UNKNOWN
241.8838  50.6772    3.1  48.1 -129.2   4.9038   3.8 ------	UNKNOWN

Plot creation:
Wed Sep 30 11:01:19 EDT 2015
