batgrbproduct analysis for trigger=664078

batgrbproduct Analysis for Trigger=664078

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Dec 13 15:52:37 EST 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger664078
======================================================================

  Trigger: 00664078      Segment: 000

  BAT Trigger Time: 469508805.44   [s; MET]
      Trigger Stop: 469508805.952   [s; MET]
               UTC: 2015-11-18T03:06:30.010020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 57.1581445545425   Dec: 65.8686019549024  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.82
     Image Trigger?:     NO
     Rate S/N Ratio:     11.916375287813  [ if not an image trigger ]
     Image S/N Ratio:    7.82

  Flight Position:   [ source = BAT ]
    RA: 57.1581445545425   Dec: 65.8686019549024  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 57.1709843798993   Dec: 65.8888600983408  [deg; J2000]
        { 03h 48m 41.0s , +65d 53' 19.9" }
         +/- 1.41353296197743 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.584449960780996 [arcmin] (formal 1-sigma fit error)
    SNR: 18.5522081488074

  Angular difference between Flight and Ground position is 1.255601 arcmin

  Partial Coding Fraction: 0.984375    [ including projection effects ]

  Duration
     T90: 23.5680000185966 +/- 10.6794936132401
        Measured from: 0.319999992847443
                   to: 23.8880000114441     [s; relative to TRIGTIME]
     T50: 5.60000002384186 +/- 2.98450397535287
        Measured from: 4.11199998855591
                   to: 9.71200001239777     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 6.69200003147125
                   to: 7.69200003147125     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.015999972820282
                   to: 30.8159999847412     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.245370   0.352183   0.209007   0.023798
           0.029954   0.031131   0.026878   0.023260 [error]
 Peak      0.043388   0.069401   0.034997   0.005486
           0.005957   0.006511   0.005582   0.004549 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.92e-08 1.28e-07 1.57e-07 3.79e-07 4.71e-07 7.42e-07   erg/cm2
              Error 1.27e-08 1.37e-08 2.58e-08 1.27e-07 6.06e-08 1.52e-07   erg/cm2
Peak flux Power-law 4.70e-01 4.28e-01 2.68e-01 2.58e-01 1.27e+00 1.42e+00   ph/cm2/s
              Error 8.16e-02 4.97e-02 4.47e-02 8.29e-02 1.47e-01 1.69e-01   ph/cm2/s

Fluence   Cutoff-PL 7.61e-08 1.35e-07 1.56e-07 1.78e-07 4.50e-07 5.45e-07   erg/cm2
              Error 1.39e-08 1.86e-08 2.83e-08 1.82e-07 7.12e-08 2.05e-07   erg/cm2
Peak flux Cutoff-PL 4.26e-01 4.76e-01 2.73e-01 8.69e-02 1.24e+00 1.26e+00   ph/cm2/s
              Error 9.19e-02 6.94e-02 5.27e-02 1.05e-01 1.51e-01 1.78e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.707    0.191    -      -           1.66e-03 2.01e-04   49.680 57
CPL   1.280    0.639      73.4  -26.6      2.89e-03 3.92e-03   48.710 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.671    0.197    -      -           9.69e-03 1.25e-03   65.030 57
CPL   0.756    0.972      59.6   82.1      3.16e-02 6.72e-02   61.590 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 9.344000 sec.
T50 in the 50-300 keV band: 6.272000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   30.800    0.016   30.816
T90    23.568    0.320   23.888
T50     5.600    4.112    9.712
Peak    1.000    6.692    7.692

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   57.1710    65.8889   0.0103    15.8922    12.6464         0.7043404     18.552 TRIG_00664078

Foreground time interval of the image:
  0.016  11.061 (delta_t =  11.045 [sec])
Background time interval of the image:
-239.440   0.016 (delta_t = 239.456 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.016 sec. to   30.816 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.70705     ( -0.187894   0.193742 )
Norm@50keV  : 1.65536E-03    ( -0.000202466   0.000198958 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.68 using 59 PHA bins.
# Reduced chi-squared =         0.8715 for     57 degrees of freedom
# Null hypothesis probability =   7.435738e-01

Photon flux (15-150 keV)    in 30.8 sec: 0.220404 ( -0.023554  0.023559 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.71868e-07 ( -6.00736e-08  6.12098e-08 ) ergs/cm2

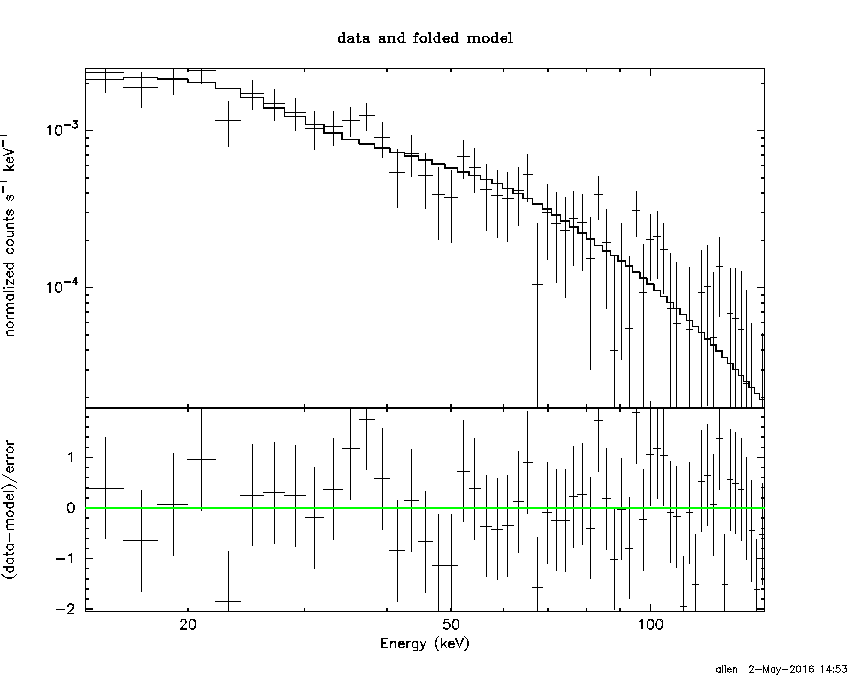

Cutoff power-law model

Time interval is from    0.016 sec. to   30.816 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27968     ( -0.886019   0.391721 )
Epeak [keV] : 73.3883      ( -20.2481 -73.3895 )
Norm@50keV  : 2.88540E-03    ( -0.00155845   0.00628865 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.71 using 59 PHA bins.
# Reduced chi-squared =         0.8698 for     56 degrees of freedom
# Null hypothesis probability =   7.445537e-01

Photon flux (15-150 keV)    in 30.8 sec: 0.216772 ( -0.024402  0.024363 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.49458e-07 ( -7.05967e-08  7.17973e-08 ) ergs/cm2

Band function

Time interval is from    0.016 sec. to   30.816 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.37477   ( -2.904   -0.155573 )
beta        : -1.98660    ( 1.97608   0.329632 )
Epeak [keV] : 32.5291      ( -17.294 114.382 )
Norm@50keV   : 0.211779    ( -0.204594   52.8196 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.34 using 59 PHA bins.
# Reduced chi-squared =         0.8425 for     55 degrees of freedom
# Null hypothesis probability =   7.908258e-01

Photon flux (15-150 keV)    in 30.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.0326  (-1.42078  1.70668)
R^2/D10^2   : 7.27005E-02  (-0.0299871   0.0485578)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.74 using 59 PHA bins.
# Reduced chi-squared =          1.153 for     57 degrees of freedom
# Null hypothesis probability =   1.999986e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.698e-08   1.032e-08
25- 50  1.617e-07   2.304e-08
50-150  1.115e-07   2.869e-08
15-150  3.302e-07   4.481e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 120.003       (-43.4875      -118.993)
Norm        : 0.938055       (-0.119899     0.155135)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.66 using 59 PHA bins.
# Reduced chi-squared =         0.8536 for     57 degrees of freedom
# Null hypothesis probability =   7.763112e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.525e-08   1.046e-08
25- 50  1.346e-07   3.088e-08
50-150  2.403e-07   1.127e-07
15-150  4.501e-07   1.404e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.35728        (-1.651      1.81868)
R1^2/D10^2  : 0.243506        (-0.124983      0.310845)
kT2 [keV]   : 28.7753        (-10.1466      40.1463)
R2^2/D10^2  : 1.49019E-03    (-0.00138755   0.00591171)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.64 using 59 PHA bins.
# Reduced chi-squared =         0.8298 for     55 degrees of freedom
# Null hypothesis probability =   8.116909e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.458e-08   3.452e-08
25- 50  1.400e-07   6.295e-08
50-150  2.398e-07   1.321e-07
15-150  4.545e-07   2.216e-07

Peak spectrum fit

Power-law model

Time interval is from    6.692 sec. to    7.692 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67134     ( -0.193129   0.200448 )
Norm@50keV  : 9.68792E-03    ( -0.00126216   0.00124193 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.03 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     57 degrees of freedom
# Null hypothesis probability =   2.172657e-01

Photon flux (15-150 keV)    in 1 sec: 1.27410 ( -0.14721  0.14724 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.99311e-08 ( -1.22939e-08  1.25114e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    6.692 sec. to    7.692 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.756216     ( -1.09916   0.84582 )
Epeak [keV] : 59.5961      ( -14.5435 149.581 )
Norm@50keV  : 3.15849E-02    ( -0.0315854   0.102726 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.59 using 59 PHA bins.
# Reduced chi-squared =          1.100 for     56 degrees of freedom
# Null hypothesis probability =   2.830847e-01

Photon flux (15-150 keV)    in 1 sec: 1.23740 ( -0.15096  0.15109 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.23323e-08 ( -1.37945e-08  1.43062e-08 ) ergs/cm2

Band function

Time interval is from    6.692 sec. to    7.692 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.848893   ( -0.644306   0.717552 )
beta        : -2.14278    ( 9.99936   19.9994 )
Epeak [keV] : 39.1705      ( -11.7105 28.2092 )
Norm@50keV   : 0.377126    ( -0.403394   176.604 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.08 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     55 degrees of freedom
# Null hypothesis probability =   3.287581e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.4584  (-1.45244  1.73571)
R^2/D10^2   : 0.379602  (-0.153179   0.243245)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.60 using 59 PHA bins.
# Reduced chi-squared =          1.239 for     57 degrees of freedom
# Null hypothesis probability =   1.064300e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.049e-08   2.156e-09
25- 50  3.122e-08   4.655e-09
50-150  2.387e-08   6.390e-09
15-150  6.557e-08   1.035e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 129.210       (-48.9862      -127.195)
Norm        : 5.38153       (-0.673429     0.908519)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.52 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     57 degrees of freedom
# Null hypothesis probability =   2.866172e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.397e-08   2.718e-09
25- 50  2.530e-08   7.400e-09
50-150  4.678e-08   2.737e-08
15-150  8.605e-08   3.328e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.17541        (-2.02182      2.10867)
R1^2/D10^2  : 0.966022        (-0.487835      1.26139)
kT2 [keV]   : 28.0176        (-21.8438      63.0618)
R2^2/D10^2  : 8.88447E-03    (-0.00855772   0.0499547)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.72 using 59 PHA bins.
# Reduced chi-squared =          1.068 for     55 degrees of freedom
# Null hypothesis probability =   3.407196e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.300e-08   5.591e-09
25- 50  2.836e-08   1.322e-08
50-150  4.473e-08   2.450e-08
15-150  8.609e-08   4.000e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73751     ( -0.157972   0.162486 )
Norm@50keV  : 3.67867E-03    ( -0.000360772   0.000354776 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.45 using 59 PHA bins.
# Reduced chi-squared =         0.7974 for     57 degrees of freedom
# Null hypothesis probability =   8.645199e-01

Photon flux (15-150 keV)    in 11.04 sec: 0.495147 ( -0.0425989  0.0426292 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.75028e-07 ( -3.8092e-08  3.86349e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.65671     ( -0.621837   0.240389 )
Epeak [keV] : 180.871      (   )
Norm@50keV  : 4.06875E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.40 using 59 PHA bins.
# Reduced chi-squared =         0.8107 for     56 degrees of freedom
# Null hypothesis probability =   8.435269e-01

Photon flux (15-150 keV)    in 11.04 sec: 0.493315 ( -0.044357  0.022197 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.72204e-07 ( -4.3693e-08  4.09054e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.32139   ( 1.44467   1.44467 )
beta        : -1.80127    ( 1.79319   0.205271 )
Epeak [keV] : 55.8046      ( -56.4481 -56.4481 )
Norm@50keV   : 6.74753E-03    ( -0.00342233   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.13 using 59 PHA bins.
# Reduced chi-squared =         0.8206 for     55 degrees of freedom
# Null hypothesis probability =   8.261442e-01

Photon flux (15-150 keV)    in 11.04 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.28e-07
S(50-100 keV) = 1.57e-07

T90 vs. Hardness ratio plot

T90                                   = 23.5680000185966 sec.
Hardness ratio (energy fluence ratio) = 1.22656

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.43531
Count Ratio (50-100 keV) / (15-25 keV) = 0.851803

Mask shadow pattern

IMX = 2.778035389612715E-01, IMY = -6.233258369100032E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.440000 0.016000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
308.1345  40.8853    4.6  46.1 -136.8   1.4287   2.5    4.2	Cyg X-3
326.2672  38.4518  582.1  40.1 -155.7  -0.0072  -0.0    9.0	Cyg X-2
  5.6792  29.9108    2.7  34.9  148.6   1.5846   4.2 ------	UNKNOWN
322.0381  36.1673    2.6  43.9 -153.3   1.6937   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.016000 11.060590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
308.0467  40.9155    3.9  46.1 -136.7   0.2937   3.0    3.6	Cyg X-3
326.0221  38.4022   42.8  40.3 -155.5  -0.0148  -0.3    8.5	Cyg X-2
353.3886  16.2812    2.8  50.8  160.4   0.5413   4.1 ------	UNKNOWN
 57.1709  65.8888    0.6  15.9   12.6   0.7043  18.6 ------	UNKNOWN
338.6197  48.6469    2.0  26.6 -157.6   0.2123   5.8 ------	UNKNOWN
149.1559  71.0244    1.9  40.9  -30.3   0.3556   6.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
50.260610 962.730000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.1202  38.3218    5.5  55.9 -166.3 -16.7546  -2.1    2.4	Cyg X-2
 74.8019  55.2524    3.0  13.6   37.7   7.1598   3.8 ------	UNKNOWN
317.7181  38.7658    3.7  58.7 -159.2  36.5031   3.2 ------	UNKNOWN

Plot creation:
Mon May  2 14:54:27 EDT 2016
