Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
229.2881 35.7679 0.0098 14.6841 143.3463 1.7741094 19.492 TRIG_00666352
Foreground time interval of the image:
-11.448 40.453 (delta_t = 51.901 [sec])
Background time interval of the image:
-255.747 -11.448 (delta_t = 244.299 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.

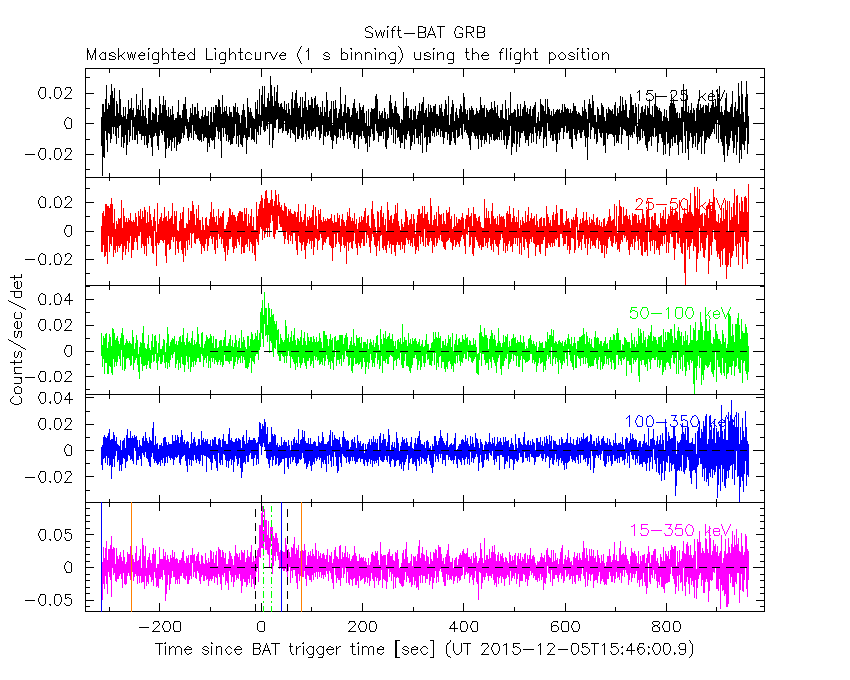

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -11.448 sec. to 68.552 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.09545 ( -0.134444 0.132462 )
Norm@50keV : 1.72212E-03 ( -0.000130023 0.000129849 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.78 using 59 PHA bins.
# Reduced chi-squared = 0.9260 for 57 degrees of freedom
# Null hypothesis probability = 6.338931e-01
Photon flux (15-150 keV) in 80 sec: 0.199667 ( -0.015495 0.015526 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.44268e-06 ( -1.19162e-07 1.19928e-07 ) ergs/cm2
Cutoff power-law model
Time interval is from -11.448 sec. to 68.552 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.468097 ( -0.63255 0.544967 )
Epeak [keV] : 139.902 ( -42.8143 436.083 )
Norm@50keV : 3.26087E-03 ( -0.0013611 0.00272283 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 48.85 using 59 PHA bins.
# Reduced chi-squared = 0.8723 for 56 degrees of freedom
# Null hypothesis probability = 7.399854e-01
Photon flux (15-150 keV) in 80 sec: 0.193450 ( -0.016514 0.016428 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.39557e-06 ( -1.2739e-07 1.27538e-07 ) ergs/cm2

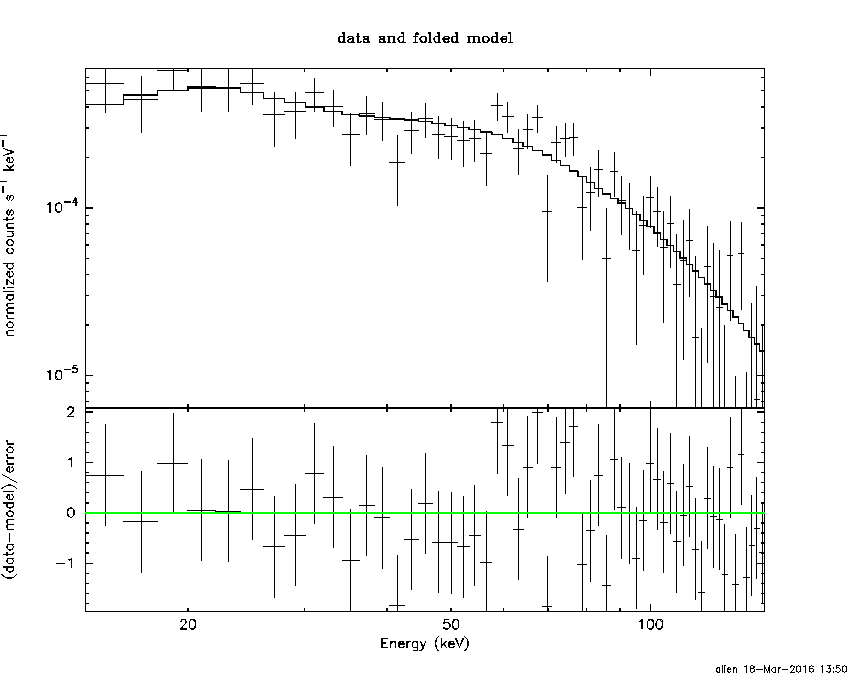

Band function
Time interval is from -11.448 sec. to 68.552 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.468438 ( -0.355244 0.589086 )
beta : -10.0000 ( 10 7.10543e-15 )
Epeak [keV] : 139.979 ( -42.8908 438.831 )
Norm@50keV : 3.25898E-03 ( -0.00135955 0.00272461 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 48.85 using 59 PHA bins.
# Reduced chi-squared = 0.8881 for 55 degrees of freedom
# Null hypothesis probability = 7.074177e-01
Photon flux (15-150 keV) in 80 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 21.2463 (-1.9478 2.22373)
R^2/D10^2 : 7.83345E-03 (-0.00213485 0.0028489)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 65.33 using 59 PHA bins.
# Reduced chi-squared = 1.146 for 57 degrees of freedom
# Null hypothesis probability = 2.097996e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.318e-08 8.664e-09
25- 50 2.753e-07 3.092e-08
50-150 9.271e-07 1.178e-07
15-150 1.256e-06 1.180e-07

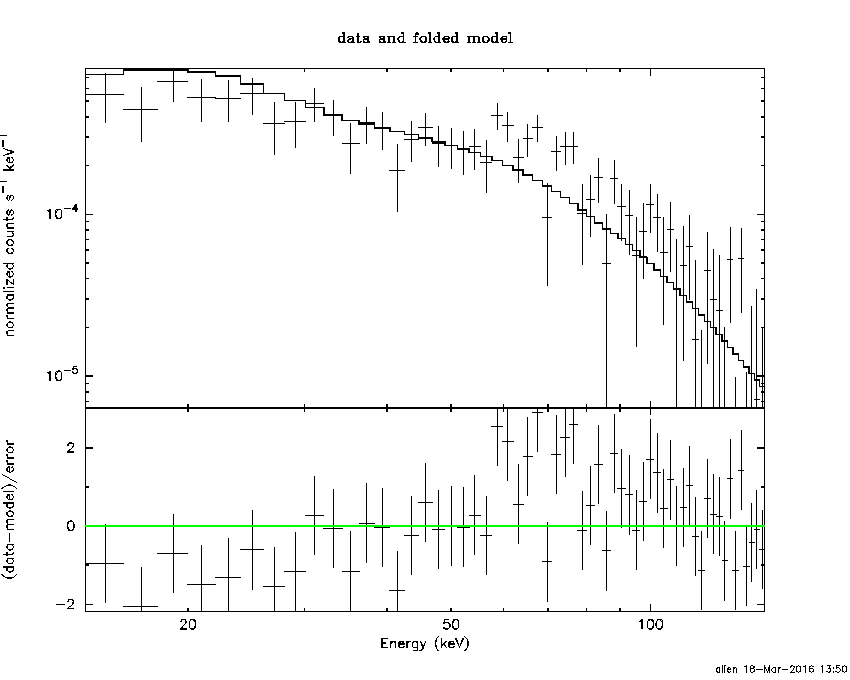

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-14.1993 -200)
Norm : 0.823625 (-0.0638783 0.0638783)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 82.98 using 59 PHA bins.
# Reduced chi-squared = 1.456 for 57 degrees of freedom
# Null hypothesis probability = 1.392634e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.641e-07 1.416e-08
25- 50 3.157e-07 4.276e-08
50-150 6.924e-07 2.782e-07
15-150 1.172e-06 3.062e-07
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 5.22598 (-1.66902 2.23327)
R1^2/D10^2 : 0.350208 (-0.259625 1.55367)
kT2 [keV] : 25.3498 (-3.10982 4.37821)
R2^2/D10^2 : 4.13697E-03 (-0.00171285 0.00227851)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 43.74 using 59 PHA bins.
# Reduced chi-squared = 0.7953 for 55 degrees of freedom
# Null hypothesis probability = 8.626210e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.177e-07 5.285e-08
25- 50 2.685e-07 6.616e-08
50-150 9.993e-07 1.865e-07
15-150 1.385e-06 2.232e-07
Peak spectrum fit
Power-law model
Time interval is from 12.052 sec. to 13.052 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.714650 ( -0.744333 0.610903 )
Norm@50keV : 3.34992E-03 ( -0.00132311 0.0012088 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.17 using 59 PHA bins.
# Reduced chi-squared = 0.6873 for 57 degrees of freedom
# Null hypothesis probability = 9.656332e-01
Photon flux (15-150 keV) in 1 sec: 0.386786 ( -0.134003 0.136474 ) ph/cm2/s
Energy fluence (15-150 keV) : 4.06266e-08 ( -1.37917e-08 1.39015e-08 ) ergs/cm2

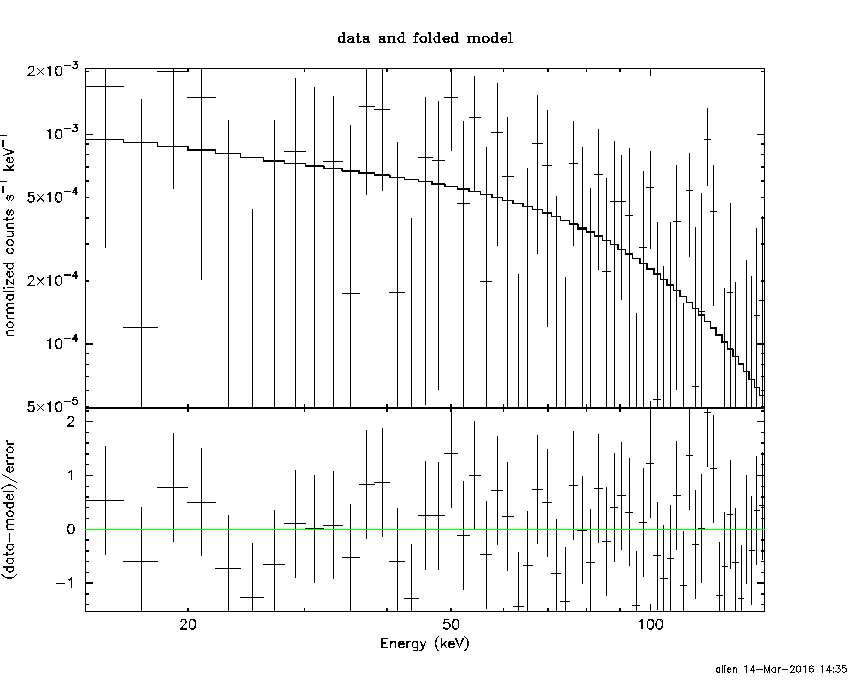

Cutoff power-law model
Time interval is from 12.052 sec. to 13.052 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 3.09560 ( -6.0502 -3.09696 )
Epeak [keV] : 282.035 ( )
Norm@50keV : 7.80942E-05 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 38.75 using 59 PHA bins.
# Reduced chi-squared = 0.6919 for 56 degrees of freedom
# Null hypothesis probability = 9.617695e-01
Photon flux (15-150 keV) in 1 sec: 0.385887 ( -0.141064 0.137277 ) ph/cm2/s
Energy fluence (15-150 keV) : 4.06415e-08 ( -1.45331e-08 1.38276e-08 ) ergs/cm2
Band function
Time interval is from 12.052 sec. to 13.052 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.852800 ( 0.85283 0.85283 )
beta : -0.714650 ( -0.611593 0.744435 )
Epeak [keV] : 14.1332 ( -14.1331 -14.1331 )
Norm@50keV : 4.99106E-03 ( -0.00282473 0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.17 using 59 PHA bins.
# Reduced chi-squared = 0.7123 for 55 degrees of freedom
# Null hypothesis probability = 9.472694e-01
Photon flux (15-150 keV) in 1 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2

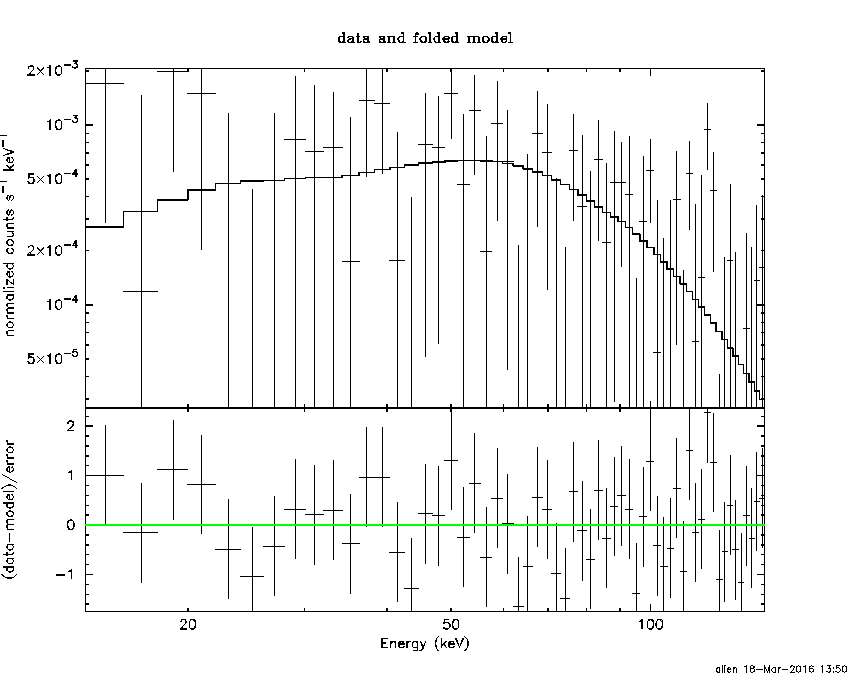

Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 29.0210 (-10.9639 32.4439)
R^2/D10^2 : 6.42658E-03 (-0.00642362 0.0204782)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 40.15 using 59 PHA bins.
# Reduced chi-squared = 0.7043 for 57 degrees of freedom
# Null hypothesis probability = 9.557908e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 8.641e-10 5.600e-10
25- 50 5.256e-09 3.191e-09
50-150 3.166e-08 2.052e-08
15-150 3.777e-08 2.384e-08

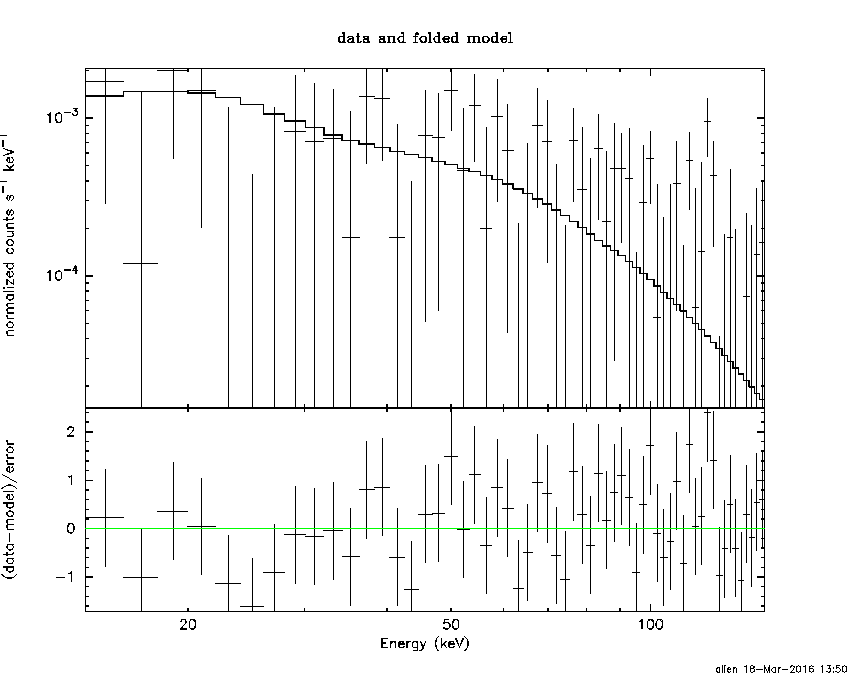

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-96.0813 -200)
Norm : 1.56482 (-0.568253 0.568253)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.31 using 59 PHA bins.
# Reduced chi-squared = 0.7774 for 57 degrees of freedom
# Null hypothesis probability = 8.899304e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.896e-09 2.385e-09
25- 50 7.494e-09 4.761e-09
50-150 1.644e-08 1.058e-08
15-150 2.783e-08 1.763e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 2.13594 (-2.13772 -2.13772)
R1^2/D10^2 : 85.6268 (-85.1645 -85.1645)
kT2 [keV] : 31.1665 (-12.1428 48.5961)
R2^2/D10^2 : 5.14864E-03 (-0.00514507 0.0137547)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 38.94 using 59 PHA bins.
# Reduced chi-squared = 0.7081 for 55 degrees of freedom
# Null hypothesis probability = 9.501745e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.145e-09 8.500e-10
25- 50 4.837e-09 2.933e-09
50-150 3.232e-08 1.977e-08
15-150 3.930e-08 2.279e-08

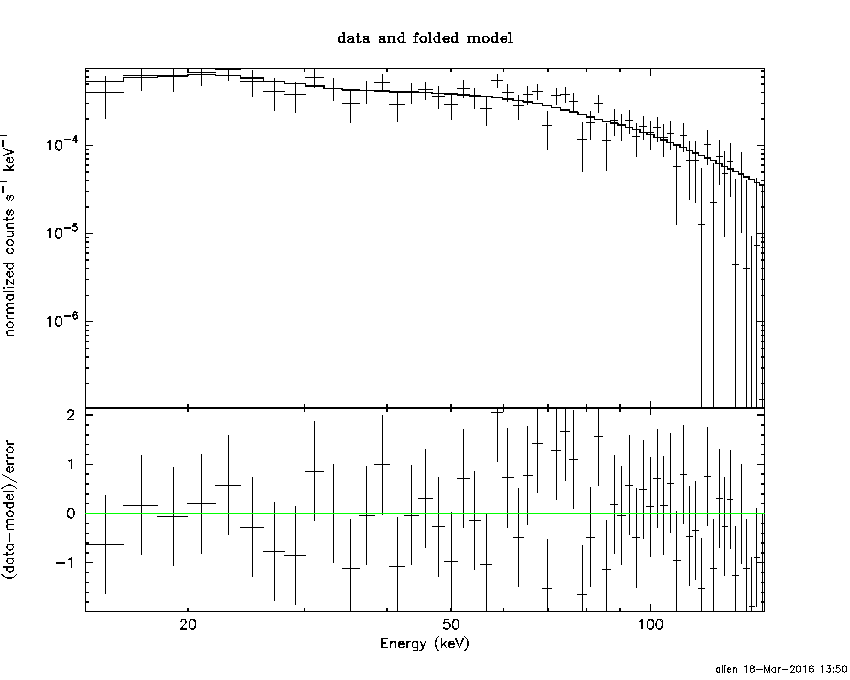

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.864502 ( -0.132544 0.128736 )
Norm@50keV : 2.25644E-03 ( -0.000169278 0.000168018 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.47 using 59 PHA bins.
# Reduced chi-squared = 0.8327 for 57 degrees of freedom
# Null hypothesis probability = 8.118791e-01
Photon flux (15-150 keV) in 51.9 sec: 0.258982 ( -0.0192424 0.0192972 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.3328e-06 ( -1.01155e-07 1.01504e-07 ) ergs/cm2

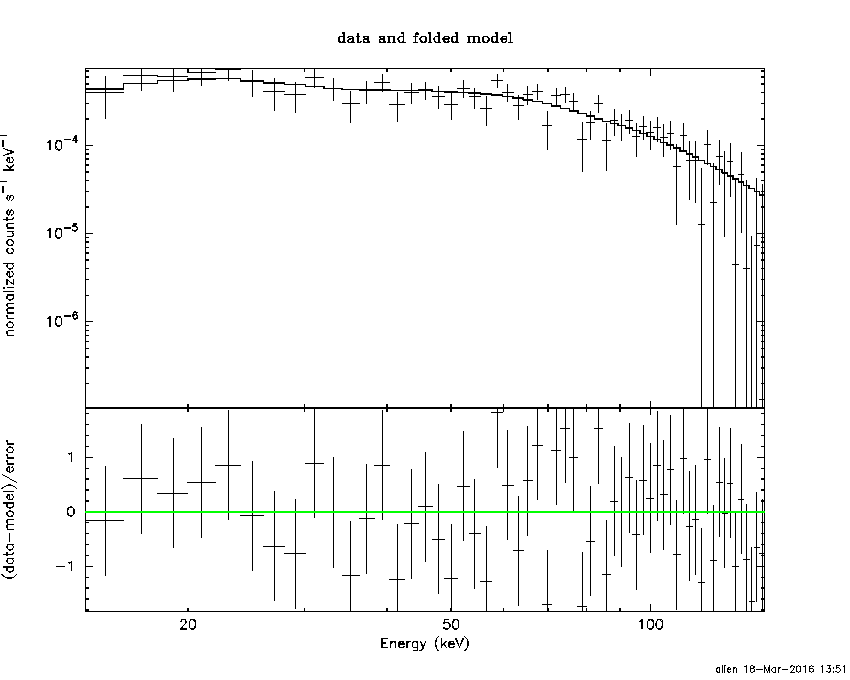

Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.366576 ( -0.607495 0.532741 )
Epeak [keV] : 202.046 ( -77.1608 -202.046 )
Norm@50keV : 3.60528E-03 ( -0.00137138 0.00255559 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 44.82 using 59 PHA bins.
# Reduced chi-squared = 0.8003 for 56 degrees of freedom
# Null hypothesis probability = 8.582404e-01
Photon flux (15-150 keV) in 51.9 sec: 0.252804 ( -0.02039 0.020329 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.30792e-06 ( -1.06649e-07 1.06068e-07 ) ergs/cm2

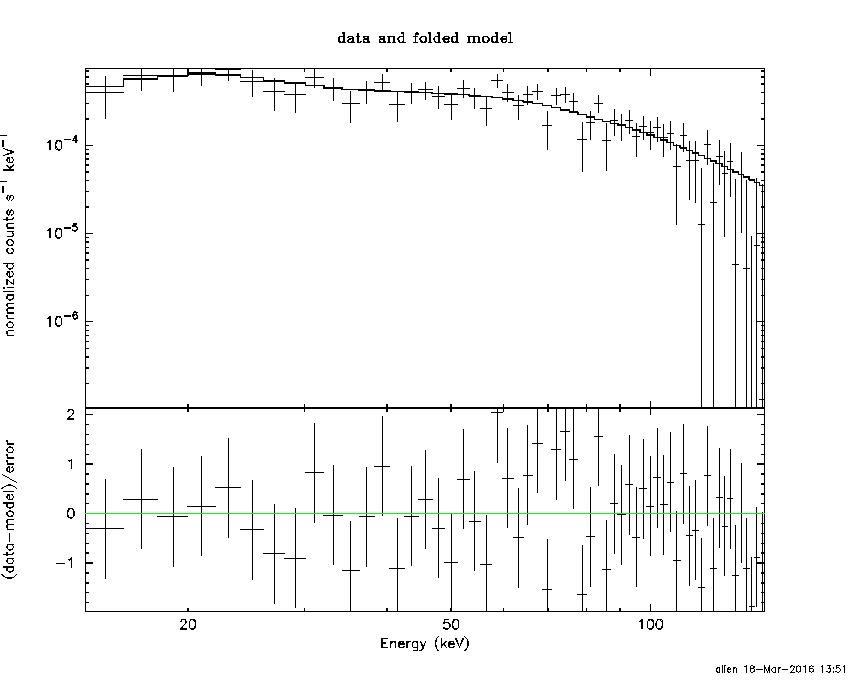

Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 5.00000 ( -5 -5 )
beta : -0.877878 ( -0.133031 0.136211 )
Epeak [keV] : 23.4345 ( -23.034 9.80374 )
Norm@50keV : 194.589 ( -13.7402 303377 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 47.18 using 59 PHA bins.
# Reduced chi-squared = 0.8579 for 55 degrees of freedom
# Null hypothesis probability = 7.640469e-01
Photon flux (15-150 keV) in 51.9 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 2.84e-07
S(50-100 keV) = 5.32e-07
T90 vs. Hardness ratio plot
T90 = 64 sec.
Hardness ratio (energy fluence ratio) = 1.87324
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.59656
Count Ratio (50-100 keV) / (15-25 keV) = 1.83335
Mask shadow pattern
IMX = -2.102307519081593E-01, IMY = -1.564370588792474E-01
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-255.747400 -11.448000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.6883 35.2843 0.0 29.5 -175.7 0.2593 1.0 11.8 Her X-1
204.9932 60.1907 3.0 41.0 113.6 3.8651 3.8 ------ UNKNOWN
289.3265 25.6157 5.1 58.8 -159.2 3.7848 2.3 ------ UNKNOWN
286.8535 19.9517 3.4 57.8 -152.2 5.0491 3.4 ------ UNKNOWN
277.8497 11.6888 2.9 51.7 -139.5 4.8757 4.1 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-11.448000 40.452600
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.5535 35.2394 8.4 29.4 -175.6 -0.1490 -1.4 7.8 Her X-1
229.2881 35.7679 0.6 14.7 143.3 1.7741 19.5 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
80.052600 962.601300
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.3011 35.3060 9.3 20.3 -162.2 2.4224 1.2 8.0 Her X-1
299.5613 35.1528 2.2 55.9 -177.8 43.1709 5.3 3.3 Cyg X-1
181.5847 43.1739 3.9 37.0 50.3 9.0674 2.9 ------ UNKNOWN
203.5413 57.5365 2.2 27.7 83.7 12.8843 5.2 ------ UNKNOWN
251.4706 39.8924 3.1 18.0 -176.1 6.3262 3.8 ------ UNKNOWN
Plot creation:
Fri Mar 18 13:51:51 EDT 2016
