Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Dec 31 13:02:59 EST 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger668879/batgroup_hand_proc
======================================================================

  Trigger: 00668879      Segment: 000

  BAT Trigger Time: 473208307.136   [s; MET]
      Trigger Stop: 473208315.328   [s; MET]
               UTC: 2015-12-30T22:44:51.507520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 306.015689590842   Dec: 33.8501595497677  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    7.91
     Image Trigger?:     NO
     Rate S/N Ratio:     10.1488915650922  [ if not an image trigger ]
     Image S/N Ratio:    7.91

  Flight Position:   [ source = BAT ]
    RA: 306.015689590842   Dec: 33.8501595497677  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 305.988635553082   Dec: 33.8524042654816  [deg; J2000]
        { 20h 23m 57.3s , +33d 51' 08.7" }
         +/- 1.63467657021393 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.577473419716386 [arcmin] (formal 1-sigma fit error)
    SNR: 15.0735572365866

  Angular difference between Flight and Ground position is 1.354792 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 64 +/- 22.6274169979695
        Measured from: -15.1359999775887
                   to: 48.8640000224113     [s; relative to TRIGTIME]
     T50: 16 +/- 16
        Measured from: 0.864000022411346
                   to: 16.8640000224113     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 8.36400002241135
                   to: 9.36400002241135     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -15.1359999775887
                   to: 48.8640000224113     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.487726   0.505166   0.439835   0.093683
           0.052146   0.051250   0.044527   0.039591 [error]
 Peak      0.007931   0.014022   0.011441  -0.000785
           0.006541   0.006432   0.005675   0.005002 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.13e-07 2.16e-07 3.19e-07 1.01e-06 9.01e-07 1.66e-06   erg/cm2
              Error 2.04e-08 2.31e-08 4.32e-08 3.02e-07 1.04e-07 3.33e-07   erg/cm2
Peak flux Power-law 7.45e-02 7.97e-02 6.06e-02 7.50e-02 2.43e-01 2.90e-01   ph/cm2/s
              Error 7.61e-02 6.45e-02 4.28e-02 1.24e-01 1.44e-01 1.77e-01   ph/cm2/s

Fluence   Cutoff-PL 1.13e-07 2.17e-07 3.17e-07 9.95e-07 8.96e-07 1.57e-06   erg/cm2
              Error 1.56e-08 2.30e-08 4.26e-08 4.19e-07 1.03e-07 4.46e-07   erg/cm2
Peak flux Cutoff-PL 6.44e-02 8.88e-02 6.46e-02 2.72e-02 2.36e-01 2.46e-01   ph/cm2/s
              Error 7.39e-02 4.94e-02 5.88e-02 6.87e-02 1.43e-01 1.79e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 6.57e-02 8.70e-02 6.48e-02 3.29e-02 2.38e-01 2.50e-01   ph/cm2/s
              Error 7.40e-02 -------- -------- -------- 1.43e-01 1.82e-01   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.440    0.185    -      -           1.47e-03 1.51e-04   55.390 57
CPL   1.432    0.186    9999.3    0.0      1.47e-03 1.20e-03   55.410 56

The chi2 of BB fit is Chi-Squared Chi-Squared which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.397    1.085    -      -           2.00e-03 1.59e-03   59.220 57
CPL   0.439    6.814      78.2    0.0      6.37e-03 0.00e+00   58.930 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 36.928000 sec.
T50 in the 50-300 keV band: 19.008000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   64.000  -15.136   48.864
T90    64.000  -15.136   48.864
T50    16.000    0.864   16.864
Peak    1.000    8.364    9.364

Click here for the BAT GCN circular template

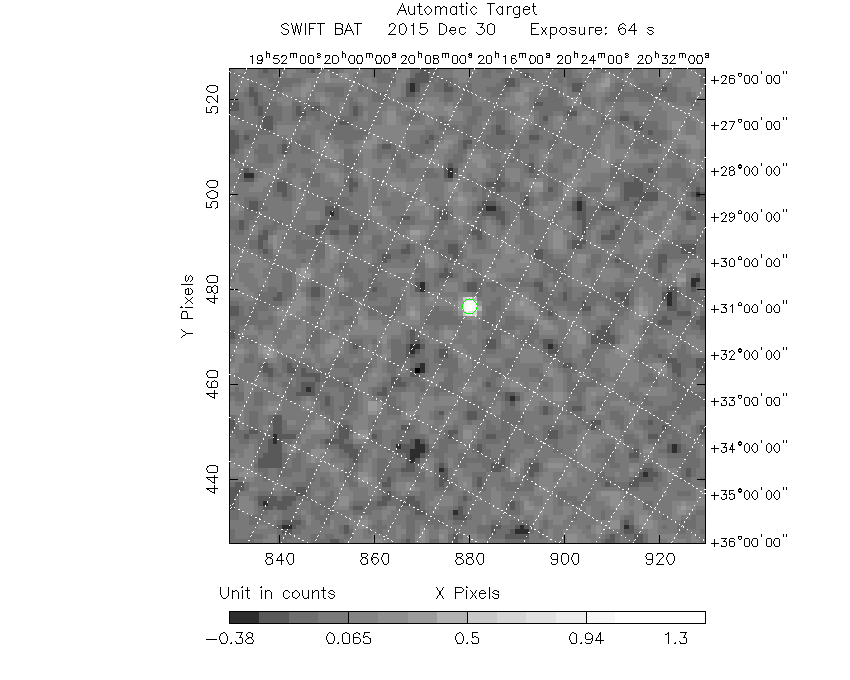

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  305.9886    33.8524   0.0128     0.0452   143.4648         1.5512219     15.074 TRIG_00668879

Foreground time interval of the image:
-15.136  48.864 (delta_t =  64.000 [sec])
Background time interval of the image:
-239.136 -15.136 (delta_t = 224.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

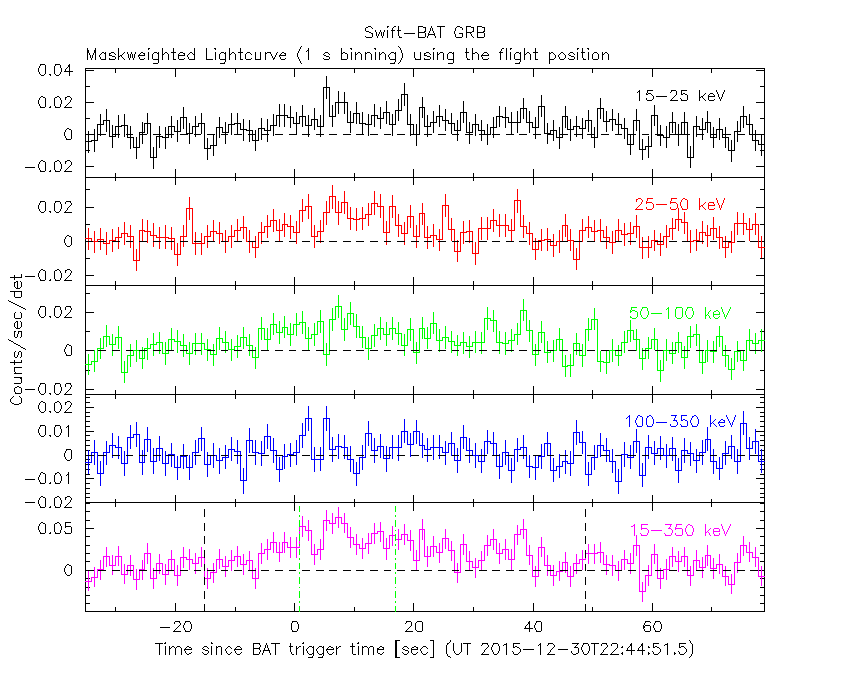

From T100_start - 20 s to T100_end + 30 s

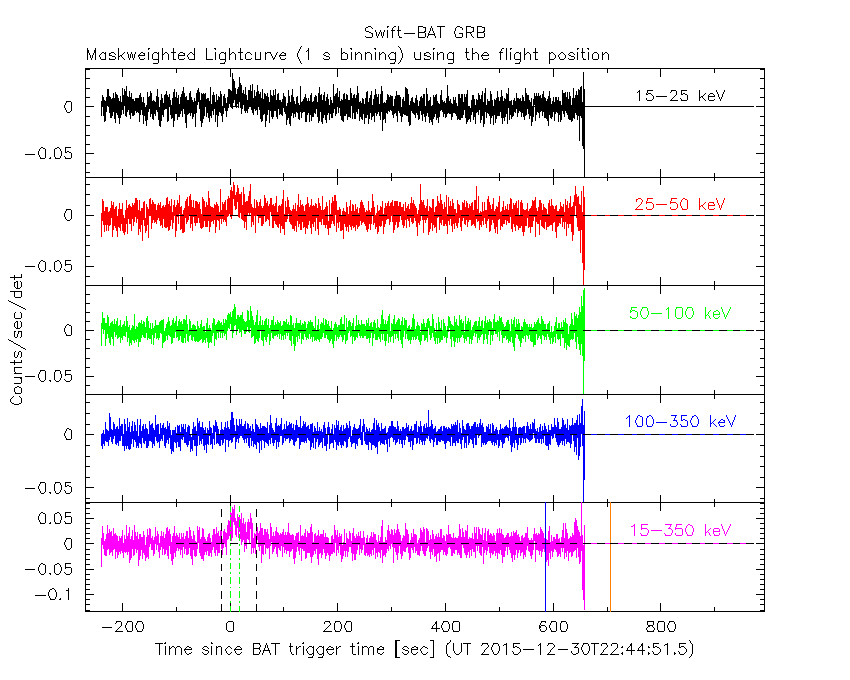

Full time interval

64 ms binning

Full time interval

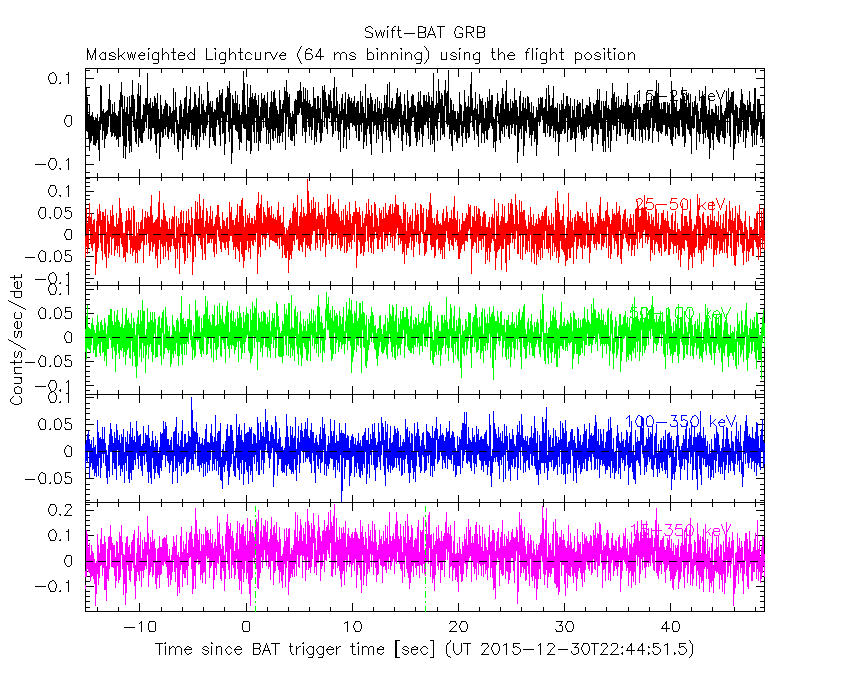

From T100_start to T100_end

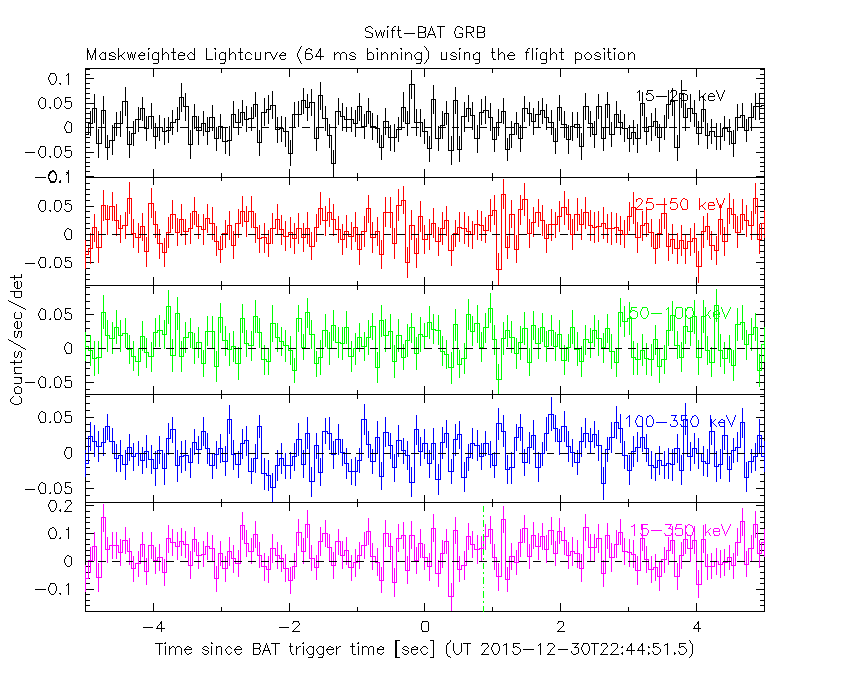

From T0-5 sec to T0+5 sec

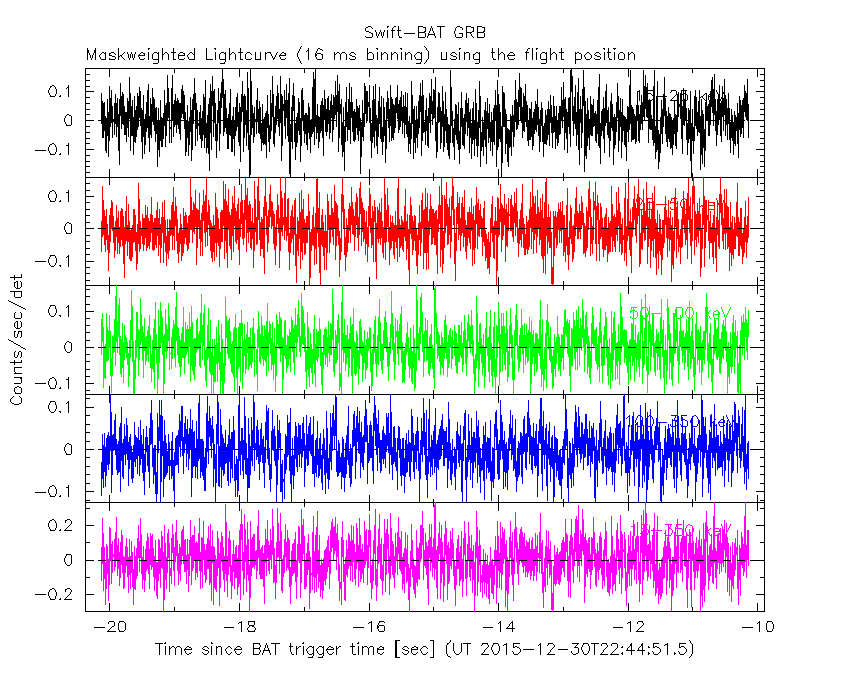

16 ms binning

From T100_start-5 s to T100_start+5 s

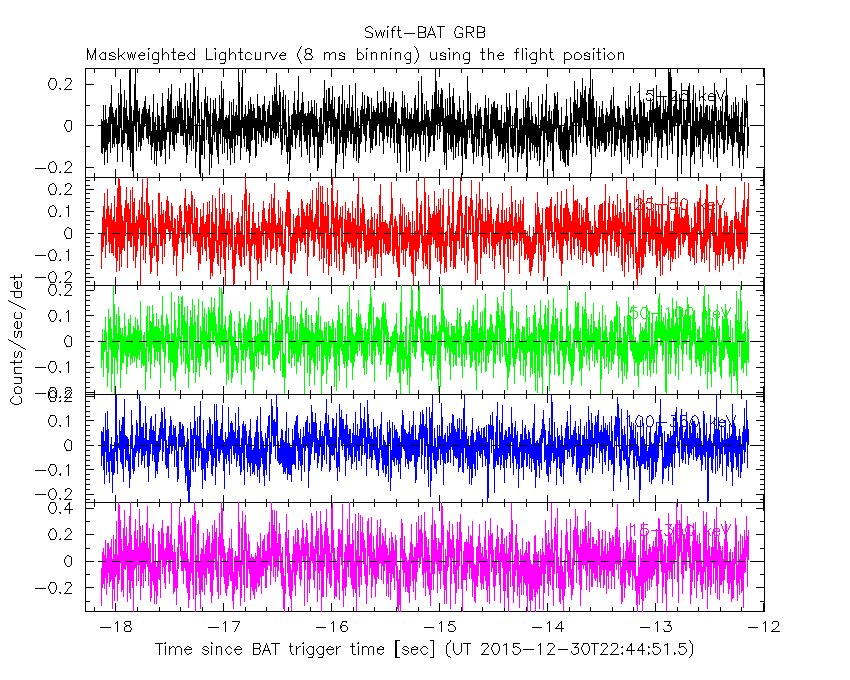

8 ms binning

From T100_start-3 s to T100_start+3 s

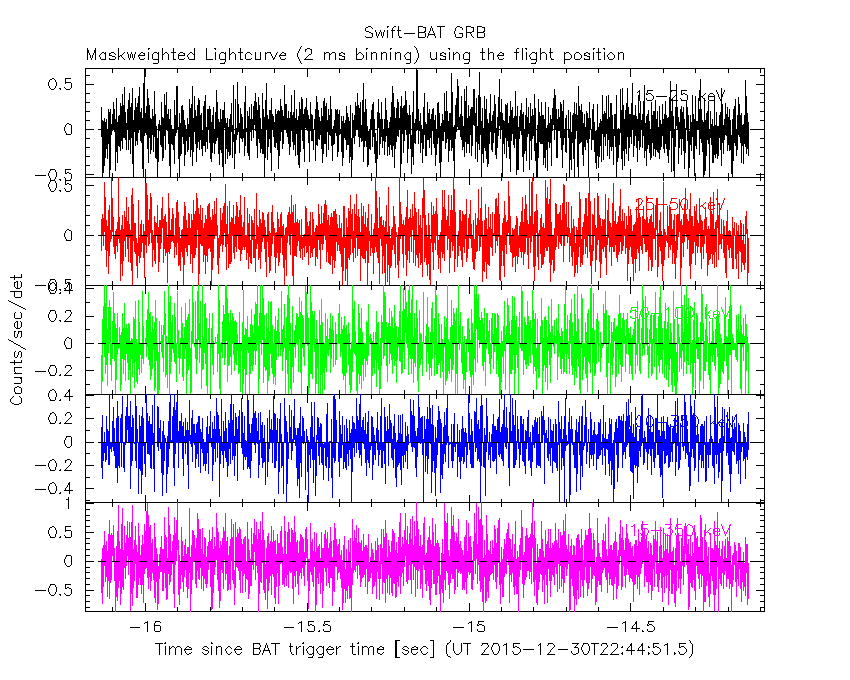

2 ms binning

From T100_start-1 s to T100_start+1 s

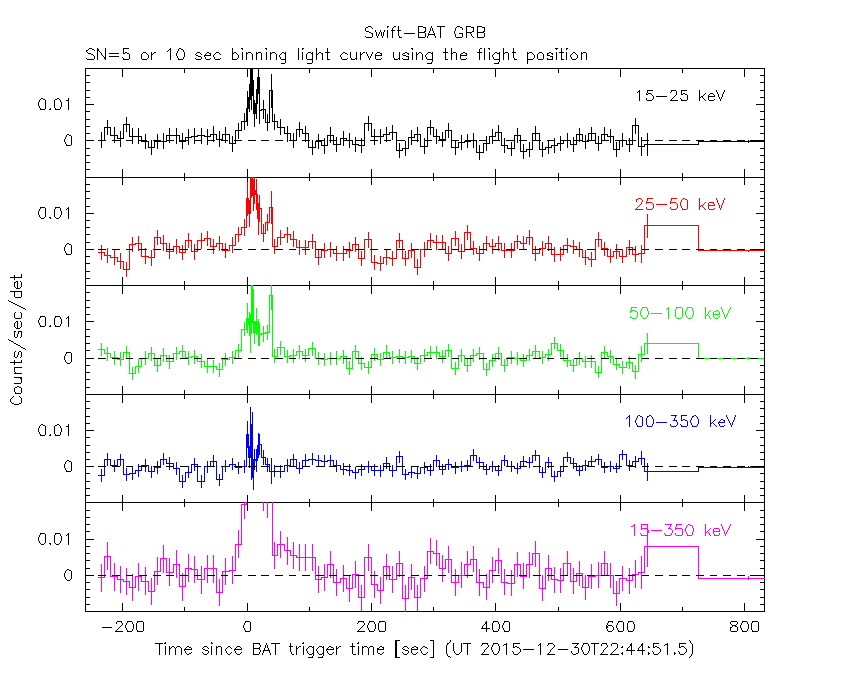

SN=5 or 10 sec. binning (whichever binning is satisfied first)

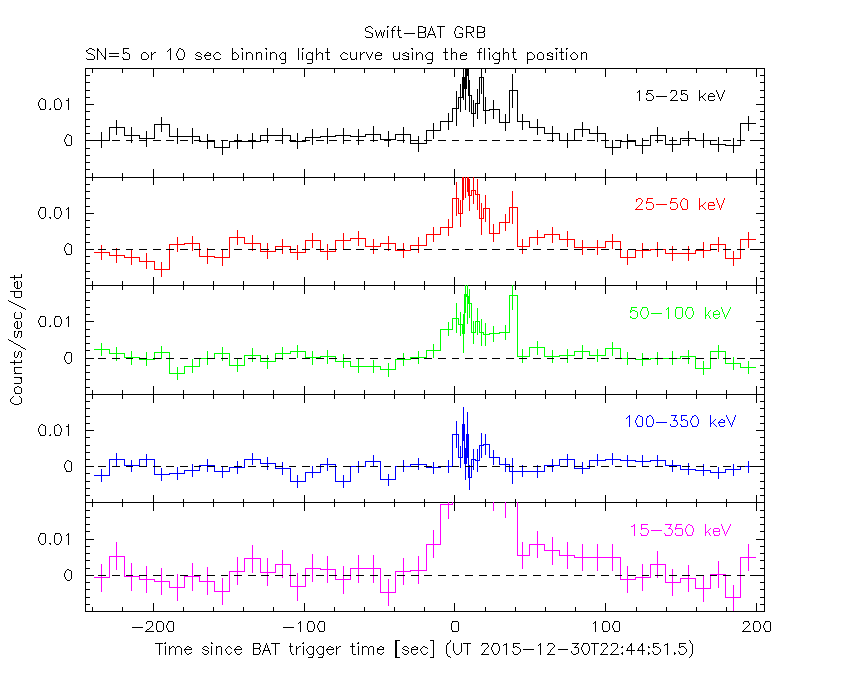

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -15.136 sec. to   48.864 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44034     ( -0.185362   0.185315 )
Norm@50keV  : 1.46824E-03    ( -0.000151789   0.000150906 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.39 using 59 PHA bins.
# Reduced chi-squared =         0.9718 for     57 degrees of freedom
# Null hypothesis probability =   5.355693e-01

Photon flux (15-150 keV)    in 64 sec: 0.180511 ( -0.0185054  0.0185506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.00819e-07 ( -1.03761e-07  1.04954e-07 ) ergs/cm2

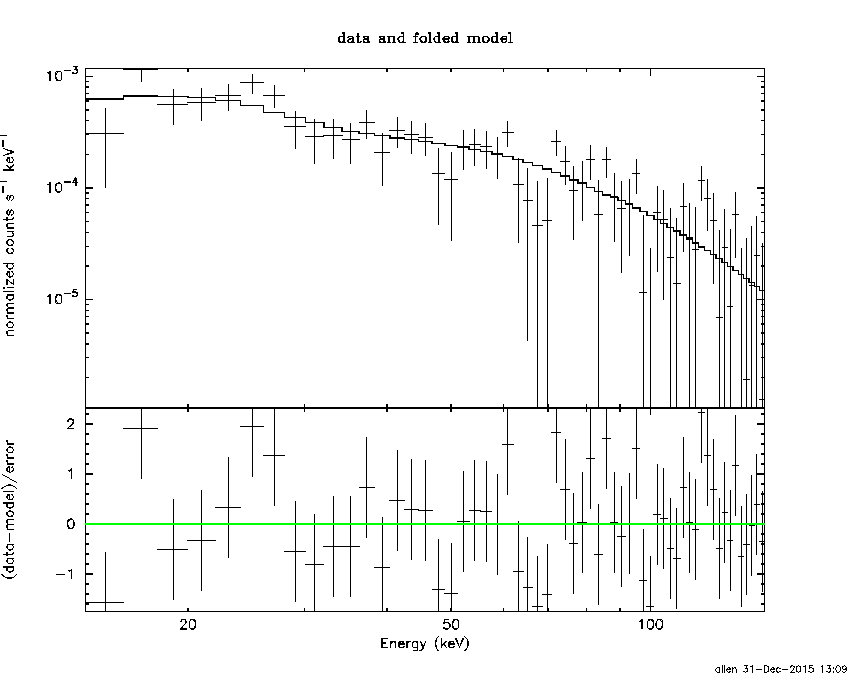

Cutoff power-law model

Time interval is from  -15.136 sec. to   48.864 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43229     ( -0.184848   0.188088 )
Epeak [keV] : 9999.30      ( -9999.36 -9999.36 )
Norm@50keV  : 1.47291E-03    ( -0.00147334   0.00092458 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.41 using 59 PHA bins.
# Reduced chi-squared =         0.9894 for     56 degrees of freedom
# Null hypothesis probability =   4.972466e-01

Photon flux (15-150 keV)    in 64 sec: 0.180717 ( -0.018713  0.0183 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.96224e-07 ( -9.94176e-08  1.07354e-07 ) ergs/cm2

Band function

Time interval is from  -15.136 sec. to   48.864 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.96467   ( -4.96467   -4.96467 )
beta        : -1.49450    ( -0.23641   0.201935 )
Epeak [keV] : 22.5139      ( -22.5139 6.25179 )
Norm@50keV   : 266.127    ( -26.6642   666471 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.55 using 59 PHA bins.
# Reduced chi-squared =         0.9918 for     55 degrees of freedom
# Null hypothesis probability =   4.917759e-01

Photon flux (15-150 keV)    in 64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

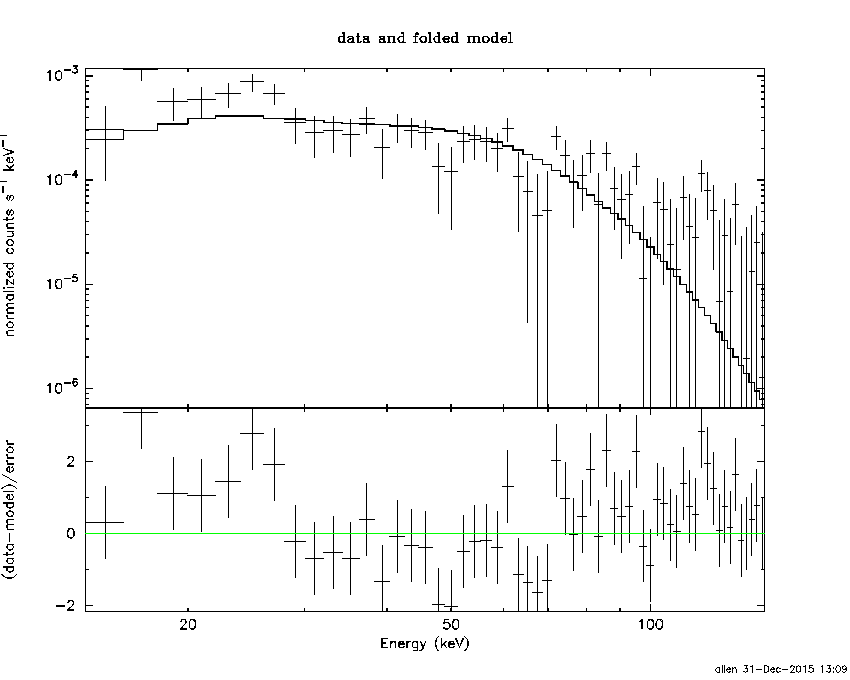

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.3019  (-2.30734  2.83047)
R^2/D10^2   : 1.84788E-02  (-0.00813213   0.0142171)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          91.75 using 59 PHA bins.
# Reduced chi-squared =          1.610 for     57 degrees of freedom
# Null hypothesis probability =   2.405578e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.778e-08   1.161e-08
25- 50  2.338e-07   4.032e-08
50-150  3.758e-07   8.512e-08
15-150  6.673e-07   9.939e-08

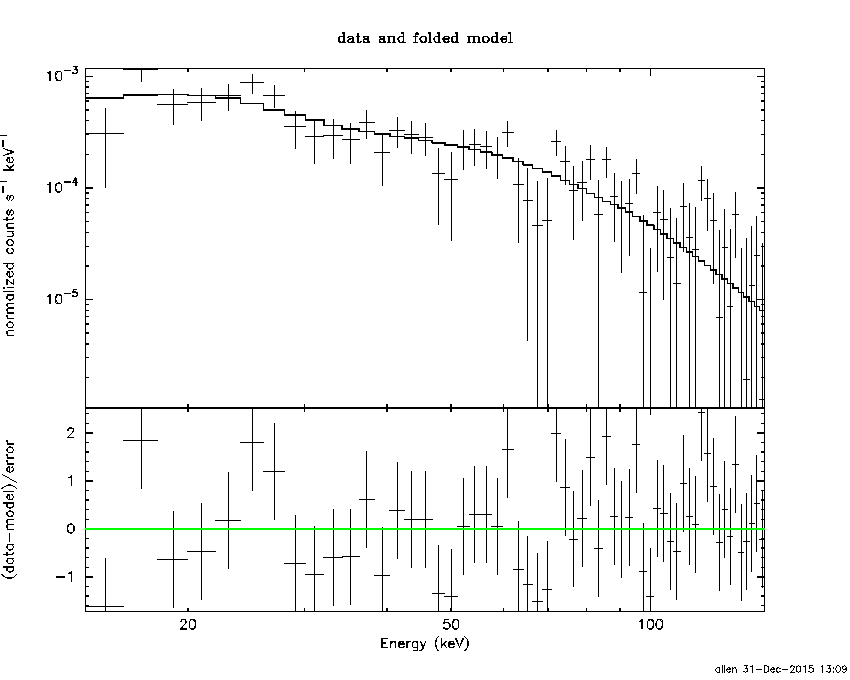

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-53.1245      -200)
Norm        : 0.738896       (-0.0745087     0.0745087)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.91 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     57 degrees of freedom
# Null hypothesis probability =   4.413838e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.178e-07   2.534e-08
25- 50  2.265e-07   1.221e-07
50-150  4.968e-07   2.697e-07
15-150  8.412e-07   4.246e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.85561        (-1.52511      1.91364)
R1^2/D10^2  : 0.226954        (-0.130417      0.346808)
kT2 [keV]   : 34.8006        (-10.0796      28.1341)
R2^2/D10^2  : 1.02020E-03    (-0.00080333   0.00200736)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.96 using 59 PHA bins.
# Reduced chi-squared =         0.9629 for     55 degrees of freedom
# Null hypothesis probability =   5.529593e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.185e-07   4.853e-08
25- 50  2.144e-07   7.482e-08
50-150  6.050e-07   3.174e-07
15-150  9.379e-07   3.606e-07

Peak spectrum fit

Power-law model

Time interval is from    8.364 sec. to    9.364 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39705     ( -1.09191   1.07784 )
Norm@50keV  : 1.99890E-03    ( -0.00199905   0.00118851 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.22 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     57 degrees of freedom
# Null hypothesis probability =   3.943890e-01

Photon flux (15-150 keV)    in 1 sec: 0.243249 ( -0.14307  0.144375 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.93299e-08 ( -1.21408e-08  1.30862e-08 ) ergs/cm2

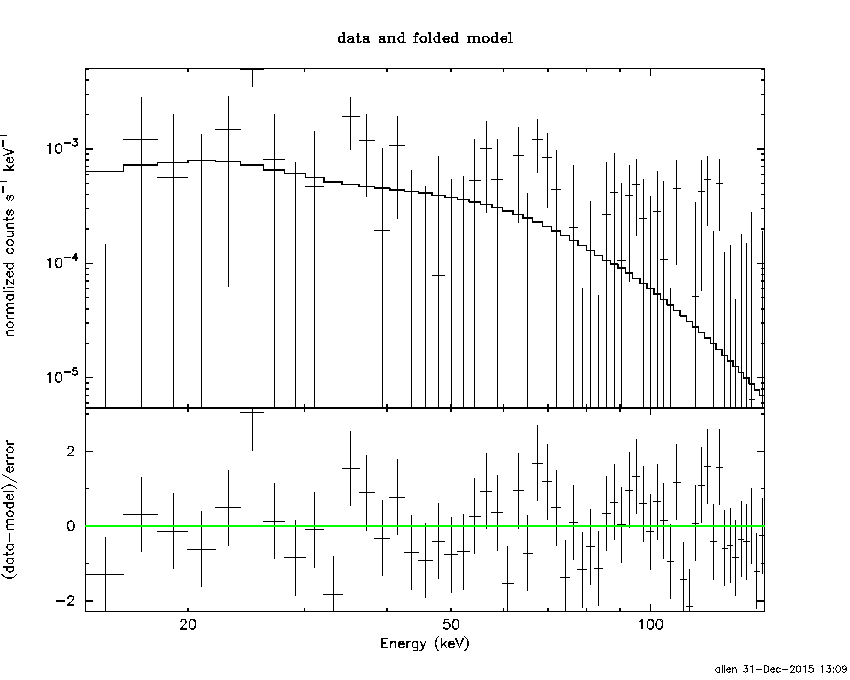

Cutoff power-law model

Time interval is from    8.364 sec. to    9.364 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.439216     ( -6.39255   7.23571 )
Epeak [keV] : 78.2138      ( -78.0902 -78.0902 )
Norm@50keV  : 6.37159E-03    ( -0.00645095   -0.00645095 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.93 using 59 PHA bins.
# Reduced chi-squared =          1.052 for     56 degrees of freedom
# Null hypothesis probability =   3.689409e-01

Photon flux (15-150 keV)    in 1 sec: 0.236133 ( -0.14051  0.145064 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.79201e-08 ( -1.31816e-08  1.37811e-08 ) ergs/cm2

Band function

Time interval is from    8.364 sec. to    9.364 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.435625   ( -5.17427   0.805793 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 76.4162      ( -56.8817 -76.5507 )
Norm@50keV   : 6.55270E-03    ( -0.0065316   22.6972 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.93 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     55 degrees of freedom
# Null hypothesis probability =   3.338964e-01

Photon flux (15-150 keV)    in 1 sec: 0.238376 ( 6.76162  -0.142572 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.86653e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.3794  (-15.4256  26.1613)
R^2/D10^2   : 2.63011E-02  (-0.025897   0.701866)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.51 using 59 PHA bins.
# Reduced chi-squared =          1.044 for     57 degrees of freedom
# Null hypothesis probability =   3.843191e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.297e-09   9.170e-10
25- 50  5.271e-09   3.557e-09
50-150  8.577e-09   6.425e-09
15-150  1.514e-08   1.159e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.360       (-199.362      -199.362)
Norm        : 1.00896       (-0.587244     0.917423)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.13 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     57 degrees of freedom
# Null hypothesis probability =   3.976468e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.512e-09   1.806e-09
25- 50  4.833e-09   3.500e-09
50-150  1.060e-08   7.265e-09
15-150  1.794e-08   1.247e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.91648        (-7.14814      87.0057)
R1^2/D10^2  : 0.263371        (-0.258499      -0.258499)
kT2 [keV]   : 25.8930        (-26.2518      -26.2518)
R2^2/D10^2  : 3.42295E-03    (-0.00329479   0.374776)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.53 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     55 degrees of freedom
# Null hypothesis probability =   3.473030e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.390e-09   1.819e-09
25- 50  4.932e-09   3.340e-09
50-150  1.159e-08   9.040e-09
15-150  1.891e-08   1.029e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44034     ( -0.185362   0.185315 )
Norm@50keV  : 1.46824E-03    ( -0.000151789   0.000150906 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.39 using 59 PHA bins.
# Reduced chi-squared =         0.9718 for     57 degrees of freedom
# Null hypothesis probability =   5.355693e-01

Photon flux (15-150 keV)    in 64 sec: 0.180511 ( -0.0185054  0.0185506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.00819e-07 ( -1.03761e-07  1.04954e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43229     ( -0.184848   0.188088 )
Epeak [keV] : 9999.30      ( -9999.36 -9999.36 )
Norm@50keV  : 1.47291E-03    ( -0.00147334   0.00092458 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.41 using 59 PHA bins.
# Reduced chi-squared =         0.9894 for     56 degrees of freedom
# Null hypothesis probability =   4.972466e-01

Photon flux (15-150 keV)    in 64 sec: 0.180717 ( -0.018713  0.0183 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.96224e-07 ( -9.94176e-08  1.07354e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.96467   ( -4.96467   -4.96467 )
beta        : -1.49450    ( -0.23641   0.201935 )
Epeak [keV] : 22.5139      ( -22.5139 6.25179 )
Norm@50keV   : 266.127    ( -26.6642   666471 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.55 using 59 PHA bins.
# Reduced chi-squared =         0.9918 for     55 degrees of freedom
# Null hypothesis probability =   4.917759e-01

Photon flux (15-150 keV)    in 64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.16e-07
S(50-100 keV) = 3.19e-07

T90 vs. Hardness ratio plot

T90                                   = 64 sec.
Hardness ratio (energy fluence ratio) = 1.47685

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.03576
Count Ratio (50-100 keV) / (15-25 keV) = 0.901808

Mask shadow pattern

IMX = -6.342125750881634E-04, IMY = -4.698965254778449E-04

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

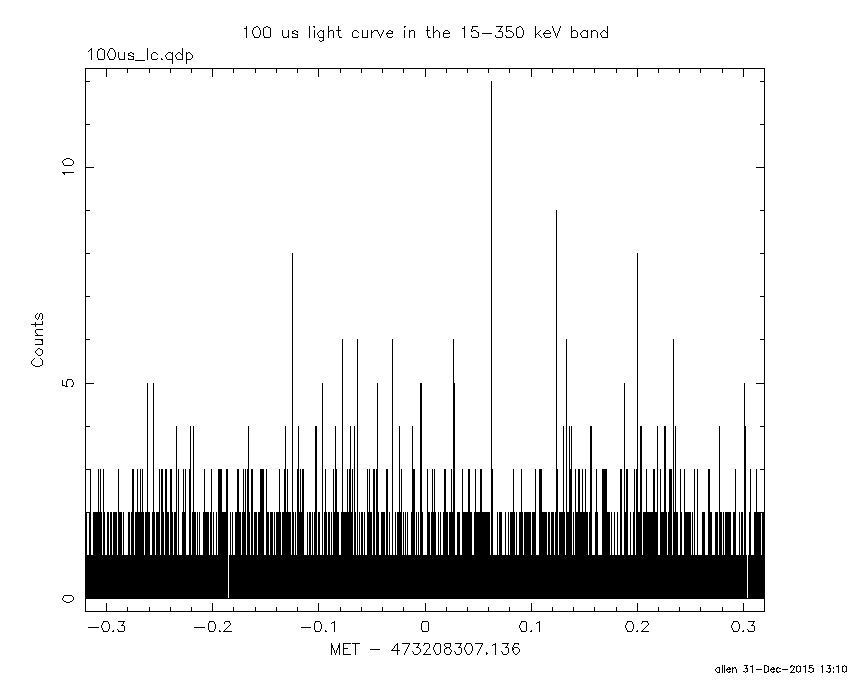

100 us light curve (15-350 keV)

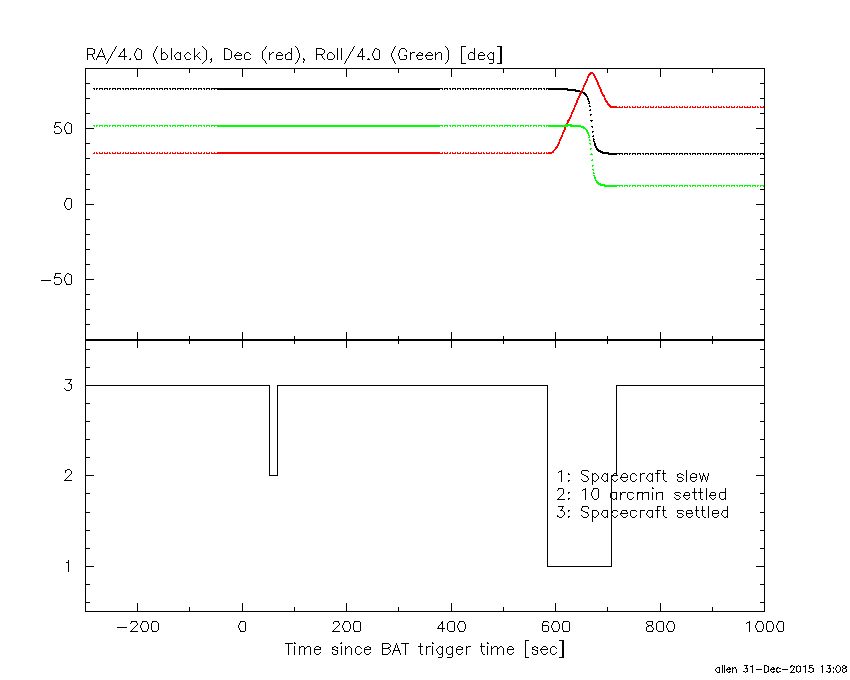

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.136000 -15.136000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6270  35.4557    0.0  41.8   -9.9  -0.1868  -0.5   10.7	Her X-1
288.8010  10.9470   67.7  27.7  -78.8   0.0566   0.2    0.2	GRS 1915+105
299.6001  35.1935    0.4   5.4  -10.9   6.3607  26.9    0.7	Cyg X-1
308.1334  40.9528    1.7   7.3   76.0   1.6053   7.0    1.1	Cyg X-3
326.2256  38.3140    4.3  17.0  131.7   0.7388   2.7    2.6	Cyg X-2
235.8330  48.6052    3.1  52.8   11.5   3.3652   3.7 ------	UNKNOWN
278.4974  43.7384    2.7  23.4    5.9   1.0941   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-15.136000 48.864000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3633  35.3401    4.7  42.0  -10.0  -0.4111  -2.5    4.6	Her X-1
288.8896  10.7970   15.1  27.8  -79.1  -0.1139  -0.8   10.4	GRS 1915+105
299.5399  35.2341    7.5   5.4  -10.6   0.1559   1.5    3.1	Cyg X-1
308.1767  41.0959    3.8   7.5   75.9  -0.3225  -3.0    9.1	Cyg X-3
326.4292  38.3425    0.0  17.1  131.7  -0.1336  -1.1   12.2	Cyg X-2
305.9886  33.8524    0.8   0.0  143.5   1.5513  15.1 ------	UNKNOWN
266.9156  15.9537    1.8  39.3  -44.4   1.1244   6.2 ------	UNKNOWN
340.8715 -13.5489    2.2  57.9 -158.3   3.1579   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
706.064600 962.951800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 52.6584  44.4649    2.3  47.3  148.0   4.4565   5.1 ------	UNKNOWN
140.2856  27.6151    2.3  37.0   32.4   1.7590   4.9 ------	UNKNOWN
 24.7325  48.5913    2.4  54.4  171.6   4.6855   4.7 ------	UNKNOWN
154.6399  33.4985    2.8  33.4    9.4   1.1843   4.1 ------	UNKNOWN
251.2010  86.2405    2.7  27.5 -130.9   1.1165   4.3 ------	UNKNOWN
297.3433  81.2565    3.7  34.1 -133.8   1.0583   3.1 ------	UNKNOWN
209.6578  54.9917    3.2  36.9  -70.4   1.8123   3.6 ------	UNKNOWN

Plot creation:
Thu Dec 31 13:10:32 EST 2015
