batgrbproduct analysis for trigger=670800

batgrbproduct Analysis for Trigger=670800

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Mar 17 19:01:50 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger670800
======================================================================

  Trigger: 00670800      Segment: 000

  BAT Trigger Time: 474731983.36   [s; MET]
      Trigger Stop: 474731984.384   [s; MET]
               UTC: 2016-01-17T13:59:27.649320    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 132.190488716105   Dec: -16.3400348873399  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.06
     Image Trigger?:     NO
     Rate S/N Ratio:     11.4455231422596  [ if not an image trigger ]
     Image S/N Ratio:    7.06

  Flight Position:   [ source = BAT ]
    RA: 132.190488716105   Dec: -16.3400348873399  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 132.170487312476   Dec: -16.3432403732475  [deg; J2000]
        { 08h 48m 40.9s , -16d 20' 35.7" }
         +/- 1.46484935781316 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.52363524188656 [arcmin] (formal 1-sigma fit error)
    SNR: 17.630770291536

  Angular difference between Flight and Ground position is 1.167552 arcmin

  Partial Coding Fraction: 0.9375    [ including projection effects ]

  Duration
     T90: 11.5359999537468 +/- 2.60802764034251
        Measured from: 0.367999970912933
                   to: 11.9039999246597     [s; relative to TRIGTIME]
     T50: 3.05199992656708 +/- 2.28039291133579
        Measured from: 2.05199998617172
                   to: 5.1039999127388     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 2.17199999094009
                   to: 3.17199999094009     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0199999809265137
                   to: 14.472000002861     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.319477   0.283244   0.114536   0.006300
           0.025141   0.025535   0.021227   0.018047 [error]
 Peak      0.083649   0.086467   0.036505   0.007199
           0.007572   0.007853   0.006098   0.004590 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.51e-08 1.09e-07 8.93e-08 1.23e-07 3.38e-07 4.16e-07   erg/cm2
              Error 1.25e-08 1.17e-08 1.87e-08 4.91e-08 4.26e-08 7.30e-08   erg/cm2
Peak flux Power-law 7.78e-01 5.75e-01 2.82e-01 1.97e-01 1.73e+00 1.83e+00   ph/cm2/s
              Error 1.13e-01 5.91e-02 4.86e-02 6.38e-02 1.78e-01 1.89e-01   ph/cm2/s

Fluence   Cutoff-PL 9.29e-08 1.15e-07 8.25e-08 4.39e-08 3.18e-07 3.34e-07   erg/cm2
              Error 1.29e-08 1.49e-08 2.43e-08 6.25e-08 5.02e-08 8.61e-08   erg/cm2
Peak flux Cutoff-PL 7.46e-01 6.18e-01 2.75e-01 8.39e-02 1.70e+00 1.72e+00   ph/cm2/s
              Error 1.24e-01 8.77e-02 5.93e-02 1.25e-01 1.84e-01 2.22e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.285    0.211    -      -           2.45e-03 3.72e-04   52.280 57
CPL   1.778    0.659      16.1   19.6      5.08e-03 1.28e-02   51.240 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.026    0.191    -      -           1.14e-02 1.49e-03   65.300 57
CPL   1.437    0.924      38.1    0.0      2.56e-02 0.00e+00   63.920 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   14.452    0.020   14.472
T90    11.536    0.368   11.904
T50     3.052    2.052    5.104
Peak    1.000    2.172    3.172

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  132.1705   -16.3432   0.0109    12.3190   124.3787         0.6975210     17.631 TRIG_00670800

Foreground time interval of the image:
  0.020  10.941 (delta_t =  10.921 [sec])
Background time interval of the image:
-728.859 -709.246 (delta_t =  19.613 [sec])
-239.360   0.020 (delta_t = 239.380 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

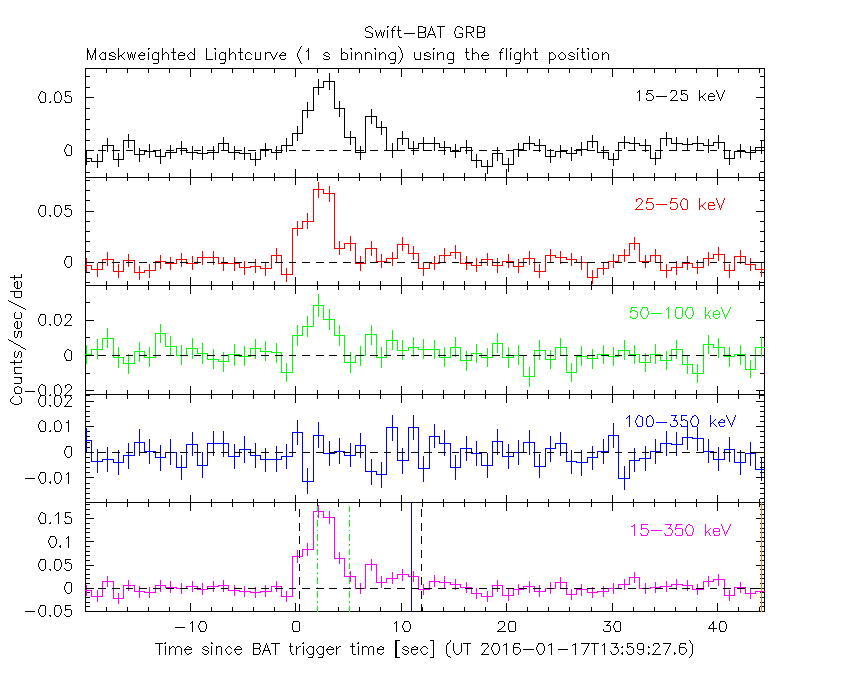

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.020 sec. to   14.472 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.28512     ( -0.203745   0.218687 )
Norm@50keV  : 2.45111E-03    ( -0.000375634   0.000369281 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.28 using 59 PHA bins.
# Reduced chi-squared =         0.9173 for     57 degrees of freedom
# Null hypothesis probability =   6.523348e-01

Photon flux (15-150 keV)    in 14.45 sec: 0.424883 ( -0.042257  0.042257 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.37627e-07 ( -4.19499e-08  4.32175e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.020 sec. to   14.472 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77786     ( -1.09698   0.22099 )
Epeak [keV] : 16.1491      ( -15.6995 23.4895 )
Norm@50keV  : 5.07737E-03    ( -0.00510034   0.0204349 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.24 using 59 PHA bins.
# Reduced chi-squared =         0.9150 for     56 degrees of freedom
# Null hypothesis probability =   6.552671e-01

Photon flux (15-150 keV)    in 14.45 sec: 0.417151 ( -0.043925  0.043803 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.17299e-07 ( -4.92414e-08  5.12268e-08 ) ergs/cm2

Band function

Time interval is from    0.020 sec. to   14.472 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.320479   ( 0.978149   0.978149 )
beta        : -2.55976    ( 2.52121   0.352962 )
Epeak [keV] : 24.2969      ( -23.2607 8.55892 )
Norm@50keV   : 5.94314E-02    ( -0.0594567   576.607 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.18 using 59 PHA bins.
# Reduced chi-squared =         0.9123 for     55 degrees of freedom
# Null hypothesis probability =   6.591091e-01

Photon flux (15-150 keV)    in 14.45 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.70521  (-0.867147  0.983064)
R^2/D10^2   : 0.534616  (-0.206257   0.337076)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.62 using 59 PHA bins.
# Reduced chi-squared =          1.169 for     57 degrees of freedom
# Null hypothesis probability =   1.798214e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.054e-08   1.383e-08
25- 50  1.319e-07   1.866e-08
50-150  3.057e-08   1.056e-08
15-150  2.430e-07   2.998e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 40.5098       (-9.68354      14.6312)
Norm        : 2.71408       (-0.508582     0.658047)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.75 using 59 PHA bins.
# Reduced chi-squared =         0.9078 for     57 degrees of freedom
# Null hypothesis probability =   6.718931e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.044e-08   1.183e-08
25- 50  1.196e-07   1.509e-08
50-150  9.384e-08   3.007e-08
15-150  3.039e-07   4.400e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.47675        (-1.34728      1.30269)
R1^2/D10^2  : 1.68323        (-0.910204      3.13007)
kT2 [keV]   : 18.4420        (-6.44466      16.0864)
R2^2/D10^2  : 9.66246E-03    (-0.00869626   0.0523772)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.15 using 59 PHA bins.
# Reduced chi-squared =         0.9118 for     55 degrees of freedom
# Null hypothesis probability =   6.600264e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.344e-08   4.193e-08
25- 50  1.126e-07   4.508e-08
50-150  1.145e-07   6.637e-08
15-150  3.206e-07   1.366e-07

Peak spectrum fit

Power-law model

Time interval is from    2.172 sec. to    3.172 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.02596     ( -0.185595   0.195725 )
Norm@50keV  : 1.13811E-02    ( -0.00150172   0.0014686 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.30 using 59 PHA bins.
# Reduced chi-squared =          1.146 for     57 degrees of freedom
# Null hypothesis probability =   2.105032e-01

Photon flux (15-150 keV)    in 1 sec: 1.72800 ( -0.17787  0.17791 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05133e-07 ( -1.28355e-08  1.3065e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    2.172 sec. to    3.172 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43742     ( -1.14861   0.700244 )
Epeak [keV] : 38.1416      (   )
Norm@50keV  : 2.55914E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.92 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     56 degrees of freedom
# Null hypothesis probability =   2.183001e-01

Photon flux (15-150 keV)    in 1 sec: 1.69676 ( -0.18444  0.18347 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from    2.172 sec. to    3.172 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -4.13566E-02   ( -1.66015   0.0226415 )
beta        : -2.39311    ( -0.764027   0.379183 )
Epeak [keV] : 31.4168      ( -9.1615 11.7146 )
Norm@50keV   : 0.237545    ( -0.266219   839.244 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.01 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     55 degrees of freedom
# Null hypothesis probability =   2.688578e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.06493  (-0.962727  1.0939)
R^2/D10^2   : 1.19375  (-0.432312   0.66159)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.83 using 59 PHA bins.
# Reduced chi-squared =          1.330 for     57 degrees of freedom
# Null hypothesis probability =   4.835433e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.917e-08   3.130e-09
25- 50  4.120e-08   5.145e-09
50-150  1.607e-08   4.910e-09
15-150  7.644e-08   1.011e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 60.5369       (-16.1262      25.6931)
Norm        : 9.06189       (-1.49862     1.76296)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.87 using 59 PHA bins.
# Reduced chi-squared =          1.121 for     57 degrees of freedom
# Null hypothesis probability =   2.477730e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.281e-08   3.130e-09
25- 50  3.481e-08   3.785e-09
50-150  3.990e-08   1.081e-08
15-150  9.751e-08   1.241e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.40848        (-1.48446      1.3596)
R1^2/D10^2  : 2.27172        (-1.01797      2.47863)
kT2 [keV]   : 35.6686        (-17.6297      -35.7003)
R2^2/D10^2  : 4.09927E-03    (-0.00399364   0.0438433)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.03 using 59 PHA bins.
# Reduced chi-squared =          1.091 for     55 degrees of freedom
# Null hypothesis probability =   2.984281e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.189e-08   5.305e-09
25- 50  3.707e-08   1.051e-08
50-150  4.603e-08   2.351e-08
15-150  1.050e-07   3.515e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.32134     ( -0.189276   0.202365 )
Norm@50keV  : 3.04028E-03    ( -0.000435309   0.000429414 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.28 using 59 PHA bins.
# Reduced chi-squared =         0.8119 for     57 degrees of freedom
# Null hypothesis probability =   8.441659e-01

Photon flux (15-150 keV)    in 10.92 sec: 0.537694 ( -0.0498342  0.0498349 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.18542e-07 ( -3.65124e-08  3.7557e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.51247     ( -1.12313   0.607575 )
Epeak [keV] : 21.8782      (   )
Norm@50keV  : 9.78032E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.62 using 59 PHA bins.
# Reduced chi-squared =         0.7790 for     56 degrees of freedom
# Null hypothesis probability =   8.857762e-01

Photon flux (15-150 keV)    in 10.92 sec: 0.522987 ( -0.051559  0.051837 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.91192e-07 ( -4.09544e-08  4.59142e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.330937   ( -4.08797   0.626511 )
beta        : -2.72007    ( 9.37162   19.3716 )
Epeak [keV] : 25.3258      ( -21.2186 11.3995 )
Norm@50keV   : 0.216930    ( -0.204134   479.577 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.03 using 59 PHA bins.
# Reduced chi-squared =         0.7642 for     55 degrees of freedom
# Null hypothesis probability =   9.005510e-01

Photon flux (15-150 keV)    in 10.92 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.09e-07
S(50-100 keV) = 8.93e-08

T90 vs. Hardness ratio plot

T90                                   = 11.5359999537468 sec.
Hardness ratio (energy fluence ratio) = 0.819266

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.886587
Count Ratio (50-100 keV) / (15-25 keV) = 0.358511

Mask shadow pattern

IMX = -1.233120555355369E-01, IMY = -1.802365736885335E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-728.859370 -709.246000
-239.360000 0.020000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4825 -40.5198    1.9  13.0  -87.0   1.4148   6.1    3.0	Vela X-1
 87.7110 -15.2716    3.4  40.9   32.8   1.7018   3.4 ------	UNKNOWN
178.1922  -0.4007    3.5  54.1 -179.4   3.2221   3.3 ------	UNKNOWN
113.0676 -43.6030    2.6  20.2  -30.0   1.0636   4.4 ------	UNKNOWN
188.2774 -11.3236    3.2  57.1 -161.7   4.3225   3.6 ------	UNKNOWN
190.7842 -12.5442    3.4  58.8 -159.2   6.2800   3.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.020000 10.940600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4177 -40.6336    6.7  13.1  -86.6  -0.0744  -1.7    6.9	Vela X-1
159.4470   2.1045    2.5  41.8  161.2   0.3792   4.6 ------	UNKNOWN
132.1712 -16.3427    0.7  12.3  124.4   0.6954  17.6 ------	UNKNOWN
168.6909  -7.9452    2.2  42.1 -178.4   0.3491   5.2 ------	UNKNOWN
 69.3943 -51.7204    2.8  49.9  -22.2   0.3701   4.2 ------	UNKNOWN
140.2822 -68.2415    2.1  40.3  -73.0   0.7187   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
44.140620 838.585900
840.640000 962.680000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4329 -40.5418    1.8  24.3  -76.0   4.7432   6.5    4.4	Vela X-1
 92.4733  -4.0935    2.8  40.9   33.0   4.4669   4.1 ------	UNKNOWN
 79.2750 -18.5847    3.1  50.3    9.1   5.3358   3.8 ------	UNKNOWN
164.3697  -3.6151    2.8  34.1 -178.5   3.0126   4.2 ------	UNKNOWN
159.9292 -32.0413    2.9  29.6 -123.0   2.9901   3.9 ------	UNKNOWN
170.4299 -44.4805    3.3  42.7 -110.7  10.1817   3.5 ------	UNKNOWN

Plot creation:
Fri Mar 18 11:53:50 EDT 2016
