Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jun  1 15:56:40 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger682522
======================================================================

  Trigger: 00682522      Segment: 000

  BAT Trigger Time: 482127850.816   [s; MET]
      Trigger Stop: 482127851.84   [s; MET]
               UTC: 2016-04-12T04:23:54.702760    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 33.1066844471939   Dec: -67.6453927684835  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.8
     Image Trigger?:     NO
     Rate S/N Ratio:     11.5758369027902  [ if not an image trigger ]
     Image S/N Ratio:    6.8

  Flight Position:   [ source = BAT ]
    RA: 33.1066844471939   Dec: -67.6453927684835  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 33.0739519548768   Dec: -67.6399829147724  [deg; J2000]
        { 02h 12m 17.7s , -67d 38' 23.9" }
         +/- 0.878001438146648 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.253779864034574 [arcmin] (formal 1-sigma fit error)
    SNR: 36.6302163607862

  Angular difference between Flight and Ground position is 0.814520 arcmin

  Partial Coding Fraction: 0.7578125    [ including projection effects ]

  Duration
     T90: 32.1799999475479 +/- 3.93007892771808
        Measured from: -1.38400000333786
                   to: 30.7959999442101     [s; relative to TRIGTIME]
     T50: 12.4559999704361 +/- 1.37689506130348
        Measured from: 5.89200001955032
                   to: 18.3479999899864     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 14.4000000357628
                   to: 15.4000000357628     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.30799996852875
                   to: 40.1759999990463     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.177317   1.363932   0.715318   0.191249
           0.043307   0.045397   0.039402   0.035022 [error]
 Peak      0.068441   0.069519   0.046938   0.007019
           0.007269   0.007640   0.006620   0.005653 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.85e-07 5.60e-07 6.09e-07 1.25e-06 1.94e-06 2.80e-06   erg/cm2
              Error 2.73e-08 2.40e-08 4.01e-08 1.72e-07 9.14e-08 2.06e-07   erg/cm2
Peak flux Power-law 6.68e-01 5.35e-01 2.89e-01 2.29e-01 1.60e+00 1.72e+00   ph/cm2/s
              Error 1.13e-01 6.21e-02 5.44e-02 8.20e-02 1.85e-01 2.03e-01   ph/cm2/s

Fluence   Cutoff-PL 3.77e-07 5.69e-07 6.09e-07 9.39e-07 1.91e-06 2.50e-06   erg/cm2
              Error 3.18e-08 2.99e-08 4.12e-08 3.75e-07 1.13e-07 4.03e-07   erg/cm2
Peak flux Cutoff-PL 6.25e-01 5.75e-01 2.92e-01 1.06e-01 1.56e+00 1.60e+00   ph/cm2/s
              Error 1.29e-01 8.25e-02 5.99e-02 1.29e-01 1.90e-01 2.32e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.879    0.083    -      -           4.74e-03 2.24e-04   58.400 57
CPL   1.724    0.335      80.3  -25.6      5.76e-03 2.09e-03   57.740 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.887    0.213    -      -           1.12e-02 1.59e-03   72.760 57
CPL   1.274    0.892      51.6    0.0      2.48e-02 0.00e+00   71.170 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 26.368000 sec.
T50 in the 50-300 keV band: 10.560000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   44.484   -4.308   40.176
T90    32.180   -1.384   30.796
T50    12.456    5.892   18.348
Peak    1.000   14.400   15.400

Click here for the BAT GCN circular template

Special notes of this burst

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

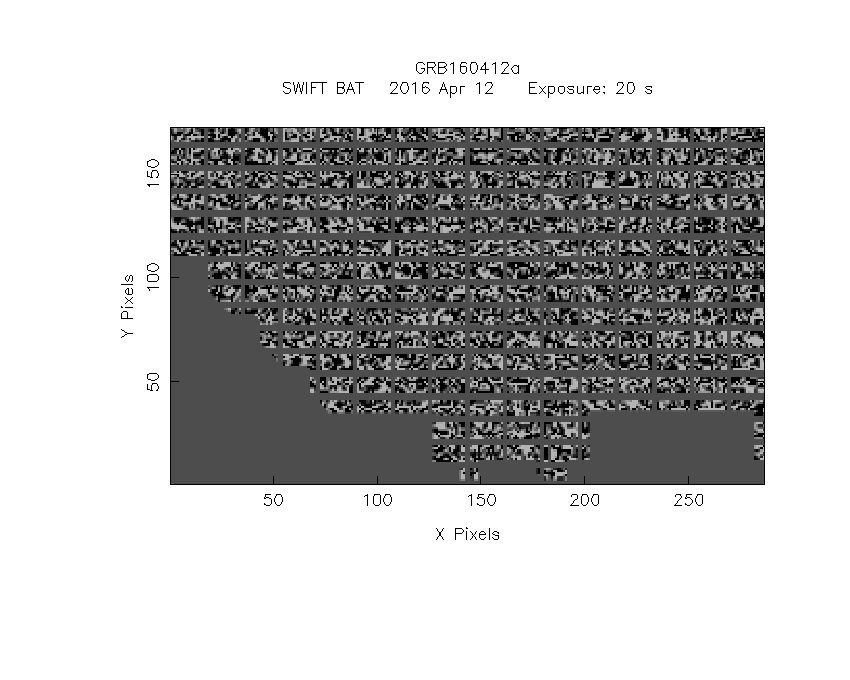

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   33.0740   -67.6400   0.0052    25.3605   151.1442         2.2591009     36.630 TRIG_00682522

Foreground time interval of the image:
 -4.308  15.885 (delta_t =  20.193 [sec])
Background time interval of the image:
-239.816  -4.308 (delta_t = 235.508 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

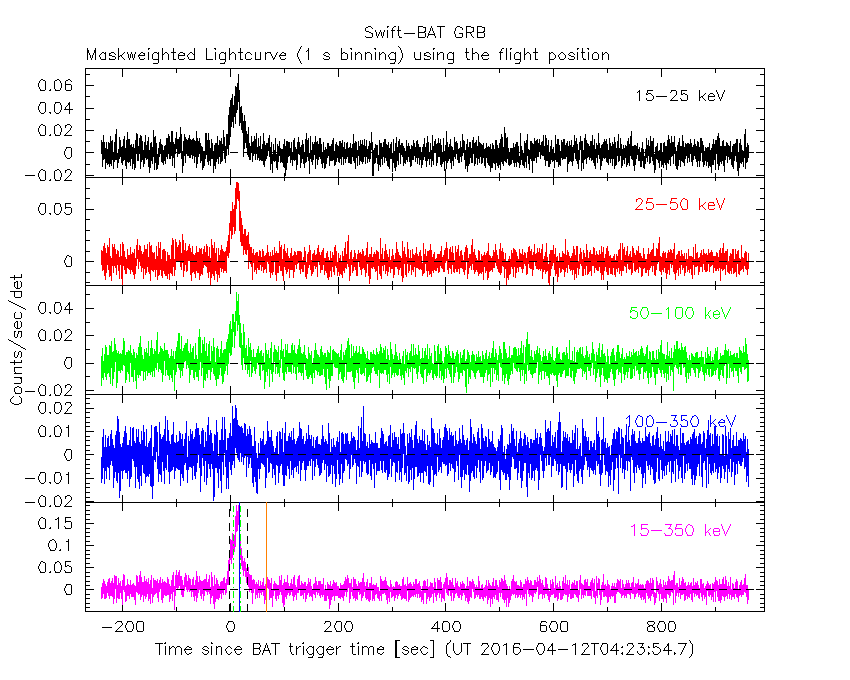

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

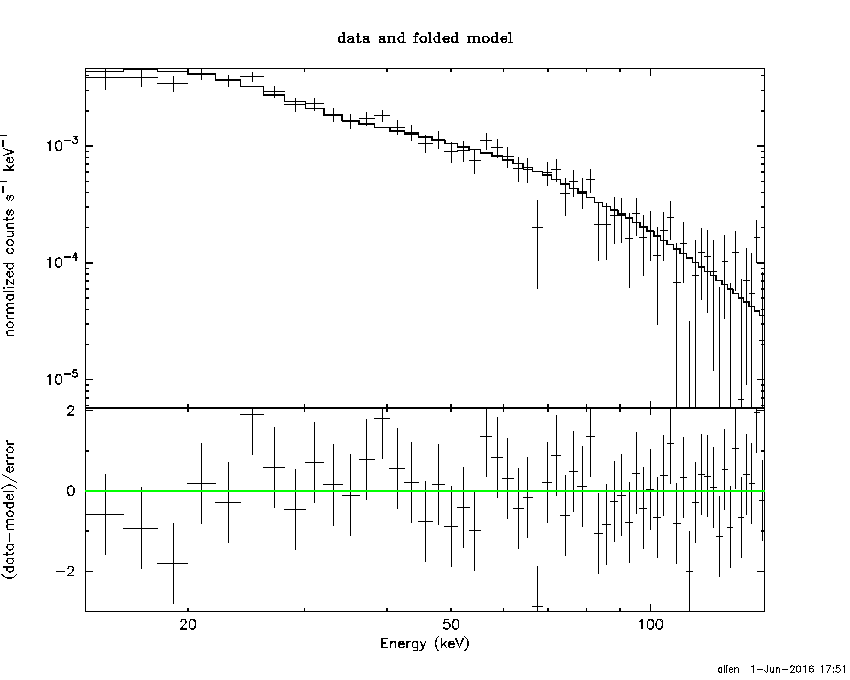

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

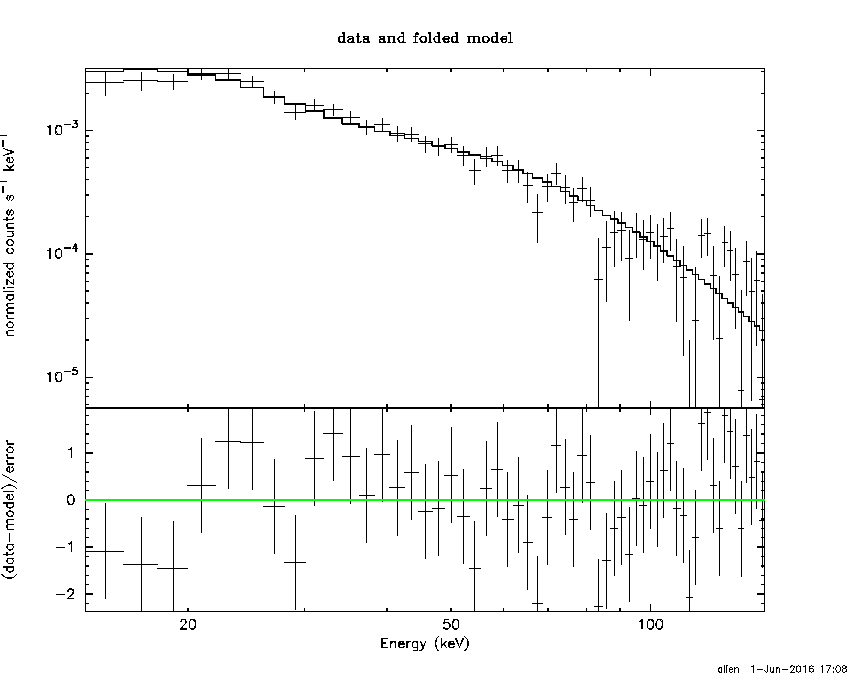

Power-law model

Time interval is from   -4.308 sec. to   40.176 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87882     ( -0.0825128   0.0834461 )
Norm@50keV  : 4.74292E-03    ( -0.000224292   0.00022272 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.40 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     57 degrees of freedom
# Null hypothesis probability =   4.238722e-01

Photon flux (15-150 keV)    in 44.48 sec: 0.674661 ( -0.029738  0.0298 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.93975e-06 ( -9.11809e-08  9.16506e-08 ) ergs/cm2

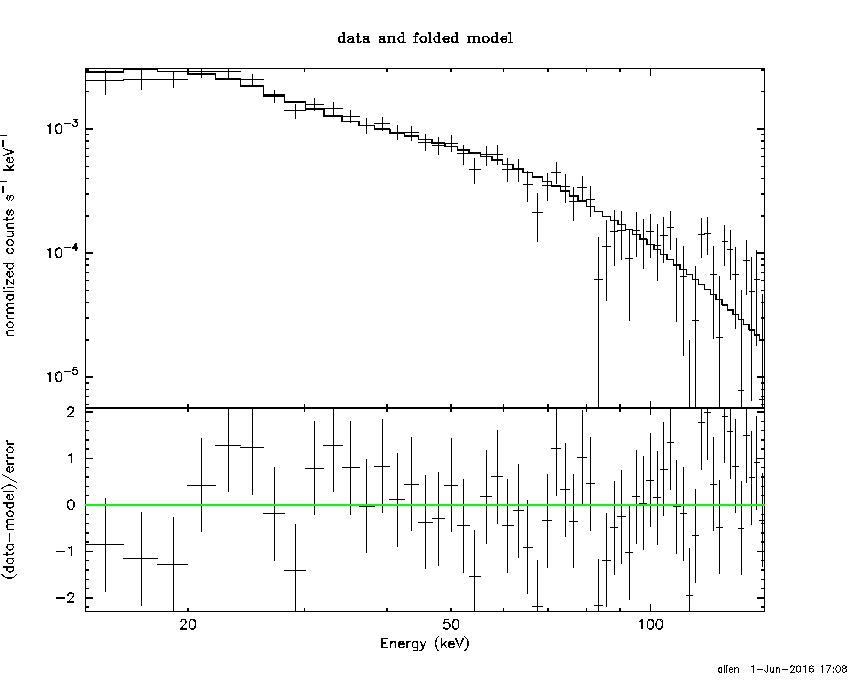

Cutoff power-law model

Time interval is from   -4.308 sec. to   40.176 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72351     ( -0.350416   0.31965 )
Epeak [keV] : 80.2785      ( -29.0075 -80.2883 )
Norm@50keV  : 5.75585E-03    ( -0.001087   0.0030937 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.74 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     56 degrees of freedom
# Null hypothesis probability =   4.106951e-01

Photon flux (15-150 keV)    in 44.48 sec: 0.668110 ( -0.032689  0.032648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.90614e-06 ( -1.14774e-07  1.12201e-07 ) ergs/cm2

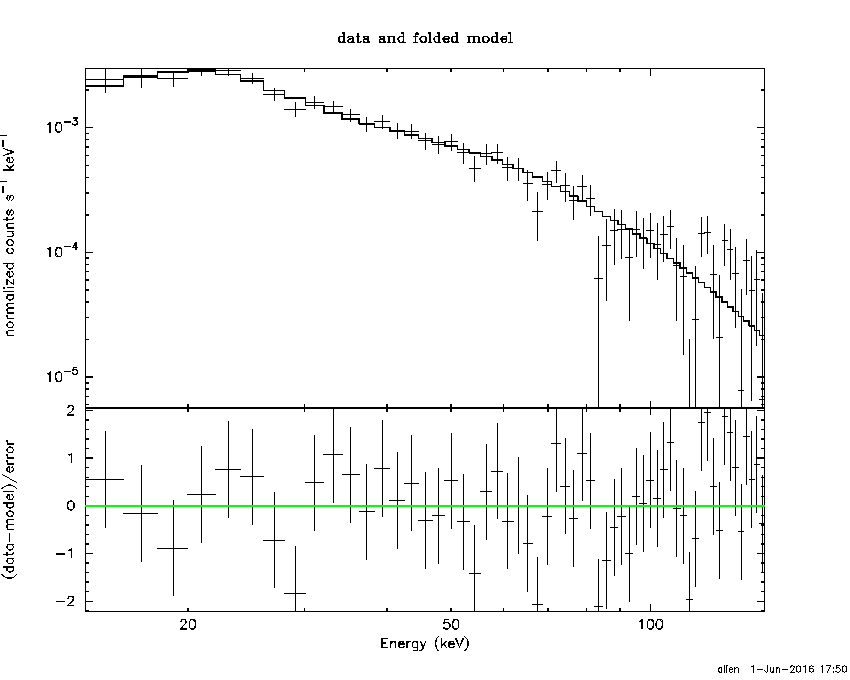

Band function

Time interval is from   -4.308 sec. to   40.176 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.36609   ( -2.52699   -1.05706 )
beta        : -1.97252    ( -0.192663   0.110655 )
Epeak [keV] : 25.4410      ( -5.53056 23.2913 )
Norm@50keV   : 7.04912    ( -7.04927   319.176 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.89 using 59 PHA bins.
# Reduced chi-squared =         0.9434 for     55 degrees of freedom
# Null hypothesis probability =   5.943940e-01

Photon flux (15-150 keV)    in 44.48 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

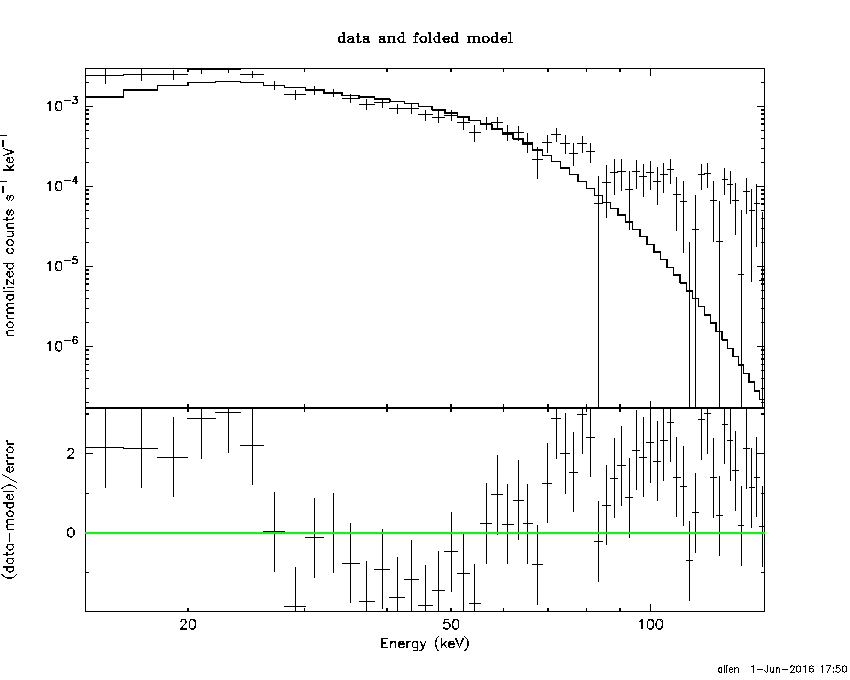

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.1187  (  )
R^2/D10^2   : 0.202467  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         173.33 using 59 PHA bins.
# Reduced chi-squared =         3.0408 for     57 degrees of freedom
# Null hypothesis probability =   1.140076e-13

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.331e-07   1.813e-08
25- 50  6.682e-07   3.136e-08
50-150  4.705e-07   5.013e-08
15-150  1.372e-06   6.805e-08

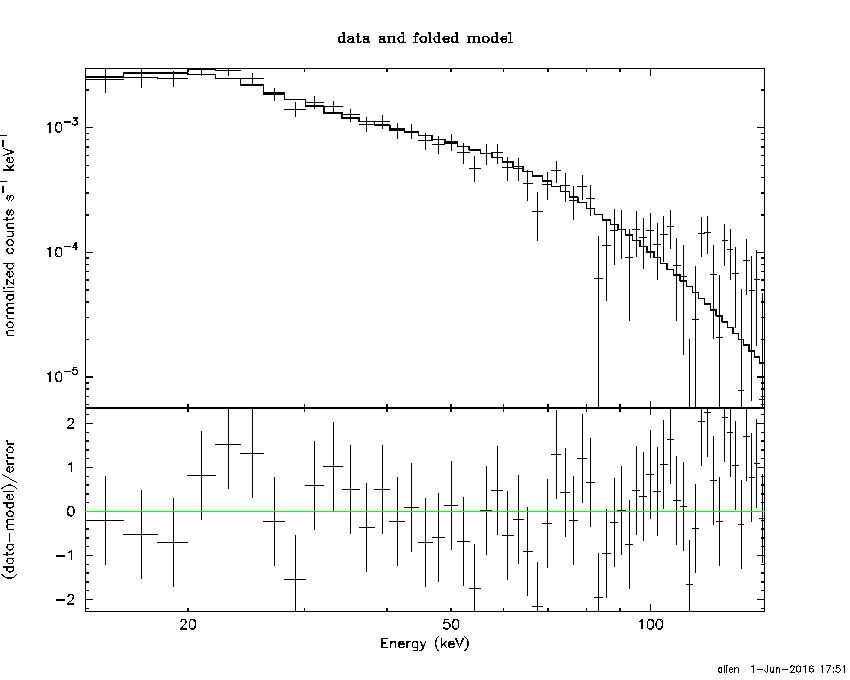

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 87.8089       (-13.1481      17.2182)
Norm        : 3.02712       (-0.207627     0.230798)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.28 using 59 PHA bins.
# Reduced chi-squared =          1.075 for     57 degrees of freedom
# Null hypothesis probability =   3.250585e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.510e-07   2.466e-08
25- 50  5.905e-07   2.647e-08
50-150  8.855e-07   1.902e-07
15-150  1.827e-06   2.188e-07

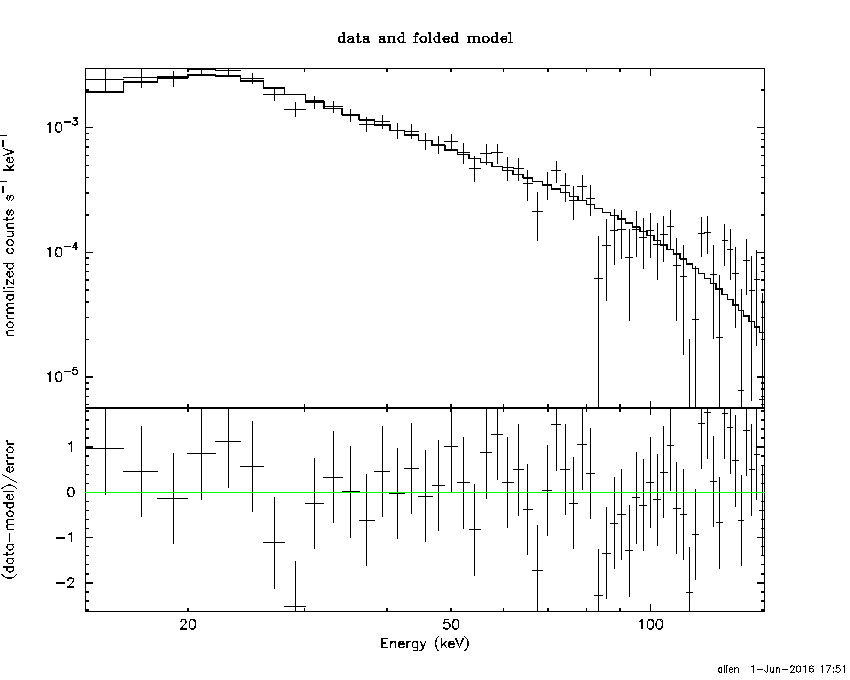

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.49281        (-0.873447      0.878439)
R1^2/D10^2  : 0.723429        (-0.223684      0.377042)
kT2 [keV]   : 31.5229        (-7.66583      15.455)
R2^2/D10^2  : 3.04135E-03    (-0.00205853   0.00490841)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.37 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     55 degrees of freedom
# Null hypothesis probability =   4.606171e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.302e-07   3.552e-08
25- 50  6.106e-07   5.338e-08
50-150  9.834e-07   3.681e-07
15-150  1.924e-06   3.861e-07

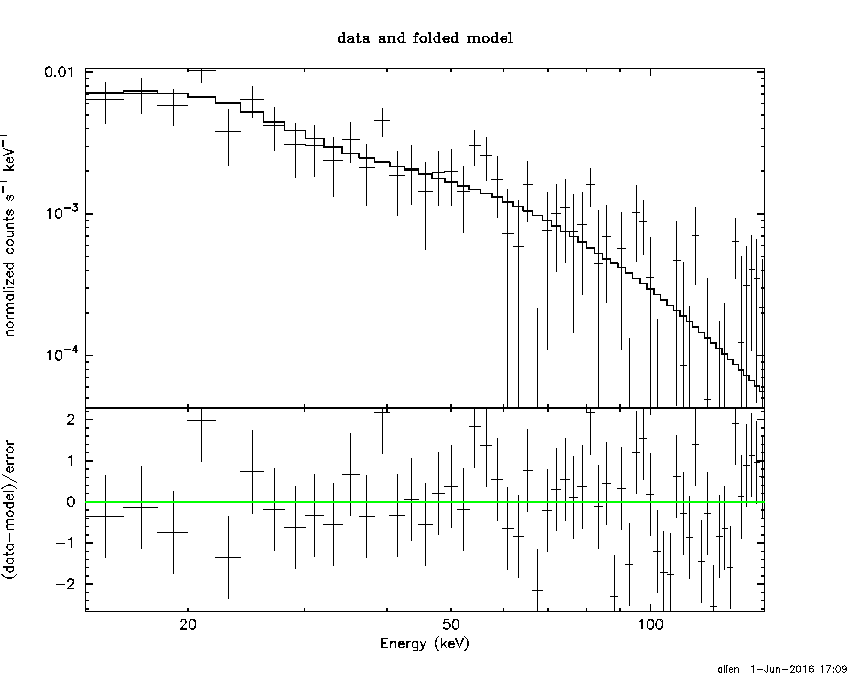

Peak spectrum fit

Power-law model

Time interval is from   14.400 sec. to   15.400 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88711     ( -0.207228   0.219727 )
Norm@50keV  : 1.11776E-02    ( -0.00161178   0.00157103 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.76 using 59 PHA bins.
# Reduced chi-squared =          1.276 for     57 degrees of freedom
# Null hypothesis probability =   7.791371e-02

Photon flux (15-150 keV)    in 1 sec: 1.59549 ( -0.18532  0.18535 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.02773e-07 ( -1.44142e-08  1.47168e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   14.400 sec. to   15.400 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27391     ( -0.983939   0.801029 )
Epeak [keV] : 51.6059      (   )
Norm@50keV  : 2.47596E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.17 using 59 PHA bins.
# Reduced chi-squared =          1.271 for     56 degrees of freedom
# Null hypothesis probability =   8.334988e-02

Photon flux (15-150 keV)    in 1 sec: 1.56277 ( -0.19029  0.19034 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.73509e-08 ( -1.54101e-08  1.62574e-08 ) ergs/cm2

Band function

Time interval is from   14.400 sec. to   15.400 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.27358   ( 1.29795   2.86009 )
beta        : -4.08385    ( 3.79398   13.794 )
Epeak [keV] : 51.5825      ( -51.5821 -51.5821 )
Norm@50keV   : 2.47695E-02    ( -0.014602   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.17 using 59 PHA bins.
# Reduced chi-squared =          1.294 for     55 degrees of freedom
# Null hypothesis probability =   7.019763e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.1535  (-1.52278  1.74814)
R^2/D10^2   : 0.502363  (-0.209985   0.364689)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.32 using 59 PHA bins.
# Reduced chi-squared =          1.514 for     57 degrees of freedom
# Null hypothesis probability =   7.335667e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.309e-08   2.955e-09
25- 50  3.768e-08   5.835e-09
50-150  2.676e-08   7.710e-09
15-150  7.753e-08   1.222e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 81.7493       (-25.8837      49.3204)
Norm        : 7.47513       (-1.1592     1.49439)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.21 using 59 PHA bins.
# Reduced chi-squared =          1.249 for     57 degrees of freedom
# Null hypothesis probability =   9.767397e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.942e-08   3.080e-09
25- 50  3.214e-08   4.550e-09
50-150  4.603e-08   2.279e-08
15-150  9.759e-08   2.315e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.34142        (-1.53235      2.19402)
R1^2/D10^2  : 10.8131        (-8.5369      77.0738)
kT2 [keV]   : 16.0123        (-3.27082      5.74484)
R2^2/D10^2  : 0.107013    (-0.077267   0.098691)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.06 using 59 PHA bins.
# Reduced chi-squared =          1.274 for     55 degrees of freedom
# Null hypothesis probability =   8.300621e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.010e-08   1.016e-08
25- 50  3.042e-08   1.416e-08
50-150  4.294e-08   2.459e-08
15-150  9.346e-08   4.523e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87123     ( -0.0858105   0.0869929 )
Norm@50keV  : 6.97724E-03    ( -0.000348555   0.000345953 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.72 using 59 PHA bins.
# Reduced chi-squared =         0.8548 for     57 degrees of freedom
# Null hypothesis probability =   7.742878e-01

Photon flux (15-150 keV)    in 20.19 sec: 0.989299 ( -0.0456982  0.0457836 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29503e-06 ( -6.4436e-08  6.48557e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58488     ( -0.368572   0.334233 )
Epeak [keV] : 65.9875      ( -16.6277 -65.9887 )
Norm@50keV  : 9.94335E-03    ( -0.00313078   0.00564759 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.65 using 59 PHA bins.
# Reduced chi-squared =         0.8331 for     56 degrees of freedom
# Null hypothesis probability =   8.088845e-01

Photon flux (15-150 keV)    in 20.19 sec: 0.971965 ( -0.049828  0.049845 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.25724e-06 ( -7.83554e-08  7.84664e-08 ) ergs/cm2

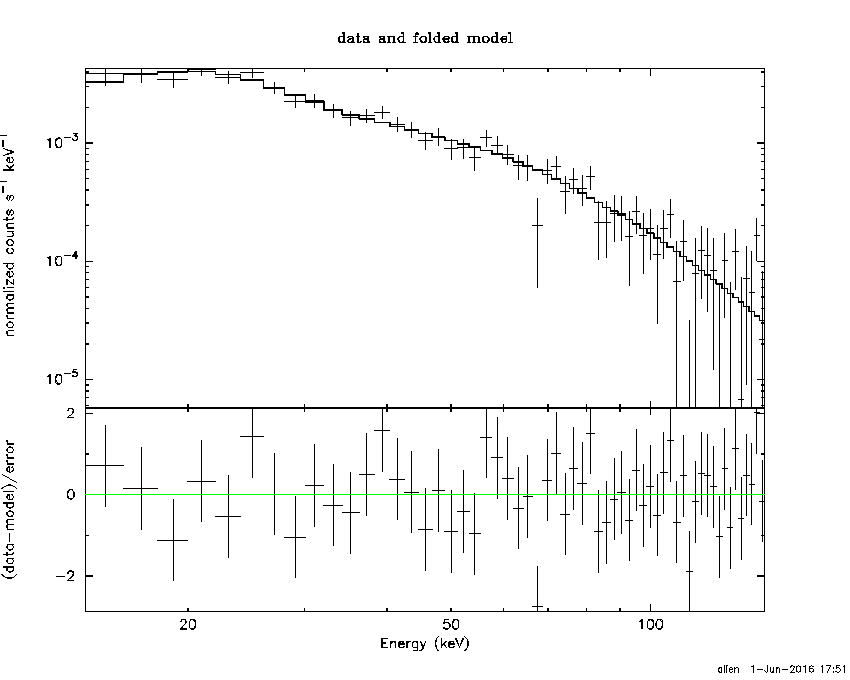

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.666426   ( -2.17698   -0.663134 )
beta        : -1.98076    ( -0.145362   0.123791 )
Epeak [keV] : 29.1048      ( -6.96319 36.8765 )
Norm@50keV   : 0.425217    ( -0.41566   433.678 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.48 using 59 PHA bins.
# Reduced chi-squared =         0.7906 for     55 degrees of freedom
# Null hypothesis probability =   8.689065e-01

Photon flux (15-150 keV)    in 20.19 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.60e-07
S(50-100 keV) = 6.09e-07

T90 vs. Hardness ratio plot

T90                                   = 32.1799999475479 sec.
Hardness ratio (energy fluence ratio) = 1.0875

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.15851
Count Ratio (50-100 keV) / (15-25 keV) = 0.607583

Mask shadow pattern

IMX = -4.151392283191319E-01, IMY = -2.287511584243762E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

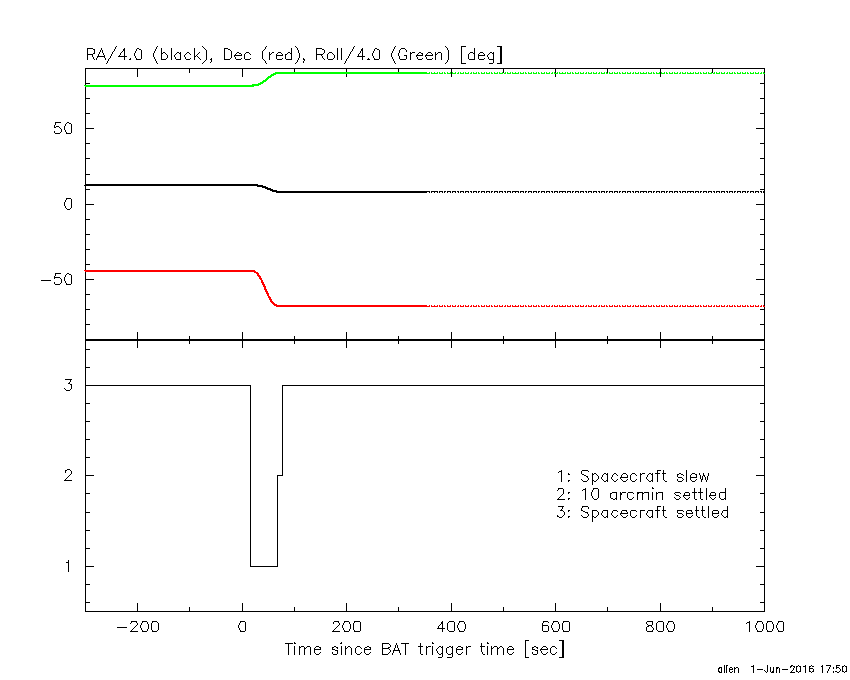

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.816000 -4.308000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 68.2849 -75.5712    2.8  32.5  127.5   1.3062   4.1 ------	UNKNOWN
 94.9378 -34.6430    2.6  35.1   45.7   1.4638   4.5 ------	UNKNOWN
305.9875 -71.4878    2.3  53.0  158.3   5.1762   5.0 ------	UNKNOWN
 32.8540 -67.6461    2.2  25.4  151.3   1.1841   5.3 ------	UNKNOWN
 51.3912 -18.3802    2.9  25.7  -42.5   0.8324   4.1 ------	UNKNOWN
332.9799 -42.7502    2.6  54.2 -162.2   2.7470   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.308000 15.884600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.2331 -77.5627    2.5  51.5  150.5   1.3728   4.5 ------	UNKNOWN
 98.7737 -29.2305    2.1  40.8   41.0   0.7046   5.5 ------	UNKNOWN
 33.0739 -67.6400    0.3  25.4  151.1   2.2592  36.6 ------	UNKNOWN
 19.6185 -12.9774    2.7  40.8  -94.4   0.9093   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
67.284590 962.287300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 99.8782 -45.7464    3.0  39.9   14.1   2.9084   3.8 ------	UNKNOWN
102.0583 -29.0766    3.7  55.3    5.1   6.0495   3.1 ------	UNKNOWN
308.9159 -44.6982    3.3  47.3  176.6   3.9341   3.5 ------	UNKNOWN
 95.5286 -28.2539    2.4  53.6   -1.7   6.3809   4.9 ------	UNKNOWN
  8.9086 -61.6891    3.6  11.8 -149.0   1.5587   3.2 ------	UNKNOWN
314.3187 -30.8657    2.8  57.5 -170.3  10.4804   4.1 ------	UNKNOWN
323.2848 -25.7075    3.5  58.7 -159.3  14.5610   3.3 ------	UNKNOWN

Plot creation:
Wed Jun  1 17:52:01 EDT 2016
