batgrbproduct analysis for trigger=687124

batgrbproduct Analysis for Trigger=687124

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon May 23 13:07:08 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger687124/GCN5_download_cron
======================================================================

  Trigger: 00687124      Segment: 000

  BAT Trigger Time: 485555038.608   [s; MET]
      Trigger Stop: 485555038.624   [s; MET]
               UTC: 2016-05-21T20:23:42.306160    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.730319051045   Dec: 21.9048472561028  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    14.02
     Image Trigger?:     NO
     Rate S/N Ratio:     82.8130424510536  [ if not an image trigger ]
     Image S/N Ratio:    14.02

  Flight Position:   [ source = BAT ]
    RA: 293.730319051045   Dec: 21.9048472561028  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.715250238091   Dec: 21.9106703207017  [deg; J2000]
        { 19h 34m 51.7s , +21d 54' 38.4" }
         +/- 1.26506165684059 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.536112693403089 [arcmin] (formal 1-sigma fit error)
    SNR: 21.739248811181

  Angular difference between Flight and Ground position is 0.908690 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.195999920368195 +/- 0.0561426702605141
        Measured from: -0.00799983739852905
                   to: 0.188000082969666     [s; relative to TRIGTIME]
     T50: 0.123999953269958 +/- 0.0960000157356262
        Measured from: 0.00400012731552124
                   to: 0.12800008058548     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.381999969482422
                   to: 0.618000030517578     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0079999566078186
                   to: 0.240000009536743     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.067572   0.068705   0.026691   0.001008
           0.005011   0.004928   0.003575   0.002148 [error]
 Peak      0.075939   0.075422   0.023985  -0.001645
           0.007180   0.007265   0.005716   0.004241 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.24e-08 1.92e-08 1.12e-08 9.72e-09 5.70e-08 6.25e-08   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 7.34e-01 4.84e-01 2.08e-01 1.23e-01 1.49e+00 1.55e+00   ph/cm2/s
              Error 1.05e-01 5.61e-02 4.24e-02 4.51e-02 1.66e-01 1.75e-01   ph/cm2/s

Fluence   Cutoff-PL 1.86e-08 2.87e-08 1.59e-08 2.26e-09 6.53e-08 6.55e-08   erg/cm2
              Error 2.63e-09 2.92e-09 3.19e-09 1.42e-09 6.22e-09 6.35e-09   erg/cm2
Peak flux Cutoff-PL 6.73e-01 5.76e-01 1.81e-01 1.73e-02 1.45e+00 1.45e+00   ph/cm2/s
              Error 1.17e-01 8.12e-02 5.72e-02 2.95e-02 1.67e-01 1.68e-01   ph/cm2/s

Fluence        Band 1.86e-08 2.84e-08 1.60e-08 2.43e-09 6.54e-08 6.55e-08   erg/cm2
              Error 2.26e-09 2.70e-09 2.74e-09 -------- 6.06e-09 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.780    0.000    -      -           2.10e-02 0.00e+00  131.640 57
CPL   0.487    0.644      32.0    5.6      3.88e-01 0.00e+00   77.030 56

The chi2 of BB fit is 93.39 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.219    0.206    -      -           8.89e-03 1.40e-03   62.440 57
CPL   0.674    1.143      32.1    9.4      8.03e-02 2.63e-01   54.530 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.192000 sec.
T50 in the 50-300 keV band: 0.192000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.248   -0.008    0.240
T90     0.196   -0.008    0.188
T50     0.124    0.004    0.128
Peak    1.000   -0.382    0.618

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  293.7153 +21.9107 0.0089    0.0  155.0       0.1642    21.7  TRIG_00687124
------------------------------------------

Foreground time interval of the image:
 -0.008   0.240 (delta_t =   0.248 [sec])
Background time interval of the image:
-239.608 -167.908 (delta_t =  71.700 [sec])
-119.608 -13.328 (delta_t = 106.280 [sec])
-12.608  -0.008 (delta_t =  12.600 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

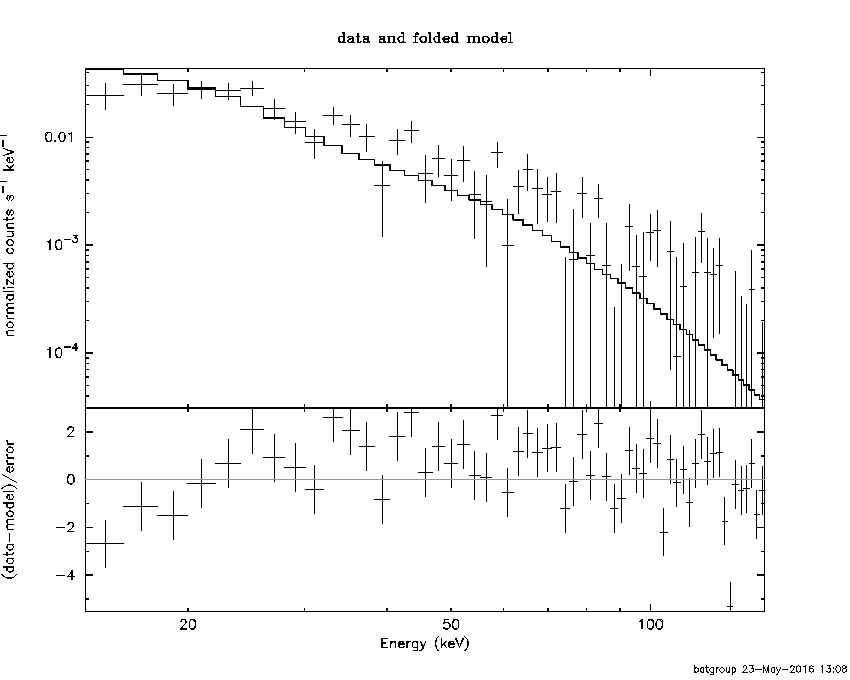

Power-law model

Time interval is from   -0.008 sec. to    0.240 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.77990     (     )
Norm@50keV  : 2.09697E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         131.64 using 59 PHA bins.
# Reduced chi-squared =         2.3094 for     57 degrees of freedom
# Null hypothesis probability =   7.740885e-08

Photon flux (15-150 keV)    in 0.248 sec: 4.93798 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.69671e-08 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.008 sec. to    0.240 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.486902     ( -0.701294   0.587488 )
Epeak [keV] : 31.9912      ( -6.40928 4.7266 )
Norm@50keV  : 0.387787    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.03 using 59 PHA bins.
# Reduced chi-squared =          1.375 for     56 degrees of freedom
# Null hypothesis probability =   3.268058e-02

Photon flux (15-150 keV)    in 0.248 sec: 5.17627 ( -0.46131  0.46158 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.52924e-08 ( -6.22034e-09  6.2181e-09 ) ergs/cm2

Band function

Time interval is from   -0.008 sec. to    0.240 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.472572   ( -0.496171   0.763045 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 32.0147      ( -6.10539 3.72004 )
Norm@50keV   : 0.396013    ( -0.210937   0.595909 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.03 using 59 PHA bins.
# Reduced chi-squared =          1.401 for     55 degrees of freedom
# Null hypothesis probability =   2.660156e-02

Photon flux (15-150 keV)    in 0.248 sec: 5.17897 ( 1.82103  -0.44523 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.54095e-08 ( -6.54078e-08  -6.04847e-09 ) ergs/cm2

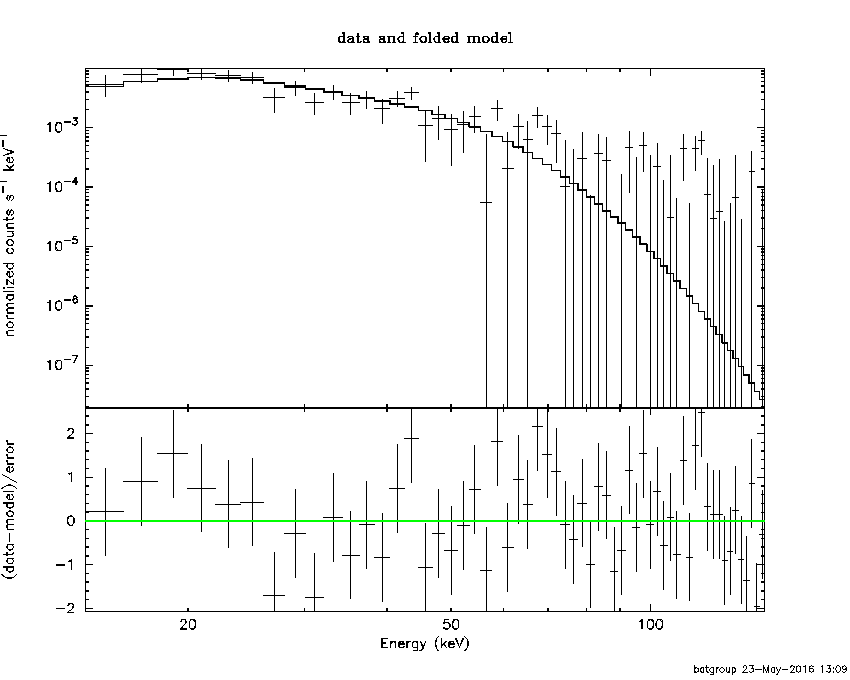

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.92401  (-0.853566  0.92103)
R^2/D10^2   : 3.94841  (-1.28089   1.93757)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          93.39 using 59 PHA bins.
# Reduced chi-squared =          1.638 for     57 degrees of freedom
# Null hypothesis probability =   1.687229e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.512e-08   2.154e-09
25- 50  3.170e-08   2.964e-09
50-150  1.178e-08   2.951e-09
15-150  5.860e-08   6.386e-09

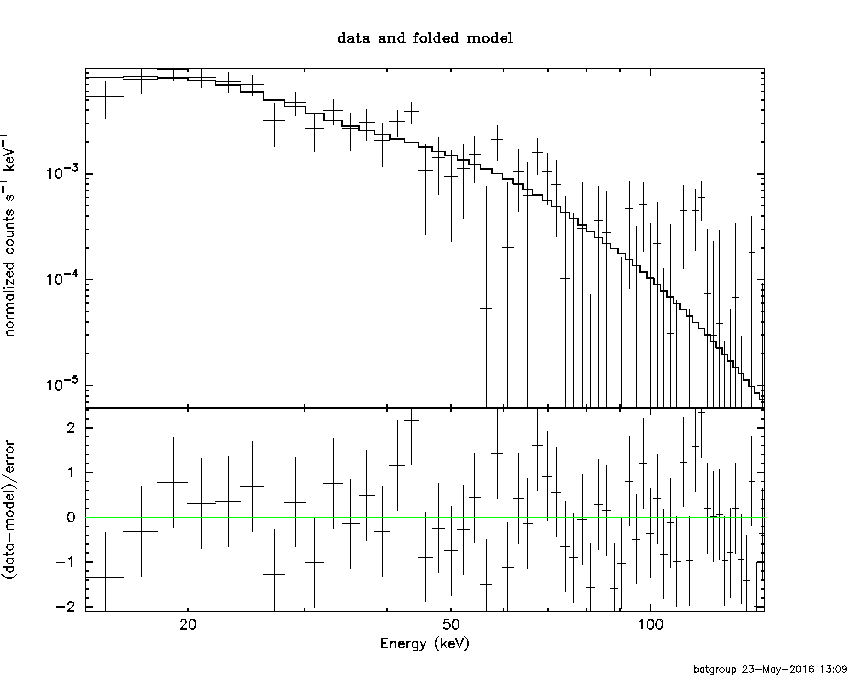

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 35.5417       (-4.70056      5.0302)
Norm        : 38.3183       (-4.93006     5.7181)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.25 using 59 PHA bins.
# Reduced chi-squared =          1.460 for     57 degrees of freedom
# Null hypothesis probability =   1.326052e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.089e-08   2.176e-09
25- 50  2.605e-08   2.221e-09
50-150  1.762e-08   3.607e-09
15-150  6.455e-08   6.274e-09

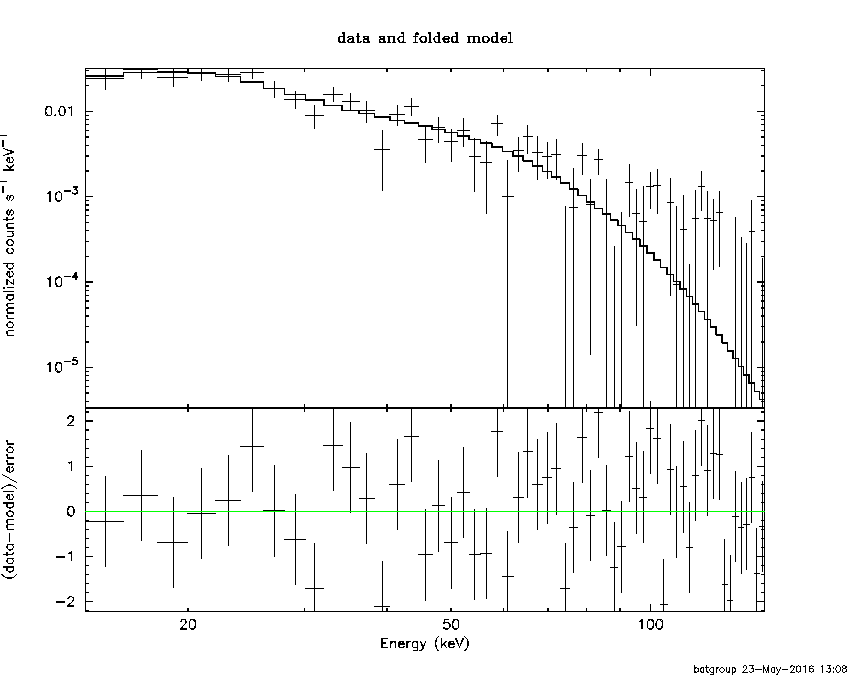

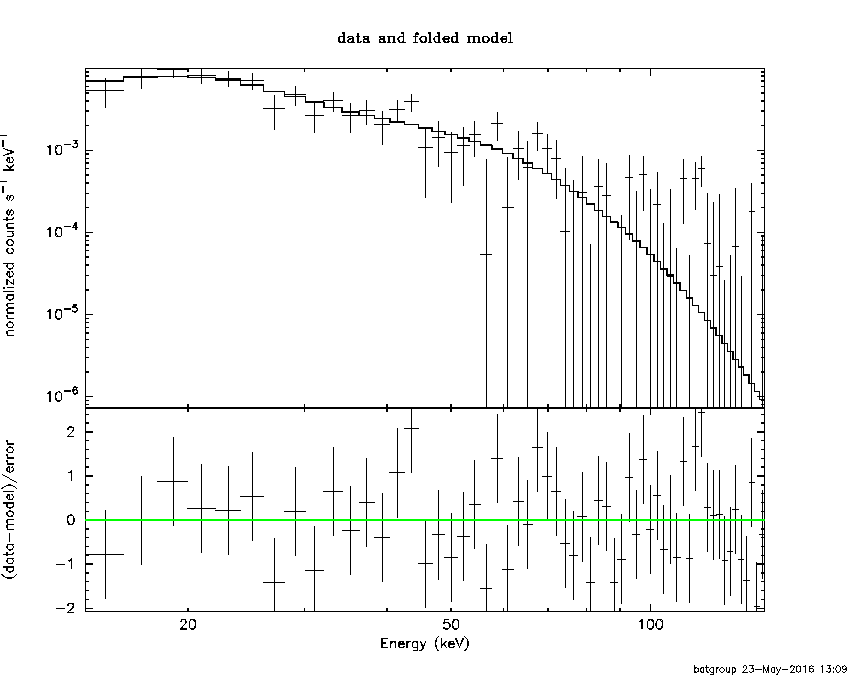

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.80564        (-1.1951      1.31888)
R1^2/D10^2  : 26.7226        (-15.9109      57.7391)
kT2 [keV]   : 12.8392        (-1.88501      1.97822)
R2^2/D10^2  : 0.654776    (-0.360789   0.629661)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.65 using 59 PHA bins.
# Reduced chi-squared =          1.339 for     55 degrees of freedom
# Null hypothesis probability =   4.735045e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.939e-08   8.399e-09
25- 50  2.740e-08   1.027e-08
50-150  2.023e-08   1.108e-08
15-150  6.703e-08   2.472e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.382 sec. to    0.618 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.21940     ( -0.198249   0.213413 )
Norm@50keV  : 8.89408E-03    ( -0.00140726   0.00138544 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.44 using 59 PHA bins.
# Reduced chi-squared =          1.095 for     57 degrees of freedom
# Null hypothesis probability =   2.889984e-01

Photon flux (15-150 keV)    in 1 sec: 1.48762 ( -0.166424  0.166425 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.38567e-08 ( -1.13632e-08  1.16545e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.382 sec. to    0.618 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.673724     ( -1.28618   0.999711 )
Epeak [keV] : 32.1434      ( -11.8929 6.98791 )
Norm@50keV  : 8.03423E-02    ( -0.0803422   0.446287 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.53 using 59 PHA bins.
# Reduced chi-squared =         0.9738 for     56 degrees of freedom
# Null hypothesis probability =   5.304935e-01

Photon flux (15-150 keV)    in 1 sec: 1.44558 ( -0.16628  0.1669 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.45862e-08 ( -1.08929e-08  1.20734e-08 ) ergs/cm2

Band function

Time interval is from   -0.382 sec. to    0.618 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.673539   ( -0.857098   3.8724 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 32.1365      ( -11.8894 6.98405 )
Norm@50keV   : 8.03686E-02    ( -0.0803685   0.447098 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.53 using 59 PHA bins.
# Reduced chi-squared =         0.9915 for     55 degrees of freedom
# Null hypothesis probability =   4.923533e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49072e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.57884  (-0.991804  1.09649)
R^2/D10^2   : 1.29076  (-0.488684   0.803866)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.79 using 59 PHA bins.
# Reduced chi-squared =          1.084 for     57 degrees of freedom
# Null hypothesis probability =   3.090023e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.801e-08   3.580e-09
25- 50  3.545e-08   4.985e-09
50-150  1.165e-08   3.910e-09
15-150  6.511e-08   9.820e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 44.3638       (-10.5678      15.6252)
Norm        : 9.20531       (-1.60365     2.07717)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.58 using 59 PHA bins.
# Reduced chi-squared =         0.9751 for     57 degrees of freedom
# Null hypothesis probability =   5.285191e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.183e-08   3.050e-09
25- 50  2.997e-08   3.920e-09
50-150  2.587e-08   8.310e-09
15-150  7.768e-08   1.257e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.92513        (-2.05718      18.5695)
R1^2/D10^2  : 6.39821        (-4.59463      47.0443)
kT2 [keV]   : 12.4735        (-3.15151      11.0679)
R2^2/D10^2  : 0.202428    (-0.193138   0.625096)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.11 using 59 PHA bins.
# Reduced chi-squared =         0.9838 for     55 degrees of freedom
# Null hypothesis probability =   5.086324e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.132e-08   1.140e-08
25- 50  3.118e-08   1.601e-08
50-150  2.142e-08   1.296e-08
15-150  7.393e-08   3.809e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.77990     (     )
Norm@50keV  : 2.09697E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         131.64 using 59 PHA bins.
# Reduced chi-squared =         2.3094 for     57 degrees of freedom
# Null hypothesis probability =   7.740885e-08

Photon flux (15-150 keV)    in 0.248 sec: 4.93798 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.69671e-08 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.486902     ( -0.701294   0.587488 )
Epeak [keV] : 31.9912      ( -6.40928 4.7266 )
Norm@50keV  : 0.387787    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.03 using 59 PHA bins.
# Reduced chi-squared =          1.375 for     56 degrees of freedom
# Null hypothesis probability =   3.268058e-02

Photon flux (15-150 keV)    in 0.248 sec: 5.17627 ( -0.46131  0.46158 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.52924e-08 ( -6.22034e-09  6.2181e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.472572   ( -0.496171   0.763045 )
beta        : -10.0000    ( 10   1.06581e-14 )
Epeak [keV] : 32.0147      ( -6.10539 3.72004 )
Norm@50keV   : 0.396013    ( -0.210937   0.595909 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.03 using 59 PHA bins.
# Reduced chi-squared =          1.401 for     55 degrees of freedom
# Null hypothesis probability =   2.660156e-02

Photon flux (15-150 keV)    in 0.248 sec: 5.17897 ( 1.82103  -0.44523 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.54095e-08 ( -6.54078e-08  -6.04847e-09 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.92e-08
S(50-100 keV) = 1.12e-08

T90 vs. Hardness ratio plot

T90                                   = 0.195999920368195 sec.
Hardness ratio (energy fluence ratio) = 0.583333

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.01677
Count Ratio (50-100 keV) / (15-25 keV) = 0.395001

Mask shadow pattern

IMX = -3.370542380668531E-04, IMY = -1.569853730924277E-04

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

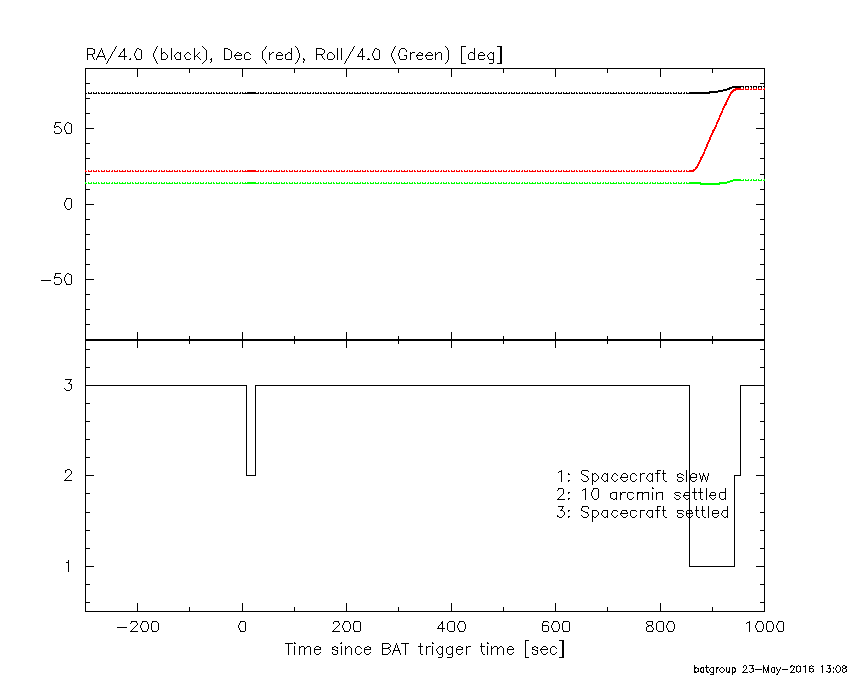

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.608000 -167.908000
-119.608000 -13.328000
-12.608000 -0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5362  35.4538    5.7  36.7  155.2   0.7592   2.0    7.7	Her X-1
268.3376  -1.6350    9.8  34.2   84.5   0.5188   1.2   11.1	SW J1753.5-0127
274.0646 -14.1431    7.3  40.9   64.6  -1.4752  -1.6    7.3	GX 17+2
285.0227 -24.9109   37.4  47.6   45.5   0.2693   0.3    0.9	HT1900.1-2455
288.7724  10.9868    2.4  11.9   59.0   1.0089   4.8    2.9	GRS 1915+105
299.5703  35.2039    0.4  14.2 -125.5   5.2065  27.1    1.0	Cyg X-1
308.0947  40.9807    1.8  22.6 -116.1   1.4551   6.3    1.8	Cyg X-3
326.3033  38.4866    0.0  32.4  -93.5  -0.4843  -1.5   11.7	Cyg X-2
280.9919  -0.9772    2.9  26.0   64.9   1.1430   4.0 ------	UNKNOWN
318.1831   9.3346    2.8  26.6  -31.0   0.8832   4.1 ------	UNKNOWN
243.4304  74.4194    3.6  58.8 -159.3   4.2345   3.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.008000 0.240000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6606  35.3353   18.8  36.6  155.0  -0.0083  -0.6    9.9	Her X-1
268.3724  -1.3741    9.0  34.0   84.7   0.0241   1.3    4.7	SW J1753.5-0127
274.0943 -14.1085    4.1  40.8   64.6  -0.0806  -2.8    6.7	GX 17+2
285.0990 -24.9189    6.3  47.6   45.4  -0.0698  -1.8    3.4	HT1900.1-2455
288.8544  10.8489   10.8  12.0   58.4   0.0092   1.1    6.7	GRS 1915+105
299.4187  35.2887    6.5  14.3 -126.1   0.0154   1.8    9.9	Cyg X-1
308.3776  40.8921    0.0  22.7 -115.5   0.0014   0.1   12.7	Cyg X-3
325.9844  38.2882   30.3  32.1  -93.3  -0.0058  -0.4    9.0	Cyg X-2
255.3749   5.7294    2.7  40.4  106.9   0.1432   4.3 ------	UNKNOWN
251.9041  21.6842    2.2  38.7  132.5   0.1118   5.3 ------	UNKNOWN
293.7152  21.9106    0.5   0.0  155.0   0.1642  21.7 ------	UNKNOWN
343.3189   8.5671    2.8  49.4  -47.6   0.1721   4.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-60.608000 -13.328000
-10.608000 62.543400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4544  35.4317    9.1  36.7  155.1   0.3342   1.3    5.4	Her X-1
268.3393  -1.3165   17.7  34.0   84.9   0.2156   0.7    8.3	SW J1753.5-0127
273.8343 -13.9918    7.0  40.9   65.1   1.1553   1.6   10.3	GX 17+2
285.1163 -25.0280    5.2  47.7   45.3  -1.3939  -2.2    7.8	HT1900.1-2455
288.7730  10.9680    2.3  11.9   59.0   0.8088   5.0    2.0	GRS 1915+105
299.5647  35.1983    0.4  14.2 -125.6   3.8374  26.4    1.3	Cyg X-1
308.1065  40.9948    2.2  22.6 -116.1   0.8274   5.3    2.5	Cyg X-3
326.2376  38.3831   12.1  32.3  -93.3   0.2347   1.0    4.8	Cyg X-2
287.7800 -26.0780    2.2  48.3   41.9   3.2449   5.2 ------	UNKNOWN
249.5585  36.0089    2.3  40.7  155.0   1.4965   5.0 ------	UNKNOWN
318.2575   9.2837    3.4  26.7  -30.9   0.5446   3.3 ------	UNKNOWN
250.9702  75.5778    3.2  57.9 -156.8   2.9458   3.6 ------	UNKNOWN

Plot creation:
Mon May 23 13:09:52 EDT 2016
