TDRSS lightcurve for Trigger=689597
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 07 Jun 16 11:14:21 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 689597, Seg_Num: 0
GRB_RA: 13.663d {+00h 54m 39s} (J2000),
13.872d {+00h 55m 29s} (current),
13.028d {+00h 52m 07s} (1950)
GRB_DEC: -4.948d {-04d 56' 52"} (J2000),
-4.859d {-04d 51' 32"} (current),
-5.219d {-05d 13' 07"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 13225 [cnts] Image_Peak=2295 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 146 E_range: 25-100 keV
BKG_INTEN: 23881 [cnts]
BKG_TIME: 40423.61 SOD {11:13:43.61} UT
BKG_DUR: 8 [sec]
GRB_DATE: 17546 TJD; 159 DOY; 16/06/07
GRB_TIME: 40440.83 SOD {11:14:00.83} UT
GRB_PHI: -4.91 [deg]
GRB_THETA: 27.80 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 172.84 [sigma]
IMAGE_SIGNIF: 24.09 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 +8 +0 +0 -39 +0
SUN_POSTN: 76.02d {+05h 04m 06s} +22.81d {+22d 48' 53"}
SUN_DIST: 66.66 [deg] Sun_angle= 4.1 [hr] (West of Sun)
MOON_POSTN: 109.77d {+07h 19m 05s} +17.90d {+17d 54' 09"}
MOON_DIST: 97.09 [deg]
MOON_ILLUM: 7 [%]
GAL_COORDS: 125.05,-67.81 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 10.62, -9.95 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 287.02,18.10 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 07 Jun 16 11:31:48 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 689597, Seg_Num: 0
GRB_RA: 13.663d {+00h 54m 39s} (J2000),
13.872d {+00h 55m 29s} (current),
13.028d {+00h 52m 07s} (1950)
GRB_DEC: -4.948d {-04d 56' 52"} (J2000),
-4.859d {-04d 51' 32"} (current),
-5.219d {-05d 13' 07"} (1950)
GRB_DATE: 17546 TJD; 159 DOY; 16/06/07
GRB_TIME: 40440.83 SOD {11:14:00.83} UT
TRIGGER_INDEX: 146
GRB_PHI: -4.91 [deg]
GRB_THETA: 27.80 [deg]
DELTA_TIME: 38.00 [sec]
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 172.84 [sigma]
IMAGE_SIGNIF: 24.09 [sigma]
LC_URL: sw00689597000msb.lc
GCN template for BAT paragraph
Click here!
At 11:14:00 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 160607 ***A*** (trigger=689597). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 13.663, -4.948 which is
RA(J2000) = 00h 54m 39s
Dec(J2000) = -04d 56' 52"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~33307 counts/sec (15-350 keV), at ~12 sec after the trigger.
Test version of draft template

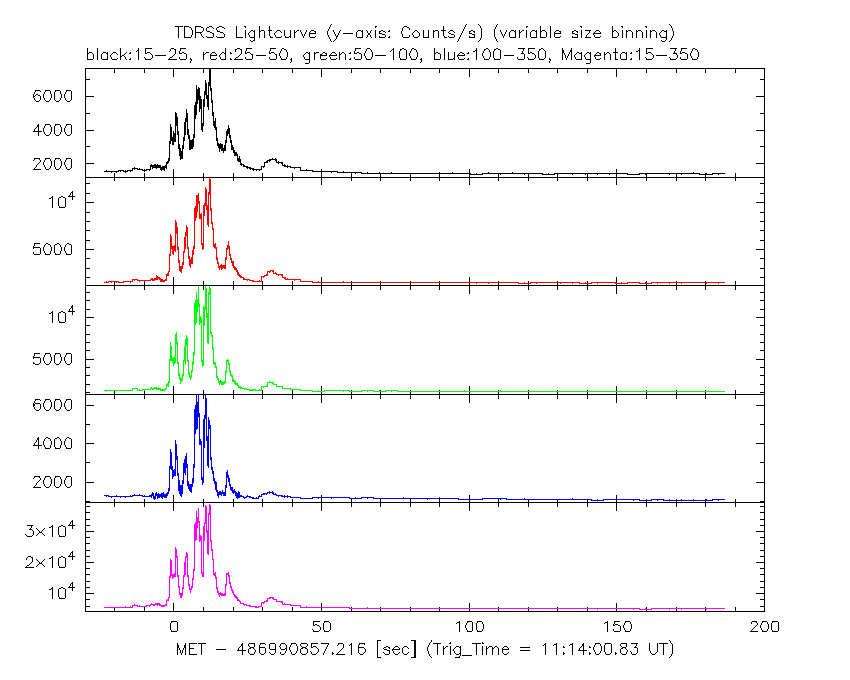

Initial TDRSS lightcurve and spacecraft attitude plot

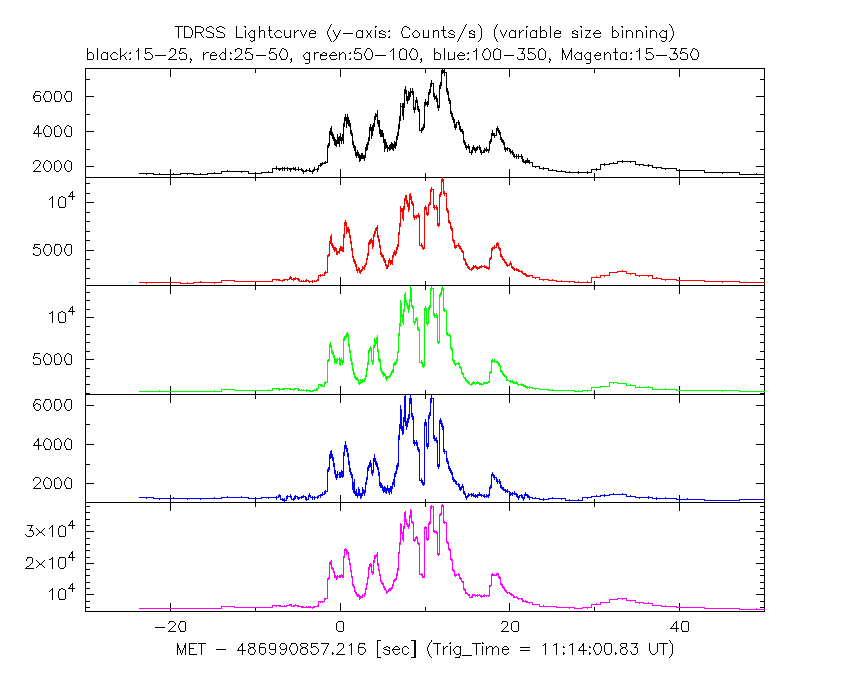

TDRSS lightcurve from T0-30 to T0+50 (zoom in)

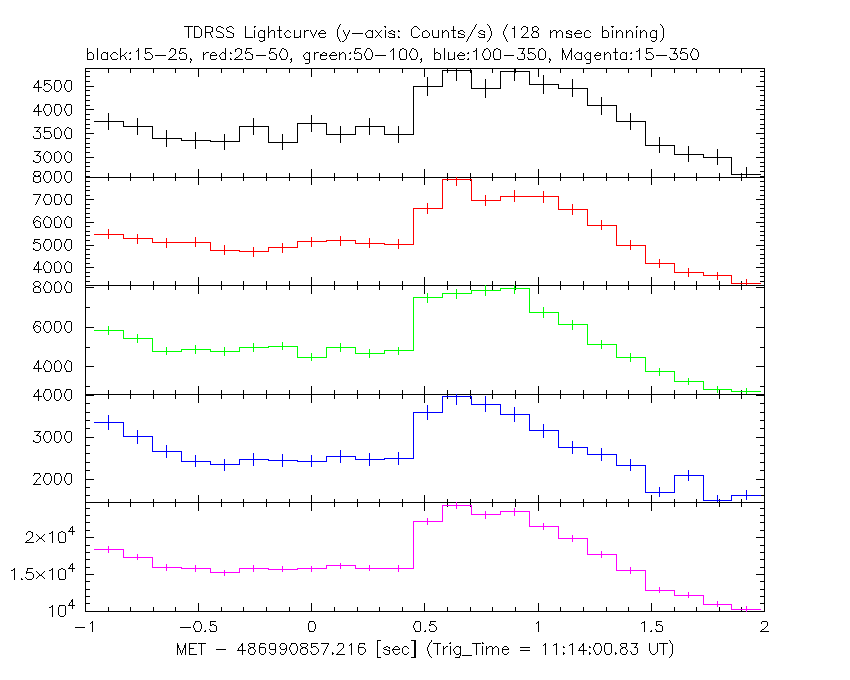

TDRSS light curve from T0-1 to T0+2 (More zoom in)

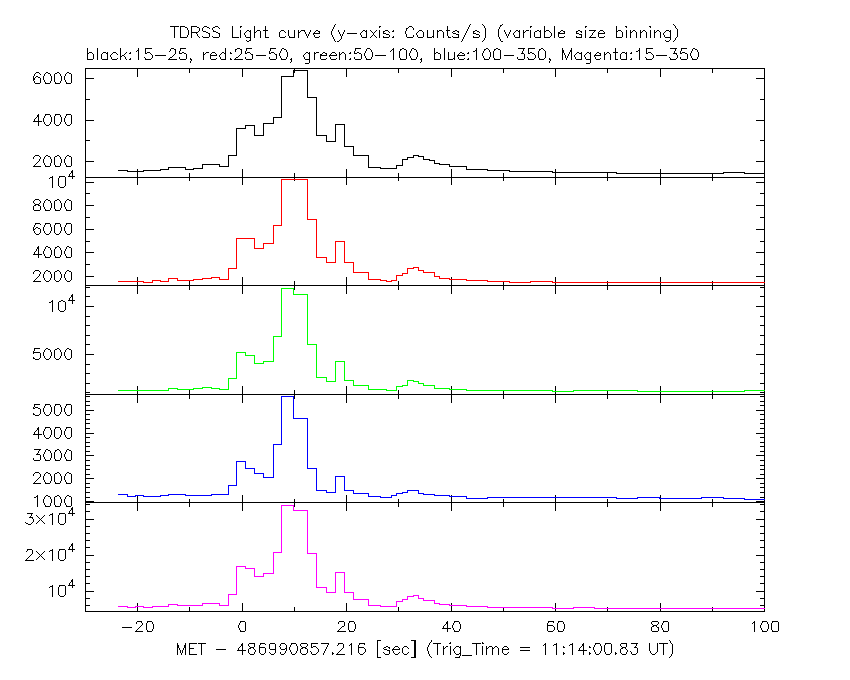

1.6s binned TDRSS light curve

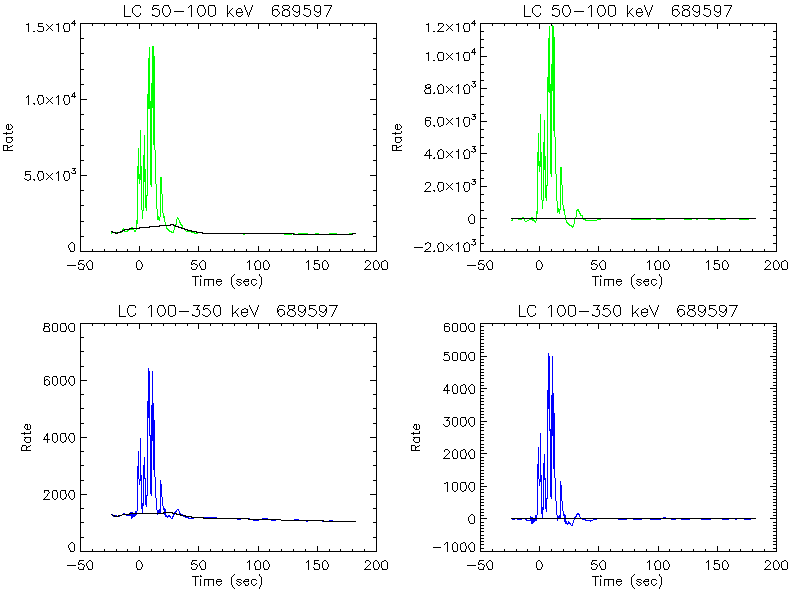

Tilan's background subtracted TDRSS light curves

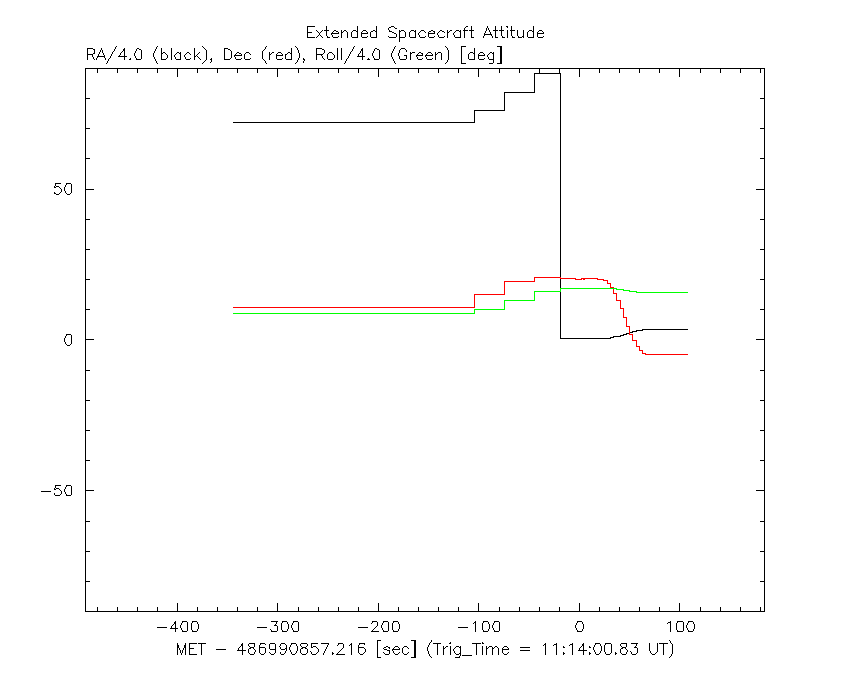

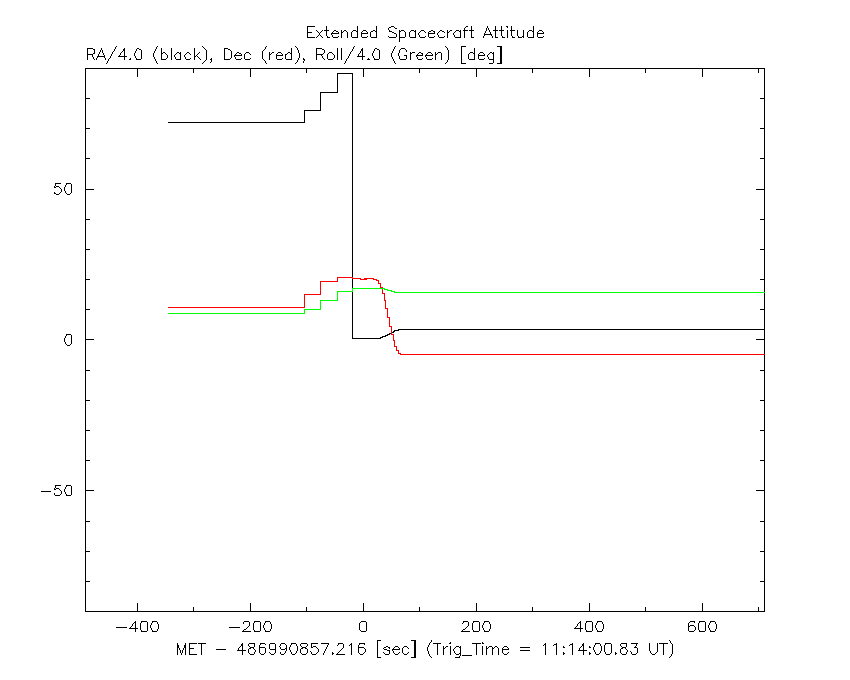

Extended TDRSS light curve and spacecraft attitude plot(s)
Extended TDRSS lc No.1
Extended TDRSS lc No.2
Extended TDRSS lc No.3
Extended TDRSS lc No.4

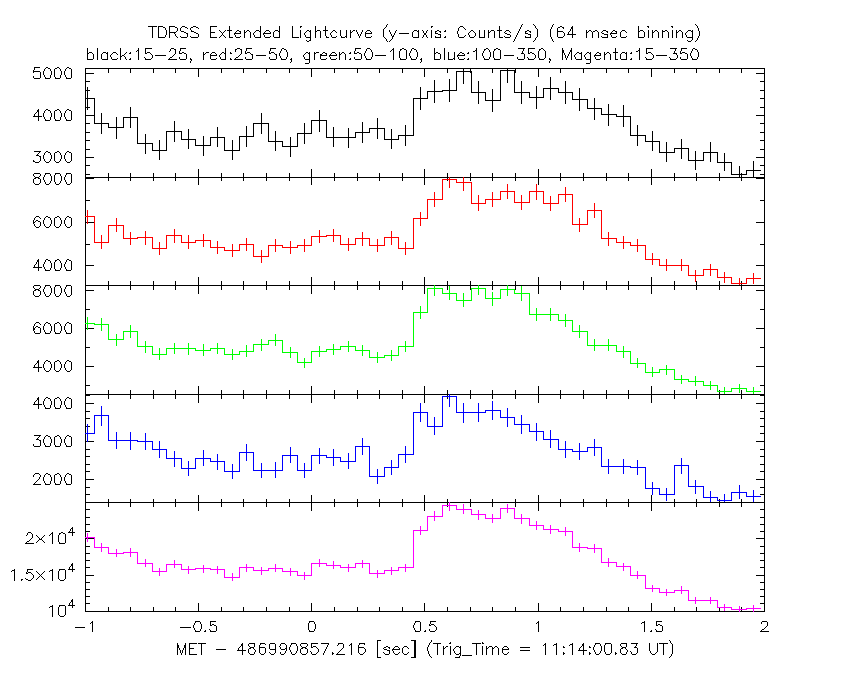

TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 32.768 s +/- 0.729712 s
Estimated T50 duration: 7.808 s +/- 0.202386 s
Estimated Peak Interval: MET 486990865.34399998 +/- 0.500000 s
Estimated background rate 1: 5615.729 near MET 486990838.400000 s
Estimated background rate 2: 5102.424 near MET 486991008.704000 s
Estimated total duration: 130.688 s (for data selection)
(from MET 486990843.200000 to MET 486990973.888000)
Estimated total fluence: 322239.261647 count
Created GTI with 79 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 13.663 -4.948 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 250.681995 12.534837
Obj: 2016 6 7 11 320.740082 38.101300
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 230.422424 -15.020983
Obj: 2016 6 7 11 288.623765 19.085544
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 225.854505 -17.668125
Obj: 2016 6 7 11 285.438573 13.773396
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 192.467368 -46.411992
Obj: 2016 6 7 11 268.307191 -19.122911
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 89.999864 -48.349210
Obj: 2016 6 7 11 334.299232 -50.794684
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 124.255001 -7.426198
Obj: 2016 6 7 11 178.707155 -60.468044
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 273.553749 59.678659
Obj: 2016 6 7 11 44.420143 46.284198
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2016 6 7 11 248.327798 -8.283940
Obj: 2016 6 7 11 226.449262 55.869382
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger689597/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
