batgrbproduct analysis for trigger=701182

batgrbproduct Analysis for Trigger=701182

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jun 24 08:51:34 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger701182/batgroup_hand_proc
======================================================================

  Trigger: 00701182      Segment: 000

  BAT Trigger Time: 488402696.52   [s; MET]
      Trigger Stop: 488402696.536   [s; MET]
               UTC: 2016-06-23T19:24:40.060740    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.71550324118   Dec: 21.8936538877306  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    21.52
     Image Trigger?:     NO
     Rate S/N Ratio:     255.998046867549  [ if not an image trigger ]
     Image S/N Ratio:    21.52

  Flight Position:   [ source = BAT ]
    RA: 293.71550324118   Dec: 21.8936538877306  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.76300094675   Dec: 21.8629927963324  [deg; J2000]
        { 19h 35m 03.1s , +21d 51' 46.8" }
         +/- 1.76979113447417 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.749771407015898 [arcmin] (formal 1-sigma fit error)
    SNR: 13.4568704827552

  Angular difference between Flight and Ground position is 3.221540 arcmin

  Partial Coding Fraction: 0.4609375    [ including projection effects ]

  Duration
     T90: 400.035999953747 +/- 889.815056121522
        Measured from: -0.00400000810623169
                   to: 400.031999945641     [s; relative to TRIGTIME]
     T50: 63.9119999408722 +/- 612.607502577749
        Measured from: 336.068000018597
                   to: 399.979999959469     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0259999632835388
                   to: 0.974000036716461     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.00400000810623169
                   to: 800.068000018597     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.236714   0.067885  -0.044511   0.173291
           0.154323   0.150860   0.129864   0.109144 [error]
 Peak      0.304071   0.299215   0.042232   0.003234
           0.013323   0.012898   0.007964   0.005515 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.00e-08 3.60e-08 1.38e-08 7.05e-09 1.13e-07 1.17e-07   erg/cm2
              Error 6.44e-08 5.60e-08 6.32e-08 1.23e-06 1.85e-07 1.24e-06   erg/cm2
Peak flux Power-law 3.71e+00 1.80e+00 5.31e-01 1.98e-01 6.15e+00 6.23e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 6.00e-08 3.80e-08 1.25e-08 2.47e-09 1.13e-07 1.13e-07   erg/cm2
              Error 6.55e-08 7.24e-08 6.49e-08 -------- 1.84e-07 --------   erg/cm2
Peak flux Cutoff-PL 2.98e+00 2.45e+00 3.15e-01 2.45e-03 5.75e+00 5.75e+00   ph/cm2/s
              Error 3.33e-01 1.74e-01 7.97e-02 3.59e-03 3.86e-01 3.86e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.384    0.000    -      -           9.65e-06 2.52e-05   46.940 57
CPL   1.733    0.000       5.1    0.0      1.29e-04 0.00e+00   46.970 56

The chi2 of BB fit is  which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.759    0.000    -      -           2.65e-02 0.00e+00  130.410 57
CPL  -1.074    1.002      27.9    2.1      7.14e+00 1.80e+01   48.460 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.064000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  800.072   -0.004  800.068
T90   400.036   -0.004  400.032
T50    63.912  336.068  399.980
Peak    1.000   -0.026    0.974

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

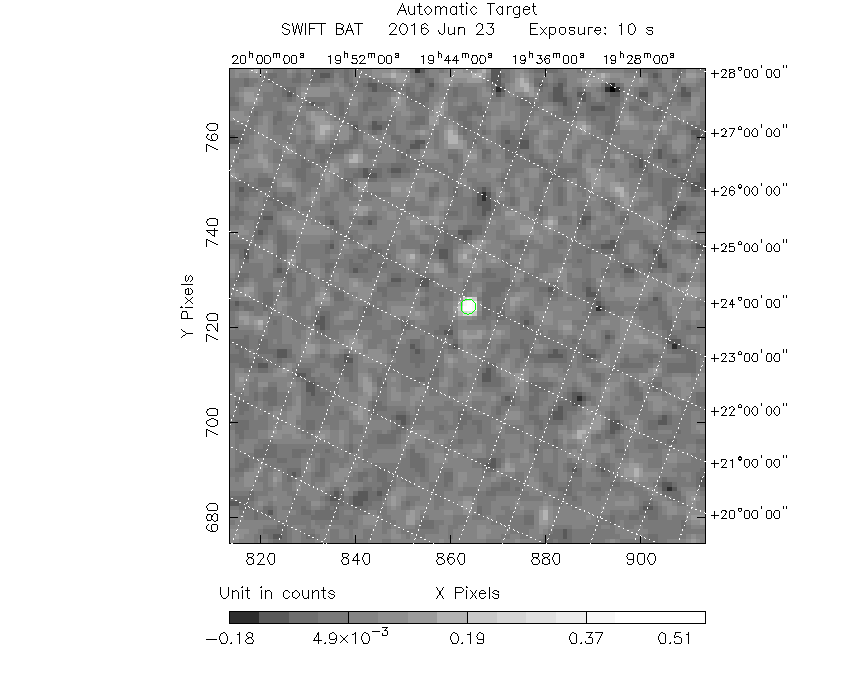

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  293.7630    21.8630   0.0143    27.5464   -86.3202         0.6114071     13.457 TRIG_00701182

Foreground time interval of the image:
 -0.004   9.781 (delta_t =   9.785 [sec])
Background time interval of the image:
-107.619  -0.004 (delta_t = 107.615 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

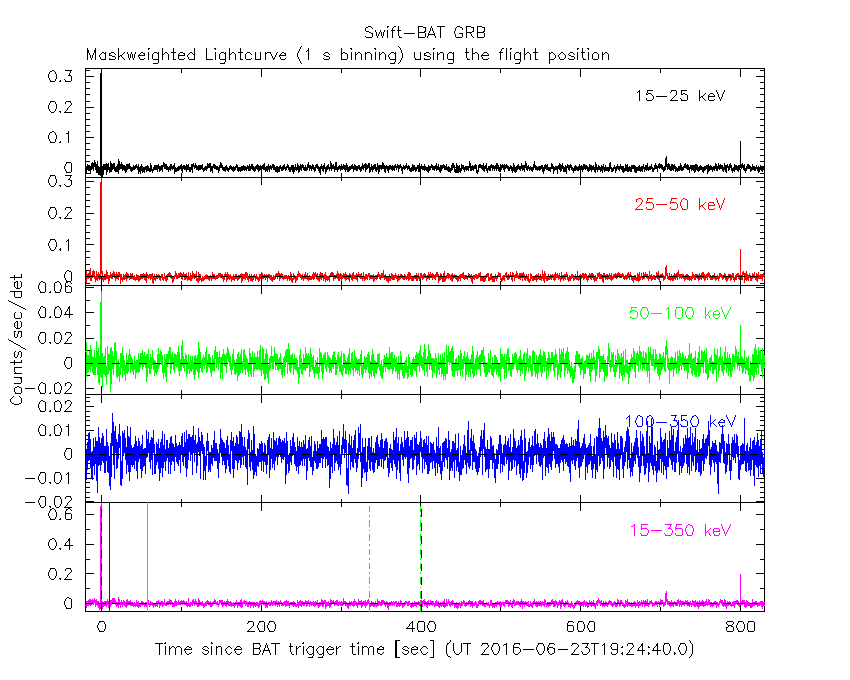

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

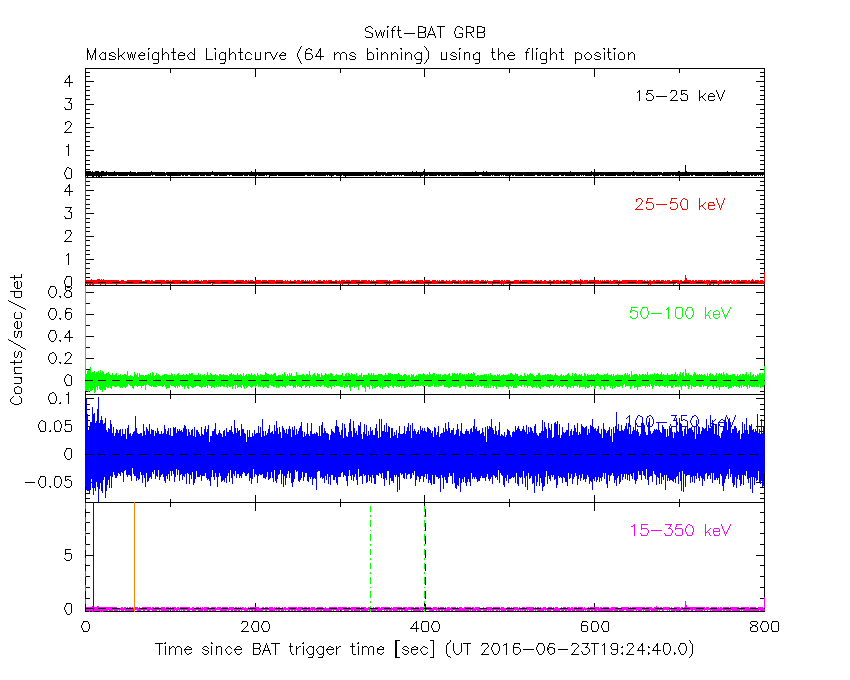

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

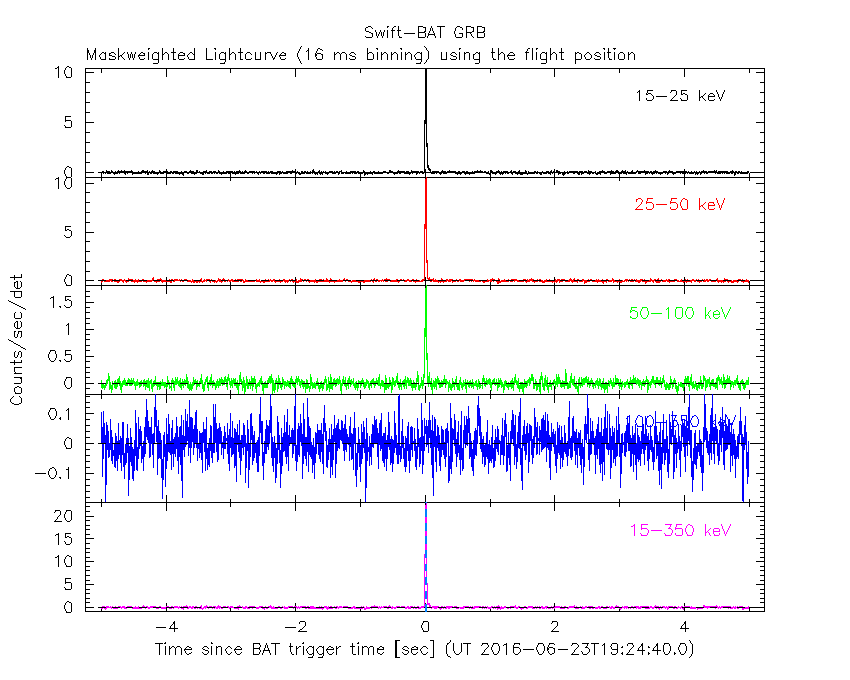

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

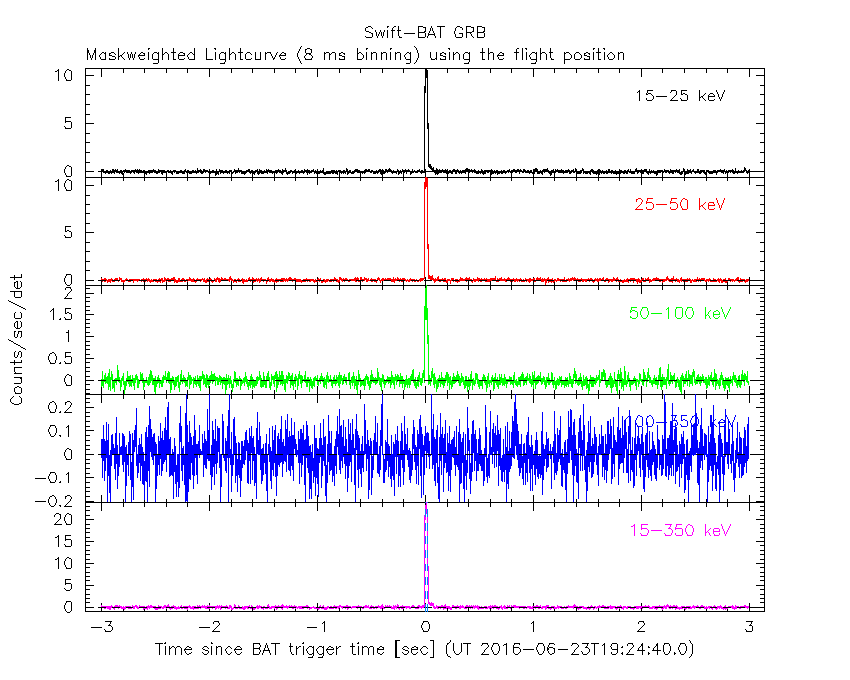

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.004 sec. to  800.068 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.38409     ( -3.38409   -3.38409 )
Norm@50keV  : 9.65296E-06    ( -9.65298e-06   4.0684e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8235 for     57 degrees of freedom
# Null hypothesis probability =   8.266567e-01

Photon flux (15-150 keV)    in 800.1 sec: 3.55717E-03 ( -0.00355717  0.00450113 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.1341e-07 ( -1.1341e-07  2.57291e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.004 sec. to  800.068 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73330     (     )
Epeak [keV] : 5.11670      (   )
Norm@50keV  : 1.29469E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.97 using 59 PHA bins.
# Reduced chi-squared =         0.8387 for     56 degrees of freedom
# Null hypothesis probability =   7.996511e-01

Photon flux (15-150 keV)    in 800.1 sec: 3.58629E-03 ( -0.00358629  0.00446015 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12729e-07 ( -1.12729e-07  2.5623e-07 ) ergs/cm2

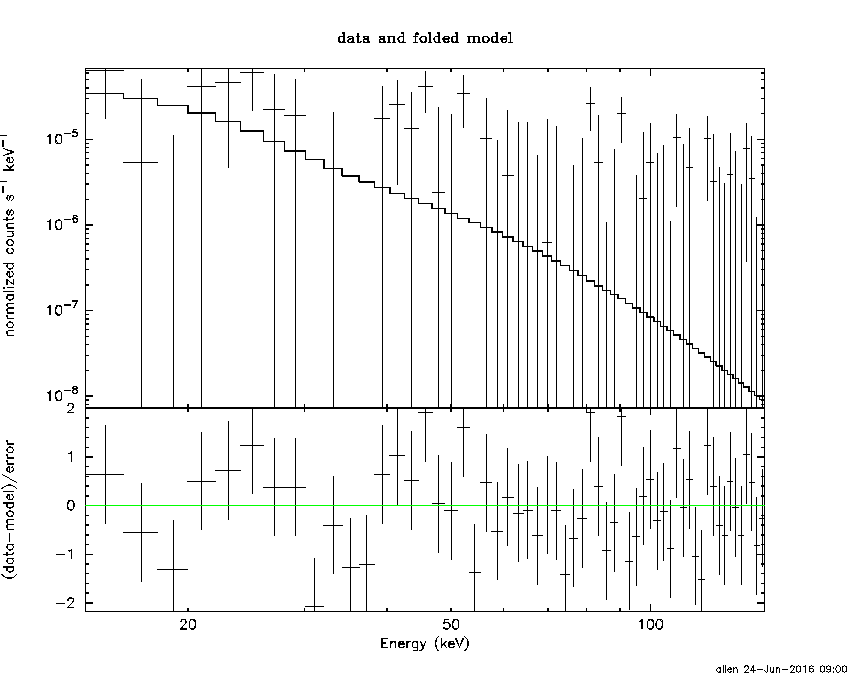

Band function

Time interval is from   -0.004 sec. to  800.068 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.67702   ( 1.85176   1.85176 )
beta        : -3.38422    ( 9.37167   9.37167 )
Epeak [keV] : 0.893264      ( -2.84515 -2.84515 )
Norm@50keV   : 2.99030E-03    ( -0.00299019   94626.2 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8534 for     55 degrees of freedom
# Null hypothesis probability =   7.720211e-01

Photon flux (15-150 keV)    in 800.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.10498  (-4.10498  -4.10498)
R^2/D10^2   : 7.74876E-02  (-0.0774876   -0.0774876)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.06 using 59 PHA bins.
# Reduced chi-squared =         0.8257 for     57 degrees of freedom
# Null hypothesis probability =   8.231913e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.384e-08   4.485e-08
25- 50  2.480e-08   1.785e-08
50-150  3.518e-10   4.157e-10
15-150  8.899e-08   6.529e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 13.5179       (-13.8351      -13.8351)
Norm        : 7.18644E-02       (-0.0660436     -0.0660436)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.99 using 59 PHA bins.
# Reduced chi-squared =         0.8243 for     57 degrees of freedom
# Null hypothesis probability =   8.252785e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.095e-08   4.489e-08
25- 50  3.761e-08   3.664e-08
50-150  5.371e-09   7.661e-09
15-150  1.039e-07   8.601e-08

Double BB

# Reduced chi-squared =         0.8417 for     55 degrees of freedom
# Reduced chi-squared =         0.8399 for     55 degrees of freedom
# Reduced chi-squared =         0.8390 for     55 degrees of freedom
# Reduced chi-squared =         0.8387 for     55 degrees of freedom
# Reduced chi-squared =         0.8385 for     55 degrees of freedom
# Null hypothesis probability =   7.732072e-01
# Null hypothesis probability =   7.738764e-01
# Null hypothesis probability =   7.866941e-01
# Null hypothesis probability =   7.922256e-01
# Null hypothesis probability =   7.952769e-01
# Null hypothesis probability =   7.966360e-01
# Null hypothesis probability =   7.972086e-01
# Null hypothesis probability =   7.975208e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.044e-08   6.189e-08
25- 50  4.216e-08   6.169e-08
50-150  2.028e-08   1.009e-08
15-150  1.229e-07   9.893e-08

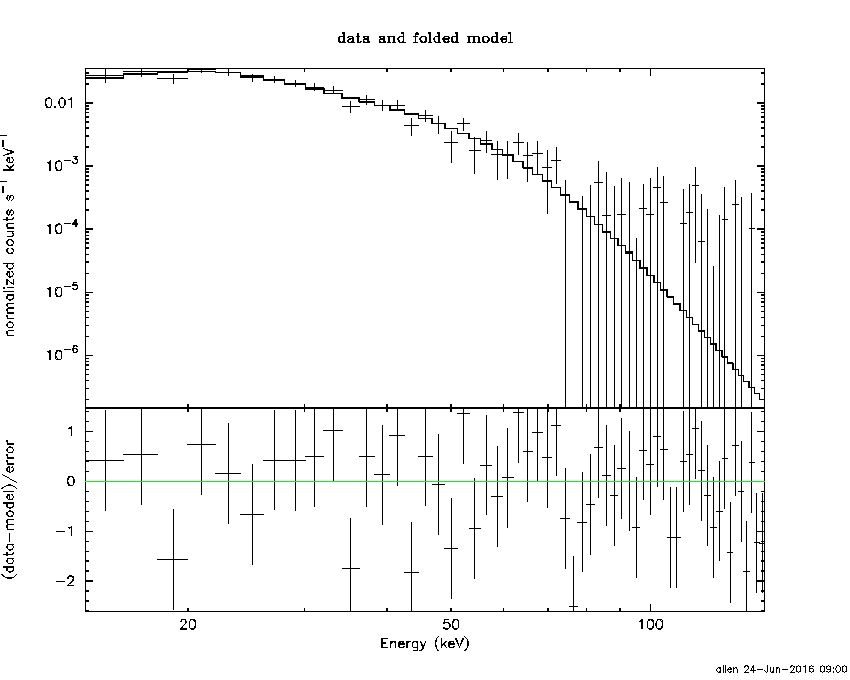

Peak spectrum fit

Power-law model

Time interval is from   -0.026 sec. to    0.974 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.75871     (     )
Norm@50keV  : 2.64919E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         130.41 using 59 PHA bins.
# Reduced chi-squared =         2.2879 for     57 degrees of freedom
# Null hypothesis probability =   1.112205e-07

Photon flux (15-150 keV)    in 1 sec: 6.14936 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.87866e-07 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.026 sec. to    0.974 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.07378     ( -1.083   0.920897 )
Epeak [keV] : 27.9274      ( -2.31133 1.80106 )
Norm@50keV  : 7.13818    ( -7.32313   28.6451 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8653 for     56 degrees of freedom
# Null hypothesis probability =   7.528935e-01

Photon flux (15-150 keV)    in 1 sec: 5.74970 ( -0.3851  0.38678 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.56328e-07 ( -1.6639e-08  1.6891e-08 ) ergs/cm2

Band function

Time interval is from   -0.026 sec. to    0.974 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.08491   ( -0.915198   0.790672 )
beta        : -9.37167    ( 9.37167   19.2996 )
Epeak [keV] : 27.9348      ( -1.47356 1.82869 )
Norm@50keV   : 7.31962    ( -7.31928   76.2236 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.41 using 59 PHA bins.
# Reduced chi-squared =         0.8802 for     55 degrees of freedom
# Null hypothesis probability =   7.226788e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.56028e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.34896  (-0.359361  0.373083)
R^2/D10^2   : 9.87634  (-1.95636   2.45237)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.47 using 59 PHA bins.
# Reduced chi-squared =         0.8679 for     57 degrees of freedom
# Null hypothesis probability =   7.503408e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.988e-08   8.150e-09
25- 50  1.350e-07   9.050e-09
50-150  2.659e-08   5.195e-09
15-150  2.515e-07   1.525e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 26.1523       (-2.53512      2.87336)
Norm        : 57.4463       (-6.68716     7.59019)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.74 using 59 PHA bins.
# Reduced chi-squared =          1.276 for     57 degrees of freedom
# Null hypothesis probability =   7.809823e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.082e-07   8.265e-09
25- 50  1.141e-07   7.600e-09
50-150  5.180e-08   9.515e-09
15-150  2.742e-07   1.865e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.22855        (-6.25458      -6.25458)
R1^2/D10^2  : 11.7977        (-11.8549      9.17804)
kT2 [keV]   : 9.07562        (-9.20926      -9.20926)
R2^2/D10^2  : 1.80424    (-1.54315   10.1125)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.28 using 59 PHA bins.
# Reduced chi-squared =         0.8778 for     55 degrees of freedom
# Null hypothesis probability =   7.272744e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.310e-08   2.450e-07
25- 50  1.318e-07   8.240e-07
50-150  3.186e-08   5.130e-07
15-150  2.567e-07   1.301e-06

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.54983     ( -0.21605   0.234883 )
Norm@50keV  : 2.88379E-03    ( -0.000529641   0.000532769 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.69 using 59 PHA bins.
# Reduced chi-squared =          1.416 for     57 degrees of freedom
# Null hypothesis probability =   2.116126e-02

Photon flux (15-150 keV)    in 9.785 sec: 0.584247 ( -0.0678129  0.0678192 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.86034e-07 ( -3.94381e-08  4.0728e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.60733     ( -2.67519   1.51052 )
Epeak [keV] : 29.0666      ( -3.25645 3.05265 )
Norm@50keV  : 1.46642    ( -1.59349   91.6558 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.86 using 59 PHA bins.
# Reduced chi-squared =         0.9618 for     56 degrees of freedom
# Null hypothesis probability =   5.561837e-01

Photon flux (15-150 keV)    in 9.785 sec: 0.555190 ( -0.066356  0.066676 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.4444e-07 ( -3.07787e-08  3.23883e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.87087   ( -1.72157   2.46762 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 29.1902      ( -3.33823 2.92555 )
Norm@50keV   : 2.19621    ( -2.19614   86.3024 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.80 using 59 PHA bins.
# Reduced chi-squared =         0.9781 for     55 degrees of freedom
# Null hypothesis probability =   5.206748e-01

Photon flux (15-150 keV)    in 9.785 sec: 0.555971 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.60e-08
S(50-100 keV) = 1.38e-08

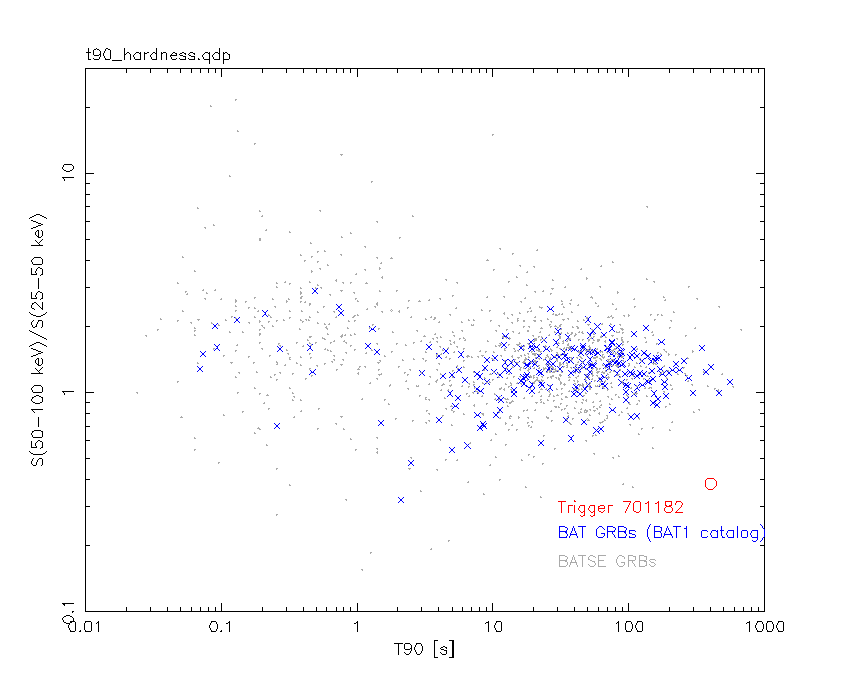

T90 vs. Hardness ratio plot

T90                                   = 400.035999953747 sec.
Hardness ratio (energy fluence ratio) = 0.383333

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.286781
Count Ratio (50-100 keV) / (15-25 keV) = -0.188037

Mask shadow pattern

IMX = 3.347629253620260E-02, IMY = 5.205209327656091E-01

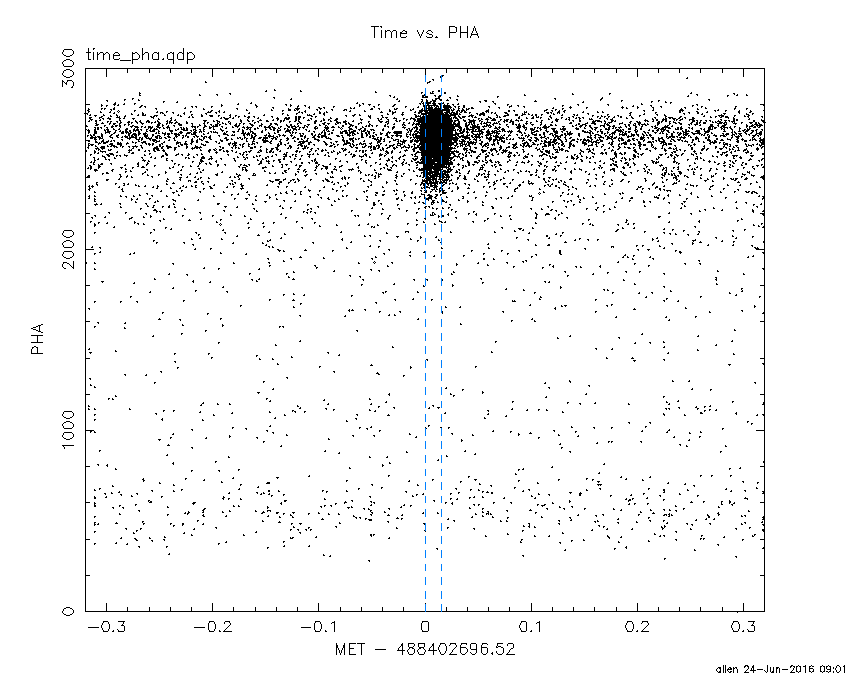

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

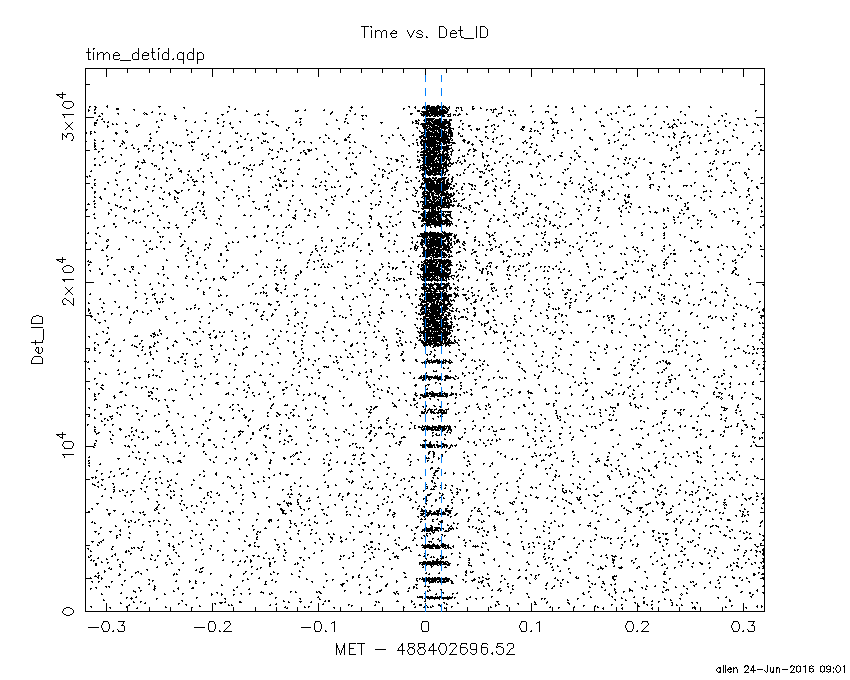

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

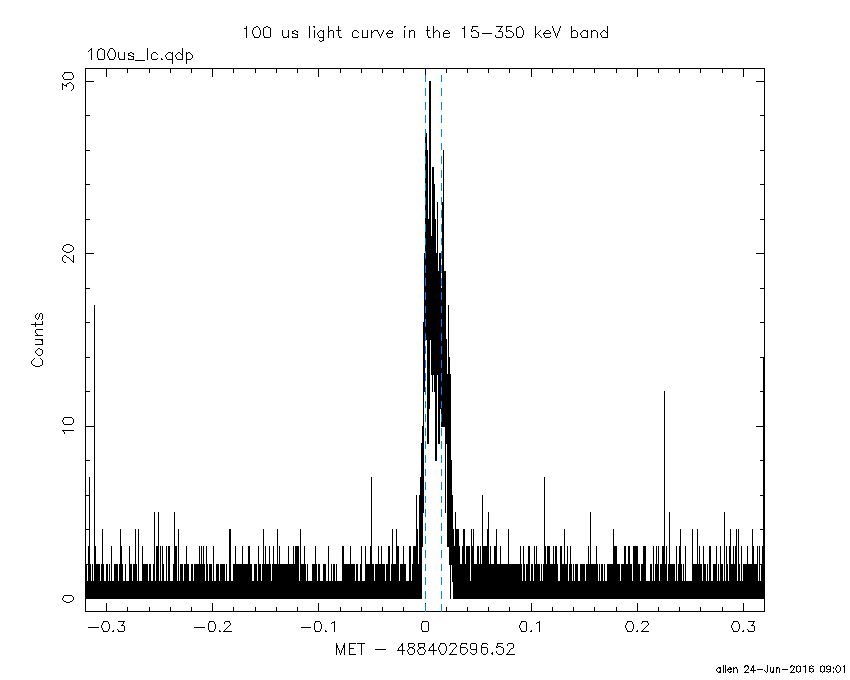

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

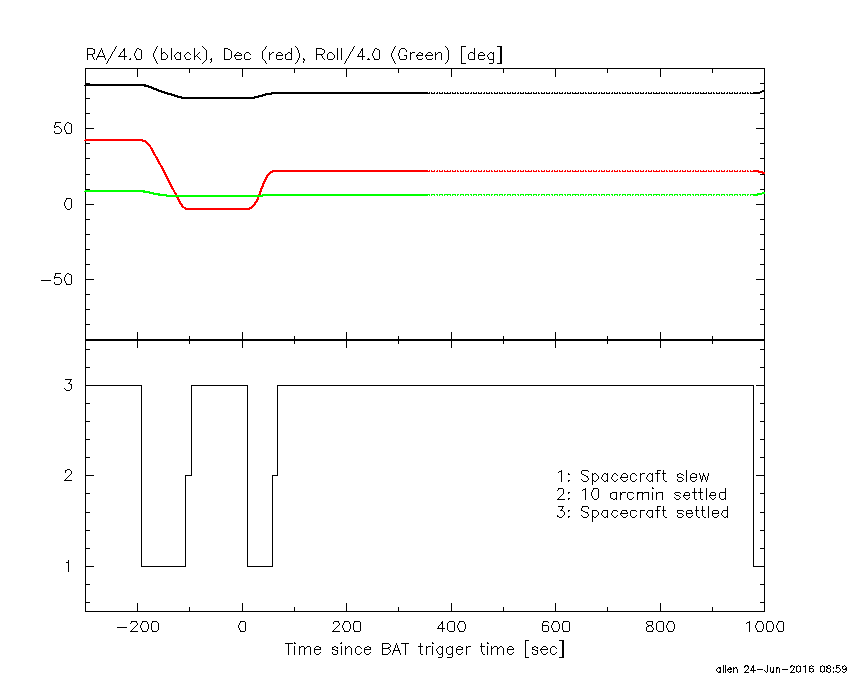

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-107.619400 -0.004000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9677 -15.6495    1.1  38.2  137.0   2.6036  10.6    0.9	Sco X-1
254.3003  35.3850   10.3  46.1 -142.6  -0.3098  -1.1    8.1	Her X-1
262.8773 -24.6972   45.0  28.2  106.8   0.0471   0.3    7.7	GX 1+4
268.2171  -1.4272    3.5  13.5  165.1   0.3784   3.3    9.2	SW J1753.5-0127
270.2744 -25.0245   10.8  24.6   94.1   0.1635   1.1    3.3	GX 5-1
270.3668 -25.6988    3.2  25.2   93.1   0.5594   3.6    4.4	GRS 1758-258
273.9792 -14.0598    1.6  13.4  102.5   0.9140   7.2    2.1	GX 17+2
275.9794 -30.4460    3.5  28.0   79.1   0.5413   3.3    5.5	H1820-303
284.9063 -24.8452   15.3  22.1   60.7  -0.0891  -0.8    8.4	HT1900.1-2455
288.9413  10.9078    2.8  15.7  -83.7   0.4809   4.1    8.7	GRS 1915+105
262.8776 -33.7453    5.7  35.4   96.2   0.5258   2.0    7.7	GX 354-0
291.6968  15.3449    2.7  20.9  -83.0   0.5761   4.4 ------	UNKNOWN
313.3183  14.7297    3.0  36.1  -51.6   0.6626   3.9 ------	UNKNOWN
314.9531  26.0620    2.4  43.4  -65.4   2.3885   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.004000 9.780590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9098 -15.4325    0.0  38.2  137.3  -0.0300  -0.4   13.1	Sco X-1
254.4599  35.4657   33.7  46.1 -142.4   0.0281   0.3    7.4	Her X-1
263.0704 -24.7327    4.2  28.1  106.5  -0.1342  -2.8    3.4	GX 1+4
268.2259  -1.4048    6.6  13.5  165.2  -0.0554  -1.8    9.0	SW J1753.5-0127
270.2135 -24.8856   12.7  24.5   94.3   0.0393   0.9   12.2	GX 5-1
270.3808 -25.9190    7.0  25.3   92.9   0.0693   1.6   11.4	GRS 1758-258
274.1428 -14.0975    5.5  13.3  101.9  -0.0670  -2.1    8.8	GX 17+2
276.0164 -30.5156    4.8  28.0   79.0  -0.1149  -2.4   10.1	H1820-303
285.1079 -24.7870    5.6  22.1   60.2   0.0813   2.1    8.9	HT1900.1-2455
288.8786  10.7519    0.0  15.5  -83.7  -0.0439  -1.3   12.5	GRS 1915+105
263.1149 -33.9001    7.5  35.4   95.7   0.1178   1.5    7.4	GX 354-0
275.9081 -38.1245    2.7  35.5   76.4   0.3029   4.2 ------	UNKNOWN
296.1487 -22.4423    3.5  24.0   34.0   0.1199   3.3 ------	UNKNOWN
312.0981  -5.6363    2.3  30.5  -15.3   0.1821   5.0 ------	UNKNOWN
235.0286  19.7752    2.3  51.1 -172.8   0.4050   5.1 ------	UNKNOWN
293.7630  21.8630    0.9  27.5  -86.3   0.6117  13.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
58.180600 962.503800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2909  35.4731    0.0  36.9 -174.6  -1.5910  -2.0   11.3	Her X-1
268.3350  -1.4323   71.1  34.0  114.9   0.2290   0.2    2.3	SW J1753.5-0127
288.8191  10.9510    2.0  11.9   89.0   3.4665   5.7    1.3	GRS 1915+105
299.5959  35.1973    0.2  14.3  -95.2  33.9268  53.7    0.4	Cyg X-1
308.0843  40.9347    1.3  22.6  -85.9   6.5589   9.1    1.6	Cyg X-3
326.2494  38.3212  112.6  32.4  -63.0   0.0867   0.1    3.7	Cyg X-2
246.4985   5.7721    3.2  48.3  142.7  10.1316   3.6 ------	UNKNOWN
294.2350  -5.2229    2.6  27.1   63.8   3.6124   4.4 ------	UNKNOWN
241.8101  30.2913    2.4  47.0  176.6   6.4650   4.9 ------	UNKNOWN
351.9700  18.7474    4.2  54.4  -33.0   8.5109   2.8 ------	UNKNOWN
266.8617  66.7395    2.8  48.0 -129.0  11.3479   4.1 ------	UNKNOWN

Plot creation:
Fri Jun 24 09:02:04 EDT 2016
