batgrbproduct analysis for trigger=704155

batgrbproduct Analysis for Trigger=704155

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jul 31 21:16:34 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger704155
======================================================================

  Trigger: 00704155      Segment: 000

  BAT Trigger Time: 490046032.576   [s; MET]
      Trigger Stop: 490046033.6   [s; MET]
               UTC: 2016-07-12T19:53:36.025560    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 304.149318030523   Dec: -26.9813085140697  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.67
     Image Trigger?:     NO
     Rate S/N Ratio:     39.560080889705  [ if not an image trigger ]
     Image S/N Ratio:    7.67

  Flight Position:   [ source = BAT ]
    RA: 304.149318030523   Dec: -26.9813085140697  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 304.164465787245   Dec: -26.9646060650258  [deg; J2000]
        { 20h 16m 39.5s , -26d 57' 52.6" }
         +/- 1.31120927829803 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.578223719095616 [arcmin] (formal 1-sigma fit error)
    SNR: 20.654538862418

  Angular difference between Flight and Ground position is 1.288564 arcmin

  Partial Coding Fraction: 0.2402344    [ including projection effects ]

  Duration
     T90: 44.527999997139 +/- 6.37316378425992
        Measured from: -3.30399996042252
                   to: 41.2240000367165     [s; relative to TRIGTIME]
     T50: 21.1200000047684 +/- 2.48082567258281
        Measured from: 3.67200005054474
                   to: 24.7920000553131     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.0600000023841858
                   to: 1.06000000238419     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -8.59999996423721
                   to: 45.4640000462532     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.819694   1.252365   1.192259   0.502909
           0.084043   0.088490   0.079544   0.066521 [error]
 Peak      0.043115   0.089871   0.134019   0.063842
           0.012824   0.014836   0.015719   0.013224 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

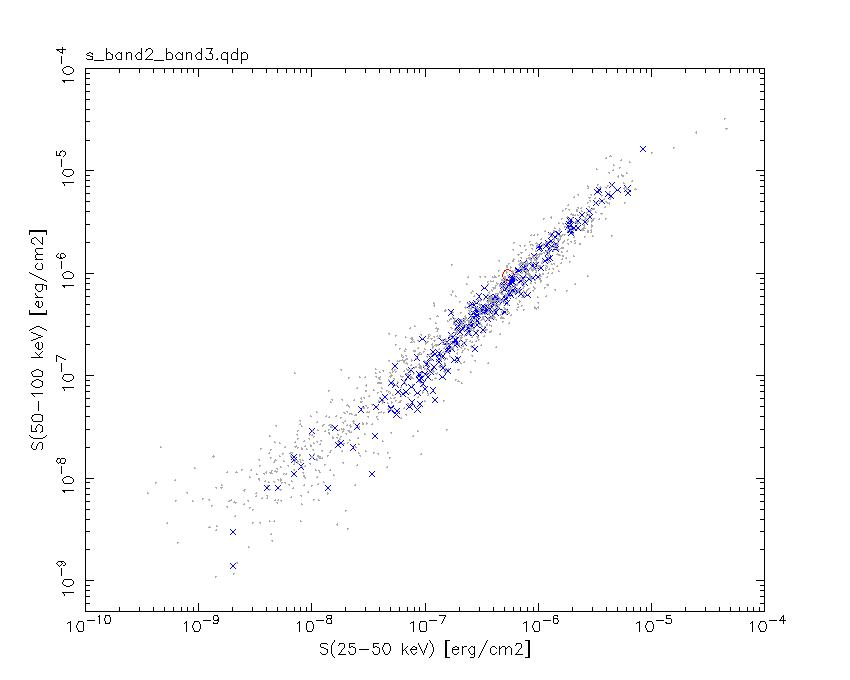

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.39e-07 5.38e-07 9.57e-07 3.99e-06 2.61e-06 5.73e-06   erg/cm2
              Error 3.50e-08 4.59e-08 7.54e-08 7.42e-07 1.93e-07 7.76e-07   erg/cm2
Peak flux Power-law 4.13e-01 6.46e-01 7.60e-01 1.73e+00 2.32e+00 3.55e+00   ph/cm2/s
              Error 1.41e-01 1.33e-01 1.14e-01 5.87e-01 3.51e-01 6.13e-01   ph/cm2/s

Fluence   Cutoff-PL 2.39e-07 5.36e-07 9.46e-07 4.01e-06 2.62e-06 5.46e-06   erg/cm2
              Error -------- 4.59e-08 1.05e-07 8.49e-07 2.63e-07 1.09e-06   erg/cm2
Peak flux Cutoff-PL 4.11e-01 6.46e-01 7.61e-01 1.70e+00 2.32e+00 3.53e+00   ph/cm2/s
              Error 1.42e-01 1.35e-01 1.13e-01 6.87e-01 3.56e-01 8.49e-01   ph/cm2/s

Fluence        Band 2.39e-07 5.39e-07 9.57e-07 3.96e-06 2.61e-06 5.68e-06   erg/cm2
              Error 3.51e-08 4.59e-08 7.55e-08 5.28e-07 1.93e-07 1.03e-06   erg/cm2
Peak flux      Band 4.13e-01 6.46e-01 7.60e-01 1.73e+00 2.32e+00 3.55e+00   ph/cm2/s
              Error 1.41e-01 1.33e-01 1.14e-01 5.87e-01 3.51e-01 6.13e-01   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.172    0.128    -      -           4.72e-03 3.29e-04   62.960 57
CPL   1.167    0.222    9999.3    0.0      4.74e-03 9.00e-04   63.000 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.766    0.271    -      -           2.02e-02 3.15e-03   46.730 57
CPL   0.758    0.723    10000.0    0.0      2.03e-02 3.07e-03   46.730 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 23.232000 sec.
T50 in the 50-300 keV band: 14.144000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   54.064   -8.600   45.464
T90    44.528   -3.304   41.224
T50    21.120    3.672   24.792
Peak    1.000    0.060    1.060

Click here for the BAT GCN circular template

Special notes of this burst

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

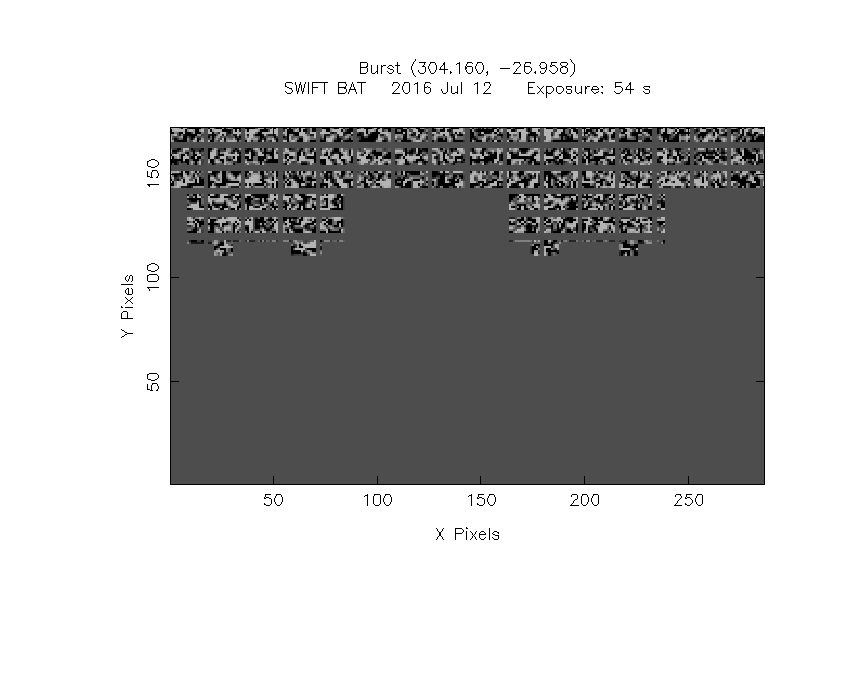

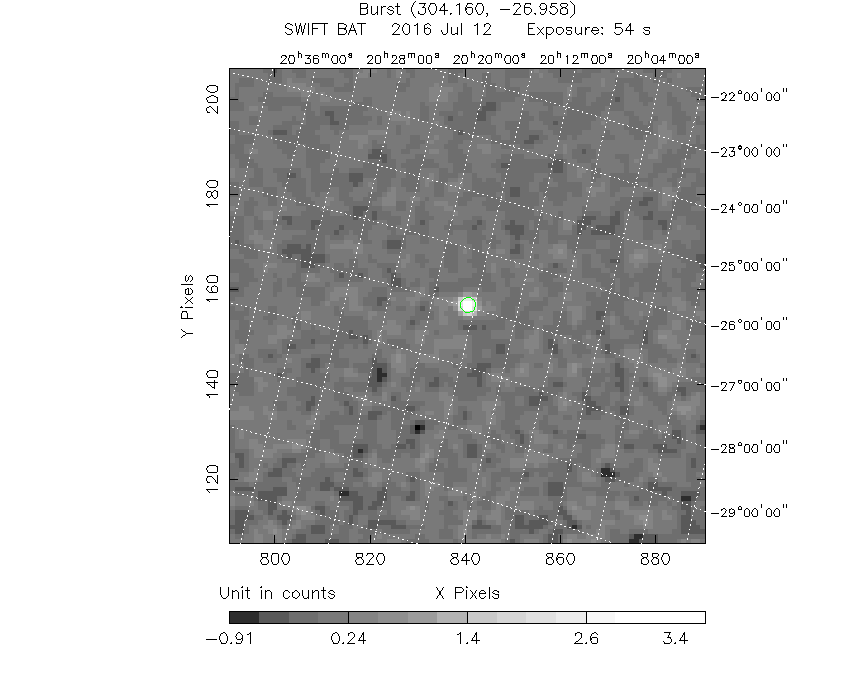

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  304.1645   -26.9646   0.0093    34.1028    83.0413         4.0745148     20.655 TRIG_00704155

Foreground time interval of the image:
 -8.600  45.464 (delta_t =  54.064 [sec])
Background time interval of the image:
-239.576  -8.600 (delta_t = 230.976 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

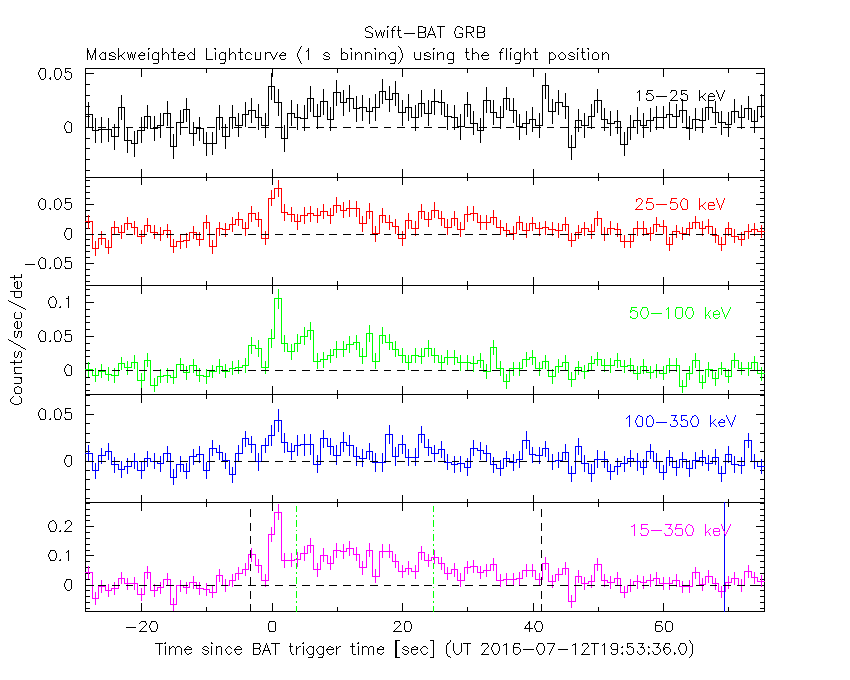

1 s binning

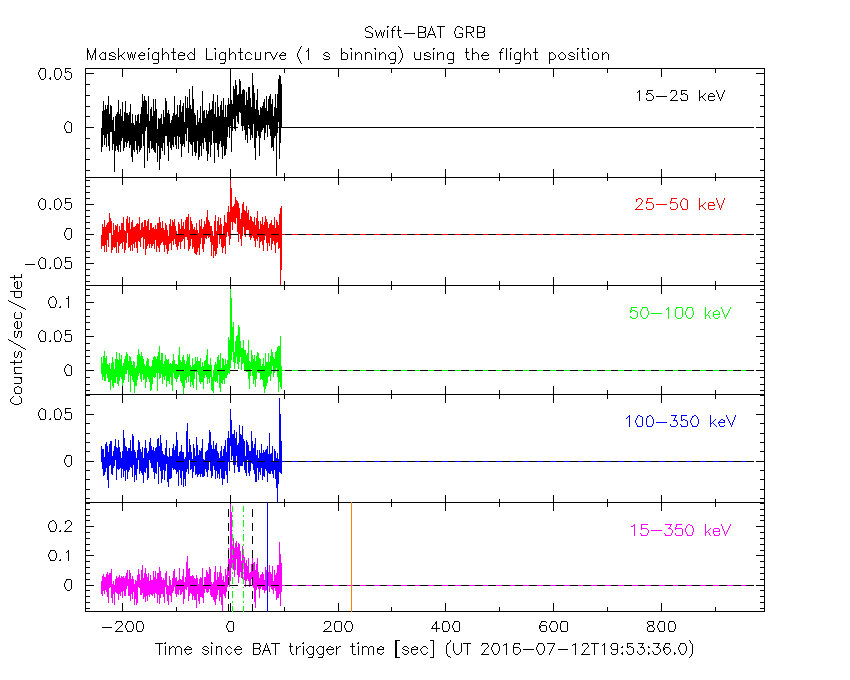

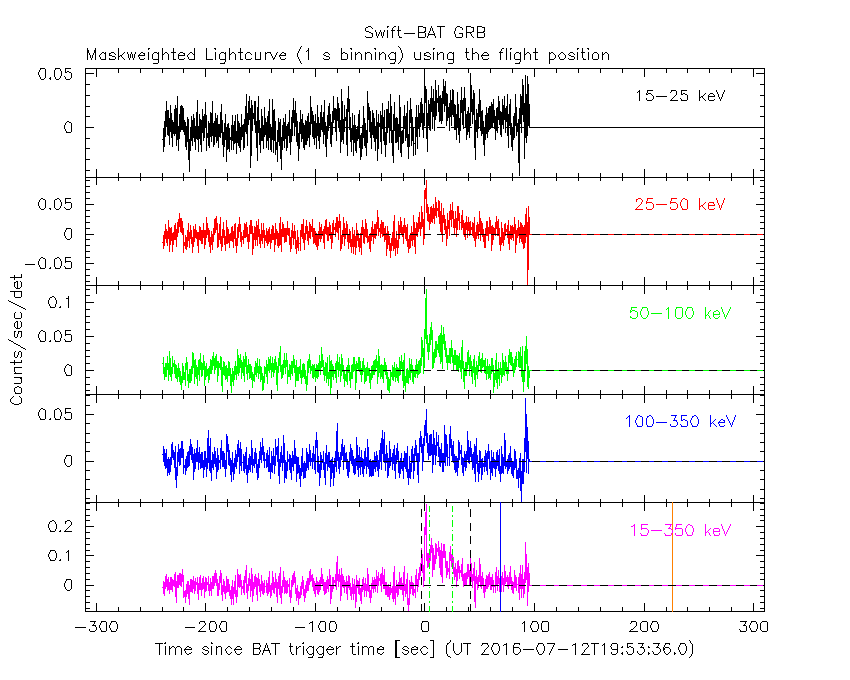

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

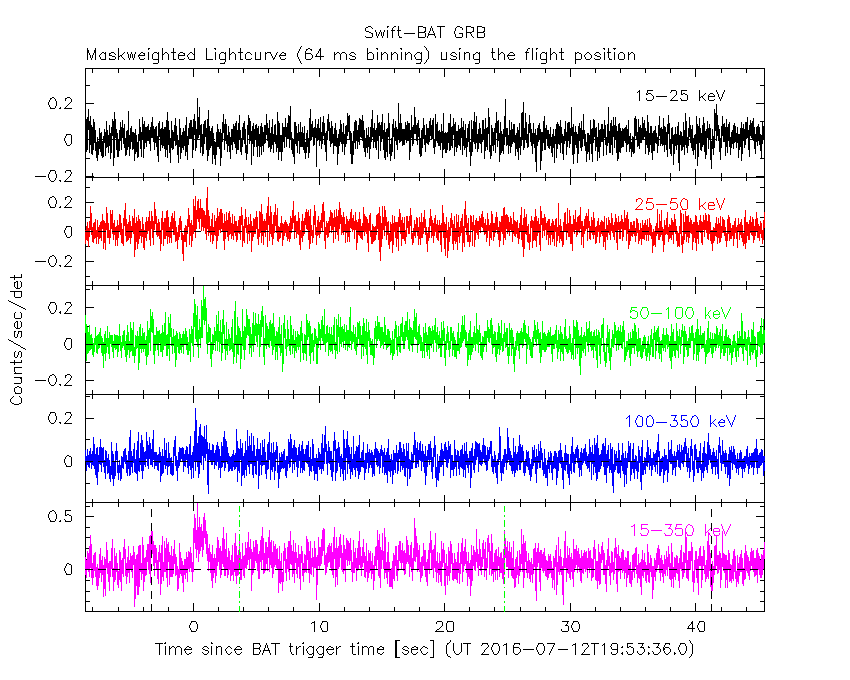

From T100_start to T100_end

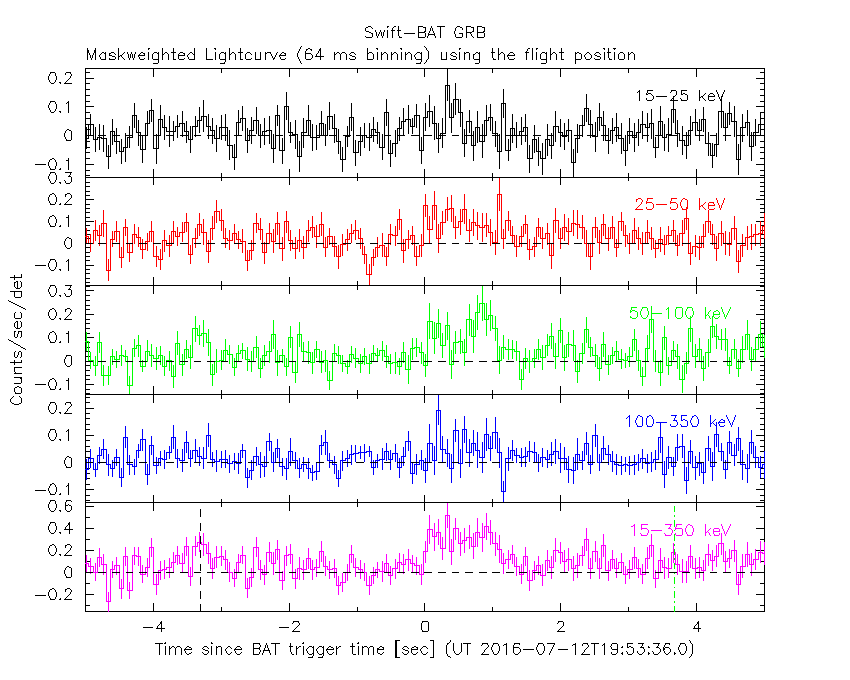

From T0-5 sec to T0+5 sec

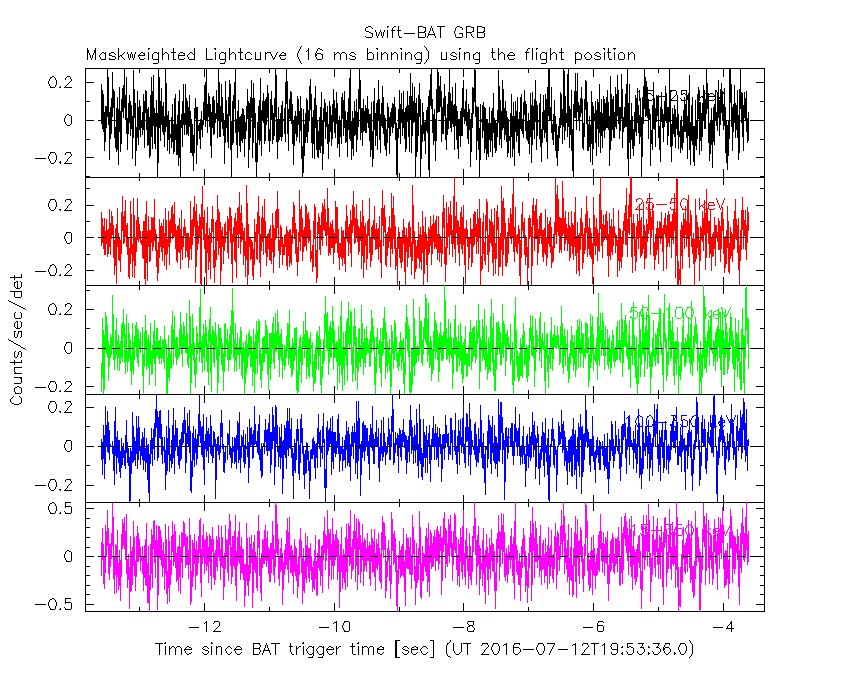

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

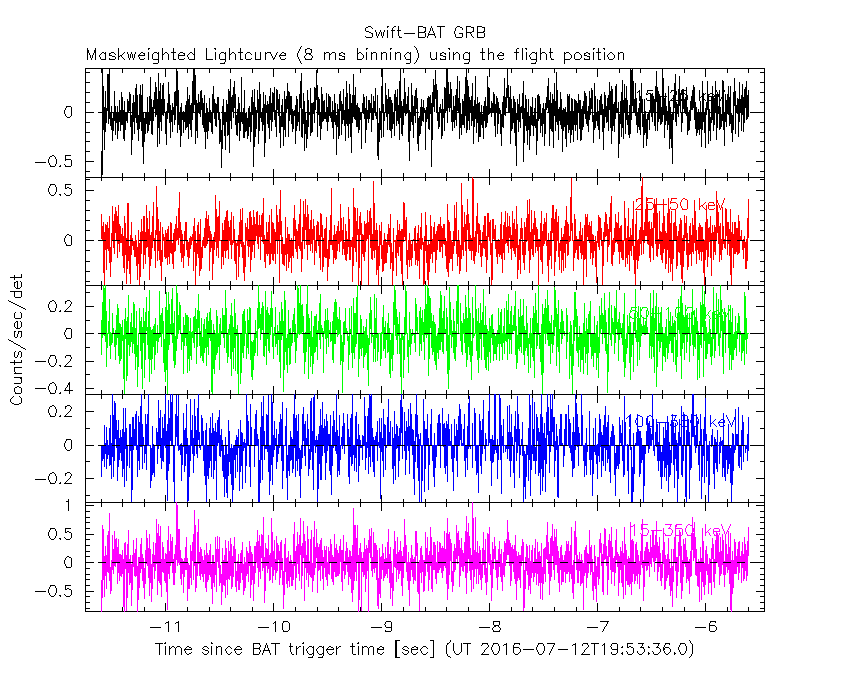

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

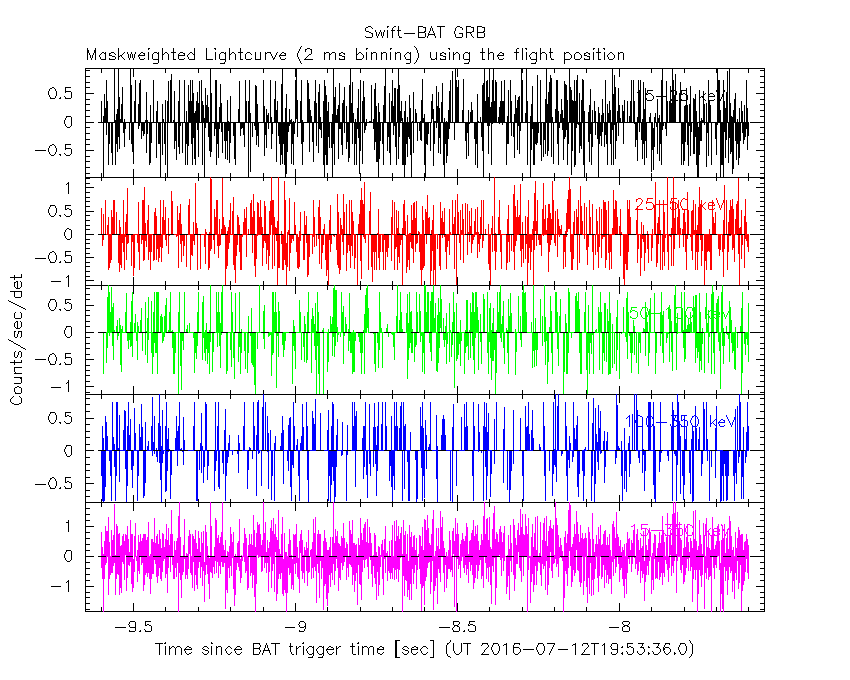

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -8.600 sec. to   45.464 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17207     ( -0.129368   0.127129 )
Norm@50keV  : 4.71694E-03    ( -0.000329096   0.000328006 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.96 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.735888e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551597 ( -0.040579  0.040811 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.60817e-06 ( -1.92679e-07  1.9349e-07 ) ergs/cm2

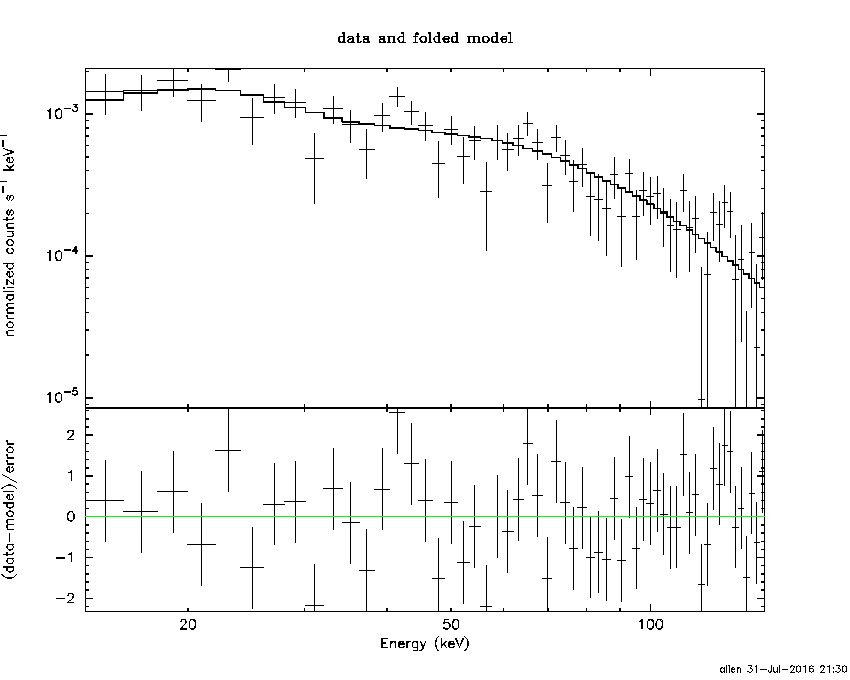

Cutoff power-law model

Time interval is from   -8.600 sec. to   45.464 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.16741     ( -0.261347   0.183282 )
Epeak [keV] : 9999.28      ( -9999.3 -9999.3 )
Norm@50keV  : 4.74032E-03    ( -0.000326708   0.00147269 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.00 using 59 PHA bins.
# Reduced chi-squared =          1.125 for     56 degrees of freedom
# Null hypothesis probability =   2.426089e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551486 ( -0.040656  0.04075 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61762e-06 ( -2.6925e-07  2.56179e-07 ) ergs/cm2

Band function

Time interval is from   -8.600 sec. to   45.464 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.921181   ( 0.921979   0.921979 )
beta        : -1.17205    ( 1.17206   0.129493 )
Epeak [keV] : 54.4835      ( -53.65 -53.65 )
Norm@50keV   : 8.55428E-03    ( -0.00328508   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.96 using 59 PHA bins.
# Reduced chi-squared =          1.145 for     55 degrees of freedom
# Null hypothesis probability =   2.152858e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551597 ( -0.040579  0.04081 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.60745e-06 ( -1.92622e-07  1.93376e-07 ) ergs/cm2

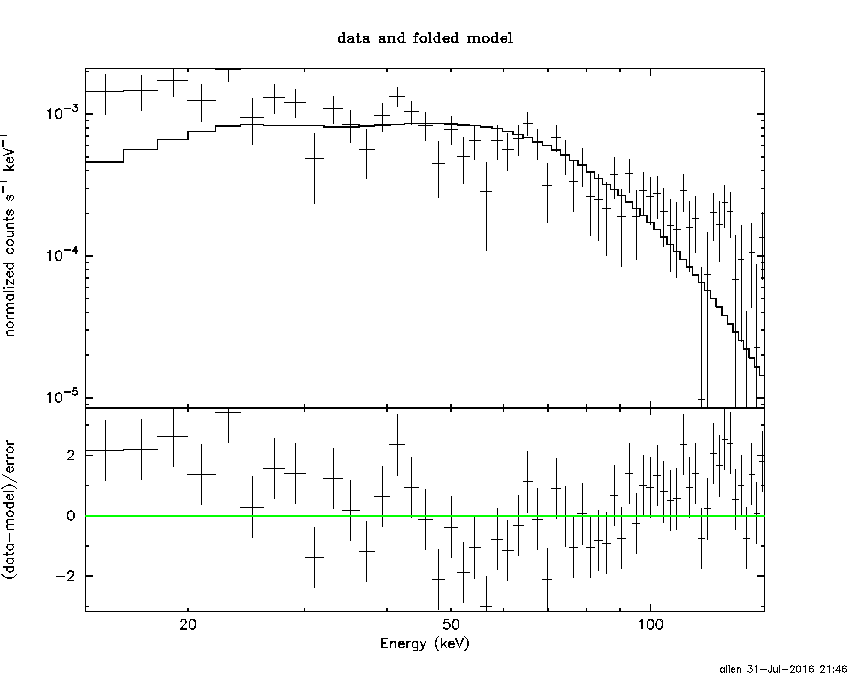

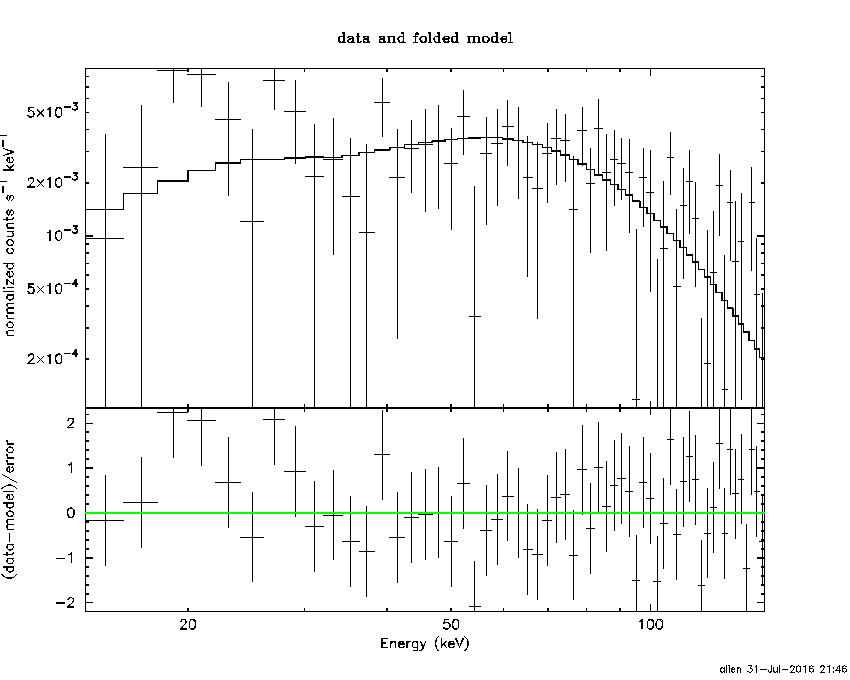

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.8292  (  )
R^2/D10^2   : 2.18173E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         119.77 using 59 PHA bins.
# Reduced chi-squared =         2.1013 for     57 degrees of freedom
# Null hypothesis probability =   2.325374e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.701e-08   1.625e-08
25- 50  4.961e-07   5.584e-08
50-150  1.603e-06   1.795e-07
15-150  2.196e-06   2.035e-07

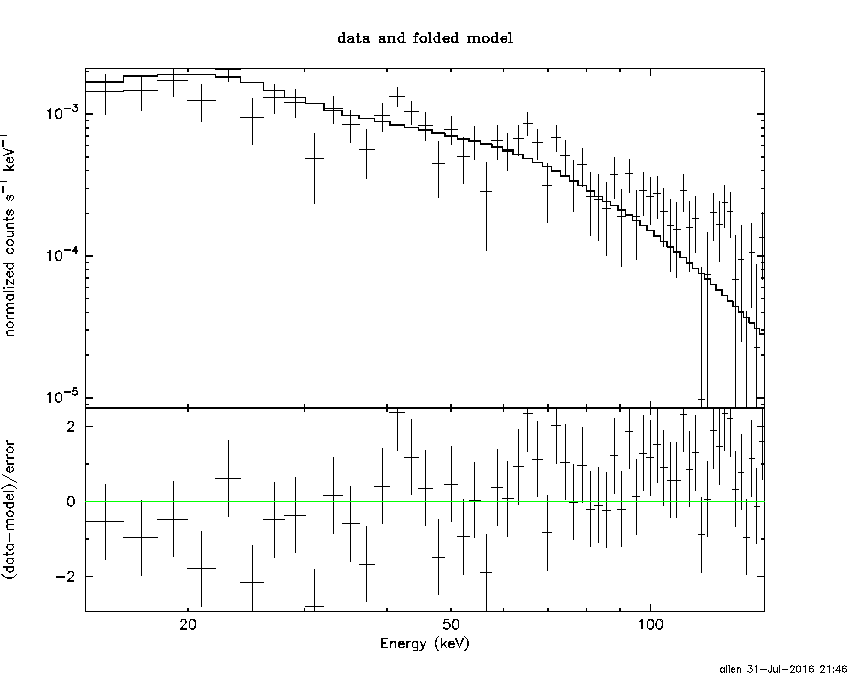

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-13.4238      -200)
Norm        : 2.32755       (-0.164542     0.164542)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          92.00 using 59 PHA bins.
# Reduced chi-squared =          1.614 for     57 degrees of freedom
# Null hypothesis probability =   2.276692e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.134e-07   2.544e-08
25- 50  6.029e-07   7.947e-08
50-150  1.322e-06   4.678e-07
15-150  2.239e-06   5.284e-07

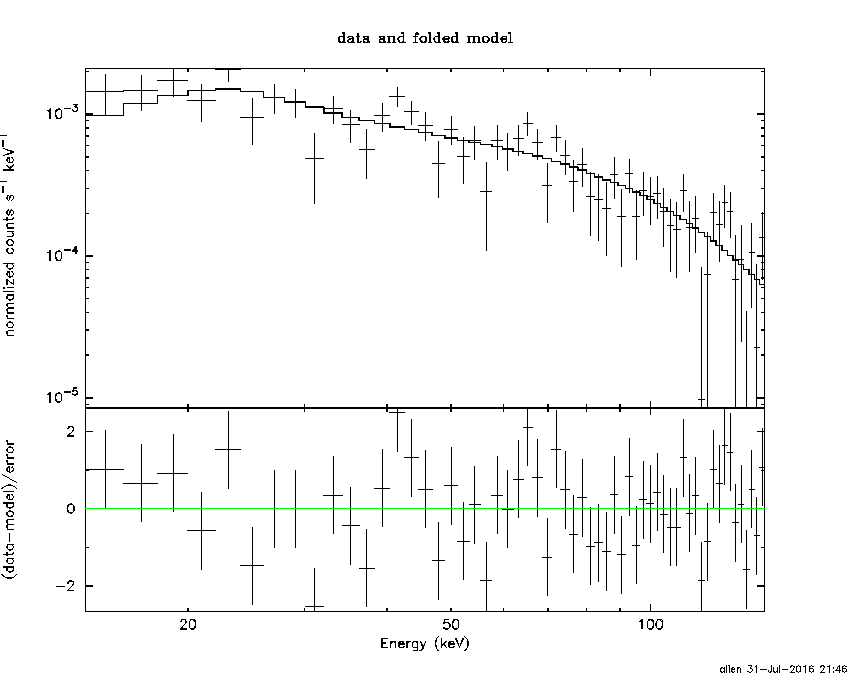

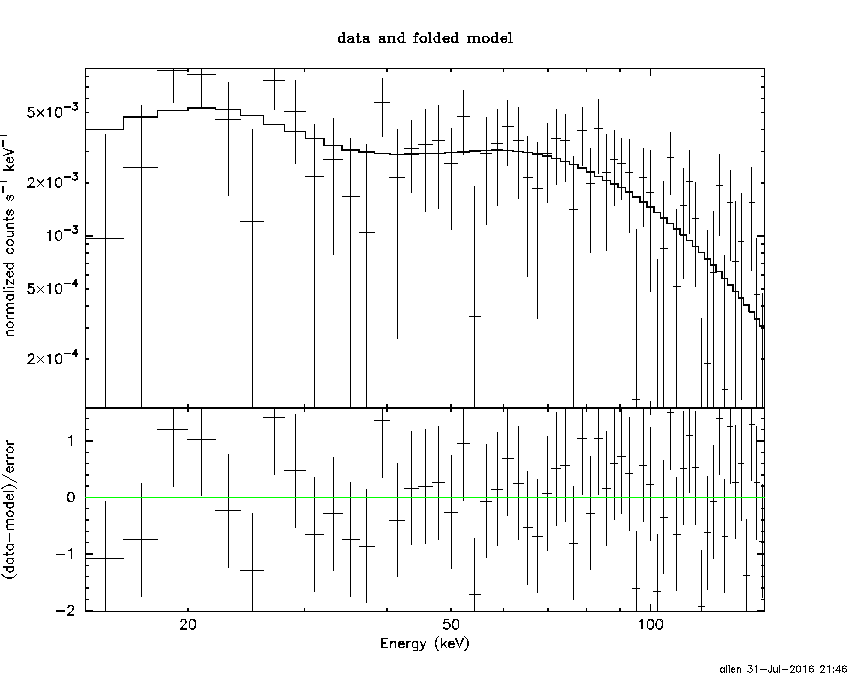

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.73480        (-2.22465      2.57194)
R1^2/D10^2  : 0.249344        (-0.133878      0.266319)
kT2 [keV]   : 43.1022        (-12.1224      42.0538)
R2^2/D10^2  : 1.94930E-03    (-0.00155608   0.00335701)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.45 using 59 PHA bins.
# Reduced chi-squared =          1.190 for     55 degrees of freedom
# Null hypothesis probability =   1.582371e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.209e-07   6.885e-08
25- 50  5.660e-07   1.587e-07
50-150  1.879e-06   8.511e-07
15-150  2.666e-06   9.571e-07

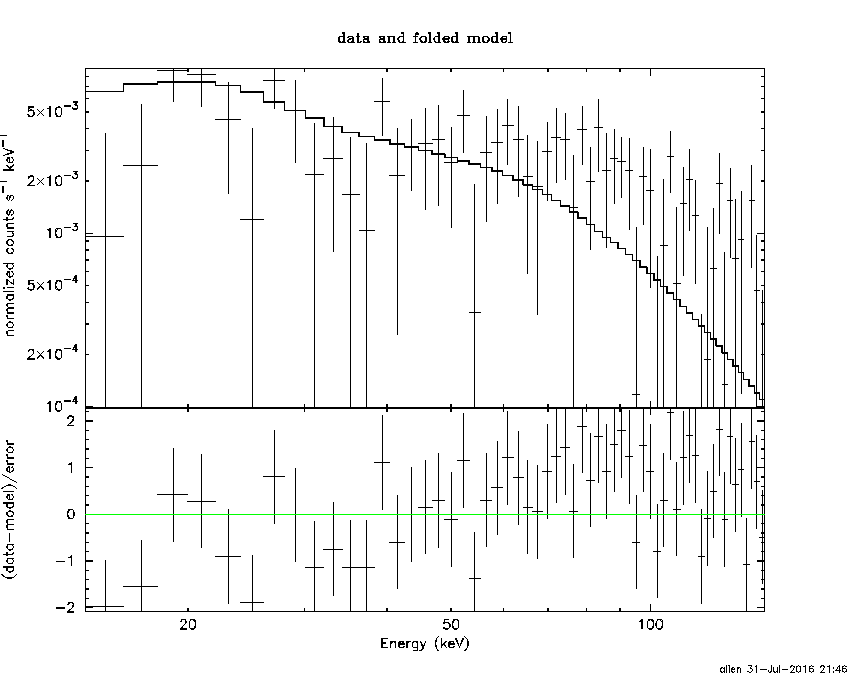

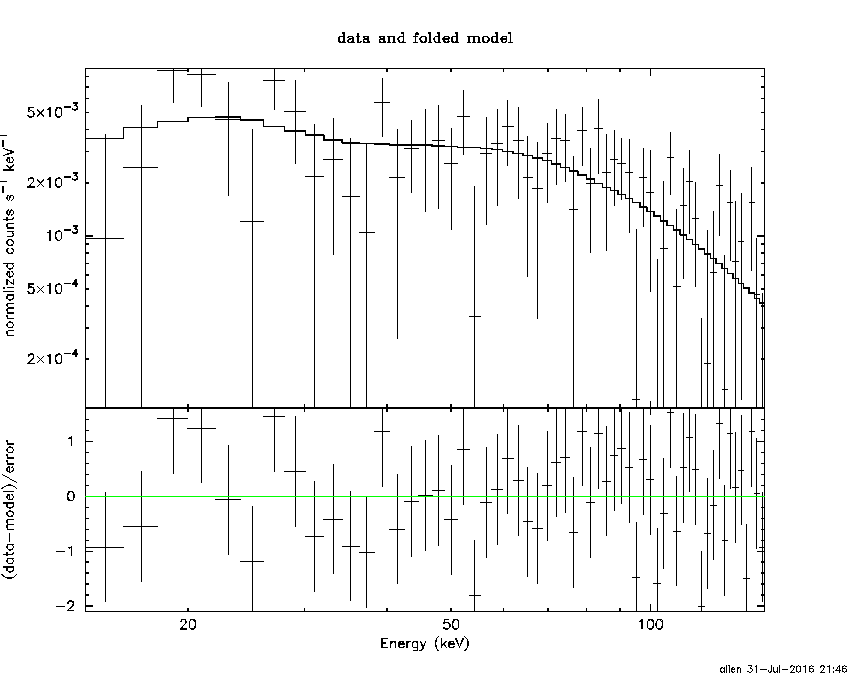

Peak spectrum fit

Power-law model

Time interval is from    0.060 sec. to    1.060 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.765962     ( -0.278545   0.262469 )
Norm@50keV  : 2.01904E-02    ( -0.00318586   0.00311517 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.73 using 59 PHA bins.
# Reduced chi-squared =         0.8198 for     57 degrees of freedom
# Null hypothesis probability =   8.322653e-01

Photon flux (15-150 keV)    in 1 sec: 2.32388 ( -0.35068  0.35224 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.39409e-07 ( -3.71863e-08  3.73107e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.060 sec. to    1.060 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.758009     ( -1.16153   0.285331 )
Epeak [keV] : 10000.00      ( -10000 -10000 )
Norm@50keV  : 2.03393E-02    ( -0.00319978   0.00294086 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.73 using 59 PHA bins.
# Reduced chi-squared =         0.8344 for     56 degrees of freedom
# Null hypothesis probability =   8.066777e-01

Photon flux (15-150 keV)    in 1 sec: 2.32233 ( -0.35847  0.35287 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.39343e-07 ( -3.75575e-08  3.563e-08 ) ergs/cm2

Band function

Time interval is from    0.060 sec. to    1.060 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.787843   ( 0.787843   0.787843 )
beta        : -0.765966    ( -0.2624   0.278549 )
Epeak [keV] : 15.3964      ( -15.3964 -15.3964 )
Norm@50keV   : 2.97233E-02    ( -0.0125403   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.73 using 59 PHA bins.
# Reduced chi-squared =         0.8496 for     55 degrees of freedom
# Null hypothesis probability =   7.786077e-01

Photon flux (15-150 keV)    in 1 sec: 2.32388 ( -0.35068  0.35224 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.67433e-23 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 28.8982  (-5.47193  7.83394)
R^2/D10^2   : 3.92403E-02  (-0.0192771   0.0333803)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.16 using 59 PHA bins.
# Reduced chi-squared =         0.9326 for     57 degrees of freedom
# Null hypothesis probability =   6.199497e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.245e-09   1.930e-09
25- 50  3.185e-08   8.095e-09
50-150  1.904e-07   5.205e-08
15-150  2.275e-07   6.210e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-31.8143      -200)
Norm        : 9.06931       (-1.45076     1.45076)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.36 using 59 PHA bins.
# Reduced chi-squared =          1.234 for     57 degrees of freedom
# Null hypothesis probability =   1.100883e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.257e-08   1.300e-08
25- 50  4.343e-08   2.482e-08
50-150  9.524e-08   5.375e-08
15-150  1.612e-07   9.180e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.94991        (-2.45527      5.14578)
R1^2/D10^2  : 2.54423        (-2.26043      21.0425)
kT2 [keV]   : 36.6615        (-9.02004      22.0694)
R2^2/D10^2  : 1.85757E-02    (-0.0132749   0.0236618)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.99 using 59 PHA bins.
# Reduced chi-squared =         0.8179 for     55 degrees of freedom
# Null hypothesis probability =   8.302807e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.525e-08   8.627e-09
25- 50  3.432e-08   1.722e-08
50-150  1.954e-07   1.071e-07
15-150  2.449e-07   1.216e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17207     ( -0.129368   0.127129 )
Norm@50keV  : 4.71694E-03    ( -0.000329096   0.000328006 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.96 using 59 PHA bins.
# Reduced chi-squared =          1.105 for     57 degrees of freedom
# Null hypothesis probability =   2.735888e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551598 ( -0.0405791  0.040807 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.60791e-06 ( -1.92582e-07  1.93669e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.16741     ( -0.194373   0.182454 )
Epeak [keV] : 9999.32      ( -9999.33 -9999.33 )
Norm@50keV  : 4.74032E-03    ( -0.000326708   0.00147269 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.00 using 59 PHA bins.
# Reduced chi-squared =          1.125 for     56 degrees of freedom
# Null hypothesis probability =   2.426090e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551917 ( -0.020556  0.040218 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.60152e-06 ( -1.86139e-07  1.96784e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.921181   ( 0.921979   0.921979 )
beta        : -1.17205    ( 1.17206   0.129493 )
Epeak [keV] : 54.4835      ( -53.65 -53.65 )
Norm@50keV   : 8.55428E-03    ( -0.00328508   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.96 using 59 PHA bins.
# Reduced chi-squared =          1.145 for     55 degrees of freedom
# Null hypothesis probability =   2.152858e-01

Photon flux (15-150 keV)    in 54.06 sec: 0.551597 ( -0.040579  0.04081 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.60745e-06 ( -1.92622e-07  1.93376e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.38e-07
S(50-100 keV) = 9.57e-07

T90 vs. Hardness ratio plot

T90                                   = 44.527999997139 sec.
Hardness ratio (energy fluence ratio) = 1.77881

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.52784
Count Ratio (50-100 keV) / (15-25 keV) = 1.45452

Mask shadow pattern

IMX = 8.203585768876454E-02, IMY = -6.721345265118608E-01

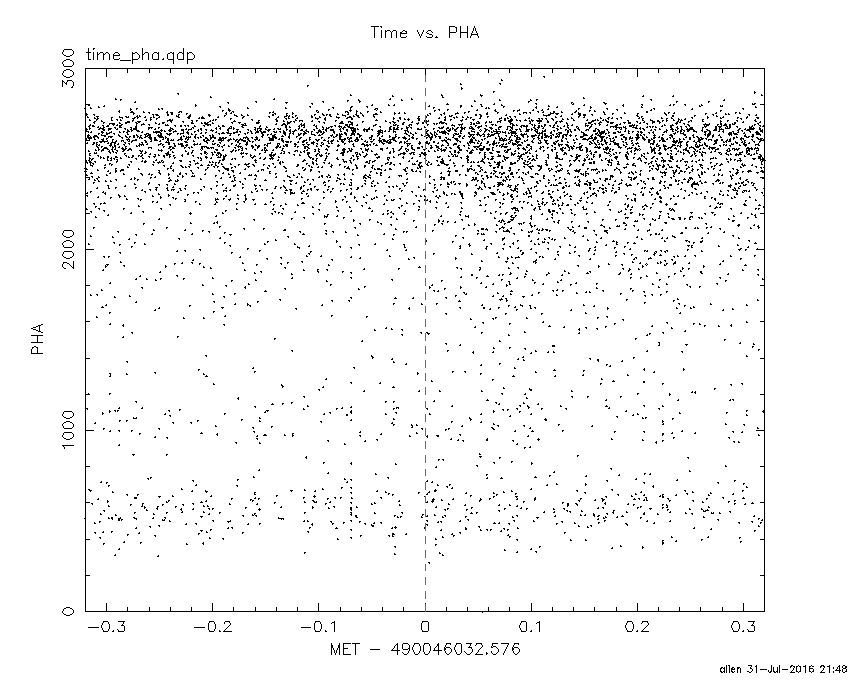

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

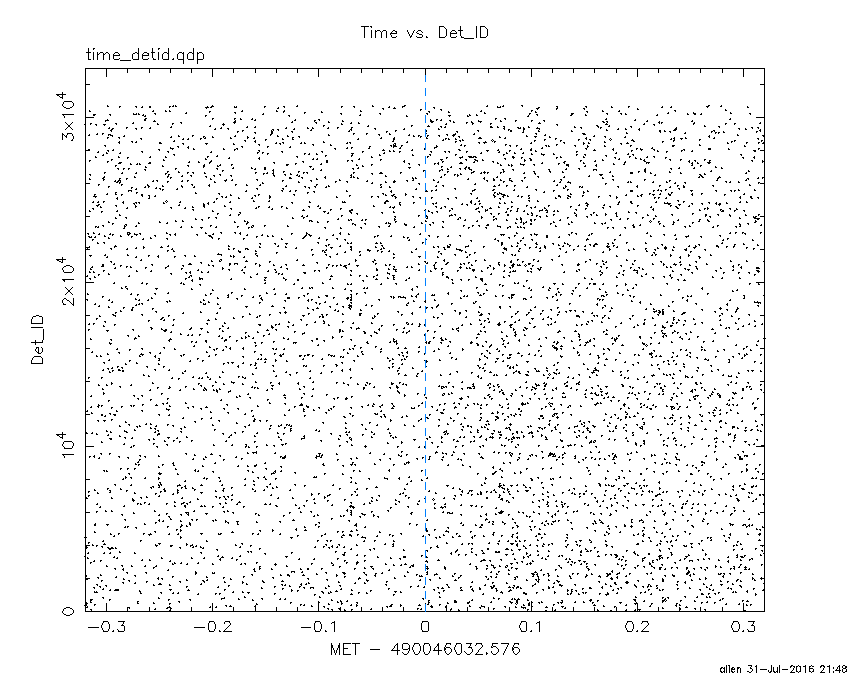

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

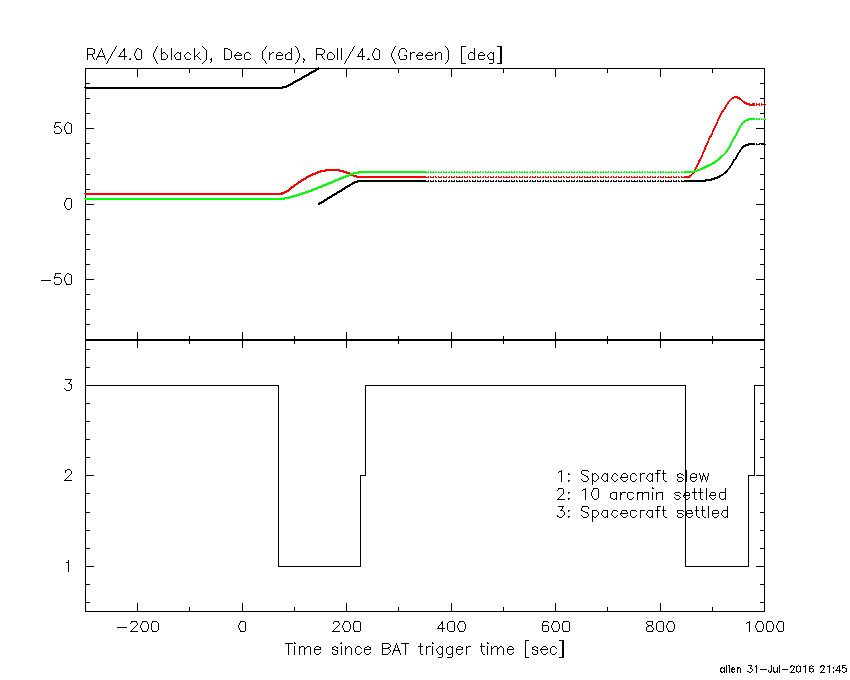

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.576000 -8.600000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
268.2916  -1.2999   13.7  41.1  155.9  -0.3337  -0.8   10.2	SW J1753.5-0127
273.9879 -14.0329    5.0  40.3  134.5   1.1343   2.3    1.1	GX 17+2
285.1404 -24.8769    5.8  39.1  110.9   1.3936   2.0    6.3	HT1900.1-2455
288.8478  10.8709    4.4  20.0  178.9   0.5147   2.6    5.3	GRS 1915+105
299.5797  35.1913    0.3  29.5 -119.3  10.6245  37.6    0.8	Cyg X-1
308.1080  40.9990    2.1  34.1 -104.9   2.1762   5.5    2.8	Cyg X-3
325.9882  38.2205   58.8  35.1  -80.1  -0.0891  -0.2   10.6	Cyg X-2
319.0299 -33.2271    3.0  41.3   62.7   2.8099   3.8 ------	UNKNOWN
347.8492  29.0375    2.6  43.0  -50.1   2.1657   4.4 ------	UNKNOWN
359.5853  26.2438    2.4  52.1  -42.2   4.5633   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-8.600000 45.464000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
268.4937  -1.6225    0.0  41.0  155.4  -0.1948  -1.1   12.7	SW J1753.5-0127
274.1101 -14.2281    4.1  40.3  134.2  -0.6060  -2.8   13.0	GX 17+2
285.1532 -24.9993    4.0  39.2  110.7  -0.9570  -2.9    7.9	HT1900.1-2455
288.9608  10.9799    4.4  19.9  179.2  -0.2248  -2.6    9.8	GRS 1915+105
299.6267  35.1706   57.9  29.5 -119.3   0.0250   0.2    2.6	Cyg X-1
308.0145  40.8158   60.7  34.0 -105.0   0.0315   0.2    9.3	Cyg X-3
326.1948  38.4761    4.8  35.4  -80.1  -0.4386  -2.4    9.3	Cyg X-2
304.1645 -26.9646    0.6  34.1   83.0   4.0746  20.6 ------	UNKNOWN
277.8485   5.7624    2.4  30.7  165.6   0.5187   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
225.724610 357.148400
420.424000 847.724600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6312  22.0143    0.2  21.3  -99.1  22.6884  49.3    0.1	Crab
 36.2303 -18.8778    3.4  44.4   40.8   3.9931   3.4 ------	UNKNOWN
 21.4966  56.6938    2.6  48.8  157.8   5.9311   4.4 ------	UNKNOWN
 60.8090  60.3120    2.5  42.4 -174.8   3.1200   4.6 ------	UNKNOWN

Plot creation:
Sun Jul 31 21:48:47 EDT 2016
