batgrbproduct analysis for trigger=704310

batgrbproduct Analysis for Trigger=704310

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Jul 14 21:07:35 EDT 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger704310/GCN5_download_cron
======================================================================

  Trigger: 00704310      Segment: 000

  BAT Trigger Time: 490155572.096   [s; MET]
      Trigger Stop: 490155572.352   [s; MET]
               UTC: 2016-07-14T02:19:15.539440    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 234.461473411661   Dec: 63.8313767687476  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.24
     Image Trigger?:     NO
     Rate S/N Ratio:     9.38083151964686  [ if not an image trigger ]
     Image S/N Ratio:    7.24

  Flight Position:   [ source = BAT ]
    RA: 234.461473411661   Dec: 63.8313767687476  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 234.489034072367   Dec: 63.8090344619505  [deg; J2000]
        { 15h 37m 57.4s , +63d 48' 32.5" }
         +/- 2.73490233085655 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.45895265746763 [arcmin] (formal 1-sigma fit error)
    SNR: 7.22629651700755

  Angular difference between Flight and Ground position is 1.526209 arcmin

  Partial Coding Fraction: 0.3554688    [ including projection effects ]

  Duration
     T90: 0.347999930381775 +/- 0.113137078246357
        Measured from: 0.03600013256073
                   to: 0.384000062942505     [s; relative to TRIGTIME]
     T50: 0.191999912261963 +/- 0.105603032047646
        Measured from: 0.0600001215934753
                   to: 0.252000033855438     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.28600001335144
                   to: 0.71399998664856     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0239999890327454
                   to: 0.399999976158142     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.021377   0.038378   0.038163   0.014420
           0.007045   0.007849   0.007110   0.006102 [error]
 Peak      0.024978   0.047116   0.043948   0.014294
           0.010842   0.011635   0.010699   0.009726 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.08e-09 1.61e-08 2.48e-08 8.41e-08 6.94e-08 1.33e-07   erg/cm2
              Error 3.21e-09 3.94e-09 6.32e-09 4.72e-08 1.59e-08 5.11e-08   erg/cm2
Peak flux Power-law 2.97e-01 3.44e-01 2.87e-01 4.05e-01 1.07e+00 1.33e+00   ph/cm2/s
              Error 1.55e-01 1.11e-01 8.34e-02 2.53e-01 3.01e-01 3.53e-01   ph/cm2/s

Fluence   Cutoff-PL 7.50e-09 1.66e-08 2.59e-08 5.41e-08 6.86e-08 1.04e-07   erg/cm2
              Error 3.80e-09 4.50e-09 7.48e-09 -------- 1.65e-08 6.45e-08   erg/cm2
Peak flux Cutoff-PL 2.80e-01 3.49e-01 2.96e-01 3.26e-01 1.06e+00 1.25e+00   ph/cm2/s
              Error 1.79e-01 1.19e-01 9.96e-02 3.49e-01 2.32e-01 4.27e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.372    0.370    -      -           1.90e-02 4.09e-03   61.710 57
CPL   1.022    1.672     154.8    0.0      2.77e-02 8.07e-02   61.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.260    0.468    -      -           9.07e-03 2.38e-03   66.380 57
CPL   0.999    0.578     215.1    0.0      1.19e-02 4.20e-02   66.330 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.376    0.024    0.400
T90     0.348    0.036    0.384
T50     0.192    0.060    0.252
Peak    1.000   -0.286    0.714

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

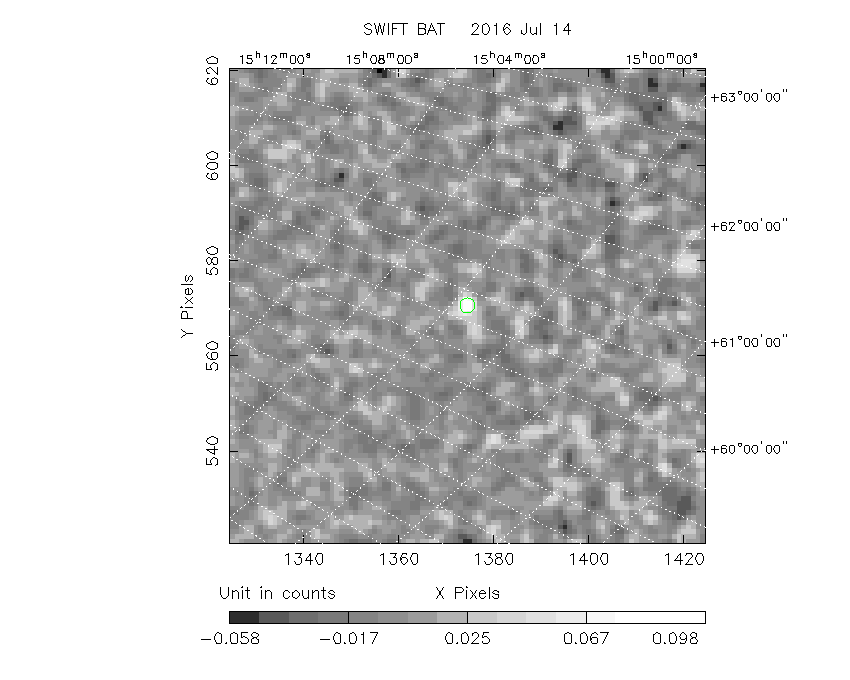

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  234.4890 +63.8090 0.0266   46.6 -169.2       0.1079     7.2  TRIG_00704310
------------------------------------------

Foreground time interval of the image:
  0.024   0.400 (delta_t =   0.376 [sec])
Background time interval of the image:
-96.995   0.024 (delta_t =  97.019 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

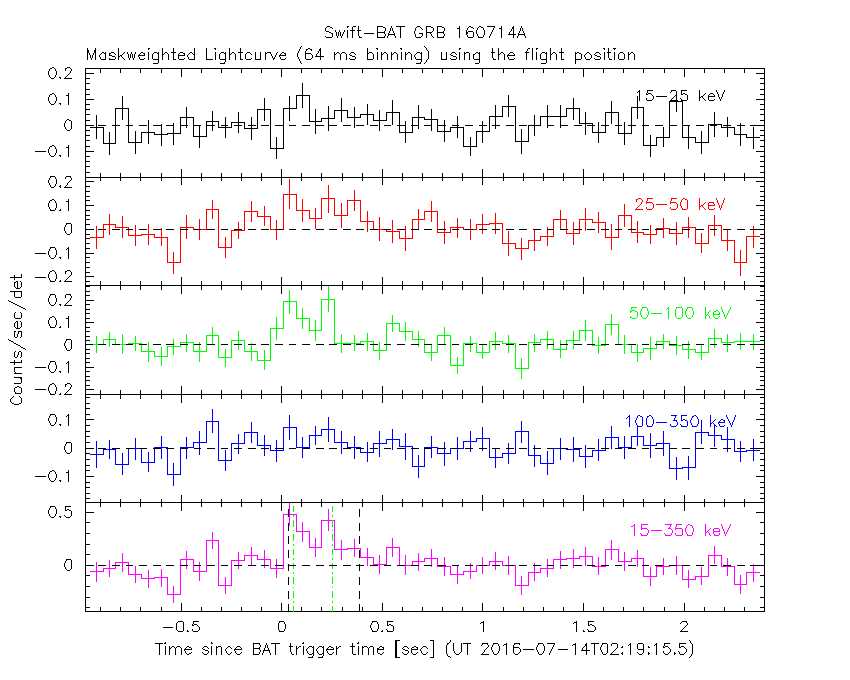

64 ms binning

Full time interval

From T100_start to T100_end

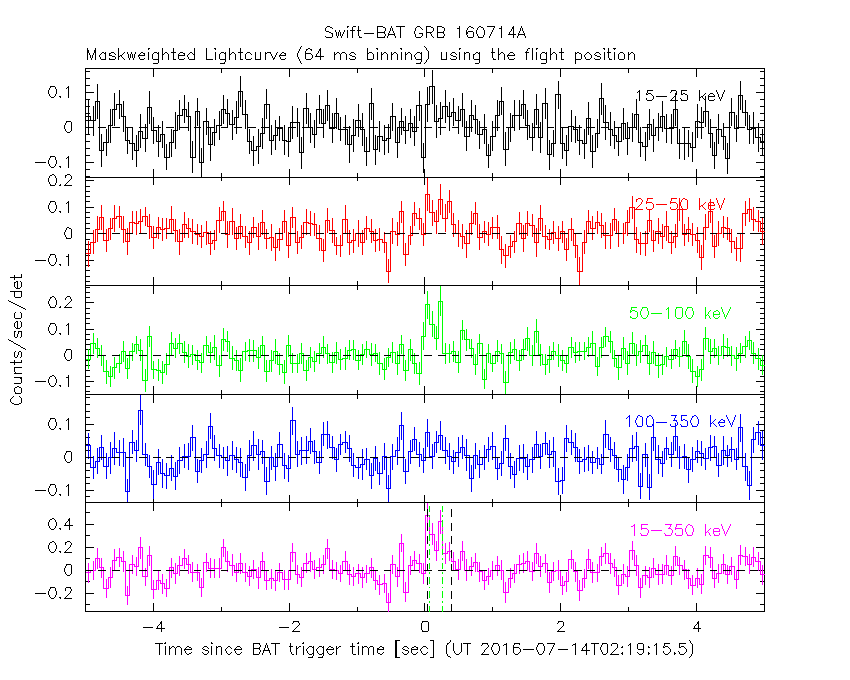

From T0-5 sec to T0+5 sec

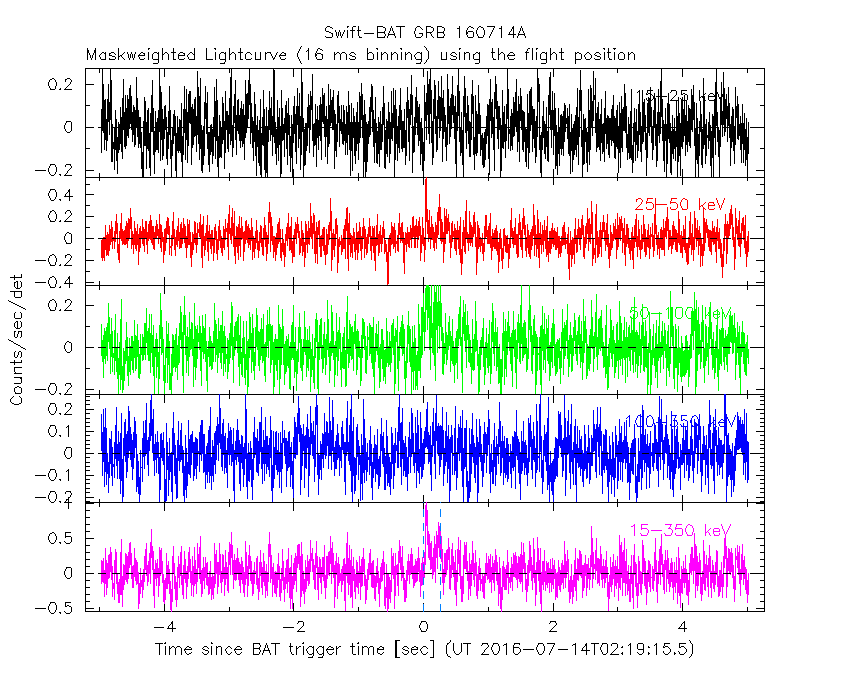

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

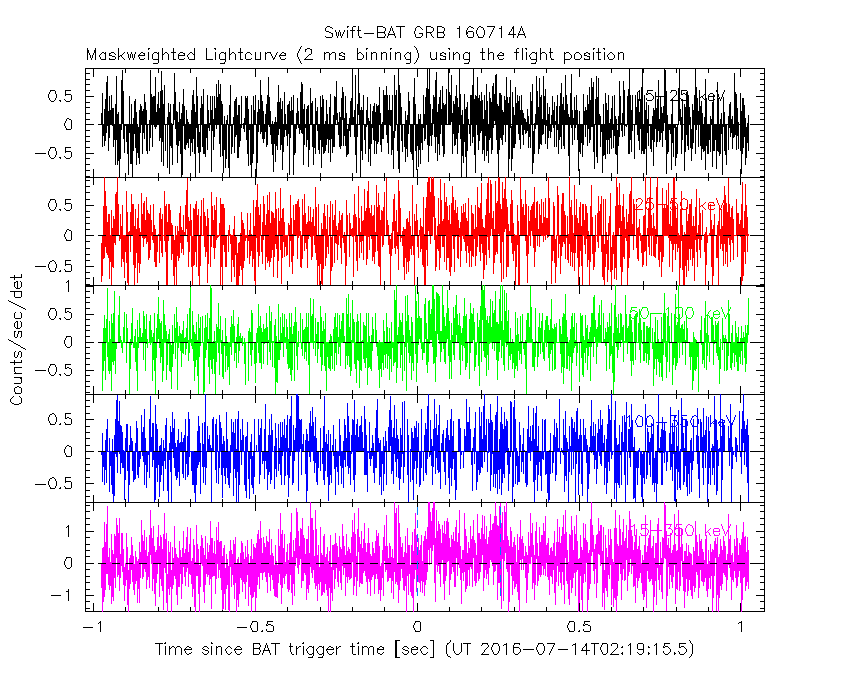

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

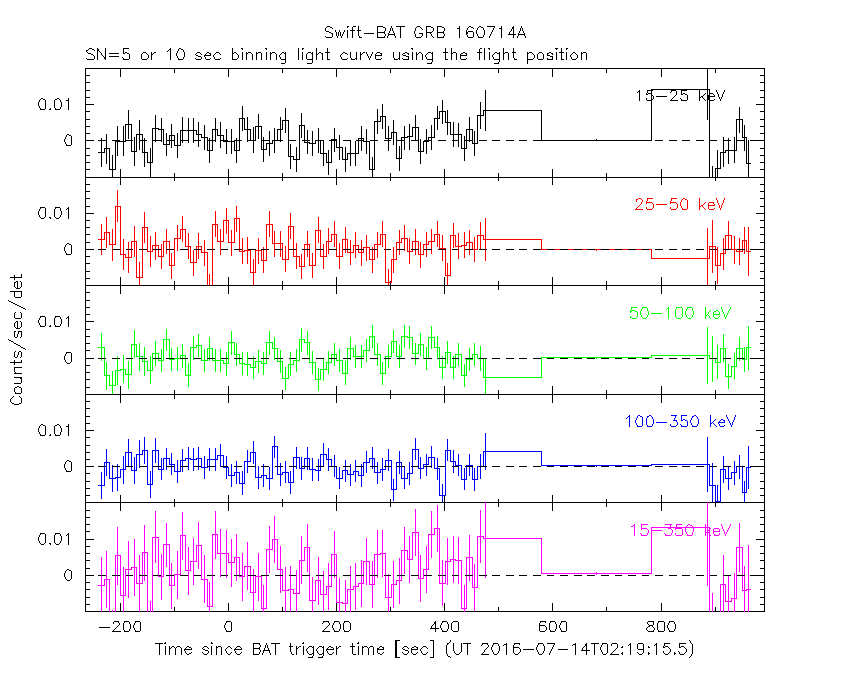

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

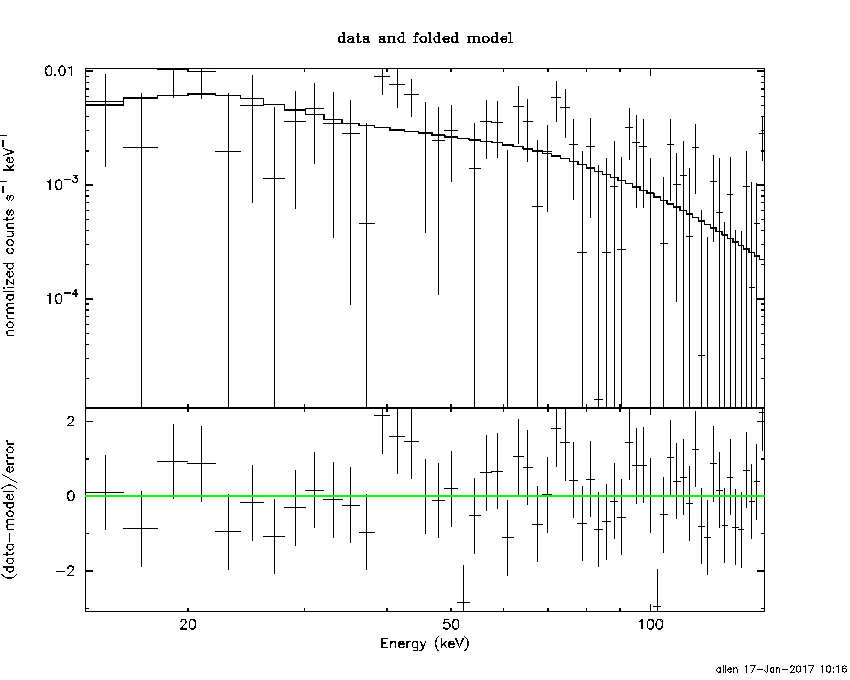

Power-law model

Time interval is from    0.024 sec. to    0.400 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.37209     ( -0.37217   0.366912 )
Norm@50keV  : 1.89816E-02    ( -0.00409253   0.00409251 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.71 using 59 PHA bins.
# Reduced chi-squared =          1.083 for     57 degrees of freedom
# Null hypothesis probability =   3.115932e-01

Photon flux (15-150 keV)    in 0.376 sec: 2.29740 ( -0.523755  0.52729 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.93686e-08 ( -1.58546e-08  1.59568e-08 ) ergs/cm2

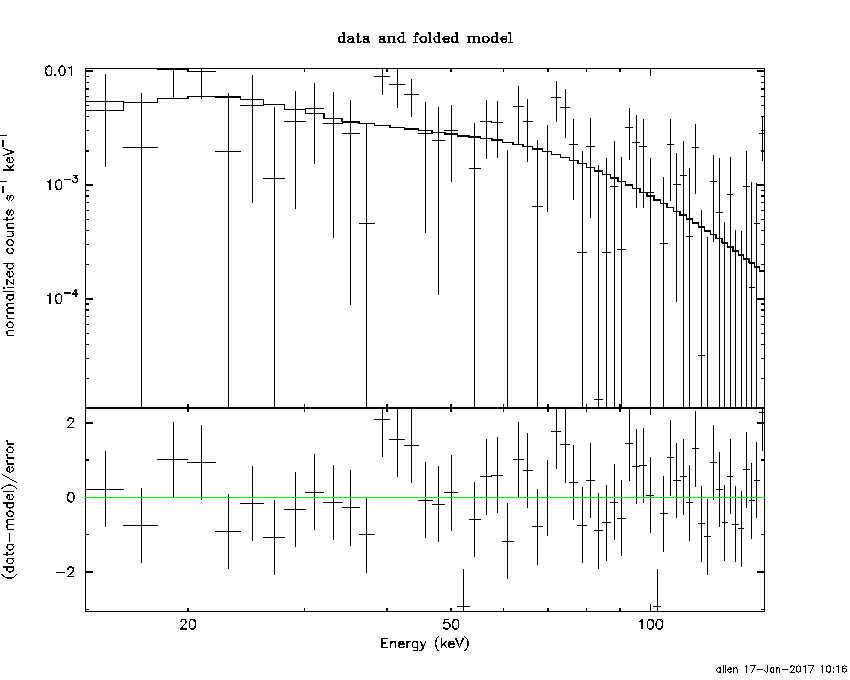

Cutoff power-law model

Time interval is from    0.024 sec. to    0.400 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02153     ( -1.80477   1.54016 )
Epeak [keV] : 154.793      ( -154.791 -154.791 )
Norm@50keV  : 2.76720E-02    ( -0.0125055   0.148935 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.52 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     56 degrees of freedom
# Null hypothesis probability =   2.849329e-01

Photon flux (15-150 keV)    in 0.376 sec: 2.26698 ( -0.54064  0.54076 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.85587e-08 ( -1.66478e-08  1.6347e-08 ) ergs/cm2

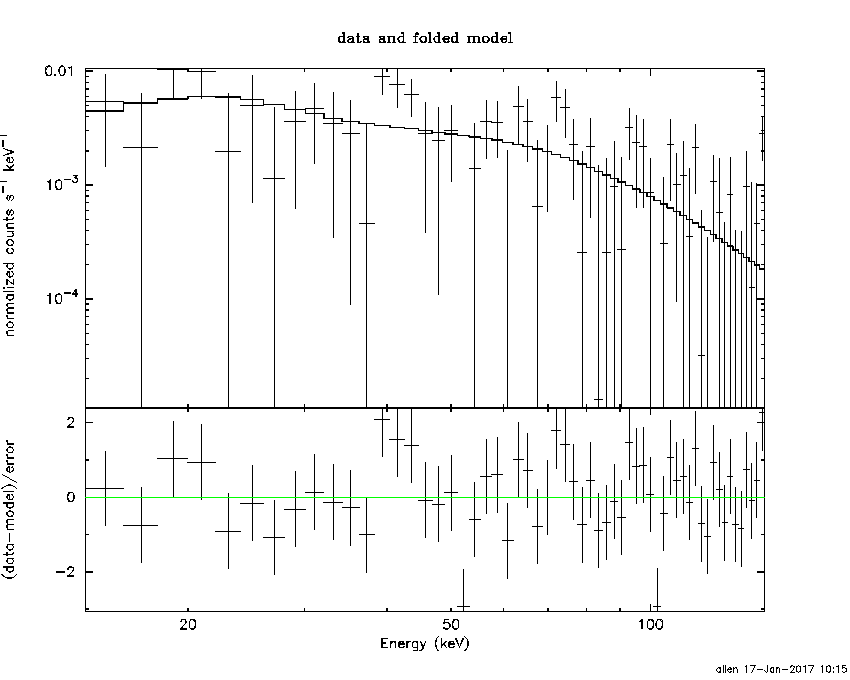

Band function

Time interval is from    0.024 sec. to    0.400 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.01981   ( 0.802872   5.75092 )
beta        : -1.66928    ( 1.74772   11.7381 )
Epeak [keV] : 154.237      ( -141.366 -141.366 )
Norm@50keV   : 2.77226E-02    ( -0.012002   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.51 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     55 degrees of freedom
# Null hypothesis probability =   2.542690e-01

Photon flux (15-150 keV)    in 0.376 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

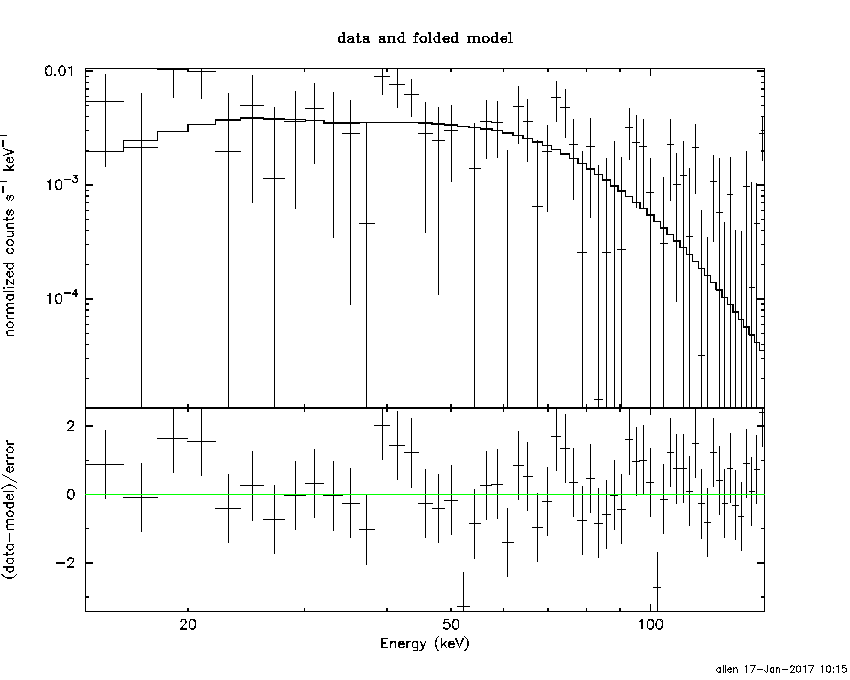

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0626  (-4.60142  6.49323)
R^2/D10^2   : 0.142738  (-0.0926615   0.25262)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.90 using 59 PHA bins.
# Reduced chi-squared =          1.156 for     57 degrees of freedom
# Null hypothesis probability =   1.962078e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.502e-09   1.564e-09
25- 50  1.624e-08   7.402e-09
50-150  3.849e-08   1.858e-08
15-150  5.823e-08   2.132e-08

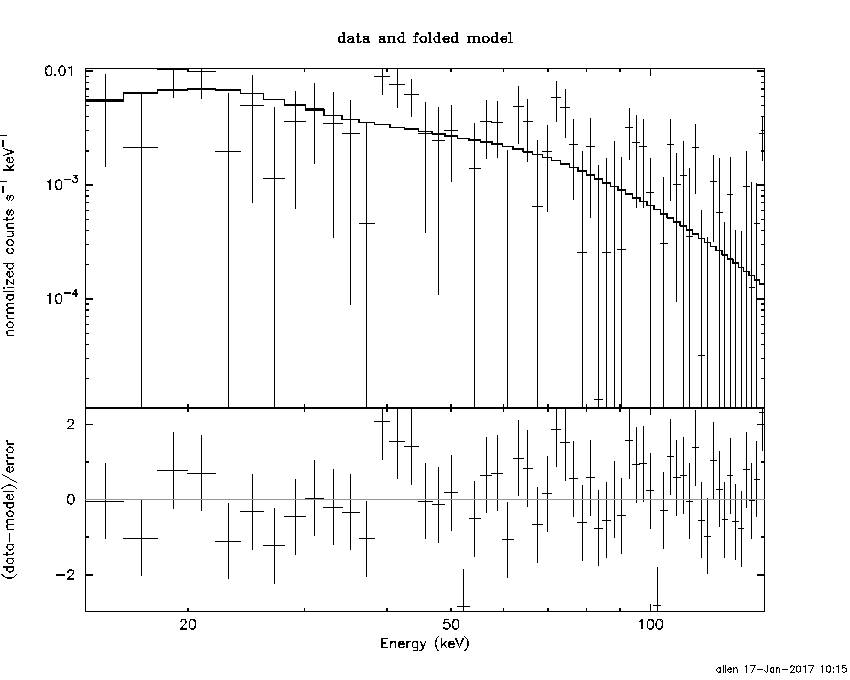

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-91.1555      -199.363)
Norm        : 9.65182       (-2.09426     2.09409)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.39 using 59 PHA bins.
# Reduced chi-squared =          1.095 for     57 degrees of freedom
# Null hypothesis probability =   2.904619e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.037e-09   5.384e-09
25- 50  1.738e-08   1.027e-08
50-150  3.813e-08   2.228e-08
15-150  6.454e-08   3.769e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.55147        (-6.09909      9.62166)
R1^2/D10^2  : 1.54739        (-1.37352      5154.51)
kT2 [keV]   : 27.4519        (-10.8762      -27.524)
R2^2/D10^2  : 2.81149E-02    (-0.0277092   0.170979)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.83 using 59 PHA bins.
# Reduced chi-squared =          1.124 for     55 degrees of freedom
# Null hypothesis probability =   2.453249e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.042e-09   4.399e-09
25- 50  1.685e-08   9.406e-09
50-150  4.471e-08   2.553e-08
15-150  6.860e-08   3.570e-08

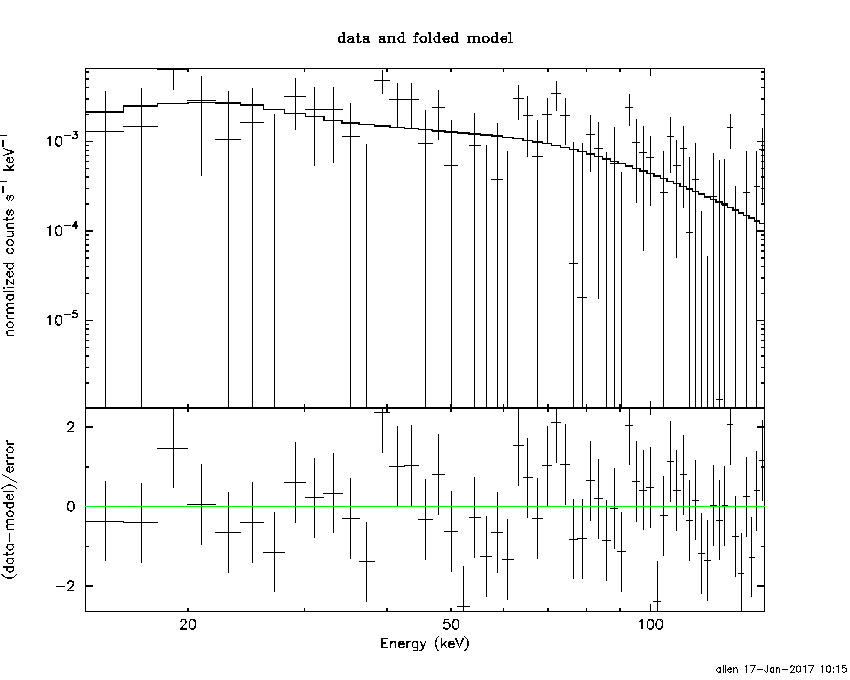

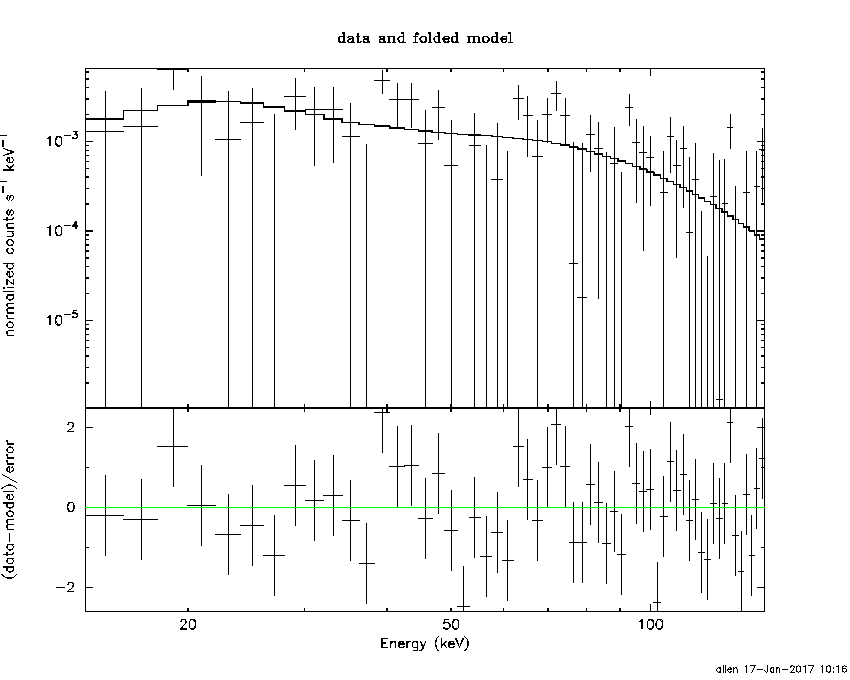

Peak spectrum fit

Power-law model

Time interval is from   -0.286 sec. to    0.714 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26041     ( -0.47952   0.455794 )
Norm@50keV  : 9.06622E-03    ( -0.00238577   0.00237955 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.38 using 59 PHA bins.
# Reduced chi-squared =          1.165 for     57 degrees of freedom
# Null hypothesis probability =   1.850955e-01

Photon flux (15-150 keV)    in 1 sec: 1.07413 ( -0.299572  0.302708 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.04881e-08 ( -2.48855e-08  2.50622e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.286 sec. to    0.714 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.999157     ( -2.19073   -1.03509 )
Epeak [keV] : 215.068      ( -245.04 -245.04 )
Norm@50keV  : 1.18687E-02    ( -0.00465808   0.0793478 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.33 using 59 PHA bins.
# Reduced chi-squared =          1.184 for     56 degrees of freedom
# Null hypothesis probability =   1.625958e-01

Photon flux (15-150 keV)    in 1 sec: 1.06383 ( -0.309592  0.15499 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.98654e-08 ( -2.56978e-08  2.54706e-08 ) ergs/cm2

Band function

Time interval is from   -0.286 sec. to    0.714 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.68861   ( -4.68861   -4.68861 )
beta        : -1.28362    ( -0.502408   0.4927 )
Epeak [keV] : 22.6479      ( -22.6479 191.308 )
Norm@50keV   : 799.502    ( -208.684   5.09581e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.29 using 59 PHA bins.
# Reduced chi-squared =          1.205 for     55 degrees of freedom
# Null hypothesis probability =   1.415827e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.8109  (-6.26451  9.80808)
R^2/D10^2   : 4.26928E-02  (-0.0306221   0.0994541)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.51 using 59 PHA bins.
# Reduced chi-squared =          1.219 for     57 degrees of freedom
# Null hypothesis probability =   1.237360e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.507e-09   2.053e-09
25- 50  1.792e-08   1.074e-08
50-150  5.781e-08   3.721e-08
15-150  7.924e-08   4.782e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-72.8649      -199.363)
Norm        : 4.55693       (-1.21077     1.21077)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.68 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     57 degrees of freedom
# Null hypothesis probability =   1.573846e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.135e-08   6.895e-09
25- 50  2.183e-08   1.318e-08
50-150  4.787e-08   2.899e-08
15-150  8.105e-08   4.684e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.15647        (-5.37587      10.4339)
R1^2/D10^2  : 0.879909        (-0.827477      822.473)
kT2 [keV]   : 30.2468        (-25.9575      -30.2644)
R2^2/D10^2  : 1.06338E-02    (-0.00992227   0.0537124)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.93 using 59 PHA bins.
# Reduced chi-squared =          1.199 for     55 degrees of freedom
# Null hypothesis probability =   1.485331e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.918e-09   6.130e-09
25- 50  1.995e-08   1.110e-08
50-150  6.227e-08   3.658e-08
15-150  9.114e-08   4.888e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.37209     ( -0.37217   0.366912 )
Norm@50keV  : 1.89816E-02    ( -0.00409253   0.00409251 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.71 using 59 PHA bins.
# Reduced chi-squared =          1.083 for     57 degrees of freedom
# Null hypothesis probability =   3.115932e-01

Photon flux (15-150 keV)    in 0.376 sec: 2.29740 ( -0.523755  0.52729 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.93686e-08 ( -1.58546e-08  1.59568e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02153     ( -1.80477   1.54016 )
Epeak [keV] : 154.793      ( -154.791 -154.791 )
Norm@50keV  : 2.76720E-02    ( -0.0125055   0.148935 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.52 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     56 degrees of freedom
# Null hypothesis probability =   2.849329e-01

Photon flux (15-150 keV)    in 0.376 sec: 2.26698 ( -0.54064  0.54076 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.85587e-08 ( -1.66478e-08  1.6347e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.01981   ( 0.802872   5.75092 )
beta        : -1.66928    ( 1.74772   11.7381 )
Epeak [keV] : 154.237      ( -141.366 -141.366 )
Norm@50keV   : 2.77226E-02    ( -0.012002   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.51 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     55 degrees of freedom
# Null hypothesis probability =   2.542690e-01

Photon flux (15-150 keV)    in 0.376 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.61e-08
S(50-100 keV) = 2.48e-08

T90 vs. Hardness ratio plot

T90                                   = 0.347999930381775 sec.
Hardness ratio (energy fluence ratio) = 1.54037

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.79529
Count Ratio (50-100 keV) / (15-25 keV) = 1.78524

Mask shadow pattern

IMX = 0, IMY = 0

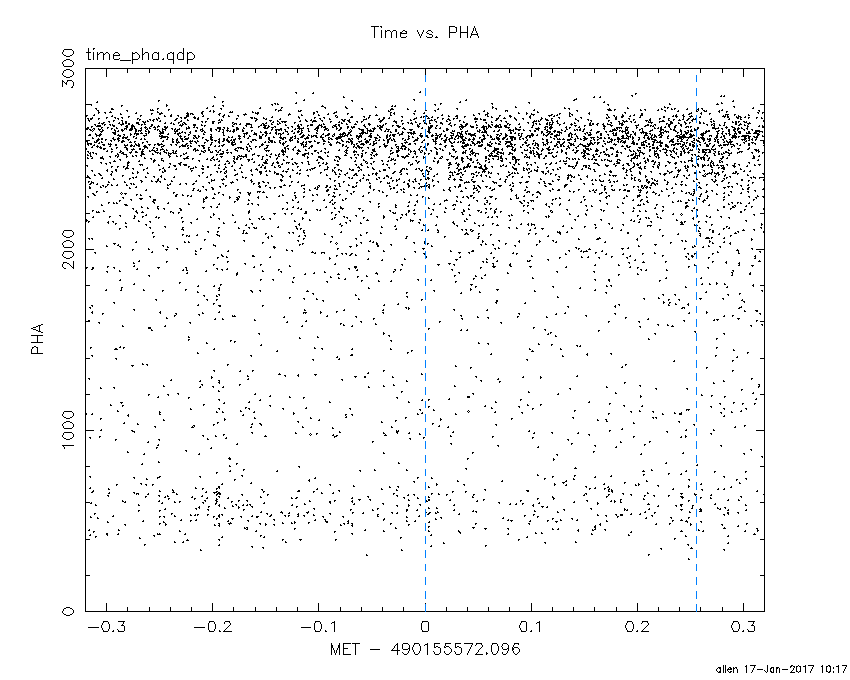

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

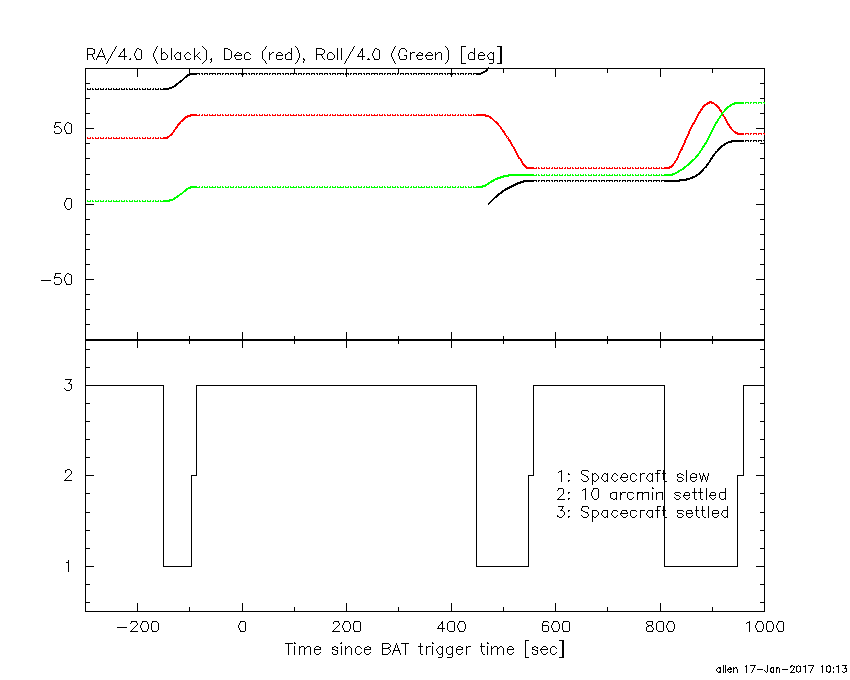

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-96.995400 0.024000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.6265  35.1754    1.1  38.0  117.3   3.4629  10.5    2.4	Cyg X-1
308.1707  40.9949    4.3  29.2  114.3   0.4930   2.7    3.7	Cyg X-3
326.1728  38.4935    4.4  23.8   84.9   0.4245   2.7   10.3	Cyg X-2
  7.4388   6.6819    2.1  54.9   18.1   3.3608   5.5  599.2	UNKNOWN
 27.4864  13.6642    2.2  54.9   -7.5   2.0212   5.2 ------	UNKNOWN
211.8390  72.9651    2.0  44.4 -152.3   1.2312   5.7 ------	UNKNOWN
 38.9395  24.4297    2.5  50.7  -26.0   1.3692   4.7 ------	UNKNOWN
 51.4235  30.6124    4.5  52.0  -42.1   1.5743   2.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.024000 0.400000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.6579  35.1286    6.2  38.0  117.2  -0.0370  -1.9    5.5	Cyg X-1
307.8994  40.8504  194.5  29.5  114.4   0.0007   0.1   11.4	Cyg X-3
325.9520  38.2989    4.1  24.0   85.1   0.0265   2.8   10.4	Cyg X-2
  7.1255  23.9389    2.6  38.2   12.0   0.0450   4.5 ------	UNKNOWN
234.4891  63.8090    1.6  46.6 -169.2   0.1078   7.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
547.304610 809.004590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6300  22.0122    0.3  19.8  -75.8  10.6838  37.7    0.2	Crab
 96.1441   8.2456    2.4  36.0  -56.7   1.8006   4.8 ------	UNKNOWN
104.9433  69.5805    3.1  52.3 -149.1   3.1927   3.6 ------	UNKNOWN
101.4684 -16.4179    2.4  55.5  -34.0   6.1276   4.8 ------	UNKNOWN
104.2033  -1.5567    2.7  48.0  -50.7   4.6640   4.3 ------	UNKNOWN

Plot creation:
Tue Jan 17 10:17:51 EST 2017
