TDRSS lightcurve for Trigger=718655
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 22 Oct 16 02:44:36 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 718655, Seg_Num: 0
GRB_RA: 128.967d {+08h 35m 52s} (J2000),
129.284d {+08h 37m 08s} (current),
128.022d {+08h 32m 05s} (1950)
GRB_DEC: +54.365d {+54d 21' 54"} (J2000),
+54.306d {+54d 18' 21"} (current),
+54.538d {+54d 32' 18"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 25501 [cnts] Image_Peak=348 [image_cnts]
TRIGGER_DUR: 8.192 [sec]
TRIGGER_INDEX: 335 E_range: 25-100 keV
BKG_INTEN: 181651 [cnts]
BKG_TIME: 9726.95 SOD {02:42:06.95} UT
BKG_DUR: 64 [sec]
GRB_DATE: 17683 TJD; 296 DOY; 16/10/22
GRB_TIME: 9820.14 SOD {02:43:40.14} UT
GRB_PHI: 143.93 [deg]
GRB_THETA: 45.16 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 15.65 [sigma]
IMAGE_SIGNIF: 7.95 [sigma]
MERIT_PARAMS: +1 +0 +0 +3 +2 -2 +0 +0 +3 +0
SUN_POSTN: 207.08d {+13h 48m 20s} -11.17d {-11d 09' 53"}
SUN_DIST: 92.08 [deg] Sun_angle= 5.2 [hr] (West of Sun)
MOON_POSTN: 111.50d {+07h 25m 59s} +17.82d {+17d 49' 27"}
MOON_DIST: 38.97 [deg]
MOON_ILLUM: 58 [%]
GAL_COORDS: 163.72, 36.78 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 116.38, 34.44 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 23.45,20.41 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(5.0<100sec) coincident with the FERMI_GBM event (trignum=498797029).
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 22 Oct 16 03:00:21 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 718655, Seg_Num: 0
GRB_RA: 128.967d {+08h 35m 52s} (J2000),
129.284d {+08h 37m 08s} (current),
128.022d {+08h 32m 05s} (1950)
GRB_DEC: +54.365d {+54d 21' 54"} (J2000),
+54.306d {+54d 18' 21"} (current),
+54.538d {+54d 32' 18"} (1950)
GRB_DATE: 17683 TJD; 296 DOY; 16/10/22
GRB_TIME: 9820.14 SOD {02:43:40.14} UT
TRIGGER_INDEX: 335
GRB_PHI: 143.93 [deg]
GRB_THETA: 45.16 [deg]
DELTA_TIME: -38.00 [sec]
TRIGGER_DUR: 8.192 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 15.65 [sigma]
IMAGE_SIGNIF: 7.95 [sigma]
LC_URL: sw00718655000msb.lc
GCN template for BAT paragraph
Click here!
At 02:43:40 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 161022 ***A*** (trigger=718655). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 128.967, +54.365 which is
RA(J2000) = 08h 35m 52s
Dec(J2000) = +54d 21' 54"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~1539 counts/sec (15-350 keV), at ~2 sec after the trigger.
Test version of draft template
Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves
Extended TDRSS light curve and spacecraft attitude plot(s)
Extended TDRSS lc No.1
Extended TDRSS lc No.2
Extended TDRSS lc No.3

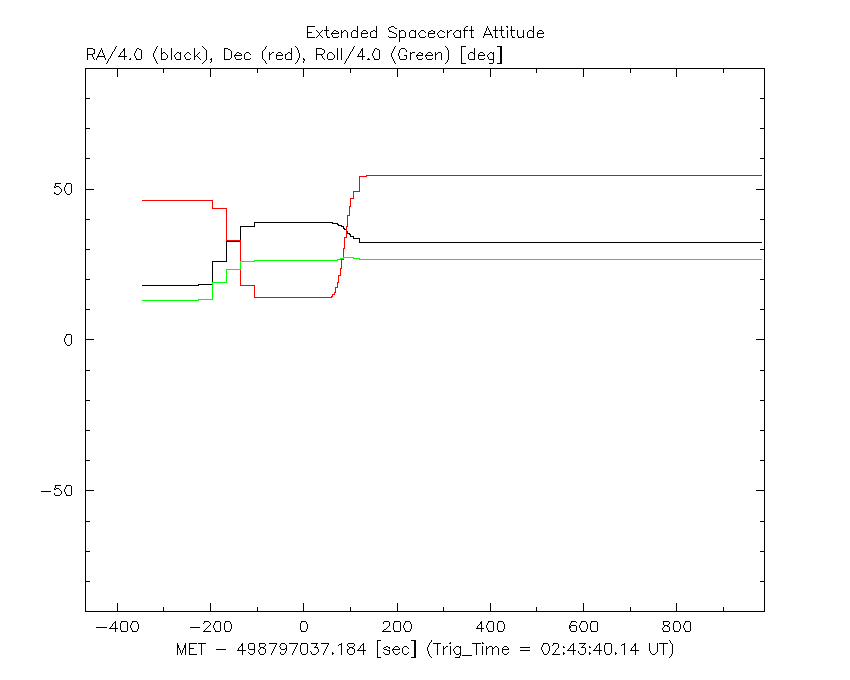

Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 70.144 s +/- 2.89772 s
Estimated T50 duration: 59.52 s +/- 6.15599 s
Estimated Peak Interval: MET 498797110.07999998 +/- 0.500000 s
Estimated background rate 1: 5523.316 near MET 498797025.152000 s
Estimated background rate 2: 5470.866 near MET 498797167.424000 s
Estimated total duration: 74.624 s (for data selection)
(from MET 498797037.504000 to MET 498797112.128000)
Estimated total fluence: 6242.293555 count
Created GTI with 5 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 128.967 54.365 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 129.950626 -52.395638
Obj: 2016 10 22 3 206.944556 12.414393
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 94.800146 -29.198541
Obj: 2016 10 22 3 188.880111 -3.031402
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 92.258223 -24.061994
Obj: 2016 10 22 3 185.434877 -2.007238
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 73.371742 11.807534
Obj: 2016 10 22 3 163.065077 -11.761244
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 137.430316 64.197261
Obj: 2016 10 22 3 138.909036 -27.908091
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 1.152989 44.388444
Obj: 2016 10 22 3 136.614114 33.582771
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 244.581217 -56.558217
Obj: 2016 10 22 3 221.602962 33.436161
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2016 10 22 3 31.102856 -43.170890
Obj: 2016 10 22 3 221.967117 -44.248139
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger718655/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Fri Oct 21 23:00:44 EDT 2016
