TDRSS lightcurve for Trigger=718919
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 23 Oct 16 17:12:22 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 718919, Seg_Num: 0
GRB_RA: 197.822d {+13h 11m 17s} (J2000),
198.010d {+13h 12m 02s} (current),
197.263d {+13h 09m 03s} (1950)
GRB_DEC: +43.936d {+43d 56' 09"} (J2000),
+43.847d {+43d 50' 49"} (current),
+44.201d {+44d 12' 05"} (1950)
GRB_ERROR: 4.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=963 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 17684 TJD; 297 DOY; 16/10/23
GRB_TIME: 61862.94 SOD {17:11:02.94} UT
GRB_PHI: -120.66 [deg]
GRB_THETA: 20.28 [deg]
SOLN_STATUS: 0x1099D
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 5.80 [sigma]
MERIT_PARAMS: +0 +0 +125 +6 +1 -5 +0 +0 -55 +1
SUN_POSTN: 208.61d {+13h 54m 26s} -11.73d {-11d 43' 33"}
SUN_DIST: 56.41 [deg] Sun_angle= 0.7 [hr] (West of Sun)
MOON_POSTN: 133.63d {+08h 54m 31s} +14.67d {+14d 39' 57"}
MOON_DIST: 61.51 [deg]
MOON_ILLUM: 40 [%]
GAL_COORDS: 110.82, 72.72 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 173.86, 46.41 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This is a low-flux event whose position matches one of the nearby galaxy sources in the on-board catalog!
COMMENTS: This matches a source in the on-board catalog: Num=12073=NGC5023, delta=0.193 [deg].
COMMENTS: This matches a source in the ground catalog: NGC5023, delta=0.193 [deg].
COMMENTS: This is a GRB in nearby galaxy or it is noise.
COMMENTS: This trigger occurred at longitude,latitude = 208.21,10.23 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 23 Oct 16 17:28:04 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 718919, Seg_Num: 0
GRB_RA: 197.822d {+13h 11m 17s} (J2000),
198.010d {+13h 12m 02s} (current),
197.263d {+13h 09m 03s} (1950)
GRB_DEC: +43.936d {+43d 56' 09"} (J2000),
+43.847d {+43d 50' 49"} (current),
+44.201d {+44d 12' 05"} (1950)
GRB_DATE: 17684 TJD; 297 DOY; 16/10/23
GRB_TIME: 61862.94 SOD {17:11:02.94} UT
TRIGGER_INDEX: 20000
GRB_PHI: -120.66 [deg]
GRB_THETA: 20.28 [deg]
DELTA_TIME: 0.00 [sec]
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x99D
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 5.80 [sigma]
LC_URL: sw00718919000msb.lc
GCN template for BAT paragraph
Click here!
At 17:11:02 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 161023 ***A*** (trigger=718919). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 197.822, +43.936 which is
RA(J2000) = 13h 11m 17s
Dec(J2000) = +43d 56' 09"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~1296 counts/sec (15-350 keV), at ~0 sec after the trigger.
Test version of draft template

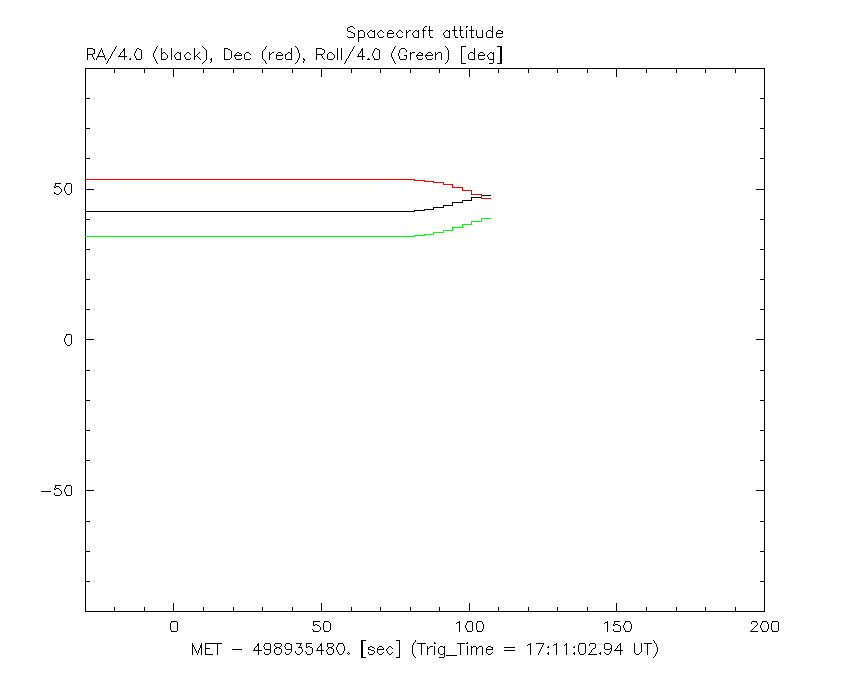

Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)

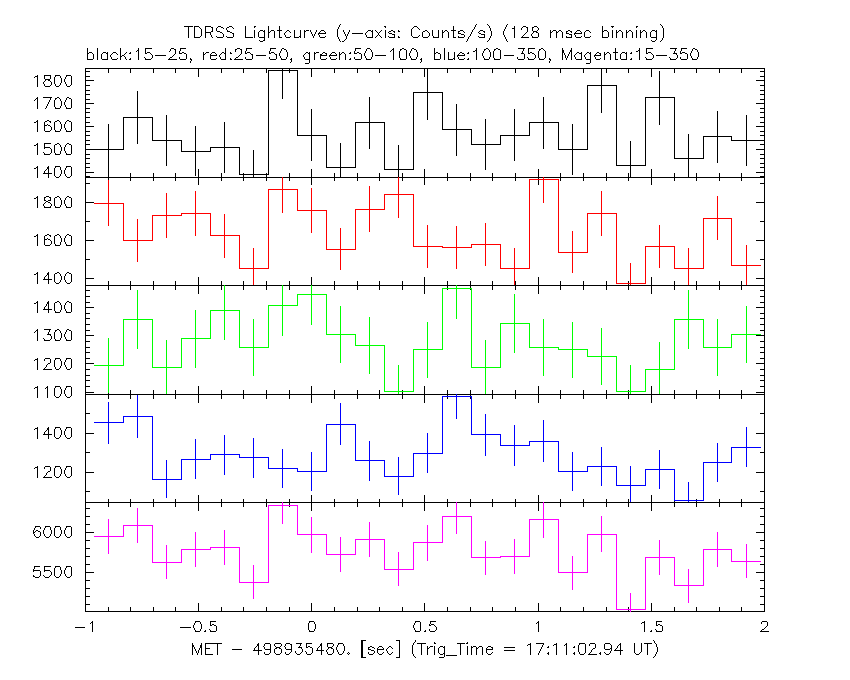

TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve

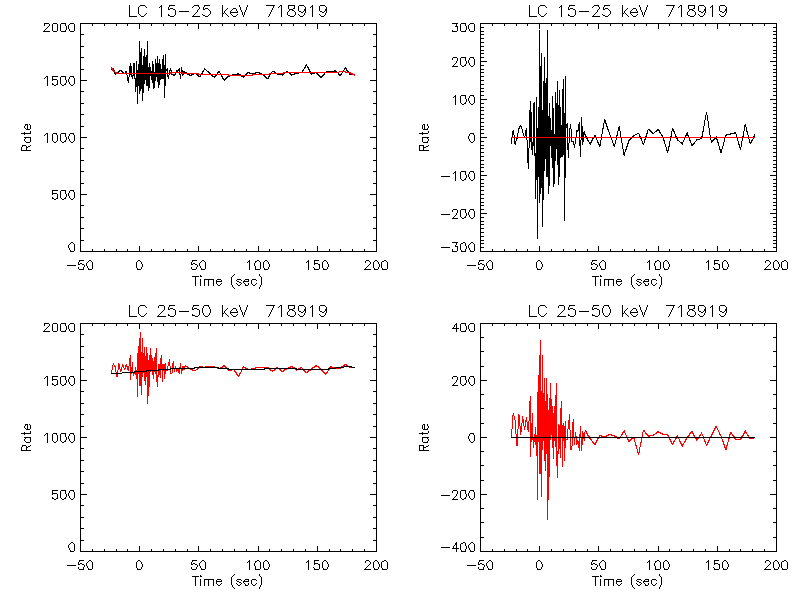

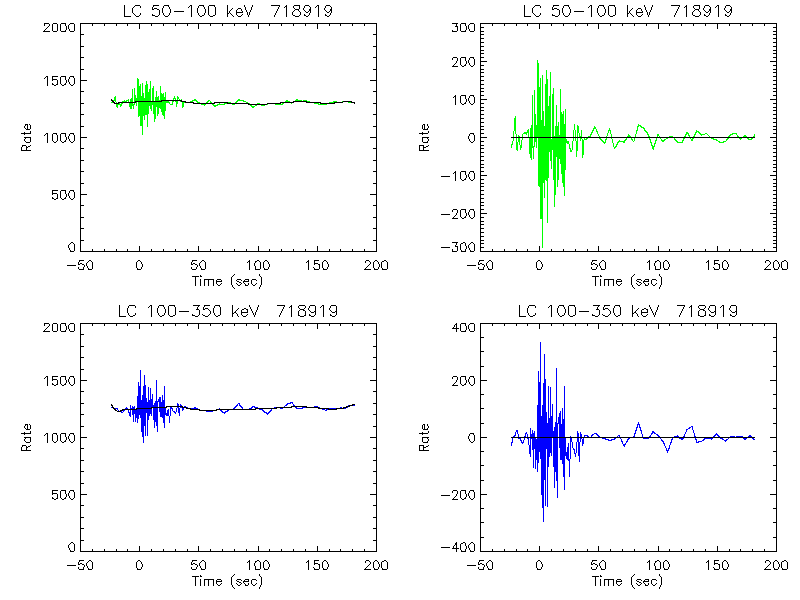

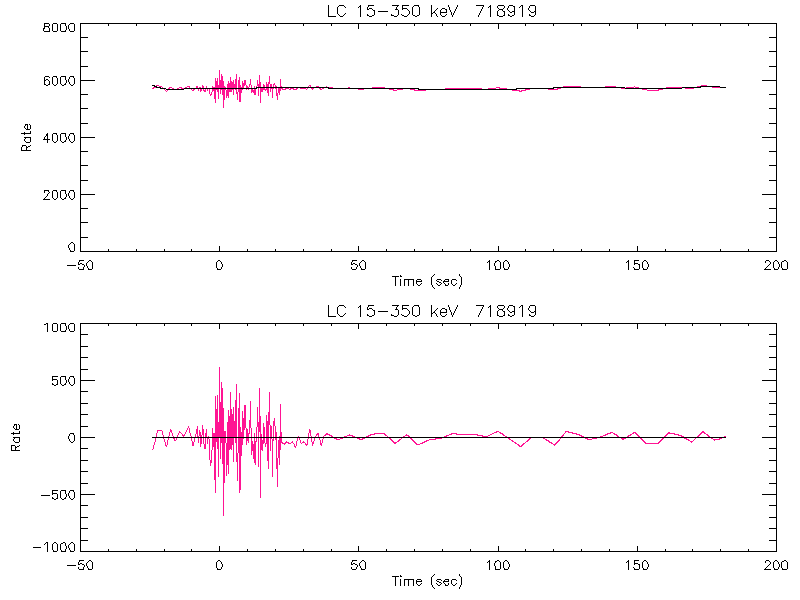

Tilan's background subtracted TDRSS light curves

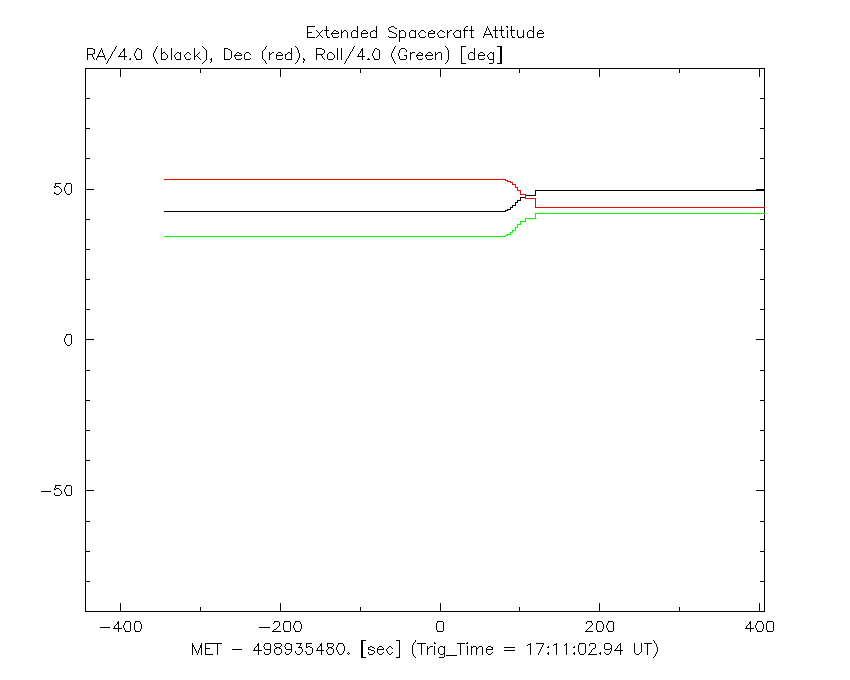

Extended TDRSS light curve and spacecraft attitude plot(s)

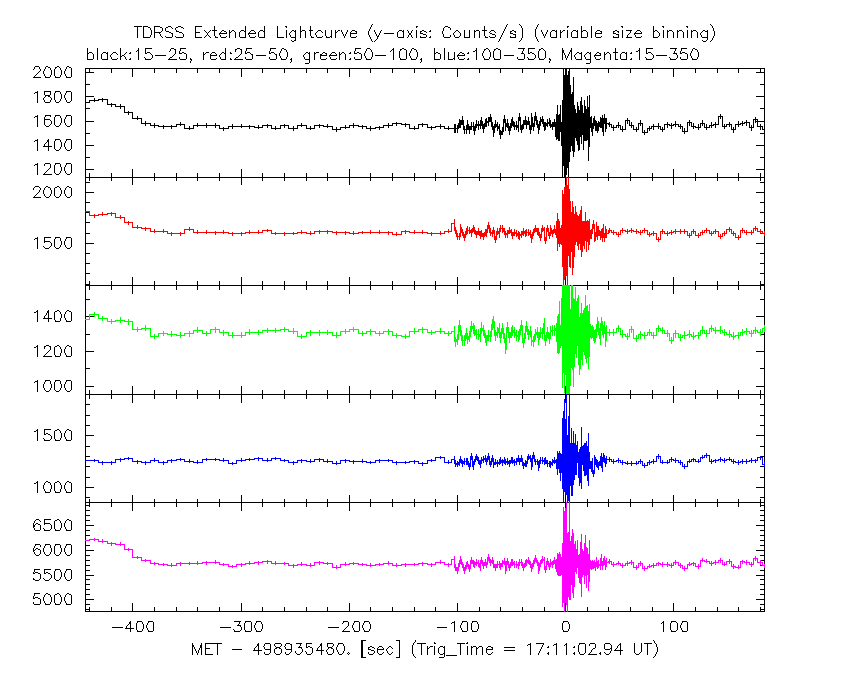

Extended TDRSS lc No.1
Extended TDRSS lc No.2
Extended TDRSS lc No.3
Extended TDRSS lc No.4

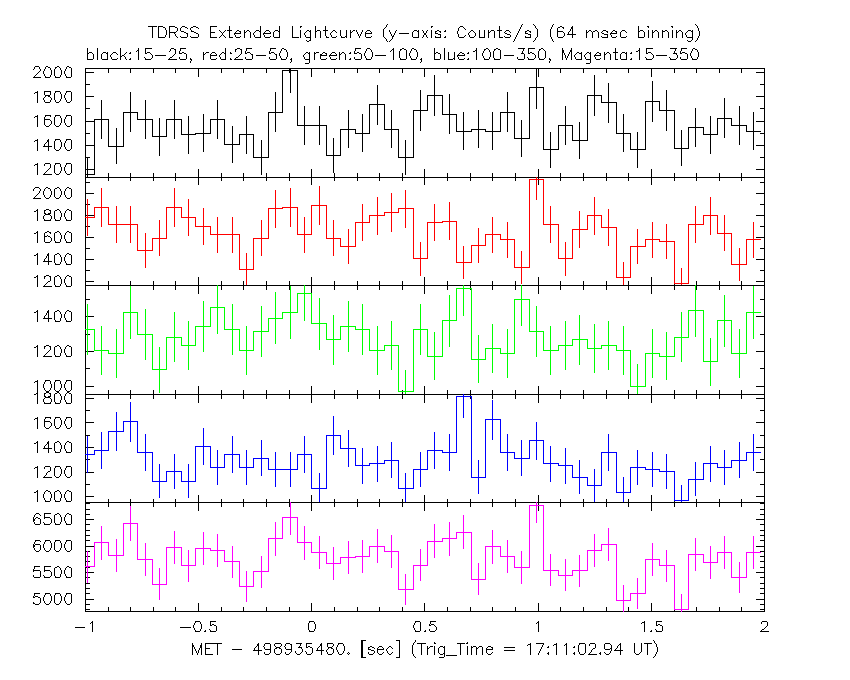

TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated background rate 1: 5725.934 near MET 498935560.960000 s
Estimated background rate 2: 5725.934 near MET 498935560.960000 s
Estimated total fluence: 0.000000 count
Created GTI with 1 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 197.822 43.936 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 1.973981 39.217656
Obj: 2016 10 23 17 121.926021 79.687173
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 319.134626 36.581544
Obj: 2016 10 23 17 228.448344 68.972850
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 314.192489 31.905436
Obj: 2016 10 23 17 235.895171 65.993286
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 285.569687 7.887582
Obj: 2016 10 23 17 230.045029 30.389132
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 305.614180 -27.393383
Obj: 2016 10 23 17 237.232517 -43.293030
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 238.590822 -53.931741
Obj: 2016 10 23 17 208.585480 -3.151529
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 64.335768 18.876654
Obj: 2016 10 23 17 125.965576 32.480208
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2016 10 23 17 158.011874 70.136456
Obj: 2016 10 23 17 166.681988 13.964149
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger718919/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Sun Oct 23 13:28:43 EDT 2016
