batgrbproduct analysis for trigger=725626

batgrbproduct Analysis for Trigger=725626

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Dec  7 06:41:26 EST 2016
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger725626/GCN5_download_cron
======================================================================

  Trigger: 00725626      Segment: 000

  BAT Trigger Time: 502703776   [s; MET]
      Trigger Stop: 502703840   [s; MET]
               UTC: 2016-12-06T07:55:58.734540    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.389081247729   Dec: 35.0745254645471  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.31
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.31

  Flight Position:   [ source = BAT ]
    RA: 299.389081247729   Dec: 35.0745254645471  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.166306567694   Dec: 35.1815271240178  [deg; J2000]
        { 19h 56m 39.9s , +35d 10' 53.5" }
         +/- 6.7091946643995 [arcmin] (estimated 90% radius based on SNR)
         +/- 5.20737985824838 [arcmin] (formal 1-sigma fit error)
    SNR: 2.00521375851219

  Angular difference between Flight and Ground position is 12.677801 arcmin

  Partial Coding Fraction: 0.6015625    [ including projection effects ]

  Duration
     T90: 29.6559999585152 +/- 55.5728719967958
        Measured from: 106.620000123978
                   to: 136.276000082493     [s; relative to TRIGTIME]
     T50: 38.311999976635 +/- 69.7601928020831
        Measured from: 87.608000099659
                   to: 125.920000076294     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 57.0080000162125
                   to: 58.0080000162125     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 20.3320000171661
                   to: 136.731999993324     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.231132   1.441356   0.770543   0.169747
           0.081781   0.083005   0.070737   0.061575 [error]
 Peak      0.015711   0.039617   0.015993   0.009601
           0.008085   0.008320   0.007013   0.006160 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.89e-07 5.80e-07 6.47e-07 1.36e-06 2.03e-06 2.98e-06   erg/cm2
              Error 4.13e-08 3.99e-08 7.00e-08 3.00e-07 1.62e-07 3.68e-07   erg/cm2
Peak flux Power-law 1.89e-01 1.90e-01 1.34e-01 1.50e-01 5.72e-01 6.62e-01   ph/cm2/s
              Error 9.72e-02 6.63e-02 5.42e-02 1.19e-01 1.93e-01 2.22e-01   ph/cm2/s

Fluence   Cutoff-PL 3.74e-07 6.07e-07 6.42e-07 6.94e-07 1.95e-06 2.32e-06   erg/cm2
              Error 4.59e-08 5.26e-08 7.56e-08 -------- 1.91e-07 6.31e-07   erg/cm2
Peak flux Cutoff-PL 9.62e-02 2.94e-01 1.08e-01 1.41e-03 5.00e-01 5.00e-01   ph/cm2/s
              Error 1.09e-01 1.01e-01 7.25e-02 1.65e-02 1.83e-01 1.83e-01   ph/cm2/s

Fluence        Band 3.57e-07 6.29e-07 6.12e-07 1.05e-06 1.95e-06 2.65e-06   erg/cm2
              Error 5.11e-08 -------- 7.83e-08 3.81e-07 1.76e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.844    0.127    -      -           1.89e-03 1.50e-04   52.820 57
CPL   1.457    0.506      61.3  -22.2      3.12e-03 2.27e-03   50.980 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.505    0.518    -      -           4.57e-03 1.56e-03   51.250 57
CPL  -4.599    0.015      44.9   12.5      1.18e+01 4.77e+03   45.080 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  116.400   20.332  136.732
T90    29.656  106.620  136.276
T50    38.312   87.608  125.920
Peak    1.000   57.008   58.008

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

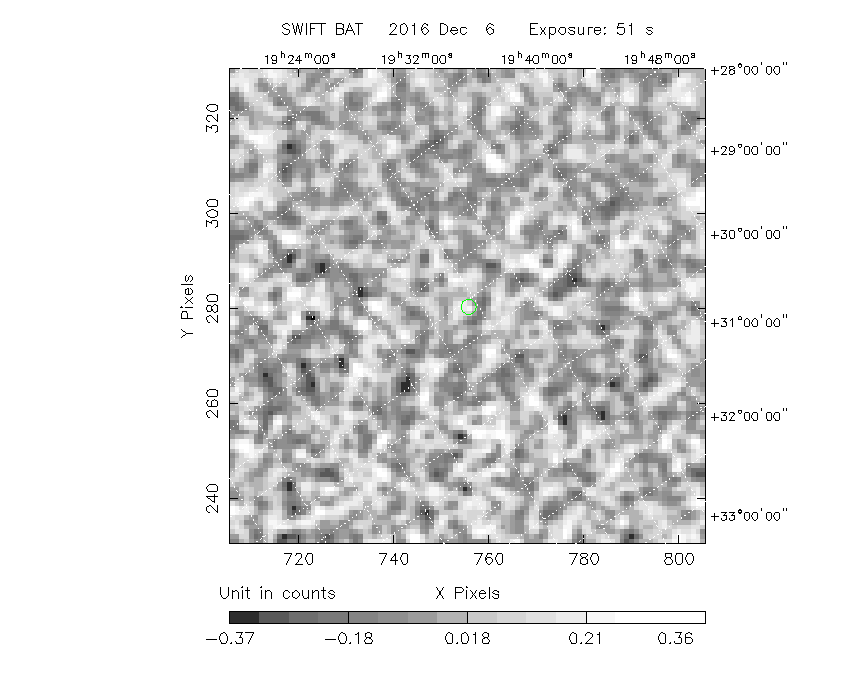

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.1663 +35.1815 0.0958   26.0   57.7       0.2475     2.0  TRIG_00725626
------------------------------------------

Foreground time interval of the image:
 20.332  71.101 (delta_t =  50.769 [sec])
Background time interval of the image:
-239.000  20.332 (delta_t = 259.332 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

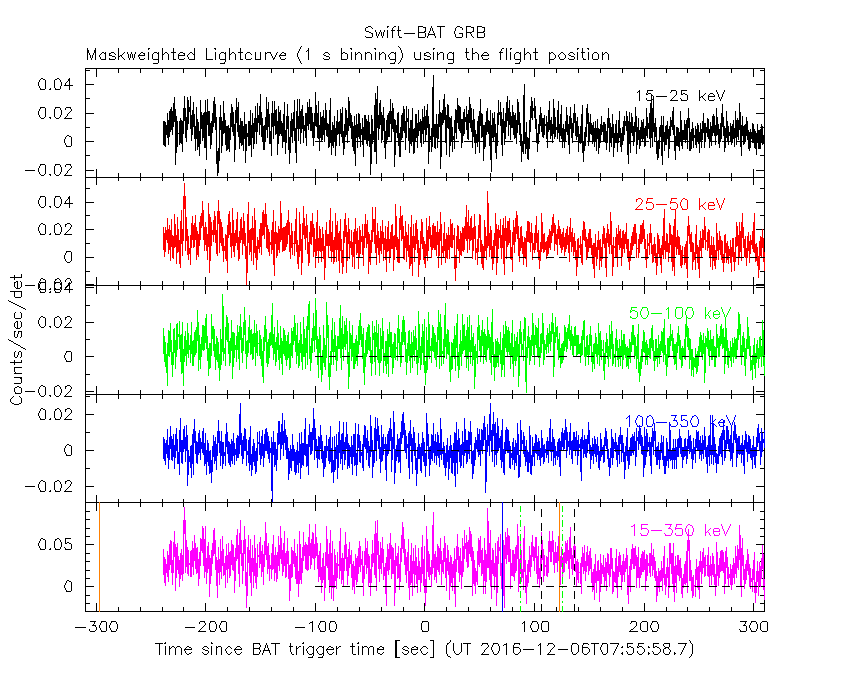

From T0-310 s to T0+310 s

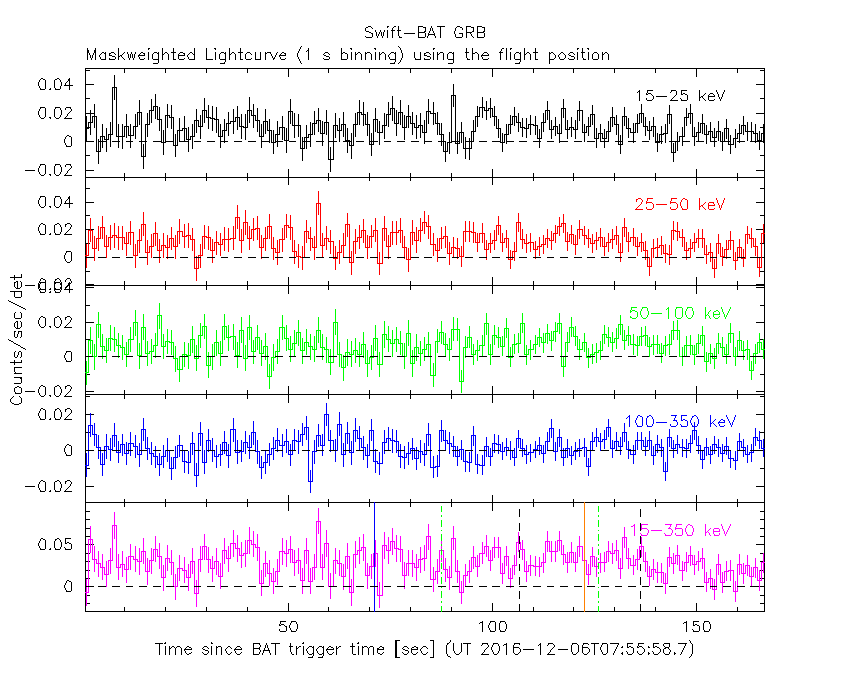

From T100_start - 20 s to T100_end + 30 s

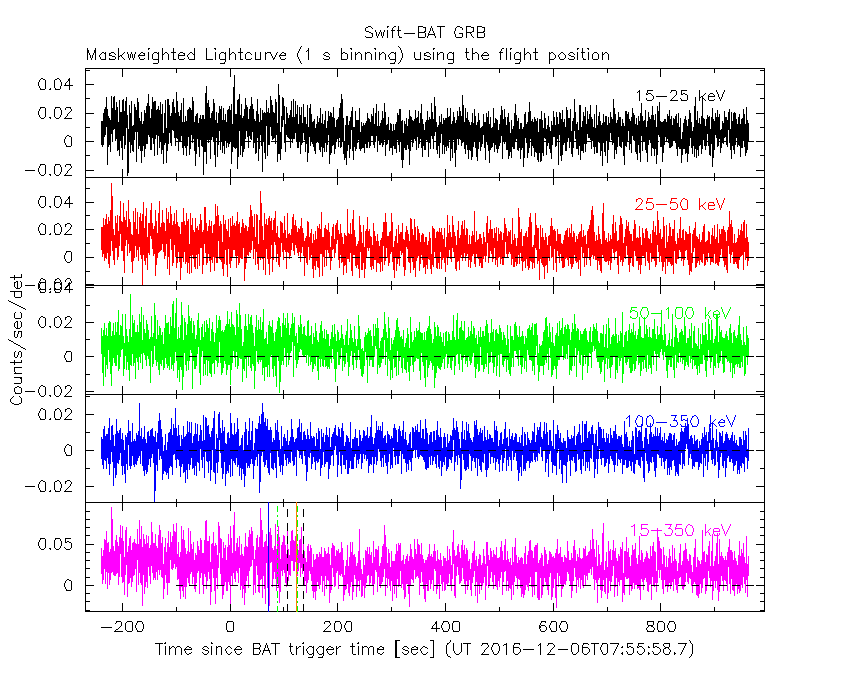

Full time interval

64 ms binning

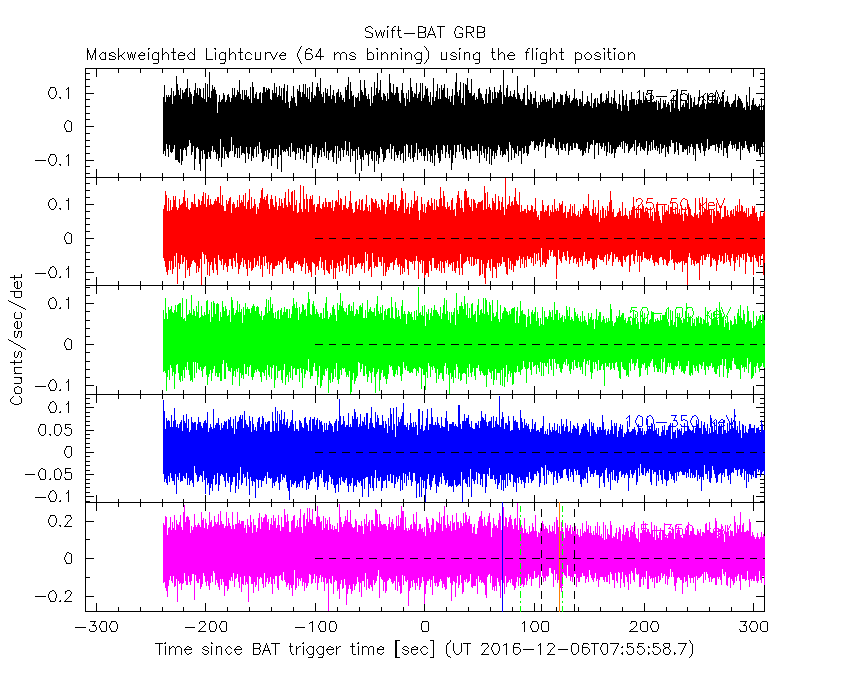

Full time interval

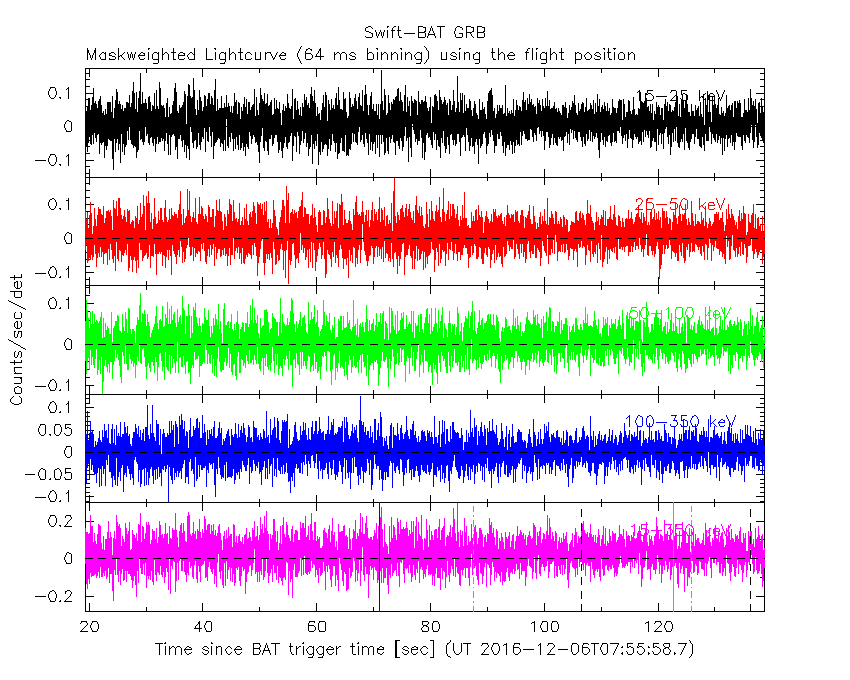

From T100_start to T100_end

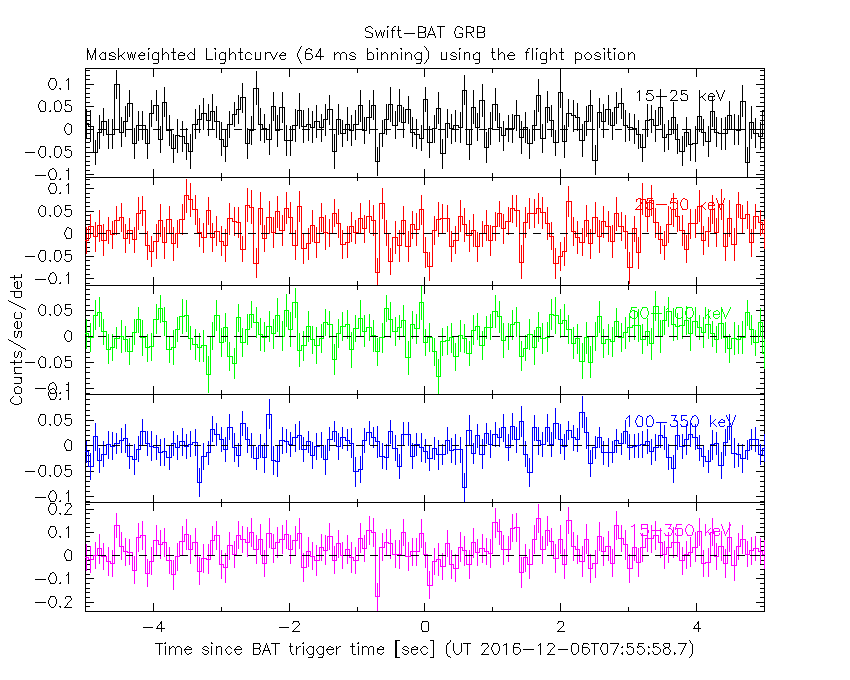

From T0-5 sec to T0+5 sec

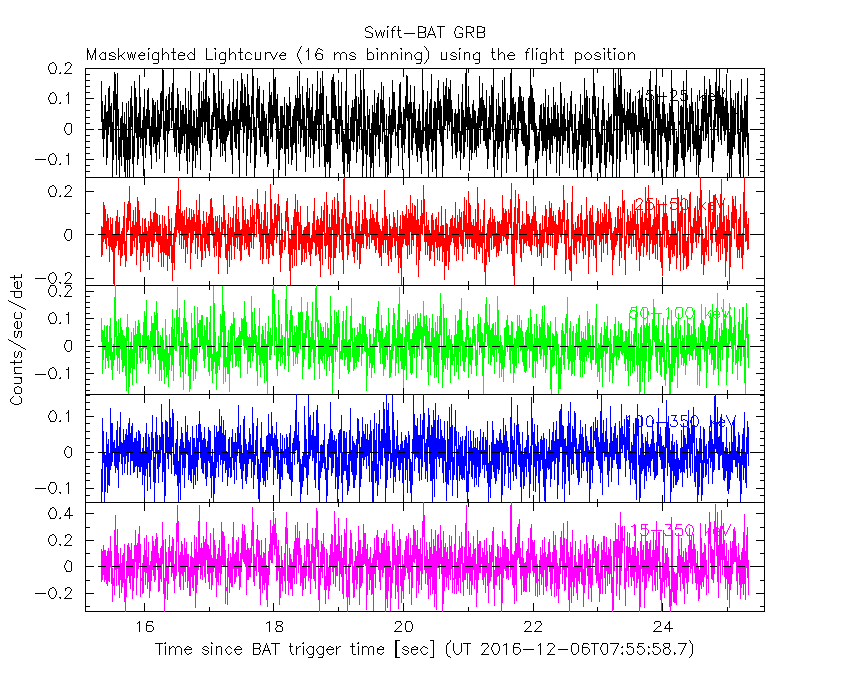

16 ms binning

From T100_start-5 s to T100_start+5 s

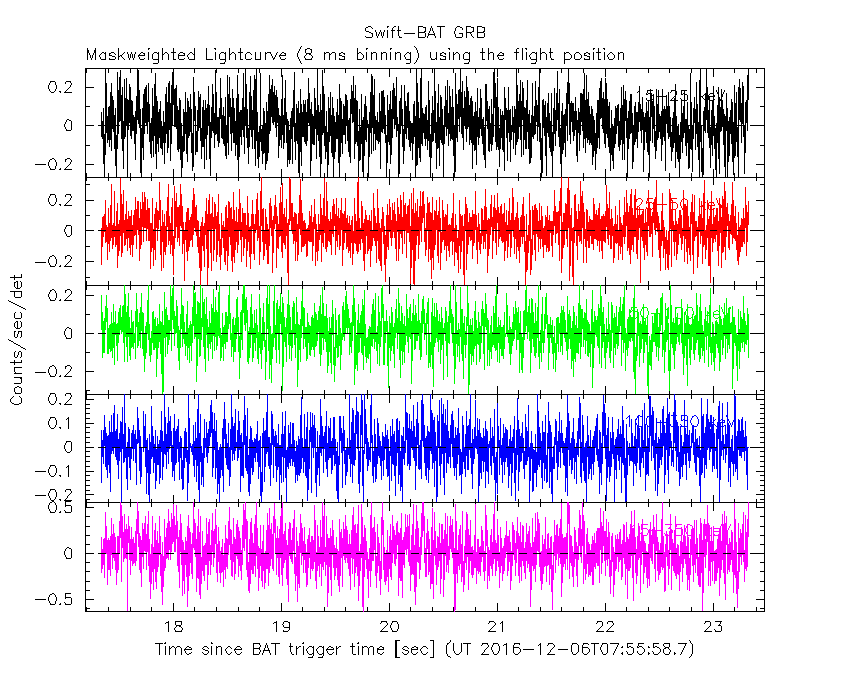

8 ms binning

From T100_start-3 s to T100_start+3 s

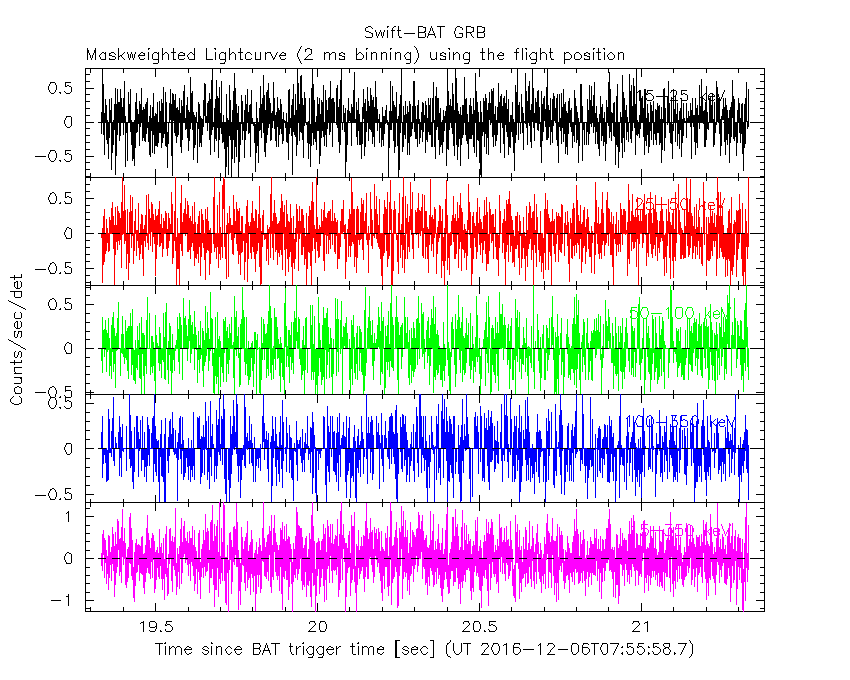

2 ms binning

From T100_start-1 s to T100_start+1 s

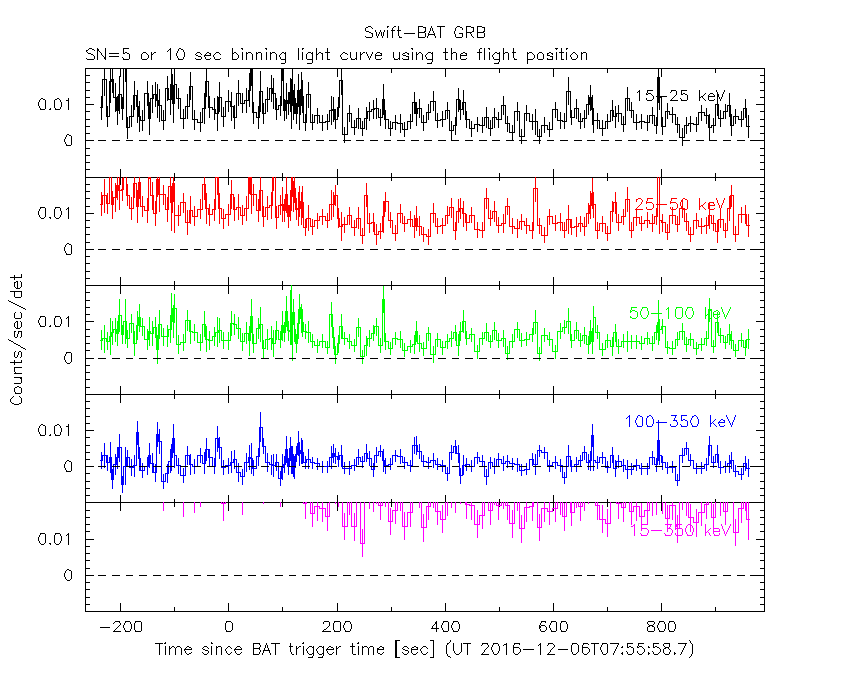

SN=5 or 10 sec. binning (whichever binning is satisfied first)

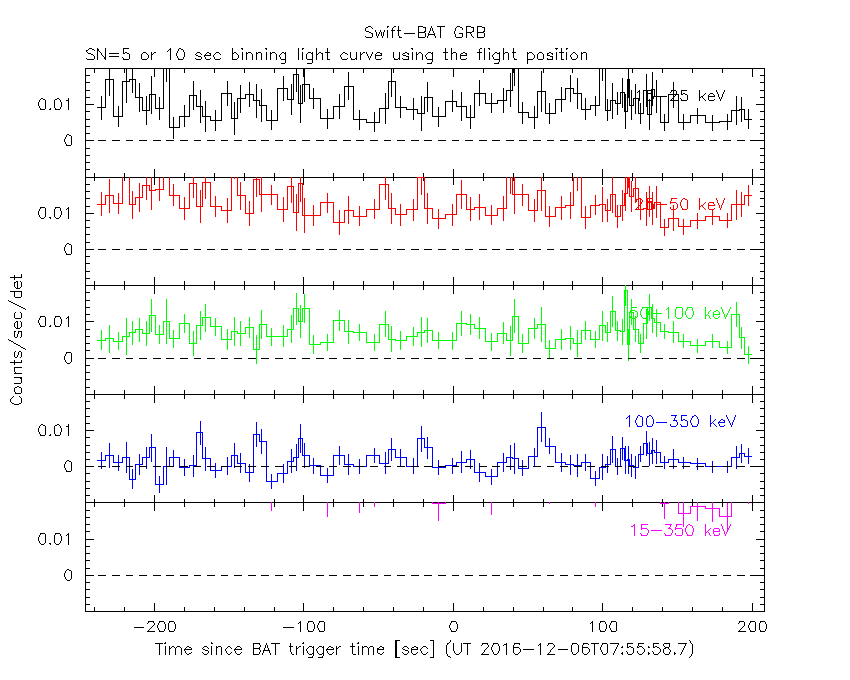

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

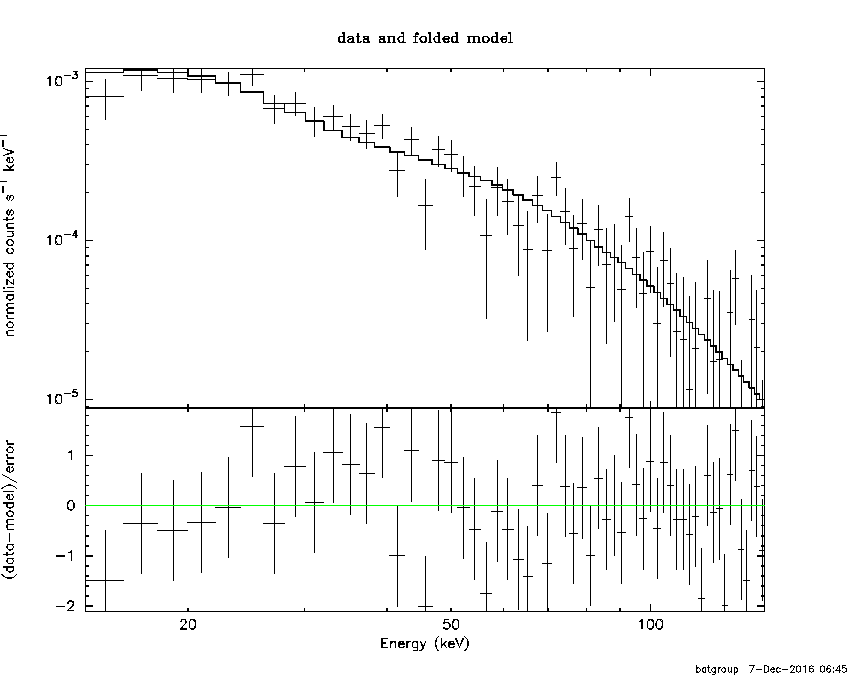

Power-law model

Time interval is from   20.332 sec. to  136.732 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84387     ( -0.125854   0.128599 )
Norm@50keV  : 1.89447E-03    ( -0.000150531   0.000148718 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.82 using 59 PHA bins.
# Reduced chi-squared =         0.9266 for     57 degrees of freedom
# Null hypothesis probability =   6.325982e-01

Photon flux (15-150 keV)    in 116.4 sec: 0.265627 ( -0.018519  0.0185338 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.02769e-06 ( -1.61156e-07  1.63122e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   20.332 sec. to  136.732 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.45743     ( -0.555179   0.456818 )
Epeak [keV] : 61.2742      ( -16.8919 -61.2748 )
Norm@50keV  : 3.11737E-03    ( -0.00130641   0.00322445 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.98 using 59 PHA bins.
# Reduced chi-squared =         0.9103 for     56 degrees of freedom
# Null hypothesis probability =   6.649976e-01

Photon flux (15-150 keV)    in 116.4 sec: 0.260947 ( -0.019405  0.019392 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9456e-06 ( -1.90593e-07  1.92165e-07 ) ergs/cm2

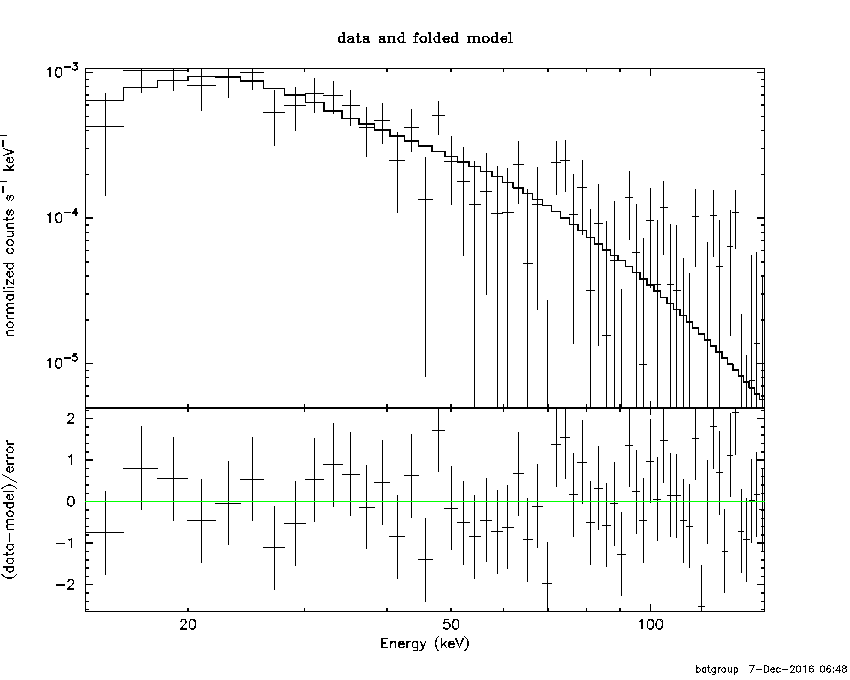

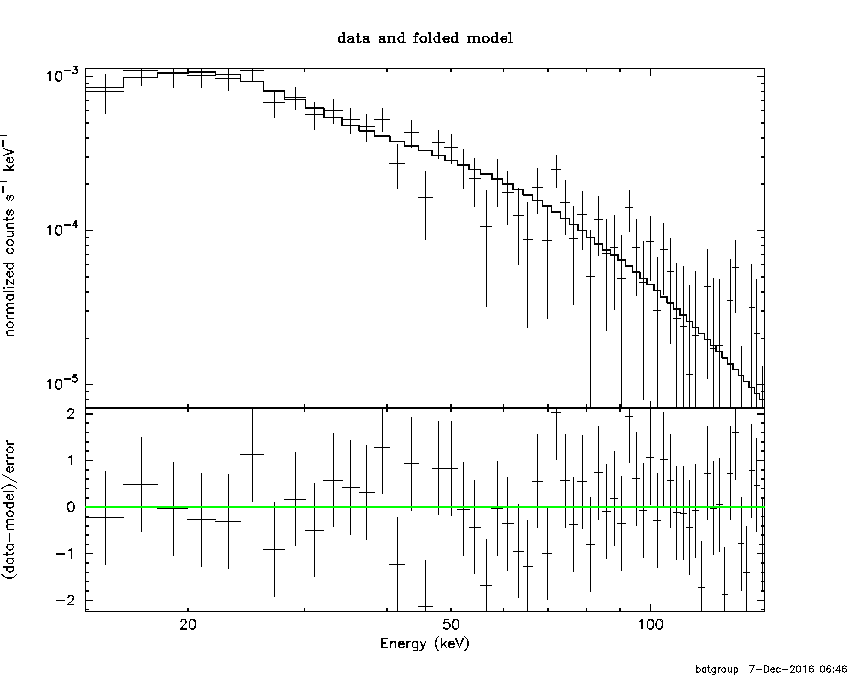

Band function

Time interval is from   20.332 sec. to  136.732 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.575331   ( -1.60433   0.379816 )
beta        : -2.05242    ( -0.309314   0.23698 )
Epeak [keV] : 31.5864      ( -13.4199 23.0572 )
Norm@50keV   : 8.48730E-02    ( -0.0834107   111.788 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.72 using 59 PHA bins.
# Reduced chi-squared =         0.8676 for     55 degrees of freedom
# Null hypothesis probability =   7.464326e-01

Photon flux (15-150 keV)    in 116.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.95048e-06 ( -1.94967e-06  -1.7467e-07 ) ergs/cm2

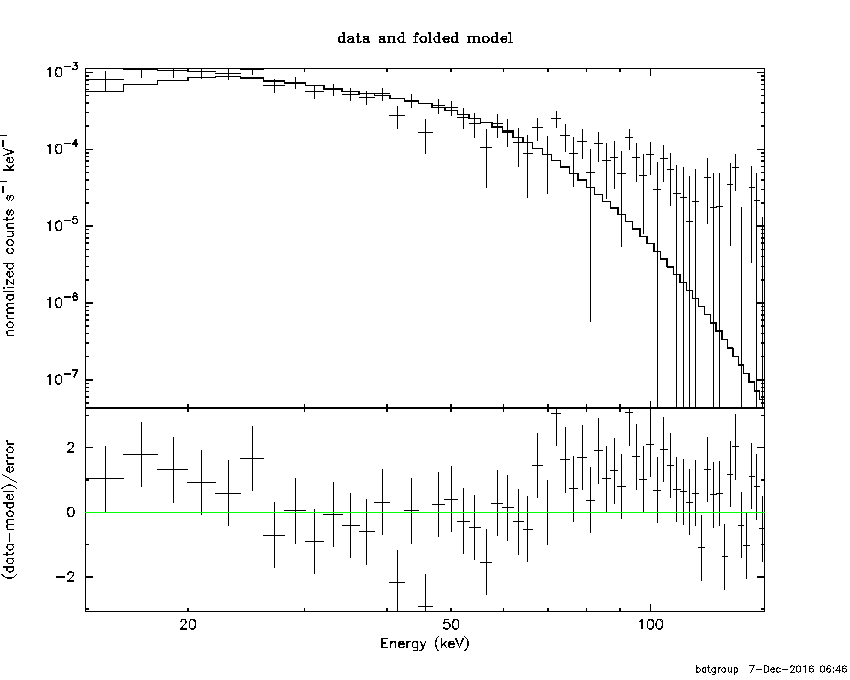

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.5999  (-0.877968  0.984979)
R^2/D10^2   : 9.88202E-02  (-0.0284033   0.0388125)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          92.91 using 59 PHA bins.
# Reduced chi-squared =          1.630 for     57 degrees of freedom
# Null hypothesis probability =   1.871891e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.678e-07   3.341e-08
25- 50  7.213e-07   5.768e-08
50-150  4.446e-07   8.189e-08
15-150  1.434e-06   1.216e-07

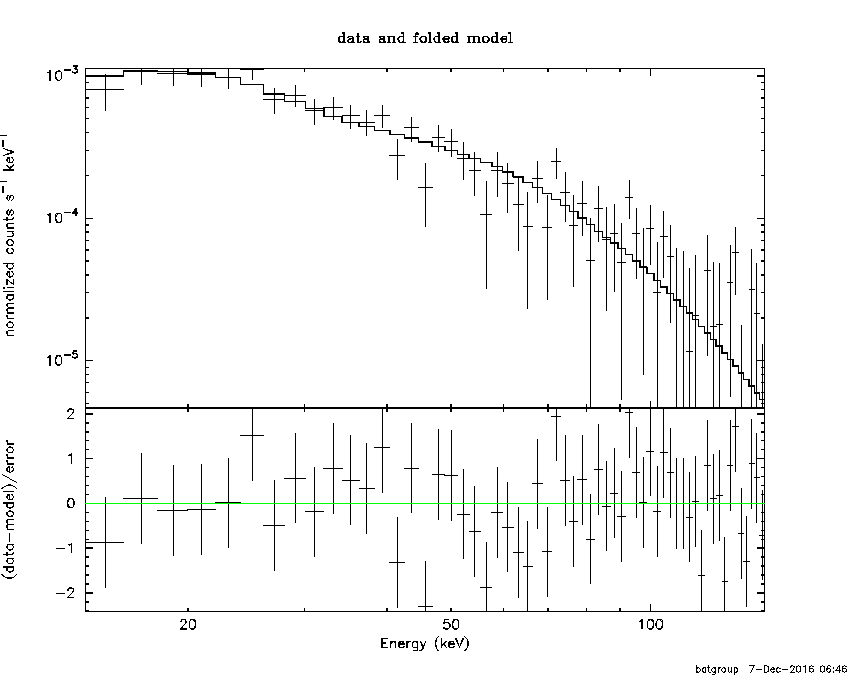

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 89.2837       (-19.8655      30.4328)
Norm        : 1.20337       (-0.122286     0.141574)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.10 using 59 PHA bins.
# Reduced chi-squared =         0.8965 for     57 degrees of freedom
# Null hypothesis probability =   6.949136e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.654e-07   4.318e-08
25- 50  6.169e-07   4.749e-08
50-150  9.348e-07   3.437e-07
15-150  1.917e-06   3.411e-07

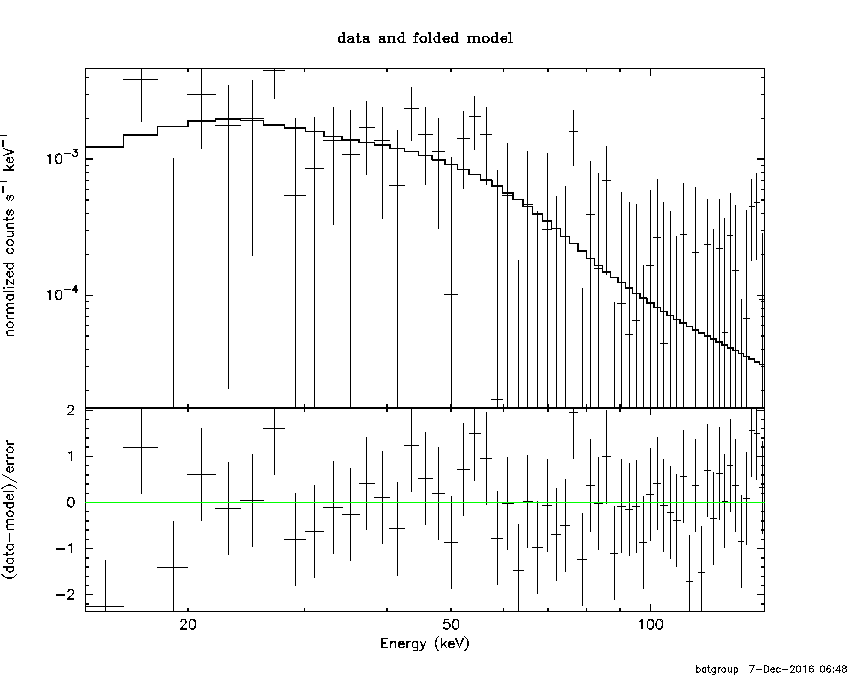

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.17929        (-1.05582      1.08036)
R1^2/D10^2  : 0.332739        (-0.127199      0.241371)
kT2 [keV]   : 27.9182        (-7.0489      13.8644)
R2^2/D10^2  : 1.84559E-03    (-0.00133866   0.00354965)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.57 using 59 PHA bins.
# Reduced chi-squared =         0.8285 for     55 degrees of freedom
# Null hypothesis probability =   8.138808e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.563e-07   7.170e-08
25- 50  6.365e-07   1.152e-07
50-150  1.009e-06   4.873e-07
15-150  2.002e-06   5.817e-07

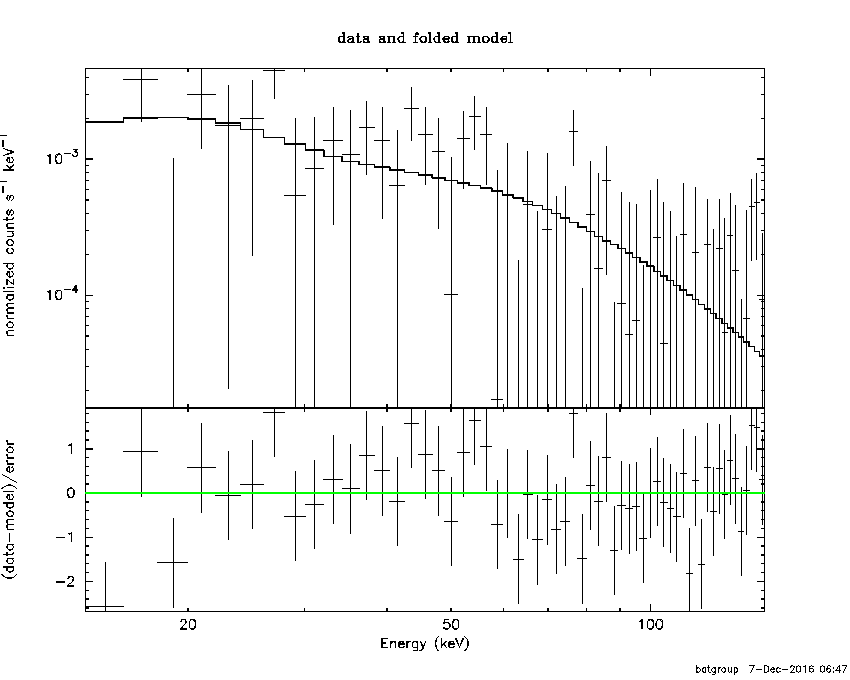

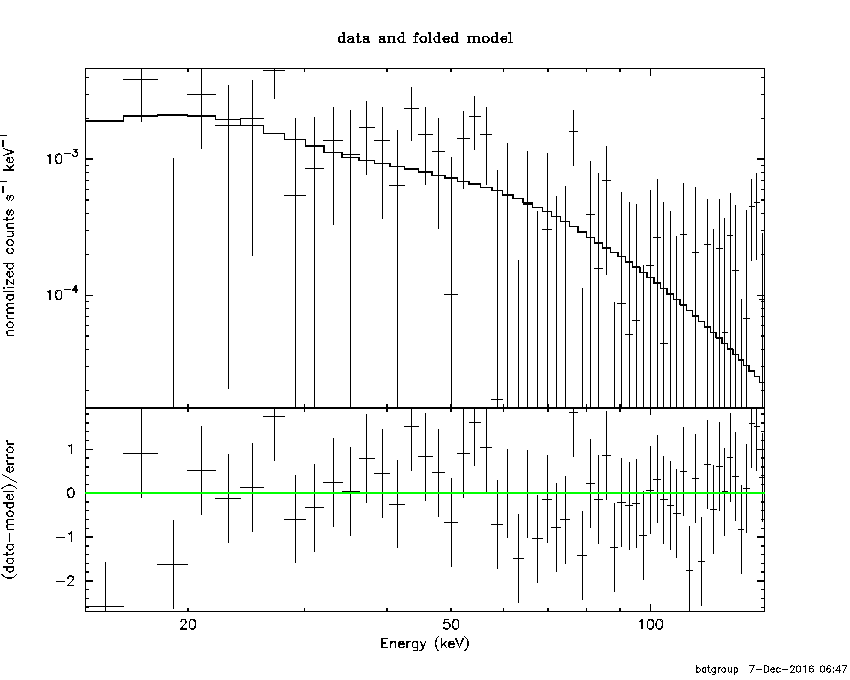

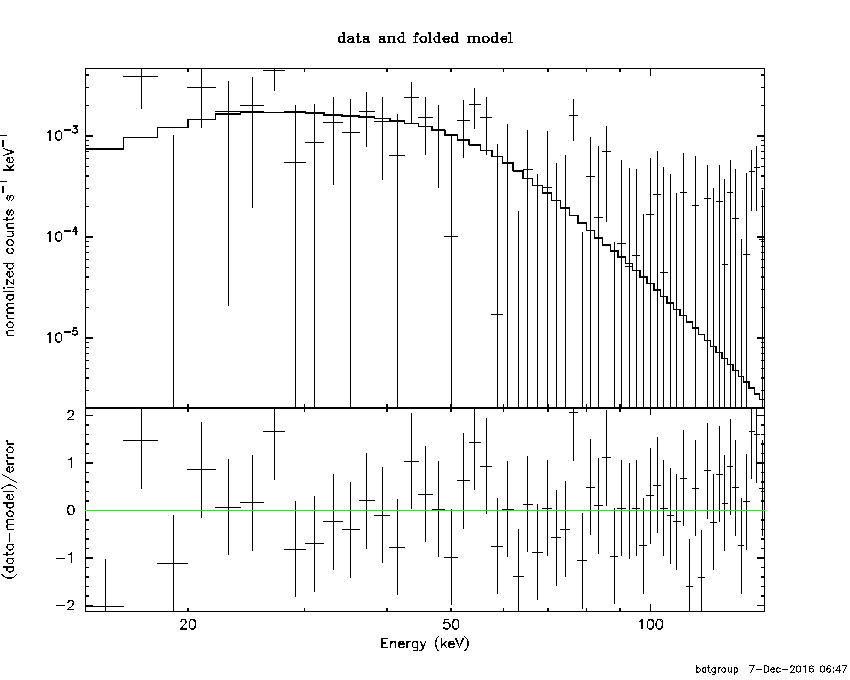

Peak spectrum fit

Power-law model

Time interval is from   57.008 sec. to   58.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50462     ( -0.518841   0.516548 )
Norm@50keV  : 4.57360E-03    ( -0.00156484   0.0015519 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.25 using 59 PHA bins.
# Reduced chi-squared =         0.8991 for     57 degrees of freedom
# Null hypothesis probability =   6.896712e-01

Photon flux (15-150 keV)    in 1 sec: 0.571654 ( -0.192003  0.193222 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.33583e-08 ( -1.55118e-08  1.61177e-08 ) ergs/cm2

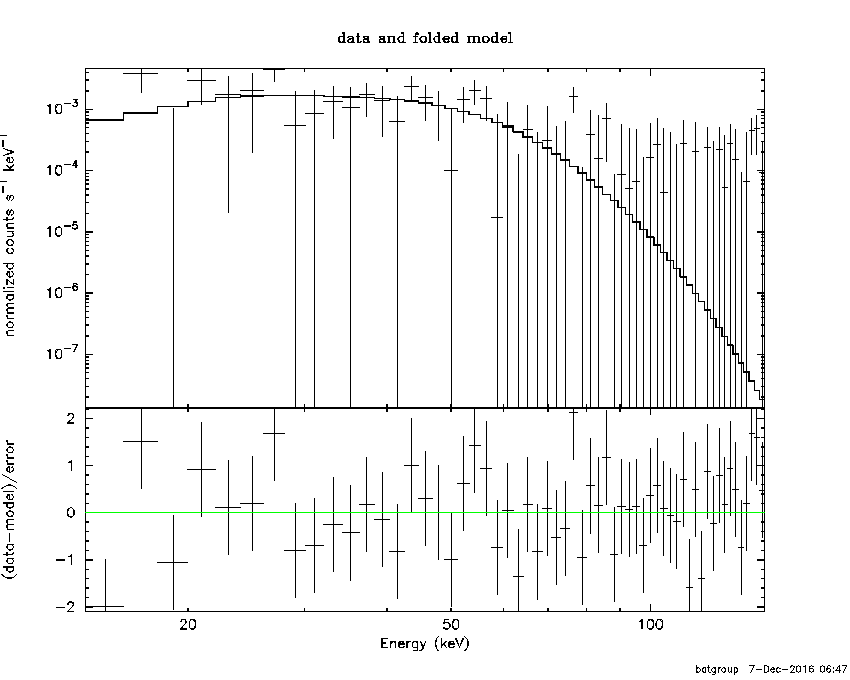

Cutoff power-law model

Time interval is from   57.008 sec. to   58.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.59905     ( 5.0331   5.06346 )
Epeak [keV] : 44.8978      ( -7.83378 17.2151 )
Norm@50keV  : 11.8406    ( -11.4248   9533.57 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.08 using 59 PHA bins.
# Reduced chi-squared =         0.8050 for     56 degrees of freedom
# Null hypothesis probability =   8.516004e-01

Photon flux (15-150 keV)    in 1 sec: 0.500086 ( -0.176439  0.189262 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.13748e-08 ( -1.06533e-08  1.33528e-08 ) ergs/cm2

Band function

Time interval is from   57.008 sec. to   58.008 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.95528   ( -4.14766   -3.95721 )
beta        : -4.54467    ( 4.49622   2.70052 )
Epeak [keV] : 45.0114      ( -13.656 10.5348 )
Norm@50keV   : 5.54617    ( -5.5784   8.25164 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.96 using 59 PHA bins.
# Reduced chi-squared =         0.8174 for     55 degrees of freedom
# Null hypothesis probability =   8.310181e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.379e-08 ( -3.3783e-08  -1.19186e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.2978  (-2.80744  4.0253)
R^2/D10^2   : 0.149203  (-0.149207   0.236251)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.00 using 59 PHA bins.
# Reduced chi-squared =         0.8071 for     57 degrees of freedom
# Null hypothesis probability =   8.510799e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.781e-09   2.983e-09
25- 50  1.548e-08   9.339e-09
50-150  1.430e-08   9.850e-09
15-150  3.456e-08   2.111e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 170.905       (-117.496      -168.882)
Norm        : 2.39604       (-0.802245     1.20269)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.42 using 59 PHA bins.
# Reduced chi-squared =         0.8845 for     57 degrees of freedom
# Null hypothesis probability =   7.187260e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.961e-09   3.748e-09
25- 50  1.142e-08   7.005e-09
50-150  2.472e-08   1.507e-08
15-150  4.210e-08   2.566e-08

Double BB

R1^2/D10^2  : 3.03802E-05        (-3.03537e-05      -3.03537e-05)
kT2 [keV]   : 11.6155        (-2.90642      4.23211)
R2^2/D10^2  : 0.173249    (-0.116542   0.308716)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.00 using 59 PHA bins.
#Fit statistic : Chi-Squared =          45.54 using 59 PHA bins.
#Fit statistic : Chi-Squared =          45.53 using 59 PHA bins.
# Reduced chi-squared =         0.8365 for     55 degrees of freedom
# Reduced chi-squared =         0.8280 for     55 degrees of freedom
# Reduced chi-squared =         0.8277 for     55 degrees of freedom
# Null hypothesis probability =   8.009239e-01
# Null hypothesis probability =   8.145319e-01
# Null hypothesis probability =   8.150390e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.80055     ( -0.206327   0.213973 )
Norm@50keV  : 1.73187E-03    ( -0.000242513   0.000238065 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.00 using 59 PHA bins.
# Reduced chi-squared =          1.035 for     57 degrees of freedom
# Null hypothesis probability =   4.021188e-01

Photon flux (15-150 keV)    in 50.77 sec: 0.238698 ( -0.0286439  0.0286527 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.09446e-07 ( -1.13995e-07  1.1645e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.924591     ( -1.40781   0.944952 )
Epeak [keV] : 50.0368      ( -12.4407 -50.0192 )
Norm@50keV  : 5.67340E-03    ( -0.00568269   0.0352114 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.63 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     56 degrees of freedom
# Null hypothesis probability =   4.512480e-01

Photon flux (15-150 keV)    in 50.77 sec: 0.231446 ( -0.029885  0.029759 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.29885e-07 ( -1.37455e-07  1.45436e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.66018   ( -2.05668   -0.798198 )
beta        : -2.29614    ( -0.834066   0.447936 )
Epeak [keV] : 33.4192      ( -11.3596 15.7588 )
Norm@50keV   : 0.342474    ( -0.330822   53.1344 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.00 using 59 PHA bins.
# Reduced chi-squared =         0.9636 for     55 degrees of freedom
# Null hypothesis probability =   5.514661e-01

Photon flux (15-150 keV)    in 50.77 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49995e-07 ( -7.49639e-07  -1.21279e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.80e-07
S(50-100 keV) = 6.47e-07

T90 vs. Hardness ratio plot

T90                                   = 29.6559999585152 sec.
Hardness ratio (energy fluence ratio) = 1.11552

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.17076
Count Ratio (50-100 keV) / (15-25 keV) = 0.625882

Mask shadow pattern

IMX = 2.603074370303997E-01, IMY = -4.124450594608739E-01

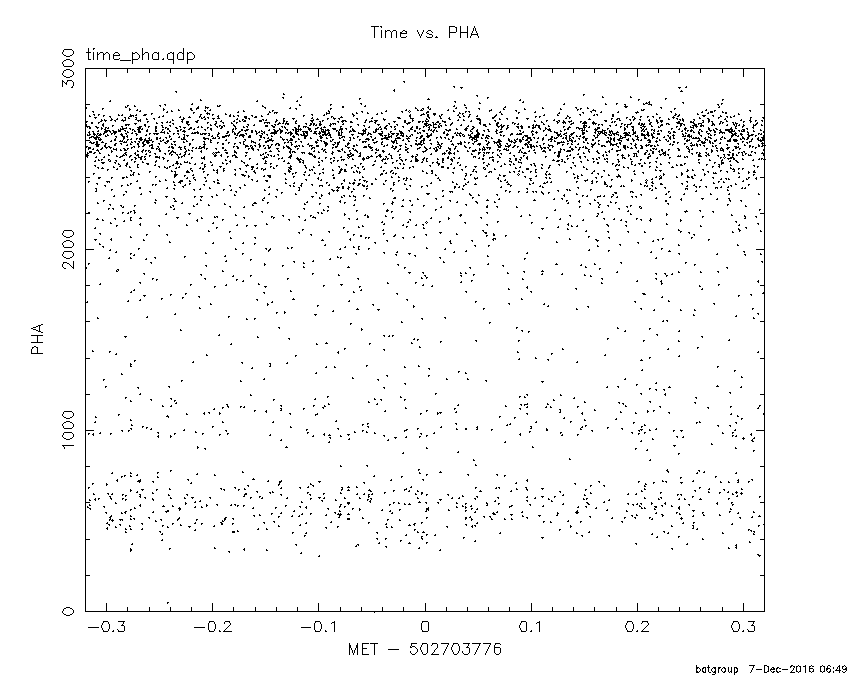

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 20.332000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4533  35.2361    1.5  39.5   -8.4   3.0109   7.7    6.4	Her X-1
268.2072  -1.4106    9.1  23.9  -81.9   0.4616   1.3   10.0	SW J1753.5-0127
270.2047 -25.0565    3.7  40.3 -115.5   2.4896   3.1    4.5	GX 5-1
270.3291 -25.7936    8.6  40.9 -116.2   1.1860   1.3    3.4	GRS 1758-258
274.0859 -14.0129    5.5  28.9 -111.4   0.9421   2.1    4.9	GX 17+2
275.8325 -30.3716    4.4  43.2 -125.5   2.2127   2.6    4.8	H1820-303
284.7989 -24.8918    0.0  36.1 -135.8  -0.6292  -1.4   13.0	HT1900.1-2455
288.7423  10.8673    1.1   0.1 -131.6   2.6961  10.1    5.7	GRS 1915+105
299.5314  35.1410    0.3  26.1   58.4  12.5801  35.5    4.6	Cyg X-1
308.0328  40.9442    2.5  34.4   64.2   2.6389   4.7    3.5	Cyg X-3
314.4043 -13.9601    3.3  35.6  171.9   1.3444   3.5 ------	UNKNOWN
251.0922  40.8295    2.5  44.6   -3.1   2.3356   4.6 ------	UNKNOWN
311.9629 -38.7546    3.1  54.2 -164.2   3.4118   3.7 ------	UNKNOWN
274.8763 -20.3518    3.3  34.2 -118.3   1.7579   3.5 ------	UNKNOWN
237.9570  17.7925    2.5  49.5  -37.8   4.6040   4.7 ------	UNKNOWN
262.3815 -19.2311    3.8  39.8 -101.0   3.4625   3.0 ------	UNKNOWN
285.6476 -40.4957    2.6  51.5 -138.9   7.3882   4.5 ------	UNKNOWN
236.9750  12.5087    4.2  50.6  -44.7   4.1553   2.8 ------	UNKNOWN
271.6287 -31.3112    2.9  45.4 -121.2   5.3471   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
20.332000 71.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4200  35.2158    6.1  39.5   -8.4  -0.2400  -1.9    7.8	Her X-1
268.5689  -1.4621    0.0  23.6  -82.5   0.0981   0.9   12.1	SW J1753.5-0127
270.2702 -25.0162    5.0  40.2 -115.5   0.6027   2.3    3.9	GX 5-1
270.5371 -25.7659    0.0  40.8 -116.4  -0.2607  -0.9   12.8	GRS 1758-258
273.9201 -14.1669    6.9  29.1 -111.3  -0.2238  -1.7    9.3	GX 17+2
275.9405 -30.5001    5.7  43.3 -125.7   0.5342   2.0    8.0	H1820-303
284.9678 -25.0524    8.1  36.2 -136.1  -0.1990  -1.4    8.7	HT1900.1-2455
288.7384  11.0039   36.1   0.0    9.6   0.0271   0.3    5.0	GRS 1915+105
299.5673  35.2058    6.0  26.2   58.4  -0.2362  -1.9    1.2	Cyg X-1
307.9047  40.9241    5.4  34.4   64.1  -0.3784  -2.1    9.5	Cyg X-3
326.5048   1.2474    2.6  38.7  140.0   0.8178   4.4 ------	UNKNOWN
282.2483  50.5608    2.2  40.0   31.6   0.8794   5.3 ------	UNKNOWN
251.9118  53.1048    2.2  51.4   10.6   1.5219   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
122.700630 963.070300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4904  35.3608    1.2  36.4  -30.4   9.6030   9.7    1.9	Her X-1
288.7798  10.9500    1.6  26.0 -109.8   8.1164   7.2    1.1	GRS 1915+105
299.5888  35.2032    0.2   0.2  103.6  38.5609  57.9    0.1	Cyg X-1
308.1150  40.9488    1.1   9.0   92.8   7.6522  10.8    0.3	Cyg X-3
326.1162  38.4562    6.2  21.6  119.0  -1.6794  -1.9    8.5	Cyg X-2
256.5509  42.5082    2.6  33.8  -18.4   3.9412   4.5 ------	UNKNOWN
227.6884  43.9622    3.1  54.3  -11.5   7.9865   3.7 ------	UNKNOWN
326.8109 -12.2782    2.5  54.0 -167.9  12.2188   4.5 ------	UNKNOWN
305.1469  -3.2841    2.2  38.8 -143.3   5.8279   5.2 ------	UNKNOWN

Plot creation:
Wed Dec  7 06:50:28 EST 2016
