batgrbproduct analysis for trigger=743065

batgrbproduct Analysis for Trigger=743065

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Apr 13 17:21:46 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger743065
======================================================================

  Trigger: 00743065      Segment: 000

  BAT Trigger Time: 511531935.296   [s; MET]
      Trigger Stop: 511531939.392   [s; MET]
               UTC: 2017-03-18T12:11:56.523520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 305.64484692759   Dec: 28.4088371264311  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.17
     Image Trigger?:     NO
     Rate S/N Ratio:     16.4924225024706  [ if not an image trigger ]
     Image S/N Ratio:    12.17

  Flight Position:   [ source = BAT ]
    RA: 305.64484692759   Dec: 28.4088371264311  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 305.662886054861   Dec: 28.4056212980887  [deg; J2000]
        { 20h 22m 39.1s , +28d 24' 20.2" }
         +/- 1.219494762415 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.406466426582266 [arcmin] (formal 1-sigma fit error)
    SNR: 22.9088970640108

  Angular difference between Flight and Ground position is 0.971377 arcmin

  Partial Coding Fraction: 0.4375    [ including projection effects ]

  Duration
     T90: 116.915999948978 +/- 31.5270477928061
        Measured from: -5.35600000619888
                   to: 111.55999994278     [s; relative to TRIGTIME]
     T50: 36.2159999608994 +/- 5.37444324172465
        Measured from: 5.6599999666214
                   to: 41.8759999275208     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.87199997901917
                   to: 2.87199997901917     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -21.5920000076294
                   to: 146.259999990463     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.983846   2.179676   1.559454   0.548996
           0.112665   0.114733   0.099809   0.085071 [error]
 Peak      0.030191   0.032227   0.080853   0.038840
           0.010722   0.011612   0.010793   0.008831 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.06e-07 8.26e-07 1.31e-06 4.62e-06 3.64e-06 7.17e-06   erg/cm2
              Error 4.82e-08 5.94e-08 9.68e-08 7.51e-07 2.44e-07 8.10e-07   erg/cm2
Peak flux Power-law 2.26e-01 3.44e-01 3.93e-01 8.59e-01 1.22e+00 1.82e+00   ph/cm2/s
              Error 1.13e-01 1.08e-01 8.10e-02 3.79e-01 2.79e-01 4.04e-01   ph/cm2/s

Fluence   Cutoff-PL 3.66e-07 8.73e-07 1.37e-06 2.15e-06 3.51e-06 4.75e-06   erg/cm2
              Error 5.78e-08 7.30e-08 1.10e-07 1.42e-06 2.77e-07 1.42e-06   erg/cm2
Peak flux Cutoff-PL 1.00e-01 3.06e-01 4.77e-01 3.41e-01 1.10e+00 1.23e+00   ph/cm2/s
              Error 1.44e-01 1.58e-01 1.34e-01 4.35e-01 3.15e-01 5.92e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.334    0.107    -      -           2.21e-03 1.39e-04   74.310 57
CPL   0.774    0.506     113.1  160.7      4.18e-03 2.56e-03   70.180 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.807    0.376    -      -           1.06e-02 2.50e-03   83.160 57
CPL  -1.078    3.720     113.6  -40.2      4.72e-02 8.31e-01   81.130 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 40.896000 sec.
T50 in the 50-300 keV band: 14.400000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  167.852  -21.592  146.260
T90   116.916   -5.356  111.560
T50    36.216    5.660   41.876
Peak    1.000    1.872    2.872

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  305.6629    28.4056   0.0084    38.9668  -144.8383         4.1699026     22.909 TRIG_00743065

Foreground time interval of the image:
-21.592  37.005 (delta_t =  58.597 [sec])
Background time interval of the image:
-239.296 -21.592 (delta_t = 217.704 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

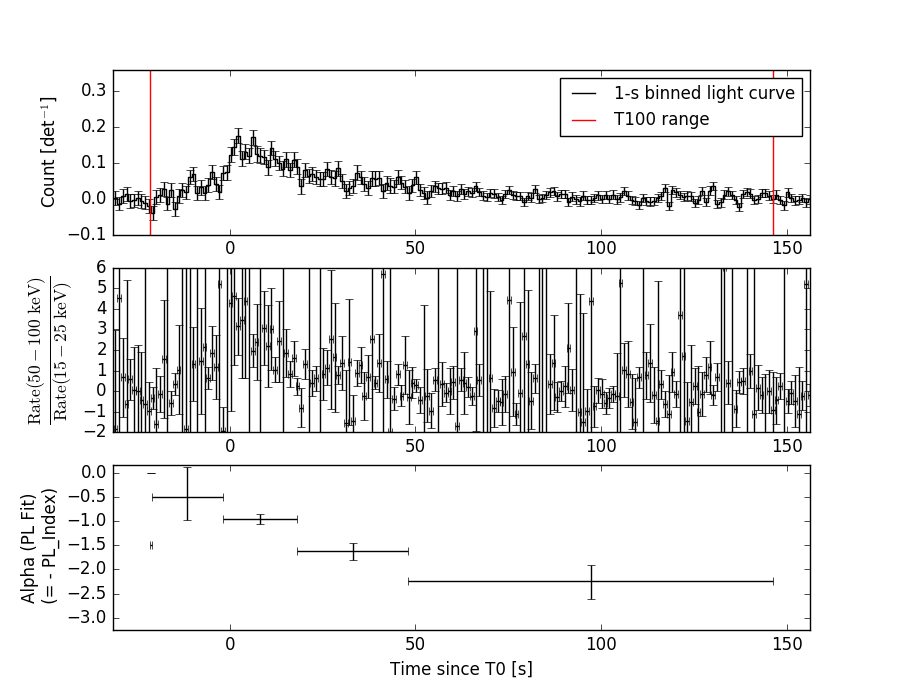

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -21.592 sec. to  146.260 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33404     ( -0.107874   0.106659 )
Norm@50keV  : 2.21459E-03    ( -0.000138819   0.000138817 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.31 using 59 PHA bins.
# Reduced chi-squared =          1.304 for     57 degrees of freedom
# Null hypothesis probability =   6.152562e-02

Photon flux (15-150 keV)    in 167.9 sec: 0.265938 ( -0.017658  0.017704 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.64519e-06 ( -2.43692e-07  2.44728e-07 ) ergs/cm2

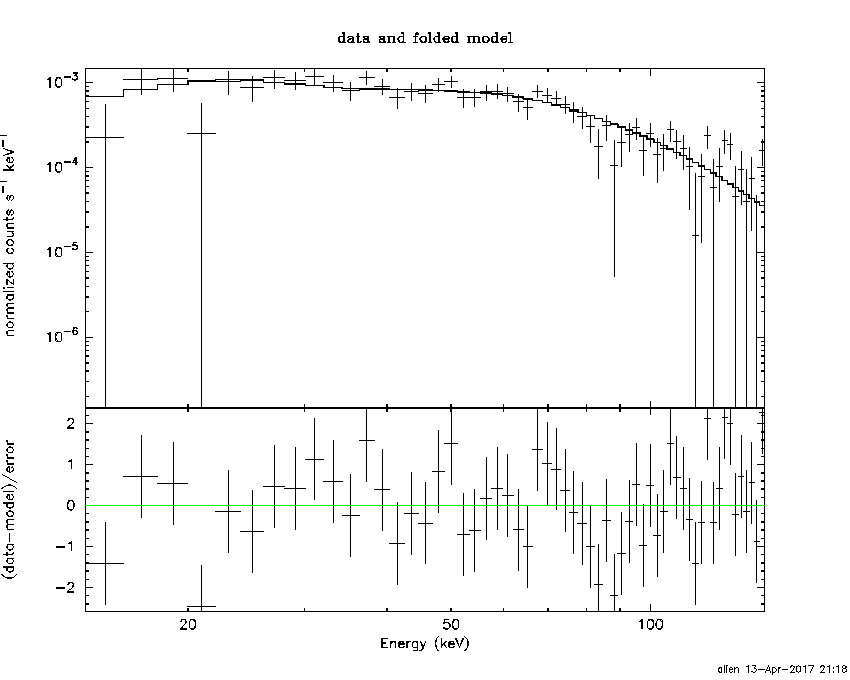

Cutoff power-law model

Time interval is from  -21.592 sec. to  146.260 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.773957     ( -0.538568   0.473002 )
Epeak [keV] : 113.058      ( -32.4879 288.862 )
Norm@50keV  : 4.17757E-03    ( -0.00170479   0.00341446 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.18 using 59 PHA bins.
# Reduced chi-squared =          1.253 for     56 degrees of freedom
# Null hypothesis probability =   9.628554e-02

Photon flux (15-150 keV)    in 167.9 sec: 0.259725 ( -0.018479  0.018475 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.50495e-06 ( -2.78751e-07  2.74783e-07 ) ergs/cm2

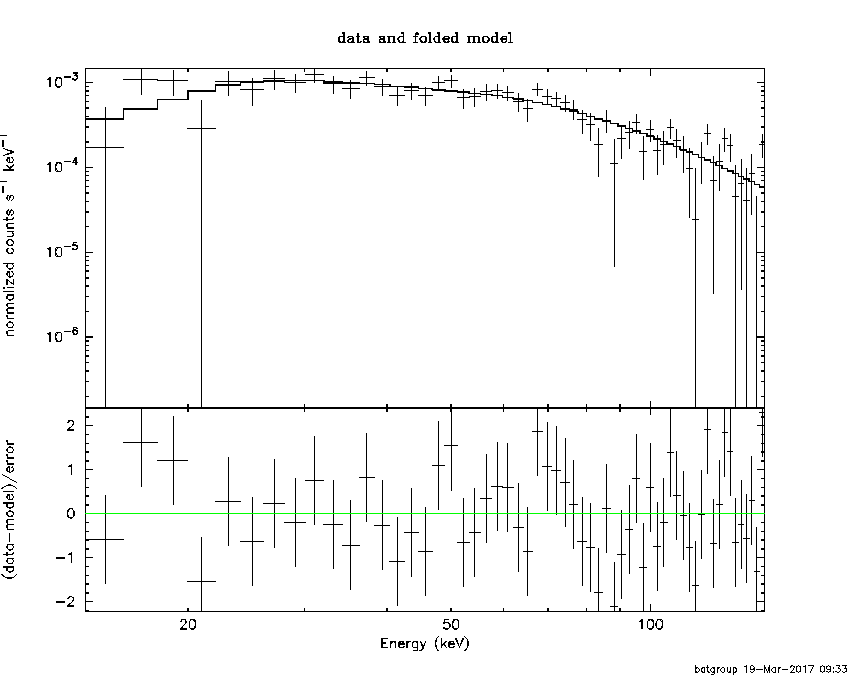

Band function

Time interval is from  -21.592 sec. to  146.260 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.2512  (-1.20131  1.34313)
R^2/D10^2   : 2.39206E-02  (-0.00585018   0.00747323)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         102.61 using 59 PHA bins.
# Reduced chi-squared =         1.8001 for     57 degrees of freedom
# Null hypothesis probability =   2.019675e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.185e-07   2.560e-08
25- 50  9.318e-07   7.707e-08
50-150  1.730e-06   1.999e-07
15-150  2.880e-06   2.090e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-17.6037      -200)
Norm        : 1.11951       (-0.0706013     0.0706013)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.55 using 59 PHA bins.
# Reduced chi-squared =          1.448 for     57 degrees of freedom
# Null hypothesis probability =   1.510155e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.680e-07   3.266e-08
25- 50  9.003e-07   6.959e-08
50-150  1.975e-06   4.591e-07
15-150  3.343e-06   5.709e-07

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 12.1758        (-1.11056      1.27606)
R1^2/D10^2  : 5.49504E-02        (-0.0201355      0.0219178)
kT2 [keV]   : 200.000        (-147.623      -200)
R2^2/D10^2  : 3.13203E-05    (-6.74169e-06   8.44081e-05)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.29 using 59 PHA bins.
#Fit statistic : Chi-Squared =          54.47 using 59 PHA bins.
# Reduced chi-squared =          1.005 for     55 degrees of freedom
# Reduced chi-squared =         0.9904 for     55 degrees of freedom
# Null hypothesis probability =   4.635505e-01
# Null hypothesis probability =   4.948281e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.029e-07   5.155e-08
25- 50  9.817e-07   1.701e-07
50-150  2.266e-06   1.725e-06
15-150  3.551e-06   1.840e-06

Peak spectrum fit

Power-law model

Time interval is from    1.872 sec. to    2.872 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.807232     ( -0.394984   0.357724 )
Norm@50keV  : 1.06097E-02    ( -0.00254252   0.00245108 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.16 using 59 PHA bins.
# Reduced chi-squared =          1.459 for     57 degrees of freedom
# Null hypothesis probability =   1.347755e-02

Photon flux (15-150 keV)    in 1 sec: 1.21907 ( -0.275909  0.28129 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.23623e-07 ( -2.5825e-08  2.58387e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    1.872 sec. to    2.872 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.07846     ( -5.42104   2.0185 )
Epeak [keV] : 113.582      ( -32.8191 -113.265 )
Norm@50keV  : 4.72059E-02    ( -0.0478517   1.61382 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.13 using 59 PHA bins.
# Reduced chi-squared =          1.449 for     56 degrees of freedom
# Null hypothesis probability =   1.570168e-02

Photon flux (15-150 keV)    in 1 sec: 1.10328 ( -0.312814  0.31712 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19812e-07 ( -2.84974e-08  2.71178e-08 ) ergs/cm2

Band function

Time interval is from    1.872 sec. to    2.872 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 27.3803  (-5.71824  8.95494)
R^2/D10^2   : 2.44762E-02  (-0.0140118   0.0264743)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.01 using 59 PHA bins.
# Reduced chi-squared =          1.421 for     57 degrees of freedom
# Null hypothesis probability =   1.999165e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.031e-09   1.657e-09
25- 50  1.797e-08   7.669e-09
50-150  9.806e-08   4.208e-08
15-150  1.191e-07   4.623e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-49.2195      -200)
Norm        : 5.18484       (-1.17954     1.17954)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.06 using 59 PHA bins.
# Reduced chi-squared =          1.668 for     57 degrees of freedom
# Null hypothesis probability =   1.166583e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.292e-08   7.650e-09
25- 50  2.486e-08   1.437e-08
50-150  5.453e-08   3.237e-08
15-150  9.231e-08   5.495e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.90937        (-2.90345      8.27792)
R1^2/D10^2  : 30.2899        (-30.509      -30.509)
kT2 [keV]   : 28.6679        (-6.287      10.6555)
R2^2/D10^2  : 2.08931E-02    (-0.0208996   0.0146826)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.34 using 59 PHA bins.
# Reduced chi-squared =          1.443 for     55 degrees of freedom
# Null hypothesis probability =   1.751969e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.430e-09   3.755e-09
25- 50  1.732e-08   8.572e-09
50-150  9.860e-08   5.261e-08
15-150  1.234e-07   5.316e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05813     ( -0.107346   0.10456 )
Norm@50keV  : 4.66762E-03    ( -0.000303905   0.000302515 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.91 using 59 PHA bins.
# Reduced chi-squared =          1.367 for     57 degrees of freedom
# Null hypothesis probability =   3.430756e-02

Photon flux (15-150 keV)    in 58.6 sec: 0.539425 ( -0.0365086  0.0366811 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.89912e-06 ( -1.85812e-07  1.86078e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.64856E-02     ( -0.598452   0.522538 )
Epeak [keV] : 106.976      ( -19.0537 45.1919 )
Norm@50keV  : 1.41620E-02    ( -0.00570394   0.0111424 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.41 using 59 PHA bins.
# Reduced chi-squared =          1.132 for     56 degrees of freedom
# Null hypothesis probability =   2.316477e-01

Photon flux (15-150 keV)    in 58.6 sec: 0.515304 ( -0.038013  0.038203 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.76165e-06 ( -2.04409e-07  2.02522e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.26e-07
S(50-100 keV) = 1.31e-06

T90 vs. Hardness ratio plot

T90                                   = 116.915999948978 sec.
Hardness ratio (energy fluence ratio) = 1.58596

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.21546
Count Ratio (50-100 keV) / (15-25 keV) = 1.58506

Mask shadow pattern

IMX = -6.612393533234450E-01, IMY = 4.657918283912302E-01

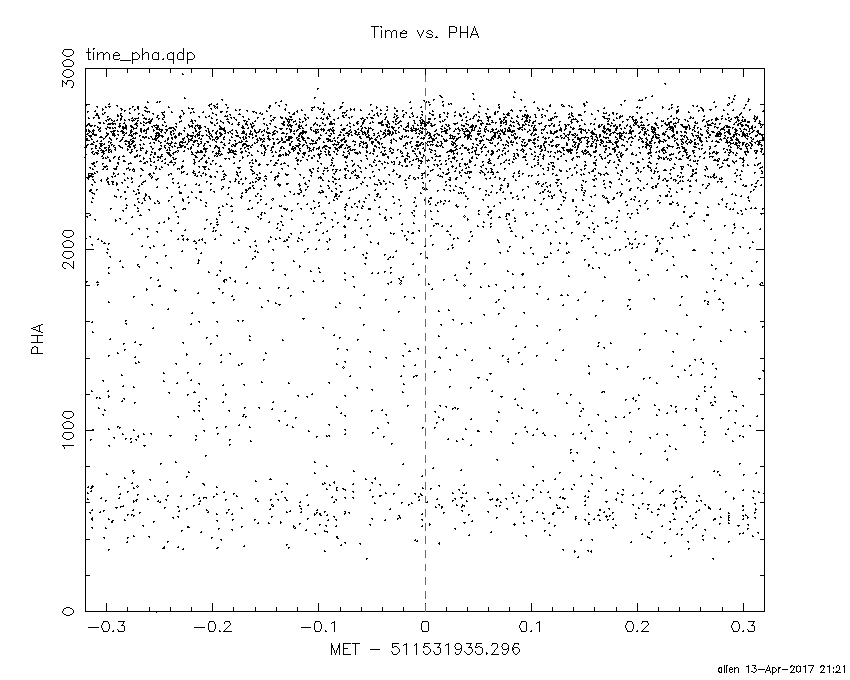

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

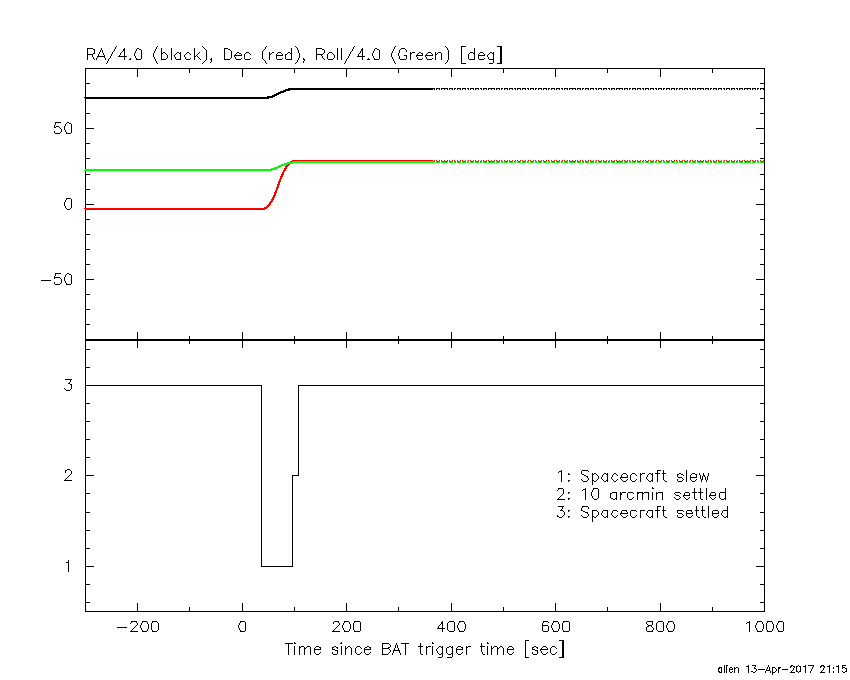

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.296000 -21.592000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9878 -15.6312    0.9  38.2   68.7   8.7343  12.8    0.7	Sco X-1
254.4719  35.3621    4.2  46.0  149.3   2.3450   2.8    1.4	Her X-1
255.9772 -37.8221    2.0  42.0   31.1   2.9227   5.7    1.4	4U 1700-377
256.5914 -36.3973   13.8  40.6   32.0   0.4050   0.8    7.7	GX 349+2
262.8560 -24.7154    4.2  28.3   38.5   0.8446   2.7    8.5	GX 1+4
264.8757 -44.3568   10.2  43.9   17.7  -0.5239  -1.1    8.0	4U 1735-44
268.3750  -1.4774  295.4  13.3   96.6   0.0097   0.0    1.5	SW J1753.5-0127
270.2814 -25.0752   13.8  24.6   25.7   0.2318   0.8    0.3	GX 5-1
270.2810 -25.7419   23.3  25.2   25.0   0.1373   0.5    1.2	GRS 1758-258
274.1576 -14.0587    2.7  13.3   33.6   1.1878   4.4    8.9	GX 17+2
275.9145 -30.2819    4.5  27.8   11.0   0.7233   2.6    5.1	H1820-303
284.8845 -25.0747    0.0  22.3   -7.4   0.4487   1.8   12.4	HT1900.1-2455
288.8408  10.9507    1.2  15.7 -152.4   2.5138   9.3    2.5	GRS 1915+105
299.5670  35.2007    0.9  41.7 -157.3   5.8072  12.9    1.1	Cyg X-1
308.2485  41.0670    0.0  50.3 -153.5   1.6972   2.1    9.3	Cyg X-3
262.8364 -33.6759    6.1  35.4   28.0   0.7017   1.9   12.2	GX 354-0
259.9158 -25.0234    0.7  30.4   41.9   5.3350  15.4 ------	UNKNOWN
279.5844  32.2026    3.0  35.2  177.4   1.2548   3.9 ------	UNKNOWN
309.5439  47.8887    4.1  56.4 -157.4   4.9031   2.9 ------	UNKNOWN
323.8390 -35.4036    5.8  50.7  -44.6   3.1877   2.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-21.592000 37.004610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9923 -15.5178    4.3  38.2   68.9  -0.8780  -2.7    7.4	Sco X-1
254.5993  35.2317    0.0  45.8  149.3  -0.2850  -0.9    9.6	Her X-1
256.0334 -37.9036    8.4  42.0   31.0  -0.3092  -1.4    4.2	4U 1700-377
256.5882 -36.5367    9.7  40.7   31.8  -0.2547  -1.2   10.0	GX 349+2
262.9215 -24.6104    8.4  28.2   38.6   0.1958   1.4    9.4	GX 1+4
264.7380 -44.4518  107.3  44.1   17.8  -0.0235  -0.1    0.2	4U 1735-44
268.2867  -1.3260    4.5  13.4   97.2  -0.3140  -2.6    9.0	SW J1753.5-0127
270.3538 -25.1954    4.7  24.7   25.4   0.3171   2.5    7.9	GX 5-1
270.1484 -25.8771    9.6  25.4   25.1   0.1575   1.2   11.6	GRS 1758-258
274.1575 -13.9954    7.3  13.3   33.8  -0.1693  -1.6    9.2	GX 17+2
276.0655 -30.2964    5.2  27.8   10.7  -0.2645  -2.2    8.4	H1820-303
285.1725 -24.8295   12.2  22.1   -8.2  -0.1005  -0.9    9.2	HT1900.1-2455
288.6493  10.9914    8.3  15.6 -153.1  -0.1478  -1.4    9.2	GRS 1915+105
299.6500  35.1759   11.8  41.7 -157.2  -0.1845  -1.0    3.3	Cyg X-1
308.2490  41.0582    3.6  50.3 -153.5  -1.1530  -3.2    8.9	Cyg X-3
262.8347 -33.7926    5.2  35.5   27.9  -0.3603  -2.2    8.1	GX 354-0
242.9687   5.9024    2.8  39.6  103.4   1.7199   4.1 ------	UNKNOWN
271.7279  53.0269    2.0  56.6  173.3   4.1843   5.8 ------	UNKNOWN
305.6629  28.4056    0.5  39.0 -144.8   4.1701  22.9 ------	UNKNOWN
313.1061  41.3782    2.3  52.8 -150.1   2.0698   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
97.004590 662.764000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
268.2473  -1.3809    6.0  46.6   36.2   2.7260   1.9    8.4	SW J1753.5-0127
273.9729 -14.0085    8.2  52.3   19.5   2.5118   1.4    2.5	GX 17+2
285.0429 -24.8606    4.3  56.8    1.9   6.0139   2.7    3.6	HT1900.1-2455
288.7972  10.9520    1.1  23.5   24.9   4.8818  10.2    0.4	GRS 1915+105
299.5822  35.2051    0.5   8.5  124.0  10.2460  23.2    0.4	Cyg X-1
308.1586  40.9700    4.8  12.7  168.2   1.0825   2.4    2.4	Cyg X-3
325.9953  38.2919    4.2  19.6 -146.0   1.2305   2.7    8.5	Cyg X-2
314.3803  64.9578    2.2  37.0  165.6   3.8898   5.3 ------	UNKNOWN
322.8257  45.4005    2.9  21.8 -166.4   1.6513   4.0 ------	UNKNOWN

Plot creation:
Thu Apr 13 21:22:28 EDT 2017
