batgrbproduct analysis for trigger=745022

batgrbproduct Analysis for Trigger=745022

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Apr  2 17:46:01 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger745022/GCN5_download_cron
======================================================================

  Trigger: 00745022      Segment: 000

  BAT Trigger Time: 512766072   [s; MET]
      Trigger Stop: 512766136   [s; MET]
               UTC: 2017-04-01T19:00:53.156040    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 271.602469375402   Dec: -22.2418741578669  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    9.44
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    9.44

  Flight Position:   [ source = BAT ]
    RA: 271.602469375402   Dec: -22.2418741578669  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 271.617245683416   Dec: -22.2422925937962  [deg; J2000]
        { 18h 06m 28.1s , -22d 14' 32.3" }
         +/- 2.02895137377434 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.08333288974892 [arcmin] (formal 1-sigma fit error)
    SNR: 11.0702874027942

  Angular difference between Flight and Ground position is 0.820995 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 112 +/- 57.6888204074238
        Measured from: -78.9999998807907
                   to: 33.0000001192093     [s; relative to TRIGTIME]
     T50: 48 +/- 22.6274169979695
        Measured from: -30.9999998807907
                   to: 17.0000001192093     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 8.5
                   to: 9.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -79
                   to: 65     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.421807   0.300248  -0.000138   0.076945
           0.092034   0.082959   0.068969   0.059194 [error]
 Peak      0.025774   0.016128   0.001434  -0.001815
           0.007607   0.006765   0.005852   0.005066 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.18e-07 9.03e-08 9.82e-09 1.18e-09 5.19e-07 5.19e-07   erg/cm2
              Error 6.09e-08 3.70e-08 9.65e-09 2.36e-09 8.23e-08 8.26e-08   erg/cm2
Peak flux Power-law 2.50e-01 8.96e-02 1.84e-02 4.46e-03 3.61e-01 3.62e-01   ph/cm2/s
              Error 1.09e-01 6.10e-02 2.77e-02 1.55e-02 1.56e-01 1.58e-01   ph/cm2/s

Fluence   Cutoff-PL 4.18e-07 8.97e-08 9.67e-09 1.15e-09 5.18e-07 5.19e-07   erg/cm2
              Error 6.07e-08 4.42e-08 1.14e-08 2.34e-09 7.84e-08 9.06e-08   erg/cm2
Peak flux Cutoff-PL 2.51e-01 9.32e-02 1.42e-02 1.02e-03 3.59e-01 3.59e-01   ph/cm2/s
              Error 1.12e-01 8.45e-02 2.73e-02 1.51e-02 1.54e-01 1.57e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.200    0.754    -      -           6.12e-05 4.71e-05   47.550 57
CPL   1.000    0.000      50.0    0.0      1.23e-03 0.00e+00  133.920 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.287    1.452    -      -           1.06e-03 1.23e-03   65.240 57
CPL   1.887    0.000       2.2    0.0      1.10e-02 0.00e+00   65.210 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  144.000  -79.000   65.000
T90   112.000  -79.000   33.000
T50    48.000  -31.000   17.000
Peak    1.000    8.500    9.500

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

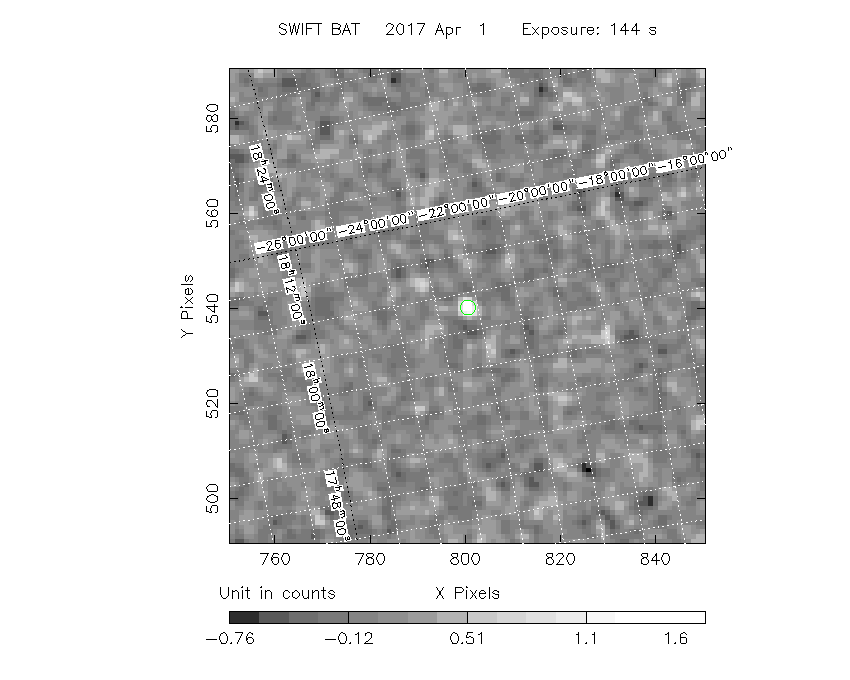

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  271.6172 -22.2423 0.0173   12.0  -38.8       2.1799    11.1  TRIG_00745022
------------------------------------------

Foreground time interval of the image:
-79.000  65.000 (delta_t = 144.000 [sec])
Background time interval of the image:
-239.000 -79.000 (delta_t = 160.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

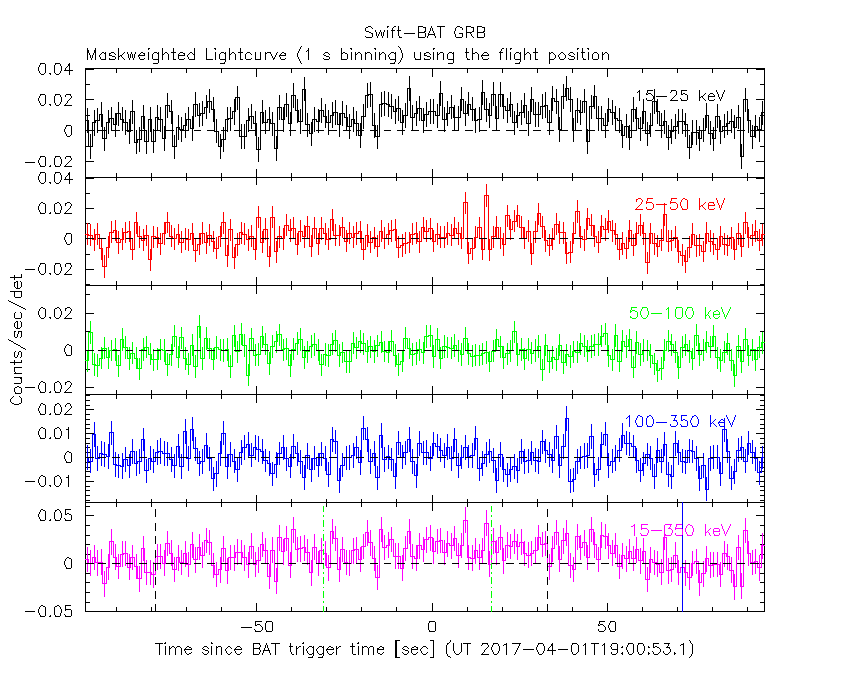

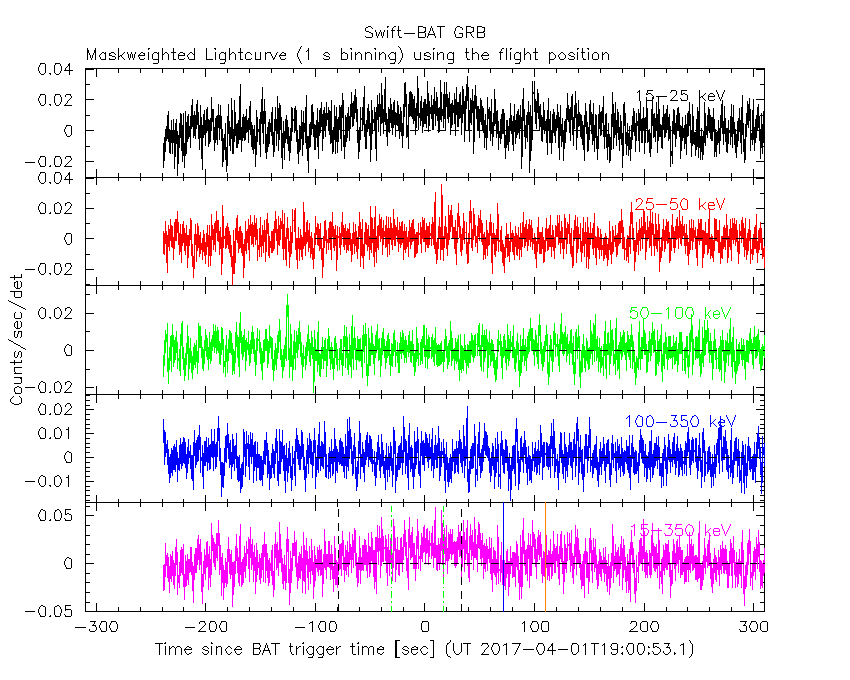

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

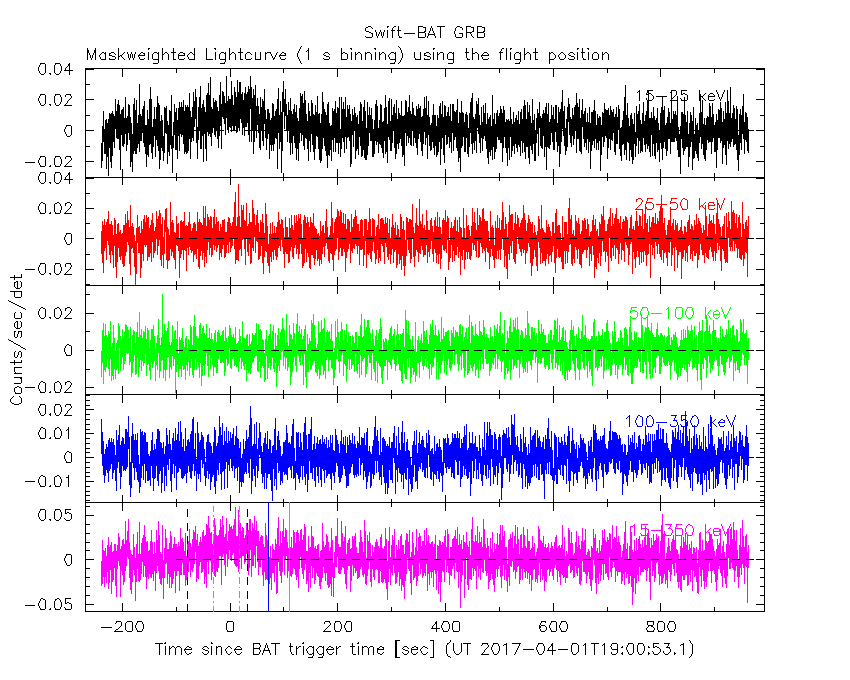

Full time interval

64 ms binning

Full time interval

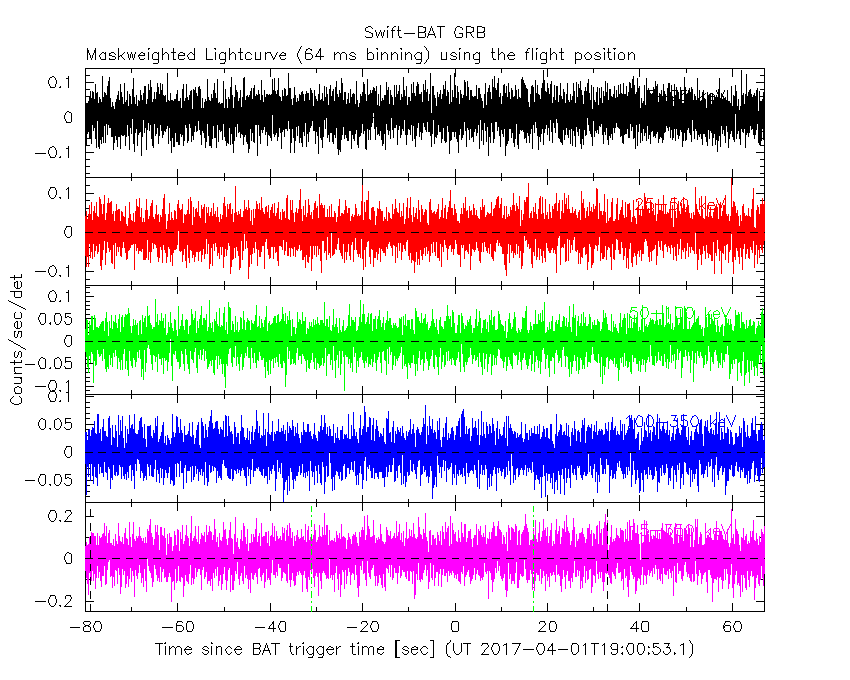

From T100_start to T100_end

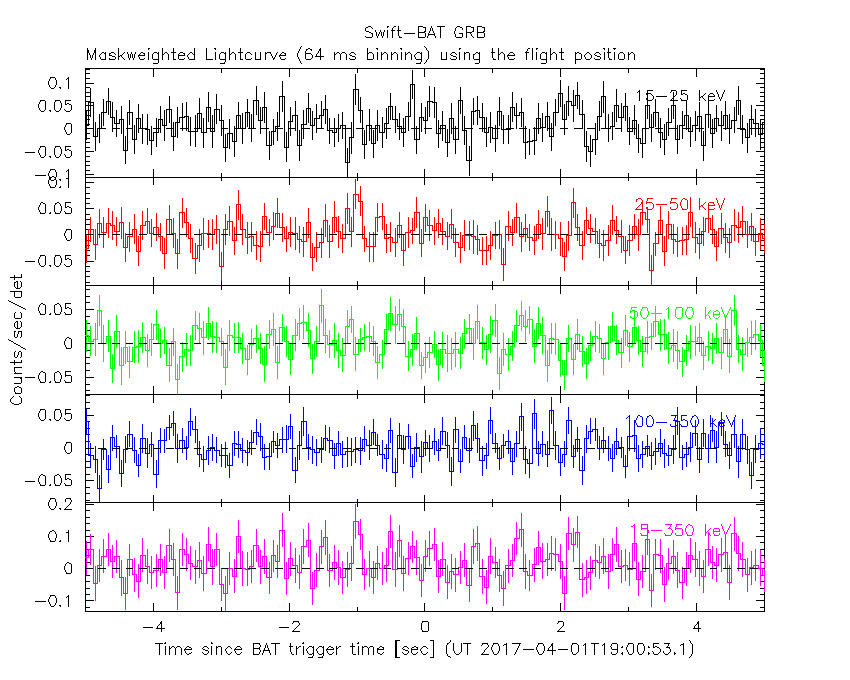

From T0-5 sec to T0+5 sec

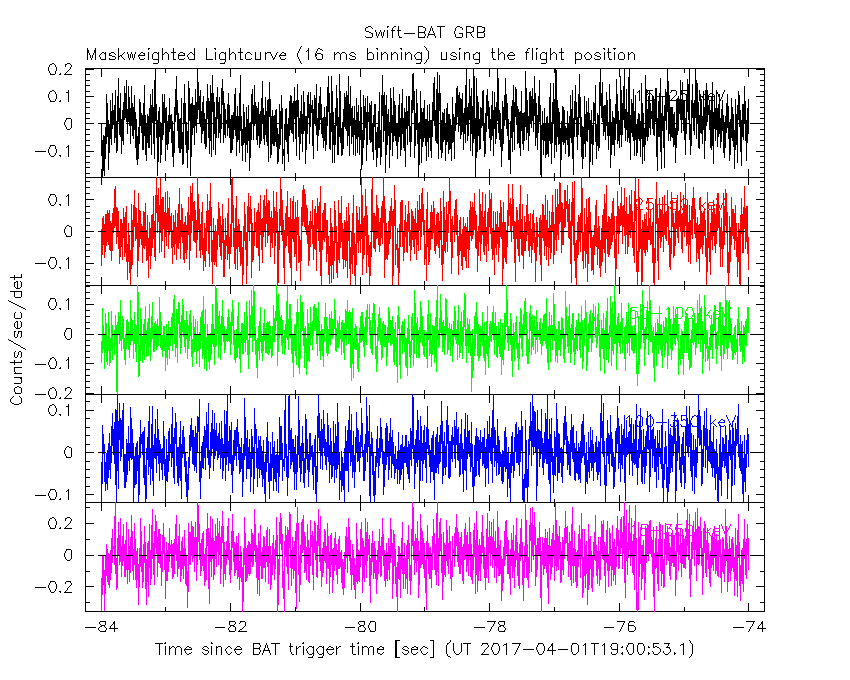

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

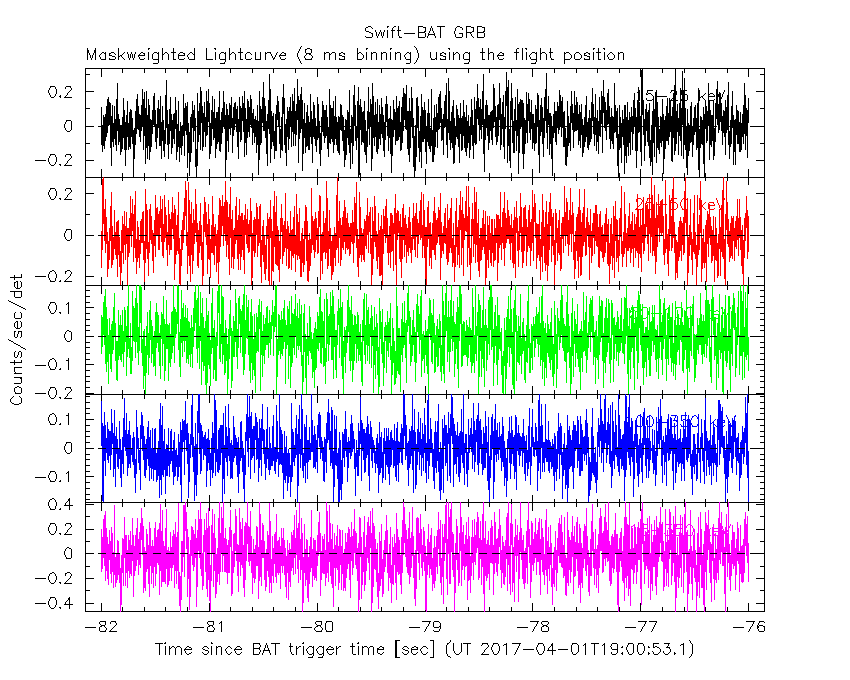

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

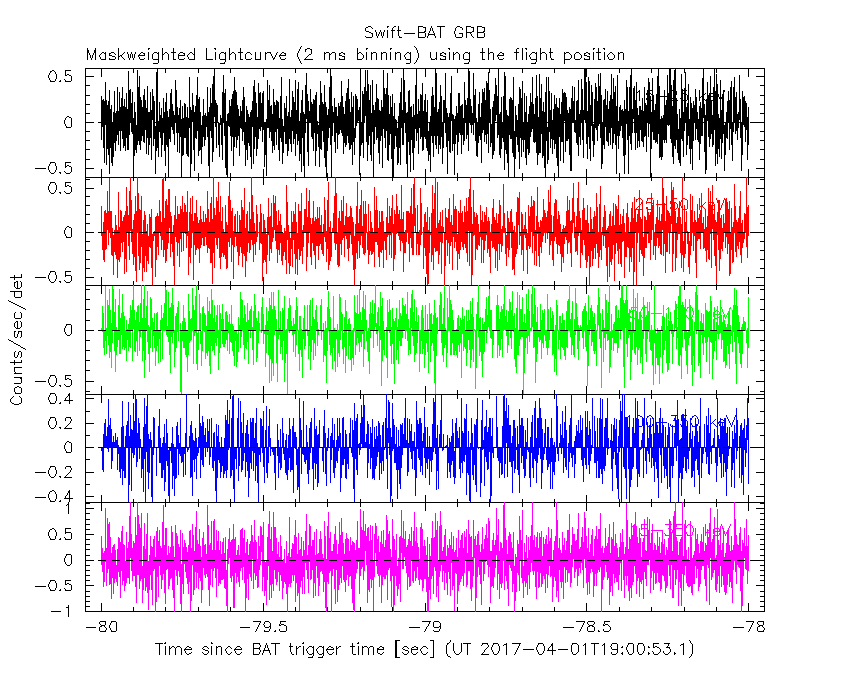

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

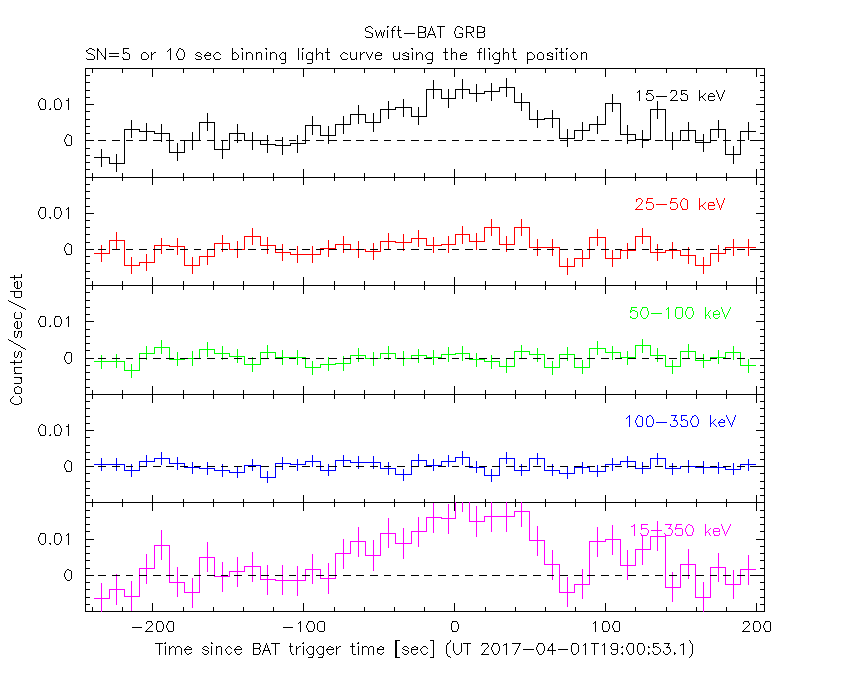

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

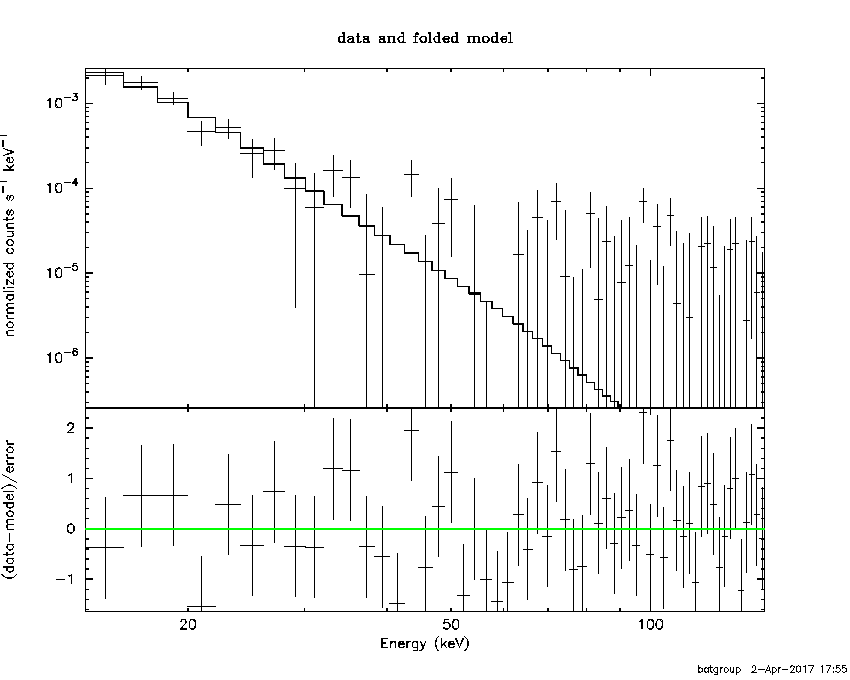

Power-law model

Time interval is from  -79.000 sec. to   65.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.20015     ( -0.709645   0.797877 )
Norm@50keV  : 6.11578E-05    ( -3.45199e-05   5.96222e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.55 using 59 PHA bins.
# Reduced chi-squared =         0.8342 for     57 degrees of freedom
# Null hypothesis probability =   8.095236e-01

Photon flux (15-150 keV)    in 144 sec: 0.114367 ( -0.0164695  0.0164733 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.19116e-07 ( -8.12248e-08  8.33312e-08 ) ergs/cm2

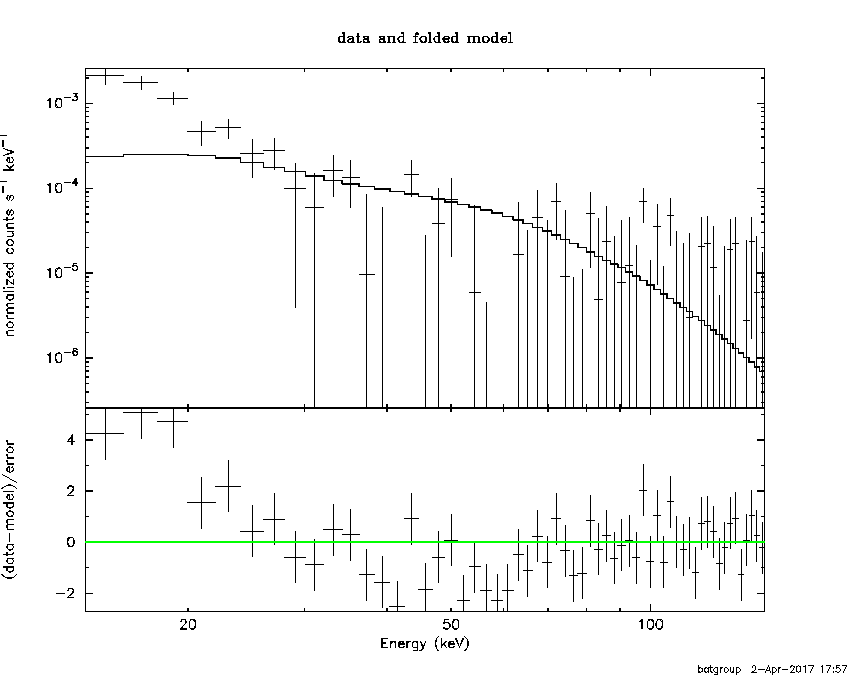

Cutoff power-law model

Time interval is from  -79.000 sec. to   65.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.22556E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         133.92 using 59 PHA bins.
# Reduced chi-squared =         2.3915 for     56 degrees of freedom
# Null hypothesis probability =   2.491620e-08

Photon flux (15-150 keV)    in 144 sec: 0.114257 ( -0.0164751  0.016402 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.18436e-07 ( -8.2967e-08  7.37568e-08 ) ergs/cm2

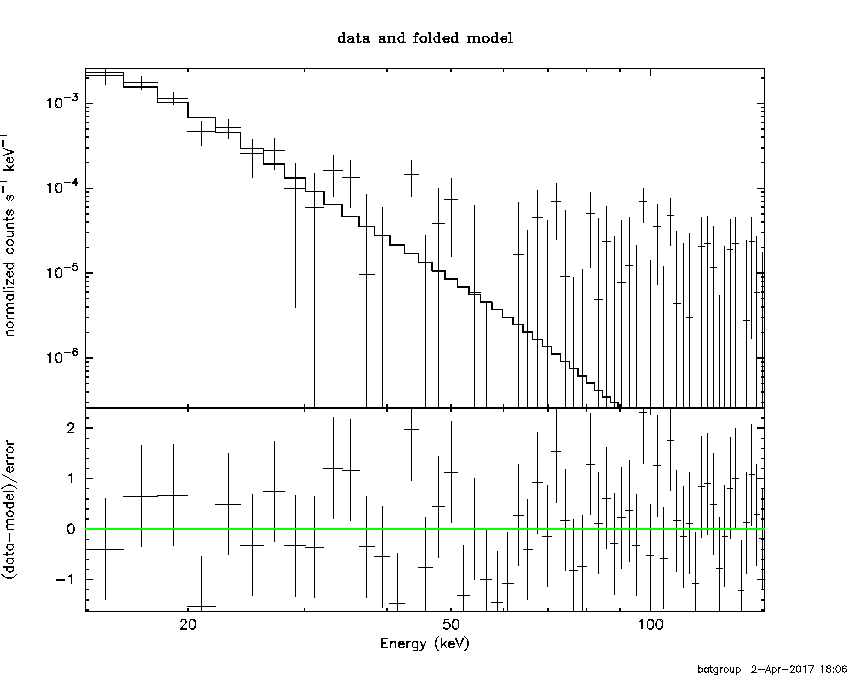

Band function

Time interval is from  -79.000 sec. to   65.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.47945   ( 8.47945   8.47945 )
beta        : -5.22129    ( -0.780291   0.727689 )
Epeak [keV] : 2.99021      ( -2.99021 -2.99021 )
Norm@50keV   : 8.13431E-03    ( -0.00456557   0.00823288 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.55 using 59 PHA bins.
# Reduced chi-squared =         0.8646 for     55 degrees of freedom
# Null hypothesis probability =   7.520010e-01

Photon flux (15-150 keV)    in 144 sec: 0.114254 ( 6.88575  -0.016443 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

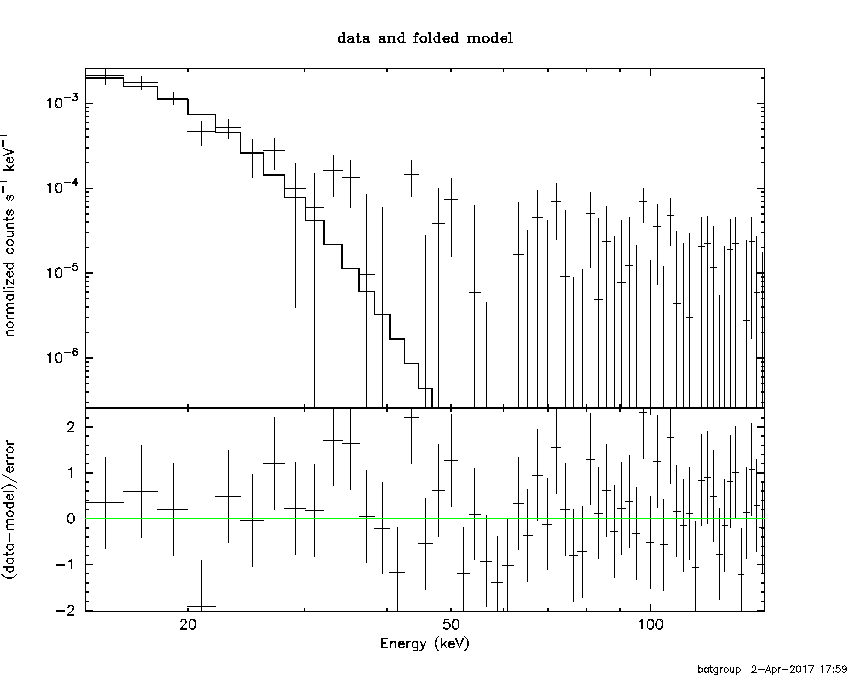

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.68373  (-0.399299  0.506716)
R^2/D10^2   : 33.3928  (-23.0719   76.4919)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.31 using 59 PHA bins.
# Reduced chi-squared =         0.9003 for     57 degrees of freedom
# Null hypothesis probability =   6.873273e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.348e-07   2.076e-07
25- 50  4.222e-08   2.382e-08
50-150  2.607e-11   2.810e-11
15-150  4.771e-07   2.421e-07

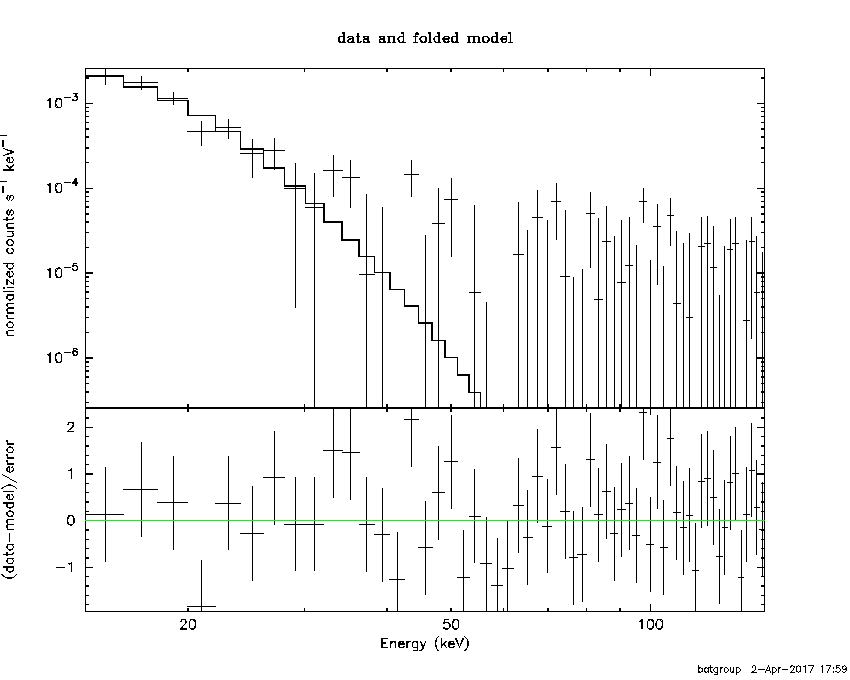

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.29842       (-1.18932      1.74735)
Norm        : 21.1755       (-12.588     34.7939)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.21 using 59 PHA bins.
# Reduced chi-squared =         0.8634 for     57 degrees of freedom
# Null hypothesis probability =   7.586814e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.291e-07   1.596e-07
25- 50  6.166e-08   3.233e-08
50-150  4.248e-10   4.183e-10
15-150  4.912e-07   1.708e-07

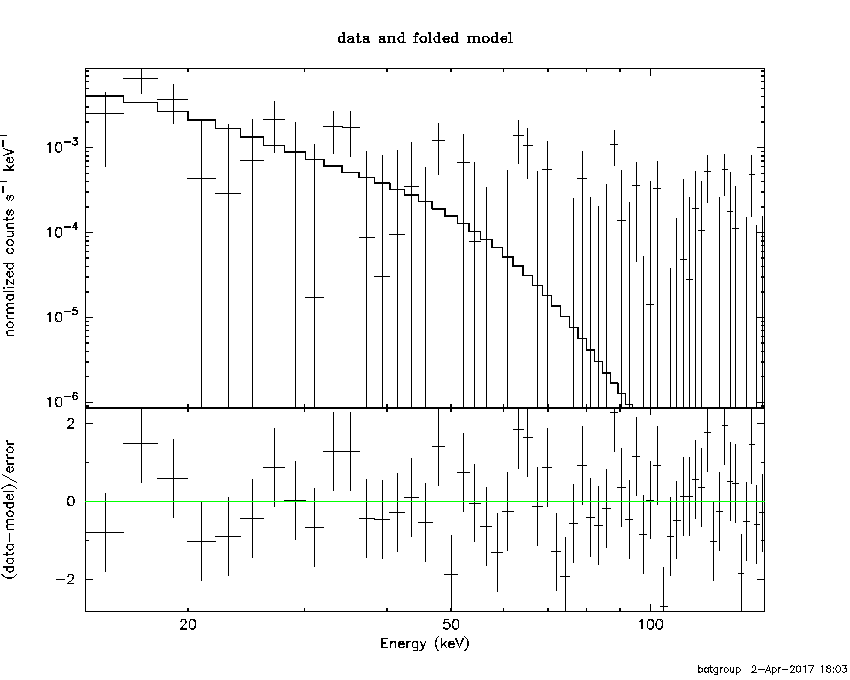

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.19716E-04        (0.000181496      -0.000119716)
R1^2/D10^2  : 1124.84        (-1124.85      -1124.85)
kT2 [keV]   : 2.68349        (-0.399199      0.506815)
R2^2/D10^2  : 33.4132    (-23.0705   76.4902)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.19 using 59 PHA bins.
#Fit statistic : Chi-Squared =          51.31 using 59 PHA bins.
# Reduced chi-squared =          1.113 for     55 degrees of freedom
# Reduced chi-squared =         0.9330 for     55 degrees of freedom
# Null hypothesis probability =   2.635284e-01
# Null hypothesis probability =   6.162304e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.633e-07   4.689e-02
25- 50  1.123e-07   3.878e-01
50-150  9.819e-10   9.338e+00
15-150  4.766e-07   1.026e+01

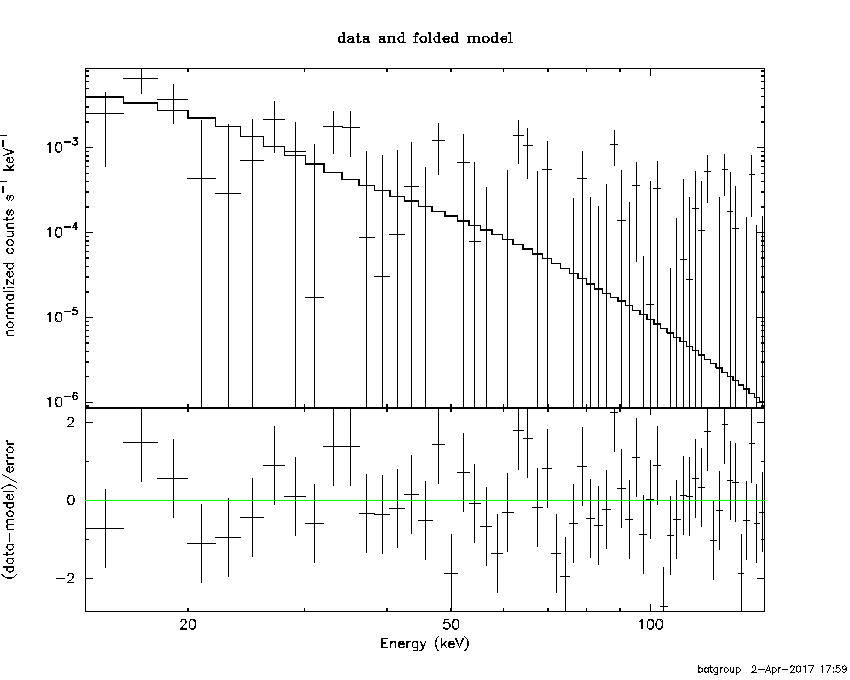

Peak spectrum fit

Power-law model

Time interval is from    8.500 sec. to    9.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.28717     ( -1.06727   1.83746 )
Norm@50keV  : 1.05653E-03    ( -0.00105653   0.00140884 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.24 using 59 PHA bins.
# Reduced chi-squared =          1.145 for     57 degrees of freedom
# Null hypothesis probability =   2.121256e-01

Photon flux (15-150 keV)    in 1 sec: 0.360758 ( -0.154796  0.156379 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.46845e-08 ( -7.6215e-09  9.70212e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    8.500 sec. to    9.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88749     (     )
Epeak [keV] : 2.22132      (   )
Norm@50keV  : 1.10019E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.21 using 59 PHA bins.
# Reduced chi-squared =          1.164 for     56 degrees of freedom
# Null hypothesis probability =   1.870720e-01

Photon flux (15-150 keV)    in 1 sec: 0.358890 ( -0.152021  0.155822 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.39482e-08 ( -7.00879e-09  1.01582e-08 ) ergs/cm2

Band function

Time interval is from    8.500 sec. to    9.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.12296   ( 9.12296   9.12296 )
beta        : -3.28716    ( -1.83924   1.06727 )
Epeak [keV] : 9.17808      ( -9.17808 -9.17808 )
Norm@50keV   : 0.143598    ( -0.143598   0.19148 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.24 using 59 PHA bins.
# Reduced chi-squared =          1.186 for     55 degrees of freedom
# Null hypothesis probability =   1.625183e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.83311  (-2.37585  3.30651)
R^2/D10^2   : 3.56880  (-3.63488   141.644)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.16 using 59 PHA bins.
# Reduced chi-squared =          1.161 for     57 degrees of freedom
# Null hypothesis probability =   1.901728e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.562e-09   4.611e-09
25- 50  4.538e-09   3.090e-09
50-150  1.561e-10   1.622e-10
15-150  1.226e-08   7.655e-09

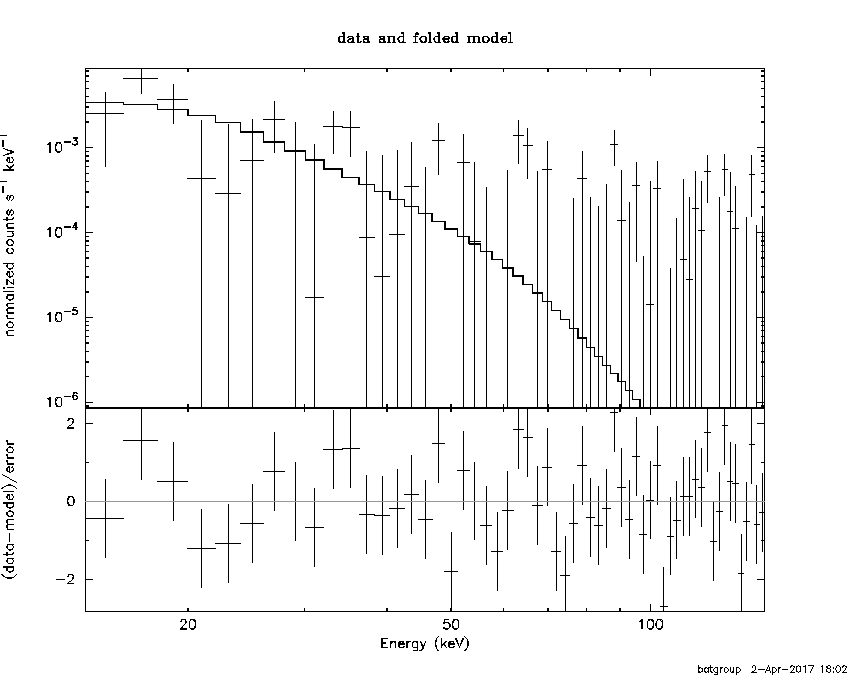

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 14.5450       (-9.18817      27.8882)
Norm        : 6.77182       (-6.77055     42.8748)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.28 using 59 PHA bins.
# Reduced chi-squared =          1.145 for     57 degrees of freedom
# Null hypothesis probability =   2.111004e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.584e-09   4.913e-09
25- 50  5.015e-09   3.359e-09
50-150  8.296e-10   8.165e-10
15-150  1.343e-08   8.715e-09

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.34919        (-2.59131      8.50088)
R1^2/D10^2  : 114.350        (-65.8875      -65.8875)
kT2 [keV]   : 7.46362        (-7.73451      -7.73451)
R2^2/D10^2  : 0.342158    (-0.362186   38.9828)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.81 using 59 PHA bins.
#Fit statistic : Chi-Squared =          64.77 using 59 PHA bins.
# Reduced chi-squared =          1.178 for     55 degrees of freedom
# Reduced chi-squared =          1.178 for     55 degrees of freedom
# Null hypothesis probability =   1.716000e-01
# Null hypothesis probability =   1.726136e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.403e-09   3.629e-09
25- 50  5.317e-09   2.995e-09
50-150  1.202e-09   1.148e-09
15-150  1.392e-08   8.660e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.20015     ( -0.709645   0.797877 )
Norm@50keV  : 6.11578E-05    ( -3.45199e-05   5.96222e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.55 using 59 PHA bins.
# Reduced chi-squared =         0.8342 for     57 degrees of freedom
# Null hypothesis probability =   8.095236e-01

Photon flux (15-150 keV)    in 144 sec: 0.114367 ( -0.0164695  0.0164733 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.19116e-07 ( -8.12248e-08  8.33312e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.22556E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         133.92 using 59 PHA bins.
# Reduced chi-squared =         2.3915 for     56 degrees of freedom
# Null hypothesis probability =   2.491620e-08

Photon flux (15-150 keV)    in 144 sec: 0.114257 ( -0.0164751  0.016402 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.18436e-07 ( -8.2967e-08  7.37568e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.47945   ( 8.47945   8.47945 )
beta        : -5.22129    ( -0.780291   0.727689 )
Epeak [keV] : 2.99021      ( -2.99021 -2.99021 )
Norm@50keV   : 8.13431E-03    ( -0.00456557   0.00823288 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.55 using 59 PHA bins.
# Reduced chi-squared =         0.8646 for     55 degrees of freedom
# Null hypothesis probability =   7.520010e-01

Photon flux (15-150 keV)    in 144 sec: 0.114254 ( 6.88575  -0.016443 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.03e-08
S(50-100 keV) = 9.82e-09

T90 vs. Hardness ratio plot

T90                                   = 112 sec.
Hardness ratio (energy fluence ratio) = 0.108749

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.211174
Count Ratio (50-100 keV) / (15-25 keV) = -9.70596e-05

Mask shadow pattern

IMX = 1.659984202477863E-01, IMY = 1.335109509860244E-01

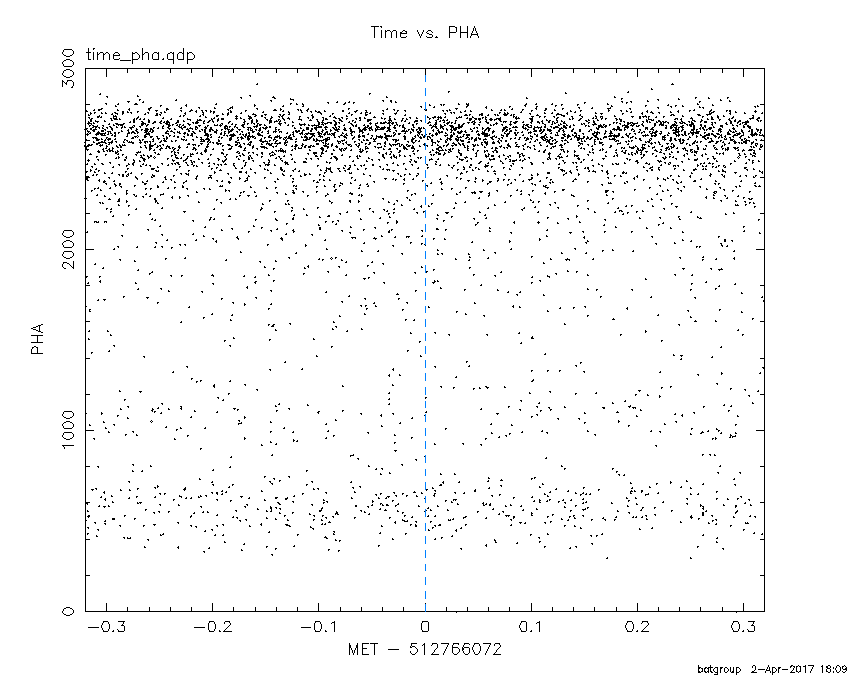

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

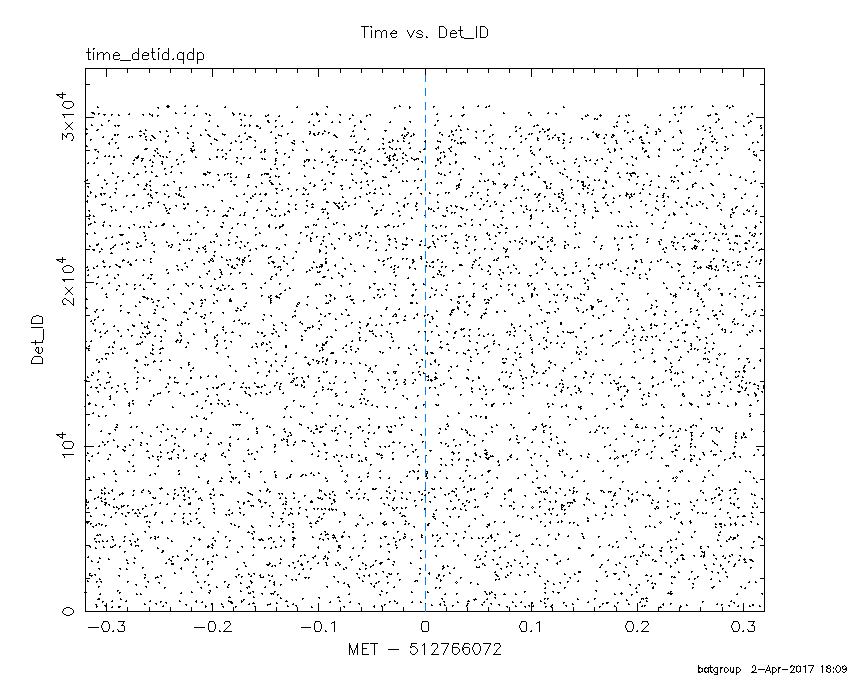

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

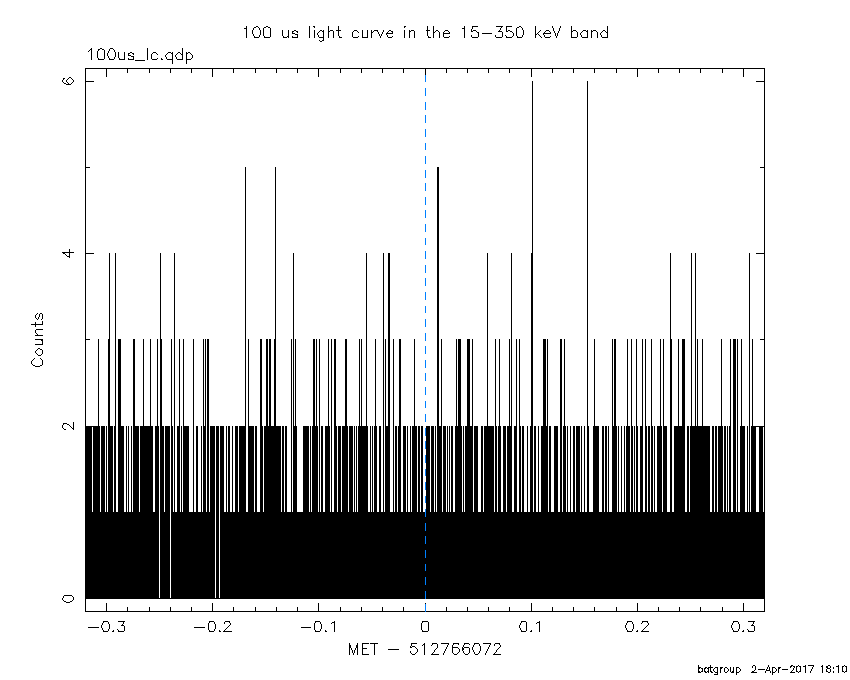

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

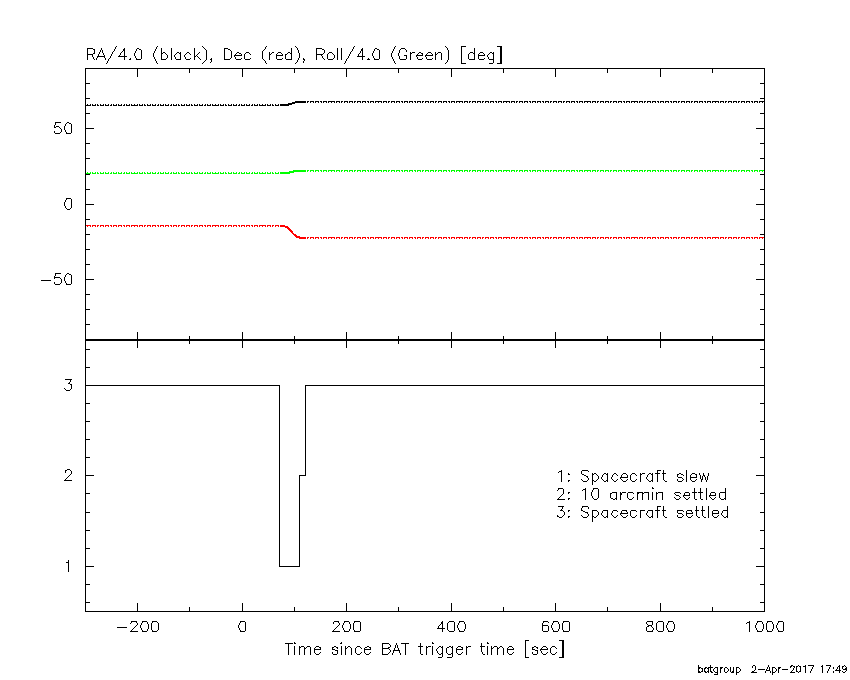

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -79.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9726 -15.6268    0.4  16.6   91.6   6.9033  27.7    0.9	Sco X-1
254.5490  35.4126   16.4  50.2 -179.6  -0.4433  -0.7    6.1	Her X-1
255.8520 -37.8201    2.9  24.2   20.5   0.9044   4.1    6.5	4U 1700-377
256.2381 -36.2863    0.0  22.6   20.8   0.4993   2.3   12.6	GX 349+2
262.9887 -24.7404    2.2  10.5    4.0   1.1475   5.2    1.1	GX 1+4
264.6191 -44.5394    7.4  30.3    4.9  -0.4294  -1.5    7.5	4U 1735-44
268.5372  -1.5636    6.4  14.2 -144.5   0.3987   1.8   12.1	SW J1753.5-0127
270.4692 -25.1766   10.1  13.4  -26.1  -0.2535  -1.2   11.6	GX 5-1
270.3103 -25.5891    4.7  13.7  -24.6   0.5446   2.6    9.2	GRS 1758-258
274.1436 -14.1591    4.3  11.7  -80.7   0.5774   2.7   10.9	GX 17+2
275.8908 -30.2929    5.7  20.4  -27.7   0.4583   2.0    4.8	H1820-303
284.9137 -25.0783    6.1  24.0  -51.3   0.4954   1.9   11.6	HT1900.1-2455
288.8288  10.9858    6.5  36.6 -123.8   0.7492   1.8    3.0	GRS 1915+105
262.9812 -33.8320    5.2  19.6    6.2   0.4660   2.2    0.4	GX 354-0
251.0688   9.2505    2.2  26.0  162.9   1.2715   5.3 ------	UNKNOWN
259.9210 -25.0216    0.7  10.9   18.9   3.7321  17.7 ------	UNKNOWN
296.9615  11.5622    3.1  43.1 -116.6   3.6591   3.8 ------	UNKNOWN
311.8314 -34.3828    2.5  49.0  -48.2   4.9472   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-79.000000 65.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1245 -15.4861    0.0  16.5   92.1  -0.2135  -0.9   12.5	Sco X-1
254.5710  35.2974    6.5  50.1 -179.6  -1.0912  -1.8    6.2	Her X-1
256.1863 -37.9818    0.0  24.3   19.8   0.4685   2.0   12.6	4U 1700-377
256.2381 -36.2863    0.0  22.6   20.8  -0.5507  -2.5   12.6	GX 349+2
263.0028 -24.7923    5.3  10.5    4.0  -0.4434  -2.2    2.8	GX 1+4
264.8872 -44.5852    5.2  30.4    4.5   0.5468   2.2   10.2	4U 1735-44
268.3868  -1.3666   11.1  14.3 -145.4  -0.2093  -1.0    5.3	SW J1753.5-0127
270.1556 -25.2558    0.0  13.3  -24.9  -0.0617  -0.3   12.7	GX 5-1
270.4922 -25.8596    0.0  14.0  -24.5   0.1504   0.8   12.4	GRS 1758-258
273.9029 -14.0942   27.0  11.4  -81.1  -0.0940  -0.4    6.9	GX 17+2
275.9047 -30.3685    7.9  20.5  -27.6   0.3059   1.5    1.1	H1820-303
284.8749 -24.9342    3.5  23.9  -51.6  -0.8417  -3.2    8.8	HT1900.1-2455
288.8456  10.8831    4.4  36.6 -123.7   0.9648   2.6    4.7	GRS 1915+105
263.0882 -33.6709    5.0  19.4    6.0  -0.4743  -2.3   11.0	GX 354-0
252.1990 -16.2396    2.2   9.8   85.6   1.1081   5.2 ------	UNKNOWN
271.6173 -22.2422    1.0  12.0  -38.8   2.1790  11.0 ------	UNKNOWN
272.3101  17.5596    2.6  33.4 -153.7   1.1355   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
110.100650 963.069600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9707 -15.6383    0.4  26.0  101.2  30.1330  27.4    0.5	Sco X-1
256.0658 -37.9184    1.6  20.6   38.0   5.1687   7.2    5.8	4U 1700-377
256.4678 -36.4419    2.7  19.3   40.5   3.4012   4.2    1.9	GX 349+2
263.0013 -24.7384    1.2   8.3   71.9   6.5110   9.3    0.6	GX 1+4
264.5550 -44.2913    0.0  22.8   14.2  -0.6232  -0.9   12.5	4U 1735-44
268.2283  -1.3050    0.0  21.2  171.8   0.6618   0.9   12.2	SW J1753.5-0127
270.4515 -25.2276    0.0   3.1   20.2   0.8579   1.1   12.7	GX 5-1
270.2860 -25.8931   19.6   3.8   18.9   0.4411   0.6    9.0	GRS 1758-258
273.9850 -14.0425    1.9   8.5 -163.0   4.0752   6.0    1.3	GX 17+2
275.8651 -30.4674    3.5   9.1  -23.0   2.6261   3.3    6.8	H1820-303
284.8927 -25.0781   73.5  12.5  -73.2  -0.1267  -0.2   12.3	HT1900.1-2455
288.7428  10.9324    3.0  37.2 -150.3   4.2508   3.9    3.4	GRS 1915+105
263.0089 -33.8399    4.6  13.8   32.3   2.1127   2.5    1.0	GX 354-0
259.9019 -25.0066    0.4  11.0   74.4  18.3201  27.4 ------	UNKNOWN
304.4094 -35.3182    3.6  31.4  -57.0   3.6432   3.2 ------	UNKNOWN
292.3224  30.5147    3.6  56.4 -157.4  18.3614   3.2 ------	UNKNOWN
305.3921  14.1857    4.0  49.2 -133.5  13.2757   2.9 ------	UNKNOWN
318.5027 -29.5278    3.8  42.5  -68.9  14.3420   3.0 ------	UNKNOWN

Plot creation:
Sun Apr  2 18:12:37 EDT 2017
