batgrbproduct analysis for trigger=752193

batgrbproduct Analysis for Trigger=752193

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu May 11 06:01:43 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger752193/GCN5_download_cron
======================================================================

  Trigger: 00752193      Segment: 000

  BAT Trigger Time: 516089554.496   [s; MET]
      Trigger Stop: 516089555.52   [s; MET]
               UTC: 2017-05-10T06:12:15.458880    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 297.661024030469   Dec: 48.1775855809173  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.53
     Image Trigger?:     NO
     Rate S/N Ratio:     27.7308492477241  [ if not an image trigger ]
     Image S/N Ratio:    6.53

  Flight Position:   [ source = BAT ]
    RA: 297.661024030469   Dec: 48.1775855809173  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 297.323152896641   Dec: 48.1823338654563  [deg; J2000]
        { 19h 49m 17.6s , +48d 10' 56.4" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 11.1473471231965 [arcmin] (formal 1-sigma fit error)
    SNR: -0.820490186990435

  Angular difference between Flight and Ground position is 13.520401 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 43.067999958992 +/- 8.77693541147387
        Measured from: -25.7359998822212
                   to: 17.3320000767708     [s; relative to TRIGTIME]
     T50: 27.3159999251366 +/- 9.35838296965223
        Measured from: -13.203999876976
                   to: 14.1120000481606     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.0440000295639038
                   to: 1.0440000295639     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -32.8679999709129
                   to: 26.3719999790192     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.286025   0.623906   0.255103   0.027938
           0.064289   0.075432   0.068070   0.083164 [error]
 Peak     -0.008063   0.019358   0.034324   0.040422
           0.008460   0.009930   0.008976   0.011088 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.01e-07 1.81e-07 2.47e-07 6.99e-07 7.13e-07 1.23e-06   erg/cm2
              Error 2.42e-08 3.05e-08 6.29e-08 3.57e-07 1.52e-07 4.21e-07   erg/cm2
Peak flux Power-law 1.34e-021.09e-03 5.20e-029.17e-03 1.69e-016.88e-02 1.80e+002.95e+00 4.76e-012.58e-01 2.04e+003.03e+00   ph/cm2/s
              Error 3.11e-02 6.63e-02 1.14e-01 1.79e+00 2.95e-01 1.71e+00   ph/cm2/s

Fluence   Cutoff-PL 8.23e-08 2.54e-07 1.63e-07 1.00e-08 5.09e-07 5.09e-07   erg/cm2
              Error 3.03e-08 5.82e-08 1.34e-07 7.01e-08 1.40e-07 1.56e-07   erg/cm2
Peak flux Cutoff-PL 1.75e-02 6.06e-02 1.74e-01 1.60e+00 4.84e-01 1.83e+00   ph/cm2/s
              Error 3.11e-02 6.64e-02 1.28e-01 -------- 3.29e-01 --------   ph/cm2/s

Fluence        Band 7.58e-08 2.59e-07 1.87e-07 1.52e-07 5.91e-07 6.75e-07   erg/cm2
              Error 2.81e-08 5.24e-08 -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.548    0.282    -      -           1.28e-03 2.46e-04   93.850 57
CPL  -1.714    3.405      43.7   12.7      1.17e-01 3.12e+01   86.840 56

The chi2 of BB fit is 86.99 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -1.907    1.341    -      -           6.15e-04 2.42e-03   58.120 57
CPL  -0.721    3.516    10000.0    0.0      2.59e-03 0.00e+00   58.520 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 24.768000 sec.
T50 in the 50-300 keV band: 14.336000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   59.240  -32.868   26.372
T90    43.068  -25.736   17.332
T50    27.316  -13.204   14.112
Peak    1.000    0.044    1.044

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

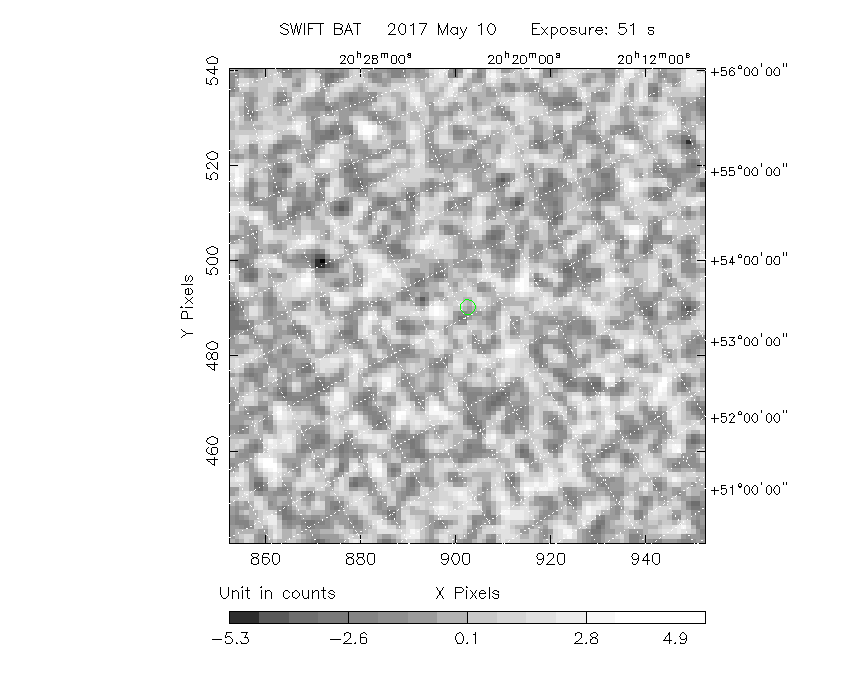

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  297.3232 +48.1823 0.2342    3.2 -149.2      -1.1433    -0.8  TRIG_00752193
------------------------------------------

Foreground time interval of the image:
-32.868  18.005 (delta_t =  50.873 [sec])
Background time interval of the image:
-33.195 -32.868 (delta_t =   0.327 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

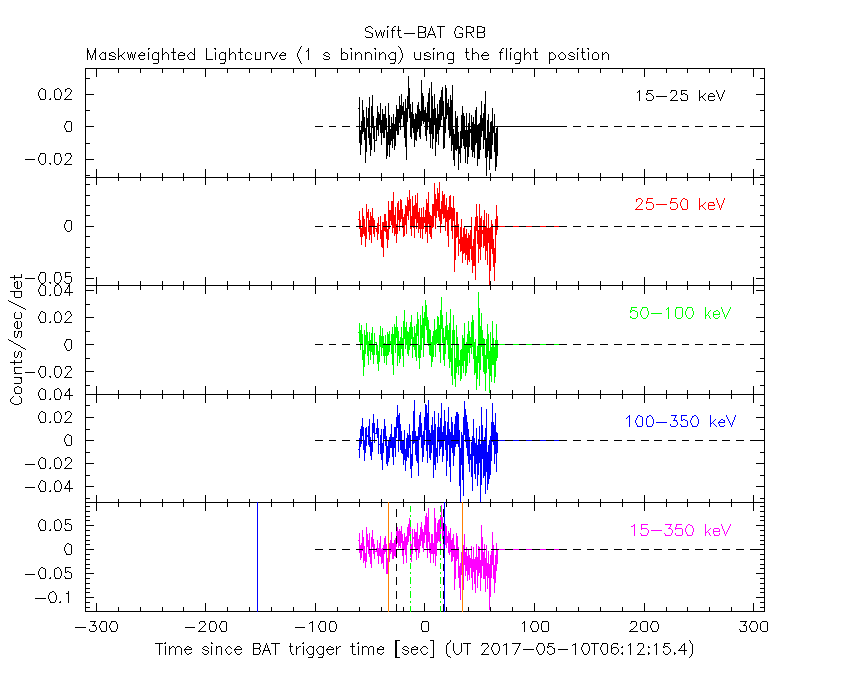

From T0-310 s to T0+310 s

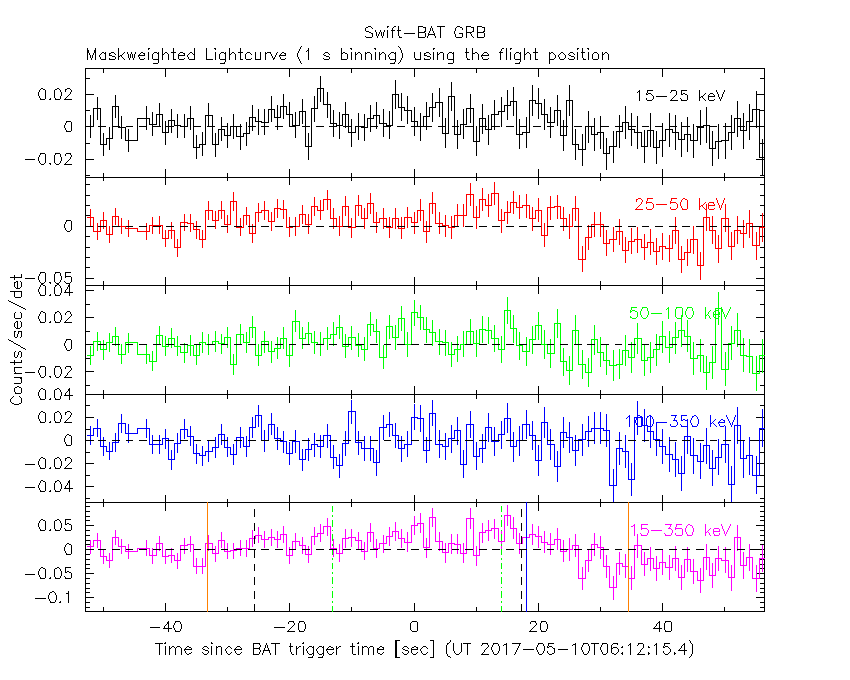

From T100_start - 20 s to T100_end + 30 s

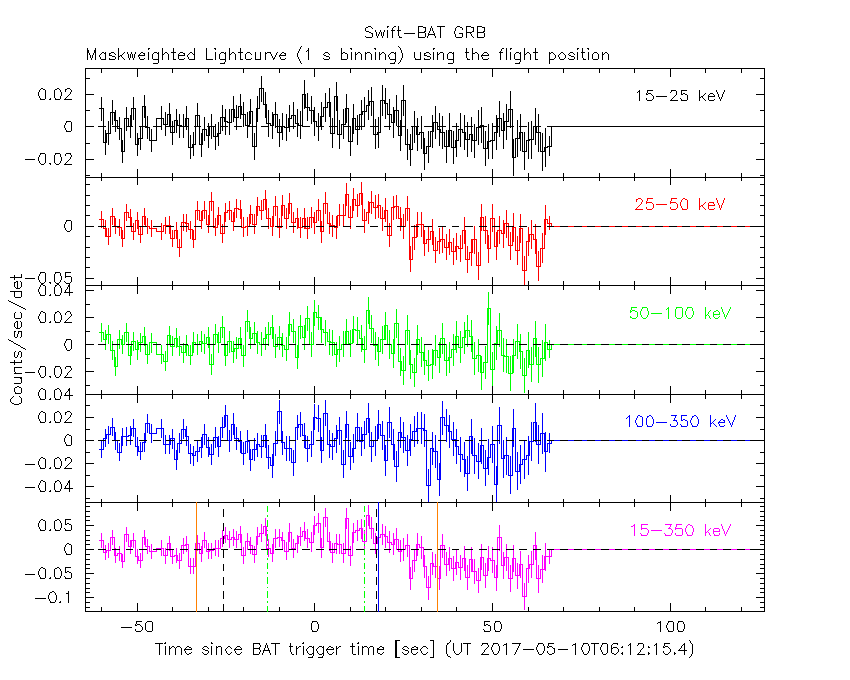

Full time interval

64 ms binning

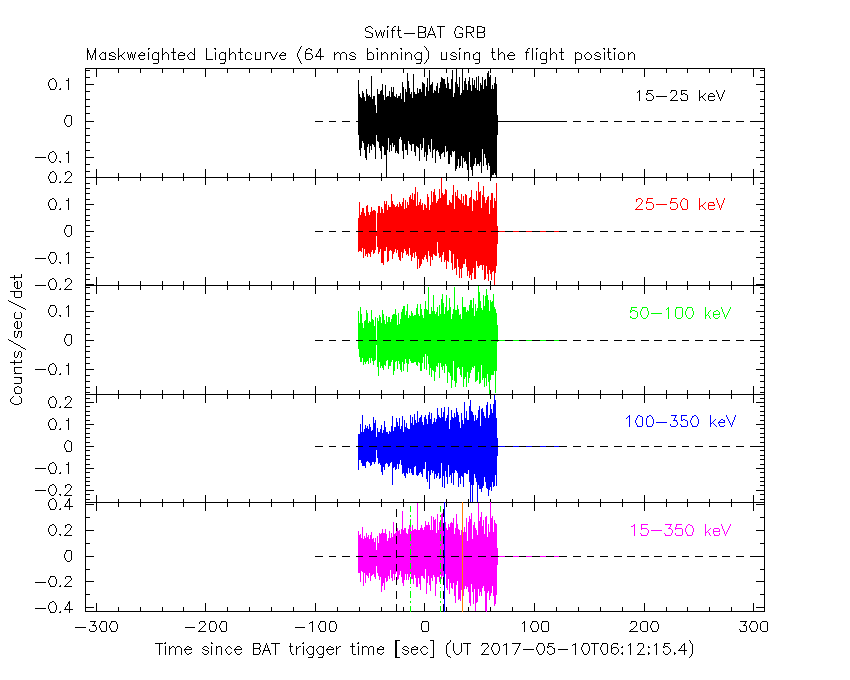

Full time interval

From T100_start to T100_end

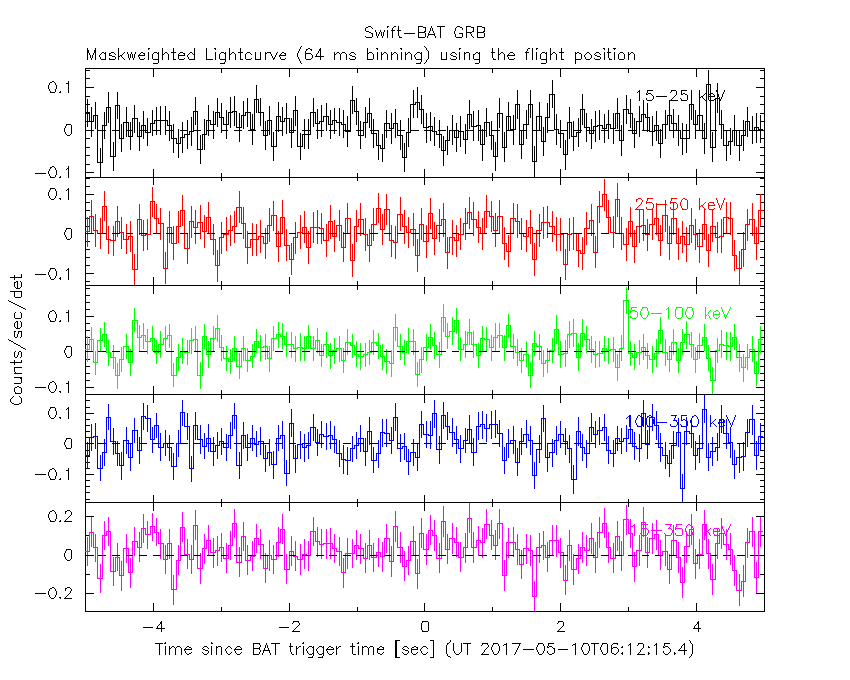

From T0-5 sec to T0+5 sec

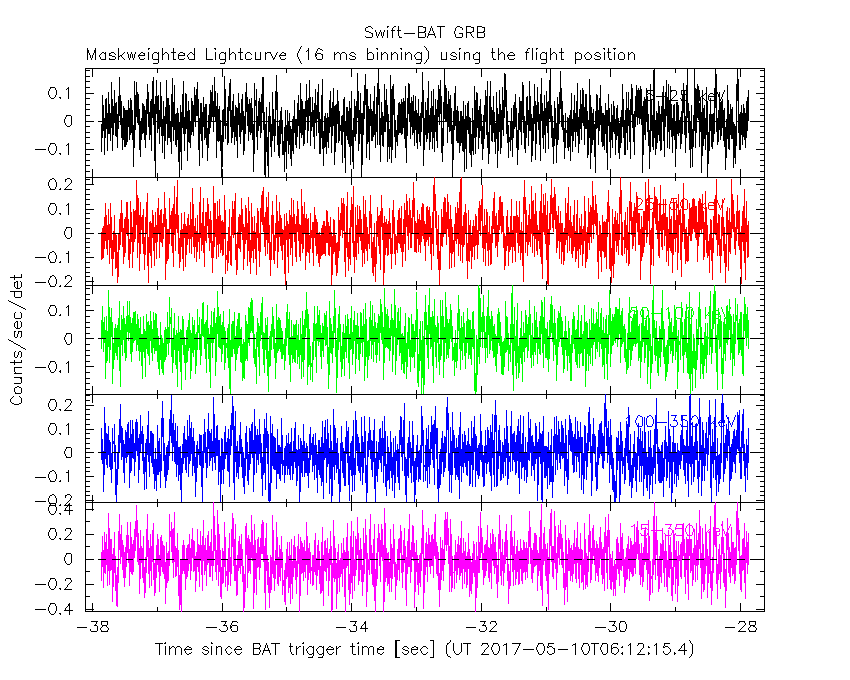

16 ms binning

From T100_start-5 s to T100_start+5 s

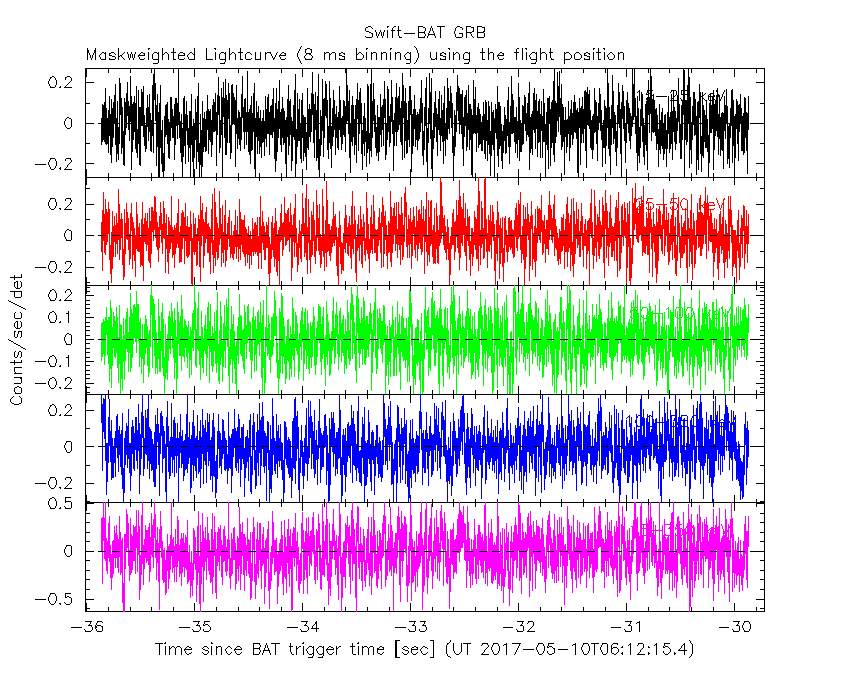

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

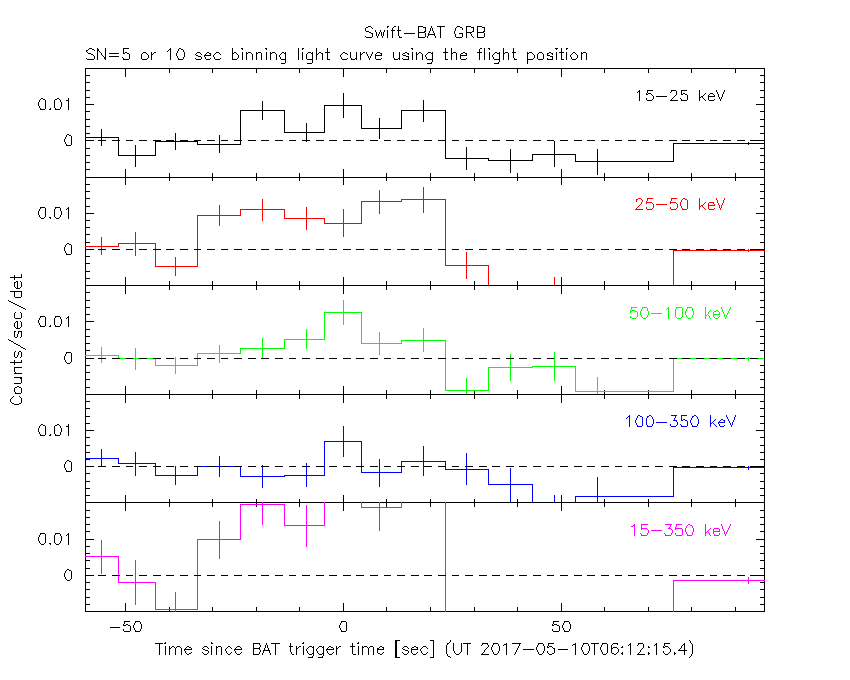

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -32.868 sec. to   26.372 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54786     ( -0.276711   0.287357 )
Norm@50keV  : 1.27862E-03    ( -0.000248056   0.000243266 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          93.85 using 59 PHA bins.
# Reduced chi-squared =          1.647 for     57 degrees of freedom
# Null hypothesis probability =   1.524149e-03

Photon flux (15-150 keV)    in 59.24 sec: 0.161765 ( -0.0273982  0.0274095 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.1325e-07 ( -1.48752e-07  1.55331e-07 ) ergs/cm2

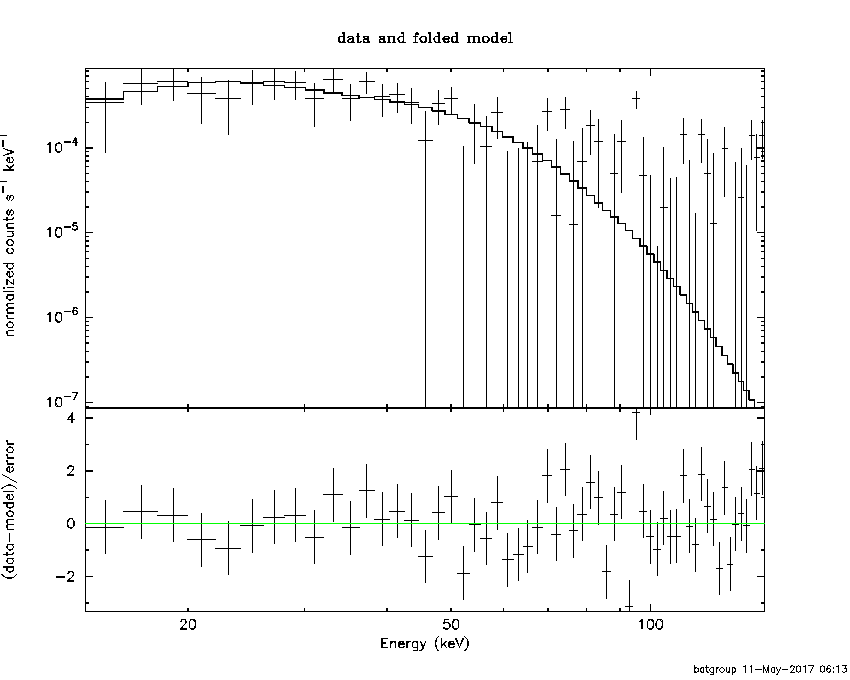

Cutoff power-law model

Time interval is from  -32.868 sec. to   26.372 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.71363     ( -4.72681   2.08243 )
Epeak [keV] : 43.6821      ( -7.25672 18.1029 )
Norm@50keV  : 0.116548    ( -0.127268   62.2914 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.84 using 59 PHA bins.
# Reduced chi-squared =          1.551 for     56 degrees of freedom
# Null hypothesis probability =   5.154532e-03

Photon flux (15-150 keV)    in 59.24 sec: 0.146168 ( -0.027251  0.02789 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.08769e-07 ( -1.14839e-07  1.65252e-07 ) ergs/cm2

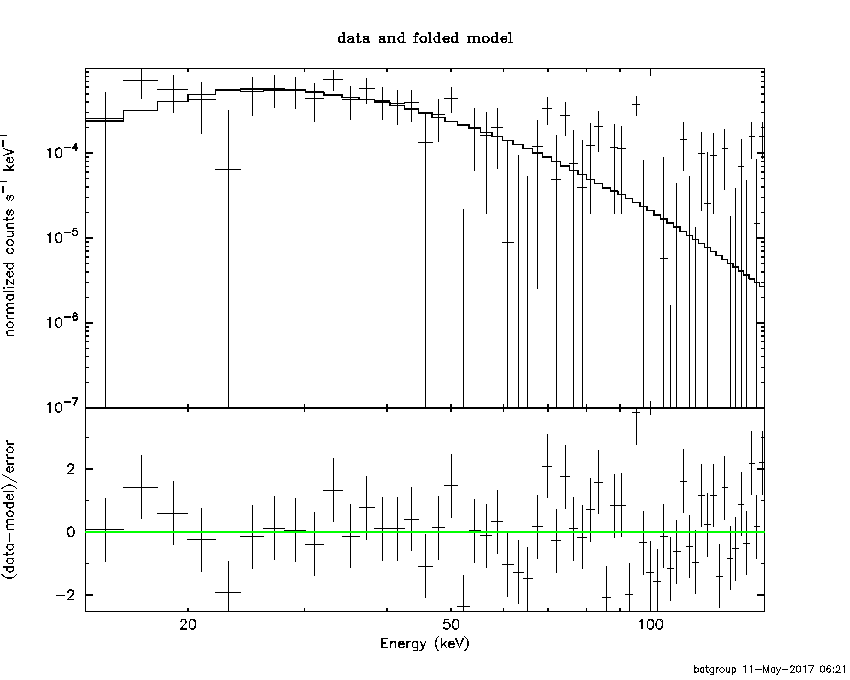

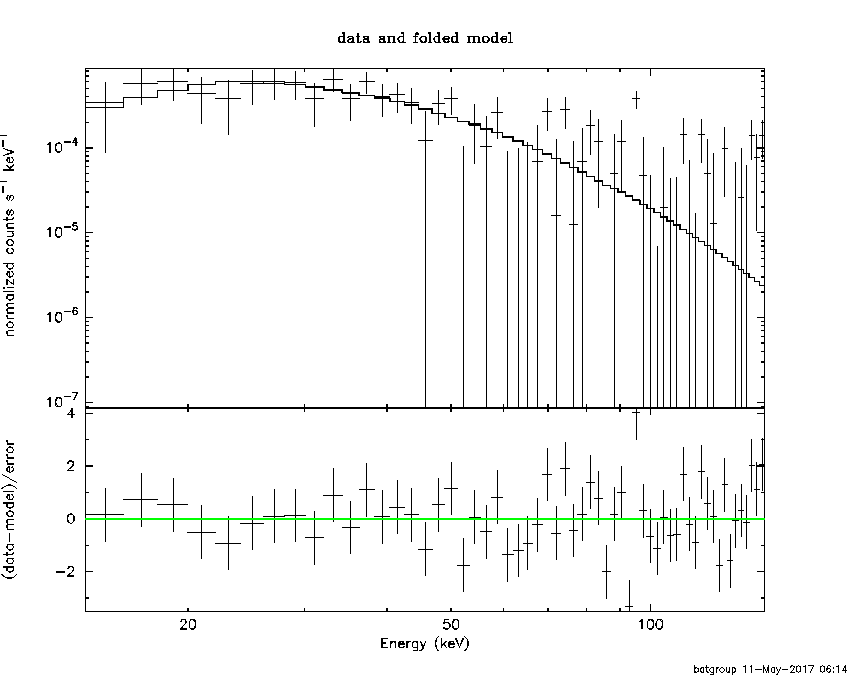

Band function

Time interval is from  -32.868 sec. to   26.372 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.71043   ( -2.63915   -2.82466 )
beta        : -2.85803    ( 2.84087   0.920474 )
Epeak [keV] : 38.5699      ( -7.96029 10.8305 )
Norm@50keV   : 2.35823    ( -2.35778   5.22603 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          84.57 using 59 PHA bins.
# Reduced chi-squared =          1.538 for     55 degrees of freedom
# Null hypothesis probability =   6.356129e-03

Photon flux (15-150 keV)    in 59.24 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.91033e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.2801  (-1.63057  2.01484)
R^2/D10^2   : 5.37566E-02  (-0.0243301   0.0404577)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.99 using 59 PHA bins.
# Reduced chi-squared =          1.526 for     57 degrees of freedom
# Null hypothesis probability =   6.420879e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.505e-08   2.600e-08
25- 50  2.483e-07   5.885e-08
50-150  1.819e-07   7.008e-08
15-150  5.152e-07   1.144e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 154.829       (-80.6256      -152.59)
Norm        : 0.673080       (-0.115838     0.147716)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          92.15 using 59 PHA bins.
# Reduced chi-squared =          1.617 for     57 degrees of freedom
# Null hypothesis probability =   2.207513e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.021e-07   5.755e-08
25- 50  1.902e-07   1.057e-07
50-150  3.802e-07   2.296e-07
15-150  6.726e-07   3.895e-07

Double BB

R1^2/D10^2  : 1.30363E-05        (-1.30363e-05      -1.30363e-05)
kT2 [keV]   : 10.3399        (-1.5874      2.07138)
R2^2/D10^2  : 6.82029E-02    (-0.0321779   0.0497884)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.99 using 59 PHA bins.
#Fit statistic : Chi-Squared =          84.88 using 59 PHA bins.
#Fit statistic : Chi-Squared =          84.67 using 59 PHA bins.
# Reduced chi-squared =          1.582 for     55 degrees of freedom
# Reduced chi-squared =          1.543 for     55 degrees of freedom
# Reduced chi-squared =          1.539 for     55 degrees of freedom
# Null hypothesis probability =   3.859489e-03
# Null hypothesis probability =   5.972940e-03
# Null hypothesis probability =   6.232044e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

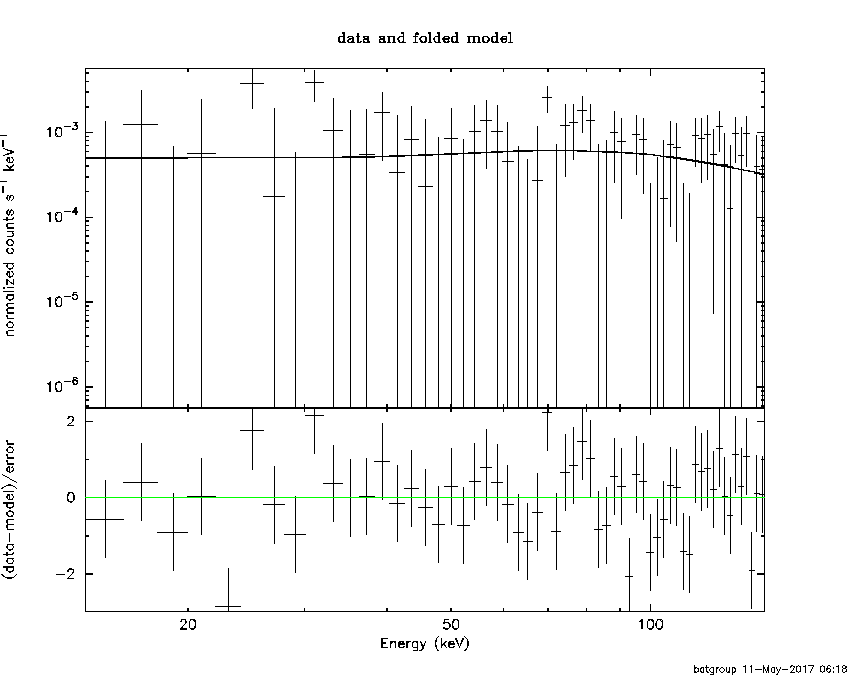

Peak spectrum fit

Power-law model

Time interval is from    0.044 sec. to    1.044 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.90710     ( -0.474441   2.20734 )
Norm@50keV  : 6.15298E-04    ( -0.000615282   0.00423144 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.12 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     57 degrees of freedom
# Null hypothesis probability =   4.337007e-01

Photon flux (15-150 keV)    in 1 sec: 0.475695 0.257698 ( -0.190192  0.400533 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.37972e-15 ( -3.36054e-08  4.99238e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.044 sec. to    1.044 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.720624     ( -5.74738   1.28501 )
Epeak [keV] : 1.00000E+04      ( -10000 -10000 )
Norm@50keV  : 2.59408E-03    ( -0.00259543   -0.00259543 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.52 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     56 degrees of freedom
# Null hypothesis probability =   3.828941e-01

Photon flux (15-150 keV)    in 1 sec: 0.483828 0.243087 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.76713e-15 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.044 sec. to    1.044 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.80268E-02   ( 0.12459   0.12459 )
beta        : 1.90759    ( -2.16309   0.475559 )
Epeak [keV] : 13.8493      ( -13.8513 -13.8513 )
Norm@50keV   : 1.21927E-03    ( -0.00121967   6163.5 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.12 using 59 PHA bins.
# Reduced chi-squared =          1.057 for     55 degrees of freedom
# Null hypothesis probability =   3.610290e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 200.000  (-200  -200)
R^2/D10^2   : 2.65468E-04  (-8.89989e-05   -0.000265316)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.66 using 59 PHA bins.
# Reduced chi-squared =          1.029 for     57 degrees of freedom
# Null hypothesis probability =   4.144678e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.413e-10   3.692e-10
25- 50  3.558e-09   2.835e-09
50-150  6.954e-08   6.700e-08
15-150  7.354e-08   7.665e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.359       (-104.246      -199.362)
Norm        : 1.49905       (-0.858696     0.861877)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.47 using 59 PHA bins.
# Reduced chi-squared =          1.307 for     57 degrees of freedom
# Null hypothesis probability =   5.998283e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Double BB

R1^2/D10^2  : 1.11234E-02        (-0.00540084      -0.00540084)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 2.49037E-04    (-0.000252524   -0.000252524)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.93 using 59 PHA bins.
#Fit statistic : Chi-Squared =          58.66 using 59 PHA bins.
#Fit statistic : Chi-Squared =          58.47 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     55 degrees of freedom
# Reduced chi-squared =          1.067 for     55 degrees of freedom
# Reduced chi-squared =          1.063 for     55 degrees of freedom
# Null hypothesis probability =   3.339470e-01
# Null hypothesis probability =   3.428870e-01
# Null hypothesis probability =   3.491888e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48320     ( -0.292532   0.301385 )
Norm@50keV  : 1.28762E-03    ( -0.000257565   0.000253059 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          94.68 using 59 PHA bins.
# Reduced chi-squared =          1.661 for     57 degrees of freedom
# Null hypothesis probability =   1.269237e-03

Photon flux (15-150 keV)    in 50.87 sec: 0.160029 ( -0.0288211  0.0288239 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.23076e-07 ( -1.35969e-07  1.41727e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.41872     ( -6.10519   2.22455 )
Epeak [keV] : 46.7583      ( -8.6145 25.2201 )
Norm@50keV  : 6.63229E-02    ( -0.0980565   347.811 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          88.53 using 59 PHA bins.
# Reduced chi-squared =          1.581 for     56 degrees of freedom
# Null hypothesis probability =   3.640812e-03

Photon flux (15-150 keV)    in 50.87 sec: 0.144118 ( -0.029988  0.030035 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.46864e-07 ( -1.06238e-07  1.60915e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.82463   ( -4.28822   -4.82463 )
beta        : -2.79292    ( -2.07237   0.817527 )
Epeak [keV] : 38.7321      ( -6.021 5.24897 )
Norm@50keV   : 9.62877    ( -1.64654   22.8108 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.64 using 59 PHA bins.
# Reduced chi-squared =          1.557 for     55 degrees of freedom
# Null hypothesis probability =   5.111864e-03

Photon flux (15-150 keV)    in 50.87 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.17445e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.81e-07
S(50-100 keV) = 2.47e-07

T90 vs. Hardness ratio plot

T90                                   = 43.067999958992 sec.
Hardness ratio (energy fluence ratio) = 1.36464

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.1813
Count Ratio (50-100 keV) / (15-25 keV) = 0.891891

Mask shadow pattern

IMX = -4.817493736064501E-02, IMY = 2.867311593975619E-02

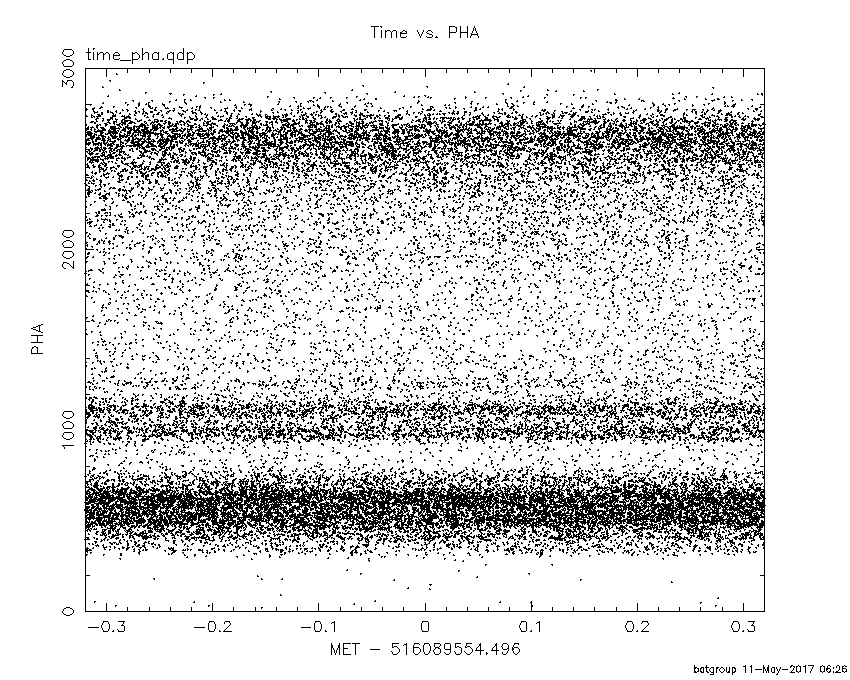

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

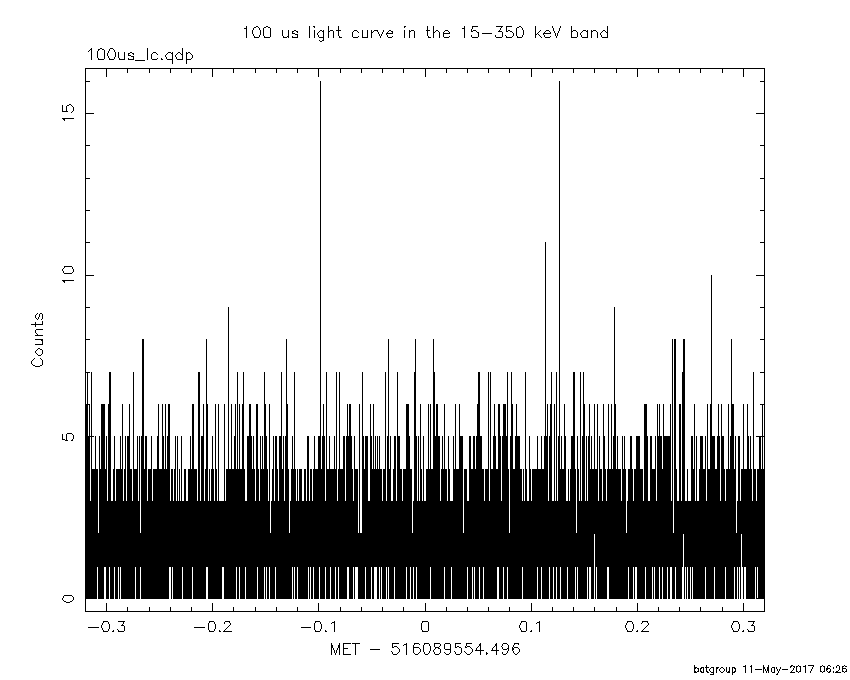

100 us light curve (15-350 keV)

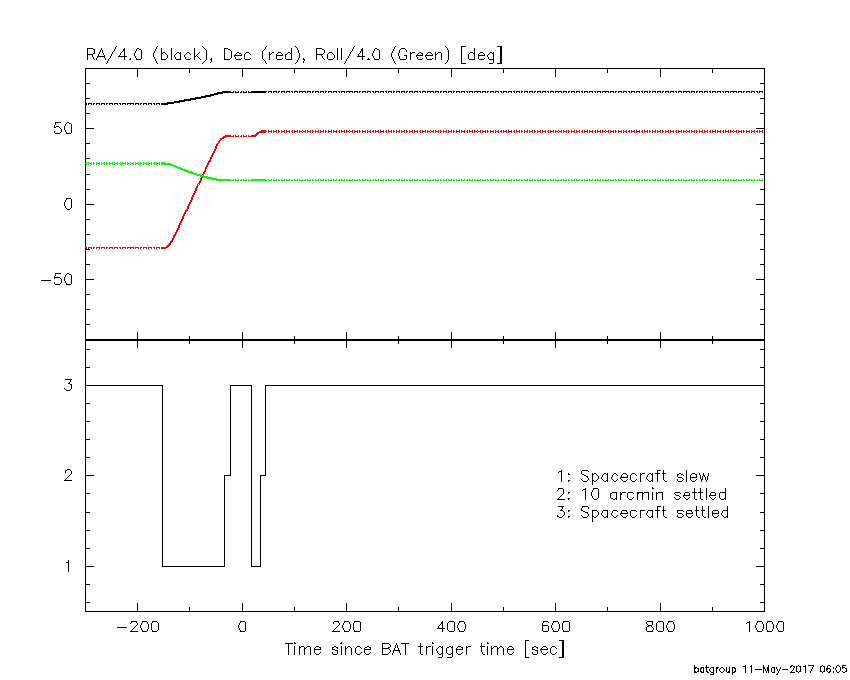

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-33.195400 -32.868000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3695  35.2131    3.7  33.5  115.1  -0.0550  -3.1    8.9	Her X-1
288.8816  11.0633   60.9  34.4   40.6   0.0027   0.2    8.6	GRS 1915+105
299.6323  35.3289    6.0   9.7   13.1   0.0178   1.9    7.9	Cyg X-1
308.3261  40.9349    6.4   9.2  -42.7   0.0165   1.8    9.8	Cyg X-3
326.2064  38.2821    7.2  22.8  -57.1  -0.0178  -1.6    2.9	Cyg X-2
313.3154  -8.7654    3.1  55.6    6.8   0.1672   3.7 ------	UNKNOWN
230.7802  73.4051    2.2  40.8 -176.9   0.0749   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-32.868000 18.004600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3328  35.2545    2.8  33.6  115.0  11.4007   4.1    8.1	Her X-1
288.8137  10.9040    8.9  34.8   40.8  -2.8764  -1.3    2.7	GRS 1915+105
299.4690  35.1838    4.3  10.0   14.9   3.8080   2.7    6.0	Cyg X-1
307.9756  40.7894    8.7   9.1  -39.6   1.8840   1.3   11.5	Cyg X-3
325.9977  38.2015   28.3  22.6  -56.1  -0.7019  -0.4   10.9	Cyg X-2
320.8477   0.0471    2.0  49.7   -5.4  17.2701   5.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
34.504600 122.594000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4918  35.1365    0.0  34.3  110.2  -2.2434  -1.4   12.5	Her X-1
288.8366  11.1138    0.0  37.8   40.6   2.2466   1.5   10.3	GRS 1915+105
299.5863  35.1758   29.0  13.1   19.5   0.2933   0.4    1.6	Cyg X-1
307.9835  40.9761   11.3  10.3  -22.9   0.7963   1.0    5.9	Cyg X-3
326.0015  38.1673    6.8  22.8  -48.1   1.4870   1.7   12.3	Cyg X-2
303.9667  42.0217    4.7   7.6  -11.7   1.8957   2.5 ------	UNKNOWN
216.8152  77.1968    3.0  41.4 -172.9   4.1953   3.9 ------	UNKNOWN

Plot creation:
Thu May 11 06:29:36 EDT 2017
