batgrbproduct analysis for trigger=753085

batgrbproduct Analysis for Trigger=753085

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed May 17 06:00:23 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger753085/GCN5_download_cron
======================================================================

  Trigger: 00753085      Segment: 000

  BAT Trigger Time: 516611361.184   [s; MET]
      Trigger Stop: 516611361.2   [s; MET]
               UTC: 2017-05-16T07:09:02.116500    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 251.82664791688   Dec: -45.8948386454575  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.03
     Image Trigger?:     NO
     Rate S/N Ratio:     16.4012194668567  [ if not an image trigger ]
     Image S/N Ratio:    7.03

  Flight Position:   [ source = BAT ]
    RA: 251.82664791688   Dec: -45.8948386454575  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 251.590852843555   Dec: -45.8094254746484  [deg; J2000]
        { 16h 46m 21.8s , -45d 48' 33.9" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 5.0280601696152 [arcmin] (formal 1-sigma fit error)
    SNR: -2.55662966309926

  Angular difference between Flight and Ground position is 11.107011 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 575.98399990797 +/- 65.5485799648633
        Measured from: 96.6760001182556
                   to: 672.660000026226     [s; relative to TRIGTIME]
     T50: 273.475999951363 +/- 34.4405576918011
        Measured from: 307.024000108242
                   to: 580.500000059605     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 404.103999972343
                   to: 405.103999972343     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 704.60799998045     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.520913  -0.214696  -0.106415  -0.047550
           0.188071   0.172110   0.144418   0.132031 [error]
 Peak      0.013347   0.004322   0.012783   0.010708
           0.006823   0.006241   0.005388   0.004647 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 0.00e+001.30e-07 0.00e+001.53e-08 0.00e+007.02e-10 0.00e+001.25e-10 0.00e+001.48e-07 0.00e+001.33e-07   erg/cm2
              Error 8.06e-08 3.19e-08 5.35e-08 1.74e-06 1.09e-07 1.75e-06   erg/cm2
Peak flux Power-law 2.87e-02 5.13e-02 7.04e-02 2.00e-01 2.03e-01 3.50e-01   ph/cm2/s
              Error 5.59e-02 5.45e-02 5.52e-02 5.36e-01 1.32e-01 3.66e-01   ph/cm2/s

Fluence   Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 1.23e-07 2.65e-08 5.35e-08 -------- 1.05e-07 --------   erg/cm2
Peak flux Cutoff-PL 3.06e-02 5.28e-02 7.03e-02 1.90e-01 2.05e-01 3.44e-01   ph/cm2/s
              Error 5.57e-02 5.41e-02 4.35e-02 -------- 1.71e-01 --------   ph/cm2/s

Fluence        Band 7.37e-08 1.86e-09 1.22e-11 8.01e-14 7.56e-08 7.56e-08   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.335   -1.991    -      -           1.17e-06 7.20e-06   42.530 57
CPL   1.000    0.000      50.0    0.0      1.48e-05 0.00e+00   52.580 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.545    0.995    -      -           1.73e-03 1.48e-03   55.170 57
CPL -10.000    0.998     108.1    0.0      1.29e-01 1.07e-01   54.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  704.608    0.000  704.608
T90   575.984   96.676  672.660
T50   273.476  307.024  580.500
Peak    1.000  404.104  405.104

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  251.5909 -45.8094 0.0759    4.7 -177.3      -0.0811    -2.6  TRIG_00753085
------------------------------------------

Foreground time interval of the image:
  0.000   8.217 (delta_t =   8.217 [sec])
Background time interval of the image:
-239.184   0.000 (delta_t = 239.184 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

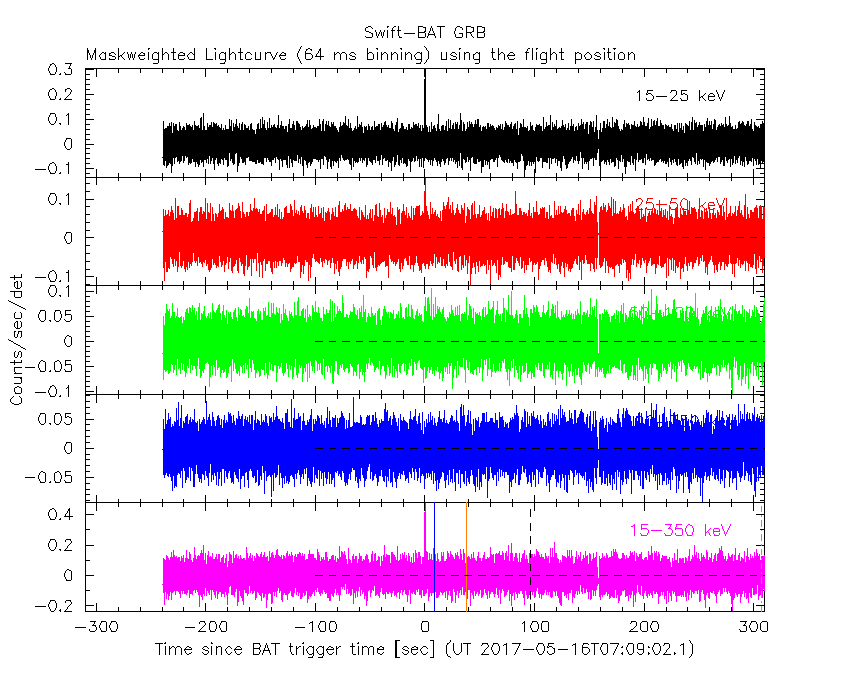

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

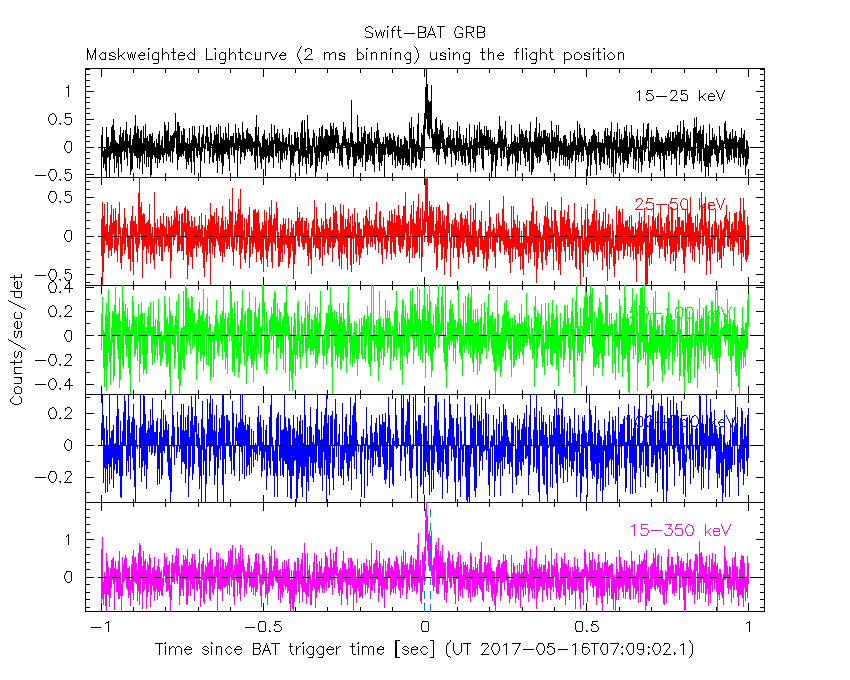

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

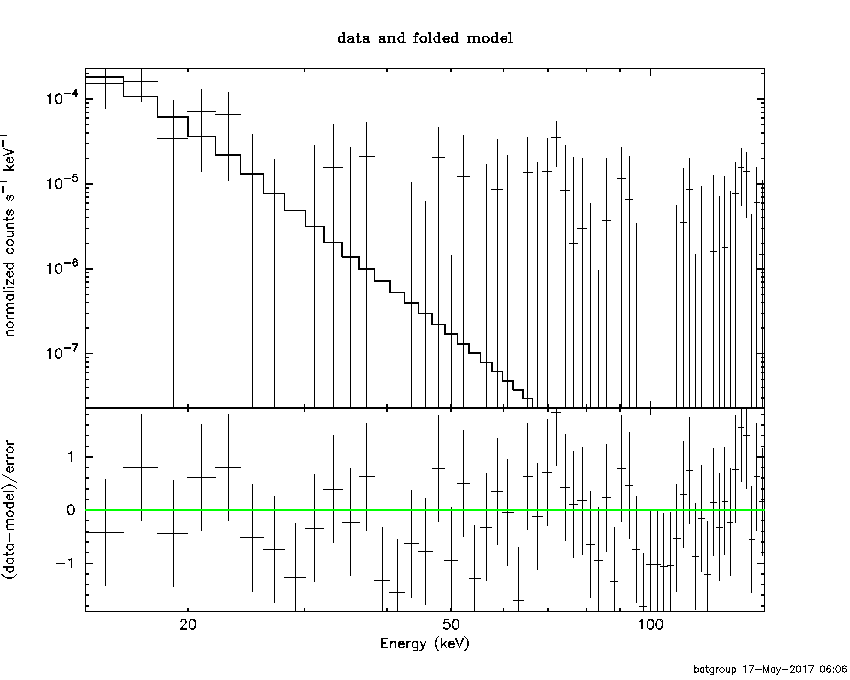

Power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 157.328800
158.816000 537.396000
538.816000 704.608000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.33532     ( -2.32286   -6.30566 )
Norm@50keV  : 1.16924E-06    ( -1.1872e-06   1.3209e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.53 using 59 PHA bins.
# Reduced chi-squared =         0.7461 for     57 degrees of freedom
# Null hypothesis probability =   9.231711e-01

Photon flux (15-150 keV)    in 701.7 sec: 0.0 6.98214E-03 ( -0.00422298  0.00494572 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( -1.01521e-07  1.17011e-07 ) ergs/cm2

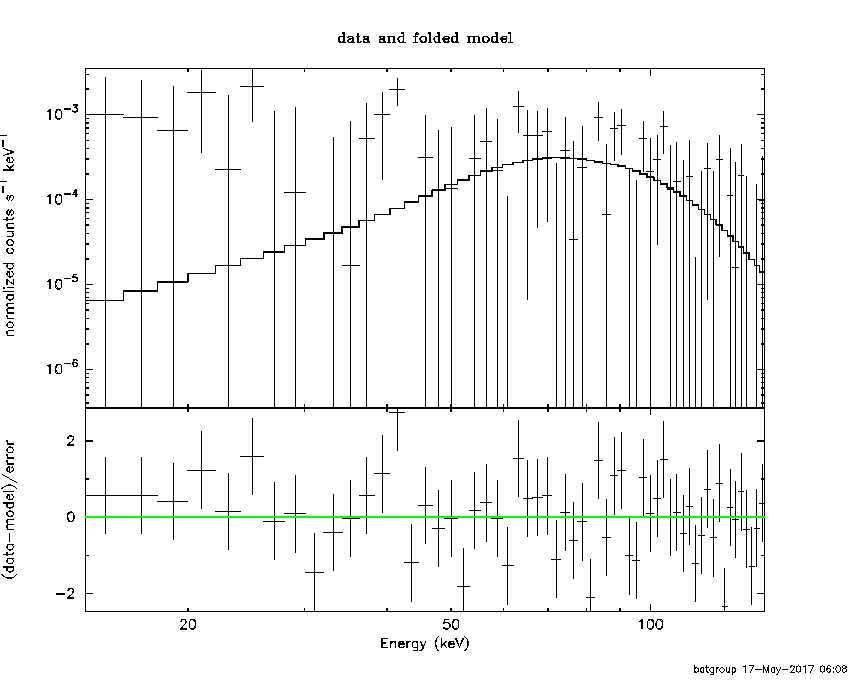

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 157.328800
158.816000 537.396000
538.816000 704.608000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.47977E-05    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.58 using 59 PHA bins.
# Reduced chi-squared =         0.9389 for     56 degrees of freedom
# Null hypothesis probability =   6.052615e-01

Photon flux (15-150 keV)    in 701.7 sec: 0.0 7.97929E-03 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

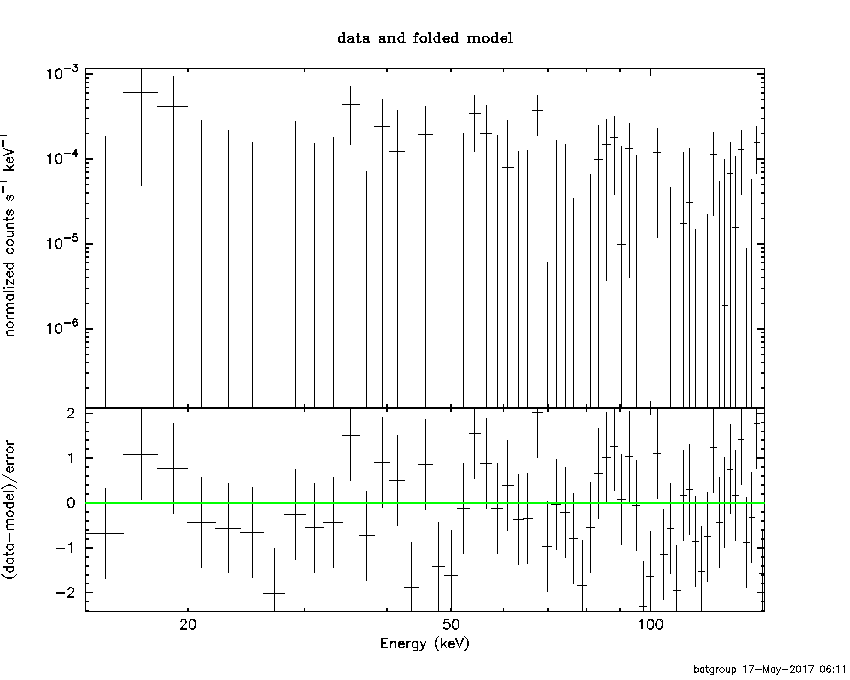

Band function

Multiple GTIs in the spectrum
tstart tstop
0.000000 157.328800
158.816000 537.396000
538.816000 704.608000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.79341   ( 0.98395   0.98395 )
beta        : -9.37167    ( 2.5   2.5 )
Epeak [keV] : 10.5126      ( -80 -80 )
Norm@50keV   : 64.5219    ( -63.7966   4743.9 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.89 using 59 PHA bins.
# Reduced chi-squared =         0.7617 for     55 degrees of freedom
# Null hypothesis probability =   9.033063e-01

Photon flux (15-150 keV)    in 701.7 sec: 0.0 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.56005e-08 ( -7.06886e-08  -7.56005e-08 ) ergs/cm2

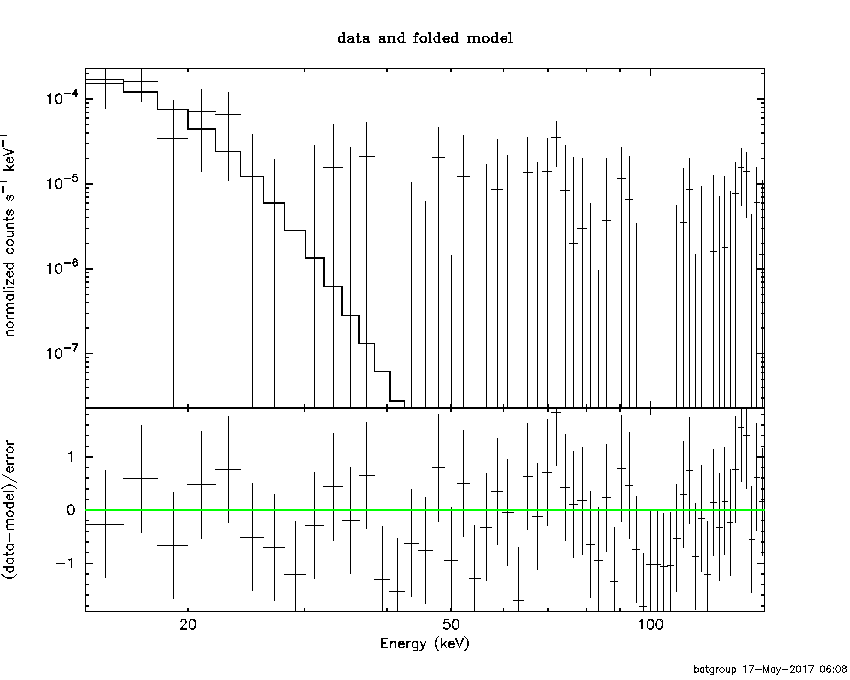

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.30800  (-1.06347  1.36003)
R^2/D10^2   : 6.91520  (-7.4597   2177.6)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.86 using 59 PHA bins.
# Reduced chi-squared =         0.7344 for     57 degrees of freedom
# Null hypothesis probability =   9.336562e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.459e-07   8.266e-08
25- 50  7.679e-09   5.645e-09
50-150  1.073e-12   2.018e-12
15-150  1.536e-07   8.827e-08

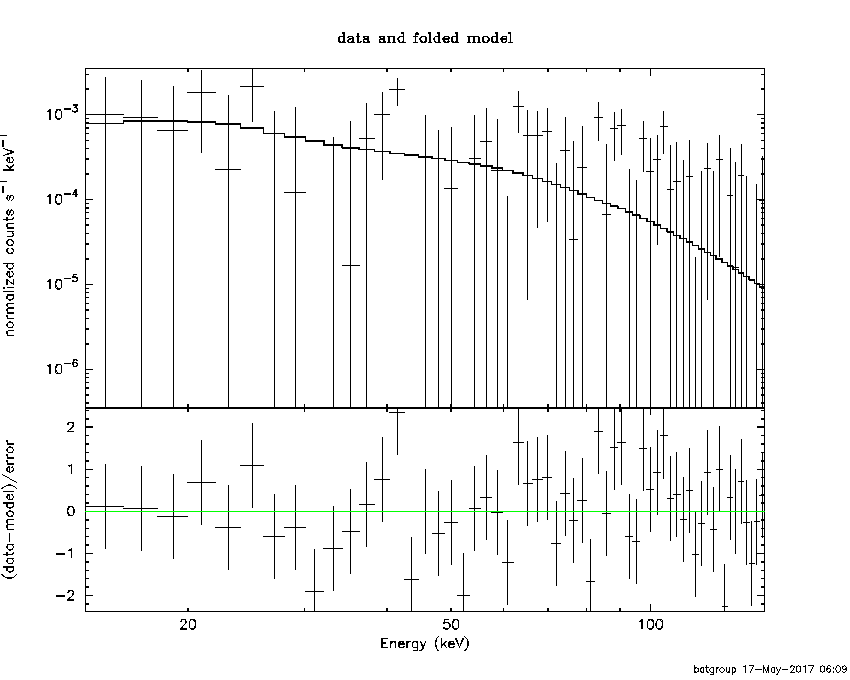

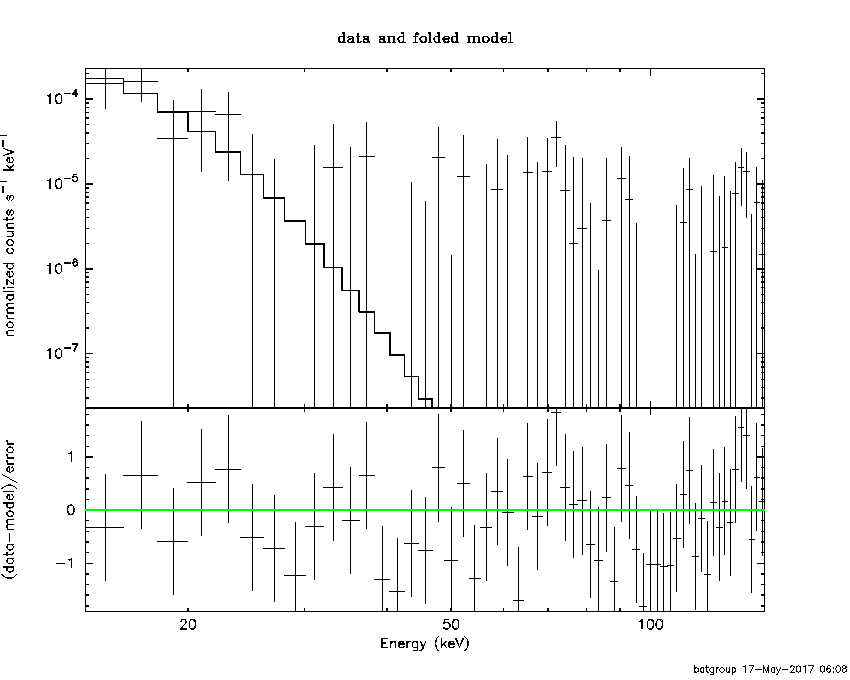

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 3.92513       (-2.30609      4.65227)
Norm        : 4.47777       (-4.5175     822.221)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.04 using 59 PHA bins.
# Reduced chi-squared =         0.7376 for     57 degrees of freedom
# Null hypothesis probability =   9.309015e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.393e-07   8.080e-08
25- 50  9.639e-09   6.294e-09
50-150  1.260e-11   1.700e-11
15-150  1.489e-07   9.031e-08

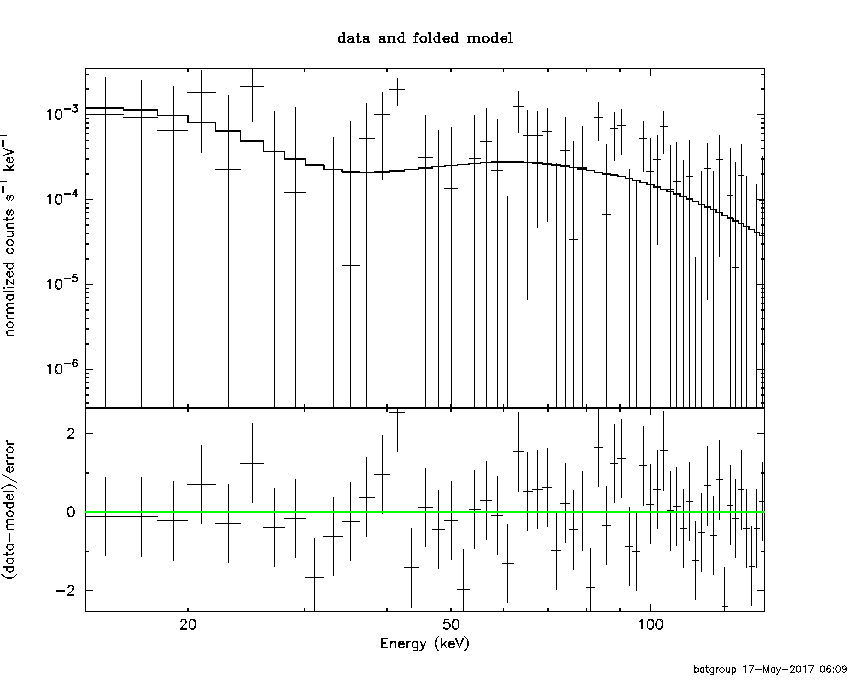

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.00110E-04        (-0.00010011      -0.00010011)
R1^2/D10^2  : 7.24188        (-7.24188      -7.24188)
kT2 [keV]   : 2.28518        (-1.06843      1.35311)
R2^2/D10^2  : 7.49040    (-7.49048   2193.01)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.87 using 59 PHA bins.
#Fit statistic : Chi-Squared =          41.86 using 59 PHA bins.
# Reduced chi-squared =         0.7613 for     55 degrees of freedom
# Reduced chi-squared =         0.7610 for     55 degrees of freedom
# Null hypothesis probability =   9.036767e-01
# Null hypothesis probability =   9.039988e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.410e-07   4.817e+04
25- 50  7.256e-09   3.593e+05
50-150  9.591e-13   9.441e+06
15-150  1.483e-07   9.989e+06

Peak spectrum fit

Power-law model

Time interval is from  404.104 sec. to  405.104 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.545292     ( -0.545121   1.44579 )
Norm@50keV  : 1.72720E-03    ( -0.00172706   0.00124181 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.17 using 59 PHA bins.
# Reduced chi-squared =         0.9679 for     57 degrees of freedom
# Null hypothesis probability =   5.441055e-01

Photon flux (15-150 keV)    in 1 sec: 0.203128 ( -0.125281  0.139308 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.26849e-08 ( -2.26849e-08  1.32571e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  404.104 sec. to  405.104 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99955     ( -0.576072   1.42028 )
Epeak [keV] : 108.058      ( -9999.36 -9999.36 )
Norm@50keV  : 0.128965    ( -0.128149   0.086638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.85 using 59 PHA bins.
# Reduced chi-squared =         0.9795 for     56 degrees of freedom
# Null hypothesis probability =   5.184400e-01

Photon flux (15-150 keV)    in 1 sec: 0.204764 ( -0.204764  0.13776 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.26365e-08 ( -1.31867e-08  1.33216e-08 ) ergs/cm2

Band function

Time interval is from  404.104 sec. to  405.104 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.859114   ( 0.859419   0.859419 )
beta        : -0.545368    ( 0.545095   0.545095 )
Epeak [keV] : 10.6857      ( -10.6805 -10.6805 )
Norm@50keV   : 2.91823E-03    ( -0.00291928   442782 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.17 using 59 PHA bins.
# Reduced chi-squared =          1.003 for     55 degrees of freedom
# Null hypothesis probability =   4.682701e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 41.0201  (-41.418  -41.418)
R^2/D10^2   : 1.39718E-03  (-0.00137848   0.0115691)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.21 using 59 PHA bins.
# Reduced chi-squared =         0.9687 for     57 degrees of freedom
# Null hypothesis probability =   5.423559e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.525e-09   2.015e-09
25- 50  2.028e-09   1.766e-09
50-150  1.231e-10   1.727e-10
15-150  4.677e-09   3.961e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.362       (-199.363      -199.363)
Norm        : 0.886175       (-0.566825     0.566848)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =         0.9993 for     57 degrees of freedom
# Null hypothesis probability =   4.766502e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.207e-09   1.572e-09
25- 50  4.245e-09   3.177e-09
50-150  9.310e-09   6.605e-09
15-150  1.576e-08   1.103e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.48804        (-3.49191      128.578)
R1^2/D10^2  : 5.09173        (-5.07549      -5.07549)
kT2 [keV]   : 47.1028        (-26.7991      -47.1137)
R2^2/D10^2  : 9.66065E-04    (-0.000929634   0.00669641)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.66 using 59 PHA bins.
# Reduced chi-squared =         0.9757 for     55 degrees of freedom
# Null hypothesis probability =   5.258671e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.535e-09   1.517e-09
25- 50  2.295e-09   1.228e-09
50-150  2.009e-08   1.140e-08
15-150  2.492e-08   1.476e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50000     ( -1.5   -1.5 )
Norm@50keV  : 0.0    ( 0   0.000208041 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.85 using 59 PHA bins.
# Reduced chi-squared =          1.173 for     57 degrees of freedom
# Null hypothesis probability =   1.747573e-01

Photon flux (15-150 keV)    in 8.217 sec: 0.0 ( 0  0.0325296 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  1.88708e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.85 using 59 PHA bins.
# Reduced chi-squared =          1.194 for     56 degrees of freedom
# Null hypothesis probability =   1.521118e-01

Photon flux (15-150 keV)    in 8.217 sec: 0.0 ( 0  0.0325116 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  1.89517e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.983950   ( 0.98395   0.98395 )
beta        : -2.50000    ( 2.5   2.5 )
Epeak [keV] : 80.0000      ( -80 -80 )
Norm@50keV   : 0.0    ( 0   20062.7 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.85 using 59 PHA bins.
# Reduced chi-squared =          1.215 for     55 degrees of freedom
# Null hypothesis probability =   1.313881e-01

Photon flux (15-150 keV)    in 8.217 sec: 0.0 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 0.00e+001.53e-08
S(50-100 keV) = 0.00e+007.02e-10

T90 vs. Hardness ratio plot

T90                                   = 575.98399990797 sec.
Hardness ratio (energy fluence ratio) =

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = -0.412153
Count Ratio (50-100 keV) / (15-25 keV) = -0.204286

Mask shadow pattern

IMX = -8.148930779679461E-02, IMY = 3.887489598850079E-03

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.184000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2962 -60.6165    1.9  42.8   -4.0   2.6557   6.0    0.7	Cen X-3
186.6238 -62.7434    2.1  34.8   -4.6   1.9308   5.4    1.8	GX 301-2
244.9885 -15.6397    0.5  33.2  129.1  13.0470  24.1    0.5	Sco X-1
255.9907 -37.8556    0.7  13.0  167.4   4.2334  15.9    0.7	4U 1700-377
256.4751 -36.4803    2.9  14.4  166.0   1.0901   4.0    3.9	GX 349+2
263.1033 -24.7612    3.5  27.4  166.1   1.0481   3.3    5.2	GX 1+4
264.5931 -44.3464    4.9  13.3 -151.5   0.6422   2.4    8.9	4U 1735-44
268.5562  -1.3971    4.0  51.1  160.5   3.0636   2.9   11.8	SW J1753.5-0127
270.3112 -25.0184    5.5  30.3  178.3   0.6689   2.1    3.9	GX 5-1
270.3863 -25.6131    6.2  29.8  179.0   0.5698   1.9    9.0	GRS 1758-258
274.1166 -13.9278   12.7  41.7  174.3   0.4256   0.9    9.2	GX 17+2
276.0056 -30.3862    2.9  29.0 -167.0   1.1721   4.0    4.3	H1820-303
285.2104 -24.8371    0.0  38.6 -162.7  -0.2368  -0.6   10.7	HT1900.1-2455
263.0178 -33.7640    2.2  19.5  177.0   1.4093   5.3    4.5	GX 354-0
259.8942 -25.0014    0.8  26.1  160.3   4.2003  14.4 ------	UNKNOWN
159.2351 -51.8039    2.4  52.3    2.8   3.4000   4.9 ------	UNKNOWN
255.2157 -41.6543    1.7   9.5  175.6   1.8178   6.7 ------	UNKNOWN
289.9975 -35.7256    2.5  34.3 -144.5   1.6976   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 8.216600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2398 -60.5807  117.2  42.8   -4.0  -0.0051  -0.1    3.4	Cen X-3
186.3072 -62.8652    7.2  34.9   -4.9   0.0723   1.6   11.1	GX 301-2
244.9673 -15.5516    8.1  33.3  129.0  -0.0854  -1.4    5.4	Sco X-1
255.9972 -37.6514    8.1  13.2  167.0  -0.0480  -1.4   11.6	4U 1700-377
256.3573 -36.5671    5.5  14.3  165.9   0.0688   2.1    9.4	GX 349+2
263.0306 -24.8757    7.7  27.3  166.0  -0.0556  -1.5    7.9	GX 1+4
264.7923 -44.6589    0.0  13.3 -150.0   0.1073   3.2   12.7	4U 1735-44
268.4639  -1.3713    3.2  51.1  160.4  -0.5082  -3.6    7.5	SW J1753.5-0127
270.0823 -25.1382   10.9  30.1  178.1  -0.0424  -1.1   11.5	GX 5-1
270.4052 -25.6243    3.4  29.8  179.1  -0.1368  -3.5    9.0	GRS 1758-258
273.9622 -14.1021   28.4  41.5  174.2  -0.0237  -0.4    4.7	GX 17+2
276.0116 -30.4176    3.9  29.0 -167.0   0.1055   2.9    5.4	H1820-303
285.1505 -24.8085    4.3  38.6 -162.8  -0.1240  -2.7    9.2	HT1900.1-2455
263.0342 -33.7262   10.2  19.5  177.0  -0.0386  -1.1    6.9	GX 354-0
180.6045 -45.3363    2.7  43.5   20.1   0.2752   4.2 ------	UNKNOWN
312.1434 -42.8616    2.0  44.8 -120.2   0.7828   5.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
38.016600 157.328800
158.816000 537.396000
538.816000 782.996000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1583 -60.5839    8.0  47.5  -12.7   5.0457   1.4    5.2	Cen X-3
186.9563 -62.6999    9.9  39.3  -12.9   2.8478   1.2    9.3	GX 301-2
244.9665 -15.6223    1.1  30.8  113.2  36.6868  11.0    1.3	Sco X-1
256.0334 -37.8469    3.8   8.6  148.9   5.8173   3.1    2.2	4U 1700-377
256.2646 -36.4911    3.2  10.0  147.3   7.1349   3.7    9.2	GX 349+2
262.8837 -24.8405    6.8  22.9  152.8   3.4686   1.7    8.9	GX 1+4
264.7122 -44.2955   45.5   9.2 -149.2  -0.4692  -0.3    9.4	4U 1735-44
268.3167  -1.3522   14.2  46.8  149.1   6.4382   0.8    6.8	SW J1753.5-0127
270.2974 -25.0044    5.6  25.6  167.8   4.5723   2.0    4.5	GX 5-1
270.3004 -25.9419    0.0  24.8  168.9   2.5128   1.2   11.9	GRS 1758-258
274.0901 -14.1277   64.8  36.9  163.9   0.5987   0.2    7.4	GX 17+2
275.9390 -30.2581   19.0  24.4 -175.2   1.1861   0.6    6.6	H1820-303
284.9035 -24.8761    7.5  33.8 -170.9   3.5811   1.5    7.7	HT1900.1-2455
262.8431 -33.7490    8.2  14.8  164.7   2.7020   1.4    8.9	GX 354-0
266.9433 -17.6670    2.6  30.9  155.1  10.5677   4.5 ------	UNKNOWN
259.8621 -25.0257    1.3  21.9  146.1  17.0548   8.9 ------	UNKNOWN
177.1649 -60.7192    2.8  44.2  -11.3  11.5697   4.1 ------	UNKNOWN
149.9661 -59.7218    3.1  56.8  -17.7  34.7812   3.8 ------	UNKNOWN
312.5267 -18.2809    2.7  56.7 -151.8  49.2391   4.3 ------	UNKNOWN
317.2339 -37.7353    2.5  48.1 -129.1  41.5317   4.5 ------	UNKNOWN

Plot creation:
Wed May 17 06:13:27 EDT 2017
