batgrbproduct Analysis for Trigger=765081

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Jul 29 17:50:47 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger765081/GCN5_download_cron
======================================================================

  Trigger: 00765081      Segment: 000

  BAT Trigger Time: 522953897.408   [s; MET]
      Trigger Stop: 522953899.456   [s; MET]
               UTC: 2017-07-28T16:57:57.968060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 274.368255189849   Dec: -16.7217173369935  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.63
     Image Trigger?:     NO
     Rate S/N Ratio:     10.1488915650922  [ if not an image trigger ]
     Image S/N Ratio:    8.63

  Flight Position:   [ source = BAT ]
    RA: 274.368255189849   Dec: -16.7217173369935  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 274.360431885198   Dec: -16.7212421220277  [deg; J2000]
        { 18h 17m 26.5s , -16d 43' 16.5" }
         +/- 2.2728455778149 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.04516723159554 [arcmin] (formal 1-sigma fit error)
    SNR: 9.41310202782811

  Angular difference between Flight and Ground position is 0.450453 arcmin

  Partial Coding Fraction: 0.8828125    [ including projection effects ]

  Duration
     T90: 9.33999997377396 +/- 1.06662084403458
        Measured from: -4.08799988031387
                   to: 5.25200009346008     [s; relative to TRIGTIME]
     T50: 4.77599996328354 +/- 2.85796637959823
        Measured from: -2.58399987220764
                   to: 2.1920000910759     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.819999992847443
                   to: 1.81999999284744     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.43999999761581
                   to: 5.45200002193451     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.289471   0.047768   0.031346   0.031859
           0.025019   0.021202   0.018816   0.019181 [error]
 Peak      0.051509   0.010949   0.012805  -0.003713
           0.008236   0.006688   0.005817   0.006247 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.39e-08 2.40e-08 3.72e-09 6.58e-10 1.12e-07 1.12e-07   erg/cm2
              Error 1.40e-08 1.01e-08 3.58e-09 1.29e-09 2.23e-08 2.25e-08   erg/cm2
Peak flux Power-law 4.74e-01 1.28e-01 1.86e-02 3.06e-03 6.23e-01 6.24e-01   ph/cm2/s
              Error 1.30e-01 6.93e-02 2.60e-02 8.85e-03 1.71e-01 1.71e-01   ph/cm2/s

Fluence   Cutoff-PL 9.01e-08 1.38e-08 4.03e-11 1.12e-16 1.04e-07 1.04e-07   erg/cm2
              Error 1.61e-08 1.41e-08 3.46e-09 0.00e+00 1.55e-08 1.97e-08   erg/cm2
Peak flux Cutoff-PL 4.77e-01 1.22e-01 1.61e-02 2.49e-03 6.17e-01 6.19e-01   ph/cm2/s
              Error 1.28e-01 9.55e-02 2.61e-02 8.85e-03 1.70e-01 1.71e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.691    0.736    -      -           2.99e-04 2.24e-04   71.390 57
CPL   1.000    0.000      50.0    0.0      4.34e-03 0.00e+00  131.270 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.787    1.076    -      -           1.21e-03 1.18e-03   48.560 57
CPL  -9.257    0.476      16.9    3.1      1.57e+08 2.32e+09   47.870 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    9.892   -4.440    5.452
T90     9.340   -4.088    5.252
T50     4.776   -2.584    2.192
Peak    1.000    0.820    1.820

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  274.3604 -16.7212 0.0205   15.9   57.4       0.4222     9.4  TRIG_00765081
------------------------------------------

Foreground time interval of the image:
 -4.440   5.452 (delta_t =   9.892 [sec])
Background time interval of the image:
-239.408  -4.440 (delta_t = 234.968 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

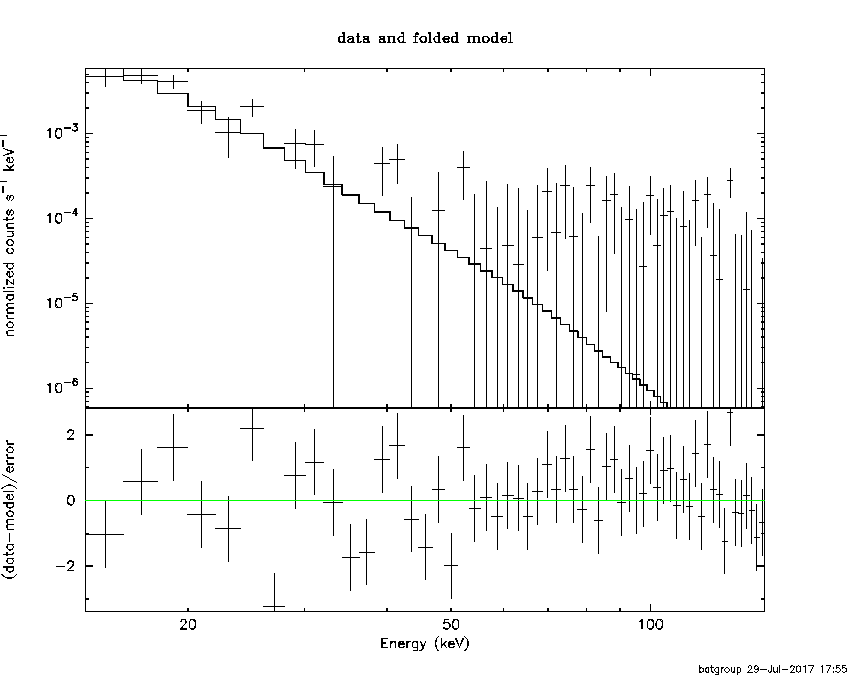

Power-law model

Time interval is from   -4.440 sec. to    5.452 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.69081     ( -0.684466   0.787719 )
Norm@50keV  : 2.98795E-04    ( -0.000169313   0.000278157 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.39 using 59 PHA bins.
# Reduced chi-squared =          1.252 for     57 degrees of freedom
# Null hypothesis probability =   9.510986e-02

Photon flux (15-150 keV)    in 9.892 sec: 0.344333 ( -0.0585596  0.0586694 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12062e-07 ( -2.16421e-08  2.28682e-08 ) ergs/cm2

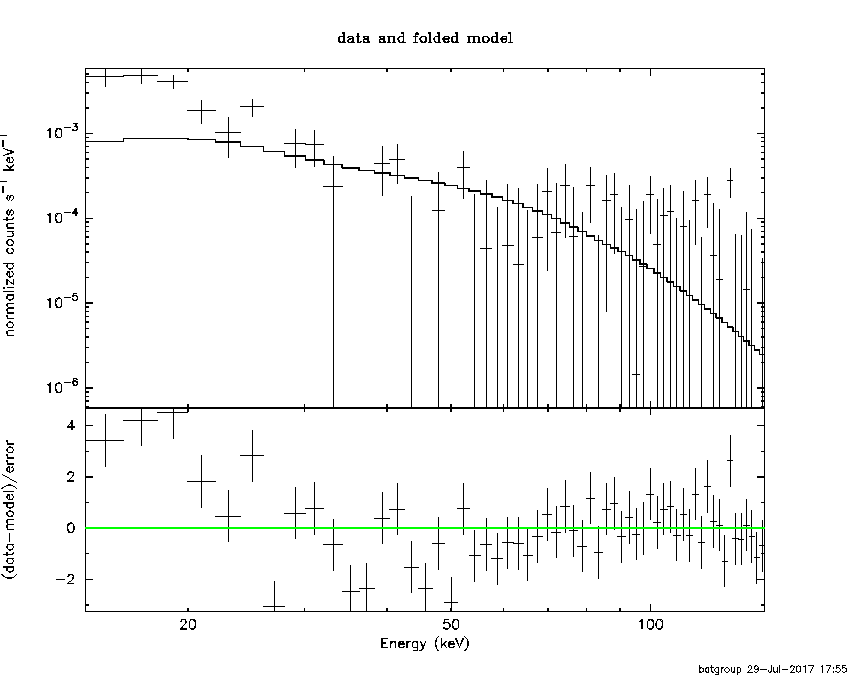

Cutoff power-law model

Time interval is from   -4.440 sec. to    5.452 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 4.33723E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         131.27 using 59 PHA bins.
# Reduced chi-squared =         2.3441 for     56 degrees of freedom
# Null hypothesis probability =   5.544671e-08

Photon flux (15-150 keV)    in 9.892 sec: 0.342283 ( -0.056622  0.056683 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.03964e-07 ( -1.8563e-08  1.24382e-08 ) ergs/cm2

Band function

Time interval is from   -4.440 sec. to    5.452 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.74365   ( 8.74365   8.74365 )
beta        : -4.69081    ( -0.787757   0.684487 )
Epeak [keV] : 2.36415      ( -2.36415 -2.36415 )
Norm@50keV   : 4.06105E-02    ( -0.0230094   0.0378055 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.39 using 59 PHA bins.
# Reduced chi-squared =          1.298 for     55 degrees of freedom
# Null hypothesis probability =   6.782724e-02

Photon flux (15-150 keV)    in 9.892 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.95561  (-0.436976  0.528349)
R^2/D10^2   : 53.9013  (-53.9013   103.128)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.18 using 59 PHA bins.
# Reduced chi-squared =          1.231 for     57 degrees of freedom
# Null hypothesis probability =   1.127629e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.081e-08   4.779e-08
25- 50  1.256e-08   7.691e-09
50-150  1.791e-11   1.845e-11
15-150  1.034e-07   5.683e-08

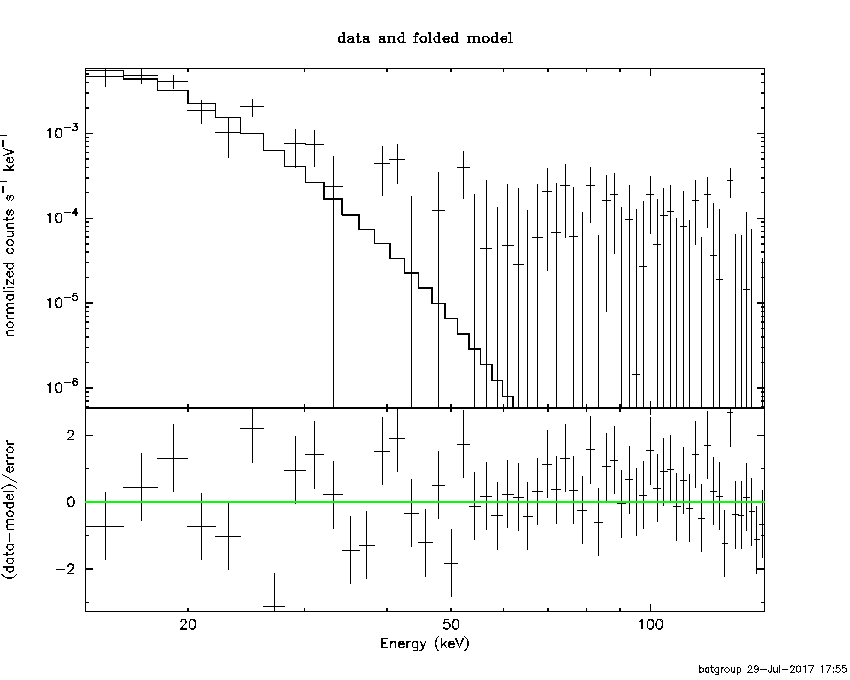

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.11901       (-1.41593      2.05132)
Norm        : 40.6314       (-22.2818     55.3815)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.30 using 59 PHA bins.
# Reduced chi-squared =          1.233 for     57 degrees of freedom
# Null hypothesis probability =   1.108847e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.828e-08   4.020e-08
25- 50  1.707e-08   9.538e-09
50-150  2.233e-10   2.054e-10
15-150  1.056e-07   4.824e-08

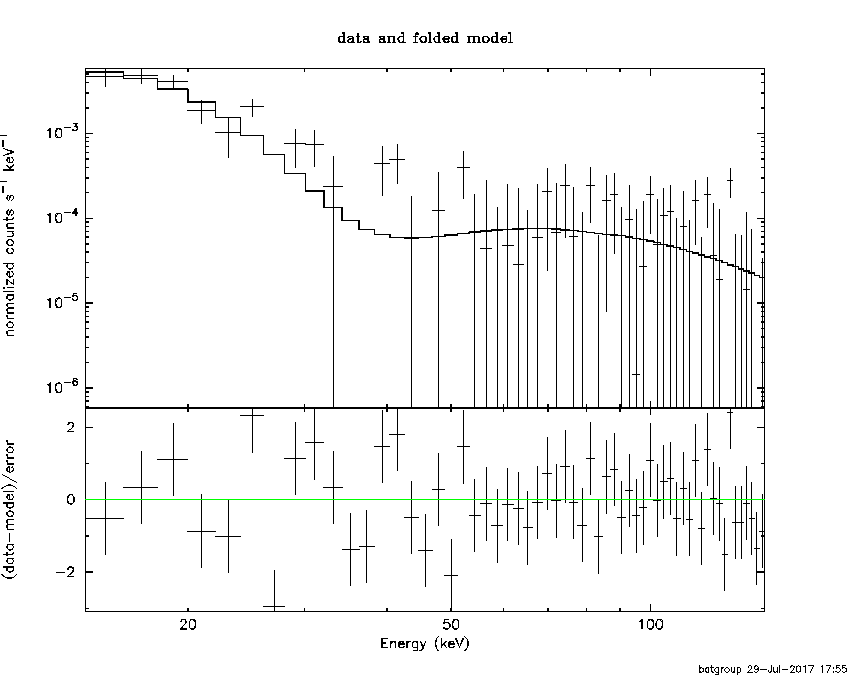

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.89994        (-0.429502      0.51185)
R1^2/D10^2  : 60.1521        (-39.8198      113.9)
kT2 [keV]   : 88.2880        (-66.068      -88.6246)
R2^2/D10^2  : 9.04774E-05    (-8.13133e-05   0.00182186)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.39 using 59 PHA bins.
# Reduced chi-squared =          1.171 for     55 degrees of freedom
# Null hypothesis probability =   1.809556e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.030e-08   4.929e-08
25- 50  1.538e-08   8.291e-09
50-150  6.966e-08   5.455e-08
15-150  1.753e-07   9.532e-08

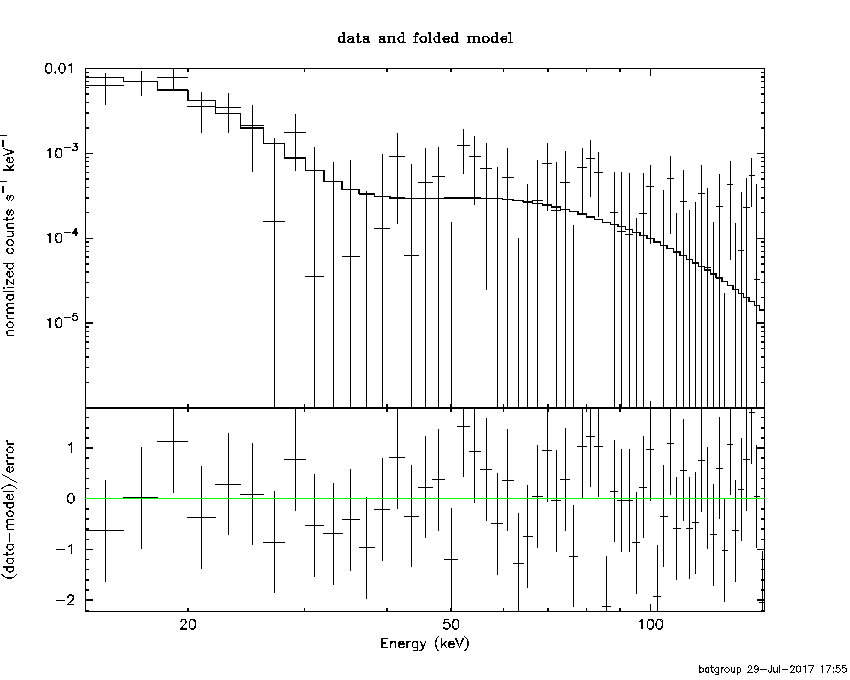

Peak spectrum fit

Power-law model

Time interval is from    0.820 sec. to    1.820 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.78722     ( -0.936522   1.21475 )
Norm@50keV  : 1.21308E-03    ( -0.000875977   0.00149267 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.56 using 59 PHA bins.
# Reduced chi-squared =         0.8519 for     57 degrees of freedom
# Null hypothesis probability =   7.793867e-01

Photon flux (15-150 keV)    in 1 sec: 0.622814 ( -0.170315  0.170784 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.29969e-08 ( -7.72446e-09  9.25585e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.820 sec. to    1.820 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.25712     ( 9.27415   10.227 )
Epeak [keV] : 16.8812      ( -3.63041 2.49755 )
Norm@50keV  : 1.56634E+08    ( -1.72574e+08   4.46323e+09 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.87 using 59 PHA bins.
# Reduced chi-squared =         0.8549 for     56 degrees of freedom
# Null hypothesis probability =   7.717548e-01

Photon flux (15-150 keV)    in 1 sec: 0.616556 ( -0.164942  0.175889 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.29953e-08 ( -9.5514e-09  9.2232e-09 ) ergs/cm2

Band function

Time interval is from    0.820 sec. to    1.820 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.14141   ( 1.68739   1.68739 )
beta        : -4.78535    ( 4.13738   1.2353 )
Epeak [keV] : 14.9173      ( -3.12491 75.4235 )
Norm@50keV   : 7738.95    ( -7753.28   1.4923e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.69 using 59 PHA bins.
# Reduced chi-squared =         0.8670 for     55 degrees of freedom
# Null hypothesis probability =   7.474594e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.36156  (-0.741213  0.957423)
R^2/D10^2   : 42.3491  (-42.3491   148.586)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.44 using 59 PHA bins.
# Reduced chi-squared =         0.8498 for     57 degrees of freedom
# Null hypothesis probability =   7.829874e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.552e-08   8.700e-09
25- 50  3.311e-09   2.225e-09
50-150  1.275e-11   1.450e-11
15-150  1.884e-08   1.088e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 7.89114       (-2.9065      6.38477)
Norm        : 35.3108       (-35.3108     88.4764)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.98 using 59 PHA bins.
# Reduced chi-squared =         0.8592 for     57 degrees of freedom
# Null hypothesis probability =   7.662961e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.483e-08   8.505e-09
25- 50  4.504e-09   3.013e-09
50-150  1.517e-10   1.698e-10
15-150  1.948e-08   1.162e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.15734        (-0.732877      0.892852)
R1^2/D10^2  : 57.8114        (-43.6478      97.4071)
kT2 [keV]   : 29.2326        (-17.6609      -29.2668)
R2^2/D10^2  : 2.97377E-03    (-0.00293987   0.0348628)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.65 using 59 PHA bins.
# Reduced chi-squared =         0.7937 for     55 degrees of freedom
# Null hypothesis probability =   8.648131e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.515e-08   8.995e-09
25- 50  5.025e-09   2.708e-09
50-150  1.503e-08   1.017e-08
15-150  3.520e-08   1.777e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.69081     ( -0.684466   0.787719 )
Norm@50keV  : 2.98795E-04    ( -0.000169313   0.000278157 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.39 using 59 PHA bins.
# Reduced chi-squared =          1.252 for     57 degrees of freedom
# Null hypothesis probability =   9.510986e-02

Photon flux (15-150 keV)    in 9.892 sec: 0.344333 ( -0.0585596  0.0586694 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12062e-07 ( -2.16421e-08  2.28682e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 4.33723E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         131.27 using 59 PHA bins.
# Reduced chi-squared =         2.3441 for     56 degrees of freedom
# Null hypothesis probability =   5.544671e-08

Photon flux (15-150 keV)    in 9.892 sec: 0.342283 ( -0.056622  0.056683 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.03964e-07 ( -1.8563e-08  1.24382e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.74365   ( 8.74365   8.74365 )
beta        : -4.69081    ( -0.787757   0.684487 )
Epeak [keV] : 2.36415      ( -2.36415 -2.36415 )
Norm@50keV   : 4.06105E-02    ( -0.0230094   0.0378055 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.39 using 59 PHA bins.
# Reduced chi-squared =          1.298 for     55 degrees of freedom
# Null hypothesis probability =   6.782724e-02

Photon flux (15-150 keV)    in 9.892 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.40e-08
S(50-100 keV) = 3.72e-09

T90 vs. Hardness ratio plot

T90                                   = 9.33999997377396 sec.
Hardness ratio (energy fluence ratio) = 0.155

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.165018
Count Ratio (50-100 keV) / (15-25 keV) = 0.108287

Mask shadow pattern

IMX = 1.532574817352014E-01, IMY = -2.395353289469724E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.408000 -4.440000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9852 -15.6470    0.2  16.8  -62.7  18.0625  57.7    0.5	Sco X-1
255.7868 -37.9744   98.3  13.4 -169.9  -0.0363  -0.1   12.3	4U 1700-377
256.4606 -36.4986    5.9  11.8 -170.4   0.6041   2.0    4.7	GX 349+2
262.9158 -24.8782  243.1   2.8   83.7   0.0145   0.0    9.4	GX 1+4
264.9440 -44.3927    3.4  19.8  165.4   1.0558   3.4    9.3	4U 1735-44
268.3068  -1.3029    9.2  25.1   16.4   0.3933   1.3    9.7	SW J1753.5-0127
270.3579 -25.2264    3.1   9.5   89.6   1.1150   3.7    9.7	GX 5-1
270.4671 -25.5934    0.0   9.6   91.8   0.6250   2.1   12.6	GRS 1758-258
274.0198 -14.1140    7.3  17.2   49.4   0.4919   1.6    4.7	GX 17+2
276.0412 -30.5051    4.1  15.3  110.7   0.9348   2.8   10.2	H1820-303
285.1819 -24.7650    0.0  22.9   90.9  -0.5881  -1.4   12.3	HT1900.1-2455
288.7222  11.0943   31.3  45.8   37.5   0.3784   0.4   10.0	GRS 1915+105
263.0024 -33.7738   10.7   9.2  159.5   0.3206   1.1    3.7	GX 354-0
193.5209 -62.7673    3.2  57.1 -153.9   6.6986   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.440000 5.452000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8110 -15.7024    5.0  16.9  -63.2  -0.1100  -2.3   10.4	Sco X-1
256.1889 -37.7104    0.0  13.1 -170.9  -0.0079  -0.2   12.5	4U 1700-377
256.5446 -36.4550   12.7  11.8 -170.7   0.0360   0.9    5.6	GX 349+2
262.8406 -24.8066    3.7   2.7   82.1   0.1254   3.1    9.9	GX 1+4
264.9423 -44.4308   11.8  19.8  165.4  -0.0417  -1.0    8.6	4U 1735-44
268.2308  -1.4533    3.8  24.9   16.3  -0.1337  -3.1    8.2	SW J1753.5-0127
270.1201 -25.2285    0.0   9.3   89.6   0.0735   1.7   12.6	GX 5-1
270.4559 -25.7619    6.5   9.6   92.8  -0.0821  -1.9    8.4	GRS 1758-258
274.1516 -13.8913    0.0  17.5   49.2   0.0027   0.1   12.2	GX 17+2
275.7894 -30.4611    7.0  15.1  110.8  -0.0710  -1.7    9.0	H1820-303
284.8806 -25.0058   19.2  22.6   91.4   0.0315   0.6    9.9	HT1900.1-2455
288.8275  10.8599    4.2  45.7   37.8   0.3366   2.7    5.4	GRS 1915+105
262.8165 -33.7239   16.0   9.1  160.4  -0.0294  -0.7   10.9	GX 354-0
288.6360  17.6823    2.4  51.1   32.3   0.9815   4.8 ------	UNKNOWN
274.3604 -16.7212    1.2  15.9   57.4   0.4222   9.4 ------	UNKNOWN
243.1334  17.2773    2.4  45.3  -26.6   0.3343   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
67.992630 129.572000
132.592000 331.542000
336.592000 644.043600
645.592000 786.772000
787.592000 962.665800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9908 -15.6444    0.2  28.2 -100.8  63.5107  48.8    0.7	Sco X-1
254.3442  35.3910   95.8  55.5  -28.5   0.4211   0.1    6.3	Her X-1
255.9831 -37.8532    0.7  26.6 -154.9  17.1477  17.1    0.6	4U 1700-377
256.5849 -36.3681    6.1  25.2 -153.4   1.8458   1.9    7.9	GX 349+2
262.8219 -24.8336    6.0  13.5 -137.6   1.6085   1.9   11.5	GX 1+4
264.7486 -44.4487    9.3  28.9 -174.4   1.1110   1.2    0.3	4U 1735-44
268.2518  -1.2848    0.0  16.6  -30.6   0.1003   0.1   12.2	SW J1753.5-0127
270.3073 -25.0590    1.7   9.2 -165.0   5.3926   6.9    1.7	GX 5-1
270.3841 -25.7689    7.6   9.8 -167.2   1.1854   1.5    4.7	GRS 1758-258
274.0054 -14.0358    7.6   2.7  -16.0   1.2709   1.5    0.0	GX 17+2
275.8545 -30.4306    4.2  13.8  165.9   2.2989   2.8    5.3	H1820-303
284.8563 -25.0561    0.0  12.9  123.4   2.2400   2.7   12.7	HT1900.1-2455
288.7272  10.9523    3.0  31.1   19.4   3.9642   3.8    4.2	GRS 1915+105
262.8044 -33.8701    5.9  20.0 -159.7  -1.7734  -1.9    9.4	GX 354-0
267.4756  -5.7339    3.2  12.9  -41.0   2.7449   3.6 ------	UNKNOWN
259.8612 -24.9779    1.9  15.8 -132.5   5.6316   6.2 ------	UNKNOWN
239.2962   9.5351    2.2  43.5  -64.1  18.7111   5.3 ------	UNKNOWN
242.4484  19.8383    4.3  48.2  -50.6  10.6072   2.7 ------	UNKNOWN

Plot creation:
Sat Jul 29 17:56:47 EDT 2017
