batgrbproduct analysis for trigger=766161

batgrbproduct Analysis for Trigger=766161

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Aug  4 23:15:52 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger766161/GCN5_download_cron
======================================================================

  Trigger: 00766161      Segment: 000

  BAT Trigger Time: 523516136   [s; MET]
      Trigger Stop: 523516200   [s; MET]
               UTC: 2017-08-04T05:08:36.526800    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 230.833563887997   Dec: -19.5473832952482  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.29
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.29

  Flight Position:   [ source = BAT ]
    RA: 230.833563887997   Dec: -19.5473832952482  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 230.780788458265   Dec: -19.5906859540611  [deg; J2000]
        { 15h 23m 07.4s , -19d 35' 26.5" }
         +/- 4.52578662722494 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.3883821821085 [arcmin] (formal 1-sigma fit error)
    SNR: 3.5189456463489

  Angular difference between Flight and Ground position is 3.956316 arcmin

  Partial Coding Fraction: 0.8359375    [ including projection effects ]

  Duration
     T90: 71.7959999442101 +/- 18.9723404888213
        Measured from: 2.40000009536743
                   to: 74.1960000395775     [s; relative to TRIGTIME]
     T50: 39.5839999914169 +/- 23.4510611967743
        Measured from: 14.9320001006126
                   to: 54.5160000920296     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 22.1480000019073
                   to: 23.1480000019073     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.712000012397766
                   to: 77.5120000243187     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.412242   0.233817   0.097716  -0.040840
           0.067190   0.059853   0.049418   0.041742 [error]
 Peak      0.018277   0.023328   0.002797   0.001953
           0.007606   0.006850   0.005469   0.004608 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.27e-07 9.75e-08 4.99e-08 3.67e-08 2.92e-07 3.11e-07   erg/cm2
              Error 3.37e-08 3.23e-08 3.43e-08 5.36e-08 8.93e-08 1.14e-07   erg/cm2
Peak flux Power-law 2.01e-01 1.27e-01 5.17e-02 2.86e-02 3.94e-01 4.08e-01   ph/cm2/s
              Error 1.13e-01 5.80e-02 4.00e-02 4.69e-02 1.73e-01 1.80e-01   ph/cm2/s

Fluence   Cutoff-PL 1.30e-07 9.93e-08 2.88e-08 3.24e-09 2.59e-07 2.64e-07   erg/cm2
              Error 4.35e-08 5.10e-08 4.29e-08 5.19e-08 1.10e-07 1.35e-07   erg/cm2
Peak flux Cutoff-PL 1.74e-01 1.65e-01 2.97e-02 4.78e-04 3.69e-01 3.69e-01   ph/cm2/s
              Error 1.33e-01 8.97e-02 4.57e-02 3.95e-02 1.76e-01 1.81e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.966    0.628    -      -           3.15e-04 1.62e-04   76.640 57
CPL   1.000    0.000      50.0    0.0      1.51e-03 0.00e+00   89.790 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.294    0.910    -      -           2.26e-03 1.38e-03   61.050 57
CPL  -0.038    0.000      30.1    0.0      7.16e-02 0.00e+00   60.290 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   78.224   -0.712   77.512
T90    71.796    2.400   74.196
T50    39.584   14.932   54.516
Peak    1.000   22.148   23.148

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  230.7808 -19.5907 0.0547   32.0  -16.0       1.0458     3.5  TRIG_00766161
------------------------------------------

Foreground time interval of the image:
 -0.712  73.501 (delta_t =  74.213 [sec])
Background time interval of the image:
-12.599  -0.712 (delta_t =  11.887 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.712 sec. to   77.512 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.96602     ( -0.56121   0.695378 )
Norm@50keV  : 3.15186E-04    ( -0.000152398   0.000170827 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.64 using 59 PHA bins.
# Reduced chi-squared =          1.344 for     57 degrees of freedom
# Null hypothesis probability =   4.242937e-02

Photon flux (15-150 keV)    in 78.22 sec: 8.45701E-02 ( -0.0200428  0.0200672 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.91685e-07 ( -8.47709e-08  9.37905e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.712 sec. to   77.512 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.51028E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          89.79 using 59 PHA bins.
# Reduced chi-squared =          1.603 for     56 degrees of freedom
# Null hypothesis probability =   2.789434e-03

Photon flux (15-150 keV)    in 78.22 sec: 7.96434E-02 ( -0.0191989  0.0229646 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.52754e-18 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.712 sec. to   77.512 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.96155   ( -4.96155   -4.96155 )
beta        : -3.45850    ( 3.4585   0.852539 )
Epeak [keV] : 18.2028      ( -18.2028 4.90656 )
Norm@50keV   : 1131.93    ( -261.134   2.95514e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.71 using 59 PHA bins.
# Reduced chi-squared =          1.358 for     55 degrees of freedom
# Null hypothesis probability =   3.968862e-02

Photon flux (15-150 keV)    in 78.22 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.82829  (-0.986784  1.28481)
R^2/D10^2   : 0.842948  (-0.842957   1.76423)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.18 using 59 PHA bins.
# Reduced chi-squared =          1.337 for     57 degrees of freedom
# Null hypothesis probability =   4.567861e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.391e-07   8.014e-08
25- 50  8.328e-08   5.030e-08
50-150  2.851e-09   2.533e-09
15-150  2.253e-07   1.352e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 16.2503       (-6.418      13.4982)
Norm        : 1.32912       (-0.688897     1.54207)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.45 using 59 PHA bins.
# Reduced chi-squared =          1.341 for     57 degrees of freedom
# Null hypothesis probability =   4.371825e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.322e-07   5.857e-08
25- 50  9.718e-08   4.844e-08
50-150  2.005e-08   1.777e-08
15-150  2.494e-07   1.113e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.42516        (-4.42377      1.28022)
R1^2/D10^2  : 1.18973        (-1.19021      12.491)
kT2 [keV]   : 22.5986        (-22.565      -22.565)
R2^2/D10^2  : 5.54782E-04    (-0.000557662   1.26209)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.84 using 59 PHA bins.
# Reduced chi-squared =          1.343 for     55 degrees of freedom
# Null hypothesis probability =   4.585146e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.393e-07   8.080e-08
25- 50  8.629e-08   4.721e-08
50-150  8.443e-08   6.003e-08
15-150  3.100e-07   1.605e-07

Peak spectrum fit

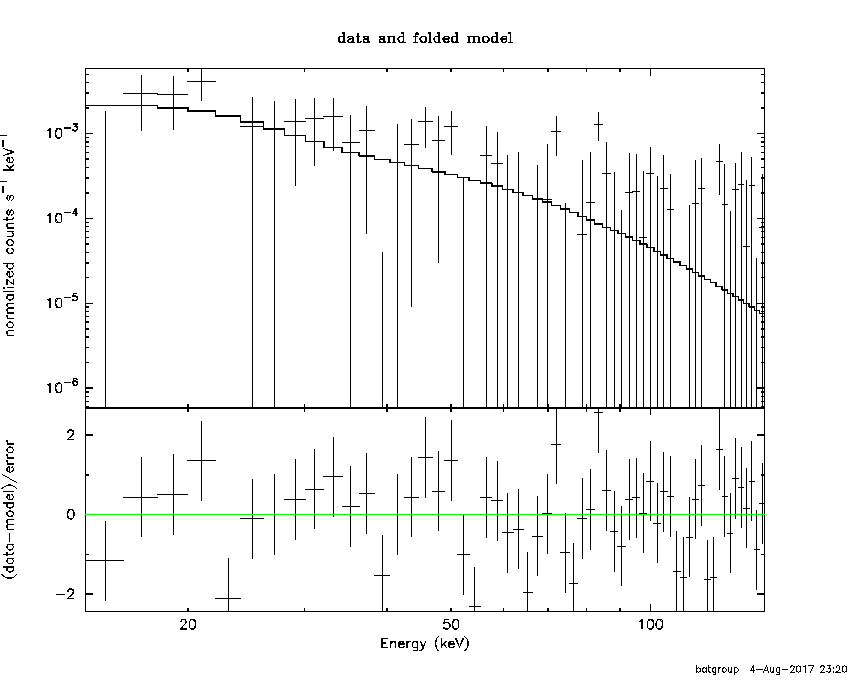

Power-law model

Time interval is from   22.148 sec. to   23.148 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.29395     ( -0.78954   1.03138 )
Norm@50keV  : 2.26004E-03    ( -0.00139146   0.00136551 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.05 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     57 degrees of freedom
# Null hypothesis probability =   3.324652e-01

Photon flux (15-150 keV)    in 1 sec: 0.393635 ( -0.173392  0.173493 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.15724e-08 ( -1.06913e-08  1.17693e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   22.148 sec. to   23.148 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.78235E-02     (     )
Epeak [keV] : 30.1192      (   )
Norm@50keV  : 7.16409E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.29 using 59 PHA bins.
# Reduced chi-squared =          1.077 for     56 degrees of freedom
# Null hypothesis probability =   3.233031e-01

Photon flux (15-150 keV)    in 1 sec: 0.368881 ( -0.174466  0.177919 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.74886e-08 ( -8.13528e-09  1.39139e-08 ) ergs/cm2

Band function

Time interval is from   22.148 sec. to   23.148 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98084   ( -4.98084   -4.98084 )
beta        : -2.50049    ( 2.50049   0.910159 )
Epeak [keV] : 20.6974      ( -20.6974 101.628 )
Norm@50keV   : 1711.38    ( -739.094   1.16023e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.50 using 59 PHA bins.
# Reduced chi-squared =          1.100 for     55 degrees of freedom
# Null hypothesis probability =   2.838705e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.86445e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.08565  (-2.84695  4.21236)
R^2/D10^2   : 0.437601  (-0.4376   2.13608)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.26 using 59 PHA bins.
# Reduced chi-squared =          1.057 for     57 degrees of freedom
# Null hypothesis probability =   3.586489e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.214e-09   3.327e-09
25- 50  9.295e-09   6.055e-09
50-150  2.527e-09   2.358e-09
15-150  1.704e-08   1.118e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.9108       (-23.3637      149.025)
Norm        : 2.69227       (-1.58165     4.34535)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.56 using 59 PHA bins.
# Reduced chi-squared =          1.063 for     57 degrees of freedom
# Null hypothesis probability =   3.485895e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.067e-09   3.959e-09
25- 50  7.795e-09   4.915e-09
50-150  5.681e-09   4.732e-09
15-150  1.954e-08   1.373e-08

Double BB

R1^2/D10^2  : 1.51552E-05        (-1.5155e-05      -1.5155e-05)
kT2 [keV]   : 7.78247        (-2.40271      4.20477)
R2^2/D10^2  : 0.497108    (-0.413629   1.80901)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.19 using 59 PHA bins.
#Fit statistic : Chi-Squared =          60.01 using 59 PHA bins.
#Fit statistic : Chi-Squared =          59.99 using 59 PHA bins.
# Reduced chi-squared =          1.094 for     55 degrees of freedom
# Reduced chi-squared =          1.091 for     55 degrees of freedom
# Reduced chi-squared =          1.091 for     55 degrees of freedom
# Null hypothesis probability =   2.935668e-01
# Null hypothesis probability =   2.992000e-01
# Null hypothesis probability =   2.995641e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.553e-09   3.858e-09
25- 50  8.992e-09   6.485e-09
50-150  2.923e-09   2.546e-09
15-150  1.747e-08   1.257e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.99584     ( -0.585231   0.73188 )
Norm@50keV  : 3.03527E-04    ( -0.000153171   0.000174523 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.94 using 59 PHA bins.
# Reduced chi-squared =          1.332 for     57 degrees of freedom
# Null hypothesis probability =   4.751153e-02

Photon flux (15-150 keV)    in 74.21 sec: 8.32181E-02 ( -0.0205244  0.0205559 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.7012e-07 ( -8.14937e-08  9.07039e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.47815E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          88.68 using 59 PHA bins.
# Reduced chi-squared =          1.584 for     56 degrees of freedom
# Null hypothesis probability =   3.526417e-03

Photon flux (15-150 keV)    in 74.21 sec: 7.84151E-02 ( -0.0195319  0.0198912 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.06984e-07 ( -5.63477e-08  1.37467e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.98296   ( 1.0293   1.0293 )
beta        : -3.61364    ( 3.5997   1.07782 )
Epeak [keV] : 18.4858      ( -12.4839 28.0047 )
Norm@50keV   : 141.343    ( -141.814   765625 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.09 using 59 PHA bins.
# Reduced chi-squared =          1.347 for     55 degrees of freedom
# Null hypothesis probability =   4.403424e-02

Photon flux (15-150 keV)    in 74.21 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.75e-08
S(50-100 keV) = 4.99e-08

T90 vs. Hardness ratio plot

T90                                   = 71.7959999442101 sec.
Hardness ratio (energy fluence ratio) = 0.511795

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.567184
Count Ratio (50-100 keV) / (15-25 keV) = 0.237036

Mask shadow pattern

IMX = 5.997340589838875E-01, IMY = 1.725111893635254E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-12.599380 -0.712000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4713 -60.6063   11.3  44.0 -120.0  -0.1587  -1.0    4.7	Cen X-3
186.8139 -62.8264    3.5  36.0 -120.6   0.2323   3.3    5.5	GX 301-2
245.0228 -15.6223    0.7  32.7   10.4   0.7449  16.4    2.7	Sco X-1
256.1269 -37.7230    9.0  12.0   47.5  -0.0480  -1.3    9.9	4U 1700-377
256.3870 -36.5965    4.9  13.1   46.2   0.0893   2.3   10.7	GX 349+2
263.0541 -24.5759    5.3  26.4   47.7   0.1104   2.2   10.5	GX 1+4
264.4901 -44.4303    6.0  11.8   93.4   0.0776   1.9   10.9	4U 1735-44
270.2988 -25.2245    9.3  28.8   61.0   0.0722   1.3    8.8	GX 5-1
270.4300 -25.8377    9.6  28.3   61.9   0.0675   1.2    8.9	GRS 1758-258
273.8729 -13.9540    5.2  40.3   56.7  -0.2665  -2.2    9.2	GX 17+2
275.9986 -30.3691    5.6  27.6   76.1   0.1172   2.1    3.8	H1820-303
284.9268 -25.0341    8.0  36.9   80.6  -0.1569  -1.4    9.0	HT1900.1-2455
262.8956 -33.7859    5.7  18.1   58.6   0.0885   2.0    5.5	GX 354-0
261.6753  -0.2869    2.1  49.3   34.1   0.9609   5.6 ------	UNKNOWN
209.9349 -10.0327    2.4  49.9  -36.7   0.5415   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.712000 73.500600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3019 -60.6314  186.8  44.1 -120.1  -0.0622  -0.1    0.6	Cen X-3
186.9227 -62.8459    6.2  35.9 -120.7  -0.8673  -1.9    8.6	GX 301-2
244.8942 -15.8121    0.0  32.6   10.2   0.5999   2.0   11.4	Sco X-1
256.1381 -37.7446    4.7  12.0   47.7   0.5899   2.5    9.3	4U 1700-377
256.3340 -36.6129    0.0  13.1   46.1  -0.4344  -1.8   12.4	GX 349+2
263.0165 -24.7377  134.5  26.2   47.8  -0.0284  -0.1    0.6	GX 1+4
264.9608 -44.5326   28.5  12.1   94.5   0.1069   0.4   10.6	4U 1735-44
270.4367 -25.0243    4.0  29.0   61.1   1.1120   2.9    8.9	GX 5-1
270.3130 -25.8909    8.3  28.2   61.8  -0.5115  -1.4    8.9	GRS 1758-258
273.8947 -13.9451    5.3  40.3   56.7   1.7526   2.2    8.5	GX 17+2
275.8521 -30.3806    6.2  27.6   75.9  -0.6689  -1.9    3.9	H1820-303
284.8313 -24.9339   40.2  36.9   80.3   0.2072   0.3   11.2	HT1900.1-2455
262.7827 -33.8251    6.8  18.0   58.5  -0.4993  -1.7   10.3	GX 354-0
322.9119 -47.6223    2.1  47.9  135.2   5.8680   5.4 ------	UNKNOWN
337.3868 -59.0885    2.1  49.8  154.0   5.2288   5.5 ------	UNKNOWN
151.9173 -66.4597    2.7  49.1 -132.0   5.4584   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
130.500600 219.710000
221.000000 963.055600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6588 -62.7861    3.9  52.7 -170.5   8.3383   2.9    1.0	GX 301-2
244.9849 -15.6438    0.1  14.0   61.9  65.0168  77.2    0.4	Sco X-1
256.1143 -37.8190    3.6  28.5  121.0   3.9488   3.2    6.2	4U 1700-377
256.4098 -36.5339    8.0  28.1  118.4  -1.7570  -1.5    6.8	GX 349+2
262.8479 -24.6408   14.8  30.0   91.5   1.1564   0.8   10.8	GX 1+4
264.9414 -44.3970    5.1  37.7  124.9  -4.7850  -2.2    9.1	4U 1735-44
268.5066  -1.4442    5.4  41.0   54.3  -5.5724  -2.1    8.3	SW J1753.5-0127
270.3937 -24.9844   15.8  36.9   91.7  -1.8864  -0.7    8.2	GX 5-1
270.2492 -25.6758    8.3  36.7   92.9   3.2974   1.4    5.0	GRS 1758-258
263.1560 -33.8180    6.4  32.0  108.9   2.6686   1.8    8.4	GX 354-0
215.4931 -52.1726    4.1  34.8 -177.6   3.2106   2.8 ------	UNKNOWN
221.3132 -27.7686    3.2  12.0 -149.2   2.9942   3.6 ------	UNKNOWN
217.0106 -26.7192    2.5  14.6 -136.2   3.6071   4.6 ------	UNKNOWN
174.5869 -54.6244    2.7  54.8 -158.1  16.3136   4.3 ------	UNKNOWN
171.7581 -54.4240    2.9  56.4 -157.3  23.0054   4.0 ------	UNKNOWN
209.3112  26.5359    4.5  50.6  -39.3  11.0342   2.6 ------	UNKNOWN

Plot creation:
Fri Aug  4 23:22:46 EDT 2017
