batgrbproduct analysis for trigger=766194

batgrbproduct Analysis for Trigger=766194

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Aug 28 18:12:34 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger766194
======================================================================

  Trigger: 00766194      Segment: 000

  BAT Trigger Time: 523540916.864   [s; MET]
      Trigger Stop: 523540929.024   [s; MET]
               UTC: 2017-08-04T12:01:37.389340    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 6.43307870586649   Dec: -64.7481285423807  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.82
     Image Trigger?:     NO
     Rate S/N Ratio:     10  [ if not an image trigger ]
     Image S/N Ratio:    8.82

  Flight Position:   [ source = BAT ]
    RA: 6.43307870586649   Dec: -64.7481285423807  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 6.40451321446312   Dec: -64.7787913676821  [deg; J2000]
        { 00h 25m 37.1s , -64d 46' 43.6" }
         +/- 1.3449336188282 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.490708702159481 [arcmin] (formal 1-sigma fit error)
    SNR: 19.9186556365311

  Angular difference between Flight and Ground position is 1.979581 arcmin

  Partial Coding Fraction: 0.7578125    [ including projection effects ]

  Duration
     T90: 56.4799998998642 +/- 18.6804381880922
        Measured from: 3.85600000619888
                   to: 60.3359999060631     [s; relative to TRIGTIME]
     T50: 17.9719999432564 +/- 4.81683216431091
        Measured from: 13.3959999680519
                   to: 31.3679999113083     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 25.0999999642372
                   to: 26.0999999642372     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 1.97999995946884
                   to: 78.9319999814034     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.682647   0.783560   0.600960   0.089731
           0.057039   0.059947   0.053174   0.048740 [error]
 Peak      0.038386   0.037302   0.013952   0.015227
           0.006837   0.007390   0.006550   0.005594 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.16e-07 3.56e-07 4.43e-07 1.10e-06 1.32e-06 2.11e-06   erg/cm2
              Error 2.81e-08 2.91e-08 5.26e-08 2.71e-07 1.24e-07 3.17e-07   erg/cm2
Peak flux Power-law 4.12e-01 2.97e-01 1.41e-01 9.49e-02 8.95e-01 9.45e-01   ph/cm2/s
              Error 1.10e-01 6.13e-02 5.31e-02 6.73e-02 1.79e-01 1.96e-01   ph/cm2/s

Fluence   Cutoff-PL 2.02e-07 3.74e-07 4.50e-07 5.39e-07 1.27e-06 1.56e-06   erg/cm2
              Error 3.25e-08 2.77e-08 5.65e-08 4.68e-07 1.38e-07 4.98e-07   erg/cm2
Peak flux Cutoff-PL 4.07e-01 2.88e-01 1.31e-01 1.11e-01 8.60e-01 9.47e-01   ph/cm2/s
              Error 1.22e-01 1.47e-01 -------- 5.41e-02 2.80e-01 --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.682    0.146    -      -           1.86e-03 1.63e-04   45.580 57
CPL   1.218    0.576      79.6  -28.1      3.26e-03 2.56e-03   43.510 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.070    0.401    -      -           5.77e-03 1.65e-03   77.150 57
CPL   1.972    0.000      13.1    0.0      6.54e-03 0.00e+00   77.210 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 27.840000 sec.
T50 in the 50-300 keV band: 15.808000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   76.952    1.980   78.932
T90    56.480    3.856   60.336
T50    17.972   13.396   31.368
Peak    1.000   25.100   26.100

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

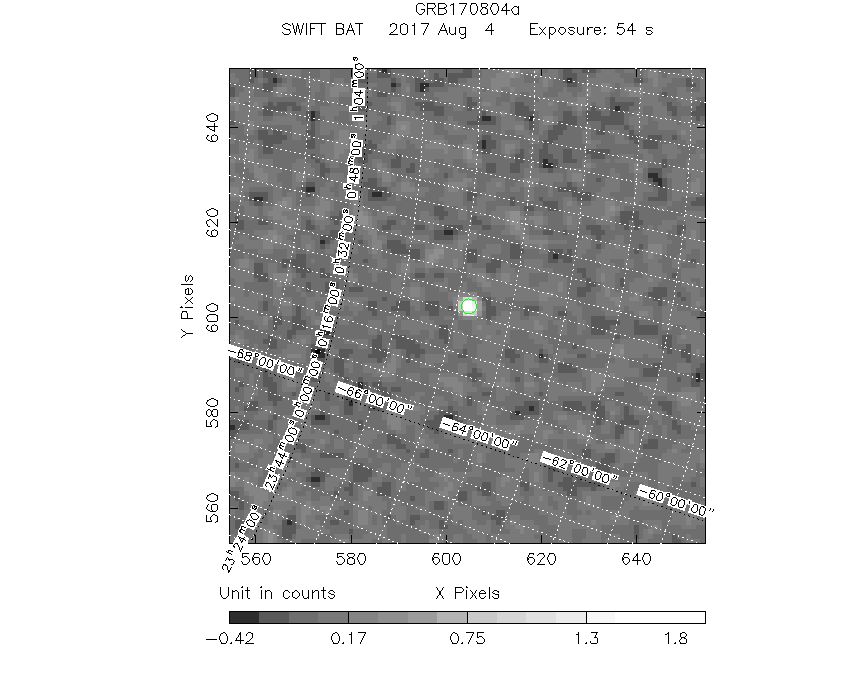

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
    6.4045   -64.7788   0.0096    32.4178   -24.5918         2.2153231     19.919 TRIG_00766194

Foreground time interval of the image:
  1.980  56.437 (delta_t =  54.457 [sec])
Background time interval of the image:
-196.163   1.980 (delta_t = 198.143 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

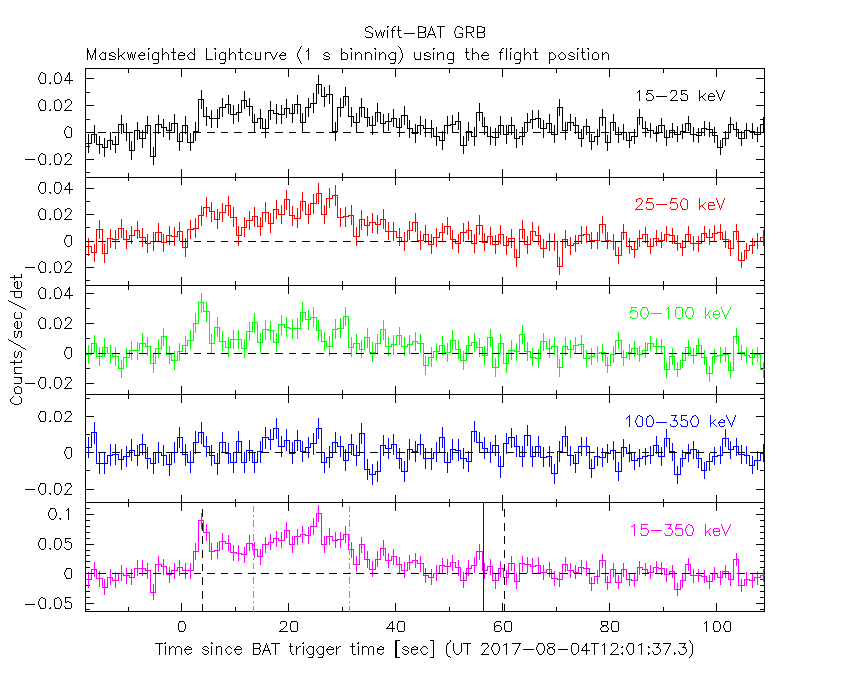

1 s binning

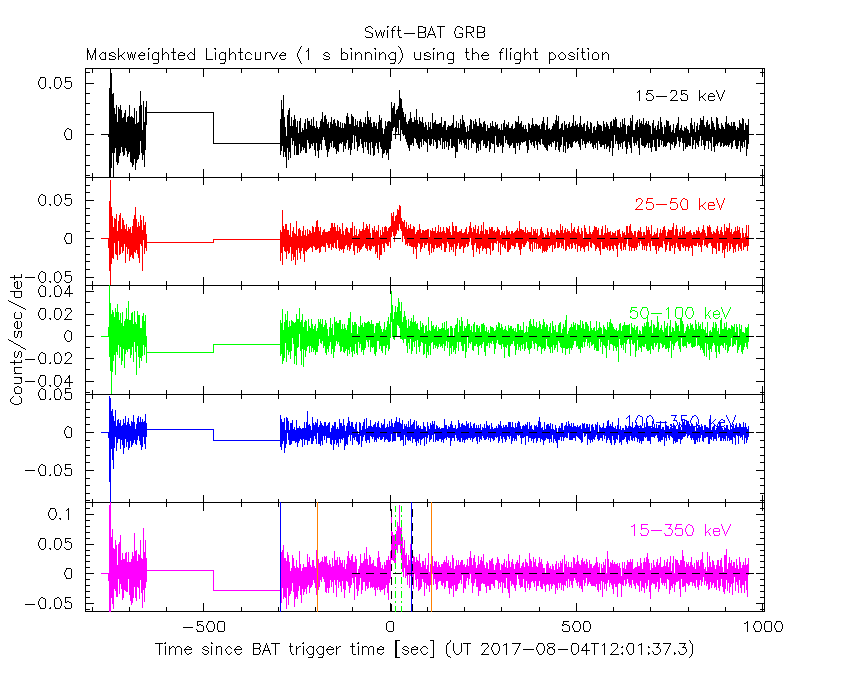

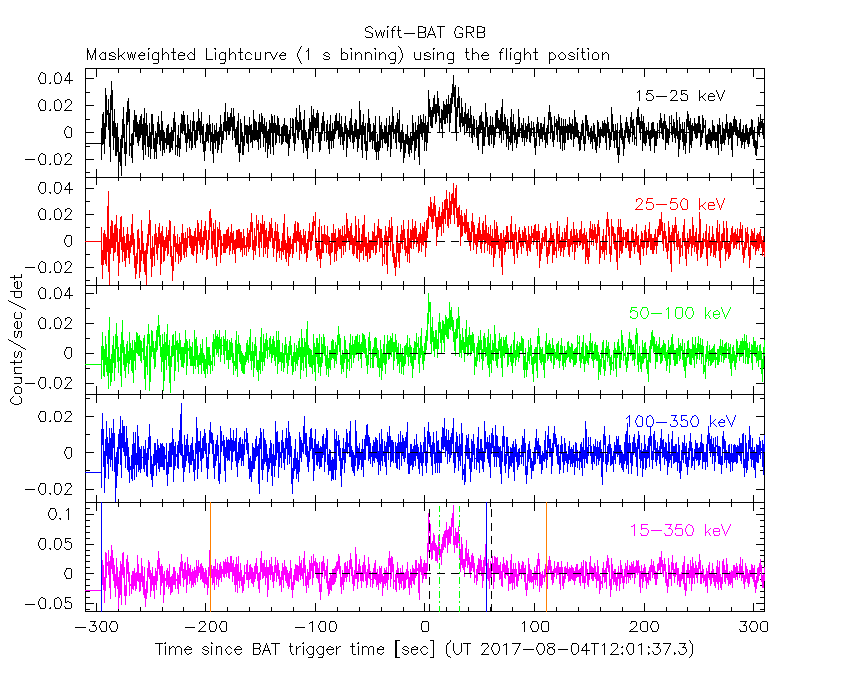

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

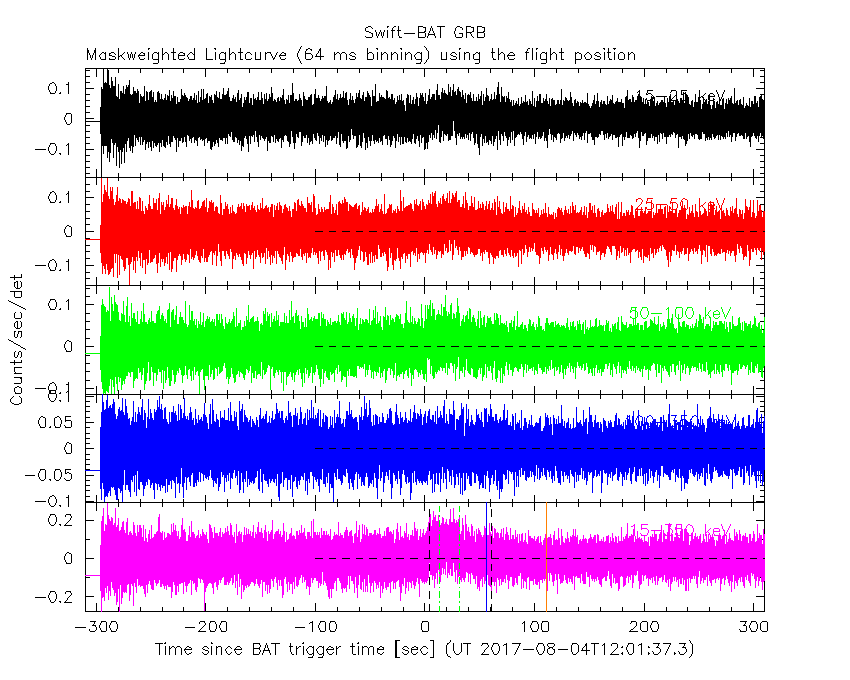

Full time interval

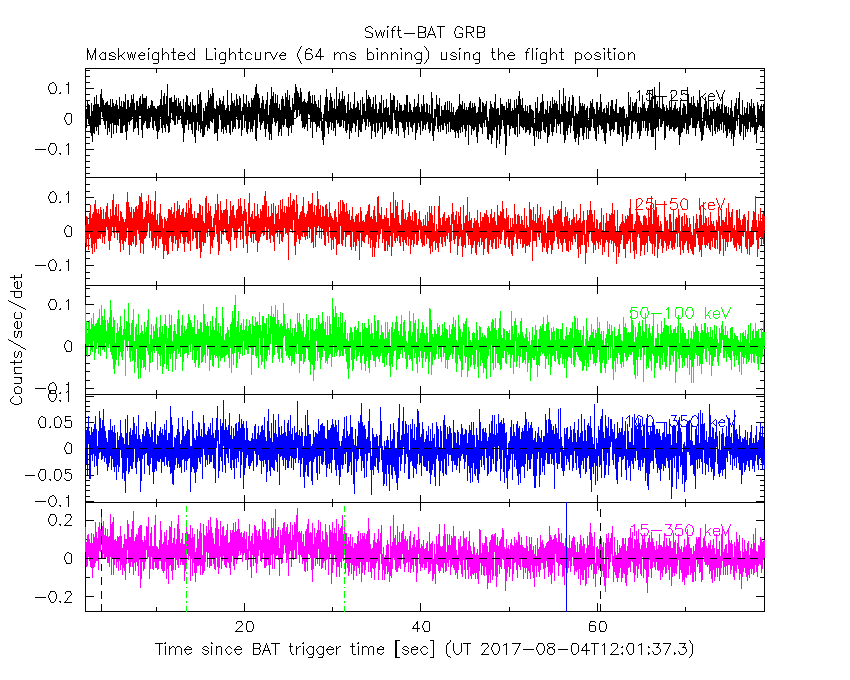

From T100_start to T100_end

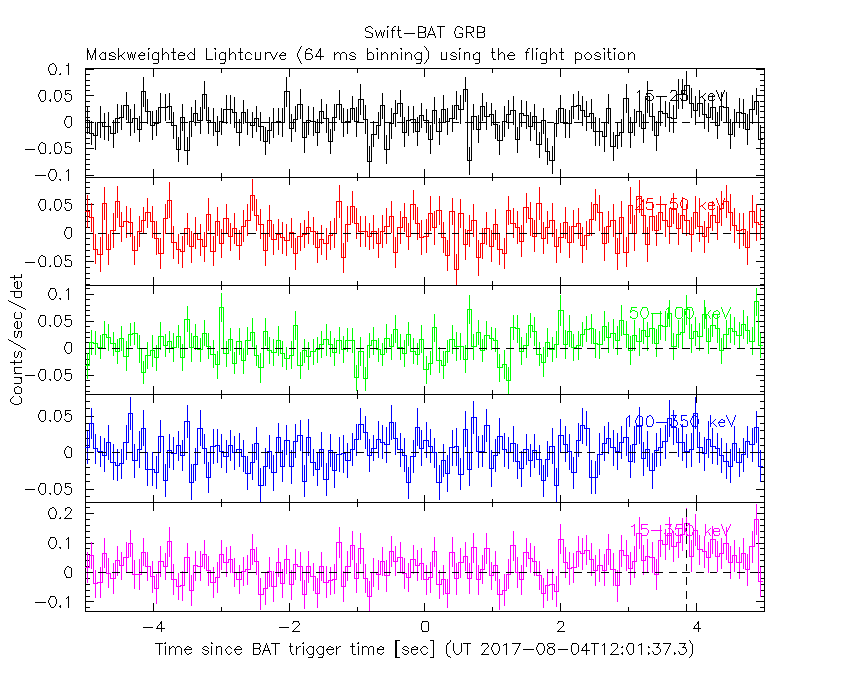

From T0-5 sec to T0+5 sec

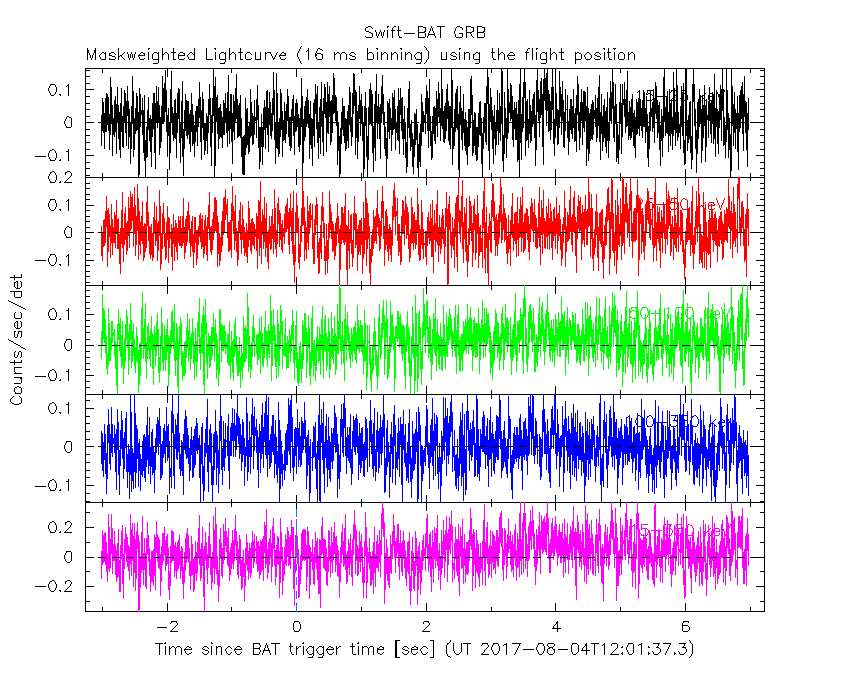

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

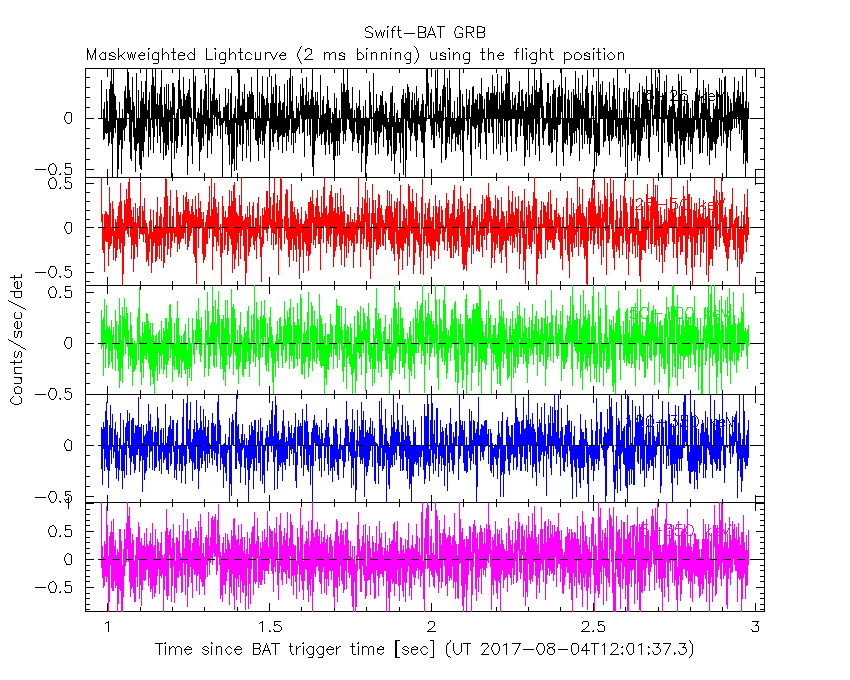

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

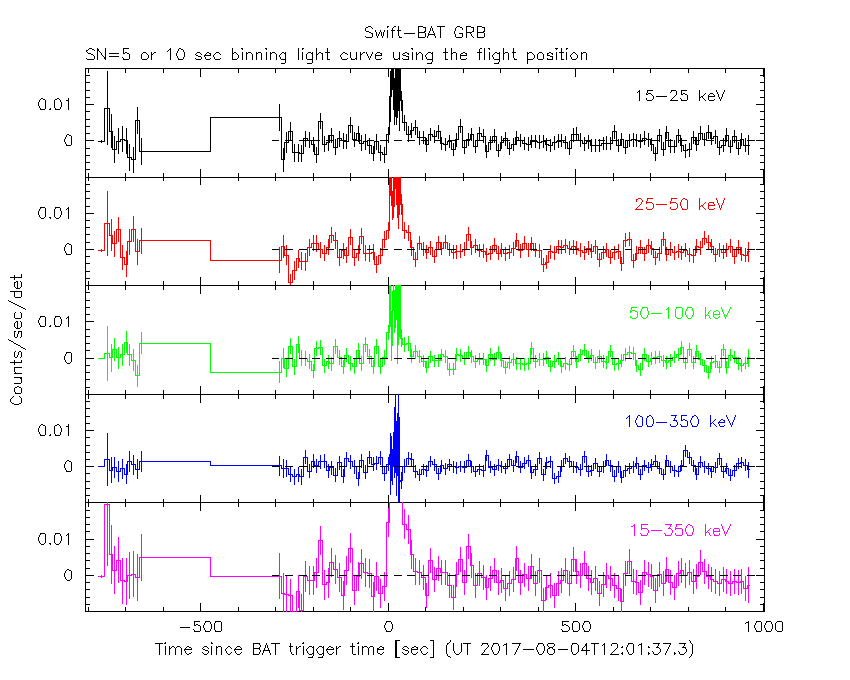

SN=5 or 10 sec. binning (whichever binning is satisfied first)

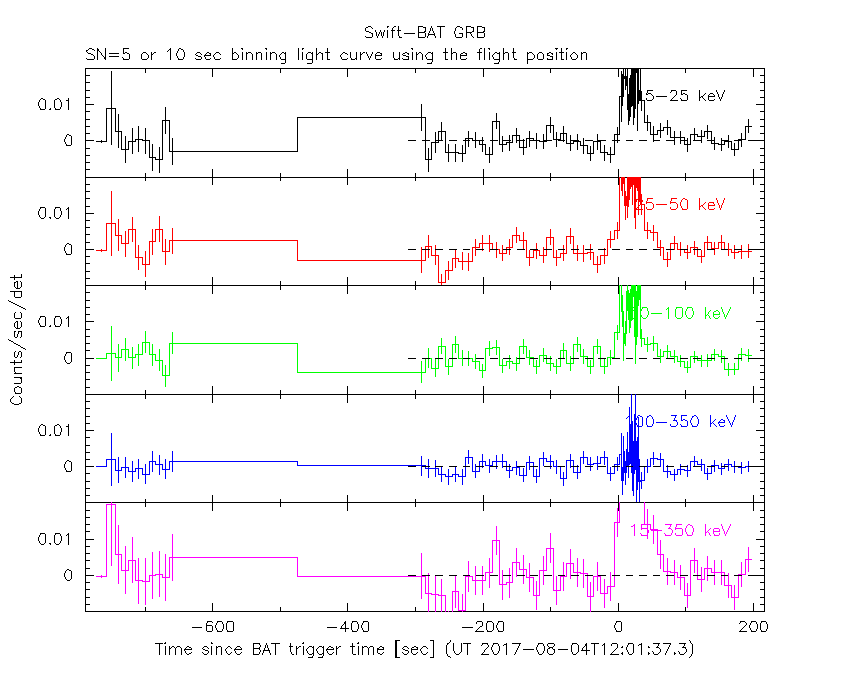

SN=5 or 10 sec. binning (T < 200 sec)

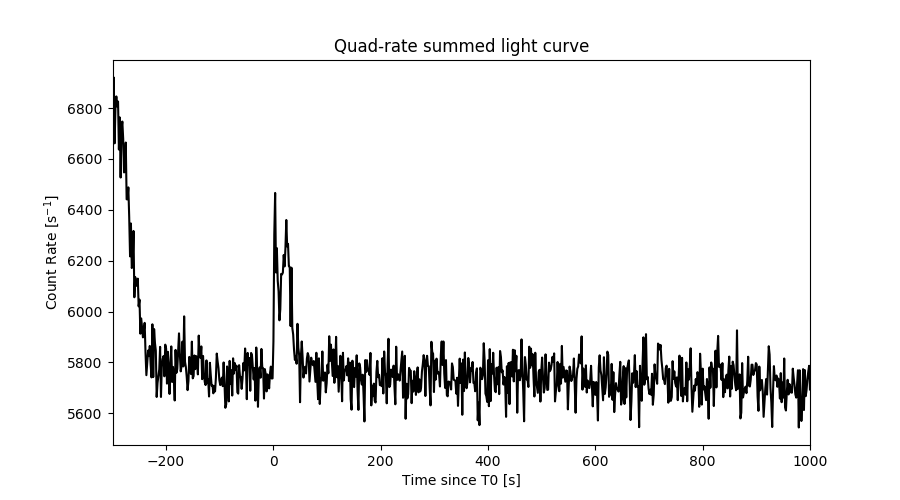

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

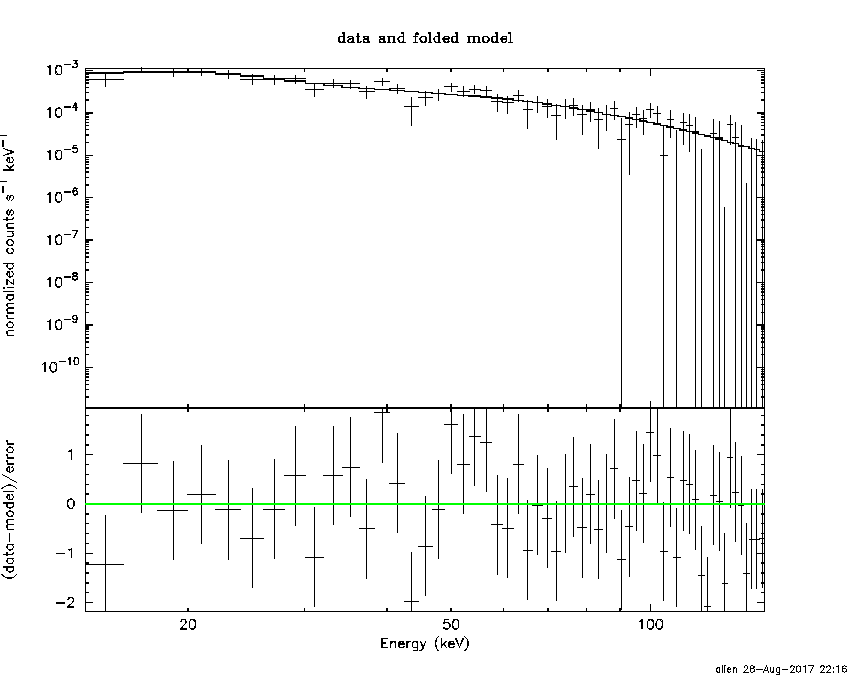

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    1.980 sec. to   78.932 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68206     ( -0.144096   0.147042 )
Norm@50keV  : 1.85501E-03    ( -0.00016416   0.000162434 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.58 using 59 PHA bins.
# Reduced chi-squared =         0.7996 for     57 degrees of freedom
# Null hypothesis probability =   8.615141e-01

Photon flux (15-150 keV)    in 76.95 sec: 0.244851 ( -0.020089  0.020109 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.32379e-06 ( -1.23102e-07  1.24614e-07 ) ergs/cm2

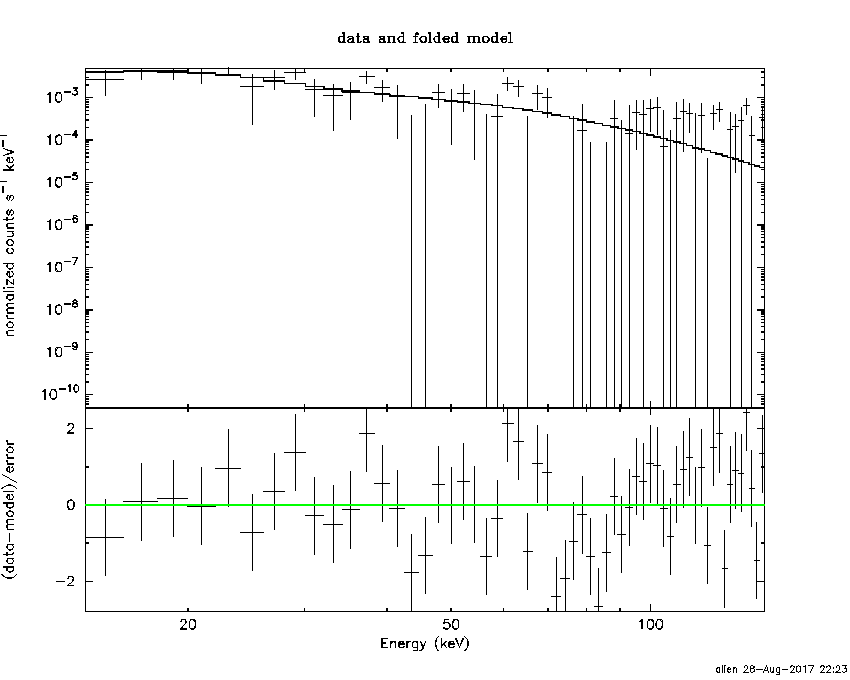

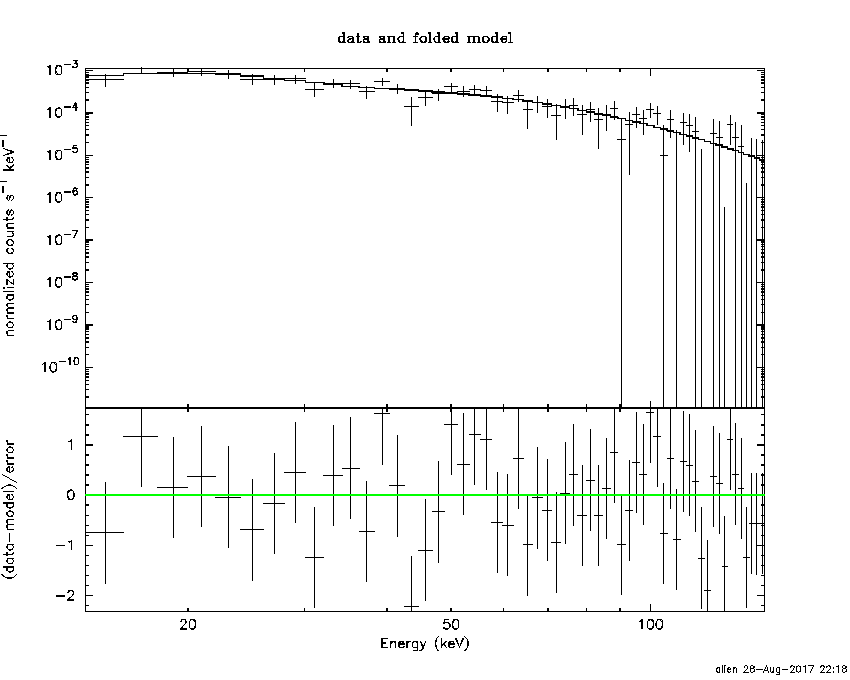

Cutoff power-law model

Time interval is from    1.980 sec. to   78.932 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21848     ( -0.629304   0.521878 )
Epeak [keV] : 79.5838      ( -23.4308 -79.5838 )
Norm@50keV  : 3.26076E-03    ( -0.00148255   0.00363391 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.51 using 59 PHA bins.
# Reduced chi-squared =         0.7769 for     56 degrees of freedom
# Null hypothesis probability =   8.883077e-01

Photon flux (15-150 keV)    in 76.95 sec: 0.239672 ( -0.021036  0.021008 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.27148e-06 ( -1.36834e-07  1.38555e-07 ) ergs/cm2

Band function

Time interval is from    1.980 sec. to   78.932 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.0723  (-1.29878  1.45915)
R^2/D10^2   : 4.34277E-02  (-0.0138663   0.0201576)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.71 using 59 PHA bins.
# Reduced chi-squared =          1.311 for     57 degrees of freedom
# Null hypothesis probability =   5.776164e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.211e-07   1.812e-08
25- 50  4.196e-07   4.313e-08
50-150  4.548e-07   8.307e-08
15-150  9.955e-07   1.093e-07

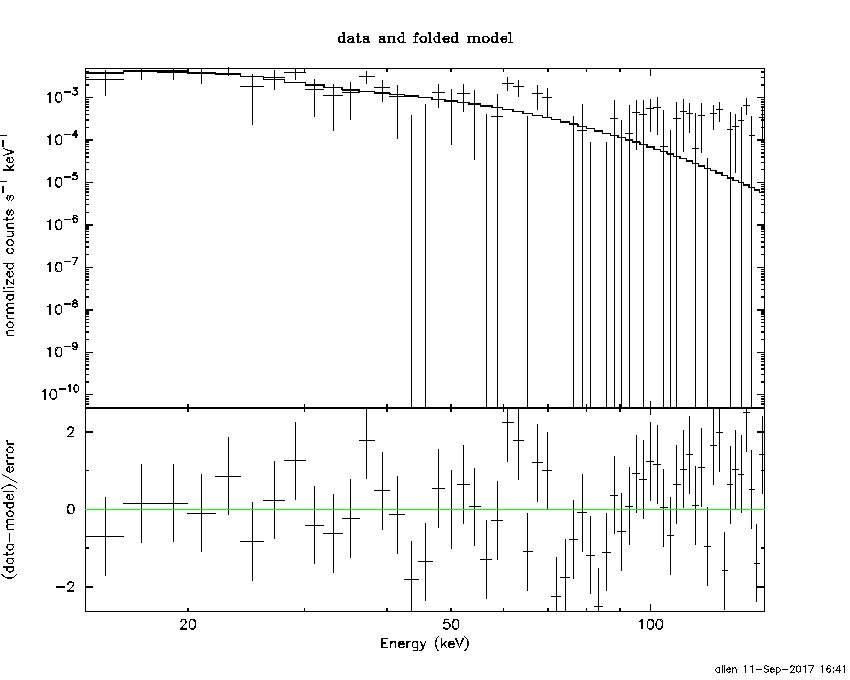

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 139.568       (-43.0816      -136.98)
Norm        : 1.01257       (-0.0953437     0.119369)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.62 using 59 PHA bins.
# Reduced chi-squared =         0.7652 for     57 degrees of freedom
# Null hypothesis probability =   9.038632e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.012e-07   2.158e-08
25- 50  3.690e-07   6.533e-08
50-150  7.064e-07   2.897e-07
15-150  1.277e-06   3.711e-07

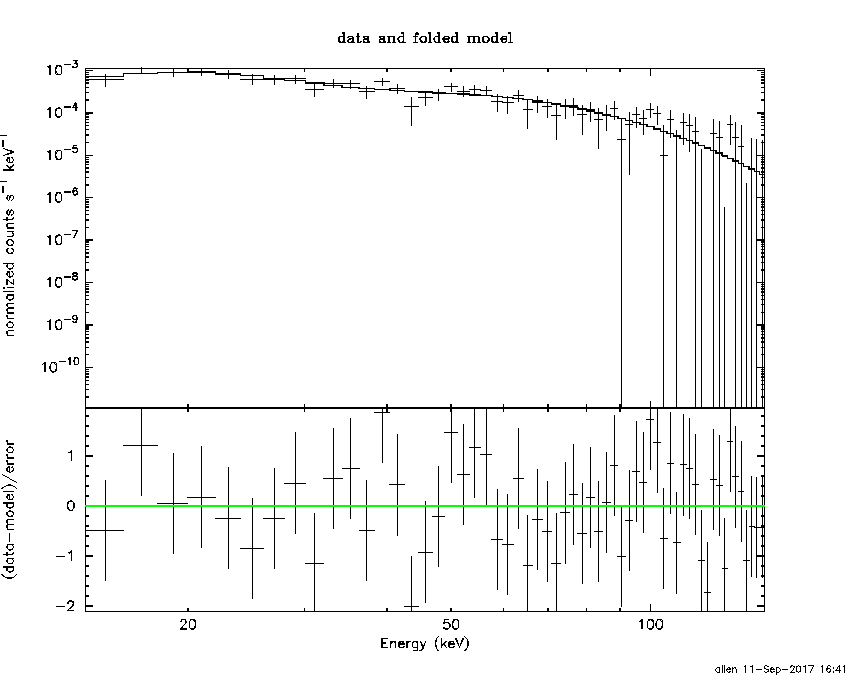

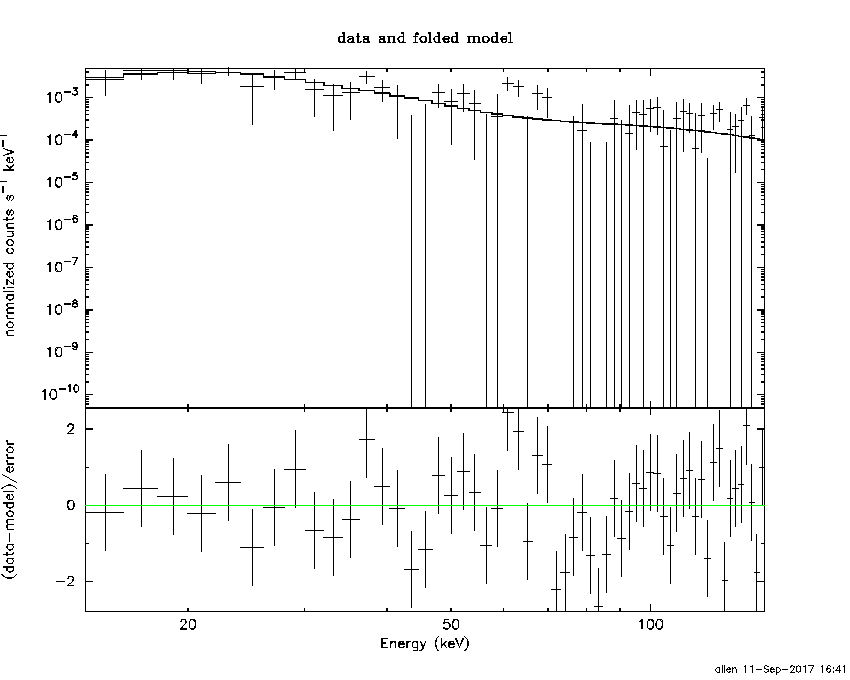

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.53763        (-1.60963      2.14605)
R1^2/D10^2  : 0.587395        (-0.394468      1.28726)
kT2 [keV]   : 20.0317        (-3.77484      7.18156)
R2^2/D10^2  : 7.53958E-03    (-0.00526427   0.00691477)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.94 using 59 PHA bins.
# Reduced chi-squared =         0.7989 for     55 degrees of freedom
# Null hypothesis probability =   8.577879e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.075e-07   8.136e-08
25- 50  3.591e-07   1.184e-07
50-150  6.742e-07   2.726e-07
15-150  1.241e-06   3.843e-07

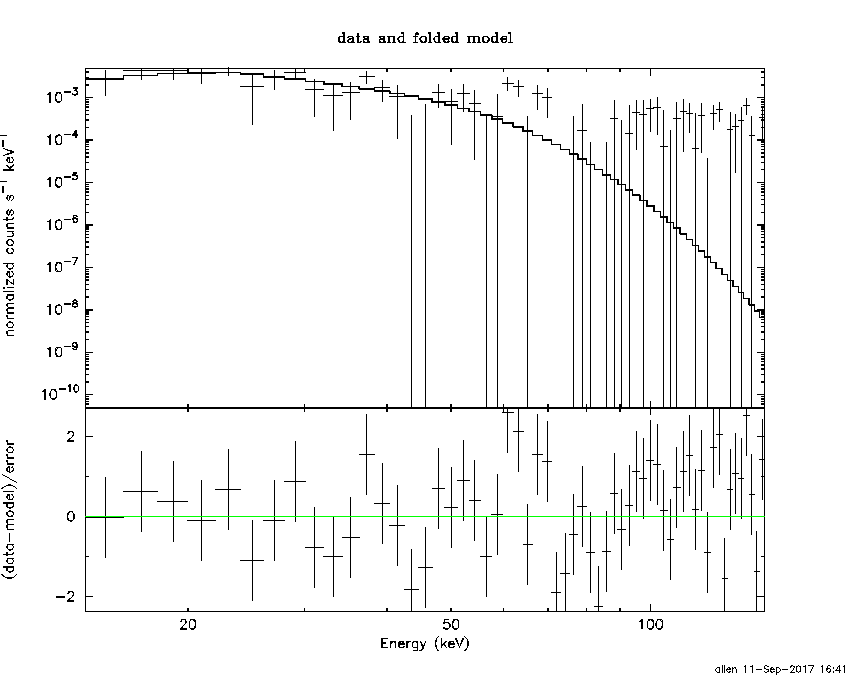

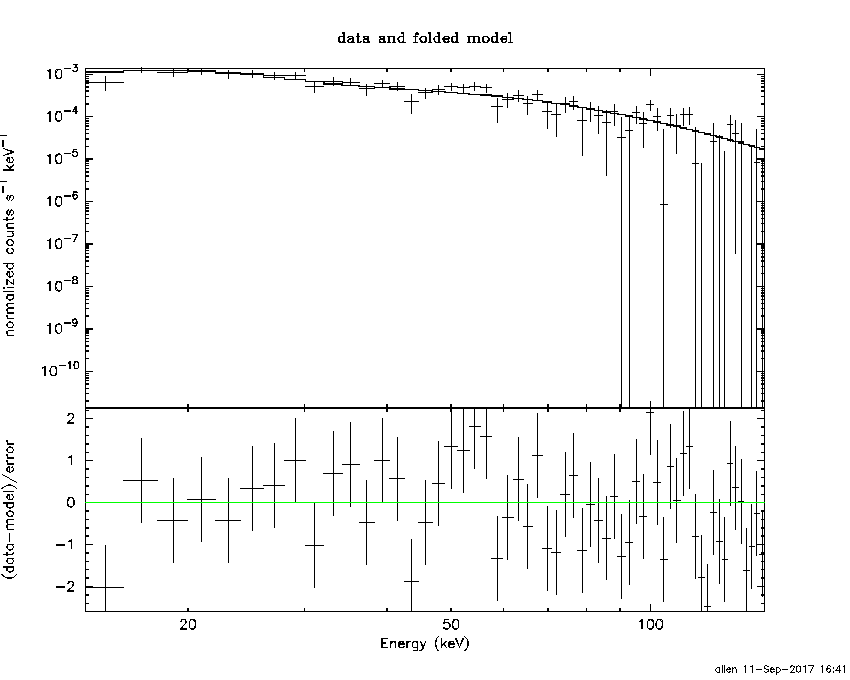

Peak spectrum fit

Power-law model

Time interval is from   25.100 sec. to   26.100 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.07013     ( -0.376049   0.424995 )
Norm@50keV  : 5.77310E-03    ( -0.00168008   0.00161137 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.15 using 59 PHA bins.
# Reduced chi-squared =          1.353 for     57 degrees of freedom
# Null hypothesis probability =   3.901242e-02

Photon flux (15-150 keV)    in 1 sec: 0.895171 ( -0.179204  0.179239 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.35032e-08 ( -1.36347e-08  1.43953e-08 ) ergs/cm2

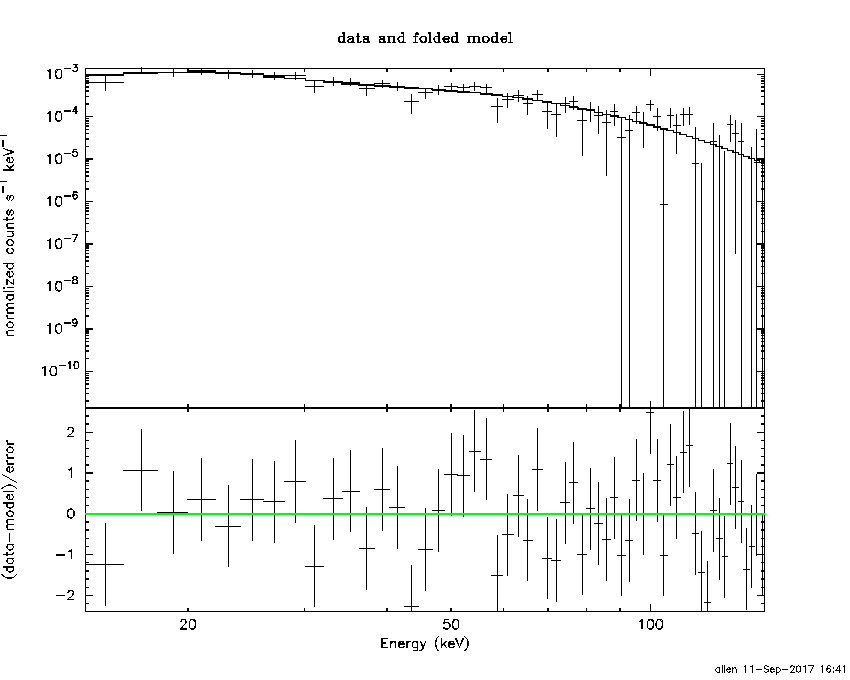

Cutoff power-law model

Time interval is from   25.100 sec. to   26.100 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97223     (     )
Epeak [keV] : 13.0723      (   )
Norm@50keV  : 6.54174E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.21 using 59 PHA bins.
# Reduced chi-squared =          1.379 for     56 degrees of freedom
# Null hypothesis probability =   3.164270e-02

Photon flux (15-150 keV)    in 1 sec: 0.859814 ( -0.348796  0.210446 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from   25.100 sec. to   26.100 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.02488  (-1.59061  1.94912)
R^2/D10^2   : 0.996824  (-0.576593   1.38558)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.06 using 59 PHA bins.
# Reduced chi-squared =          1.387 for     57 degrees of freedom
# Null hypothesis probability =   2.819134e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.163e-08   4.213e-09
25- 50  2.047e-08   7.364e-09
50-150  5.431e-09   3.370e-09
15-150  3.754e-08   1.595e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 48.2114       (-21.1098      60.1214)
Norm        : 5.18173       (-1.63267     2.62304)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.46 using 59 PHA bins.
# Reduced chi-squared =          1.359 for     57 degrees of freedom
# Null hypothesis probability =   3.699127e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.256e-08   3.737e-09
25- 50  1.780e-08   6.266e-09
50-150  1.669e-08   1.011e-08
15-150  4.706e-08   1.764e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.17766        (-1.76723      1.44403)
R1^2/D10^2  : 1.45075        (-0.791636      2.34264)
kT2 [keV]   : 197.969        (-197.991      -197.992)
R2^2/D10^2  : 9.86467E-05    (-5.57743e-05   0.00130471)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.39 using 59 PHA bins.
#Fit statistic : Chi-Squared =          71.26 using 59 PHA bins.
# Reduced chi-squared =          1.298 for     55 degrees of freedom
# Reduced chi-squared =          1.296 for     55 degrees of freedom
# Null hypothesis probability =   6.780930e-02
# Null hypothesis probability =   6.916412e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.184e-08   5.499e-09
25- 50  1.933e-08   9.409e-09
50-150  2.807e-08   6.078e-09
15-150  5.924e-08   2.339e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.65917     ( -0.126254   0.128209 )
Norm@50keV  : 2.52132E-03    ( -0.000197815   0.000196289 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.40 using 59 PHA bins.
# Reduced chi-squared =          1.130 for     57 degrees of freedom
# Null hypothesis probability =   2.336141e-01

Photon flux (15-150 keV)    in 54.46 sec: 0.330224 ( -0.0243693  0.0243908 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.27587e-06 ( -1.05875e-07  1.0695e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.945993     ( -0.594514   0.518386 )
Epeak [keV] : 69.0740      ( -14.113 58.394 )
Norm@50keV  : 6.03364E-03    ( -0.00278166   0.00630461 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.60 using 59 PHA bins.
# Reduced chi-squared =          1.047 for     56 degrees of freedom
# Null hypothesis probability =   3.800999e-01

Photon flux (15-150 keV)    in 54.46 sec: 0.319959 ( -0.025475  0.025457 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19936e-06 ( -1.17797e-07  1.19709e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.56e-07
S(50-100 keV) = 4.43e-07

T90 vs. Hardness ratio plot

T90                                   = 56.4799998998642 sec.
Hardness ratio (energy fluence ratio) = 1.24438

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.14783
Count Ratio (50-100 keV) / (15-25 keV) = 0.880338

Mask shadow pattern

IMX = 5.774520083058524E-01, IMY = 2.642784950702782E-01

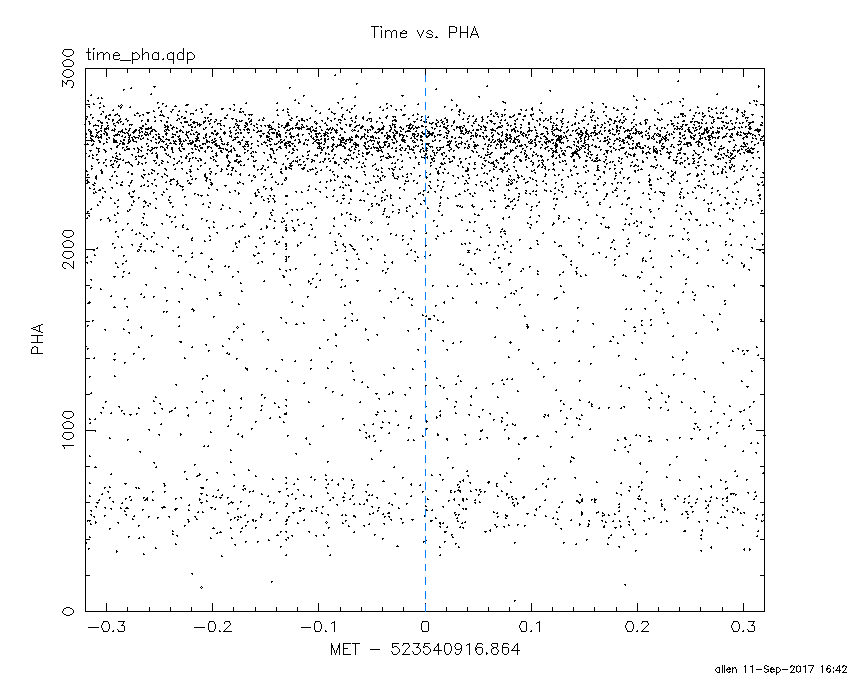

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

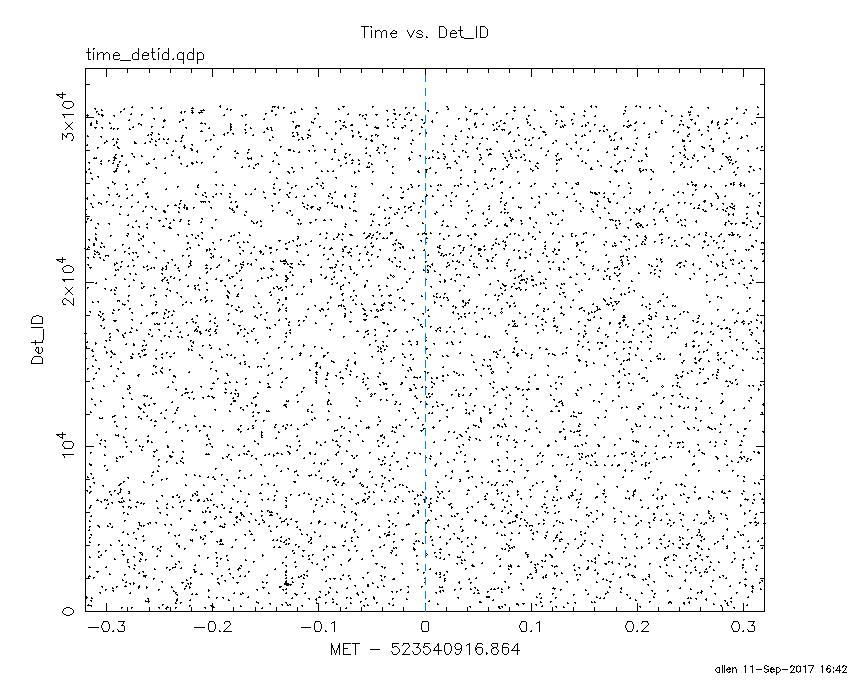

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

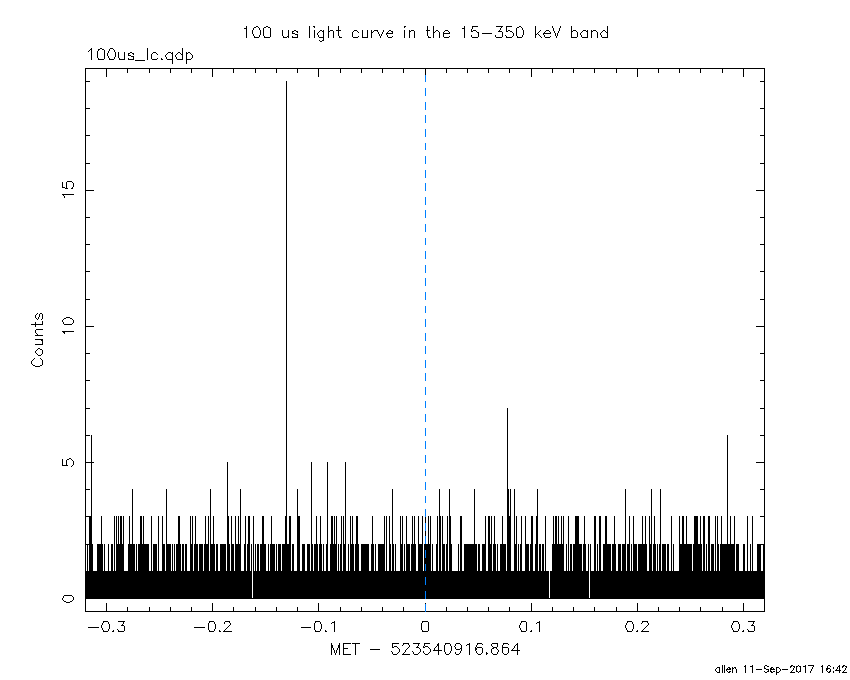

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 12.160000

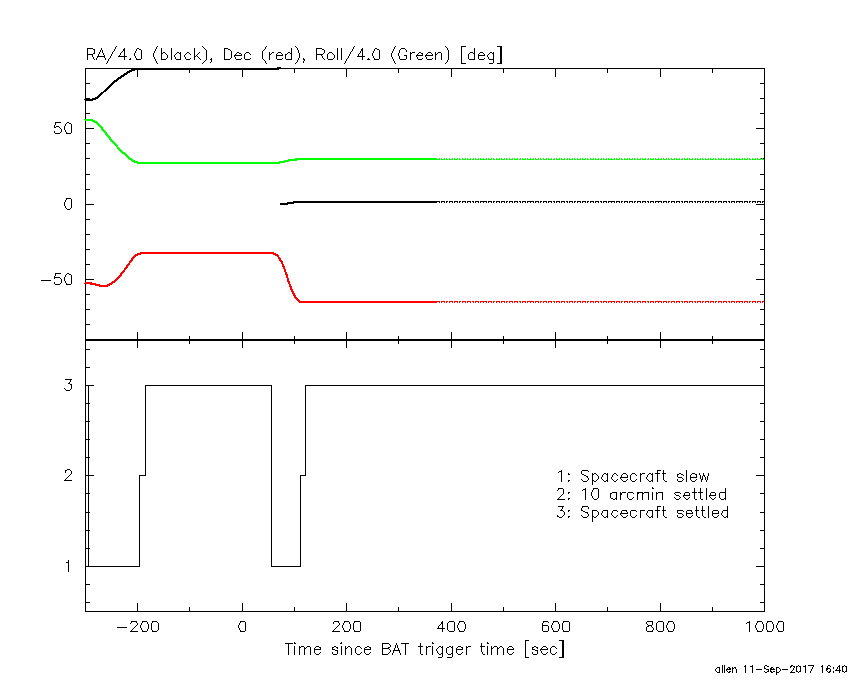

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-196.163410 1.980000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
335.7284  -3.9062    2.5  36.3  118.2   1.8965   4.7 ------	UNKNOWN
323.2061 -23.4079    2.8  33.1   77.7   1.5180   4.2 ------	UNKNOWN
336.7960 -17.9702    2.1  25.1  101.1   1.2828   5.4 ------	UNKNOWN
332.8133 -82.4392    2.6  50.7  -14.7   1.6282   4.4 ------	UNKNOWN
 16.4912 -54.8421    3.6  25.2  -42.4   0.6481   3.2 ------	UNKNOWN
 27.8267   5.4038    2.0  46.6 -158.5   2.2267   5.7 ------	UNKNOWN
 41.5978   2.4976    3.1  53.1 -142.2   3.6872   3.7 ------	UNKNOWN
 45.3319 -13.7940    2.3  45.7 -122.3   3.8439   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
1.980000 56.436580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
356.5144   8.2915    2.1  41.0  156.4   0.9459   5.6  539.4	UNKNOWN
332.2022 -50.2495    2.2  26.7   21.6   0.5139   5.1 ------	UNKNOWN
  6.4045 -64.7788    0.6  32.4  -24.6   2.2155  19.9 ------	UNKNOWN
 22.8485   3.6717    2.1  42.5 -163.2   0.7917   5.4 ------	UNKNOWN
 36.3978 -42.7351    2.0  30.6  -79.1   0.8668   5.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
111.036600 962.266300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6494 -62.8045    2.9  52.4  -28.4   6.5364   4.0    2.1	GX 301-2
 44.2440 -25.0511    2.6  46.5 -158.5   5.2695   4.5 ------	UNKNOWN
 56.3717 -46.6719    3.4  32.2 -128.1   2.7351   3.4 ------	UNKNOWN

Plot creation:
Mon Sep 11 16:42:39 EDT 2017
