TDRSS lightcurve for Trigger=767563
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 13 Aug 17 01:14:32 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 767563, Seg_Num: 0
GRB_RA: 201.054d {+13h 24m 13s} (J2000),
201.283d {+13h 25m 08s} (current),
200.404d {+13h 21m 37s} (1950)
GRB_DEC: -5.469d {-05d 28' 07"} (J2000),
-5.560d {-05d 33' 36"} (current),
-5.209d {-05d 12' 30"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=2176 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 17978 TJD; 225 DOY; 17/08/13
GRB_TIME: 4396.48 SOD {01:13:16.48} UT
GRB_PHI: -34.58 [deg]
GRB_THETA: 30.27 [deg]
SOLN_STATUS: 0x20000013
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 12.29 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 +2 +0 +0 -48 +0
SUN_POSTN: 142.90d {+09h 31m 37s} +14.65d {+14d 39' 13"}
SUN_DIST: 61.29 [deg] Sun_angle= -3.9 [hr] (East of Sun)
MOON_POSTN: 24.52d {+01h 38m 04s} +5.24d {+05d 14' 08"}
MOON_DIST: 176.76 [deg]
MOON_ILLUM: 72 [%]
GAL_COORDS: 317.81, 56.45 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 201.50, 3.14 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 242.17,17.04 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(8.0<100sec) coincident with the FERMI_GBM event (trignum=524279593).
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 13 Aug 17 01:33:54 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 767563, Seg_Num: 0
GRB_RA: 201.054d {+13h 24m 13s} (J2000),
201.283d {+13h 25m 08s} (current),
200.404d {+13h 21m 37s} (1950)
GRB_DEC: -5.469d {-05d 28' 07"} (J2000),
-5.560d {-05d 33' 36"} (current),
-5.209d {-05d 12' 30"} (1950)
GRB_DATE: 17978 TJD; 225 DOY; 17/08/13
GRB_TIME: 4396.48 SOD {01:13:16.48} UT
TRIGGER_INDEX: 20000
GRB_PHI: -34.58 [deg]
GRB_THETA: 30.27 [deg]
DELTA_TIME: 0.00 [sec]
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 12.29 [sigma]
LC_URL: sw00767563000msb.lc
GCN template for BAT paragraph
Click here!
At 01:13:16 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 170813 ***A*** (trigger=767563). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 201.054, -5.469 which is
RA(J2000) = 13h 24m 13s
Dec(J2000) = -05d 28' 07"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~2115 counts/sec (15-350 keV), at ~-6 sec after the trigger.
Test version of draft template

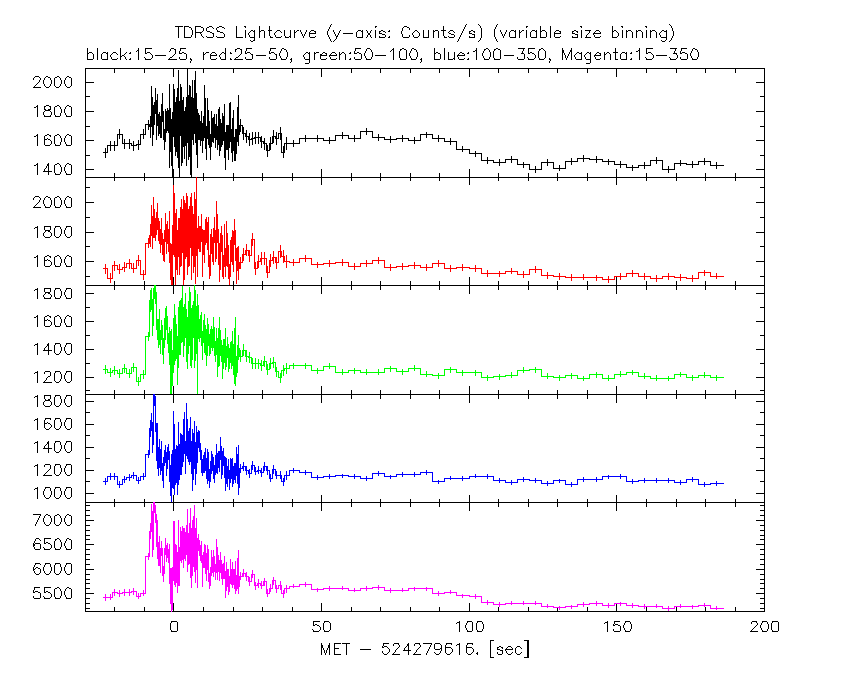

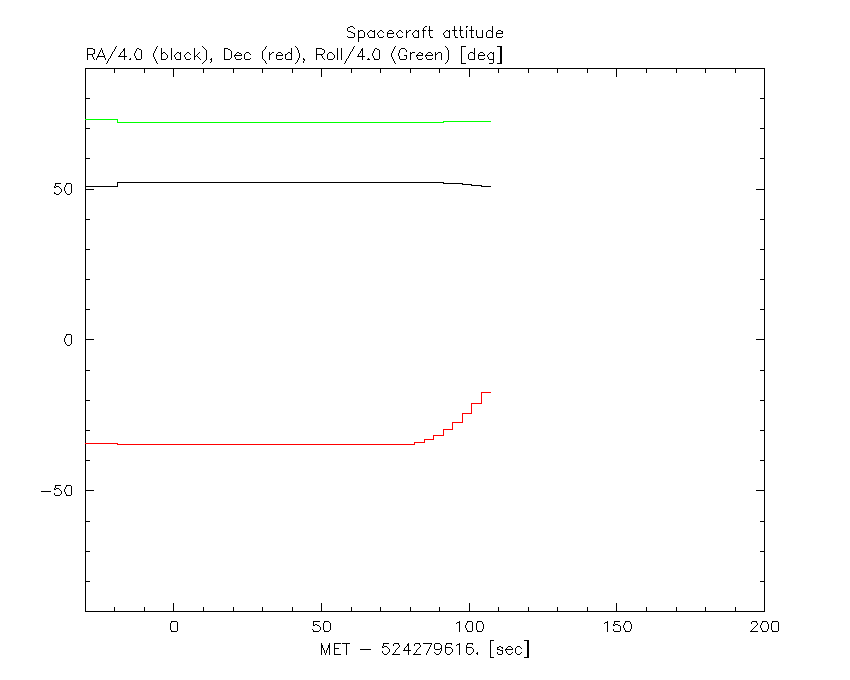

Initial TDRSS lightcurve and spacecraft attitude plot

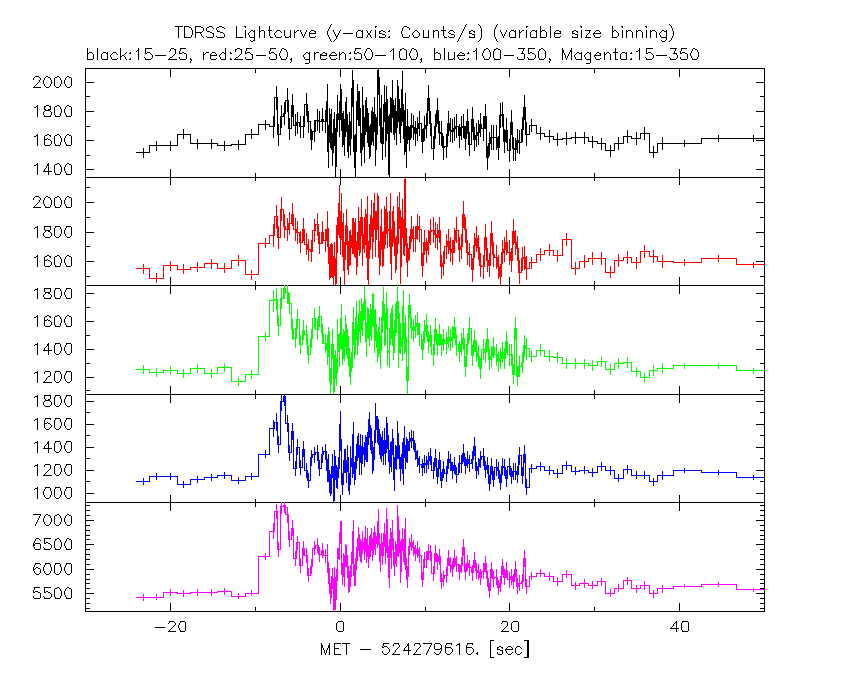

TDRSS lightcurve from T0-30 to T0+50 (zoom in)

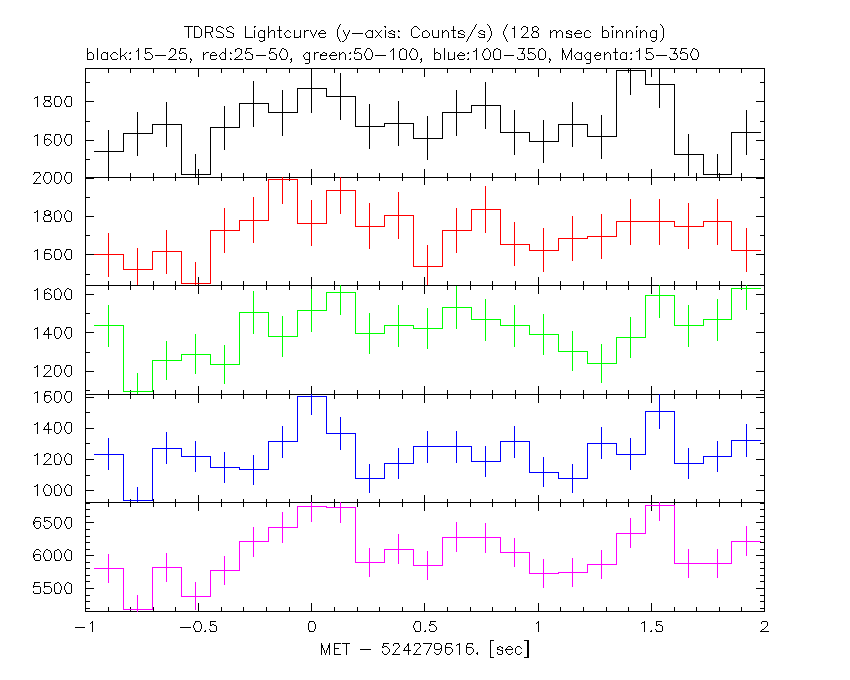

TDRSS light curve from T0-1 to T0+2 (More zoom in)

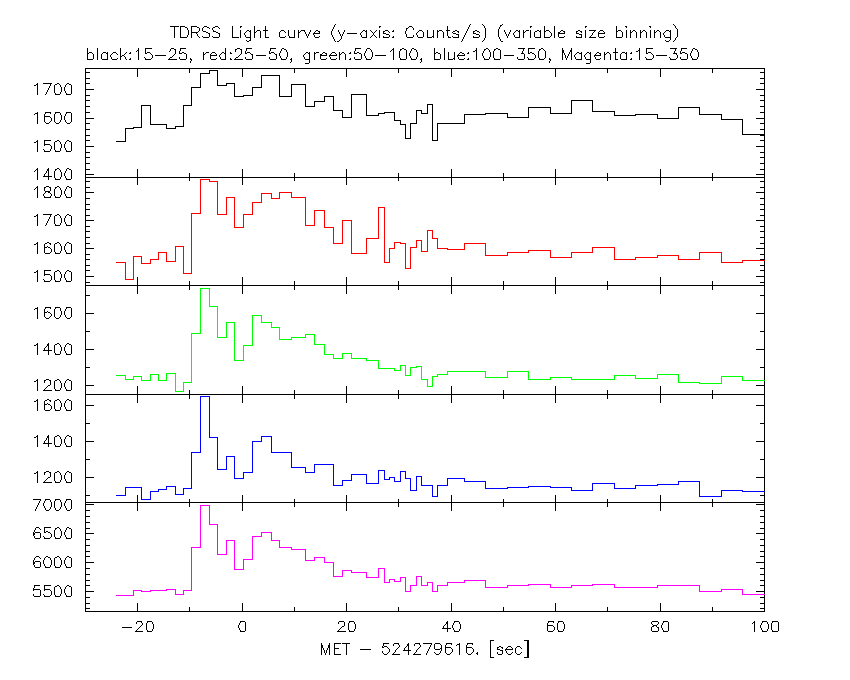

1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves
Extended TDRSS light curve and spacecraft attitude plot(s)

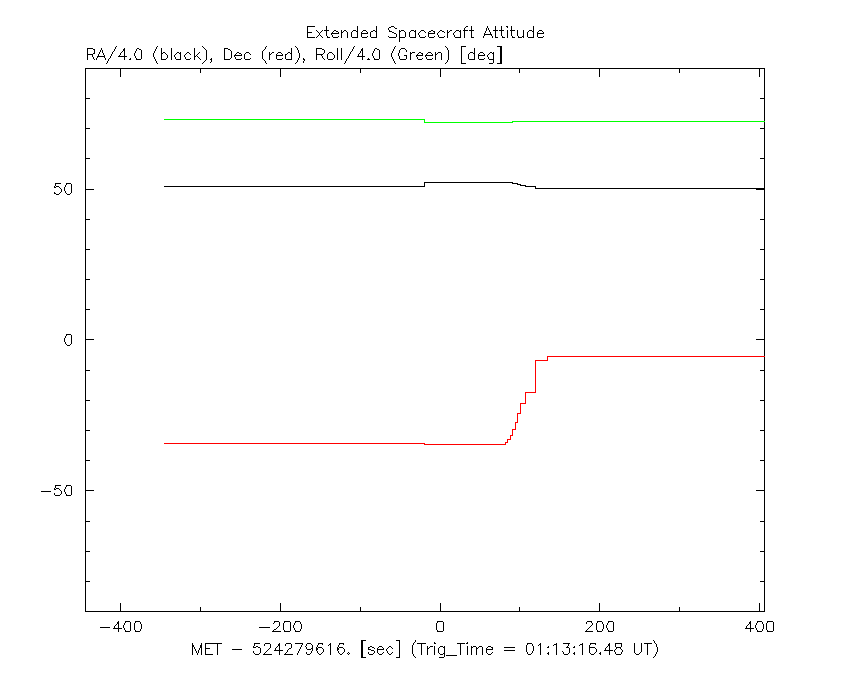

Extended TDRSS lc No.1

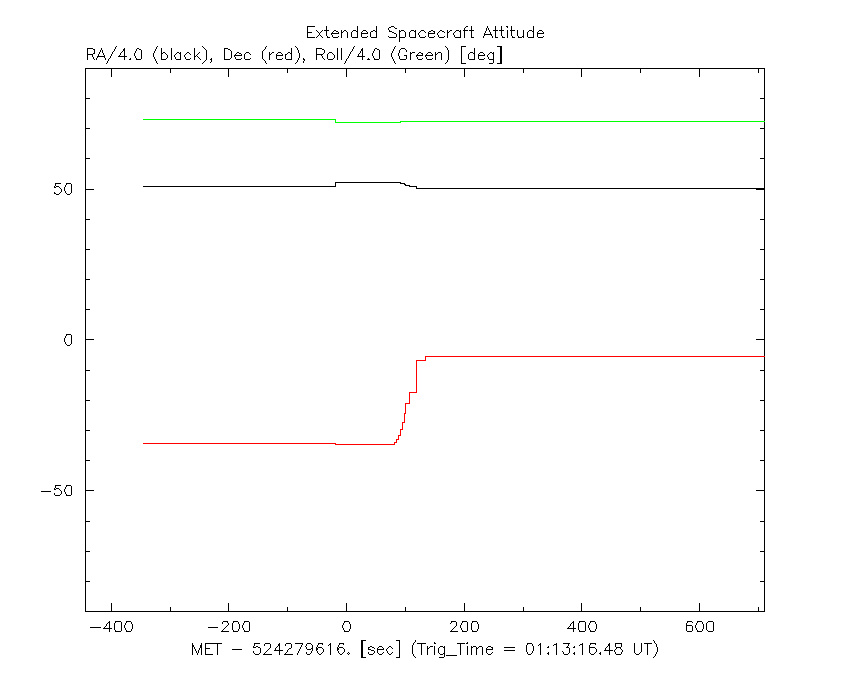

Extended TDRSS lc No.2

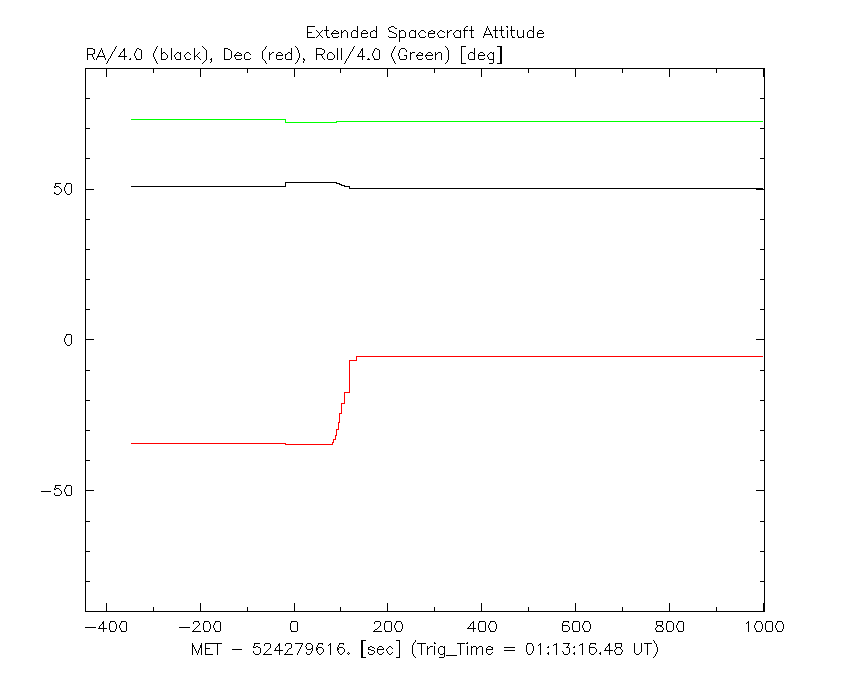

Extended TDRSS lc No.3
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 95.296 s +/- 2.90513 s
Estimated T50 duration: 48.256 s +/- 2.89772 s
Estimated Peak Interval: MET 524279609.44000000 +/- 0.500000 s
Estimated background rate 1: 5492.500 near MET 524279599.200000 s
Estimated background rate 2: 5262.244 near MET 524279760.960000 s
Estimated total duration: 113.6 s (for data selection)
(from MET 524279606.400000 to MET 524279720.000000)
Estimated total fluence: 42531.984961 count
Created GTI with 12 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 201.054 -5.469 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 118.333856 -10.106989
Obj: 2017 8 13 1 64.246873 20.381848
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 98.776825 13.967560
Obj: 2017 8 13 1 35.866066 46.259945
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 95.248365 19.178968
Obj: 2017 8 13 1 27.115668 47.478150
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 87.943029 53.578983
Obj: 2017 8 13 1 319.340883 57.505042
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 202.894813 40.995667
Obj: 2017 8 13 1 267.519866 14.763869
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 294.023956 53.355294
Obj: 2017 8 13 1 273.098905 -5.366328
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 173.529370 -46.383930
Obj: 2017 8 13 1 98.494324 -26.316131
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2017 8 13 1 87.018914 -35.049821
Obj: 2017 8 13 1 98.744918 25.231325
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger767563/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Sat Aug 12 21:35:09 EDT 2017
