batgrbproduct Analysis for Trigger=770957

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Sep 28 17:50:46 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger770957
======================================================================

  Trigger: 00770957      Segment: 000

  BAT Trigger Time: 526351411.264   [s; MET]
      Trigger Stop: 526351412.288   [s; MET]
               UTC: 2017-09-06T00:43:11.622660    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 203.991655598506   Dec: -47.124728592814  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.35
     Image Trigger?:     NO
     Rate S/N Ratio:     24.3104915622864  [ if not an image trigger ]
     Image S/N Ratio:    8.35

  Flight Position:   [ source = BAT ]
    RA: 203.991655598506   Dec: -47.124728592814  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 203.945573361657   Dec: -47.0885303150939  [deg; J2000]
        { 13h 35m 46.9s , -47d 05' 18.7" }
         +/- 1.33934869290171 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.493920680954233 [arcmin] (formal 1-sigma fit error)
    SNR: 20.0374164938389

  Angular difference between Flight and Ground position is 2.873801 arcmin

  Partial Coding Fraction: 0.671875    [ including projection effects ]

  Duration
     T90: 88.1119999289513 +/- 1.44479753054543
        Measured from: 8.00800001621246
                   to: 96.1199999451637     [s; relative to TRIGTIME]
     T50: 42.3839999437332 +/- 0.440218133833484
        Measured from: 30.3360000252724
                   to: 72.7199999690056     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 29.8199999928474
                   to: 30.8199999928474     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -44.755999982357
                   to: 122.860000014305     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    12.576611  18.670394  15.732775   4.395113
           0.116344   0.120897   0.107762   0.083602 [error]
 Peak      0.263770   0.466308   0.491167   0.189101
           0.012184   0.014824   0.015209   0.011726 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.72e-06 7.53e-06 1.19e-05 4.16e-05 3.30e-05 6.47e-05   erg/cm2
              Error 1.15e-07 1.38e-07 1.55e-07 1.31e-06 4.15e-07 1.32e-06   erg/cm2
Peak flux Power-law 9.44e-04 1.14e-02 1.56e-01 1.34e+01 5.56e-01 1.02e+01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 3.67e-06 7.58e-06 1.19e-05 4.16e-05 3.30e-05 6.27e-05   erg/cm2
              Error 1.48e-07 1.50e-07 1.90e-07 3.16e-06 4.51e-07 2.92e-06   erg/cm2
Peak flux Cutoff-PL 2.32e+00 3.21e+00 3.28e+00 6.09e+00 1.08e+01 1.49e+01   ph/cm2/s
              Error 1.94e-01 1.24e-01 1.34e-01 9.14e-01 3.78e-01 9.28e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.342    0.024    -      -           2.02e-02 2.76e-04   27.990 57
CPL   1.294    0.071     944.7    0.0      2.10e-02 1.02e-03   27.700 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.969    0.062    -      -           9.35e-02 3.21e-03   53.160 57
CPL   0.970    0.065    9999.3    0.0      9.34e-02 1.27e-02   53.370 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 80.896000 sec.
T50 in the 50-300 keV band: 35.200000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  167.616  -44.756  122.860
T90    88.112    8.008   96.120
T50    42.384   30.336   72.720
Peak    1.000   29.820   30.820

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  203.9456   -47.0885   0.0096    20.6734   -86.8903         3.7103026     20.037 TRIG_00770957

Foreground time interval of the image:
-44.756  13.037 (delta_t =  57.793 [sec])
Background time interval of the image:
-98.363 -44.756 (delta_t =  53.607 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

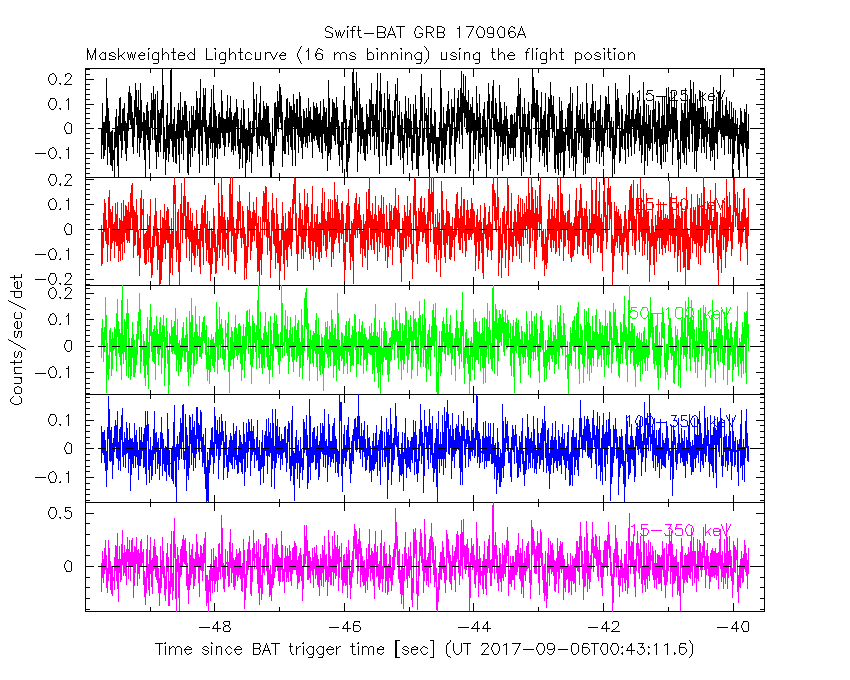

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

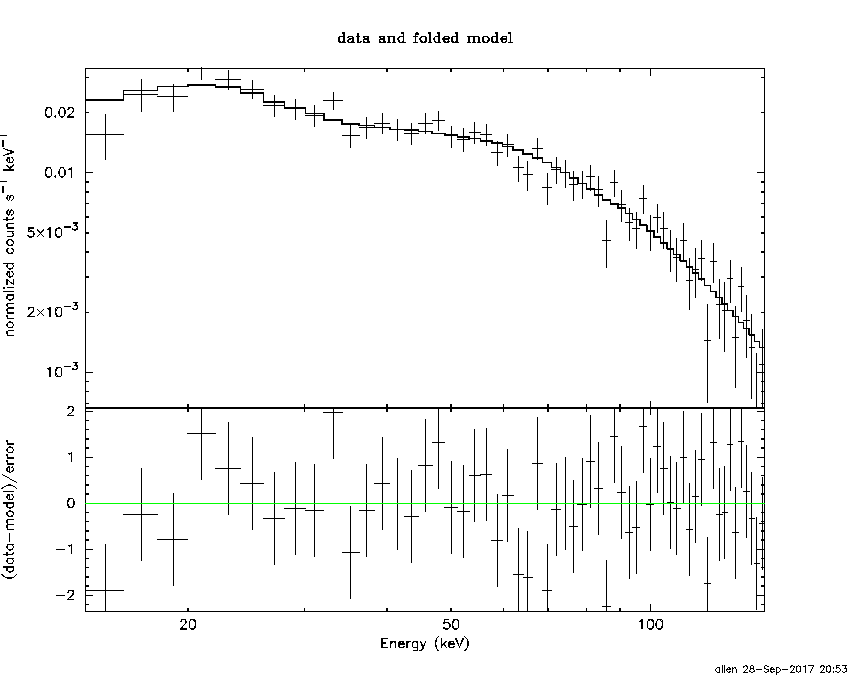

Power-law model

Time interval is from  -44.756 sec. to  122.860 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34152     ( -0.0244646   0.0243739 )
Norm@50keV  : 2.01596E-02    ( -0.000276681   0.000275866 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          27.99 using 59 PHA bins.
# Reduced chi-squared =         0.4910 for     57 degrees of freedom
# Null hypothesis probability =   9.995662e-01

Photon flux (15-150 keV)    in 167.6 sec: 2.42449 ( -0.03948  0.03969 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.3067e-05 ( -4.15412e-07  4.14455e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -44.756 sec. to  122.860 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29355     ( -0.0869832   0.0547155 )
Epeak [keV] : 944.728      ( -981.04 -981.04 )
Norm@50keV  : 2.10480E-02    ( -0.000355557   0.00168469 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          27.70 using 59 PHA bins.
# Reduced chi-squared =         0.4947 for     56 degrees of freedom
# Null hypothesis probability =   9.994582e-01

Photon flux (15-150 keV)    in 167.6 sec: 1.57864 ( -0.06215  0.03559 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.30212e-05 ( -4.49253e-07  4.53271e-07 ) ergs/cm2

Band function

Time interval is from  -44.756 sec. to  122.860 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.8753  (  )
R^2/D10^2   : 7.60128E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1261.53 using 59 PHA bins.
# Reduced chi-squared =        22.1321 for     57 degrees of freedom
# Null hypothesis probability =  2.085498e-226

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.131e-06   3.117e-08
25- 50  5.961e-06   1.316e-07
50-150  2.131e-05   3.352e-07
15-150  2.840e-05   3.687e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 10.6773       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         426.31 using 59 PHA bins.
# Reduced chi-squared =         7.4792 for     57 degrees of freedom
# Null hypothesis probability =   5.853304e-58

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.456e-06   6.788e-08
25- 50  8.572e-06   1.324e-07
50-150  1.880e-05   3.101e-07
15-150  3.183e-05   4.777e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.84682        (-0.457838      0.476111)
R1^2/D10^2  : 1.02197        (-0.163629      0.203199)
kT2 [keV]   : 35.3602        (-1.75462      2.04984)
R2^2/D10^2  : 1.27399E-02    (-0.00218498   0.00241279)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.77 using 59 PHA bins.
# Reduced chi-squared =         0.7777 for     55 degrees of freedom
# Null hypothesis probability =   8.850158e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.962e-06   1.500e-07
25- 50  7.814e-06   1.936e-07
50-150  2.197e-05   4.860e-07
15-150  3.275e-05   6.201e-07

Peak spectrum fit

Power-law model

Time interval is from   29.820 sec. to   30.820 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.968700     ( -0.0623362   0.061851 )
Norm@50keV  : 9.35257E-02    ( -0.00321391   0.00320781 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.16 using 59 PHA bins.
# Reduced chi-squared =         0.9327 for     57 degrees of freedom
# Null hypothesis probability =   6.197866e-01

Photon flux (15-150 keV)    in 1 sec: 0.555697 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.02289e-06 ( -3.8471e-08  3.85856e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   29.820 sec. to   30.820 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.970125     ( -0.0663618   0.0632722 )
Epeak [keV] : 9999.34      ( -9999.36 -9999.36 )
Norm@50keV  : 9.33929E-02    ( -0.00317996   0.0221972 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.37 using 59 PHA bins.
# Reduced chi-squared =         0.9530 for     56 degrees of freedom
# Null hypothesis probability =   5.751268e-01

Photon flux (15-150 keV)    in 1 sec: 10.7518 ( -0.3831  0.3734 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.02308e-06 ( -3.789e-08  3.49306e-08 ) ergs/cm2

Band function

Time interval is from   29.820 sec. to   30.820 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.8062  (  )
R^2/D10^2   : 0.341453  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         225.95 using 59 PHA bins.
# Reduced chi-squared =         3.9640 for     57 degrees of freedom
# Null hypothesis probability =   5.670827e-22

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.232e-08   2.200e-09
25- 50  1.745e-07   9.450e-09
50-150  6.781e-07   3.695e-08
15-150  8.849e-07   3.745e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 43.3359       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         291.76 using 59 PHA bins.
# Reduced chi-squared =         5.1186 for     57 degrees of freedom
# Null hypothesis probability =   3.063896e-33

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.079e-07   4.200e-09
25- 50  2.076e-07   7.400e-09
50-150  4.553e-07   1.650e-08
15-150  7.707e-07   3.015e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.23988        (-1.19754      1.33201)
R1^2/D10^2  : 3.38865        (-1.08483      1.7626)
kT2 [keV]   : 43.4454        (-6.42672      10.4769)
R2^2/D10^2  : 4.29064E-02    (-0.0189453   0.0255419)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.66 using 59 PHA bins.
# Reduced chi-squared =         0.9029 for     55 degrees of freedom
# Null hypothesis probability =   6.780703e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.690e-08   7.895e-09
25- 50  1.950e-07   1.765e-08
50-150  7.760e-07   1.144e-07
15-150  1.038e-06   1.124e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.817960     ( -0.102991   0.0998582 )
Norm@50keV  : 4.05168E-03    ( -0.000240717   0.000238047 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.87 using 59 PHA bins.
# Reduced chi-squared =         0.9802 for     57 degrees of freedom
# Null hypothesis probability =   5.173827e-01

Photon flux (15-150 keV)    in 57.79 sec: 0.465403 ( -0.0268412  0.026964 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.71577e-06 ( -1.4714e-07  1.47328e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.615515     ( -0.426426   0.244537 )
Epeak [keV] : 428.281      ( -428.283 -428.283 )
Norm@50keV  : 4.88749E-03    ( -0.00120987   0.0022506 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.10 using 59 PHA bins.
# Reduced chi-squared =         0.9840 for     56 degrees of freedom
# Null hypothesis probability =   5.088746e-01

Photon flux (15-150 keV)    in 57.79 sec: 0.460774 ( -0.028193  0.028306 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.69764e-06 ( -1.53669e-07  1.52525e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.53e-06
S(50-100 keV) = 1.19e-05

T90 vs. Hardness ratio plot

T90                                   = 88.1119999289513 sec.
Hardness ratio (energy fluence ratio) = 1.58035

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.48453
Count Ratio (50-100 keV) / (15-25 keV) = 1.25096

Mask shadow pattern

IMX = 2.046991096713631E-02, IMY = 3.767828298925605E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

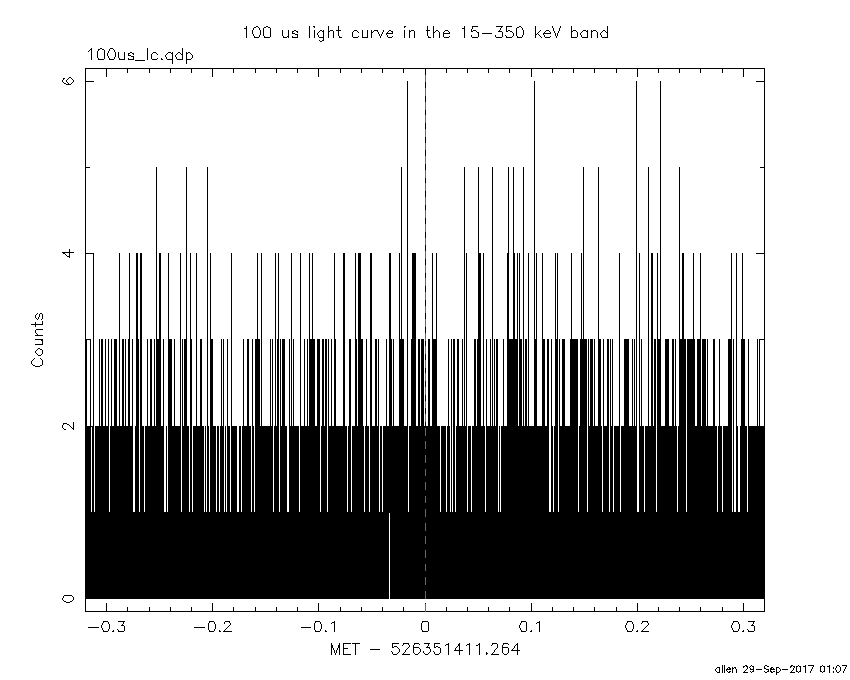

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-98.363410 -44.756000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4450 -60.6850    1.8  31.6 -136.7   0.8750   6.4    5.3	Cen X-3
186.5757 -62.9800    0.0  23.6 -137.1   0.2693   2.2   12.8	GX 301-2
245.0100 -15.6318    0.9  42.4    2.8   2.1720  12.4    1.8	Sco X-1
256.0407 -37.8468    1.4  24.3   33.3   0.9954   8.3    2.6	4U 1700-377
256.2887 -36.3036    2.9  25.7   32.0   0.4832   3.9   10.1	GX 349+2
262.8372 -24.6061    5.9  38.7   31.6  -0.3765  -2.0   12.6	GX 1+4
264.5645 -44.3261    3.0  23.1   55.9   0.4770   3.8   10.7	4U 1735-44
270.4199 -25.0907    4.8  41.4   41.4   0.5724   2.4    7.4	GX 5-1
270.2188 -25.7681  347.0  40.7   41.7   0.0079   0.0    4.8	GRS 1758-258
276.1221 -30.4079    4.8  39.6   52.4   0.5811   2.4   10.5	H1820-303
263.1636 -33.8515  112.6  30.7   39.7  -0.0159  -0.1    8.8	GX 354-0
275.5002 -41.5771    1.9  30.7   64.2   0.9804   6.1 ------	UNKNOWN
233.8352 -57.2113    0.4   0.0   65.7   3.0946  30.6 ------	UNKNOWN
109.2905 -71.1480    2.5  45.8 -171.6   0.9110   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-44.756000 13.036600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.6432 -60.6722    4.7  31.5 -136.6  -0.4755  -2.4   10.1	Cen X-3
186.6647 -62.7524  255.3  23.6 -136.5   0.0072   0.0    1.1	GX 301-2
244.8731 -15.5467    6.8  42.5    2.6   0.3910   1.7    8.3	Sco X-1
256.1661 -37.8462    4.1  24.3   33.5  -0.4335  -2.8    8.5	4U 1700-377
256.3152 -36.2974    3.5  25.8   32.0  -0.5420  -3.3    9.5	GX 349+2
262.8783 -24.7962   18.3  38.6   31.8   0.1597   0.6    7.7	GX 1+4
264.7826 -44.4509   41.3  23.1   56.5  -0.0490  -0.3    1.7	4U 1735-44
270.2910 -25.0613  368.1  41.4   41.3  -0.0107  -0.0    1.1	GX 5-1
270.2992 -25.7364   97.0  40.8   41.8  -0.0397  -0.1    0.4	GRS 1758-258
275.8501 -30.3118   12.7  39.5   52.0   0.3090   0.9    5.1	H1820-303
263.1550 -33.8332   11.6  30.7   39.6  -0.2074  -1.0    8.3	GX 354-0
203.9456 -47.0885    0.6  20.7  -86.9   3.7100  20.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
56.836590 602.748700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4712 -40.6693   16.2  48.2 -154.2   1.3506   0.7    7.4	Vela X-1
170.3143 -60.6503    2.0  23.6  177.3   3.7061   5.9    1.6	Cen X-3
186.6660 -62.6144    4.5  18.3  160.5   1.6816   2.5    9.4	GX 301-2
244.9887 -15.6405    0.8  46.2   15.6  17.2859  13.9    0.5	Sco X-1
255.9867 -37.8193    2.9  38.7   50.1   5.1559   4.0    1.5	4U 1700-377
256.2727 -36.2724    4.4  39.7   48.2   3.2496   2.6   12.0	GX 349+2
264.7763 -44.4352  619.3  41.4   64.0  -0.0430  -0.0    1.7	4U 1735-44
262.9001 -33.6844    4.6  45.6   49.5   6.1518   2.5   10.1	GX 354-0
 99.9699 -84.1279    2.4  44.6  142.7   7.7356   4.8 ------	UNKNOWN
233.8484 -57.2303    0.3  20.6   84.8  30.6271  40.6 ------	UNKNOWN
111.9867 -60.6200    2.7  51.2  173.5   7.8197   4.3 ------	UNKNOWN
203.9689 -47.1024    0.3   0.1  -99.2  25.2494  42.8 ------	UNKNOWN
145.9452 -36.2670    4.1  43.7 -142.9   4.4156   2.8 ------	UNKNOWN
191.1997  -4.9670    3.1  43.6  -64.2  13.1963   3.7 ------	UNKNOWN
207.6195   5.3411    2.9  52.6  -41.0  17.3922   4.0 ------	UNKNOWN
148.9460 -25.7026    3.7  48.0 -129.0  14.2568   3.2 ------	UNKNOWN

Plot creation:
Fri Sep 29 01:08:00 EDT 2017
