TDRSS scaled map for 770957
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 06 Sep 17 00:43:27 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 770957, Seg_Num: 0
GRB_RA: 203.992d {+13h 35m 58s} (J2000),
204.262d {+13h 37m 03s} (current),
203.232d {+13h 32m 56s} (1950)
GRB_DEC: -47.125d {-47d 07' 28"} (J2000),
-47.215d {-47d 12' 51"} (current),
-46.870d {-46d 52' 10"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3892 [cnts] Image_Peak=192 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 155 E_range: 50-350 keV
BKG_INTEN: 20108 [cnts]
BKG_TIME: 2580.35 SOD {00:43:00.35} UT
BKG_DUR: 8 [sec]
GRB_DATE: 18002 TJD; 249 DOY; 17/09/06
GRB_TIME: 2591.62 SOD {00:43:11.62} UT
GRB_PHI: -86.91 [deg]
GRB_THETA: 20.62 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 24.31 [sigma]
IMAGE_SIGNIF: 8.35 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +3 -1 +0 +0 -44 +0
SUN_POSTN: 164.92d {+10h 59m 40s} +6.44d {+06d 26' 07"}
SUN_DIST: 63.91 [deg] Sun_angle= -2.6 [hr] (East of Sun)
MOON_POSTN: 342.49d {+22h 49m 58s} -8.90d {-08d 54' 15"}
MOON_DIST: 112.76 [deg]
MOON_ILLUM: 100 [%]
GAL_COORDS: 310.75, 15.07 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 221.26,-34.22 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 211.46,-20.26 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(3.0<100sec) coincident with the FERMI_GBM event (trignum=526351393).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 06 Sep 17 00:54:02 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 770957, Seg_Num: 0
POINT_RA: 233.757d {+15h 35m 02s} (J2000)
POINT_DEC: -57.232d {-57d 13' 53"} (J2000)
MAP_DATE: 18002 TJD; 249 DOY; 17/09/06
MAP_TIME: 2591.62 SOD {00:43:11.62} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 24.31 [sigma]
IMAGE_SIGNIF: 8.35 [sigma]
MAP_URL: sw00770957000msbsm.fits
SUN_POSTN: 164.92d {+10h 59m 42s} +6.43d {+06d 25' 57"}
MOON_POSTN: 342.58d {+22h 50m 20s} -8.88d {-08d 52' 32"}
MOON_ILLUM: 100 [%]
GAL_COORDS: 323.69, -1.11 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 246.47,-36.72 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

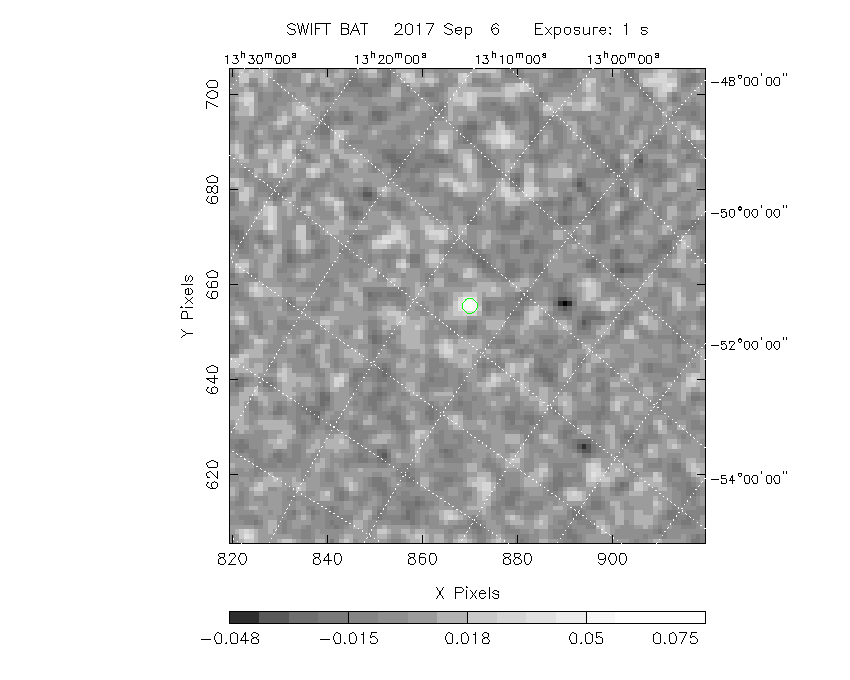

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (203.992, -47.125).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 203.992 -47.125 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
19.2729 -73.4422 0.0 47.3 153.9 0.0473 1.9 0.0 SMC X-1
83.1920 -66.3675 0.0 54.5 -179.4 0.0796 2.3 0.0 LMC X-4
141.1092 -55.2067 0.0 47.5 -142.7 -0.0198 -0.8 0.0 4U 0919-54
152.4417 -58.2933 0.0 40.7 -140.5 -0.0078 -0.5 0.0 GRO J1008-57
170.3158 -60.6230 0.0 31.6 -136.6 -0.0177 -1.5 0.0 Cen X-3
172.6417 -62.9308 0.0 29.8 -140.1 0.0020 0.2 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 42.7 -102.4 0.0863 1.2 0.0 NGC 3783
176.8692 -61.9539 0.0 28.2 -137.0 -0.0173 -1.6 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 28.1 -137.5 0.0100 0.9 0.0 4U 1145-61
177.1387 -67.7500 0.0 27.0 -149.2 0.0238 2.4 0.0 EXO 0748-676
186.6567 -62.7703 0.0 23.6 -136.6 0.0068 0.7 0.0 GX 301-2
188.9026 -39.9093 0.0 33.5 -91.9 0.0106 0.6 0.0 NGC 4507
195.6985 -63.8358 0.0 19.5 -138.9 -0.0033 -0.4 0.0 PSR B1259-63
196.3645 -49.4682 0.0 23.3 -100.1 -0.0054 -0.5 0.0 NGC 4945
201.3651 -43.0191 0.0 24.8 -82.5 -0.0210 -1.8 0.0 Cen A
201.6504 -62.1361 0.0 16.7 -133.8 -0.0153 -1.8 0.0 4U 1323-619
207.3302 -30.3094 0.0 32.6 -58.9 0.0118 0.8 0.0 IC 4329A
213.2913 -65.3390 0.0 12.7 -151.6 -0.0051 -0.7 0.0 Cir Galaxy
228.4837 -59.1356 0.0 3.4 -140.1 -0.0084 -1.0 0.0 PSR B1509-58
231.2913 -65.3390 0.0 8.2 173.9 0.0093 1.2 0.0 Circinus AGN
235.5971 -52.3861 0.0 4.9 -0.3 0.0041 0.5 0.0 H 1538-522
243.1792 -52.4231 0.0 7.2 39.1 0.0073 0.9 0.0 4U 1608-522
243.1792 -57.1669 0.0 5.1 80.0 0.0003 0.0 0.0 Cir X-1
244.9795 -15.6402 0.0 42.4 2.7 -0.0008 -0.1 0.0 Sco X-1
248.0700 -67.4619 0.0 12.1 139.9 -0.0066 -0.8 0.0 4U 1626-67
250.2312 -53.7514 0.0 9.9 63.2 0.0016 0.2 0.0 4U 1636-536
251.4487 -45.6111 0.0 15.9 37.4 -0.0099 -1.2 0.0 GX 340+0
253.5006 -39.8458 0.0 21.6 31.5 -0.0015 -0.2 0.0 GRO J1655-40
255.1996 -41.6731 0.0 20.7 37.2 0.0080 0.9 0.0 OAO 1657-415
255.9866 -37.8441 0.0 24.3 33.2 -0.0014 -0.2 0.0 4U 1700-377
256.4354 -36.4231 0.0 25.7 32.3 0.0257 2.7 0.0 GX 349+2
256.5638 -43.0361 0.0 20.2 41.8 -0.0203 -2.4 0.0 4U 1702-429
257.2292 -44.1000 0.0 19.7 44.9 -0.0132 -1.5 0.0 4U 1705-440
257.2333 -32.2833 0.0 29.7 29.5 -0.0069 -0.7 0.0 4U 1705-32
257.2750 -36.4108 0.0 26.0 33.7 0.0132 1.4 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 26.0 34.0 -0.0047 -0.5 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 33.6 26.7 -0.0098 -0.8 0.0 XTE J1710-281
261.3000 -36.2667 0.0 27.8 39.6 0.0023 0.2 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 30.7 36.2 -0.0131 -1.3 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 32.8 35.0 0.0113 0.9 0.0 4U 1722-30
262.9342 -16.9617 0.0 45.8 27.2 -0.0472 -2.4 0.0 GX 9+9
262.9892 -33.8347 0.0 30.6 39.4 0.0040 0.4 0.0 4U 1728-34
263.0090 -24.7456 0.0 38.7 31.9 0.0042 0.3 0.0 GX 1+4
263.3504 -33.3878 0.0 31.2 39.5 0.0140 1.3 0.0 4U 1730-335
264.5667 -27.0044 0.0 37.2 35.6 0.0072 0.5 0.0 SLX 1735-269
264.7429 -44.4500 0.0 23.1 56.4 0.0078 0.8 0.0 4U 1735-44
265.7500 -36.3447 0.0 29.8 45.9 -0.0027 -0.3 0.0 XTE J1743-363
265.9761 -29.7395 0.0 35.4 39.6 -0.0041 -0.3 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 36.3 39.3 -0.0031 -0.2 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 36.3 39.6 0.0199 1.5 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 35.9 40.1 -0.0276 -2.1 0.0 1A 1742-294
266.8579 -29.9994 0.0 35.6 41.0 0.0077 0.6 0.0 SLX 1744-299
266.9833 -26.5636 0.0 38.6 38.3 -0.0076 -0.5 0.0 GX 3+1
270.2842 -25.0792 0.0 41.4 41.3 0.0332 1.8 0.0 GX 5-1
270.3025 -25.7431 0.0 40.8 41.8 -0.0235 -1.3 0.0 GRS 1758-258
270.3846 -20.5289 0.0 45.4 38.3 -0.0086 -0.4 0.0 GX 9+1
270.6663 -20.2871 0.0 45.8 38.5 -0.0249 -1.0 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 49.8 39.9 0.0419 0.9 0.0 GX 13+1
275.9185 -30.3611 0.0 39.5 52.1 0.0126 0.7 0.0 4U 1820-30
276.4450 -37.1053 0.0 34.4 59.5 0.0010 0.1 0.0 3A 1822-371
277.3675 -23.7969 0.0 45.7 48.4 0.0209 0.6 0.0 GS 1826-24
278.9337 -32.9914 0.0 38.9 57.8 0.0086 0.5 0.0 XB 1832-330
279.5847 -65.4276 0.0 22.9 116.5 -0.0065 -0.6 0.0 ESO 103-035
249.7235 -27.7720 2.6 31.5 14.4 0.0428 4.4 ------ UNKNOWN
204.0056 -47.0779 1.5 20.6 -86.8 0.0842 7.9 ------ UNKNOWN
220.7945 -4.7311 2.2 53.5 -29.5 0.1673 5.2 ------ UNKNOWN
141.1923 -51.0955 2.3 50.3 -138.7 0.2089 5.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
170.3158 -60.6230 0.0 31.6 -136.6 -0.0177 -1.5 0.0 Cen X-3
186.6567 -62.7703 0.0 23.6 -136.6 0.0068 0.7 0.0 GX 301-2
244.9795 -15.6402 0.0 42.4 2.7 -0.0008 -0.1 0.0 Sco X-1
255.9866 -37.8441 0.0 24.3 33.2 -0.0014 -0.2 0.0 4U 1700-377
256.4354 -36.4231 0.0 25.7 32.3 0.0256 2.7 0.0 GX 349+2
263.0090 -24.7456 0.0 38.7 31.9 0.0041 0.3 0.0 GX 1+4
264.7429 -44.4500 0.0 23.1 56.4 0.0078 0.8 0.0 4U 1735-44
270.2842 -25.0792 0.0 41.4 41.3 0.0332 1.8 0.0 GX 5-1
270.3025 -25.7431 0.0 40.8 41.8 -0.0235 -1.3 0.0 GRS 1758-258
275.9250 -30.3670 0.0 39.5 52.1 0.0143 0.8 0.0 H1820-303
262.9891 -33.8347 0.0 30.6 39.4 0.0038 0.4 0.0 GX 354-0
249.7235 -27.7720 2.6 31.5 14.4 0.0428 4.4 ------ UNKNOWN
204.0056 -47.0779 1.5 20.6 -86.8 0.0842 7.9 ------ UNKNOWN
220.7945 -4.7311 2.2 53.5 -29.5 0.1673 5.2 ------ UNKNOWN
141.1923 -51.0955 2.3 50.3 -138.7 0.2089 5.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 141.1923 Dec. = -51.0955 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 204.0056 Dec. = -47.0779 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 220.7945 Dec. = -4.7311 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 249.7235 Dec. = -27.7720 (search radius of 3 degrees)
No bright source found.

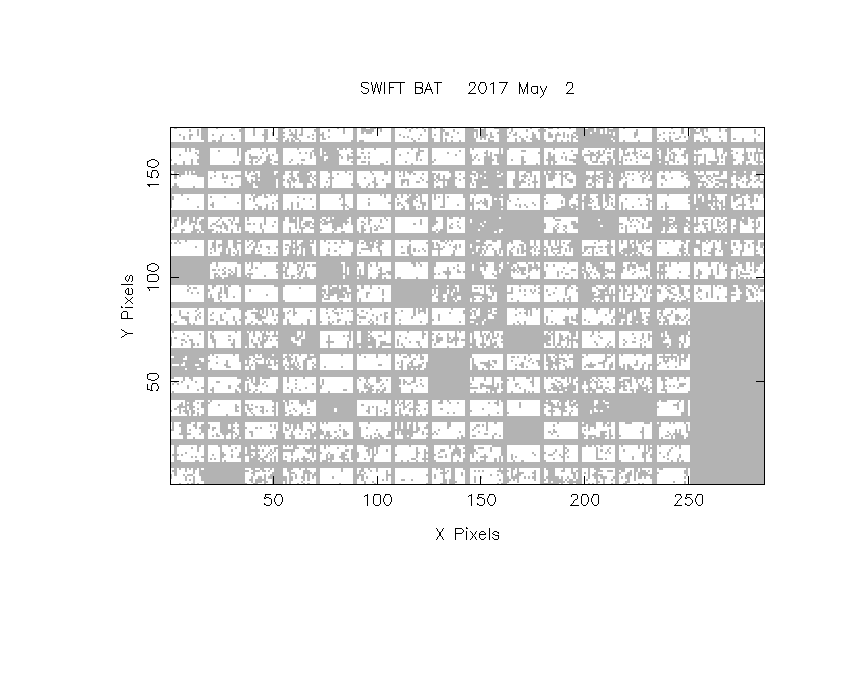

DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)

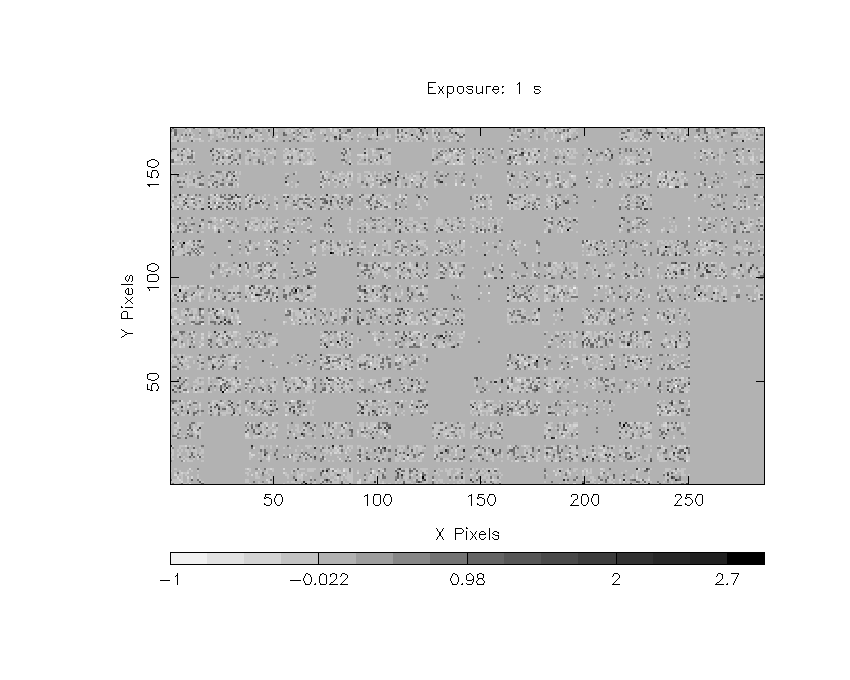

DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger770957/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Tue Sep 5 20:58:37 EDT 2017
