Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Oct 20 12:17:30 EDT 2017
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger780203/GCN5_download_cron
======================================================================

  Trigger: 00780203      Segment: 000

  BAT Trigger Time: 530081348.048   [s; MET]
      Trigger Stop: 530081348.064   [s; MET]
               UTC: 2017-10-19T04:48:48.184840    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 251.79429863101   Dec: -45.8770602293447  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.42
     Image Trigger?:     NO
     Rate S/N Ratio:     39.7869325281555  [ if not an image trigger ]
     Image S/N Ratio:    12.42

  Flight Position:   [ source = BAT ]
    RA: 251.79429863101   Dec: -45.8770602293447  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 251.793016385852   Dec: -45.87726333408  [deg; J2000]
        { 16h 47m 10.3s , -45d 52' 38.1" }
         +/- 1.84371535432087 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.727766269422305 [arcmin] (formal 1-sigma fit error)
    SNR: 12.6927493827264

  Angular difference between Flight and Ground position is 0.054931 arcmin

  Partial Coding Fraction: 0.8203125    [ including projection effects ]

  Duration
     T90: 0.015999972820282 +/- 0.00565682356674367
        Measured from: 1.19209289550781e-07
                   to: 0.0160000920295715     [s; relative to TRIGTIME]
     T50: 0.00399994850158691 +/- 0.00565686571343518
        Measured from: 0.00400012731552124
                   to: 0.00800007581710815     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.489999949932098
                   to: 0.510000050067902     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.019680   0.018021   0.004976  -0.000005
           0.002360   0.002243   0.001297   0.000438 [error]
 Peak      0.024278   0.017488   0.005765  -0.001397
           0.007487   0.007437   0.005692   0.004690 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.95e-09 5.48e-09 3.50e-09 3.43e-09 1.63e-08 1.83e-08   erg/cm2
              Error 1.09e-09 9.38e-10 1.08e-09 1.92e-09 2.88e-09 3.85e-09   erg/cm2
Peak flux Power-law 2.32e-01 1.27e-01 4.39e-02 1.97e-02 4.14e-01 4.23e-01   ph/cm2/s
              Error 1.14e-01 6.20e-02 4.31e-02 3.34e-02 1.77e-01 1.82e-01   ph/cm2/s

Fluence   Cutoff-PL 6.25e-09 7.15e-09 6.88e-10 1.00e-12 1.41e-08 1.41e-08   erg/cm2
              Error 1.26e-09 1.50e-09 1.24e-09 9.69e-11 2.45e-09 2.45e-09   erg/cm2
Peak flux Cutoff-PL 2.14e-01 1.61e-01 3.87e-02 2.22e-03 4.16e-01 4.16e-01   ph/cm2/s
              Error 1.70e-01 8.57e-02 4.45e-02 2.65e-02 1.73e-01 1.73e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 2.15e-01 1.60e-01 3.93e-02 2.25e-03 4.17e-01 4.17e-01   ph/cm2/s
              Error 1.70e-01 8.56e-02 4.43e-02 -------- 1.73e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.649    0.288    -      -           9.77e-02 2.30e-02   54.800 57
CPL   1.000    0.000      50.0    0.0      3.63e-01 0.00e+00   77.670 56

The chi2 of BB fit is 46.49 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.537    0.917    -      -           2.06e-03 1.40e-03   45.460 57
CPL   0.642    0.000      26.6    0.0      3.18e-02 0.00e+00   44.400 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.016    0.000    0.016
T90     0.016    0.000    0.016
T50     0.004    0.004    0.008
Peak    1.000   -0.490    0.510

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  251.7930 -45.8773 0.0151   32.5  -15.7       0.0461    12.7  TRIG_00780203
------------------------------------------

Foreground time interval of the image:
  0.000   0.016 (delta_t =   0.016 [sec])
Background time interval of the image:
-239.048   0.000 (delta_t = 239.048 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

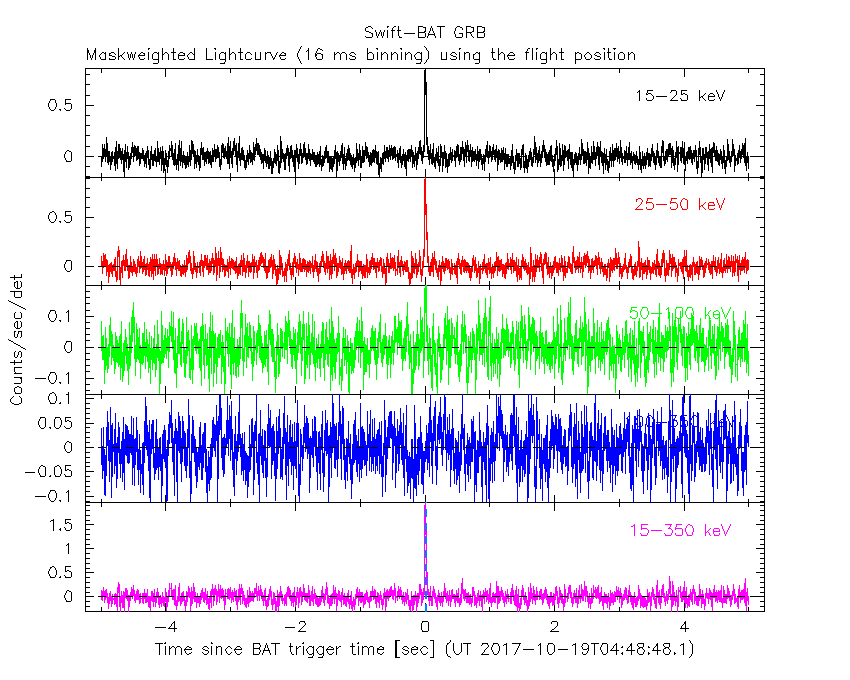

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

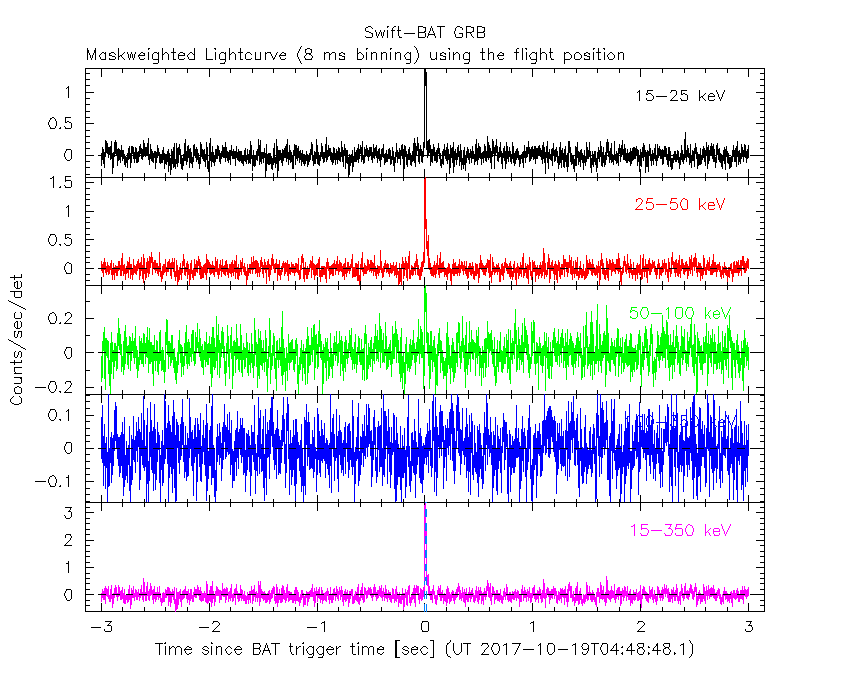

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.64876     ( -0.275054   0.301946 )
Norm@50keV  : 9.77106E-02    ( -0.0230318   0.0229391 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.80 using 59 PHA bins.
# Reduced chi-squared =         0.9614 for     57 degrees of freedom
# Null hypothesis probability =   5.580583e-01

Photon flux (15-150 keV)    in 0.016 sec: 21.0859 ( -3.27857  3.27886 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6345e-08 ( -2.85499e-09  2.9092e-09 ) ergs/cm2

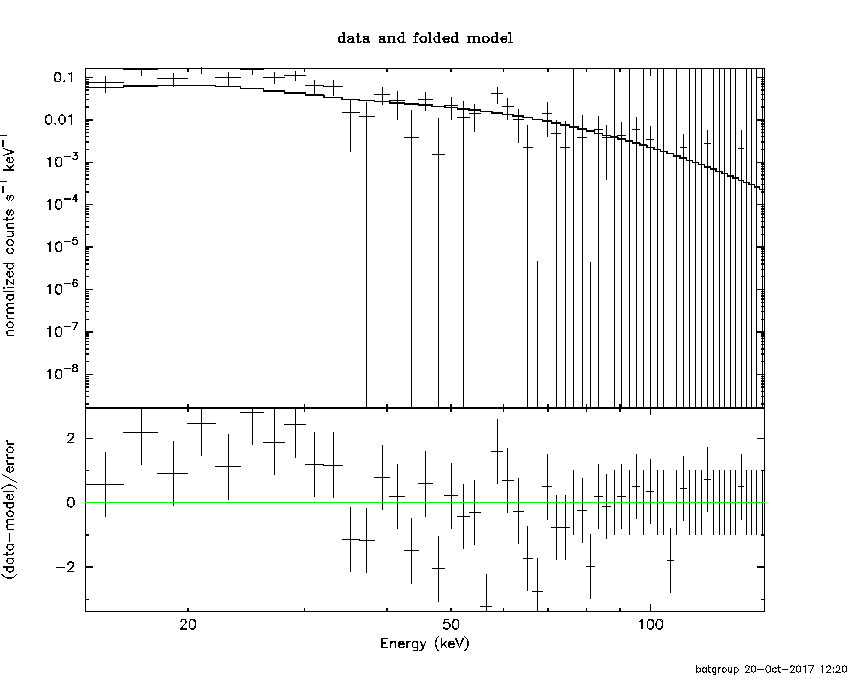

Cutoff power-law model

Time interval is from    0.000 sec. to    0.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.363239    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.67 using 59 PHA bins.
# Reduced chi-squared =          1.387 for     56 degrees of freedom
# Null hypothesis probability =   2.926881e-02

Photon flux (15-150 keV)    in 0.016 sec: 21.4762 ( -3.3003  3.2921 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40899e-08 ( -2.38565e-09  2.5235e-09 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.03865   -5 )
beta        : -3.92266    ( -1.72045   0.757529 )
Epeak [keV] : 24.5751      ( -2.90752 2.42157 )
Norm@50keV   : 3.81624E+04    ( -5612.25   51232.7 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.77 using 59 PHA bins.
# Reduced chi-squared =         0.7594 for     55 degrees of freedom
# Null hypothesis probability =   9.057243e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.39703  (-0.763446  0.86908)
R^2/D10^2   : 65.7441  (-28.7111   49.3802)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.49 using 59 PHA bins.
# Reduced chi-squared =         0.8157 for     57 degrees of freedom
# Null hypothesis probability =   8.385368e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.236e-09   1.553e-09
25- 50  7.127e-09   1.818e-09
50-150  8.427e-10   4.472e-10
15-150  1.421e-08   3.112e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 24.9467       (-5.97382      8.51642)
Norm        : 211.084       (-59.08     81.3241)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.78 using 59 PHA bins.
# Reduced chi-squared =         0.8733 for     57 degrees of freedom
# Null hypothesis probability =   7.402979e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.177e-09   1.167e-09
25- 50  6.322e-09   1.382e-09
50-150  2.680e-09   1.384e-09
15-150  1.518e-08   2.983e-09

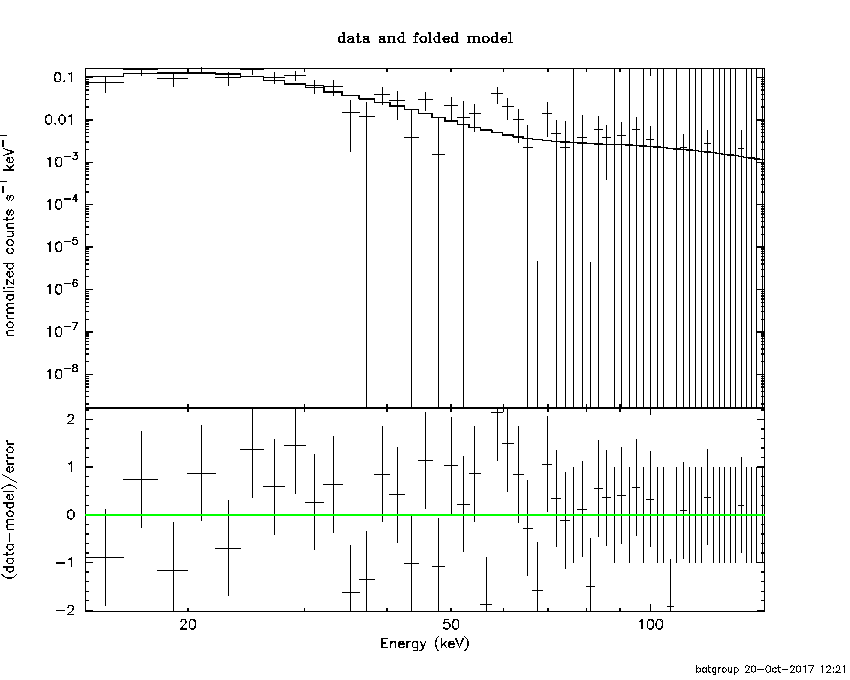

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.12760        (-0.758345      0.886167)
R1^2/D10^2  : 77.1860        (-35.75      62.5097)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 1.06367E-03    (-0.000772587   0.000768932)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.74 using 59 PHA bins.
#Fit statistic : Chi-Squared =          41.66 using 59 PHA bins.
# Reduced chi-squared =         0.7589 for     55 degrees of freedom
# Reduced chi-squared =         0.7575 for     55 degrees of freedom
# Null hypothesis probability =   9.062538e-01
# Null hypothesis probability =   9.077381e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.386e-09   1.868e-09
25- 50  6.766e-09   2.070e-09
50-150  5.050e-09   2.481e-09
15-150  1.820e-08   5.134e-09

Peak spectrum fit

Power-law model

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.53670     ( -0.734583   1.1002 )
Norm@50keV  : 2.06102E-03    ( -0.00137312   0.00142413 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.46 using 59 PHA bins.
# Reduced chi-squared =         0.7976 for     57 degrees of freedom
# Null hypothesis probability =   8.643123e-01

Photon flux (15-150 keV)    in 1 sec: 0.414147 ( -0.176773  0.17736 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.08164e-08 ( -1.03568e-08  1.16389e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.490 sec. to    0.510 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.642018     (     )
Epeak [keV] : 26.6466      (   )
Norm@50keV  : 3.17530E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.40 using 59 PHA bins.
# Reduced chi-squared =         0.7929 for     56 degrees of freedom
# Null hypothesis probability =   8.682293e-01

Photon flux (15-150 keV)    in 1 sec: 0.415657 ( -0.172711  0.174133 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9732e-08 ( -9.2114e-09  1.09911e-08 ) ergs/cm2

Band function

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.643663   ( -3.08198   0.839916 )
beta        : -10.0000    ( 10   6.75016e-14 )
Epeak [keV] : 26.5650      ( -16.0089 725.827 )
Norm@50keV   : 3.18268E-02    ( -0.0317839   233.456 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.40 using 59 PHA bins.
# Reduced chi-squared =         0.8073 for     55 degrees of freedom
# Null hypothesis probability =   8.459232e-01

Photon flux (15-150 keV)    in 1 sec: 0.416749 ( 6.58325  -0.17387 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.98688e-08 ( -1.98618e-08  -9.3007e-09 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.83172  (-3.48316  4.6807)
R^2/D10^2   : 0.529644  (-0.524897   5.51991)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.15 using 59 PHA bins.
# Reduced chi-squared =         0.7920 for     57 degrees of freedom
# Null hypothesis probability =   8.716988e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.780e-09   3.667e-09
25- 50  9.746e-09   6.330e-09
50-150  2.385e-09   2.132e-09
15-150  1.791e-08   1.205e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 32.1287       (-32.1152      58.7506)
Norm        : 3.28540       (-1.8166     5.15203)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.52 using 59 PHA bins.
# Reduced chi-squared =         0.7810 for     57 degrees of freedom
# Null hypothesis probability =   8.856167e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.914e-09   4.336e-09
25- 50  8.196e-09   5.345e-09
50-150  4.902e-09   4.218e-09
15-150  2.001e-08   1.408e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.99172        (-4.0089      38.0963)
R1^2/D10^2  : 4.97567        (-5.04234      -5.04234)
kT2 [keV]   : 11.2108        (-11.2224      -11.2224)
R2^2/D10^2  : 8.92011E-02    (-0.0891751   3.18025)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.11 using 59 PHA bins.
#Fit statistic : Chi-Squared =          44.10 using 59 PHA bins.
# Reduced chi-squared =         0.8020 for     55 degrees of freedom
# Reduced chi-squared =         0.8017 for     55 degrees of freedom
# Null hypothesis probability =   8.534238e-01
# Null hypothesis probability =   8.538154e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.839e-09   4.013e-09
25- 50  8.380e-09   5.410e-09
50-150  5.072e-09   4.236e-09
15-150  2.029e-08   1.156e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.64876     ( -0.275054   0.301946 )
Norm@50keV  : 9.77106E-02    ( -0.0230318   0.0229391 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.80 using 59 PHA bins.
# Reduced chi-squared =         0.9614 for     57 degrees of freedom
# Null hypothesis probability =   5.580583e-01

Photon flux (15-150 keV)    in 0.016 sec: 21.0859 ( -3.27857  3.27886 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6345e-08 ( -2.85499e-09  2.9092e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.363239    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.67 using 59 PHA bins.
# Reduced chi-squared =          1.387 for     56 degrees of freedom
# Null hypothesis probability =   2.926881e-02

Photon flux (15-150 keV)    in 0.016 sec: 21.4762 ( -3.3003  3.2921 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40899e-08 ( -2.38565e-09  2.5235e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.03865   -5 )
beta        : -3.92266    ( -1.72045   0.757529 )
Epeak [keV] : 24.5751      ( -2.90752 2.42157 )
Norm@50keV   : 3.81624E+04    ( -5612.25   51232.7 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.77 using 59 PHA bins.
# Reduced chi-squared =         0.7594 for     55 degrees of freedom
# Null hypothesis probability =   9.057243e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.48e-09
S(50-100 keV) = 3.50e-09

T90 vs. Hardness ratio plot

T90                                   = 0.015999972820282 sec.
Hardness ratio (energy fluence ratio) = 0.638686

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.915701
Count Ratio (50-100 keV) / (15-25 keV) = 0.252846

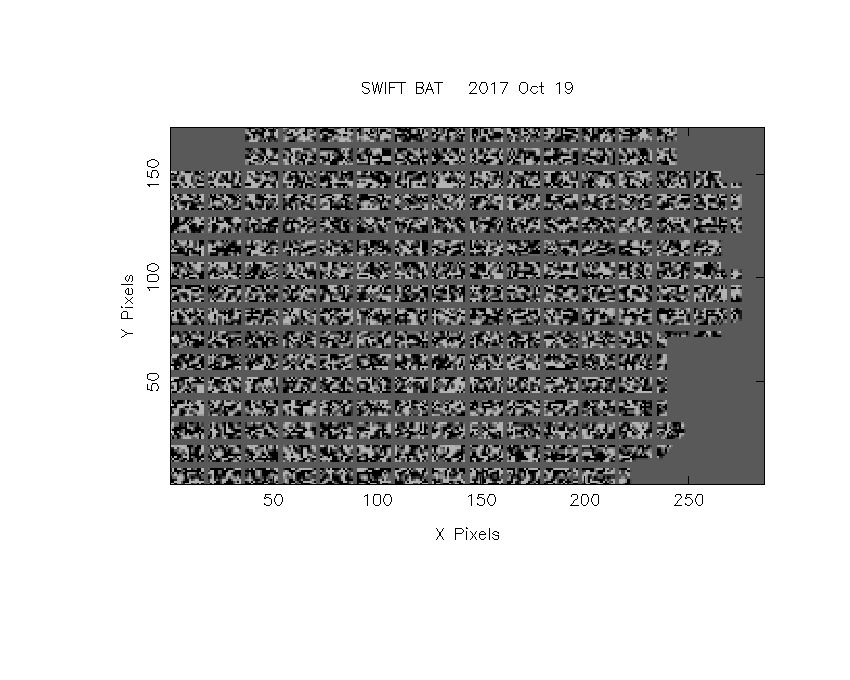

Mask shadow pattern

IMX = 6.137197956002516E-01, IMY = 1.725760703058427E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.048000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5641 -40.5732    1.9  44.0  168.0   2.9257   6.1    2.0	Vela X-1
170.7071 -60.6144    5.4  14.8  162.7   0.4487   2.1   11.5	Cen X-3
186.8340 -62.8394    2.9   6.9  158.3   0.9074   4.0    6.4	GX 301-2
255.9999 -37.8598    0.9  40.7  -20.0   4.3548  13.3    1.1	4U 1700-377
256.5317 -36.5141   14.6  42.1  -20.6   0.2774   0.8    7.2	GX 349+2
263.0318 -24.7383    8.7  55.0  -22.7   1.0923   1.3    1.3	GX 1+4
264.4716 -44.4673    0.0  39.5   -5.9  -1.1029  -3.1   11.7	4U 1735-44
270.2360 -25.0044  628.8  58.1  -15.8  -0.0199  -0.0    5.2	GX 5-1
270.1531 -25.7237    4.8  57.4  -15.5  -2.3979  -2.4    8.2	GRS 1758-258
276.0214 -30.4046    7.5  56.2   -7.3   1.3137   1.5    5.5	H1820-303
263.0048 -33.7344   15.9  47.4  -16.7   0.3383   0.7    6.1	GX 354-0
233.8398 -57.2357    0.2  16.8  -11.8  11.4615  52.0 ------	UNKNOWN
268.5010 -28.3539    2.1  54.4  -15.3   3.7069   5.6 ------	UNKNOWN
164.8215 -20.1251    2.2  49.1 -147.6   3.6134   5.3 ------	UNKNOWN
157.0421 -16.2249    2.6  55.5 -154.3   5.4183   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.016000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5369 -40.4980    5.5  44.1  168.0   0.0121   2.1    3.4	Vela X-1
169.9740 -60.5979   14.2  15.1  162.3   0.0023   0.8   10.2	Cen X-3
186.8346 -62.9660    0.0   6.9  157.3  -0.0013  -0.5   12.7	GX 301-2
255.7792 -37.7984   22.5  40.7  -20.3   0.0023   0.5   10.2	4U 1700-377
256.6248 -36.4721    5.9  42.2  -20.6   0.0094   2.0    9.6	GX 349+2
262.9698 -24.6756    5.4  55.0  -22.8   0.0237   2.1    4.7	GX 1+4
264.7649 -44.4116    4.4  39.7   -5.7  -0.0109  -2.6    2.5	4U 1735-44
270.2520 -25.1345    5.7  58.0  -15.7  -0.0313  -2.0    3.7	GX 5-1
270.2400 -25.7422    8.1  57.5  -15.4   0.0197   1.4    3.4	GRS 1758-258
275.9363 -30.3871    4.1  56.2   -7.3  -0.0322  -2.8    1.3	H1820-303
262.9103 -33.7501    8.4  47.3  -16.7  -0.0081  -1.4    6.4	GX 354-0
135.8635 -37.1321    2.0  46.7  171.2   0.0389   5.8 ------	UNKNOWN
286.2826 -38.2197    2.4  54.4    6.6   0.0562   4.9 ------	UNKNOWN
251.7931 -45.8773    0.9  32.5  -15.7   0.0461  12.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
73.052600 655.422000
656.952000 963.036600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2376 -60.5724    4.0  47.5 -164.6   6.3321   2.9    3.8	Cen X-3
186.5950 -62.6553    6.0  39.5 -164.8   2.4747   1.9    7.1	GX 301-2
244.9855 -15.6395    0.2  30.7  -38.7  71.5489  60.6    0.4	Sco X-1
255.9925 -37.8338    0.5   8.6   -2.9  23.1820  24.2    0.7	4U 1700-377
256.4269 -36.4224    2.8  10.1   -3.8   4.2742   4.1    0.4	GX 349+2
263.0191 -24.7915    3.7  22.9    1.3   3.1428   3.1    2.8	GX 1+4
264.7194 -44.2897   14.4   9.3   59.2  -0.7846  -0.8    9.7	4U 1735-44
268.2309  -1.5287    6.0  46.6   -2.9   3.5559   1.9    9.4	SW J1753.5-0127
270.3137 -25.1086    2.5  25.5   16.2   4.8470   4.6    2.4	GX 5-1
270.4425 -25.7366    4.4  25.0   17.1   2.9303   2.7    7.6	GRS 1758-258
274.1297 -14.0539    7.5  36.9   12.1   1.9537   1.5    7.3	GX 17+2
275.9559 -30.4286    3.5  24.3   33.3   3.4062   3.3    4.0	H1820-303
284.8901 -24.7512    0.0  33.9   37.1   2.2819   1.6   12.9	HT1900.1-2455
263.0029 -33.8427   28.3  14.7   13.7  -0.4197  -0.4    0.8	GX 354-0
255.6399 -48.7413    2.1   3.9  113.4   4.9698   5.4 ------	UNKNOWN
233.8236 -57.2318    0.3  15.9 -168.2  40.4327  42.7 ------	UNKNOWN
258.5600 -22.5431    3.1  23.9  -10.2   3.6320   3.7 ------	UNKNOWN
252.9512  13.0798    3.1  58.9  -24.5  22.3257   3.8 ------	UNKNOWN

Plot creation:
Fri Oct 20 12:22:57 EDT 2017
