TDRSS lightcurve for Trigger=783893
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 29 Oct 17 06:28:51 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 783893, Seg_Num: 0
GRB_RA: 335.758d {+22h 23m 02s} (J2000),
335.886d {+22h 23m 33s} (current),
335.398d {+22h 21m 36s} (1950)
GRB_DEC: +67.859d {+67d 51' 34"} (J2000),
+67.950d {+67d 56' 60"} (current),
+67.606d {+67d 36' 21"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 11906 [cnts] Image_Peak=255 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 253 E_range: 15-50 keV
BKG_INTEN: 106691 [cnts]
BKG_TIME: 23268.08 SOD {06:27:48.08} UT
BKG_DUR: 24 [sec]
GRB_DATE: 18055 TJD; 302 DOY; 17/10/29
GRB_TIME: 23304.62 SOD {06:28:24.62} UT
GRB_PHI: -106.18 [deg]
GRB_THETA: 12.87 [deg]
SOLN_STATUS: 0x83
RATE_SIGNIF: 24.12 [sigma]
IMAGE_SIGNIF: 6.62 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +1 -4 +0 +1 +41 +0
SUN_POSTN: 213.71d {+14h 14m 51s} -13.53d {-13d 31' 42"}
SUN_DIST: 114.28 [deg] Sun_angle= -8.1 [hr] (East of Sun)
MOON_POSTN: 323.36d {+21h 33m 27s} -14.53d {-14d 31' 57"}
MOON_DIST: 82.98 [deg]
MOON_ILLUM: 63 [%]
GAL_COORDS: 109.63, 8.91 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 33.39, 65.70 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: Since the IMAGE_SIGNIF is less than 7 sigma, this is a questionable detection.
COMMENTS: This trigger occurred at longitude,latitude = 249.10,19.63 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 29 Oct 17 06:45:41 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 783893, Seg_Num: 0
GRB_RA: 335.758d {+22h 23m 02s} (J2000),
335.886d {+22h 23m 33s} (current),
335.398d {+22h 21m 36s} (1950)
GRB_DEC: +67.859d {+67d 51' 34"} (J2000),
+67.950d {+67d 56' 60"} (current),
+67.606d {+67d 36' 21"} (1950)
GRB_DATE: 18055 TJD; 302 DOY; 17/10/29
GRB_TIME: 23304.62 SOD {06:28:24.62} UT
TRIGGER_INDEX: 253
GRB_PHI: -106.18 [deg]
GRB_THETA: 12.87 [deg]
DELTA_TIME: 25.00 [sec]
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x83
RATE_SIGNIF: 24.12 [sigma]
IMAGE_SIGNIF: 6.62 [sigma]
LC_URL: sw00783893000msb.lc
GCN template for BAT paragraph
Click here!
At 06:28:24 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 171029 ***A*** (trigger=783893). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 335.758, +67.859 which is
RA(J2000) = 22h 23m 02s
Dec(J2000) = +67d 51' 34"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~3296 counts/sec (15-350 keV), at ~0 sec after the trigger.
Test version of draft template
Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves
Extended TDRSS light curve and spacecraft attitude plot(s)
Extended TDRSS lc No.1
Extended TDRSS lc No.2

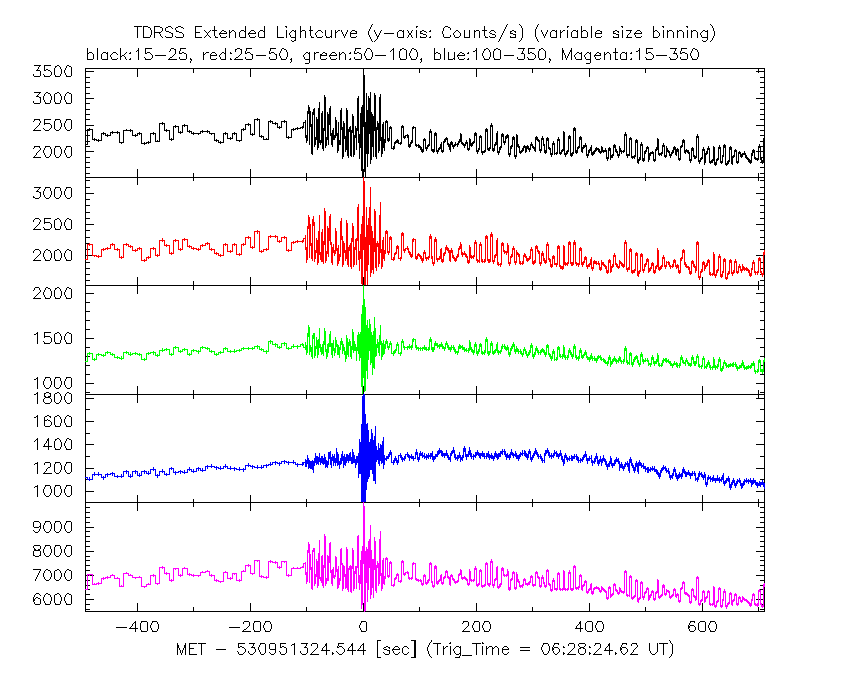

Extended TDRSS lc No.3
Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 183.04 s +/- 5.6 s
Estimated T50 duration: 70.144 s +/- 4.79659 s
Estimated Peak Interval: MET 530951365.31199998 +/- 0.500000 s
Estimated background rate 1: 6841.875 near MET 530951302.400000 s
Estimated background rate 2: 6737.305 near MET 530951506.624000 s
Estimated total duration: 198.528 s (for data selection)
(from MET 530951304.000000 to MET 530951502.528000)
Estimated total fluence: 51726.138413 count
Created GTI with 50 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 335.758 67.859 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 214.630521 -60.586808
Obj: 2017 10 29 6 151.165778 41.370768
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 134.923468 -65.901646
Obj: 2017 10 29 6 159.106937 46.841496
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 127.552949 -61.009592
Obj: 2017 10 29 6 160.600752 50.147964
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 85.689895 -30.712613
Obj: 2017 10 29 6 182.054950 41.789767
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 92.129823 30.188774
Obj: 2017 10 29 6 199.964924 -18.620703
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 50.612685 25.106287
Obj: 2017 10 29 6 207.046256 36.679833
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 275.427434 -18.891014
Obj: 2017 10 29 6 163.792973 12.631073
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2017 10 29 6 330.318459 -41.067334
Obj: 2017 10 29 6 156.003938 -24.495917
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger783893/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Sun Oct 29 02:46:03 EDT 2017
