                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Jan 20 09:20:59 EST 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger796469
======================================================================

  Trigger: 00796469      Segment: 000

  BAT Trigger Time: 534677273.088   [s; MET]
      Trigger Stop: 534677274.112   [s; MET]
               UTC: 2017-12-11T09:27:32.949900    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 98.108012249038   Dec: -58.669689444389  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.03
     Image Trigger?:     NO
     Rate S/N Ratio:     21.0475651798492  [ if not an image trigger ]
     Image S/N Ratio:    11.03

  Flight Position:   [ source = BAT ]
    RA: 98.108012249038   Dec: -58.669689444389  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 98.1452289806442   Dec: -58.6881597941355  [deg; J2000]
        { 06h 32m 34.9s , -58d 41' 17.4" }
         +/- 1.75106632086887 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.887388504858632 [arcmin] (formal 1-sigma fit error)
    SNR: 13.6629111498022

  Angular difference between Flight and Ground position is 1.604864 arcmin

  Partial Coding Fraction: 0.578125    [ including projection effects ]

  Duration
     T90: 2.17600005865097 +/- 0.455367963461657
        Measured from: 0.0799999833106995
                   to: 2.25600004196167     [s; relative to TRIGTIME]
     T50: 0.76800000667572 +/- 0.389625496896741
        Measured from: 0.38400000333786
                   to: 1.15200001001358     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.0360000133514404
                   to: 1.03600001335144     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0320000052452087
                   to: 2.63999998569489     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.106308   0.167052   0.100035   0.018681
           0.015795   0.016757   0.014705   0.011871 [error]
 Peak      0.061975   0.111926   0.072538   0.013629
           0.010041   0.011422   0.010216   0.007738 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.22e-08 6.65e-08 7.93e-08 1.84e-07 2.41e-07 3.73e-07   erg/cm2
              Error 7.62e-09 7.97e-09 1.38e-08 6.47e-08 3.29e-08 7.80e-08   erg/cm2
Peak flux Power-law 7.72e-01 7.54e-01 5.14e-01 5.51e-01 2.26e+00 2.59e+00   ph/cm2/s
              Error 1.51e-01 9.57e-02 8.05e-02 1.69e-01 2.79e-01 3.20e-01   ph/cm2/s

Fluence   Cutoff-PL 3.91e-08 7.25e-08 7.98e-08 6.36e-08 2.27e-07 2.55e-07   erg/cm2
              Error 8.59e-09 1.07e-08 1.58e-08 9.39e-08 3.73e-08 1.07e-07   erg/cm2
Peak flux Cutoff-PL 6.97e-01 8.23e-01 5.41e-01 2.40e-01 2.22e+00 2.30e+00   ph/cm2/s
              Error 1.69e-01 1.26e-01 9.22e-02 2.48e-01 2.83e-01 3.62e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.747    0.205    -      -           1.00e-02 1.32e-03   54.040 57
CPL   1.043    0.955      61.1  -22.0      2.45e-02 4.69e-02   52.120 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.552    0.198    -      -           1.79e-02 2.26e-03   74.750 57
CPL   0.796    0.903      75.3  -26.6      4.53e-02 7.12e-02   72.130 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.832000 sec.
T50 in the 50-300 keV band: 0.512000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    2.608    0.032    2.640
T90     2.176    0.080    2.256
T50     0.768    0.384    1.152
Peak    1.000    0.036    1.036

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   98.1452   -58.6882   0.0141    39.5736    -2.2116         0.4073248     13.663 TRIG_00796469

Foreground time interval of the image:
  0.032   2.640 (delta_t =   2.608 [sec])
Background time interval of the image:
-239.088   0.032 (delta_t = 239.120 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

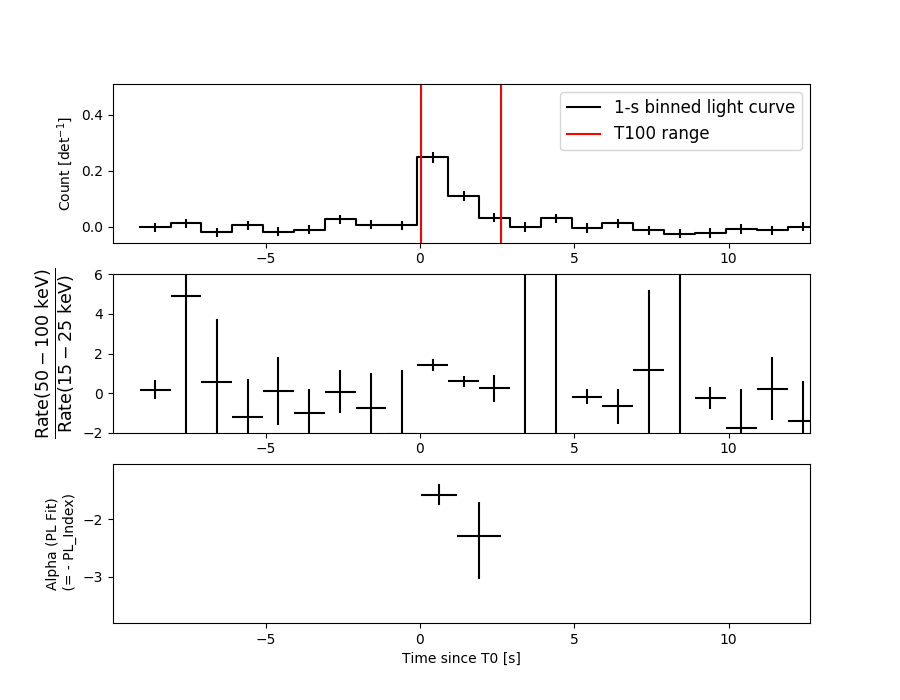

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

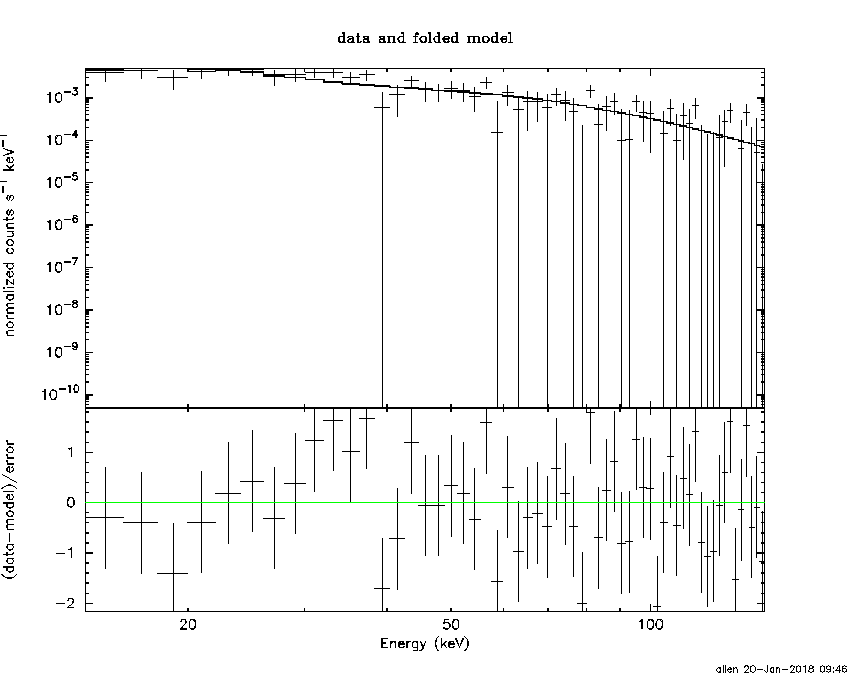

Power-law model

Time interval is from    0.032 sec. to    2.640 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74744     ( -0.200938   0.208255 )
Norm@50keV  : 1.00223E-02    ( -0.00132557   0.00130467 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.04 using 59 PHA bins.
# Reduced chi-squared =         0.9481 for     57 degrees of freedom
# Null hypothesis probability =   5.867262e-01

Photon flux (15-150 keV)    in 2.608 sec: 1.35397 ( -0.16329  0.16345 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.41261e-07 ( -3.26887e-08  3.30966e-08 ) ergs/cm2

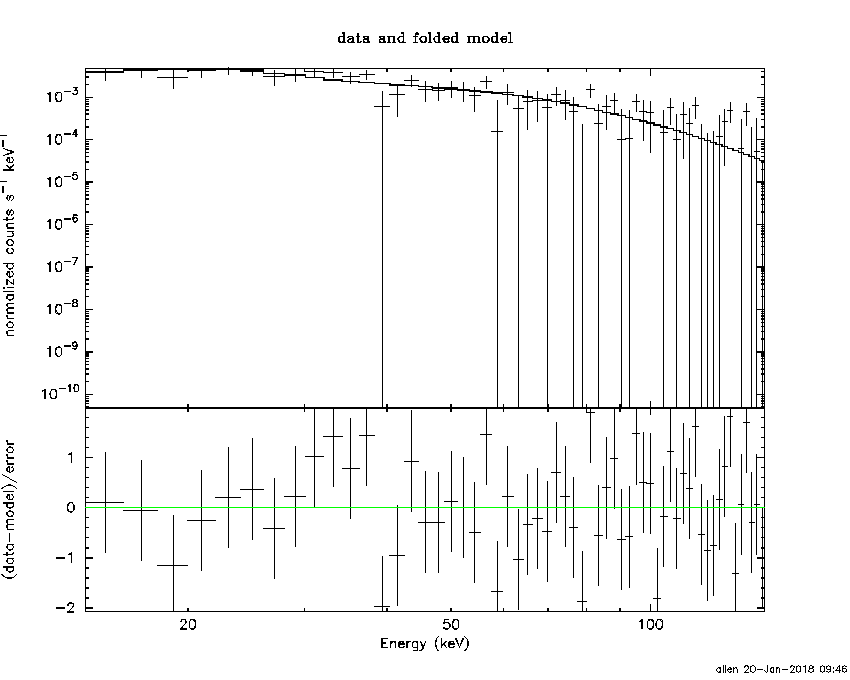

Cutoff power-law model

Time interval is from    0.032 sec. to    2.640 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04280     ( -1.11293   0.79733 )
Epeak [keV] : 61.0718      ( -17.0392 -61.0712 )
Norm@50keV  : 2.45209E-02    ( -0.0153326   0.0783989 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.12 using 59 PHA bins.
# Reduced chi-squared =         0.9307 for     56 degrees of freedom
# Null hypothesis probability =   6.226159e-01

Photon flux (15-150 keV)    in 2.608 sec: 1.32288 ( -0.16861  0.16814 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27226e-07 ( -3.7237e-08  3.74522e-08 ) ergs/cm2

Band function

Time interval is from    0.032 sec. to    2.640 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.4437  (-1.49244  1.77444)
R^2/D10^2   : 0.398614  (-0.166287   0.272645)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.44 using 59 PHA bins.
# Reduced chi-squared =          1.095 for     57 degrees of freedom
# Null hypothesis probability =   2.890653e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.864e-08   6.026e-09
25- 50  8.512e-08   1.344e-08
50-150  6.485e-08   1.710e-08
15-150  1.786e-07   2.712e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 112.391       (-40.5742      83.2573)
Norm        : 5.84229       (-0.859602     1.12781)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.27 using 59 PHA bins.
# Reduced chi-squared =         0.9171 for     57 degrees of freedom
# Null hypothesis probability =   6.527475e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.977e-08   6.781e-09
25- 50  7.033e-08   1.325e-08
50-150  1.214e-07   5.966e-08
15-150  2.315e-07   6.469e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.39063        (-2.1554      2.11822)
R1^2/D10^2  : 0.995368        (-0.512914      1.4423)
kT2 [keV]   : 32.7929        (-14.6641      -32.9363)
R2^2/D10^2  : 5.16393E-03    (-0.00508777   0.0432746)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.65 using 59 PHA bins.
# Reduced chi-squared =         0.9027 for     55 degrees of freedom
# Null hypothesis probability =   6.784724e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.630e-08   1.863e-08
25- 50  7.852e-08   3.428e-08
50-150  1.197e-07   6.694e-08
15-150  2.345e-07   9.775e-08

Peak spectrum fit

Power-law model

Time interval is from    0.036 sec. to    1.036 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55197     ( -0.195765   0.199384 )
Norm@50keV  : 1.78537E-02    ( -0.00226748   0.0022499 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.75 using 59 PHA bins.
# Reduced chi-squared =          1.311 for     57 degrees of freedom
# Null hypothesis probability =   5.738340e-02

Photon flux (15-150 keV)    in 1 sec: 2.26154 ( -0.27859  0.27887 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.68051e-07 ( -2.28666e-08  2.30927e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.036 sec. to    1.036 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.795935     ( -1.01312   0.793333 )
Epeak [keV] : 75.2830      ( -22.1524 -75.2834 )
Norm@50keV  : 4.52688E-02    ( -0.0277997   0.114592 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.13 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     56 degrees of freedom
# Null hypothesis probability =   7.218848e-02

Photon flux (15-150 keV)    in 1 sec: 2.21705 ( -0.28313  0.28311 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.59071e-07 ( -2.54884e-08  2.52862e-08 ) ergs/cm2

Band function

Time interval is from    0.036 sec. to    1.036 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.8399  (-1.75777  2.15924)
R^2/D10^2   : 0.456256  (-0.19632   0.320145)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.41 using 59 PHA bins.
# Reduced chi-squared =          1.446 for     57 degrees of freedom
# Null hypothesis probability =   1.549264e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.595e-08   3.635e-09
25- 50  5.421e-08   9.770e-09
50-150  5.610e-08   1.515e-08
15-150  1.263e-07   2.134e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 184.359       (-79.0081      -184.22)
Norm        : 9.33605       (-1.16092     1.33264)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.92 using 59 PHA bins.
# Reduced chi-squared =          1.279 for     57 degrees of freedom
# Null hypothesis probability =   7.599422e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.348e-08   1.317e-08
25- 50  4.474e-08   2.396e-08
50-150  9.554e-08   5.270e-08
15-150  1.637e-07   8.810e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.00999        (-2.00635      2.19211)
R1^2/D10^2  : 1.23508        (-0.617362      1.11994)
kT2 [keV]   : 35.5034        (-13.6541      90.9173)
R2^2/D10^2  : 8.06512E-03    (-0.00803426   0.0417513)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.87 using 59 PHA bins.
# Reduced chi-squared =          1.234 for     55 degrees of freedom
# Null hypothesis probability =   1.141570e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.096e-08   9.577e-09
25- 50  5.095e-08   2.317e-08
50-150  9.253e-08   5.162e-08
15-150  1.644e-07   7.449e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74744     ( -0.200938   0.208255 )
Norm@50keV  : 1.00223E-02    ( -0.00132557   0.00130467 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.04 using 59 PHA bins.
# Reduced chi-squared =         0.9481 for     57 degrees of freedom
# Null hypothesis probability =   5.867262e-01

Photon flux (15-150 keV)    in 2.608 sec: 1.35391 ( -0.163283  0.163438 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.41223e-07 ( -3.26759e-08  3.31088e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04245     ( -1.11284   0.797403 )
Epeak [keV] : 61.0599      ( -17.0391 -61.0701 )
Norm@50keV  : 2.45327E-02    ( -0.0150164   0.0783827 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.12 using 59 PHA bins.
# Reduced chi-squared =         0.9307 for     56 degrees of freedom
# Null hypothesis probability =   6.226159e-01

Photon flux (15-150 keV)    in 2.608 sec: 1.32268 ( -0.16857  0.16808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.27291e-07 ( -3.72146e-08  3.74996e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.65e-08
S(50-100 keV) = 7.93e-08

T90 vs. Hardness ratio plot

T90                                   = 2.17600005865097 sec.
Hardness ratio (energy fluence ratio) = 1.19248

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.5714
Count Ratio (50-100 keV) / (15-25 keV) = 0.940992

Mask shadow pattern

IMX = 8.258796853203473E-01, IMY = 3.189422191671311E-02

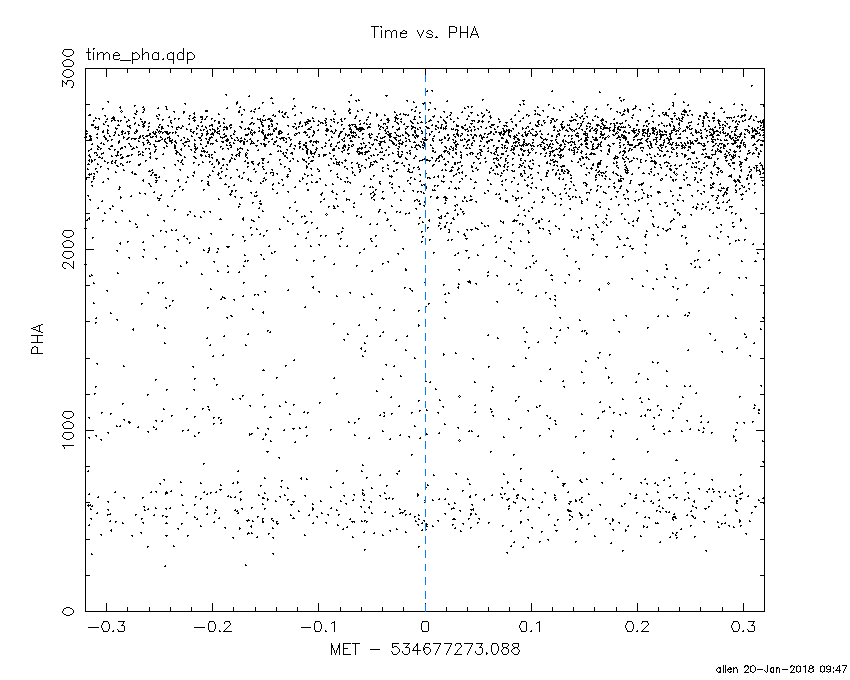

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

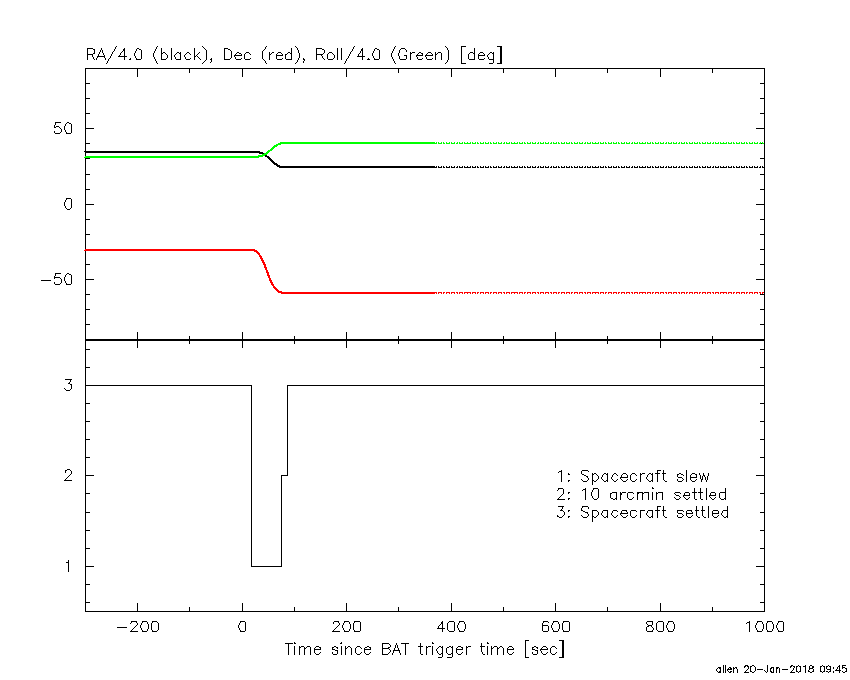

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.088000 0.032000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6431 -40.4459    3.2  10.4  -18.8   0.8357   3.6    8.4	Vela X-1
170.3663 -60.5596  262.3  36.4  -60.0   0.0206   0.0    4.1	Cen X-3
156.9738   6.3927    2.7  40.6  172.8   1.7327   4.3 ------	UNKNOWN
 66.3645 -64.9835    3.4  55.5   -5.3   2.6847   3.4 ------	UNKNOWN
178.3628 -19.3475    3.0  36.9 -133.1   1.4442   3.9 ------	UNKNOWN
 55.4301 -81.0907    4.4  58.9  -24.4   4.4290   2.6 ------	UNKNOWN
160.7376 -80.4555    3.0  50.7  -39.2   3.8316   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.032000 2.640000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.2809 -40.5579   12.0  10.6  -17.6   0.0190   1.0   11.3	Vela X-1
170.1234 -60.6865   13.3  36.4  -59.7   0.0336   0.9    6.8	Cen X-3
163.7685  17.1835    2.3  53.2  174.8   0.3951   4.9 ------	UNKNOWN
 98.1452 -58.6882    0.8  39.6   -2.2   0.4108  13.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
76.012600 963.022000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4983 -40.5397    1.6  29.7  177.1   4.0406   7.0    1.6	Vela X-1
170.0188 -60.7266    0.0  34.5 -127.0  -0.9402  -1.0   10.7	Cen X-3
186.6134 -62.7451    3.9  40.0 -117.2   4.4931   3.0    1.9	GX 301-2
 49.1435 -24.0043    3.0  48.7   41.8   8.6229   3.9 ------	UNKNOWN
 37.4178 -42.7367    2.9  39.9   14.1   3.0818   4.0 ------	UNKNOWN
159.1368 -21.5479    2.3  56.8 -175.2  12.8193   4.9 ------	UNKNOWN
  6.9734 -59.6162    3.5  43.0  -23.9   2.8882   3.3 ------	UNKNOWN
311.4731 -75.1433    2.8  44.4  -60.2  11.5840   4.1 ------	UNKNOWN
287.2363 -78.6973    2.3  42.5  -69.2  12.1680   5.1 ------	UNKNOWN

Plot creation:
Sat Jan 20 09:47:30 EST 2018
