Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Feb  2 16:01:01 EST 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger804692
======================================================================

  Trigger: 00804692      Segment: 000

  BAT Trigger Time: 537381746.688   [s; MET]
      Trigger Stop: 537381746.944   [s; MET]
               UTC: 2018-01-11T16:42:06.387380    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 149.84082869691   Dec: 48.2647072728262  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.93
     Image Trigger?:     NO
     Rate S/N Ratio:     76.3020314277412  [ if not an image trigger ]
     Image S/N Ratio:    10.93

  Flight Position:   [ source = BAT ]
    RA: 149.84082869691   Dec: 48.2647072728262  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 149.781875138668   Dec: 48.254015645398  [deg; J2000]
        { 09h 59m 07.7s , +48d 15' 14.5" }
         +/- 0.666105442273207 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.218121391426041 [arcmin] (formal 1-sigma fit error)
    SNR: 54.3500357760269

  Angular difference between Flight and Ground position is 2.440745 arcmin

  Partial Coding Fraction: 0.703125    [ including projection effects ]

  Duration
     T90: 50.8919999599457 +/- 1.88013615903655
        Measured from: 1.78400003910065
                   to: 52.6759999990463     [s; relative to TRIGTIME]
     T50: 22.2639999389648 +/- 0.394400764322609
        Measured from: 10.392000079155
                   to: 32.6560000181198     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 13.8880000114441
                   to: 14.8880000114441     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.296000003814697
                   to: 69.5880000591278     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     3.446196   5.306081   4.627286   1.520888
           0.057406   0.063303   0.059197   0.048992 [error]
 Peak      0.117844   0.200227   0.221808   0.089550
           0.008909   0.010716   0.010790   0.008664 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.05e-06 2.21e-06 3.64e-06 1.36e-05 1.01e-05 2.05e-05   erg/cm2
              Error 4.17e-08 5.03e-08 6.84e-08 6.29e-07 1.75e-07 6.45e-07   erg/cm2
Peak flux Power-law 4.00e-04 4.86e-03 6.37e-02 5.60e+00 2.39e-01 5.56e+00   ph/cm2/s
              Error 3.81e-05 -------- 4.89e-03 3.43e-01 -------- 3.45e-01   ph/cm2/s

Fluence   Cutoff-PL 1.05e-06 2.21e-06 3.61e-06 1.45e-05 1.01e-05 2.04e-05   erg/cm2
              Error -------- 5.03e-08 -------- -------- 1.75e-07 8.82e-07   erg/cm2
Peak flux Cutoff-PL 1.05e+00 1.46e+00 1.49e+00 2.74e+00 4.89e+00 6.73e+00   ph/cm2/s
              Error 1.23e-01 9.90e-02 9.79e-02 5.56e-01 2.64e-01 6.64e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.280    0.034    -      -           1.45e-02 2.54e-04   36.880 57
CPL   1.275    0.034    9988.0    0.0      1.45e-02 6.04e-04   37.010 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.971    0.096    -      -           4.25e-02 2.27e-03   52.910 57
CPL   0.965    0.228    10000.0    0.0      4.28e-02 2.25e-03   52.910 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 43.392000 sec.
T50 in the 50-300 keV band: 19.776000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   69.884   -0.296   69.588
T90    50.892    1.784   52.676
T50    22.264   10.392   32.656
Peak    1.000   13.888   14.888

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  149.7819    48.2540   0.0035    28.0848    28.4416         3.6437797     54.350 TRIG_00804692

Foreground time interval of the image:
 -0.296   9.813 (delta_t =  10.109 [sec])
Background time interval of the image:
-239.688  -0.296 (delta_t = 239.392 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

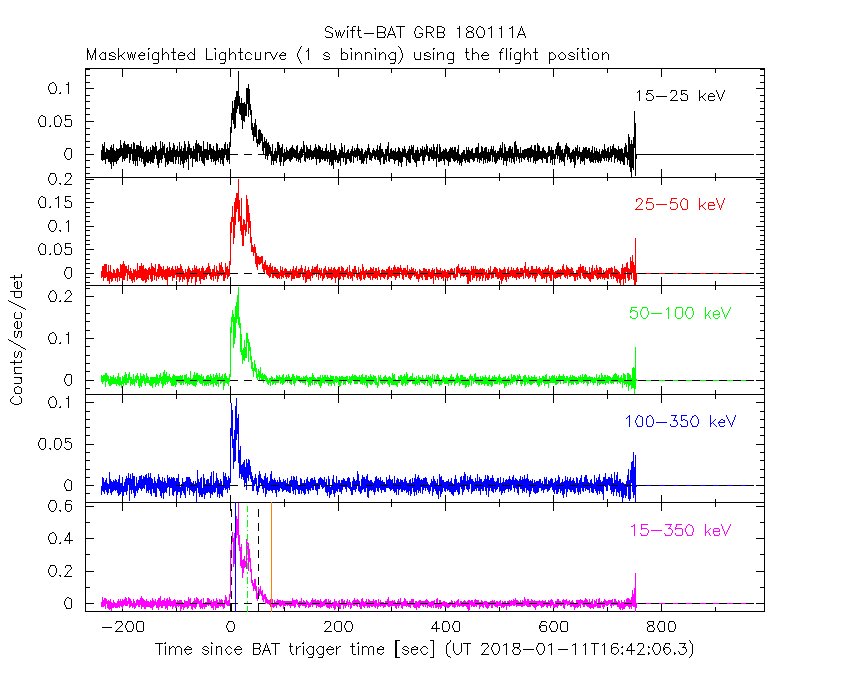

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.296 sec. to   69.588 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27965     ( -0.0337548   0.0336512 )
Norm@50keV  : 1.44691E-02    ( -0.00025406   0.000253578 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.88 using 59 PHA bins.
# Reduced chi-squared =         0.6470 for     57 degrees of freedom
# Null hypothesis probability =   9.822591e-01

Photon flux (15-150 keV)    in 69.88 sec: 1.71991 ( -0.03415  0.03432 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.00432e-05 ( -1.74911e-07  1.74941e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.296 sec. to   69.588 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27510     ( -0.0338303   0.0340643 )
Epeak [keV] : 9987.99      ( -9995.61 -9995.61 )
Norm@50keV  : 1.45301E-02    ( -0.000250643   0.000956574 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.01 using 59 PHA bins.
# Reduced chi-squared =         0.6609 for     56 degrees of freedom
# Null hypothesis probability =   9.764362e-01

Photon flux (15-150 keV)    in 69.88 sec: 1.73146 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.00842e-05 ( -2.18202e-07  1.31334e-07 ) ergs/cm2

Band function

Time interval is from   -0.296 sec. to   69.588 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

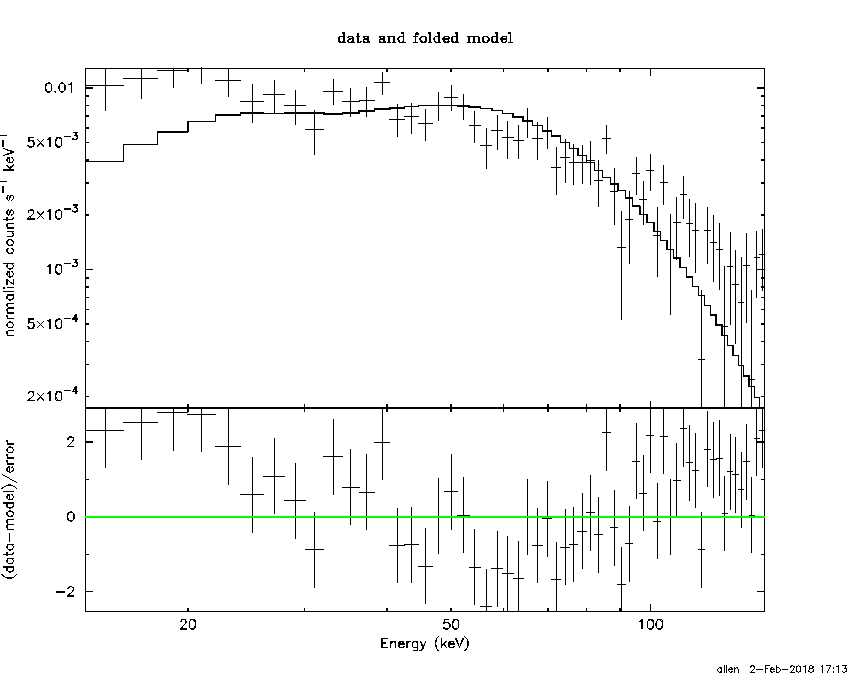

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.7521  (  )
R^2/D10^2   : 6.56531E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         760.76 using 59 PHA bins.
# Reduced chi-squared =         13.347 for     57 degrees of freedom
# Null hypothesis probability =  1.079142e-123

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.752e-07   1.450e-08
25- 50  1.914e-06   5.276e-08
50-150  6.137e-06   1.667e-07
15-150  8.426e-06   1.572e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 7.43733       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         305.07 using 59 PHA bins.
# Reduced chi-squared =         5.3521 for     57 degrees of freedom
# Null hypothesis probability =   1.332132e-35

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.294e-06   2.481e-08
25- 50  2.489e-06   4.996e-08
50-150  5.460e-06   1.045e-07
15-150  9.244e-06   1.782e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.77517        (-0.569487      0.597699)
R1^2/D10^2  : 0.755525        (-0.14535      0.189531)
kT2 [keV]   : 37.6622        (-2.84925      3.57397)
R2^2/D10^2  : 7.96841E-03    (-0.00193874   0.00227025)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.75 using 59 PHA bins.
# Reduced chi-squared =         0.7228 for     55 degrees of freedom
# Null hypothesis probability =   9.394081e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.871e-07   5.590e-08
25- 50  2.307e-06   7.582e-08
50-150  6.870e-06   2.823e-07
15-150  1.006e-05   3.424e-07

Peak spectrum fit

Power-law model

Time interval is from   13.888 sec. to   14.888 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.971151     ( -0.0961522   0.0950125 )
Norm@50keV  : 4.25208E-02    ( -0.00227539   0.00226857 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.91 using 59 PHA bins.
# Reduced chi-squared =         0.9283 for     57 degrees of freedom
# Null hypothesis probability =   6.291242e-01

Photon flux (15-150 keV)    in 1 sec: 0.239311 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.64644e-07 ( -2.7132e-08  2.72256e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   13.888 sec. to   14.888 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.965115     ( -0.353217   0.103265 )
Epeak [keV] : 9999.99      ( -9999.99 -9999.99 )
Norm@50keV  : 4.27842E-02    ( -0.00225586   0.00225075 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.91 using 59 PHA bins.
# Reduced chi-squared =         0.9448 for     56 degrees of freedom
# Null hypothesis probability =   5.925905e-01

Photon flux (15-150 keV)    in 1 sec: 4.88549 ( -0.26191  0.26671 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.64344e-07 ( -2.82501e-08  2.61232e-08 ) ergs/cm2

Band function

Time interval is from   13.888 sec. to   14.888 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.6051  (  )
R^2/D10^2   : 0.160779  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         118.32 using 59 PHA bins.
# Reduced chi-squared =         2.0757 for     57 degrees of freedom
# Null hypothesis probability =   3.472893e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.501e-08   1.675e-09
25- 50  8.066e-08   6.405e-09
50-150  3.080e-07   2.640e-08
15-150  4.036e-07   2.610e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 19.6522       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         152.95 using 59 PHA bins.
# Reduced chi-squared =         2.6834 for     57 degrees of freedom
# Null hypothesis probability =   1.032092e-10

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.894e-08   2.835e-09
25- 50  9.414e-08   6.195e-09
50-150  2.064e-07   5.030e-08
15-150  3.495e-07   5.015e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.2182        (-2.55138      2.78404)
R1^2/D10^2  : 1.12804        (-0.513288      1.39251)
kT2 [keV]   : 45.6620        (-12.2207      44.243)
R2^2/D10^2  : 1.63824E-02    (-0.0130672   0.0255547)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.80 using 59 PHA bins.
# Reduced chi-squared =          1.033 for     55 degrees of freedom
# Null hypothesis probability =   4.078752e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.815e-08   6.925e-09
25- 50  9.017e-08   1.883e-08
50-150  3.492e-07   1.406e-07
15-150  4.675e-07   1.666e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.848619     ( -0.0551908   0.0546323 )
Norm@50keV  : 2.28218E-02    ( -0.000683697   0.000681284 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.27 using 59 PHA bins.
# Reduced chi-squared =         0.6714 for     57 degrees of freedom
# Null hypothesis probability =   9.731991e-01

Photon flux (15-150 keV)    in 10.11 sec: 2.61980 ( -0.0776332  0.0777778 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.64271e-06 ( -8.1128e-08  8.13705e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.844560     ( -0.0582102   0.0528377 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 2.29576E-02    ( -0.000652667   0.00263917 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.40 using 59 PHA bins.
# Reduced chi-squared =         0.6857 for     56 degrees of freedom
# Null hypothesis probability =   9.651190e-01

Photon flux (15-150 keV)    in 10.11 sec: 2.61887 ( -0.07762  0.07769 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.64407e-06 ( -8.14765e-08  8.00813e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.21e-06
S(50-100 keV) = 3.64e-06

T90 vs. Hardness ratio plot

T90                                   = 50.8919999599457 sec.
Hardness ratio (energy fluence ratio) = 1.64706

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.53969
Count Ratio (50-100 keV) / (15-25 keV) = 1.34272

Mask shadow pattern

IMX = 4.692045612666956E-01, IMY = -2.541387528466470E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.688000 -0.296000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6325  22.0232    0.8  43.4  138.7   9.7367  14.6    0.5	Crab
 46.7468  34.1802    3.7  46.0 -171.5   1.2083   3.2 ------	UNKNOWN
 40.9211  61.4410    0.3  29.1 -134.6   9.7414  34.2 ------	UNKNOWN
 11.2898  51.0808    3.2  48.0 -129.2   3.7924   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.296000 9.812590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6775  21.9360    7.6  43.4  138.6   0.2594   1.5    5.3	Crab
149.7819  48.2540    0.2  28.1   28.4   3.6436  54.3 ------	UNKNOWN
267.3805  72.9584    4.3  43.8  -64.1   0.6529   2.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
76.012640 683.812610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
118.3168  27.2515    2.7  32.2   90.1   3.1116   4.2 ------	UNKNOWN
 40.8918  61.4499    1.5  56.5  176.5  19.7355   7.9 ------	UNKNOWN
 37.1891  62.7431    2.6  56.9  179.0  11.8131   4.4 ------	UNKNOWN
189.5512   3.1593    3.4  56.5  -20.6   6.0102   3.5 ------	UNKNOWN
351.3643  74.5342    3.4  56.4 -157.4   8.6843   3.4 ------	UNKNOWN
286.6289  84.1036    3.5  46.2 -145.1   3.2329   3.3 ------	UNKNOWN
340.7551  74.3604    4.1  57.2 -154.2   8.5080   2.8 ------	UNKNOWN
339.5406  74.5500    2.7  57.0 -153.7  13.1132   4.3 ------	UNKNOWN

Plot creation:
Fri Feb  2 17:15:12 EST 2018
