batgrbproduct Analysis for Trigger=808755

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Feb  6 19:29:27 EST 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger808755/GCN5_download_cron
======================================================================

  Trigger: 00808755      Segment: 000

  BAT Trigger Time: 539551652.392   [s; MET]
      Trigger Stop: 539551652.456   [s; MET]
               UTC: 2018-02-05T19:27:11.960700    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 251.749289969315   Dec: -45.85038787502  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.73
     Image Trigger?:     NO
     Rate S/N Ratio:     22.4722050542442  [ if not an image trigger ]
     Image S/N Ratio:    9.73

  Flight Position:   [ source = BAT ]
    RA: 251.749289969315   Dec: -45.85038787502  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 251.81786016268   Dec: -45.8430547517579  [deg; J2000]
        { 16h 47m 16.3s , -45d 50' 35.0" }
         +/- 5.16658063448282 [arcmin] (estimated 90% radius based on SNR)
         +/- 3.2687363315199 [arcmin] (formal 1-sigma fit error)
    SNR: 2.91243773174693

  Angular difference between Flight and Ground position is 2.899457 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 365.248000025749 +/- 170.424027063214
        Measured from: -114.52799987793
                   to: 250.72000014782     [s; relative to TRIGTIME]
     T50: 365.248000025749 +/- 181.080769703374
        Measured from: -114.52799987793
                   to: 250.72000014782     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 249.796000003815
                   to: 250.796000003815     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -114.527999997139
                   to: 250.72000002861     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    -0.097518   0.087331   0.132560   0.052920
           0.135847   0.119700   0.097659   0.082902 [error]
 Peak      0.047387   0.082200   0.025086  -0.001179
           0.007804   0.007631   0.005560   0.004473 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.83e-09 1.10e-08 5.72e-081.56e-08 1.33e-06 1.85e-077.28e-08 1.40e-06   erg/cm2
              Error 2.33e-08 3.53e-08 7.38e-08 3.69e-06 2.12e-07 3.72e-06   erg/cm2
Peak flux Power-law 5.70e-01 4.10e-01 1.95e-01 1.31e-01 1.24e+00 1.31e+00   ph/cm2/s
              Error 1.00e-01 5.63e-02 4.09e-02 4.89e-02 1.69e-01 1.79e-01   ph/cm2/s

Fluence   Cutoff-PL 2.95e-09 1.43e-08 6.01e-08 1.03e-06 1.86e-07 1.08e-06   erg/cm2
              Error 2.26e-08 4.42e-08 9.83e-08 5.46e-06 2.14e-07 4.06e-05   erg/cm2
Peak flux Cutoff-PL 4.28e-01 6.00e-01 1.66e-01 4.11e-03 1.20e+00 1.20e+00   ph/cm2/s
              Error 1.15e-01 8.89e-02 5.69e-02 8.15e-03 1.66e-01 1.66e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 4.34e-01 5.94e-01 1.72e-01 5.15e-03 1.20e+00 1.20e+00   ph/cm2/s
              Error 1.14e-01 8.81e-02 5.56e-02 -------- 1.61e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -0.371    0.000    -      -           2.24e-05 4.60e-05   53.980 57
CPL  -3.077    0.000    9999.2    0.0      8.40e-07 0.00e+00   53.830 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.069    0.213    -      -           7.99e-03 1.33e-03   92.330 57
CPL  -1.452    1.699      38.7    4.3      9.92e-01 8.98e+00   65.580 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  365.248 -114.528  250.720
T90   365.248 -114.528  250.720
T50   365.248 -114.528  250.720
Peak    1.000  249.796  250.796

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  251.8179 -45.8431 0.0663    1.1 -111.7       0.5225     2.9  TRIG_00808755
------------------------------------------

Foreground time interval of the image:
-114.528 -36.696 (delta_t =  77.832 [sec])
-35.392   7.509 (delta_t =  42.901 [sec])
Background time interval of the image:
-239.392 -114.528 (delta_t = 124.864 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

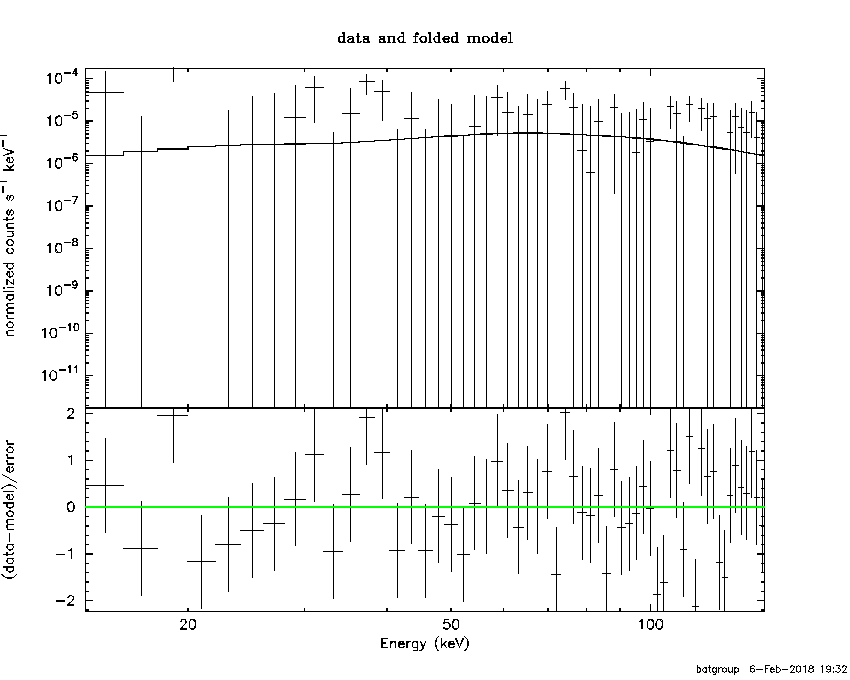

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-114.528000 -36.696100
-35.392000 55.168000
56.608000 250.720000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.371400     ( 0.376293   0.376293 )
Norm@50keV  : 2.24433E-05    ( -2.23333e-05   6.96484e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.98 using 59 PHA bins.
# Reduced chi-squared =         0.9471 for     57 degrees of freedom
# Null hypothesis probability =   5.889885e-01

Photon flux (15-150 keV)    in 362.5 sec: 3.52734E-03 8.75565E-04 ( -0.000935536  0.00959244 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.02584e-19 ( -7.59579e-08  3.48009e-07 ) ergs/cm2

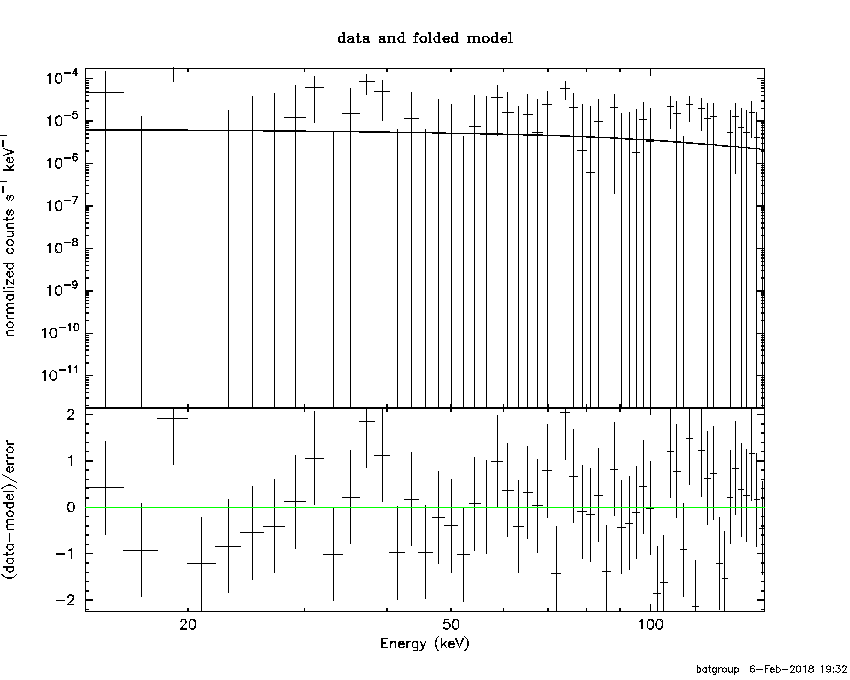

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-114.528000 -36.696100
-35.392000 55.168000
56.608000 250.720000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.07672     ( 3.07562   3.07562 )
Epeak [keV] : 9999.17      ( -9999.13 -9999.13 )
Norm@50keV  : 8.40383E-07    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.83 using 59 PHA bins.
# Reduced chi-squared =         0.9613 for     56 degrees of freedom
# Null hypothesis probability =   5.574374e-01

Photon flux (15-150 keV)    in 362.5 sec: 3.74852E-03 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.85678e-07 ( -1.85678e-07  2.43134e-07 ) ergs/cm2

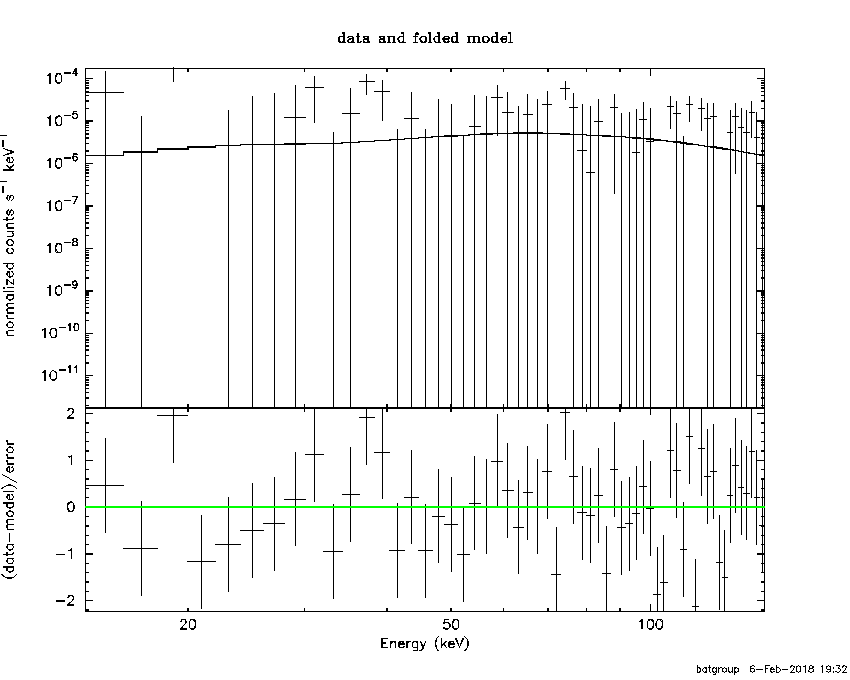

Band function

Multiple GTIs in the spectrum
tstart tstop
-114.528000 -36.696100
-35.392000 55.168000
56.608000 250.720000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.151685   ( 0.1456   0.1456 )
beta        : 0.374114    ( -0.378597   -0.378597 )
Epeak [keV] : 15.0792      ( -15.1554 -15.1554 )
Norm@50keV   : 4.08995E-05    ( -4.09803e-05   85.55 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.98 using 59 PHA bins.
# Reduced chi-squared =         0.9815 for     55 degrees of freedom
# Null hypothesis probability =   5.135037e-01

Photon flux (15-150 keV)    in 362.5 sec: 3.66981 ( 3.33019  -0.50012 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 200.000  (-200  -200)
R^2/D10^2   : 1.79991E-06  (-1.79802e-06   -1.79802e-06)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.02 using 59 PHA bins.
# Reduced chi-squared =         0.9476 for     57 degrees of freedom
# Null hypothesis probability =   5.877793e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.766e-09   1.308e-09
25- 50  1.290e-08   9.635e-09
50-150  1.651e-07   1.183e-07
15-150  1.798e-07   1.064e-07

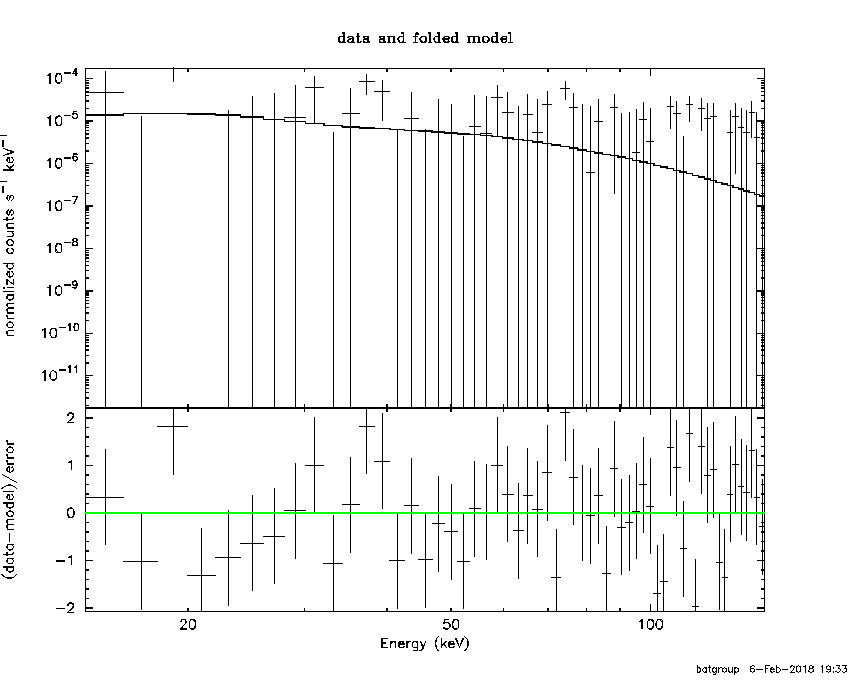

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.349       (-199.356      -199.356)
Norm        : 1.60040E-02       (-0.0160476     0.0299765)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.81 using 59 PHA bins.
# Reduced chi-squared =         0.9615 for     57 degrees of freedom
# Null hypothesis probability =   5.577544e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.279e-09   1.373e-11
25- 50  5.889e-11   0.000e+00
50-150  9.367e-16   0.000e+00
15-150  5.337e-09   1.241e-21

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.60598        (-1.55463      -1.55463)
R1^2/D10^2  : 13.4188        (-24.9486      -24.9486)
kT2 [keV]   : 198.832        (-198.975      -198.975)
R2^2/D10^2  : 1.78003E-06    (-1.78299e-06   -1.78299e-06)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.06 using 59 PHA bins.
#Fit statistic : Chi-Squared =          53.94 using 59 PHA bins.
# Reduced chi-squared =         0.9830 for     55 degrees of freedom
# Reduced chi-squared =         0.9807 for     55 degrees of freedom
# Null hypothesis probability =   5.104278e-01
# Null hypothesis probability =   5.152312e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

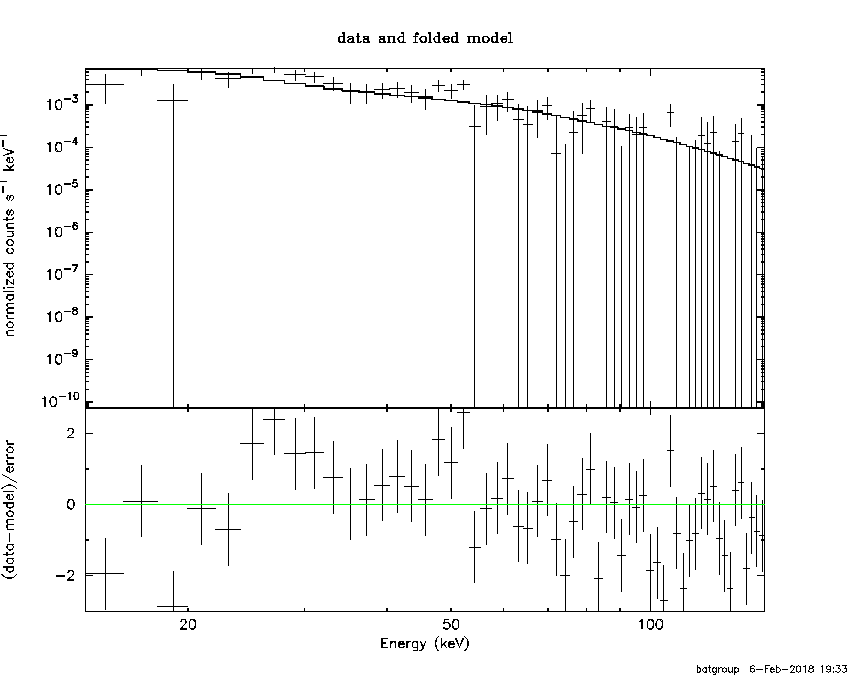

Peak spectrum fit

Power-law model

Time interval is from  249.796 sec. to  250.796 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.06901     ( -0.207266   0.219343 )
Norm@50keV  : 7.98818E-03    ( -0.0013341   0.00131978 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          92.33 using 59 PHA bins.
# Reduced chi-squared =          1.620 for     57 degrees of freedom
# Null hypothesis probability =   2.123607e-03

Photon flux (15-150 keV)    in 1 sec: 1.23788 ( -0.169353  0.169447 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.39875e-08 ( -1.14676e-08  1.17112e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  249.796 sec. to  250.796 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.45200     ( -1.98029   1.41684 )
Epeak [keV] : 38.6729      ( -4.03889 4.65692 )
Norm@50keV  : 0.992423    ( -1.22325   16.7407 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.58 using 59 PHA bins.
# Reduced chi-squared =          1.171 for     56 degrees of freedom
# Null hypothesis probability =   1.787143e-01

Photon flux (15-150 keV)    in 1 sec: 1.19785 ( -0.16505  0.16614 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.47656e-08 ( -9.3842e-09  9.9385e-09 ) ergs/cm2

Band function

Time interval is from  249.796 sec. to  250.796 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.55175   ( -1.21777   2.74334 )
beta        : -10.0000    ( 10   2.30926e-14 )
Epeak [keV] : 38.6105      ( -4.04914 4.63498 )
Norm@50keV   : 1.14031    ( -1.14018   16.8016 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.56 using 59 PHA bins.
# Reduced chi-squared =          1.192 for     55 degrees of freedom
# Null hypothesis probability =   1.559229e-01

Photon flux (15-150 keV)    in 1 sec: 1.20427 ( 5.79573  -0.16317 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.60642e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.93894  (-1.03724  1.1516)
R^2/D10^2   : 0.680438  (-0.241768   0.365714)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.64 using 59 PHA bins.
# Reduced chi-squared =          1.152 for     57 degrees of freedom
# Null hypothesis probability =   2.023139e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.366e-08   2.695e-09
25- 50  3.367e-08   5.130e-09
50-150  1.726e-08   5.815e-09
15-150  6.459e-08   1.084e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 53.1463       (-13.2334      20.5073)
Norm        : 7.16170       (-1.29988     1.59569)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.66 using 59 PHA bins.
# Reduced chi-squared =          1.398 for     57 degrees of freedom
# Null hypothesis probability =   2.539422e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.774e-08   2.950e-09
25- 50  2.603e-08   4.720e-09
50-150  2.674e-08   9.585e-09
15-150  7.051e-08   1.397e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.81002        (-7.67593      -7.67593)
R1^2/D10^2  : 0.260910        (-0.236      -0.236)
kT2 [keV]   : 10.3494        (-10.2813      -10.2813)
R2^2/D10^2  : 0.499460    (-0.534404   -0.534404)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.63 using 59 PHA bins.
# Reduced chi-squared =          1.193 for     55 degrees of freedom
# Null hypothesis probability =   1.545772e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.384e-08   8.650e-06
25- 50  3.346e-08   7.635e-05
50-150  1.769e-08   1.714e-03
15-150  6.500e-08   1.631e-03

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25335     ( -0.797913   1.01821 )
Norm@50keV  : 1.77659E-04    ( -0.000110022   0.000110363 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.92 using 59 PHA bins.
# Reduced chi-squared =         0.8758 for     57 degrees of freedom
# Null hypothesis probability =   7.355696e-01

Photon flux (15-150 keV)    in 120.7 sec: 3.02620E-02 ( -0.0133848  0.0133862 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.03301e-07 ( -1.03021e-07  1.16464e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.989142     (     )
Epeak [keV] : 30.2785      (   )
Norm@50keV  : 2.46120E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.63 using 59 PHA bins.
# Reduced chi-squared =         0.8683 for     56 degrees of freedom
# Null hypothesis probability =   7.473137e-01

Photon flux (15-150 keV)    in 120.7 sec: 2.80979E-02 ( -0.0134219  0.0133246 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.55806e-07 ( -7.23355e-08  1.28339e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.56728   ( -4.56728   -4.56728 )
beta        : -4.32405    ( 4.32405   3.55718 )
Epeak [keV] : 30.2852      ( -30.2852 10.1049 )
Norm@50keV   : 6.21591    ( -2.61471   654988 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8811 for     55 degrees of freedom
# Null hypothesis probability =   7.210238e-01

Photon flux (15-150 keV)    in 120.7 sec: 3.66981 ( 3.33019  -0.50012 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70618e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.10e-08
S(50-100 keV) = 5.72e-081.56e-08

T90 vs. Hardness ratio plot

T90                                   = 365.248000025749 sec.
Hardness ratio (energy fluence ratio) = 5.2e-73

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = -0.895537
Count Ratio (50-100 keV) / (15-25 keV) = -1.35934

Mask shadow pattern

IMX = -6.944363851085014E-03, IMY = 1.741800003694403E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.392000 -114.528000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4069 -60.7524   22.2  46.4   46.8   0.3811   0.5    8.2	Cen X-3
186.7772 -62.6130    4.2  38.4   46.7   0.9299   2.8   10.0	GX 301-2
244.9779 -15.6448    0.3  31.0  174.9   7.8276  40.0    0.3	Sco X-1
256.0011 -37.8276    0.7   9.5 -147.1   2.4581  16.2    1.2	4U 1700-377
256.5111 -36.4801    4.8  10.8 -148.0   0.3736   2.4    5.0	GX 349+2
263.1717 -24.7502    5.3  23.9 -145.2   0.3943   2.2    8.9	GX 1+4
265.0008 -44.5523    0.0  10.4  -89.5   0.1518   0.9   12.6	4U 1735-44
268.5010  -1.4687    8.6  47.6 -150.0  -0.5692  -1.3    8.0	SW J1753.5-0127
270.2240 -25.0784   36.2  26.5 -131.4   0.0649   0.3    3.3	GX 5-1
270.3612 -25.7584    5.2  26.0 -130.4   0.4406   2.2    3.3	GRS 1758-258
274.0129 -14.0881    4.4  37.8 -135.6   0.8244   2.6    3.1	GX 17+2
275.9182 -30.2398    7.3  25.5 -115.1   0.3692   1.6    7.6	H1820-303
284.9830 -24.8119   11.6  34.9 -110.9   0.3495   1.0    7.1	HT1900.1-2455
262.7929 -33.7921    7.4  15.7 -133.7   0.2631   1.6   10.1	GX 354-0
252.5339 -87.9820    2.7  41.6    5.0   1.0940   4.3 ------	UNKNOWN
271.1522 -49.8611    3.5  14.2  -63.0   0.5695   3.3 ------	UNKNOWN
295.7645 -25.9627    4.3  41.1  -98.5   2.2349   2.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-114.528000 -36.696100
-35.392000 7.508600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2673 -60.8035   13.6  46.5   46.7  -0.6930  -0.8   10.9	Cen X-3
186.2844 -62.7561    0.0  38.7   46.4   0.5635   1.6   10.3	GX 301-2
244.8467 -15.6826    7.0  31.0  174.6  -0.3726  -1.6    8.1	Sco X-1
255.8185 -37.9551    3.7   9.3 -147.6   0.5293   3.1   10.4	4U 1700-377
256.6447 -36.5294    6.1  10.8 -147.4  -0.3198  -1.9   11.9	GX 349+2
262.9754 -24.7445    5.0  23.8 -145.6   0.4378   2.3    1.8	GX 1+4
264.7186 -44.3017    5.1  10.2  -91.2   0.4156   2.3    9.0	4U 1735-44
268.4899  -1.5455  206.1  47.5 -150.0   0.0258   0.1    9.2	SW J1753.5-0127
270.3922 -25.0196   14.0  26.6 -131.2  -0.1886  -0.8    6.9	GX 5-1
270.3928 -25.8593    4.9  25.9 -130.2  -0.5272  -2.3    8.5	GRS 1758-258
274.1927 -14.1095    5.0  37.9 -135.4   0.6897   2.3   11.7	GX 17+2
275.7071 -30.2852    7.5  25.3 -115.3  -0.3562  -1.5   12.3	H1820-303
284.9167 -24.9258    6.2  34.8 -110.8  -0.6842  -1.9    6.5	HT1900.1-2455
262.9971 -33.8311  362.3  15.7 -133.1   0.0060   0.0    0.5	GX 354-0
180.5991 -68.0177    2.2  40.5   37.9   1.8260   5.3 ------	UNKNOWN
231.2528   2.2655    2.8  51.5  160.3   2.9222   4.2 ------	UNKNOWN
134.4537 -77.0022    2.9  50.4   20.3   2.4773   4.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
21.408590 55.168000
56.608000 408.208000
409.608000 962.679100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4572 -60.5529    4.5  47.4   46.2   9.3747   2.6    5.9	Cen X-3
186.7773 -62.6751    5.3  39.4   45.9   3.7778   2.2    6.6	GX 301-2
244.9719 -15.6496    0.2  30.7  172.1  59.6460  55.9    0.7	Sco X-1
255.9970 -37.8430    0.8   8.6 -152.1  11.5437  13.7    0.5	4U 1700-377
256.3635 -36.4217    5.1  10.1 -153.3   1.7982   2.3    3.5	GX 349+2
263.0644 -24.7914    5.4  22.9 -147.9   1.9049   2.1    4.1	GX 1+4
264.9309 -44.3692    9.9   9.4  -89.5  -0.9055  -1.2    9.4	4U 1735-44
268.3657  -1.4547   22.6  46.7 -152.0   0.9921   0.5    0.2	SW J1753.5-0127
270.4299 -25.0221   14.2  25.7 -133.0   0.8106   0.8    8.6	GX 5-1
270.1662 -25.7466    6.1  24.9 -132.6   1.8434   1.9    7.4	GRS 1758-258
273.8908 -14.0744    3.7  36.8 -137.5   4.5724   3.2    7.1	GX 17+2
275.9777 -30.2340    7.1  24.5 -116.3   1.7559   1.6    8.4	H1820-303
285.2171 -24.9157    9.6  34.0 -111.6   1.8207   1.2    9.9	HT1900.1-2455
262.7747 -33.7193    0.0  14.8 -136.5   0.1025   0.1   12.7	GX 354-0
265.9401 -29.7870    1.9  19.5 -135.6   5.4586   6.0 ------	UNKNOWN
343.7821 -66.4224    2.7  49.6  -26.7   8.1983   4.3 ------	UNKNOWN
333.6572 -54.9286    3.8  49.9  -43.1  12.6772   3.0 ------	UNKNOWN

Plot creation:
Tue Feb  6 19:35:35 EST 2018
