batgrbproduct analysis for trigger=829046

batgrbproduct Analysis for Trigger=829046

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Apr 27 15:43:29 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger829046/GCN5_download_cron
======================================================================

  Trigger: 00829046      Segment: 000

  BAT Trigger Time: 546441536   [s; MET]
      Trigger Stop: 546441600   [s; MET]
               UTC: 2018-04-26T13:18:35.152640    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 57.4586368896646   Dec: -48.7816496589733  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    5.86
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    5.86

  Flight Position:   [ source = BAT ]
    RA: 57.4586368896646   Dec: -48.7816496589733  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 57.483859899816   Dec: -48.7100599455883  [deg; J2000]
        { 03h 49m 56.1s , -48d 42' 36.2" }
         +/- 3.30872433692803 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.32657402285944 [arcmin] (formal 1-sigma fit error)
    SNR: 5.5048579217438

  Angular difference between Flight and Ground position is 4.409781 arcmin

  Partial Coding Fraction: 0.921875    [ including projection effects ]

  Duration
     T90: 64 +/-
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]
     T50: 64 +/-
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 64 second)
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 64     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.201378   0.165574   0.040286   0.040230
           0.046389   0.048900   0.044882   0.045758 [error]
 Peak      0.201378   0.165574   0.040286   0.040230
           0.046389   0.048900   0.044882   0.045758 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.43e-08 6.09e-08 6.17e-08 1.14e-07 2.03e-07 2.80e-07   erg/cm2
              Error 1.80e-08 2.13e-08 3.66e-08 1.51e-07 8.79e-08 1.83e-07   erg/cm2
Peak flux Power-law 2.31e-02 1.75e-02 8.89e-03 6.47e-03 5.26e-02 5.60e-02   ph/cm2/s
              Error 9.56e-03 6.02e-03 5.11e-03 8.02e-03 1.76e-02 1.96e-02   ph/cm2/s

Fluence   Cutoff-PL 5.75e-08 6.25e-08 5.17e-10 9.48e-17 1.21e-07 1.21e-07   erg/cm2
              Error 2.14e-08 2.96e-08 6.61e-09 2.26e-11 3.71e-08 3.71e-08   erg/cm2
Peak flux Cutoff-PL 2.84e-02 2.03e-02 9.55e-05 8.98e-12 4.88e-02 4.88e-02   ph/cm2/s
              Error 1.09e-02 8.72e-03 1.13e-03 2.11e-06 1.44e-02 1.44e-02   ph/cm2/s

Fluence        Band 5.23e-08 7.45e-08 3.33e-08 2.00e-08 1.71e-07 1.81e-07   erg/cm2
              Error 2.01e-08 2.83e-08 -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.979    0.603    -      -           3.54e-04 1.58e-04   60.640 57
CPL -10.000    0.000      25.6    0.0      3.51e+05 0.00e+00   53.850 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.979    0.603    -      -           3.54e-04 1.58e-04   60.640 57
CPL -10.000    0.000      25.6    0.0      3.51e+05 0.00e+00   53.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   64.000    0.000   64.000
T90    64.000    0.000   64.000
T50    64.000    0.000   64.000
Peak   64.000    0.000   64.000

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   57.4839 -48.7101 0.0349   16.6  149.1       0.5228     5.5  TRIG_00829046
------------------------------------------

Foreground time interval of the image:
  0.000  45.474 (delta_t =  45.474 [sec])
 47.000  64.000 (delta_t =  17.000 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

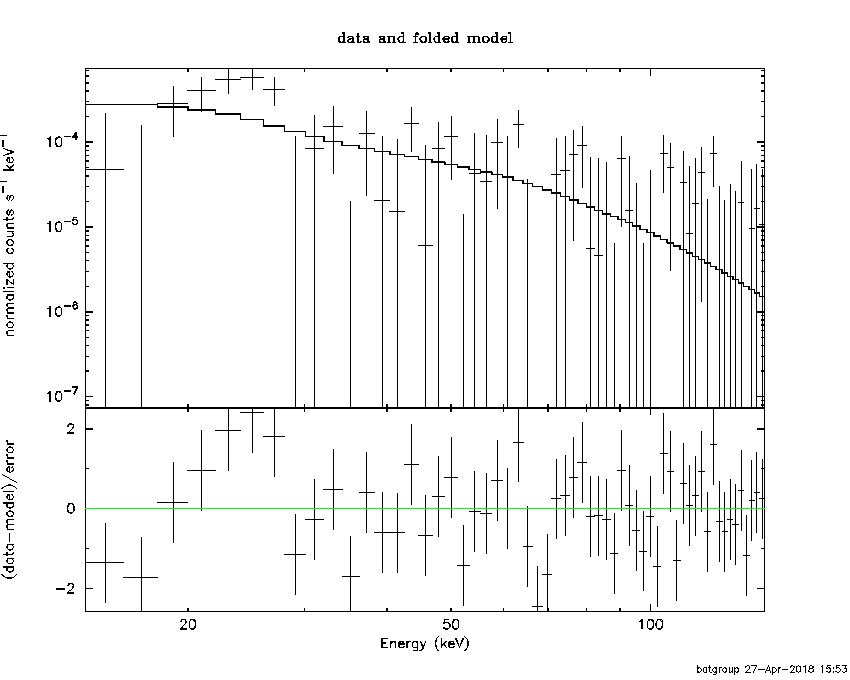

Power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.474400
47.000000 64.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97924     ( -0.560516   0.645733 )
Norm@50keV  : 3.53736E-04    ( -0.000158349   0.000158154 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.64 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     57 degrees of freedom
# Null hypothesis probability =   3.459926e-01

Photon flux (15-150 keV)    in 62.47 sec: 5.25559E-02 ( -0.0175386  0.0176235 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0348e-07 ( -8.25753e-08  9.33196e-08 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.474400
47.000000 64.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99970     (     )
Epeak [keV] : 25.5630      (   )
Norm@50keV  : 3.50505E+05    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.85 using 59 PHA bins.
# Reduced chi-squared =         0.9615 for     56 degrees of freedom
# Null hypothesis probability =   5.568746e-01

Photon flux (15-150 keV)    in 62.47 sec: 4.87845E-02 4.86920E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.71062e-18 ( 0  0 ) ergs/cm2

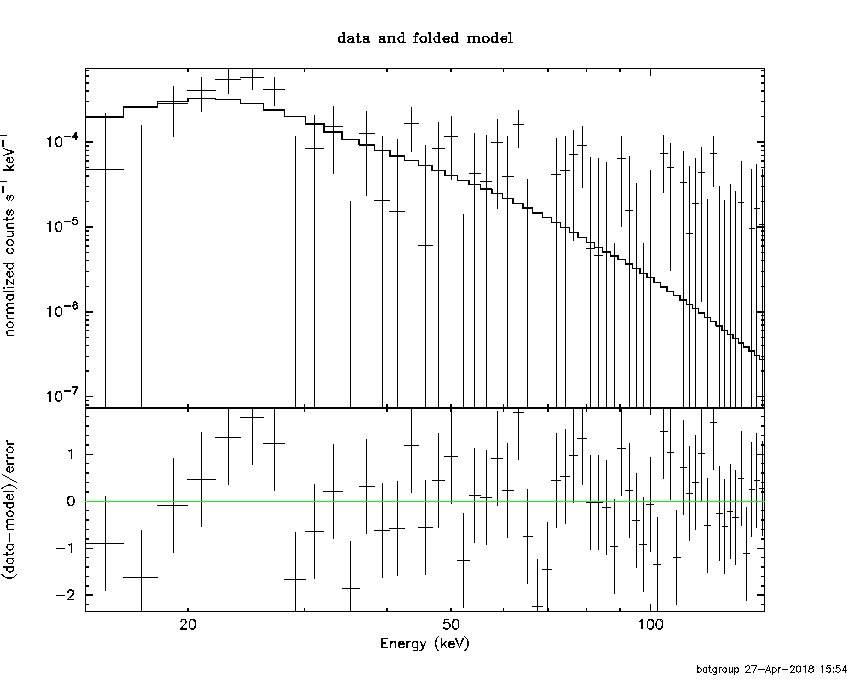

Band function

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.474400
47.000000 64.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -6.28417   -5 )
beta        : -3.25160    ( 3.26485   1.20608 )
Epeak [keV] : 26.2084      ( -4.45336 5.47236 )
Norm@50keV   : 57.1069    ( -16.8222   133.637 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.24 using 59 PHA bins.
# Reduced chi-squared =         0.9862 for     55 degrees of freedom
# Null hypothesis probability =   5.035394e-01

Photon flux (15-150 keV)    in 62.47 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70694e-07 ( 0  0 ) ergs/cm2

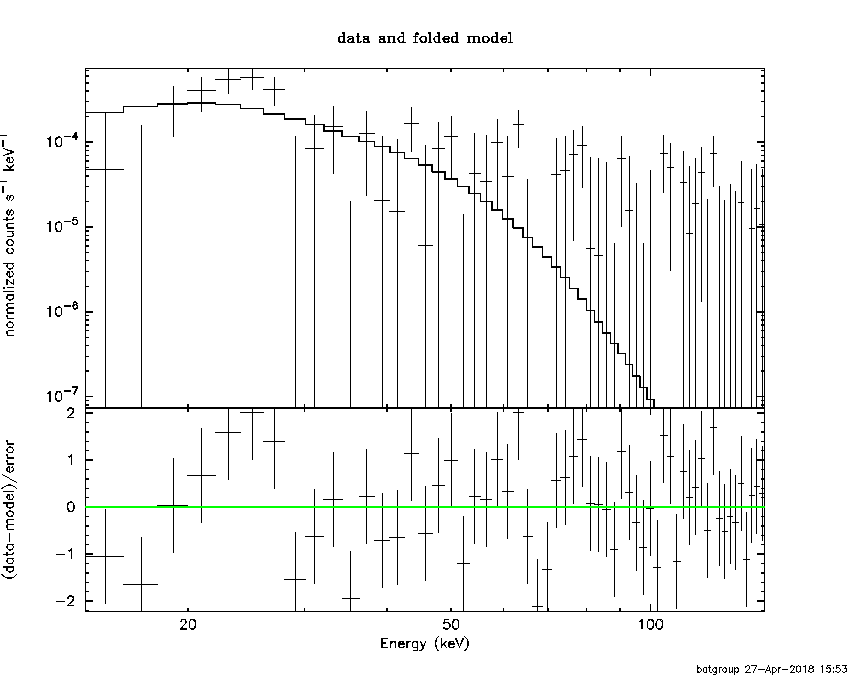

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.51317  (-1.88057  2.83185)
R^2/D10^2   : 8.07495E-02  (-0.0807496   0.171681)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.28 using 59 PHA bins.
# Reduced chi-squared =          1.005 for     57 degrees of freedom
# Null hypothesis probability =   4.646241e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.894e-08   3.014e-08
25- 50  7.659e-08   4.698e-08
50-150  1.628e-08   1.414e-08
15-150  1.418e-07   8.958e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 48.9779       (-27.1552      -48.9781)
Norm        : 0.306286       (-0.131255     0.247211)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.47 using 59 PHA bins.
# Reduced chi-squared =          1.043 for     57 degrees of freedom
# Null hypothesis probability =   3.858741e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.656e-08   2.908e-08
25- 50  6.637e-08   4.057e-08
50-150  6.319e-08   5.007e-08
15-150  1.761e-07   1.139e-07

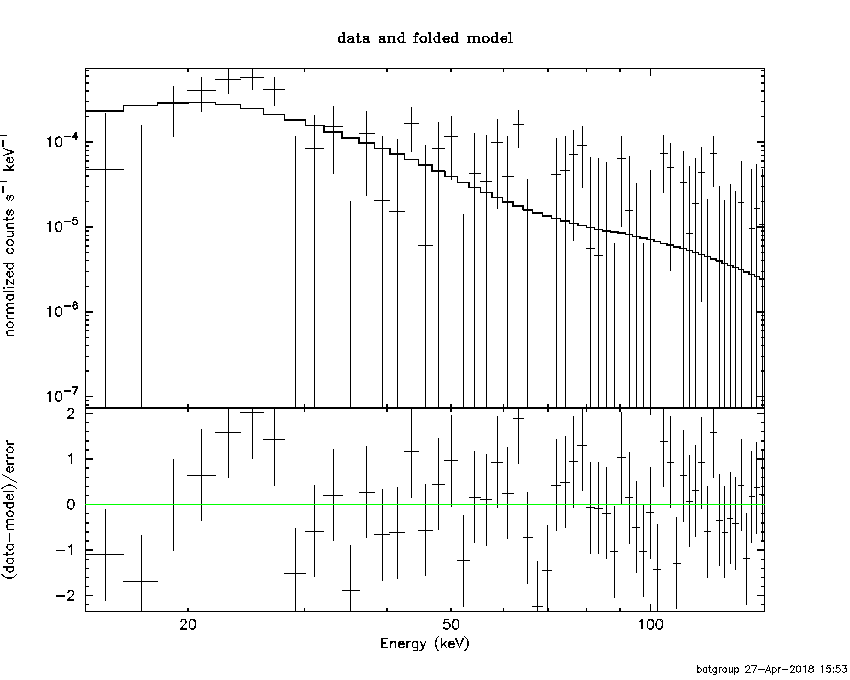

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.12364        (-7.121      2.83823)
R1^2/D10^2  : 9.52965E-02        (-0.0954045      0.282114)
kT2 [keV]   : 74.3618        (-74.1908      -74.1908)
R2^2/D10^2  : 1.63903E-05    (-1.65231e-05   -1.65231e-05)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.69 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     55 degrees of freedom
# Null hypothesis probability =   4.117859e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.985e-08   3.054e-08
25- 50  7.345e-08   4.845e-08
50-150  7.045e-08   2.586e-08
15-150  1.938e-07   9.855e-08

Peak spectrum fit

Power-law model

Time interval is from   47.000 sec. to   64.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97924     ( -0.560516   0.645733 )
Norm@50keV  : 3.53736E-04    ( -0.000158349   0.000158154 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.64 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     57 degrees of freedom
# Null hypothesis probability =   3.459926e-01

Photon flux (15-150 keV)    in 62.47 sec: 5.25559E-02 ( -0.0175386  0.0176235 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0348e-07 ( -8.25753e-08  9.33196e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   47.000 sec. to   64.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99970     (     )
Epeak [keV] : 25.5630      (   )
Norm@50keV  : 3.50505E+05    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.85 using 59 PHA bins.
# Reduced chi-squared =         0.9615 for     56 degrees of freedom
# Null hypothesis probability =   5.568746e-01

Photon flux (15-150 keV)    in 62.47 sec: 4.87845E-02 4.86920E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.71062e-18 ( 0  0 ) ergs/cm2

Band function

Time interval is from   47.000 sec. to   64.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -6.28313   -5 )
beta        : -3.25160    ( 3.26485   1.20608 )
Epeak [keV] : 26.2084      ( -4.45336 5.47236 )
Norm@50keV   : 57.1069    ( -16.8222   133.637 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.24 using 59 PHA bins.
# Reduced chi-squared =         0.9862 for     55 degrees of freedom
# Null hypothesis probability =   5.035394e-01

Photon flux (15-150 keV)    in 62.47 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70694e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.51317  (-1.88057  2.83185)
R^2/D10^2   : 8.07495E-02  (-0.0807496   0.171681)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.28 using 59 PHA bins.
# Reduced chi-squared =          1.005 for     57 degrees of freedom
# Null hypothesis probability =   4.646241e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.894e-08   2.974e-08
25- 50  7.659e-08   4.757e-08
50-150  1.628e-08   1.460e-08
15-150  1.418e-07   8.711e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 48.9779       (-27.1552      -48.9781)
Norm        : 0.306286       (-0.131255     0.247211)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.47 using 59 PHA bins.
# Reduced chi-squared =          1.043 for     57 degrees of freedom
# Null hypothesis probability =   3.858741e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.656e-08   2.844e-08
25- 50  6.637e-08   4.001e-08
50-150  6.319e-08   4.985e-08
15-150  1.761e-07   1.185e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.12364        (-7.121      2.83823)
R1^2/D10^2  : 9.52965E-02        (-0.0954045      0.281108)
kT2 [keV]   : 74.3618        (-74.1908      -74.1908)
R2^2/D10^2  : 1.63903E-05    (-1.65231e-05   -1.65231e-05)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.69 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     55 degrees of freedom
# Null hypothesis probability =   4.117859e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.985e-08   3.083e-08
25- 50  7.345e-08   4.891e-08
50-150  7.045e-08   3.198e-08
15-150  1.938e-07   9.339e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97924     ( -0.560516   0.645733 )
Norm@50keV  : 3.53736E-04    ( -0.000158349   0.000158154 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.64 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     57 degrees of freedom
# Null hypothesis probability =   3.459926e-01

Photon flux (15-150 keV)    in 62.47 sec: 5.25559E-02 ( -0.0175386  0.0176235 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.0348e-07 ( -8.25753e-08  9.33196e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99970     (     )
Epeak [keV] : 25.5630      (   )
Norm@50keV  : 3.50505E+05    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.85 using 59 PHA bins.
# Reduced chi-squared =         0.9615 for     56 degrees of freedom
# Null hypothesis probability =   5.568746e-01

Photon flux (15-150 keV)    in 62.47 sec: 4.87845E-02 4.86920E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.71062e-18 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -6.2825   -5 )
beta        : -3.25160    ( 3.26485   1.20608 )
Epeak [keV] : 26.2084      ( -4.45336 5.47236 )
Norm@50keV   : 57.1069    ( -16.8222   133.637 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.24 using 59 PHA bins.
# Reduced chi-squared =         0.9862 for     55 degrees of freedom
# Null hypothesis probability =   5.035394e-01

Photon flux (15-150 keV)    in 62.47 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70694e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.09e-08
S(50-100 keV) = 6.17e-08

T90 vs. Hardness ratio plot

T90                                   = 64 sec.
Hardness ratio (energy fluence ratio) = 1.01314

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.822205
Count Ratio (50-100 keV) / (15-25 keV) = 0.200052

Mask shadow pattern

IMX = -2.562928465010754E-01, IMY = -1.532945335447412E-01

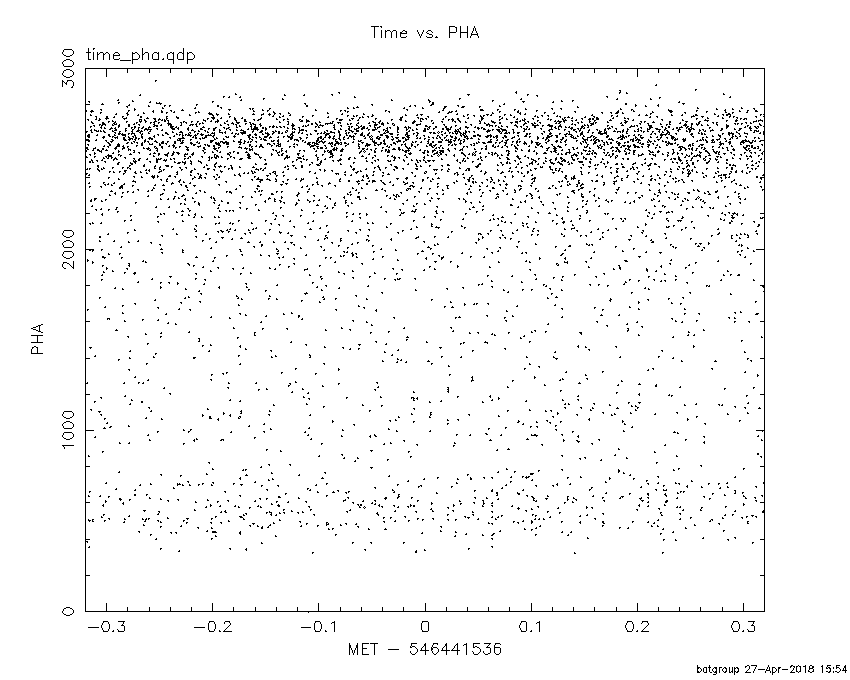

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 45.474400
47.000000 64.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6740  21.9965    4.4  57.9  -26.0   1.6737   2.6    2.5	Crab
102.8027 -68.0908    2.5  41.4  112.4   1.9239   4.6 ------	UNKNOWN
 79.6838 -34.0886    2.3  12.8   52.4   0.4823   5.1 ------	UNKNOWN
104.2409   5.6903    2.4  54.0    4.8   1.5726   4.8 ------	UNKNOWN
 26.6221 -38.5459    2.8  31.0 -158.4   0.4425   4.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
249.500600 725.600620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3985  35.4037    4.4  57.1    5.1   5.7367   2.6    4.7	Her X-1
201.2187  -9.7117    3.2  40.8   98.0   5.7831   3.6 ------	UNKNOWN
172.8381  -5.8812    2.3  36.7  143.6   3.3137   5.0 ------	UNKNOWN
253.5005  41.2489    3.6  55.2   -1.7   3.8469   3.2 ------	UNKNOWN
262.1561  52.1530    2.9  59.4  -15.5  11.4047   4.0 ------	UNKNOWN
159.2118  64.6704    3.2  40.0  -76.8   5.2224   3.6 ------	UNKNOWN

Plot creation:
Fri Apr 27 15:54:28 EDT 2018
