batgrbproduct analysis for trigger=843122

batgrbproduct Analysis for Trigger=843122

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jul  6 12:06:46 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger843122
======================================================================

  Trigger: 00843122      Segment: 000

  BAT Trigger Time: 551176519.168   [s; MET]
      Trigger Stop: 551176520.192   [s; MET]
               UTC: 2018-06-20T08:34:58.033100    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 279.883065240736   Dec: 23.2653066773561  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.35
     Image Trigger?:     NO
     Rate S/N Ratio:     15.2970585407784  [ if not an image trigger ]
     Image S/N Ratio:    9.35

  Flight Position:   [ source = BAT ]
    RA: 279.883065240736   Dec: 23.2653066773561  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 279.889709871124   Dec: 23.2386801527283  [deg; J2000]
        { 18h 39m 33.5s , +23d 14' 19.2" }
         +/- 0.792411373426347 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.236456845019898 [arcmin] (formal 1-sigma fit error)
    SNR: 42.410610327573

  Angular difference between Flight and Ground position is 1.639046 arcmin

  Partial Coding Fraction: 0.4375    [ including projection effects ]

  Duration
     T90: 22.9479999542236 +/- 4.98764283866462
        Measured from: -0.615999937057495
                   to: 22.3320000171661     [s; relative to TRIGTIME]
     T50: 7.2039999961853 +/- 0.237587854202095
        Measured from: 5.24800002574921
                   to: 12.4520000219345     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 4.46800005435944
                   to: 5.46800005435944     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -6.92400002479553
                   to: 37.7879999876022     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.837186   3.638062   2.350454   0.644124
           0.067707   0.072046   0.063744   0.053994 [error]
 Peak      0.245749   0.345944   0.251997   0.077537
           0.013635   0.015255   0.013626   0.009781 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.84e-07 1.57e-06 1.90e-06 4.52e-06 5.77e-06 8.94e-06   erg/cm2
              Error 5.08e-08 4.64e-08 6.84e-08 3.64e-07 1.62e-07 4.05e-07   erg/cm2
Peak flux Power-law 2.64e+00 2.58e+00 1.75e+00 1.87e+00 7.73e+00 8.85e+00   ph/cm2/s
              Error 2.41e-01 1.42e-01 1.15e-01 2.54e-01 4.07e-01 4.50e-01   ph/cm2/s

Fluence   Cutoff-PL 9.43e-07 1.60e-06 1.92e-06 3.43e-06 5.68e-06 7.91e-06   erg/cm2
              Error 6.47e-08 5.15e-08 7.28e-08 9.68e-07 1.88e-07 9.88e-07   erg/cm2
Peak flux Cutoff-PL 2.60e+00 2.60e+00 1.77e+00 1.69e+00 7.69e+00 8.65e+00   ph/cm2/s
              Error 2.51e-01 1.19e-01 1.23e-01 4.28e-01 4.24e-01 6.55e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.727    0.052    -      -           1.39e-02 3.80e-04   73.530 57
CPL   1.539    0.208     126.5  -42.6      1.72e-02 3.88e-03   71.020 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.555    0.092    -      -           6.09e-02 3.17e-03   69.380 57
CPL   1.467    0.252     311.8    0.0      6.74e-02 1.97e-02   69.150 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 19.968000 sec.
T50 in the 50-300 keV band: 6.528000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   44.712   -6.924   37.788
T90    22.948   -0.616   22.332
T50     7.204    5.248   12.452
Peak    1.000    4.468    5.468

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  279.8897    23.2387   0.0045    31.2930    49.2264         9.8681757     42.411 TRIG_00843122

Foreground time interval of the image:
 -6.924  37.788 (delta_t =  44.712 [sec])
Background time interval of the image:
-41.267  -6.924 (delta_t =  34.343 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

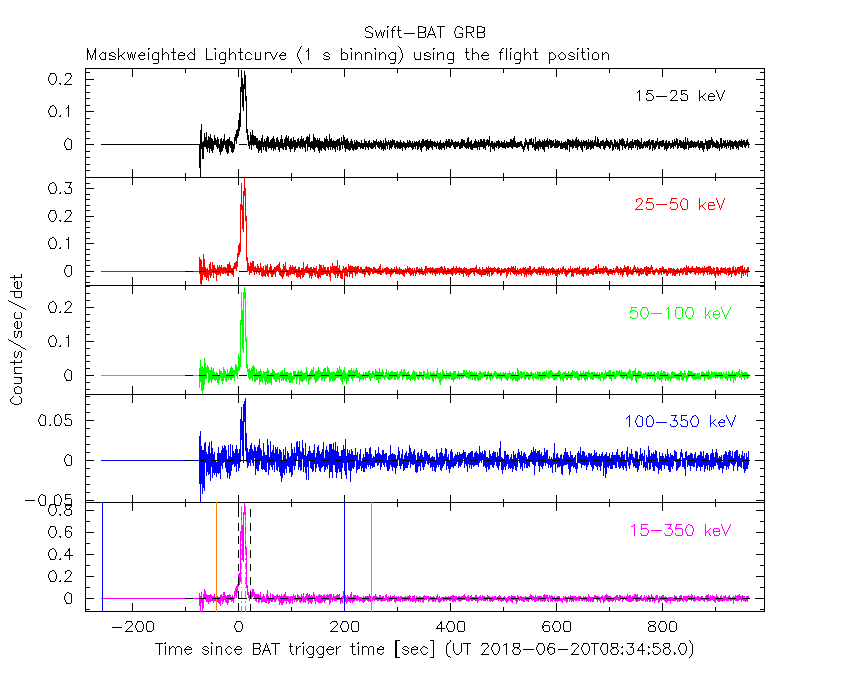

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -6.924 sec. to   37.788 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72735     ( -0.0523692   0.0525757 )
Norm@50keV  : 1.39187E-02    ( -0.00038009   0.000379696 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.53 using 59 PHA bins.
# Reduced chi-squared =          1.290 for     57 degrees of freedom
# Null hypothesis probability =   6.934043e-02

Photon flux (15-150 keV)    in 44.71 sec: 1.86666 ( -0.05596  0.05617 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.75114e-06 ( -1.61872e-07  1.62228e-07 ) ergs/cm2

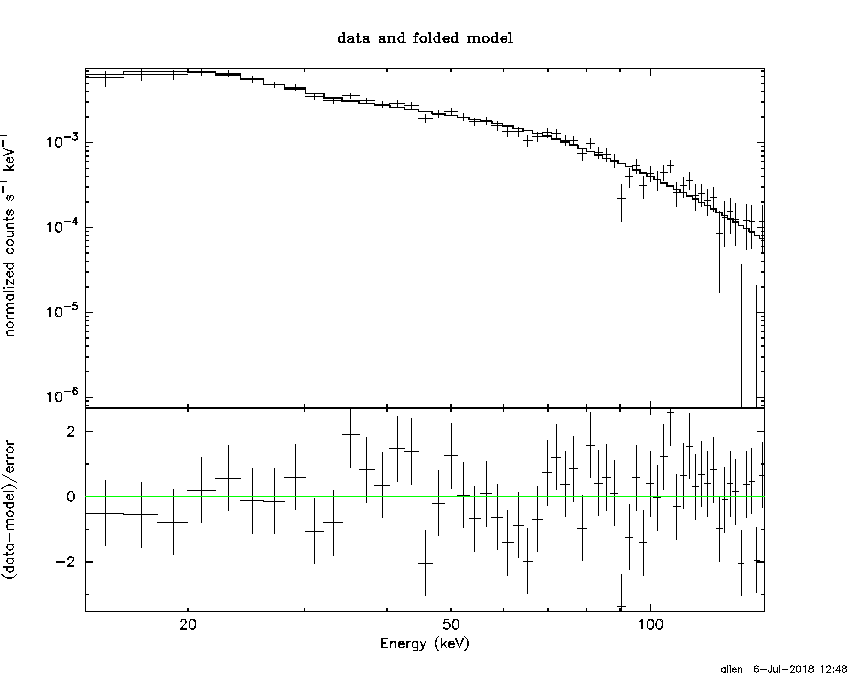

Cutoff power-law model

Time interval is from   -6.924 sec. to   37.788 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.53885     ( -0.212923   0.202384 )
Epeak [keV] : 126.544      ( -41.3033 -126.544 )
Norm@50keV  : 1.71515E-02    ( -0.0033232   0.00444071 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.02 using 59 PHA bins.
# Reduced chi-squared =          1.268 for     56 degrees of freedom
# Null hypothesis probability =   8.514790e-02

Photon flux (15-150 keV)    in 44.71 sec: 1.83846 ( -0.06301  0.06329 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.66243e-06 ( -1.8793e-07  1.87148e-07 ) ergs/cm2

Band function

Time interval is from   -6.924 sec. to   37.788 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

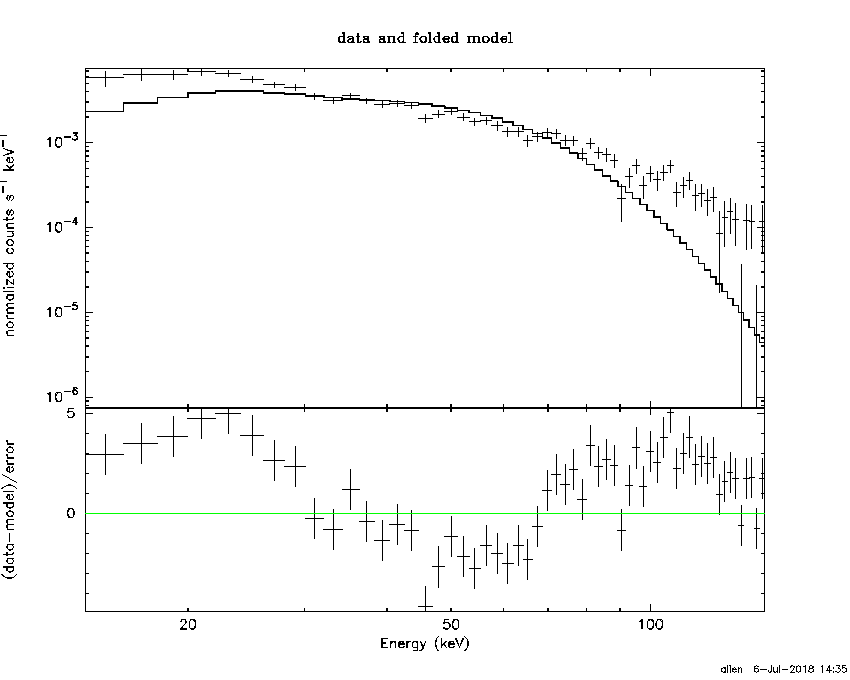

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.0585  (  )
R^2/D10^2   : 0.239974  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         369.66 using 59 PHA bins.
# Reduced chi-squared =         6.4853 for     57 degrees of freedom
# Null hypothesis probability =   2.379497e-47

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.478e-07   2.468e-08
25- 50  1.672e-06   5.745e-08
50-150  2.181e-06   1.268e-07
15-150  4.301e-06   1.337e-07

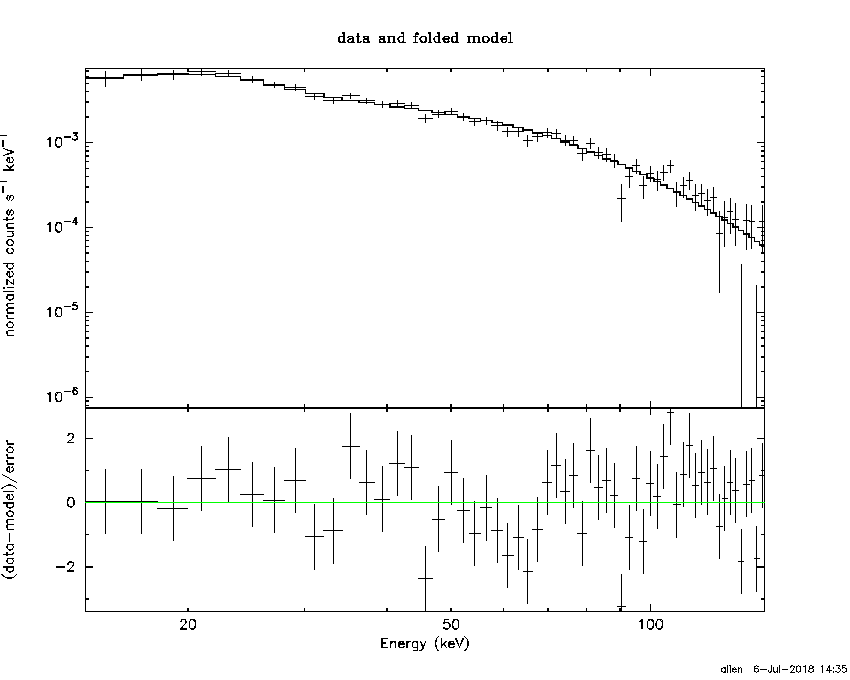

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 138.829       (-18.1825      18.913)
Norm        : 7.58758       (-0.268012     0.328231)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.77 using 59 PHA bins.
# Reduced chi-squared =          1.312 for     57 degrees of freedom
# Null hypothesis probability =   5.728689e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.704e-07   5.030e-08
25- 50  1.598e-06   7.824e-08
50-150  3.072e-06   6.798e-07
15-150  5.540e-06   7.422e-07

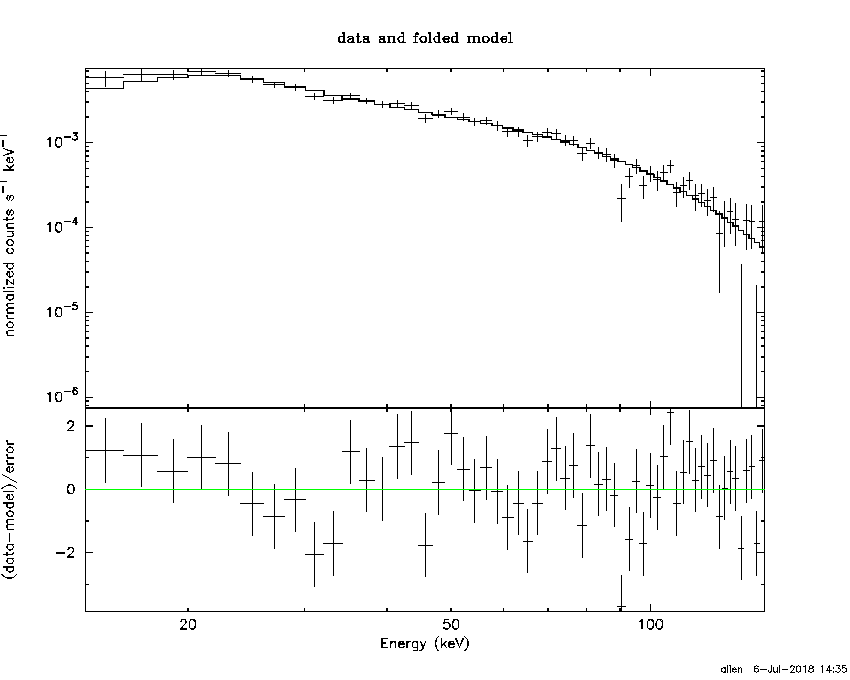

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.52238        (-0.672548      0.692924)
R1^2/D10^2  : 1.65891        (-0.428893      0.643747)
kT2 [keV]   : 27.5584        (-2.98135      3.96863)
R2^2/D10^2  : 1.57485E-02    (-0.00602138   0.00843774)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.68 using 59 PHA bins.
# Reduced chi-squared =          1.376 for     55 degrees of freedom
# Null hypothesis probability =   3.362551e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.102e-07   6.885e-08
25- 50  1.656e-06   9.724e-08
50-150  3.130e-06   2.821e-07
15-150  5.595e-06   3.890e-07

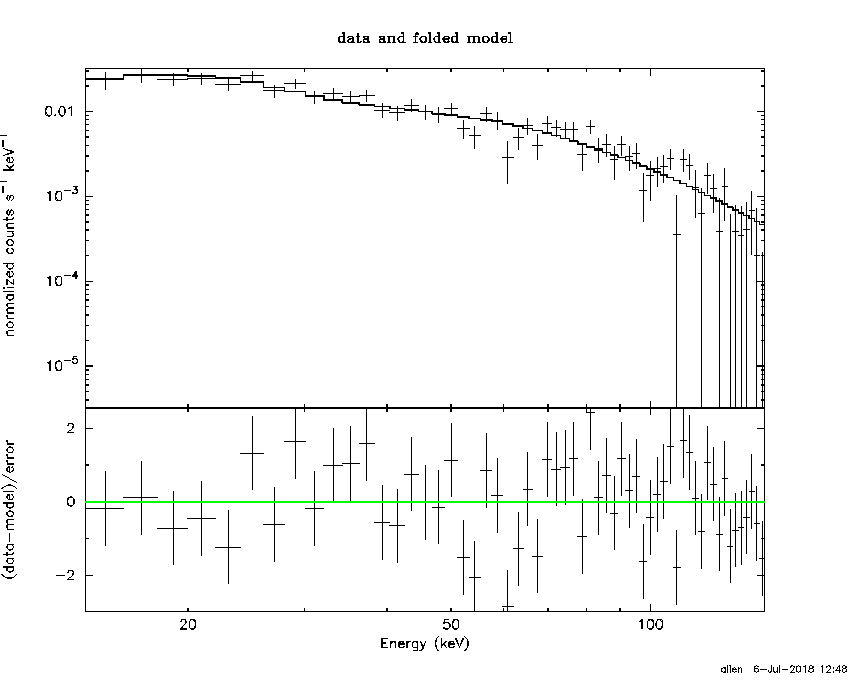

Peak spectrum fit

Power-law model

Time interval is from    4.468 sec. to    5.468 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55507     ( -0.0912262   0.0919415 )
Norm@50keV  : 6.09414E-02    ( -0.00317631   0.00316174 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.38 using 59 PHA bins.
# Reduced chi-squared =          1.217 for     57 degrees of freedom
# Null hypothesis probability =   1.258574e-01

Photon flux (15-150 keV)    in 1 sec: 7.72642 ( -0.40683  0.4077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.73377e-07 ( -3.21867e-08  3.23264e-08 ) ergs/cm2

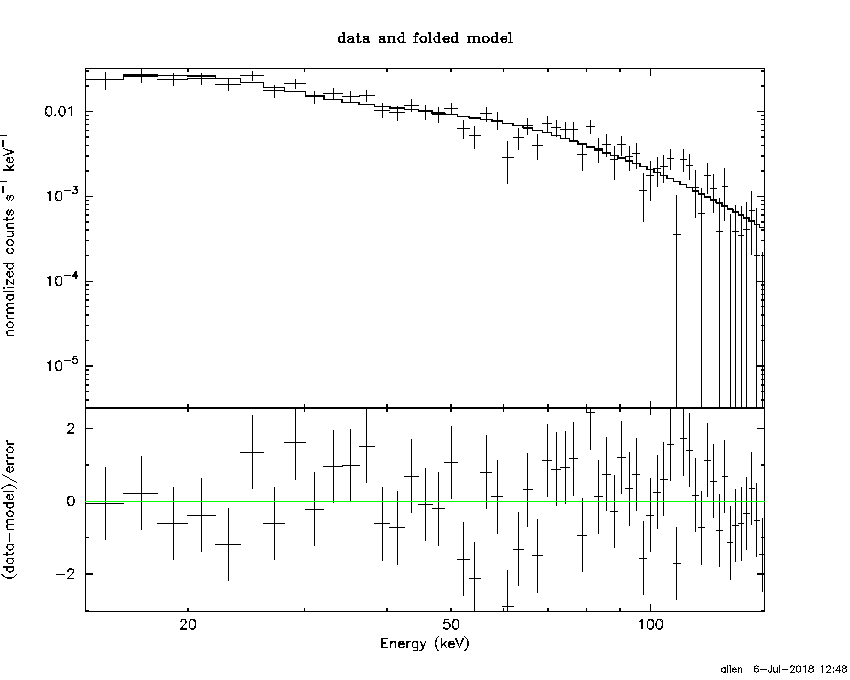

Cutoff power-law model

Time interval is from    4.468 sec. to    5.468 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.46674     ( -0.33411   0.170602 )
Epeak [keV] : 311.824      ( -311.824 -311.824 )
Norm@50keV  : 6.73790E-02    ( -0.00930941   0.0300083 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.15 using 59 PHA bins.
# Reduced chi-squared =          1.235 for     56 degrees of freedom
# Null hypothesis probability =   1.114549e-01

Photon flux (15-150 keV)    in 1 sec: 7.69197 ( -0.42397  0.42433 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.70033e-07 ( -3.44584e-08  3.38461e-08 ) ergs/cm2

Band function

Time interval is from    4.468 sec. to    5.468 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.6154  (  )
R^2/D10^2   : 0.920583  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         183.88 using 59 PHA bins.
# Reduced chi-squared =         3.2260 for     57 degrees of freedom
# Null hypothesis probability =   2.881710e-15

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.133e-08   4.340e-09
25- 50  1.603e-07   1.200e-08
50-150  2.303e-07   2.465e-08
15-150  4.319e-07   2.640e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-39.6452      -200)
Norm        : 31.3421       (-1.58777     1.58777)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.47 using 59 PHA bins.
# Reduced chi-squared =          1.236 for     57 degrees of freedom
# Null hypothesis probability =   1.083654e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.815e-08   4.305e-09
25- 50  1.503e-07   8.300e-09
50-150  3.297e-07   1.955e-08
15-150  5.582e-07   3.525e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.30703        (-0.905308      0.970696)
R1^2/D10^2  : 7.54010        (-2.62543      4.49479)
kT2 [keV]   : 30.1810        (-4.41655      6.42369)
R2^2/D10^2  : 5.86491E-02    (-0.0276766   0.0432583)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.62 using 59 PHA bins.
# Reduced chi-squared =          1.157 for     55 degrees of freedom
# Null hypothesis probability =   1.990295e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.580e-08   1.210e-08
25- 50  1.518e-07   1.905e-08
50-150  3.499e-07   7.755e-08
15-150  5.775e-07   9.465e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72735     ( -0.0523692   0.0525757 )
Norm@50keV  : 1.39187E-02    ( -0.00038009   0.000379696 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.53 using 59 PHA bins.
# Reduced chi-squared =          1.290 for     57 degrees of freedom
# Null hypothesis probability =   6.934043e-02

Photon flux (15-150 keV)    in 44.71 sec: 1.86657 ( -0.0559547  0.056164 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.75029e-06 ( -1.61932e-07  1.622e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.53883     ( -0.212921   0.202386 )
Epeak [keV] : 126.536      ( -41.3138 -126.544 )
Norm@50keV  : 1.71519E-02    ( -0.0033232   0.00444071 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.02 using 59 PHA bins.
# Reduced chi-squared =          1.268 for     56 degrees of freedom
# Null hypothesis probability =   8.514790e-02

Photon flux (15-150 keV)    in 44.71 sec: 1.83813 ( -0.06297  0.06326 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.66431e-06 ( -1.8805e-07  1.87201e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.57e-06
S(50-100 keV) = 1.90e-06

T90 vs. Hardness ratio plot

T90                                   = 22.9479999542236 sec.
Hardness ratio (energy fluence ratio) = 1.21019

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.28228
Count Ratio (50-100 keV) / (15-25 keV) = 0.828446

Mask shadow pattern

IMX = 3.969636863810926E-01, IMY = -4.603158957568526E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-41.267400 -6.924000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2615  35.4197    4.2  11.8   99.9  -0.1868  -2.8   10.7	Her X-1
288.7651  11.0562    9.0  46.1   48.3   0.3819   1.3    6.9	GRS 1915+105
299.5425  35.2429    6.8  35.2   11.3   0.1503   1.7    3.4	Cyg X-1
308.0689  40.9620    4.7  38.0   -2.7   0.2316   2.4    2.0	Cyg X-3
326.2152  38.3768    2.6  51.3   -9.9   0.6432   4.4    3.9	Cyg X-2
276.8615  18.7872    2.2  33.7   58.0   0.6277   5.3 ------	UNKNOWN
218.3557  24.4401    2.5  36.7  162.5   0.4737   4.6 ------	UNKNOWN
234.8760  44.2814    2.6  14.1 -176.8   0.2773   4.4 ------	UNKNOWN
329.9458  47.7405    2.3  48.7  -22.1   0.6555   5.0 ------	UNKNOWN
337.8955  37.2996    2.1  59.4  -15.5   2.2743   5.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-6.924000 37.788000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2905  35.2609    5.2  12.0   99.8   0.2840   2.2    9.5	Her X-1
288.8375  10.8141    4.4  46.4   48.4   1.8040   2.6    8.2	GRS 1915+105
299.6966  35.1881   14.1  35.3   11.2   0.1514   0.8    5.3	Cyg X-1
308.1527  41.0130    8.6  38.1   -2.8  -0.2586  -1.3    4.1	Cyg X-3
326.1837  38.4076    5.1  51.3   -9.9  -0.6973  -2.3    5.2	Cyg X-2
279.8897  23.2387    0.3  31.3   49.2   9.8679  42.4 ------	UNKNOWN
173.1770  55.6115    2.5  48.6 -130.3   2.6227   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
250.732600 962.849500

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2801  35.4269   11.1  25.3 -159.0  -0.6541  -1.0   10.1	Her X-1
268.3777  -1.4405   43.1  27.2  102.5   0.2443   0.3    0.9	SW J1753.5-0127
273.8697 -14.0758    5.6  37.8   86.1   4.0280   2.1    8.3	GX 17+2
288.7874  10.9277    1.0  15.0   40.6   6.7600  11.8    1.2	GRS 1915+105
299.5682  35.1795    1.5  20.8  -52.7   4.9468   7.5    1.7	Cyg X-1
308.0835  40.9665    2.2  29.5  -57.0   4.7389   5.2    1.5	Cyg X-3
326.0490  38.4188   14.9  41.9  -45.7  -0.9646  -0.8    8.2	Cyg X-2
303.5544 -15.9586    2.6  45.6   43.9   8.8577   4.5 ------	UNKNOWN
275.0925   7.1749    0.2  16.8   93.3  30.1602  48.7 ------	UNKNOWN
219.2680  18.2631    3.6  56.5  173.7  10.7371   3.2 ------	UNKNOWN
288.6588  12.5322    2.6  13.6   37.3   2.4309   4.5 ------	UNKNOWN
326.7207  16.9660    2.6  44.2  -14.2   4.0432   4.4 ------	UNKNOWN
333.9737  13.3059    4.0  52.0  -12.4   4.2459   2.9 ------	UNKNOWN

Plot creation:
Fri Jul  6 14:36:05 EDT 2018
