Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Aug  6 18:56:00 EDT 2018
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger844015
======================================================================

  Trigger: 00844015      Segment: 000

  BAT Trigger Time: 551464937.536   [s; MET]
      Trigger Stop: 551464938.56   [s; MET]
               UTC: 2018-06-23T16:41:56.383500    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 214.511433345221   Dec: -60.2943173268399  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.68
     Image Trigger?:     NO
     Rate S/N Ratio:     21.6794833886788  [ if not an image trigger ]
     Image S/N Ratio:    7.68

  Flight Position:   [ source = BAT ]
    RA: 214.511433345221   Dec: -60.2943173268399  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 214.528304880577   Dec: -60.2682278847358  [deg; J2000]
        { 14h 18m 06.8s , -60d 16' 05.6" }
         +/- 0.869028475349914 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.252421402495833 [arcmin] (formal 1-sigma fit error)
    SNR: 37.1717198594497

  Angular difference between Flight and Ground position is 1.643841 arcmin

  Partial Coding Fraction: 0.6328125    [ including projection effects ]

  Duration
     T90: 114.879999995232 +/- 6.81986998340227
        Measured from: -37.1720000505447
                   to: 77.7079999446869     [s; relative to TRIGTIME]
     T50: 57.9679999351501 +/- 1.19814527588882
        Measured from: 4.67599999904633
                   to: 62.6439999341965     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 59.1080000400543
                   to: 60.1080000400543     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -61.8200000524521
                   to: 114.067999958992     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.807608   6.713509   5.368042   1.519563
           0.101476   0.102133   0.088507   0.071203 [error]
 Peak      0.173210   0.243054   0.220925   0.070395
           0.008414   0.009447   0.009098   0.006202 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.44e-06 2.74e-06 4.05e-06 1.28e-05 1.15e-05 2.09e-05   erg/cm2
              Error 6.43e-08 6.96e-08 9.58e-08 7.26e-07 2.38e-07 7.59e-07   erg/cm2
Peak flux Power-law 1.53e+00 1.73e+00 1.40e+00 1.89e+00 5.35e+00 6.55e+00   ph/cm2/s
              Error 1.24e-01 8.40e-02 7.18e-02 2.07e-01 2.33e-01 2.90e-01   ph/cm2/s

Fluence   Cutoff-PL 1.44e-06 2.76e-06 4.06e-06 1.24e-05 1.14e-05 2.04e-05   erg/cm2
              Error 7.42e-08 7.13e-08 1.12e-07 1.35e-06 2.79e-07 1.33e-06   erg/cm2
Peak flux Cutoff-PL 1.26e+00 8.87e-01 4.32e-01 3.60e-01 2.73e+00 2.93e+00   ph/cm2/s
              Error 1.47e-01 1.02e-01 5.75e-02 6.46e-02 2.78e-01 3.53e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.442    0.040    -      -           6.79e-03 1.38e-04   65.030 57
CPL   1.430    0.098    2581.2    0.0      6.88e-03 6.83e-04   64.980 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.305    0.076    -      -           4.48e-02 1.90e-03   51.180 57
CPL   1.224    0.205     525.6    0.0      4.89e-02 1.31e-02   50.930 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 87.168000 sec.
T50 in the 50-300 keV band: 49.792000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  175.888  -61.820  114.068
T90   114.880  -37.172   77.708
T50    57.968    4.676   62.644
Peak    1.000   59.108   60.108

Click here for the BAT GCN circular template

Special notes of this burst

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

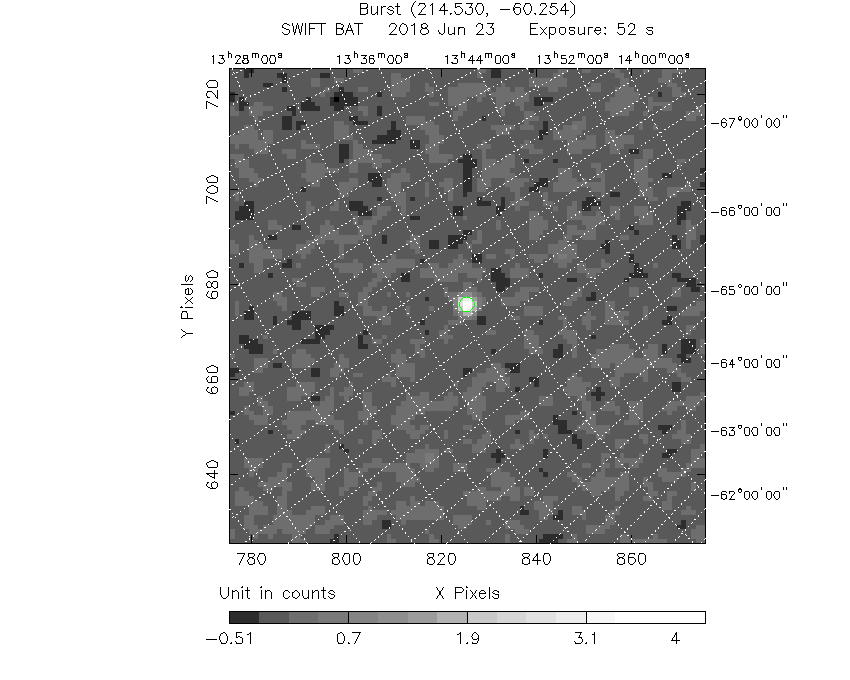

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  214.5283   -60.2682   0.0052    23.4516   -74.7558         4.6644762     37.172 TRIG_00844015

Foreground time interval of the image:
-35.635  16.165 (delta_t =  51.800 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

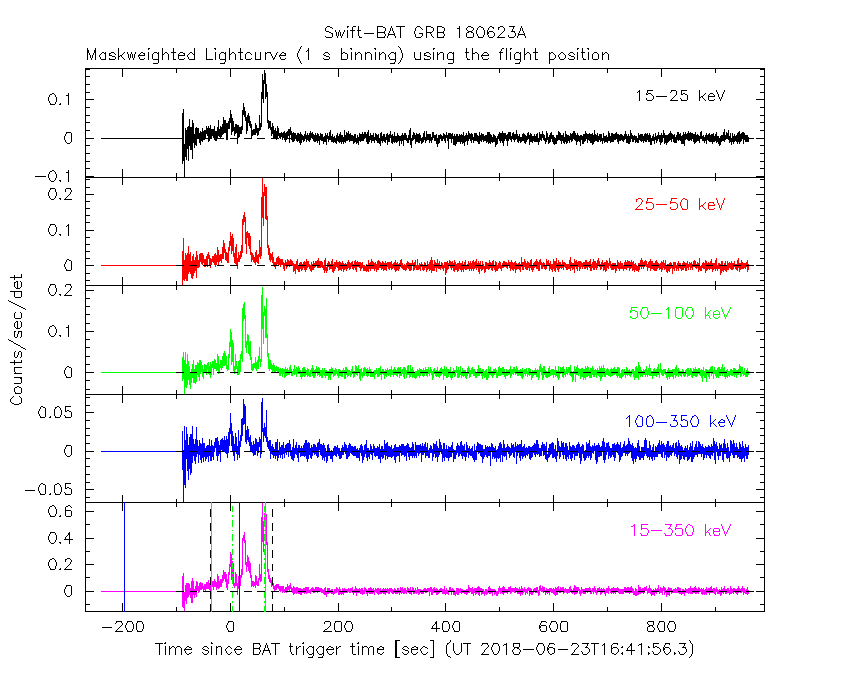

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

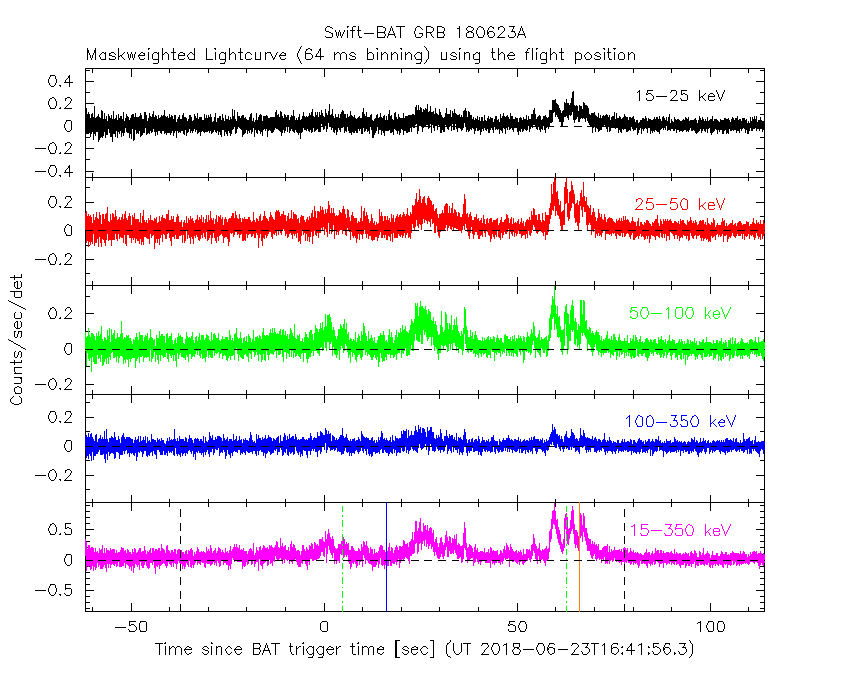

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

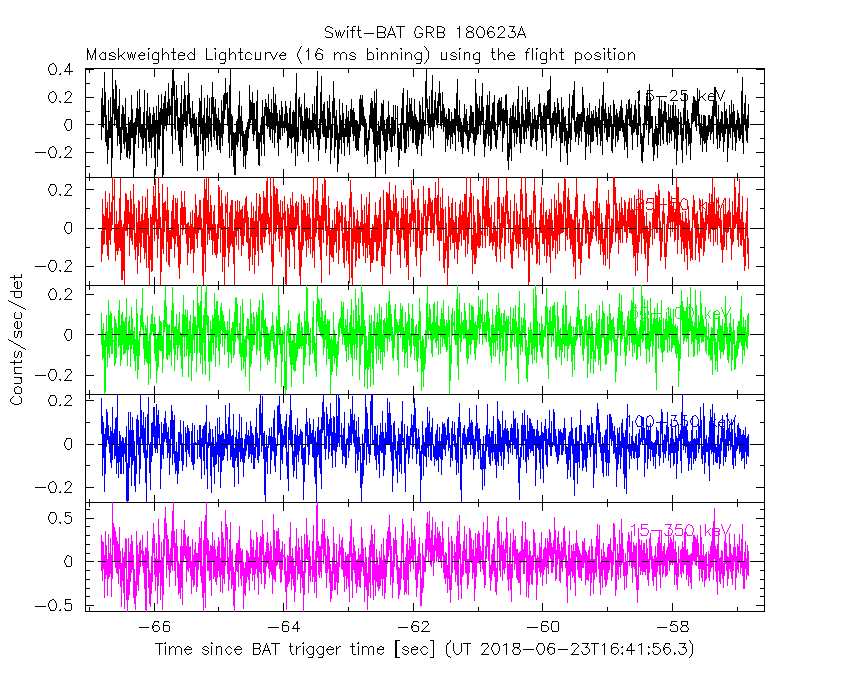

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

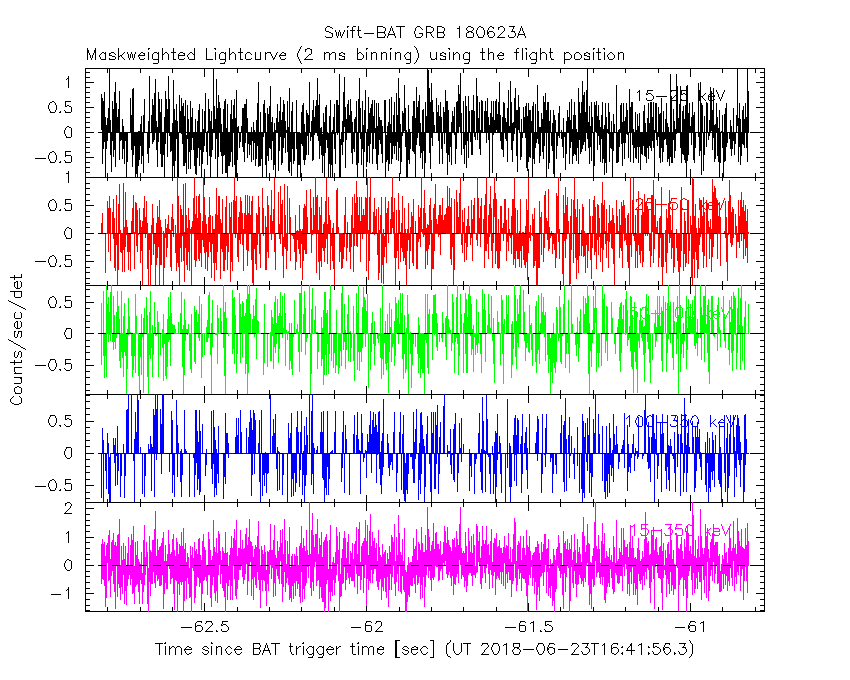

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

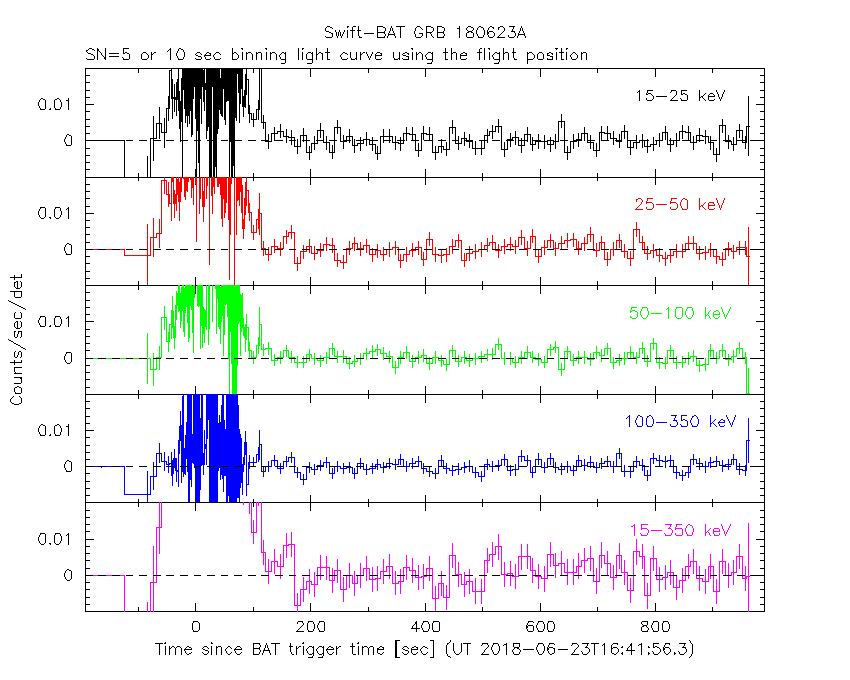

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.

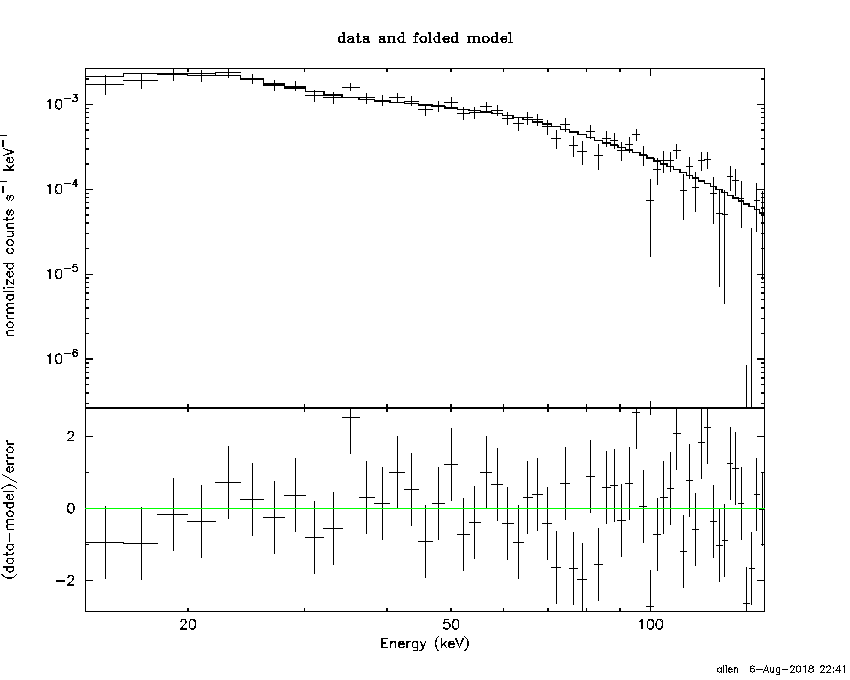

2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

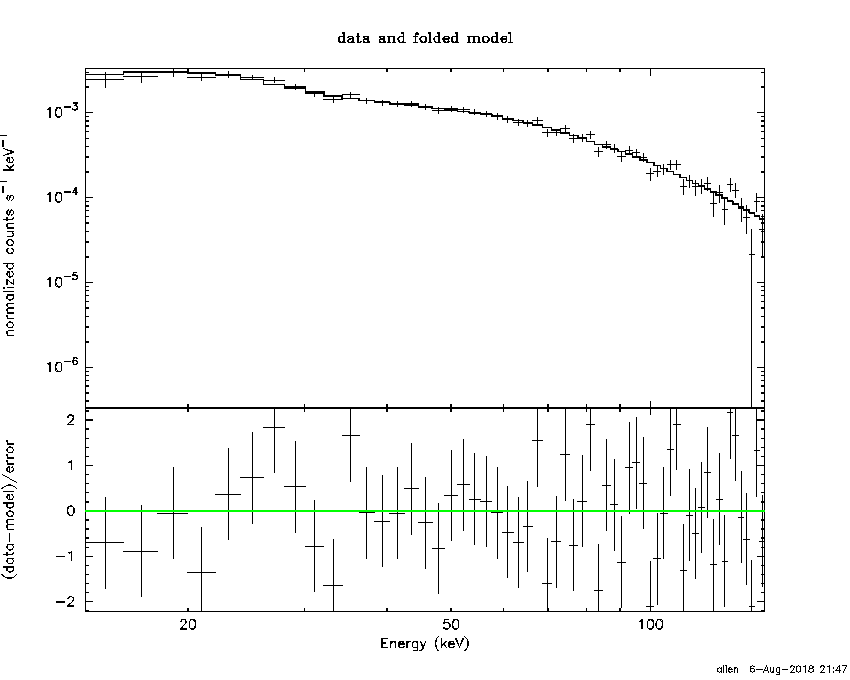

Time averaged spectrum fit using the average DRM

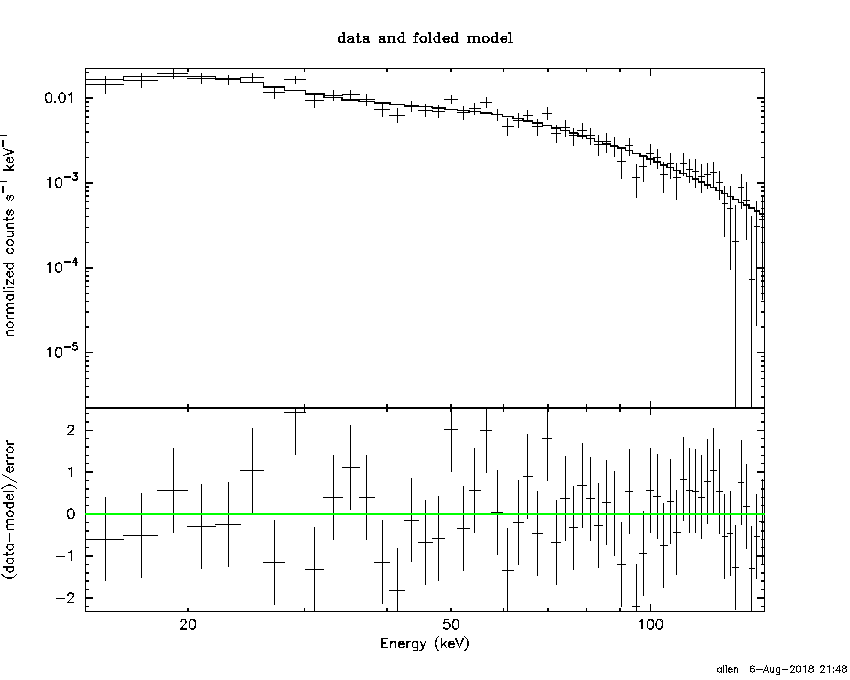

Power-law model

Time interval is from  -61.820 sec. to  114.068 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44245     ( -0.0399052   0.0398378 )
Norm@50keV  : 6.78980E-03    ( -0.000138126   0.000138061 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.03 using 59 PHA bins.
# Reduced chi-squared =          1.141 for     57 degrees of freedom
# Null hypothesis probability =   2.174588e-01

Photon flux (15-150 keV)    in 175.9 sec: 0.835212 ( -0.019635  0.019746 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.14463e-05 ( -2.38381e-07  2.386e-07 ) ergs/cm2

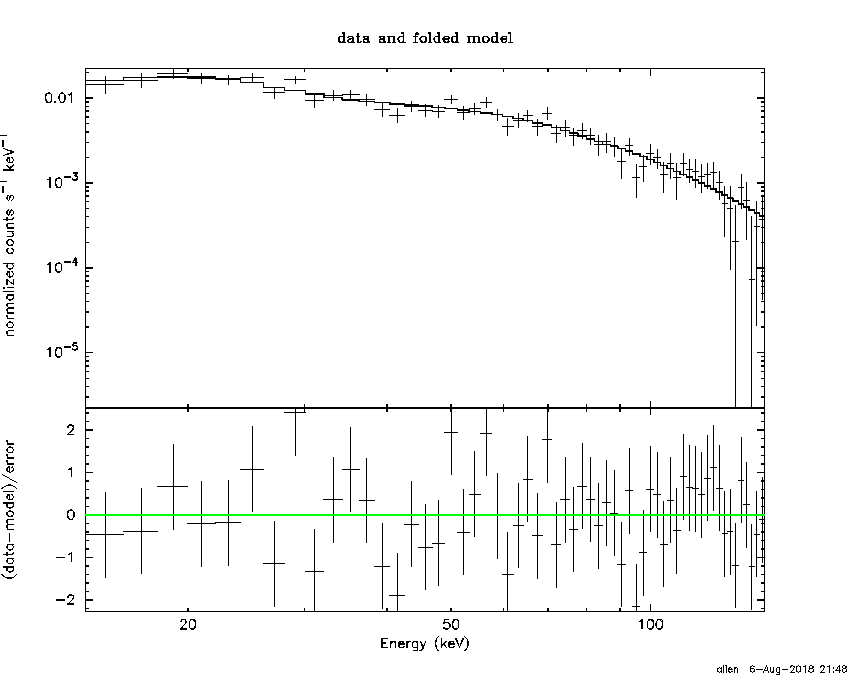

Cutoff power-law model

Time interval is from  -61.820 sec. to  114.068 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42970     ( -0.141683   0.0533473 )
Epeak [keV] : 2581.24      ( -955.673 -955.673 )
Norm@50keV  : 6.87697E-03    ( -0.00018438   0.0011823 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.98 using 59 PHA bins.
# Reduced chi-squared =          1.160 for     56 degrees of freedom
# Null hypothesis probability =   1.922547e-01

Photon flux (15-150 keV)    in 175.9 sec: 0.834059 ( -0.022275  0.020476 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.14318e-05 ( -2.86937e-07  2.71674e-07 ) ergs/cm2

Band function

Time interval is from  -61.820 sec. to  114.068 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.3643  (  )
R^2/D10^2   : 4.53627E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         584.70 using 59 PHA bins.
# Reduced chi-squared =         10.258 for     57 degrees of freedom
# Null hypothesis probability =   1.351051e-88

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.353e-07   2.304e-08
25- 50  2.512e-06   7.740e-08
50-150  6.181e-06   2.164e-07
15-150  9.229e-06   2.172e-07

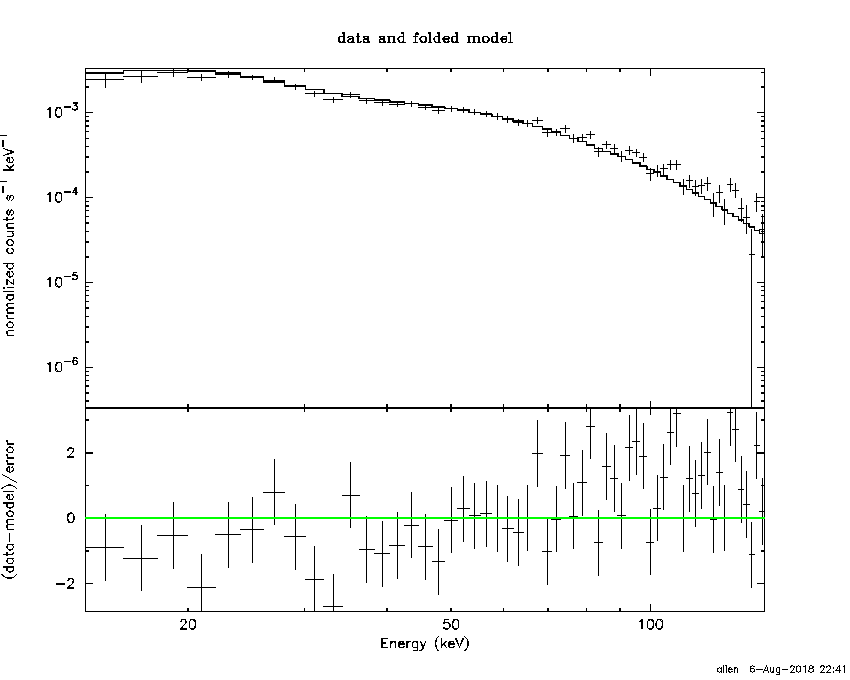

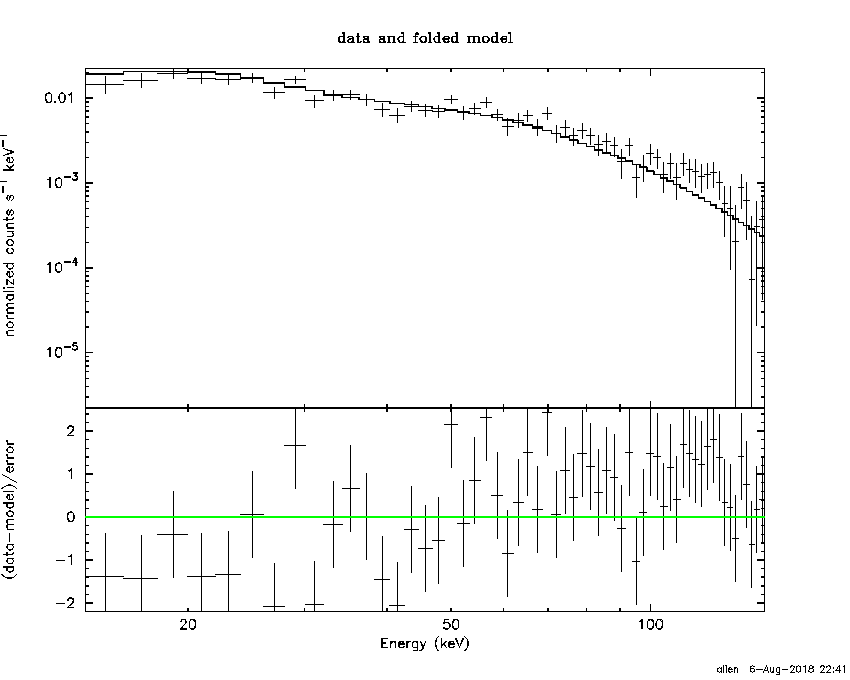

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 3.48243       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         115.85 using 59 PHA bins.
# Reduced chi-squared =         2.0324 for     57 degrees of freedom
# Null hypothesis probability =   6.796451e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.525e-06   3.641e-08
25- 50  2.934e-06   6.772e-08
50-150  6.435e-06   1.557e-07
15-150  1.089e-05   2.542e-07

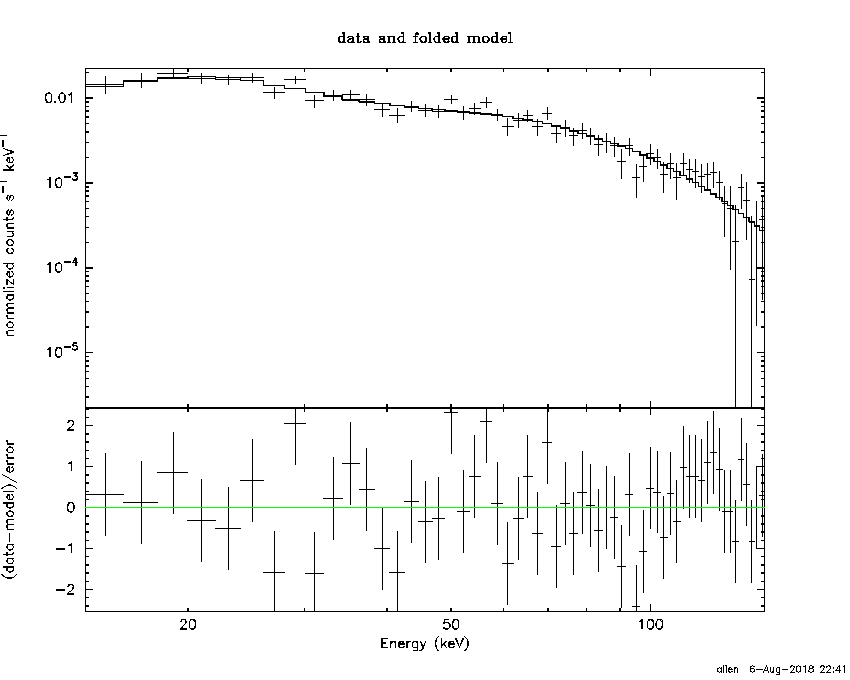

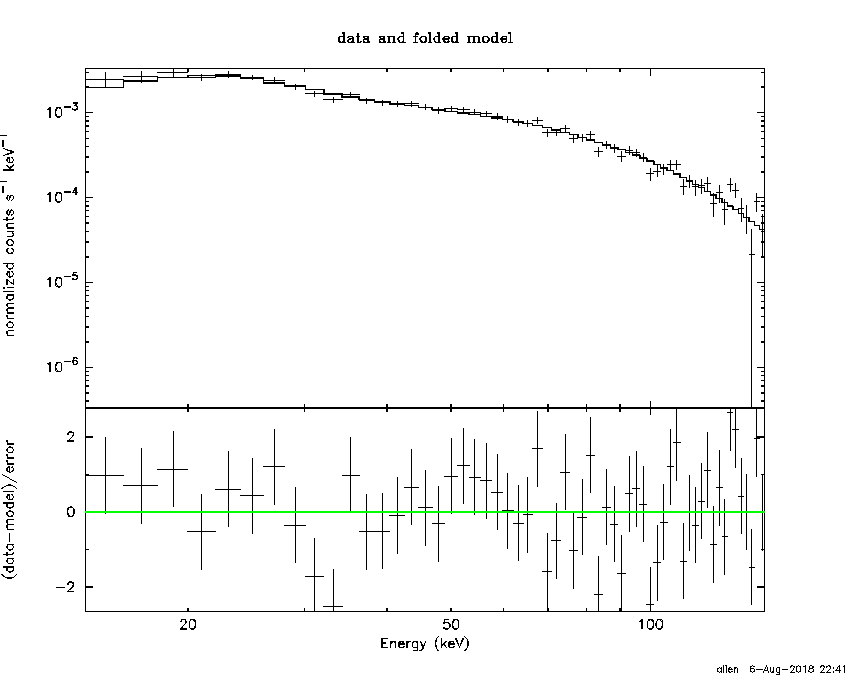

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.71772        (-0.603396      0.644532)
R1^2/D10^2  : 0.593362        (-0.142888      0.199819)
kT2 [keV]   : 30.9104        (-2.32604      2.91643)
R2^2/D10^2  : 6.37834E-03    (-0.00168407   0.00200479)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.93 using 59 PHA bins.
# Reduced chi-squared =          1.362 for     55 degrees of freedom
# Null hypothesis probability =   3.822081e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.258e-06   8.839e-08
25- 50  2.824e-06   1.117e-07
50-150  7.271e-06   3.342e-07
15-150  1.135e-05   3.958e-07

Peak spectrum fit

Power-law model

Time interval is from   59.108 sec. to   60.108 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.30451     ( -0.0763573   0.0764594 )
Norm@50keV  : 4.48258E-02    ( -0.00190236   0.00190136 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.18 using 59 PHA bins.
# Reduced chi-squared =         0.8978 for     57 degrees of freedom
# Null hypothesis probability =   6.922703e-01

Photon flux (15-150 keV)    in 1 sec: 5.35237 ( -0.23333  0.23365 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.42527e-07 ( -2.10441e-08  2.11227e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   59.108 sec. to   60.108 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22433     ( -0.291573   0.117653 )
Epeak [keV] : 525.588      ( -525.835 -525.835 )
Norm@50keV  : 4.89027E-02    ( -0.0086197   0.017565 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.93 using 59 PHA bins.
# Reduced chi-squared =         0.9095 for     56 degrees of freedom
# Null hypothesis probability =   6.665418e-01

Photon flux (15-150 keV)    in 1 sec: 2.72611 ( -0.31749  0.23766 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.40372e-07 ( -2.24165e-08  2.21262e-08 ) ergs/cm2

Band function

Time interval is from   59.108 sec. to   60.108 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0595  (  )
R^2/D10^2   : 0.331873  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         181.07 using 59 PHA bins.
# Reduced chi-squared =         3.1767 for     57 degrees of freedom
# Null hypothesis probability =   7.739126e-15

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.165e-08   1.920e-09
25- 50  1.004e-07   6.190e-09
50-150  2.378e-07   1.965e-08
15-150  3.598e-07   1.955e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-8.19394      -200)
Norm        : 22.1193       (-0.945291     0.945291)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.00 using 59 PHA bins.
# Reduced chi-squared =          1.456 for     57 degrees of freedom
# Null hypothesis probability =   1.388669e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.509e-08   2.650e-09
25- 50  1.060e-07   4.850e-09
50-150  2.324e-07   1.165e-08
15-150  3.935e-07   1.940e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.90846        (-1.07218      1.28263)
R1^2/D10^2  : 5.04667        (-2.16141      4.15119)
kT2 [keV]   : 29.0990        (-3.60037      5.45148)
R2^2/D10^2  : 5.78320E-02    (-0.0252897   0.0334422)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.69 using 59 PHA bins.
# Reduced chi-squared =         0.9762 for     55 degrees of freedom
# Null hypothesis probability =   5.247296e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.597e-08   8.695e-09
25- 50  9.847e-08   1.059e-08
50-150  2.956e-07   3.735e-08
15-150  4.400e-07   4.890e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36247     ( -0.0725863   0.0723045 )
Norm@50keV  : 5.80253E-03    ( -0.00022707   0.000227069 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.88 using 59 PHA bins.
# Reduced chi-squared =          1.349 for     57 degrees of freedom
# Null hypothesis probability =   4.073379e-02

Photon flux (15-150 keV)    in 51.8 sec: 0.700855 ( -0.0293517  0.0294194 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9275e-06 ( -1.23707e-07  1.24027e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26059     ( -0.280788   0.144956 )
Epeak [keV] : 392.529      ( -392.536 -392.536 )
Norm@50keV  : 6.47825E-03    ( -0.000860176   0.00221972 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.46 using 59 PHA bins.
# Reduced chi-squared =          1.365 for     56 degrees of freedom
# Null hypothesis probability =   3.596610e-02

Photon flux (15-150 keV)    in 51.8 sec: 0.696578 ( -0.031241  0.031271 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.90872e-06 ( -1.35234e-07  1.34136e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.74e-06
S(50-100 keV) = 4.05e-06

T90 vs. Hardness ratio plot

T90                                   = 114.879999995232 sec.
Hardness ratio (energy fluence ratio) = 1.4781

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39643
Count Ratio (50-100 keV) / (15-25 keV) = 1.11657

Mask shadow pattern

IMX = 1.140624047034001E-01, IMY = 4.185433300692041E-01

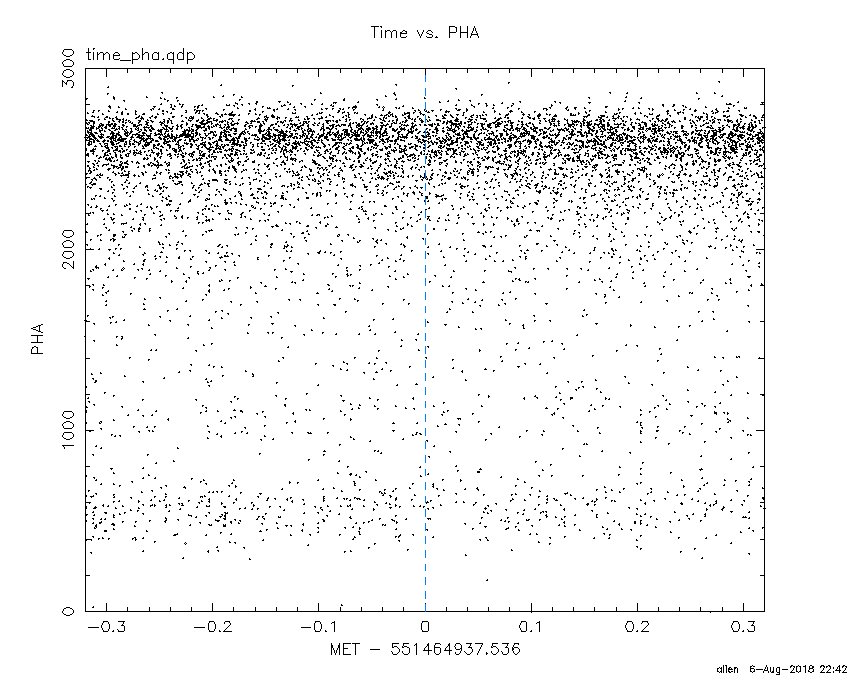

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

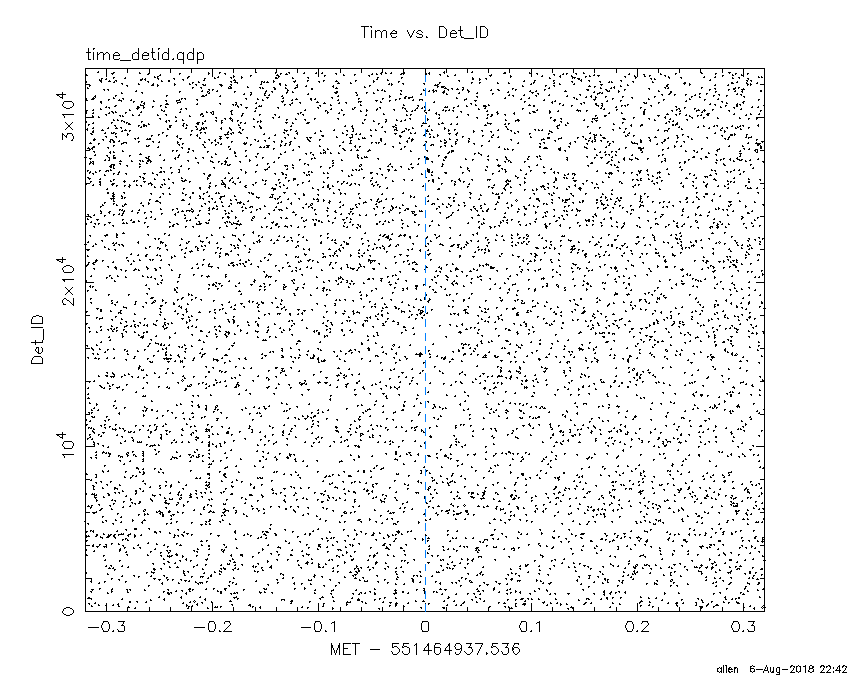

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

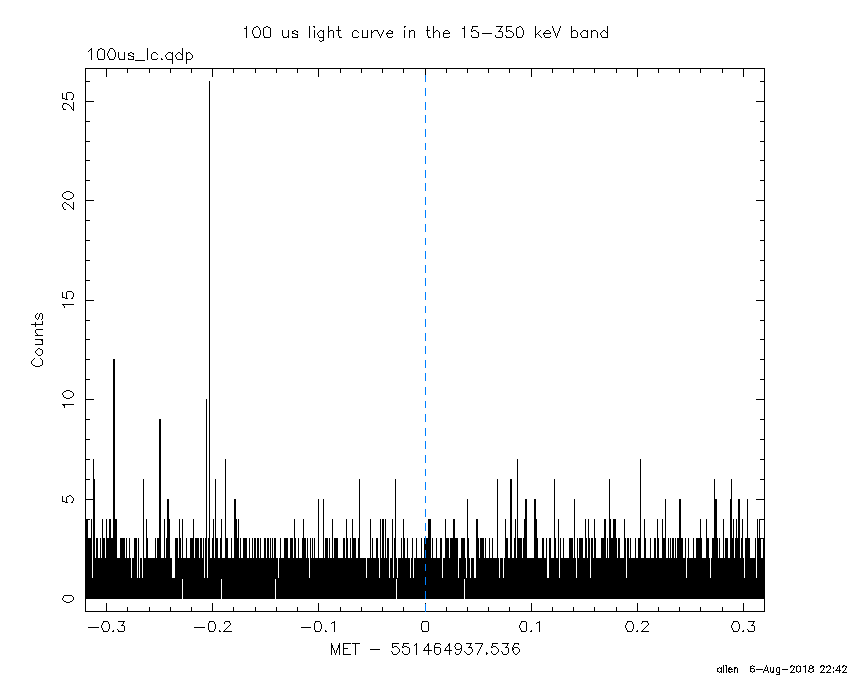

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

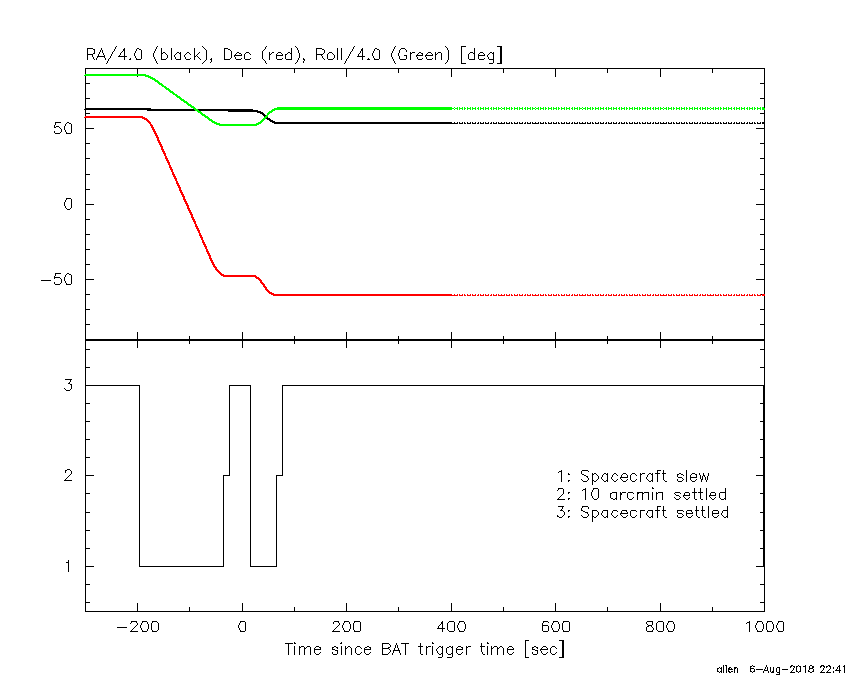

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-35.635400 16.164600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
187.0051 -62.8614    0.0  36.7  -76.7   0.7740   3.3   11.0	GX 301-2
244.9679 -15.6537    0.7  31.8   54.9   2.6531  16.1    1.0	Sco X-1
255.8956 -37.9764    4.7  10.8   94.3  -0.2520  -2.4    9.0	4U 1700-377
256.6592 -36.3749    6.0  12.5   93.4   0.2114   1.9   11.2	GX 349+2
262.8133 -24.8395    0.0  25.2   93.2   0.2488   1.7   12.1	GX 1+4
264.7577 -44.6085   49.4  11.6  143.8   0.0218   0.2    9.5	4U 1735-44
270.2990 -25.1008    8.3  28.2  106.9   0.2152   1.4    1.5	GX 5-1
270.2851 -25.6368    4.3  27.7  107.4   0.4042   2.8    6.4	GRS 1758-258
274.1447 -13.9624    4.8  39.6  102.5  -0.8999  -2.4    9.2	GX 17+2
276.0411 -30.2693   38.9  27.2  122.4   0.0399   0.3    8.4	H1820-303
284.8911 -24.8681   11.3  36.5  126.2  -0.2335  -1.0    8.5	HT1900.1-2455
262.9686 -33.8117    4.2  17.4  105.5   0.3219   2.7    1.7	GX 354-0
286.1046 -18.2276    2.8  42.3  120.8   1.6141   4.1 ------	UNKNOWN
231.4273  -0.1845    2.7  49.4   38.6   2.0516   4.3 ------	UNKNOWN
280.6358 -64.2066    2.3  24.3 -153.1   0.5237   5.1 ------	UNKNOWN
338.6738 -57.6440    2.4  51.7 -161.7   1.3813   4.9 ------	UNKNOWN
214.5283 -60.2682    0.3  23.5  -74.8   4.6645  37.2 ------	UNKNOWN
177.7895 -53.2214    3.3  43.7  -63.9   1.4737   3.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
66.164600 962.534800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3406 -60.5544    2.2  21.4  -93.6   4.1442   5.3    4.2	Cen X-3
187.0236 -62.6468    0.0  13.3  -95.7   0.5987   0.9   12.5	GX 301-2
256.2339 -37.8125    0.0  34.4   84.9  -1.8183  -1.2   11.9	4U 1700-377
256.3032 -36.3583    8.7  35.6   83.5  -2.2285  -1.3    7.5	GX 349+2
264.7072 -44.5316    4.2  33.3  101.4   3.6038   2.7    5.1	4U 1735-44
222.3826  -7.9096    3.0  52.7   26.3  11.8445   3.9 ------	UNKNOWN
214.5855 -60.2512    2.1   0.0   48.8   3.5104   5.5 ------	UNKNOWN
215.4057 -62.7291    1.5   2.5 -172.3   4.9156   7.7 ------	UNKNOWN
 27.4869 -73.7675    2.9  45.9 -166.2   4.9650   3.9 ------	UNKNOWN
191.5644 -11.0009    4.3  52.1  -12.5   4.3698   2.7 ------	UNKNOWN
180.5637 -22.0299    3.9  45.0  -30.6   3.4727   3.0 ------	UNKNOWN
121.9862 -71.6881    2.9  35.2 -130.4   4.5538   4.1 ------	UNKNOWN
 46.2485 -62.9454    3.7  56.5 -157.1  14.0326   3.1 ------	UNKNOWN
171.8092 -19.5596    4.4  50.7  -39.3   8.4567   2.7 ------	UNKNOWN
 98.9227 -62.2763    3.9  48.0 -129.1  12.9514   3.0 ------	UNKNOWN
 96.7960 -62.4247    3.5  48.5 -130.3  14.3692   3.3 ------	UNKNOWN
 91.6245 -62.6026    3.3  49.7 -133.0  15.7278   3.5 ------	UNKNOWN

Plot creation:
Mon Aug  6 22:42:14 EDT 2018
