TDRSS lightcurve for Trigger=846299
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 05 Jul 18 15:42:36 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 846299, Seg_Num: 0
GRB_RA: 212.594d {+14h 10m 23s} (J2000),
212.843d {+14h 11m 22s} (current),
211.924d {+14h 07m 42s} (1950)
GRB_DEC: -11.630d {-11d 37' 48"} (J2000),
-11.717d {-11d 43' 01"} (current),
-11.395d {-11d 23' 41"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1229 [image_cnts]
TRIGGER_DUR: 72.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 18304 TJD; 186 DOY; 18/07/05
GRB_TIME: 56474.78 SOD {15:41:14.78} UT
GRB_PHI: -3.30 [deg]
GRB_THETA: 47.55 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 7.79 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 -2 +0 +0 +35 +0
SUN_POSTN: 104.75d {+06h 58m 59s} +22.74d {+22d 44' 38"}
SUN_DIST: 111.04 [deg] Sun_angle= -7.2 [hr] (East of Sun)
MOON_POSTN: 6.86d {+00h 27m 25s} -2.06d {-02d 03' 24"}
MOON_DIST: 150.73 [deg]
MOON_ILLUM: 57 [%]
GAL_COORDS: 331.80, 46.77 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 214.36, 1.43 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 132.75,-13.82 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 05 Jul 18 15:58:41 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 846299, Seg_Num: 0
GRB_RA: 212.594d {+14h 10m 23s} (J2000),
212.843d {+14h 11m 22s} (current),
211.924d {+14h 07m 42s} (1950)
GRB_DEC: -11.630d {-11d 37' 48"} (J2000),
-11.717d {-11d 43' 01"} (current),
-11.395d {-11d 23' 41"} (1950)
GRB_DATE: 18304 TJD; 186 DOY; 18/07/05
GRB_TIME: 56474.78 SOD {15:41:14.78} UT
TRIGGER_INDEX: 20000
GRB_PHI: -3.30 [deg]
GRB_THETA: 47.55 [deg]
DELTA_TIME: 0.00 [sec]
TRIGGER_DUR: 72.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 7.79 [sigma]
LC_URL: sw00846299000msb.lc
GCN template for BAT paragraph
Click here!
At 15:41:14 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 180705 ***A*** (trigger=846299). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 212.594, -11.630 which is
RA(J2000) = 14h 10m 23s
Dec(J2000) = -11d 37' 48"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~6491 counts/sec (15-350 keV), at ~4 sec after the trigger.
Test version of draft template

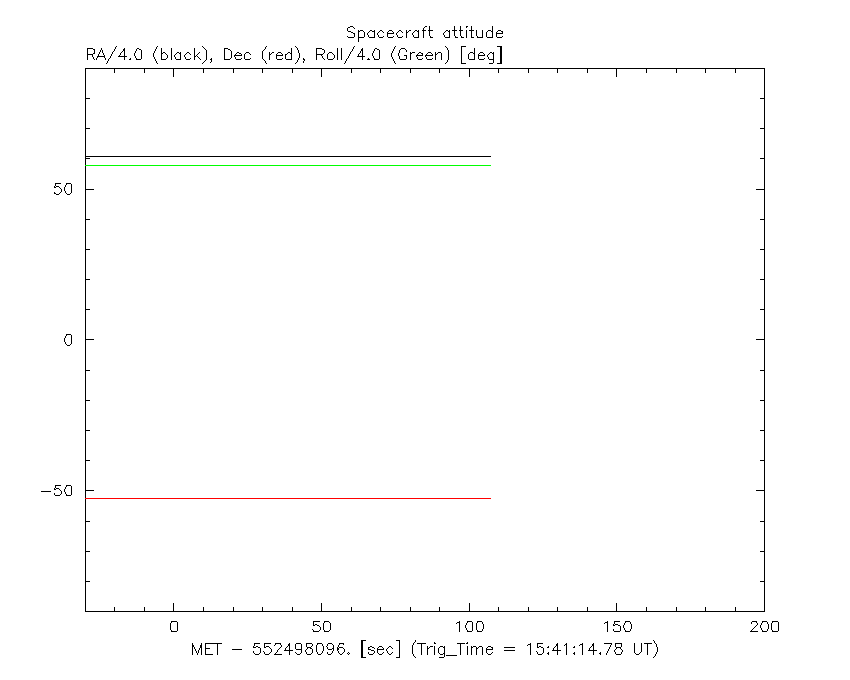

Initial TDRSS lightcurve and spacecraft attitude plot

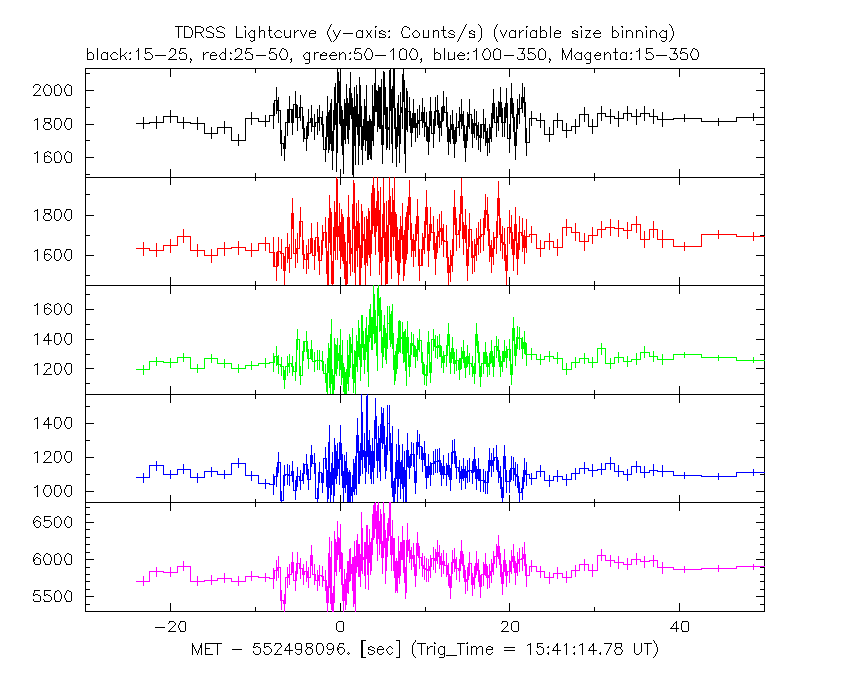

TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)

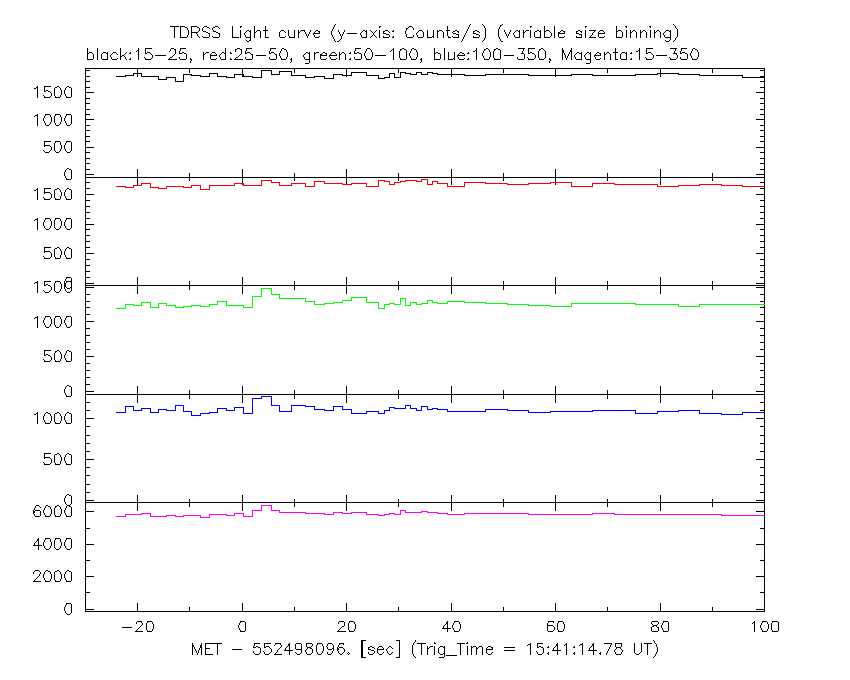

1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves
Extended TDRSS light curve and spacecraft attitude plot(s)

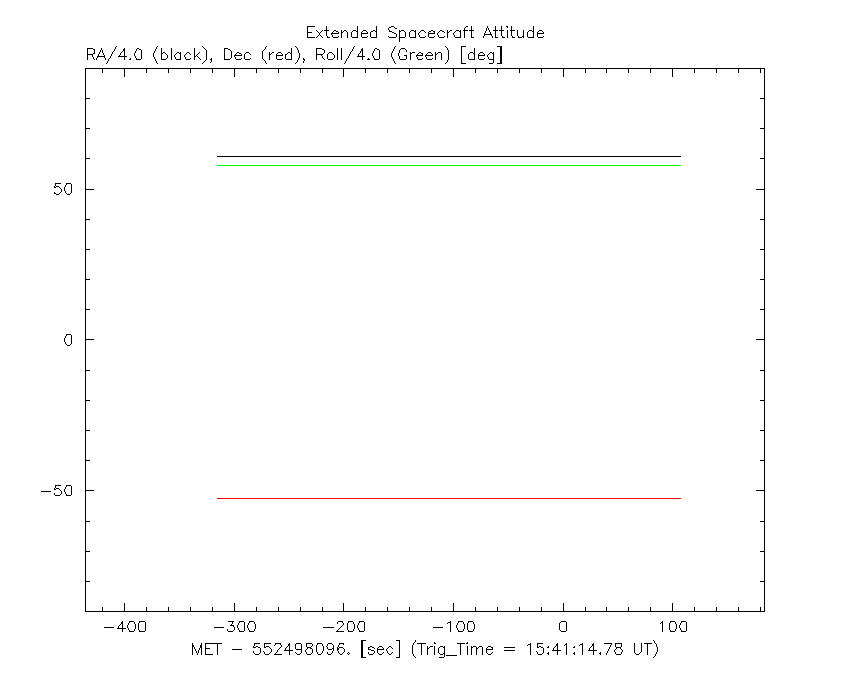

Extended TDRSS lc No.1

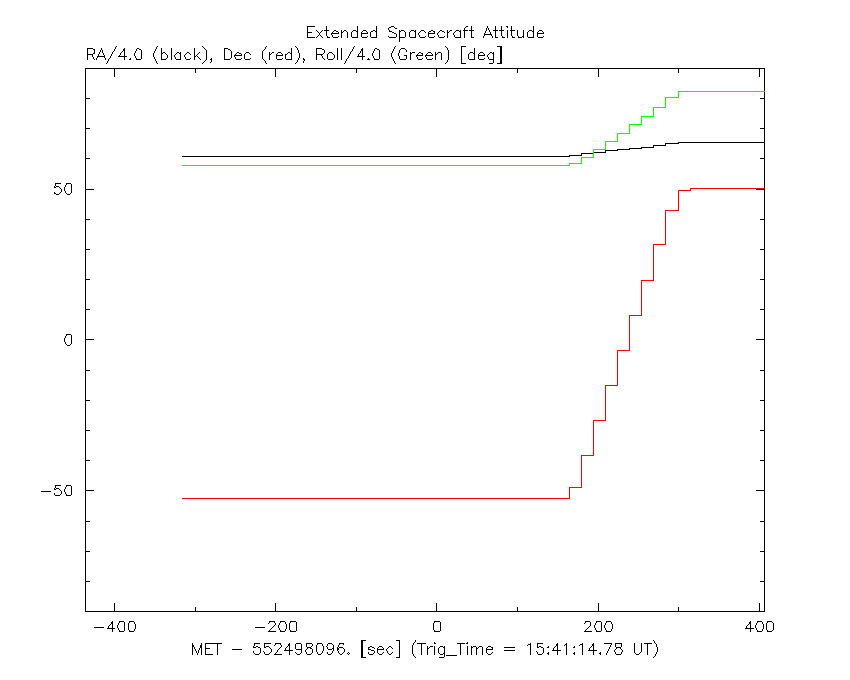

Extended TDRSS lc No.2

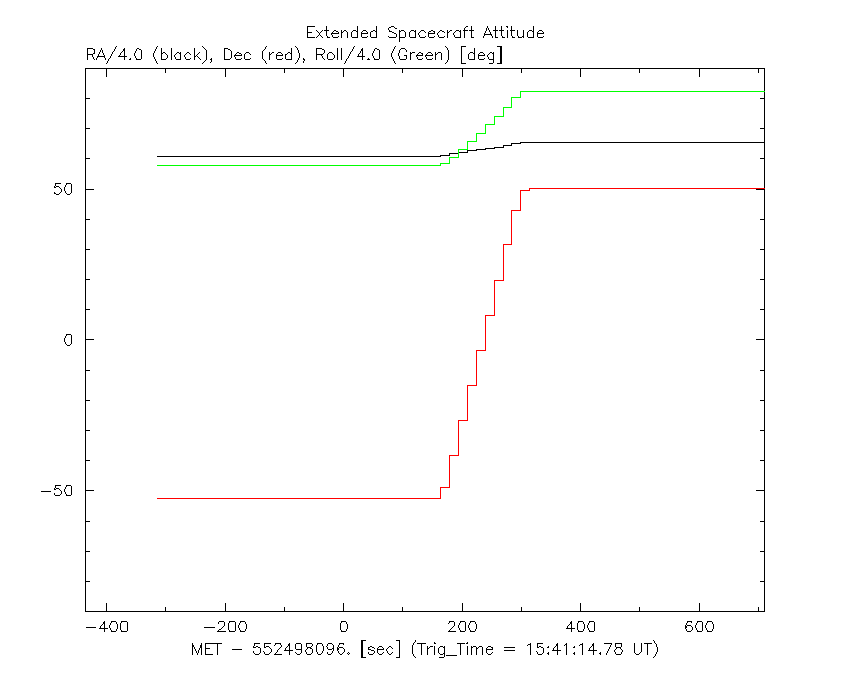

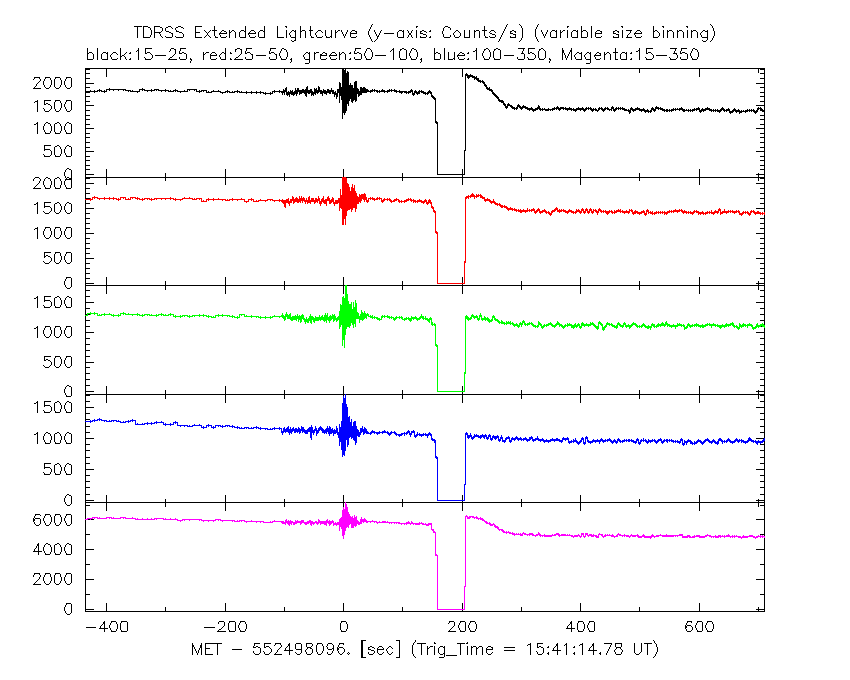

Extended TDRSS lc No.3

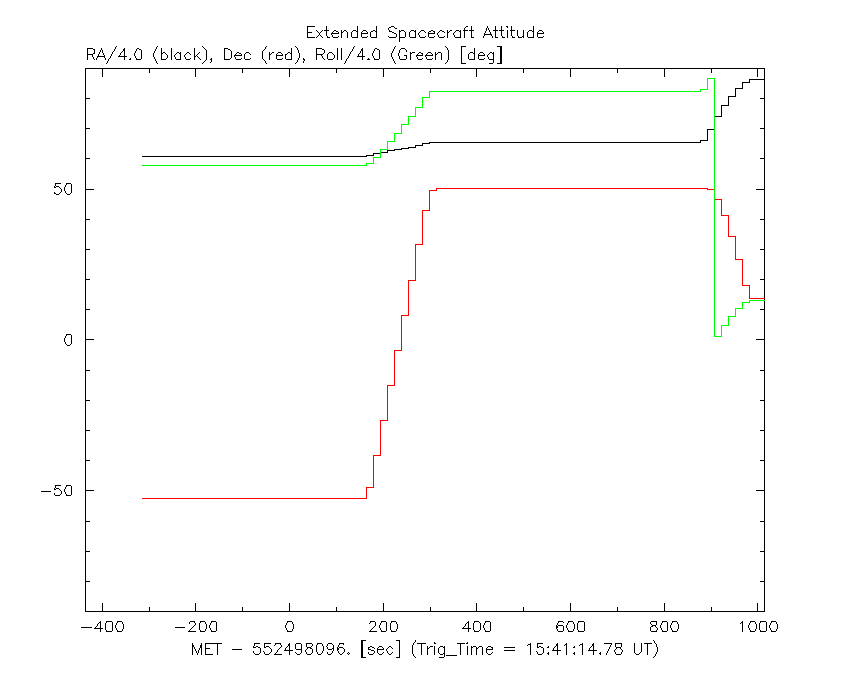

Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 123.904 s +/- 2.98545 s
Estimated T50 duration: 65.536 s +/- 4.096 s
Estimated Peak Interval: MET 552498243.00799990 +/- 0.500000 s
Estimated background rate 1: 5783.401 near MET 552498085.248000 s
Estimated background rate 2: 0.000 near MET 552498269.632000 s
Estimated total duration: 158.848 s (for data selection)
(from MET 552498098.496000 to MET 552498257.344000)
Estimated total fluence: 440178.118230 count
Created GTI with 7 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 212.594 -11.630 0.083
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 289.772517 57.198358
Obj: 2018 7 5 15 241.811303 -46.462450
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 260.403636 30.163942
Obj: 2018 7 5 15 192.295183 -69.645862
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 258.538552 25.505895
Obj: 2018 7 5 15 175.644368 -68.324922
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 240.582979 -11.306568
Obj: 2018 7 5 15 95.650574 -50.554782
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 304.687866 -76.062792
Obj: 2018 7 5 15 82.807269 10.841082
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 175.388670 -32.732735
Obj: 2018 7 5 15 67.363367 11.042930
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 81.193969 66.335648
Obj: 2018 7 5 15 283.782272 0.651003
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2018 7 5 15 209.818688 30.613061
Obj: 2018 7 5 15 307.782868 -30.221599
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger846299/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
